All LLM activations, including attention, can use block floating point without meaningful accuracy loss—cutting the KV cache to ~31% and enabling faster, more efficient inference accelerators.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-03 04:31 UTC pith:BL5OZJSC

load-bearing objection A credible BFP-everywhere accelerator with honest RTL details, but the KV bit-allocation premise and the unverified full-precision baselines keep the headline numbers from being fully convincing. the 4 major comments →

arxiv 2602.04595 v3 pith:BL5OZJSC submitted 2026-02-04 cs.AR

Harmonia: Algorithm-Hardware Co-Design for Memory- and Compute-Efficient BFP-based LLM Inference

Xinyu Wang , Jieyu Li , Yanan Sun , Weifeng He This is my paper
classification cs.AR
keywords block floating pointKV cache compressionLLM inferenceattention layersasymmetric bit allocationoutlier smoothinghardware co-designactivation quantization
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Harmonia is an algorithm-hardware co-design that tries to make every activation in an LLM—including the attention mechanism's keys, values, and scores—use block floating point (BFP) instead of FP16. Prior BFP accelerators stopped at linear layers because attention suffered accuracy loss; Harmonia argues that with a group size of 32 and 8-bit mantissas, all-layer BFP is safe, and that the KV cache can be pushed to 4-bit mantissas for most tokens without meaningful degradation. Two algorithmic tricks carry the argument: an asymmetric bit allocation that keeps 8-bit mantissas for the first 32 and most recent 64 tokens, and a hybrid offline-online outlier smoother that prevents a few large key channels from wrecking the shared exponent. On LongBench, the accuracy loss averages about 0.3% against a weight-only-quantized baseline, while the KV cache shrinks to 31.25% of its FP16 size. The companion hardware—a reconfigurable PE array, a real-time FP16-to-BFP converter, and a tiling-aware dataflow—turns that compression into reported average gains of 3.84x area efficiency, 2.03x energy efficiency, and 3.08x speedup over prior accelerators.

Core claim

The paper's central discovery is that block floating point (BFP)—where a group of values shares one exponent and each value keeps a mantissa—can be extended from linear layers to the entire Transformer, including attention, without the accuracy collapse earlier designs assumed was unavoidable. With a group size of 32, an 8-bit mantissa for all non-KV activations, and an asymmetric KV-cache allocation that gives 8-bit mantissas only to the first 32 and most recent 64 tokens while the rest receive 4 bits, Harmonia reports an average accuracy drop of about 0.3% on LongBench across five instruction-tuned models, and near-lossless perplexity on WikiText2 at 8-bit KV precision. The KV cache is the

What carries the argument

The central object is block floating point (BFP): a number format in which a group of values (here, group size 32) shares a single 5-bit exponent, and each value stores only its mantissa, so the multiply-accumulate work becomes integer arithmetic with no per-element exponent alignment. Three mechanisms carry the argument. First, an asymmetric bit-allocation strategy assigns 8-bit mantissas to the KV-cache tokens that attention scores show matter most—the first 32 and most recent 64 tokens—and 4-bit mantissas to everything else, cutting KV-cache storage to 31.25% of FP16. Second, a hybrid offline-online outlier smoother suppresses channel-wise outliers in K: per-channel scaling factors are le

Load-bearing premise

The whole accuracy story rests on the assumption that the KV-cache tokens that need 8-bit mantissas are always the first 32 and most recent 64 tokens—a pattern observed in short 20-token attention measurements and then applied to 4K-token contexts and all eight evaluated models.

What would settle it

Run Harmonia's KV-cache compression on a long-context retrieval task where a key fact is deliberately placed in the middle of a 4K-token document (e.g., a needle-in-a-haystack test with the needle at position 2000). If the 4-bit region causes accuracy to drop comparably to uniformly quantized 4-bit KV, or by more than the reported ~0.3%, the asymmetric allocation premise is falsified for that workload.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Attention layers no longer need FP16 storage or FP-FP arithmetic: the same integer-style MAC units serve both linear and attention layers, so hardware utilization stays high across short- and long-context workloads.
  • KV-cache memory traffic, the dominant bottleneck in decode, drops to 31.25% of FP16 size, directly relieving the memory-bandwidth pressure that limits generation throughput.
  • The conversion is fully online and requires no retraining: only the per-channel smoothing factors need calibration, so the approach applies to already-deployed weight-only quantized models.
  • BFP-based KV compression is orthogonal to eviction and sliding-window cache techniques, so it can combine with those methods for further memory reduction.
  • If the asymmetric allocation holds generally, aggressive 4-bit KV-cache compression becomes practical on the majority of tokens, not just a research curiosity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The asymmetric allocation's premise—that attention always concentrates on the first 32 and last 64 tokens—is drawn from 20-token attention measurements on one model family; a natural extension would be to measure attention concentration on longer, non-conversational retrieval documents and, if needed, make the 8-bit region dynamic rather than fixed.
  • The paper reports prefill-focused hardware gains; because decode is even more KV-cache-bound, one testable extension is to measure Harmonia's speedup and energy specifically in the decode stage, where the 31.25% cache reduction should produce outsized benefits.
  • The group size of 32 and the 8/4-bit split are chosen empirically rather than derived from an error bound; a tighter analytical link between KV-cache mantissa width and attention-score error could predict when 4-bit is safe and when a 5- or 6-bit fallback is needed.
  • The same BFP-plus-asymmetric-allocation recipe could be tried on other shared-exponent formats, such as microscaling, or on multimodal attention patterns where the initial/local concentration assumption may not hold.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes Harmonia, an algorithm-hardware co-design framework that applies block floating point (BFP) to all LLM activations, including those in attention layers, with the KV cache compressed to 4-bit mantissas via an asymmetric bit-allocation scheme and an offline-online outlier-smoothing method. The authors evaluate accuracy on WikiText2 and LongBench across eight LLMs, and hardware efficiency using an RTL implementation of Harmonia synthesized at 28nm plus re-implemented baselines in a cycle-accurate simulator. The central claims are that the KV cache can be reduced to 31.25% of its original size with an average LongBench accuracy loss of only 0.3% relative to a weight-only-quantized baseline, and that the proposed architecture achieves 3.84x higher area efficiency, 2.03x better energy efficiency, and 3.08x speedup on average over prior accelerators.

Significance. If the results hold, this is a significant contribution to architecture-aware LLM inference: it extends BFP beyond linear layers into attention, aggressively compresses the KV cache, and backs the proposal with a full RTL-level implementation and synthesis. The paper's strengths include held-out LongBench evaluation, ablation of the proposed algorithmic components, a reconfigurable PE design that is clearly described, and hardware results from actual synthesis rather than an abstract cost model. However, the accuracy claims rest on the validity of the asymmetric KV-cache bit allocation, and the hardware claims rest on re-implemented baselines and an author-built simulator, with no artifacts or code released. The paper is promising but needs additional evidence and methodological tightening before it can be accepted.

major comments (4)
  1. [§III-B, Fig. 8, Table III] The asymmetric KV-cache allocation (8-bit mantissas for the first 32 and last 64 tokens, 4-bit elsewhere) is justified by attention-score evidence from only 128 length-20 sentences of Llama-3.1-8B (Fig. 8). This is a weak basis for applying the same fixed allocation to all eight models and to 4K-token LongBench contexts. The task-level results in Table III already show a consistent penalty on retrieval-heavy tasks: on multifieldqa, Harmonia is below Omniquant in all five models (e.g., 47.61 vs 48.95 for Llama-3.1-8B; 44.87 vs 46.97 for Llama-3.2-3B), indicating that 4-bit middle-token compression does degrade accuracy where distributed retrieval is required. Such task-level losses are masked by the 0.3% average. Please provide longer-context attention analysis and per-task or middle-token ablations to establish that the asymmetric allocation generalizes beyond the short conversational pa
  2. [§II-C, Table II] The BFP configuration (group size 32, 8-bit mantissas, 5-bit shared exponent) is selected by observing perplexity on WikiText2 in Figs. 5-6 and then validated on the same WikiText2 benchmark in Table II. This makes the reported near-lossless PPL results partially circular: they are not an independent test of the configuration. The LongBench results are independent, but the configuration itself is selected on the same distribution that is later used for validation. Please use a calibration split, or report selection on one benchmark and validation on another, to break the circularity.
  3. [§V-A, §V-D] The hardware gains (e.g., 3.08x average speedup, 3.84x area efficiency) are computed against accelerator baselines that are 're-implemented and synthesized under the same technology node' and evaluated in a cycle-accurate simulator built on ANT and DNNWeaver. No code, netlists, or configuration details are released, so the baseline implementations cannot be independently checked. Please release the artifacts or provide validation of the simulator against published FIGNA, Anda, or M-ANT results, and itemize the design choices made in re-implementing these baselines. Without this, the hardware comparisons are not reproducible.
  4. [Table III] All LongBench numbers are reported as single runs without error bars or statistical significance. Given that some Harmonia scores exceed the Omniquant baseline by small margins (e.g., Llama-3.2-3B 44.11 vs 44.07; Llama-3.1-8B 46.74 vs 46.35), it is unclear whether the observed 0.3% average difference is meaningful or within run-to-run noise. Please report multiple runs with standard deviations, or explain why the evaluation protocol is deterministic enough that error bars are unnecessary.
minor comments (5)
  1. [§II-B] Typo: 'correspongding' should be 'corresponding'.
  2. [§III-C, Eq. (3)] The notation F(W, Convert_BFP(X); S) is not fully defined. Clarify whether S enters through the Q/K linear-layer weight rescaling, what Convert_BFP includes, and how the MSE objective is computed over calibration data.
  3. [§III-C] The online K-offset step sets each selected channel offset to 'half of' the maximum absolute value in the initial 32-token window. The choice of the factor 0.5 is not justified; please provide a derivation, an ablation, or a reference.
  4. [Abstract / Table III caption] The abstract says 'less than 1% average accuracy loss', while the body reports 0.3% relative to the weight-only quantization baseline. State clearly that the comparison baseline is Omniquant, not full precision, and consider reporting the full-precision gap as well.
  5. [Fig. 8] Please specify the exact context length, the number of heads averaged, and how 'initial-token attentive' and 'local-token attentive' are defined; the caption currently gives only 'average attention scores'.

Circularity Check

1 steps flagged

Partial circularity: BFP/KV configurations selected on WikiText2 are then validated on the same WikiText2 PPL; LongBench and hardware claims remain held out.

specific steps
  1. fitted input called prediction [Sec. II-C (Figs. 5-6) and Table II]
    "To assess the impact of different BFP configurations on model accuracy, we adopt perplexity on the WikiText2 dataset [45] as the evaluation metric... Using 8-bit mantissas keeps the accuracy degradation around 1% for most models, which we consider an acceptable loss. Therefore, all subsequent analyses and experiments adopt 8-bit mantissas for activations except those in the KV cache."

    The BFP configuration (group size 32, 8-bit mantissas; later KV 4-bit) is selected by reading WikiText2 perplexity/relative-accuracy curves in Figs. 5-6. Table II then reports WikiText2 perplexity for these exact configurations ('Harmonia BFP8 INT4 BFP8 BFP8 5.78...') as evidence that the method is near-lossless. The reported accuracy is the selection criterion itself, so Table II does not independently confirm the configuration; it restates the input. The LongBench and hardware results are held out and independent, so this is partial, not central.

full rationale

The central derivation chain is not circular. The BFP configuration and KV bit widths are selected from WikiText2 PPL curves in Sec. II-C, and the same WikiText2 PPL values reappear in Table II as evidence; this is a selection-validation loop for that table, but it is not the paper's main accuracy claim. The headline LongBench results (0.3% average drop) are on a separate benchmark not used for configuration selection, the offline scaling S is calibrated on held-out blocks with evaluation on LongBench, and all hardware numbers come from independent RTL synthesis and cycle-accurate simulation against re-implemented baselines. There are no load-bearing self-citations, imported uniqueness theorems, or ansatz-via-citation moves. The 20-token attention-pattern basis for the asymmetric KV allocation is an extrapolation concern (external validity), not circularity. Score reflects the one partial same-benchmark selection/validation.

Axiom & Free-Parameter Ledger

5 free parameters · 5 axioms · 0 invented entities

Central claims rest on several empirical tunables: BFP configuration, KV bit width, asymmetric window sizes, learned per-channel scales, and the top-k offset rule. These are chosen from data rather than derived from first principles. The hardware comparison also assumes faithful baseline re-implementations. No new physical entities are introduced.

free parameters (5)
  • BFP configuration (group size, mantissa bits, shared exponent) = group_size=32, mantissa_bits=8, shared_exponent_bits=5
    Chosen empirically after Fig. 5 to keep WikiText2 relative accuracy near 1%; no analytical derivation.
  • Asymmetric bit-allocation window sizes = initial_tokens=32, local_tokens=64
    Hand-picked from attention-score analysis on 128 length-20 sentences of Llama-3.1-8B (Fig. 8); applied unchanged to all models.
  • Per-channel K scaling factors S = C-dimensional vector learned on calibration set (Eq. 3)
    Learned by MSE minimization between full and quantized block outputs; transferability to evaluation benchmarks is assumed.
  • Online K-offset magnitude = half of max absolute value in first 32-token window; top-k channel count k not disclosed
    Empirical rule from Sec III-C; k not specified in text, so the rule is not fully specified.
  • KV cache mantissa target = 4 bits for non-window tokens
    Aggressive compression target selected from Fig. 6 and Table II/III; the reported accuracy depends on this choice.
axioms (5)
  • domain assumption Attention scores concentrate on initial and most recent tokens (attention-sink/local pattern)
    Inferred from Fig. 8 measured on 128 sentences of length 20 for Llama-3.1-8B; the whole 4-bit KV accuracy story depends on this pattern holding across models and 4K contexts.
  • domain assumption Calibration-learned scales S and online offsets transfer to evaluation benchmarks
    Eq. (3) minimizes MSE on calibration data; no distribution-shift analysis is provided.
  • standard math Softmax shift-invariance used for K-offset (subtracting a per-channel offset from K does not change attention scores)
    True mathematical property; used in Sec III-C.
  • domain assumption Hidden dimension is an integer multiple of the BFP group size (32) for all evaluated layers
    Required for per-token grouping without partial groups; holds for the tested models but is not guaranteed.
  • domain assumption Re-implemented baseline accelerators are representative and fair
    All baselines re-synthesized by the authors; no public artifacts to audit; results could be sensitive to implementation choices.

pith-pipeline@v1.3.0-alltime-deepseek · 17975 in / 17661 out tokens · 172479 ms · 2026-08-03T04:31:36.089019+00:00 · methodology

0 comments
read the original abstract

Large Language Models (LLMs) incur substantial memory and computation costs. Prior works reduce FP-INT arithmetic overhead by converting linear-layer activations to block floating point (BFP), but retain FP activations in attention layers due to accuracy concerns. We propose Harmonia, an algorithm-hardware co-design framework that enables BFP representation and computation across both linear and attention layers. Harmonia first explores BFP configurations to balance model accuracy and activation compression. It then combines asymmetric bit allocation with hybrid offline-online outlier smoothing to compress the KV cache from FP16 to 4-bit-mantissa BFP with less than 1% average accuracy loss on LongBench. To efficiently support all-layer BFP computation, Harmonia incorporates a reconfigurable PE unit for mixed data formats and precisions, a real-time FP16-to-BFP converter, and a flexible tiling-aware dataflow that reduces external memory traffic. Evaluations across eight widely used LLMs show that Harmonia achieves 3.84x higher area efficiency, 2.03x better energy efficiency, and 3.08x speedup on average, with maximum improvements of 5.05x, 3.90x, and 4.62x, respectively.

Figures

Figures reproduced from arXiv: 2602.04595 by Jieyu Li, Weifeng He, Xinyu Wang, Yanan Sun.

Figure 1
Figure 1. Figure 1: Comparison of different compute schemes: (a) customized FP-INT [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of the weight-only quantized LLM architecture. [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Illustration of (a) the FP16-to-BFP numerical conversion procedure, [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Relative accuracy of different models under various preserved mantissa [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Relative accuracy of different models under various preserved mantissa [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Average attention scores in Llama-3.1-8B over 128 sentences, each [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗

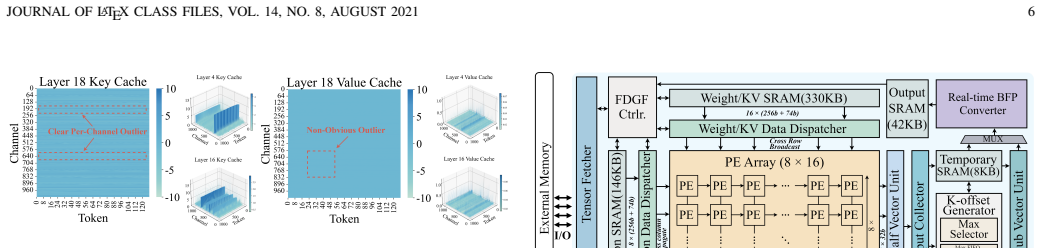

Figure 10
Figure 10. Figure 10: Magnitude distribution of values in the KV cache of Llama-3.1-8B. [PITH_FULL_IMAGE:figures/full_fig_p006_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Effect of outlier suppression using the offline-online hybrid [PITH_FULL_IMAGE:figures/full_fig_p006_11.png] view at source ↗
Figure 14
Figure 14. Figure 14: Illustration of (a) output dataflow of the PE array, (b) two data [PITH_FULL_IMAGE:figures/full_fig_p007_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Configurable output dataflows: column-first and row-first modes. [PITH_FULL_IMAGE:figures/full_fig_p008_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Area efficiency and energy efficiency comparison across accelerators in (a) linear-layer execution and (b) joint linear- and attention-layer execution. [PITH_FULL_IMAGE:figures/full_fig_p010_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: PE-level comparison of area efficiency and energy efficiency, with [PITH_FULL_IMAGE:figures/full_fig_p010_17.png] view at source ↗

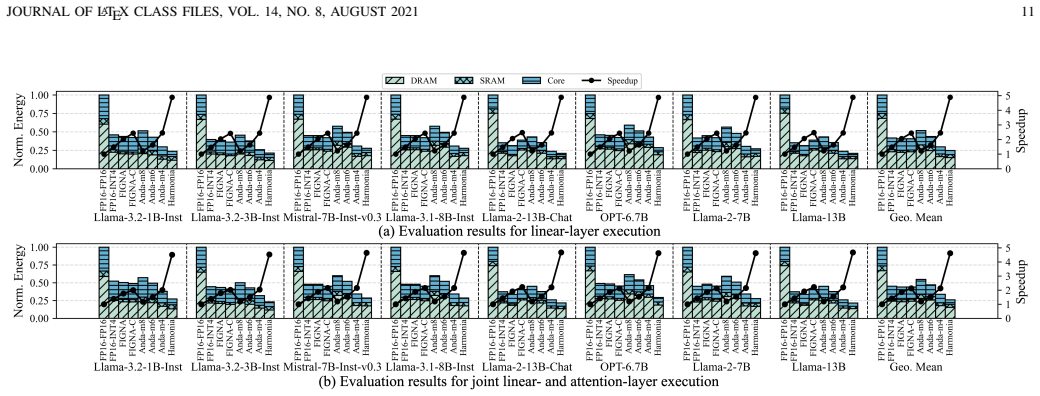

Figure 18
Figure 18. Figure 18: Speedup and energy breakdown comparison across accelerators in (a) linear-layer execution and (b) joint linear- and attention-layer execution. [PITH_FULL_IMAGE:figures/full_fig_p011_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Speedup and energy comparison across accelerators under varying [PITH_FULL_IMAGE:figures/full_fig_p011_19.png] view at source ↗
