Rapid patient-specific neural networks for intraoperative X-ray to volume registration

Vivek Gopalakrishnan , David-Dimitris Chlorogiannis , Andrew Abumoussa , Anna M. Larson , Nazim Haouchine , Darren B. Orbach , Sarah Frisken , Neel Dey
show 1 more author
Polina Golland
This is my paper

Pith reviewed 2026-05-22 23:08 UTC · model grok-4.3

classification 📡 eess.IV cs.CVphysics.med-ph
keywords 2D/3D registrationfluoroscopypatient-specific neural networksself-supervised learningimage-guided surgeryX-ray to volume registrationintraoperative imaging
0
0 comments X

The pith

Patient-specific neural networks register preoperative 3D volumes to intraoperative X-rays in seconds with order-of-magnitude accuracy gains across anatomies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces xvr, a self-supervised framework that trains patient-specific neural networks on physics-based simulations derived from each patient's own preoperative CT or MRI scan to align those 3D volumes with 2D fluoroscopy images. Existing intensity-based methods demand per-patient tuning while deep learning approaches require large labeled datasets restricted to narrow anatomies; xvr avoids both by pretraining a foundation model on thousands of whole-body scans and adapting it in five minutes. The largest evaluation on real fluoroscopy data to date reports high accuracy achieved in seconds across structures, modalities, and hospitals, with an order-of-magnitude improvement over prior techniques. A reader would care because precise 2D/3D registration underpins navigation in image-guided interventions and surgical robotics, and the method removes the main barriers to broad clinical use.

Core claim

xvr achieves automatic 2D/3D rigid registration by combining patient-specific neural networks with gradient-based optimization, where the networks are trained self-supervised on training data generated through physics-based simulation from the patient's preoperative volume. A foundation model pretrained on thousands of whole-body scans enables adaptation to any anatomical region in five minutes of finetuning. On the largest set of real fluoroscopy cases evaluated to date, the approach reaches high accuracy in seconds across diverse anatomical structures, imaging modalities, and hospitals while improving accuracy over existing methods by an order of magnitude.

What carries the argument

Patient-specific neural network finetuned in five minutes on physics-simulated X-ray projections from the preoperative scan and combined with gradient-based optimization for registration.

If this is right

  • Registration no longer requires careful per-subject hyperparameter tuning of intensity-based optimizers.
  • Manually labeled datasets specific to each anatomy are no longer needed.
  • A single foundation model supports pan-anatomical application after brief patient-specific adaptation.
  • Open-source release makes the method immediately usable by clinical and research communities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could support real-time guidance in robotic surgery platforms once inference speed is further optimized for continuous tracking.
  • Similar simulation-driven patient-specific adaptation might apply to other 2D/3D problems such as ultrasound-to-CT alignment.
  • If domain shift remains small, the same pretraining strategy could reduce data requirements in related medical image registration tasks.

Load-bearing premise

The physics-based simulation used to generate training data from preoperative scans produces images sufficiently similar to real intraoperative fluoroscopy that the trained network generalizes without large domain shift.

What would settle it

A comparison on a broad collection of real fluoroscopy cases showing that accuracy does not exceed existing methods by an order of magnitude or that performance collapses on new hospitals or anatomical regions would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 2503.16309 by Andrew Abumoussa, Anna M. Larson, Darren B. Orbach, David-Dimitris Chlorogiannis, Nazim Haouchine, Neel Dey, Polina Golland, Sarah Frisken, Vivek Gopalakrishnan.

Figure 1
Figure 1. Figure 1: Rapidly trained patient-specific neural networks with [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

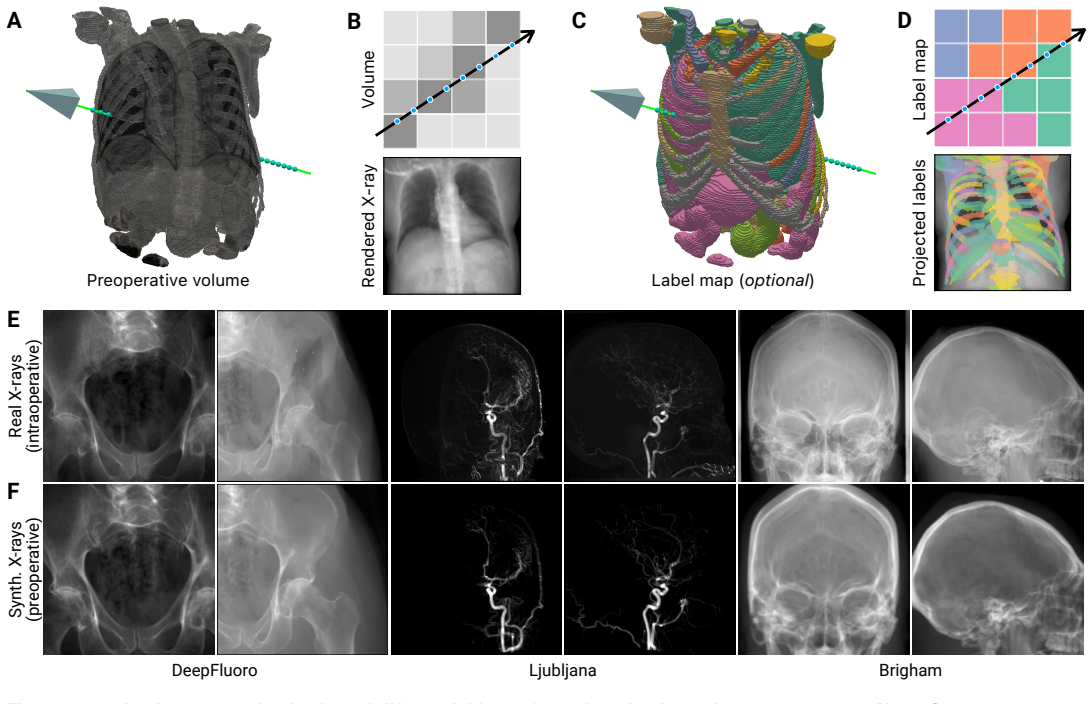

Figure 2
Figure 2. Figure 2: xvr implements a physics-based differentiable renderer that simulates the geometry of an X-ray C-arm to generate photorealistic X-ray images from 3D volumes. (A) Our renderer requires two inputs: a 3D volume from which to generate synthetic X-rays and the pose of the C-arm (represented with a camera frustum). Our renderer is differentiable with respect to the C-arm pose, allowing us to use gradient-based o… view at source ↗

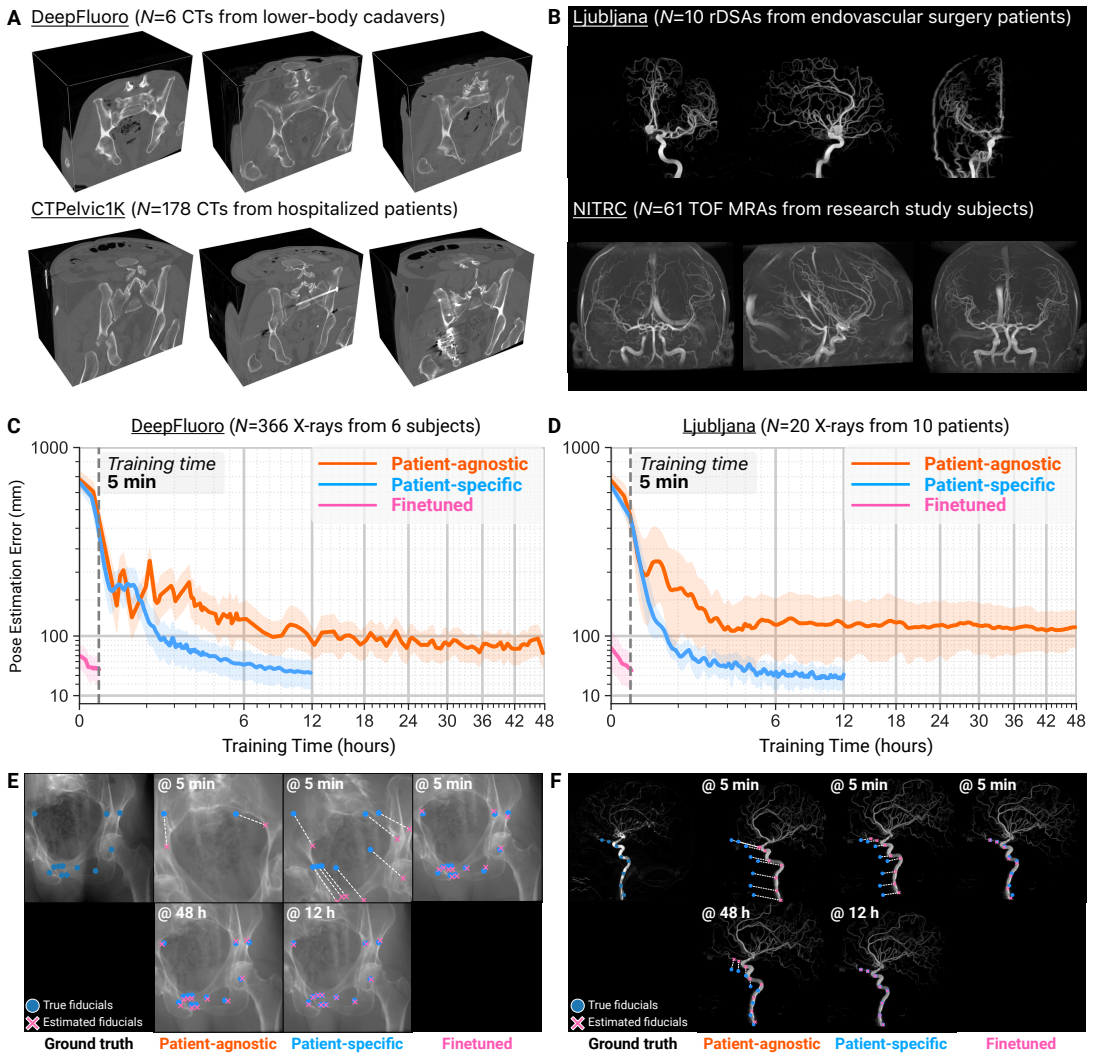

Figure 3
Figure 3. Figure 3: Pretraining on publicly available datasets enables minutes-long patient-specific finetuning. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

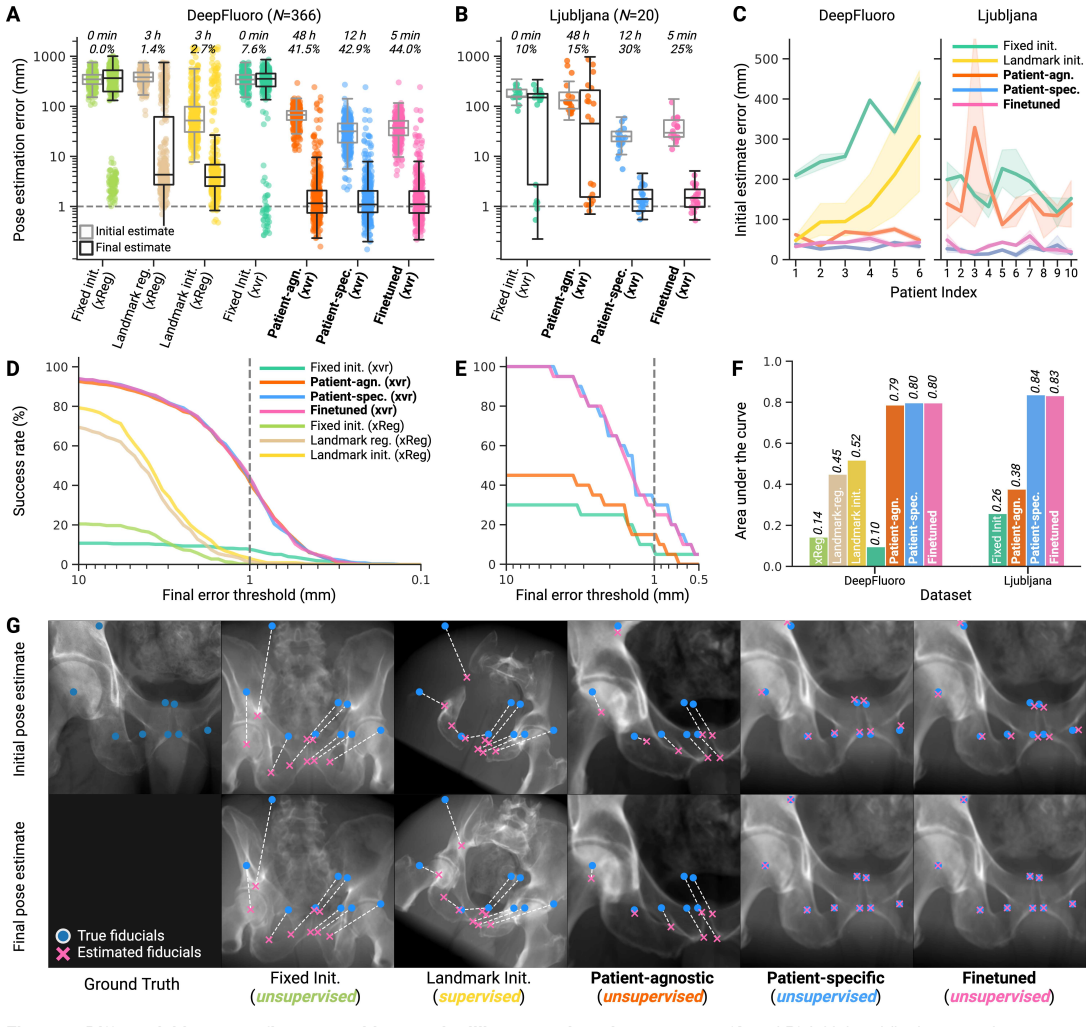

Figure 4
Figure 4. Figure 4: Differentiable pose refinement achieves submillimeter registration accuracy. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

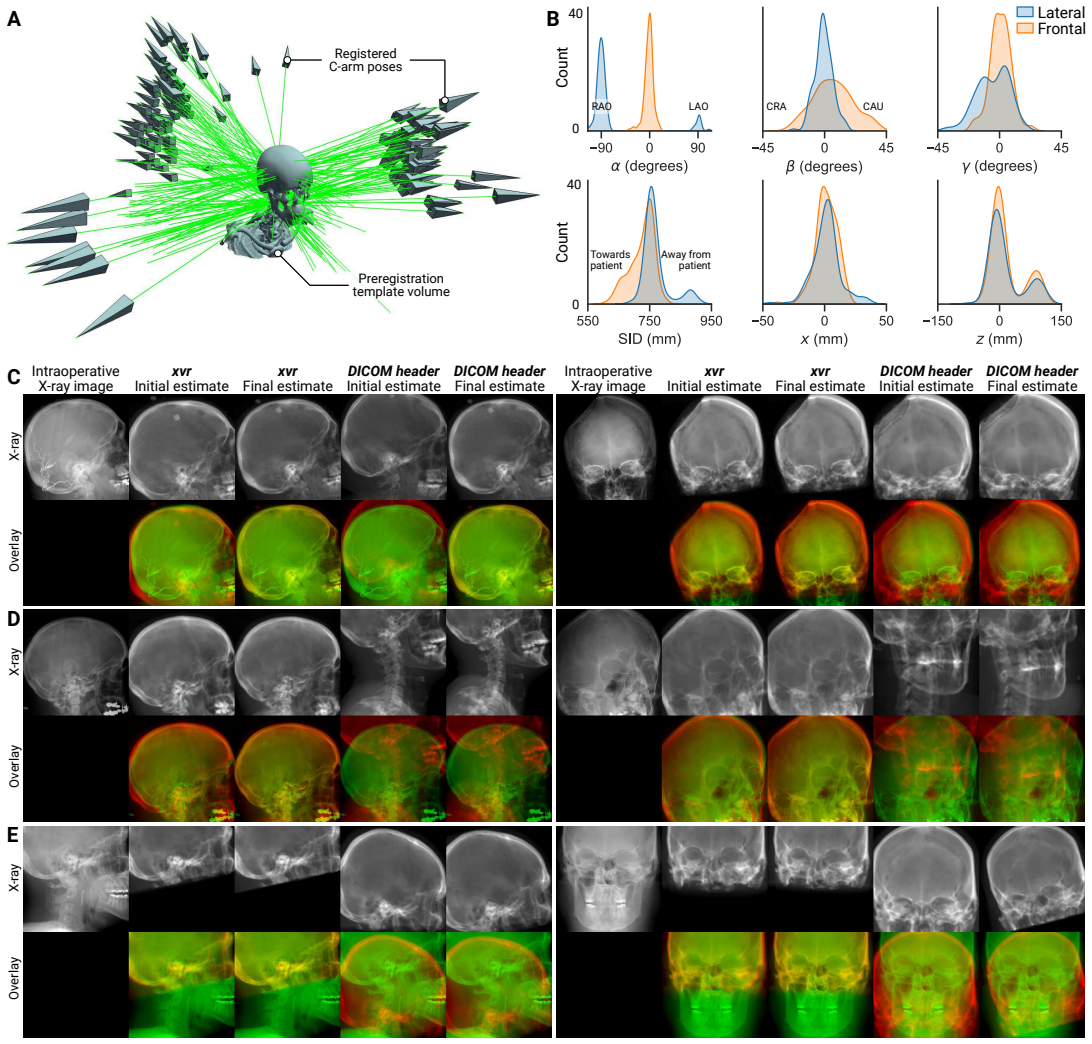

Figure 5
Figure 5. Figure 5: xvr enables the rapid registration of large volumes of real-world clinical data. (A) A patient-agnostic pose estimation model was trained using synthetic X-rays rendered from 61 preregistered head CTs in the TotalSegmentator dataset. Using this model and iterative pose refinement, 122 intraoperative X-rays acquired from 50 neurosurgical patients at Brigham and Women’s Hospital were registered to their corr… view at source ↗
read the original abstract

Advanced navigation techniques in image-guided interventions and surgical robotics require the rapid and precise alignment of 3D preoperative volumes (e.g., CT, MRI) to 2D intraoperative images (e.g., X-ray fluoroscopy). However, existing 2D/3D registration methods fail to generalize across the broad spectrum of fluoroscopy-guided procedures: traditional intensity-based optimizers require careful hyperparameter tuning for each subject, while deep learning approaches demand extensive manually labeled datasets and remain constrained to the specific anatomy on which they were trained. To address these limitations, we present xvr, a self-supervised framework that combines patient-specific neural networks with gradient-based optimization for automatic 2D/3D registration. xvr leverages physics-based simulation to generate training data from a patient's own preoperative scan, eliminating the need for manual annotation. We present a foundation model pretrained on thousands of whole-body scans, achieving patient-specific adaptation for any anatomical region in only 5 minutes of finetuning. In the largest evaluation of 2D/3D registration on real fluoroscopy to date, xvr achieves high accuracy in seconds across diverse anatomical structures, imaging modalities, and hospitals, improving upon the accuracy of existing methods by an order of magnitude. xvr makes pan-anatomical 2D/3D rigid registration accessible to broad clinical and research communities through open-source software at https://xvr.csail.mit.edu.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents xvr, a self-supervised framework for 2D/3D rigid registration that trains patient-specific neural networks on physics-based simulations generated from a patient's preoperative CT/MRI scan. A foundation model pretrained on thousands of whole-body scans enables 5-minute adaptation per patient; the central claim is that this yields high accuracy in seconds on real intraoperative fluoroscopy across diverse anatomies, modalities, and hospitals, representing an order-of-magnitude improvement over prior intensity-based and learning-based methods, with open-source release.

Significance. If the central claims hold, the work would be significant for image-guided interventions by removing the need for manual labels or per-subject hyperparameter tuning while achieving pan-anatomical applicability. The combination of patient-specific simulation-based training with a foundation model and the scale of the real-fluoroscopy evaluation are strengths that could broaden access to accurate registration in clinical and research settings.

major comments (2)
  1. [Abstract; Evaluation] The abstract and evaluation sections claim an order-of-magnitude accuracy improvement on real fluoroscopy without reporting quantitative verification that the physics-based forward model reproduces real C-arm intensity statistics, scatter, noise, and geometric properties (e.g., no histogram comparisons, perceptual metrics, or phantom-based sim-vs-real registration error). This assumption is load-bearing for the generalization claim.
  2. [Evaluation] The results do not specify data exclusion criteria, exact baseline implementations and hyperparameter settings, or statistical tests supporting the cross-hospital and cross-modality superiority claims, making it impossible to assess whether the reported accuracy gains are robust.
minor comments (2)
  1. [Methods] Notation for the neural network architecture and loss terms could be clarified with an explicit equation reference in the methods.
  2. [Figures] Figure captions should include the number of test cases and exact error metrics shown.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript accordingly to improve clarity and rigor.

read point-by-point responses

  1. Referee: [Abstract; Evaluation] The abstract and evaluation sections claim an order-of-magnitude accuracy improvement on real fluoroscopy without reporting quantitative verification that the physics-based forward model reproduces real C-arm intensity statistics, scatter, noise, and geometric properties (e.g., no histogram comparisons, perceptual metrics, or phantom-based sim-vs-real registration error). This assumption is load-bearing for the generalization claim.

    Authors: We agree that direct quantitative validation of simulation fidelity would strengthen the paper. The forward model follows established physics-based principles from prior X-ray simulation literature, and the strong real-fluoroscopy results across sites provide indirect support. However, the manuscript lacks explicit sim-to-real metrics. We will add a supplementary section with intensity histogram comparisons, perceptual metrics, and phantom-based registration error analysis to better substantiate the claims. revision: yes

  2. Referee: [Evaluation] The results do not specify data exclusion criteria, exact baseline implementations and hyperparameter settings, or statistical tests supporting the cross-hospital and cross-modality superiority claims, making it impossible to assess whether the reported accuracy gains are robust.

    Authors: We acknowledge that additional methodological transparency is required. The revised manuscript will specify data exclusion criteria, provide exact baseline implementations with hyperparameter settings, and include statistical tests (e.g., paired comparisons with p-values) to support the reported gains across hospitals and modalities. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper trains patient-specific networks via physics-based simulation from preoperative CT/MRI volumes and evaluates registration accuracy on held-out real fluoroscopy images across multiple sites and anatomies. No step equates a claimed prediction or result to its own fitted inputs by construction, nor does any load-bearing premise reduce to a self-citation chain or imported uniqueness theorem. The sim-to-real generalization is an empirical assumption tested by external real-data evaluation rather than a definitional equivalence, leaving the reported accuracy gains independent of the training procedure itself.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; full details of any learned parameters or modeling assumptions are unavailable.

axioms (1)
  • domain assumption Physics-based simulation of X-ray images from preoperative volumes produces data distribution close enough to real fluoroscopy for effective self-supervised training
    Central to generating training data without manual labels.
