A Metadynamics-Based Framework for Free Energy Surface Mapping of Multiparticle Diffusion in Crystals

Shunya Yamada , Kazuaki Toyoura This is my paper

Pith reviewed 2026-05-25 04:06 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords metadynamicsfree energy surfacediffusion in crystalslithium diffusioncollective variablesslow dynamicsLixTiS2molecular dynamics
0
0 comments X

The pith

Two metadynamics variants map free energy surfaces for multiple interacting carriers diffusing in crystals by breaking high-dimensional variables into lower-dimensional ones.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops replica state exchange metadynamics and parallel bias metadynamics to map free energy surfaces of multiparticle diffusion in solids. These methods decompose complex high-dimensional collective variables into simpler lower-dimensional sets to overcome the limitations of standard molecular dynamics on slow processes. As a test case the authors compute lithium jump frequencies in LixTiS2 over a range of concentrations, obtaining trends that align with earlier kinetic Monte Carlo work and nuclear magnetic resonance data. A reader would care because the approach opens quantitative access to diffusion rates that are otherwise out of reach for direct simulation.

Core claim

Replica state exchange MetaD and parallel bias MetaD decompose high-dimensional collective variables into multiple lower-dimensional ones, thereby enabling efficient free-energy-surface mapping for multiple interacting carriers diffusing in crystals; the resulting lithium jump frequencies in LixTiS2 display concentration- and temperature-dependent behavior that reproduces prior kinetic Monte Carlo simulations and nuclear magnetic resonance measurements.

What carries the argument

Replica state exchange metadynamics and parallel bias metadynamics, which decompose high-dimensional collective variables to produce free energy surfaces for interacting carrier diffusion.

If this is right

  • Lithium jump frequencies derived from the free energy surfaces exhibit clear concentration dependence.
  • The same frequencies also vary systematically with temperature.
  • Both trends remain consistent with earlier kinetic Monte Carlo simulations.
  • The trends likewise match nuclear magnetic resonance measurements.
  • The overall framework reaches diffusive timescales inaccessible to conventional molecular dynamics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition strategy could be tested on other ionic conductors where carrier interactions dominate.
  • Extending the methods to three-dimensional diffusion paths would require only additional lower-dimensional bias terms.
  • Coupling the resulting free energy surfaces directly to kinetic Monte Carlo models could generate long-time transport coefficients without further metadynamics runs.

Load-bearing premise

Decomposing high-dimensional collective variables into multiple lower-dimensional ones via replica state exchange and parallel bias metadynamics preserves the essential physics of interacting carrier diffusion without introducing artifacts.

What would settle it

If the concentration- and temperature-dependent lithium jump frequencies extracted from the mapped free energy surfaces deviate systematically from independent kinetic Monte Carlo simulations or nuclear magnetic resonance measurements, the decomposition step would be shown to introduce artifacts.

Figures

Figures reproduced from arXiv: 2605.23360 by Kazuaki Toyoura, Shunya Yamada.

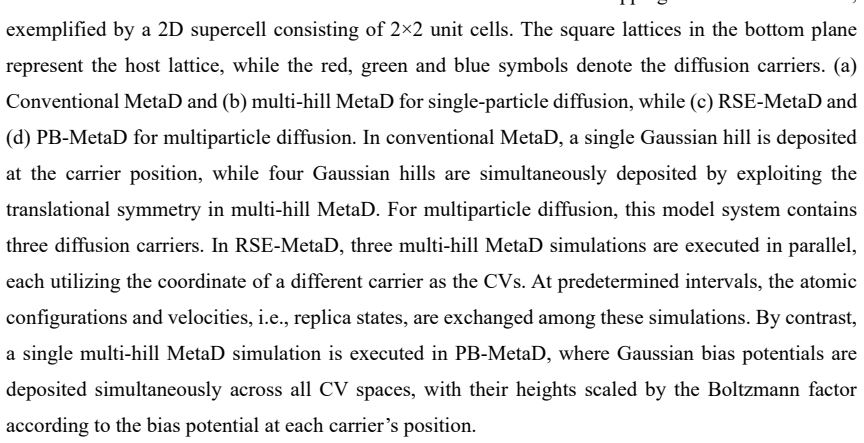

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic illustrations of MetaD-based methods for FES [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗

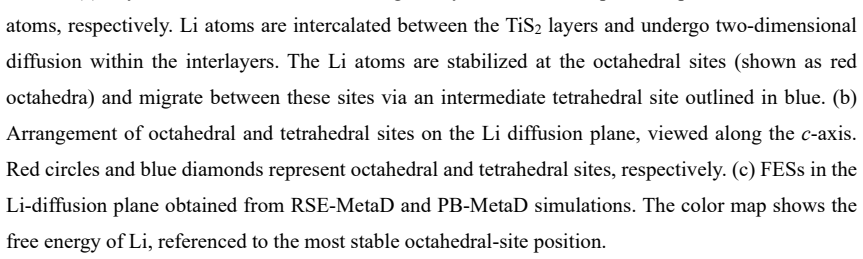

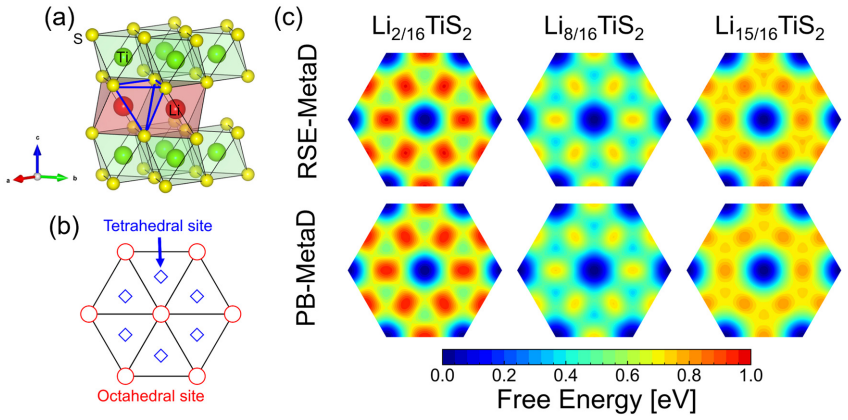

Figure 2
Figure 2. Figure 2: FIG. 2. (a) Crystal structure of Li [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗

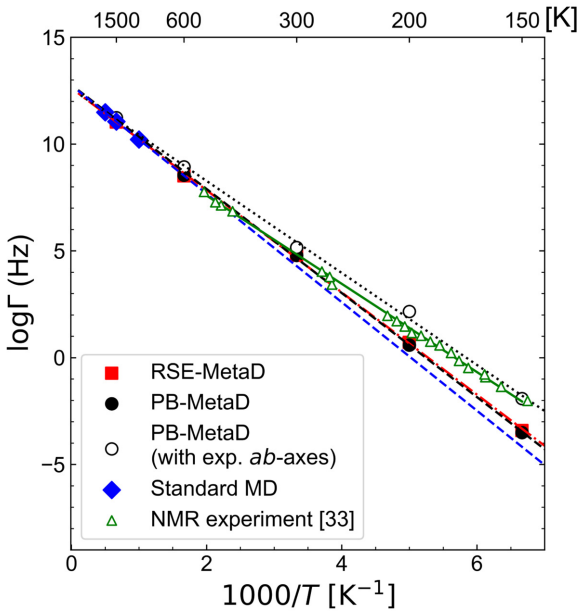

Figure 3
Figure 3. Figure 3: FIG. 3. Arrhenius plot of [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗

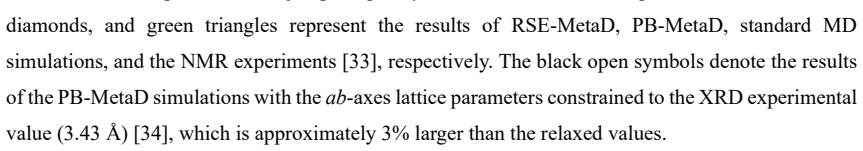

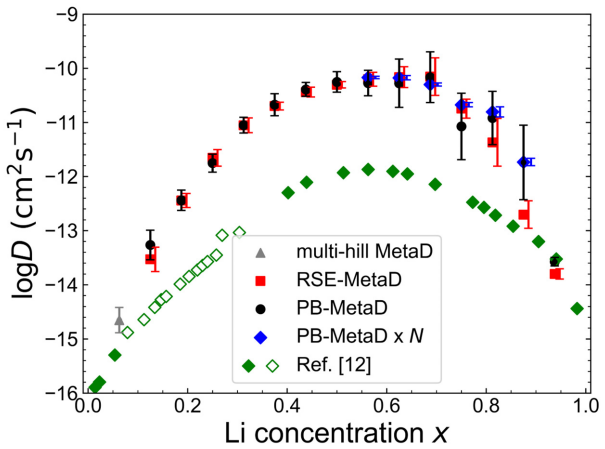

Figure 4
Figure 4. Figure 4: FIG. 4. Li diffusion coefficient [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗

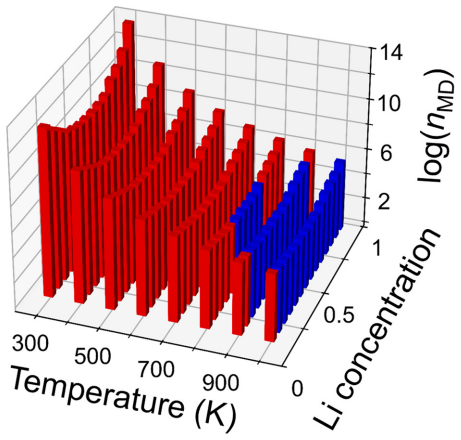

Figure 5
Figure 5. Figure 5: FIG. 5. The required number of MD time steps, n [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 1
Figure 1. Figure 1: FIG. 1. Schematic illustrations of MetaD-based methods for FES [PITH_FULL_IMAGE:figures/full_fig_p017_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) Crystal structure of Li [PITH_FULL_IMAGE:figures/full_fig_p018_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Arrhenius plot of [PITH_FULL_IMAGE:figures/full_fig_p019_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Li diffusion coefficient [PITH_FULL_IMAGE:figures/full_fig_p020_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. The required number of MD time steps, n [PITH_FULL_IMAGE:figures/full_fig_p021_5.png] view at source ↗

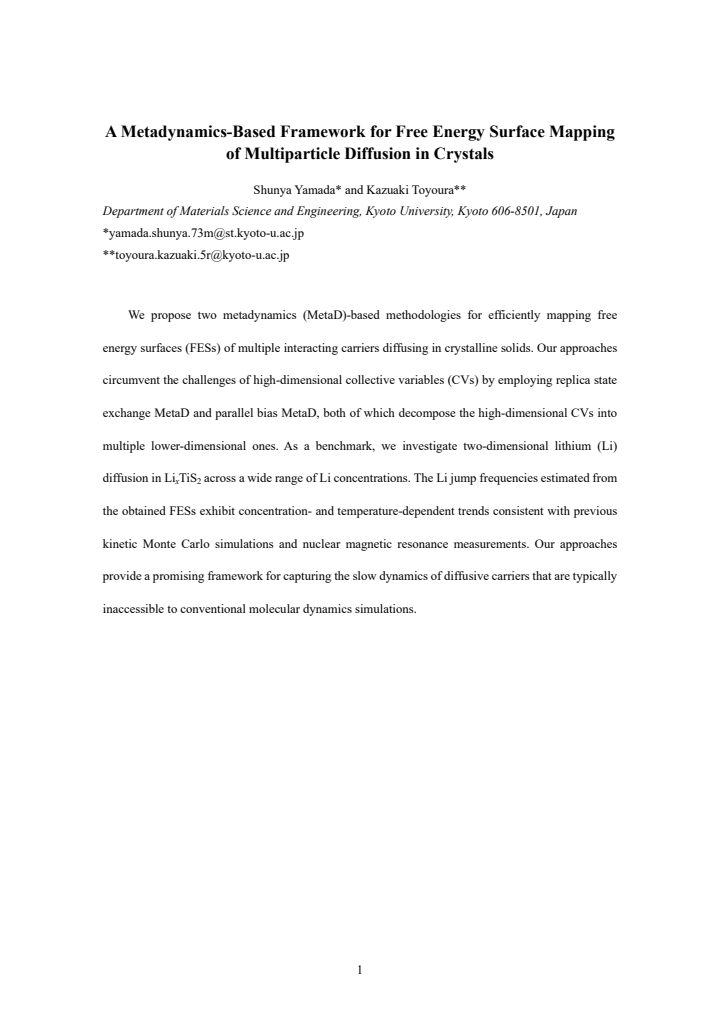

read the original abstract

We propose two metadynamics (MetaD)-based methodologies for efficiently mapping free energy surfaces (FESs) of multiple interacting carriers diffusing in crystalline solids. Our approaches circumvent the challenges of high-dimensional collective variables (CVs) by employing replica state exchange MetaD and parallel bias MetaD, both of which decompose the high-dimensional CVs into multiple lower-dimensional ones. As a benchmark, we investigate two-dimensional lithium (Li) diffusion in LixTiS2 across a wide range of Li concentrations. The Li jump frequencies estimated from the obtained FESs exhibit concentration- and temperature-dependent trends consistent with previous kinetic Monte Carlo simulations and nuclear magnetic resonance measurements. Our approaches provide a promising framework for capturing the slow dynamics of diffusive carriers that are typically inaccessible to conventional molecular dynamics simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes two metadynamics-based methods—replica state exchange MetaD and parallel bias MetaD—to map free energy surfaces (FESs) for multiparticle diffusion in crystals by decomposing high-dimensional collective variables (CVs) into lower-dimensional subsets. As a benchmark, the approaches are applied to two-dimensional Li diffusion in LixTiS2 across a range of concentrations; Li jump frequencies extracted from the resulting FESs are reported to exhibit concentration- and temperature-dependent trends consistent with prior kinetic Monte Carlo simulations and NMR measurements. The central claim is that these methods enable access to slow diffusive dynamics inaccessible to conventional MD.

Significance. If the CV decomposition is shown to recover the correct joint FES and correlated hops without introducing artifacts, the framework would offer a practical route to simulating concentration-dependent carrier diffusion in solids, with direct relevance to battery materials and other systems where multi-particle interactions govern transport.

major comments (2)
  1. [Abstract/Methods] Abstract and Methods: The assertion that replica state exchange MetaD and parallel bias MetaD preserve the essential physics of interacting Li-ion diffusion rests on the unverified assumption that bias decomposition and replica exchanges do not alter the potential of mean force or suppress correlated hops; no explicit equivalence test against a full high-dimensional MetaD calculation is described.
  2. [Results] Results: The reported consistency of extracted jump frequencies with prior KMC and NMR is stated without accompanying error bars, tabulated values, or details on how FES minima are converted to rates; this leaves open whether post-hoc choices in rate extraction affect the claimed agreement.
minor comments (1)
  1. [Abstract] The abstract would benefit from a brief statement of the specific CVs employed for the LixTiS2 benchmark.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We respond to each major comment below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Abstract/Methods] Abstract and Methods: The assertion that replica state exchange MetaD and parallel bias MetaD preserve the essential physics of interacting Li-ion diffusion rests on the unverified assumption that bias decomposition and replica exchanges do not alter the potential of mean force or suppress correlated hops; no explicit equivalence test against a full high-dimensional MetaD calculation is described.

    Authors: Replica state exchange and parallel bias MetaD are formulated to apply bias only to the decomposed lower-dimensional CV subsets while the underlying atomic dynamics are always propagated under the unbiased full Hamiltonian; replica exchanges are performed to ensure ergodic sampling across the decomposed spaces without modifying the target distribution. A direct numerical equivalence test versus full high-dimensional MetaD is not feasible for the multi-particle systems studied, as the computational cost grows exponentially with CV dimensionality—this intractability is the central motivation for the decomposed approaches. The observed agreement between extracted jump frequencies and independent KMC/NMR results provides supporting evidence that correlated hops are captured. We will add an explicit discussion of this theoretical grounding and the computational limitation in the revised manuscript. revision: partial

  2. Referee: [Results] Results: The reported consistency of extracted jump frequencies with prior KMC and NMR is stated without accompanying error bars, tabulated values, or details on how FES minima are converted to rates; this leaves open whether post-hoc choices in rate extraction affect the claimed agreement.

    Authors: We will revise the Results section to include error bars on all reported jump frequencies, add a table listing the numerical values together with the corresponding KMC and NMR literature data, and provide a dedicated paragraph describing the rate-extraction procedure (including the functional form used to convert FES barrier heights to attempt frequencies and any temperature-dependent prefactors assumed). revision: yes

standing simulated objections not resolved
  • Direct numerical equivalence test against a full high-dimensional MetaD calculation (computationally intractable for the systems considered)

Circularity Check

0 steps flagged

No circularity; derivation self-contained against external benchmarks

full rationale

The paper introduces replica state exchange MetaD and parallel bias MetaD to decompose high-dimensional CVs for multi-carrier diffusion, then computes Li jump frequencies from the resulting FESs. These frequencies are compared to independent prior KMC simulations and NMR measurements for validation. No equations reduce a prediction to a fitted input by construction, no load-bearing self-citations appear, and the central claim rests on the external consistency rather than re-deriving its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only; no explicit free parameters, invented entities, or detailed axioms are stated beyond the general metadynamics framework.

axioms (1)
  • domain assumption Metadynamics bias potentials can reconstruct free energy surfaces for diffusive processes
    Standard assumption underlying the proposed methods.
