Pyramid: A General Framework for Distributed Similarity Search

Pith reviewed 2026-05-25 15:57 UTC · model grok-4.3

classification 💻 cs.DC
keywords distributed similarity searchHNSWdataset partitioningquery routingfailure recoverystraggler mitigationlarge-scale datasetssimilarity functions
0
0 comments X

The pith

Pyramid partitions datasets into similar-item subsets, builds HNSW indexes on each, and routes queries to only a few subsets for distributed similarity search.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Pyramid as a way to run similarity search across many machines when single-machine indexes become too slow for large data. It groups items that are close under the chosen distance measure into separate sub-datasets, constructs an HNSW graph on every sub-dataset, and sends each incoming query only to the sub-datasets judged most likely to contain good matches. The design also includes built-in steps for recovering when a machine fails and for ignoring slow machines during a query. If the routing keeps recall close to a full search, the approach would let systems answer more queries per second without adding extra hardware or lowering result quality. The same structure works for Euclidean, angular, and inner-product distances through a simple user API.

Core claim

Pyramid partitions a dataset into sub-datasets containing similar items for index building and assigns a query to only some of the sub-datasets for query processing while supporting failure recovery and straggler mitigation, all on top of HNSW graphs.

What carries the argument

Partitioning of the dataset into similarity-based sub-datasets combined with selective query routing to a subset of those sub-datasets.

If this is right

  • Query throughput rises because each query touches far fewer machines than the total number of partitions.
  • The system continues to answer queries after individual machine failures without restarting the whole index.
  • Slow machines during a query can be ignored so that response time is determined by the faster machines.
  • The same partitioning and routing logic works for Euclidean, angular, and inner-product similarity without code changes.
  • Users interact only through a small set of APIs and do not manage the distributed execution themselves.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same partitioning idea could be tested with other single-machine indexes that support early termination or pruning.
  • Load balance across partitions may vary with data distribution, so experiments that measure per-partition query counts would be useful.
  • If data arrives continuously, a mechanism to move items between partitions over time could keep routing accuracy from degrading.
  • For very high-dimensional vectors the cost of deciding which partitions a query should visit may itself become a bottleneck worth measuring.

Load-bearing premise

That items grouped together by similarity in the partitions will allow most queries to reach acceptable recall by examining only a small fraction of the partitions.

What would settle it

Run the same set of queries once with full search across all partitions and once with Pyramid routing; if recall drops by more than a few percent while throughput stays flat, the routing premise does not hold.

Figures

Figures reproduced from arXiv: 1906.10602 by Chenyu Jiang, James Cheng, Kelvin K.W. Ng, Shiyuan Deng, Xiao Yan.

Figure 1
Figure 1. Figure 1: An illustration of an HNSW Graph straggler mitigation, Pyramid replicates the sub-datasets and their HNSWs across the machines. We implement the index building component of Pyramid with customized code for efficient distributed execution. For query processing, we employ Zookeeper3 to monitor the system and perform automatic failure recovery. Kafka4 is used to dispatch queries to the machines and automatica… view at source ↗
Figure 2
Figure 2. Figure 2: An Illustration of Pyramid is monotone to Euclidean distance when both query and item have unit norm, which suggests that we can transform angular similarity search into Euclidean NNS. By normalizing the items to unit norm before index construction and normalizing the query before query processing, Algorithm 3 and Algo￾rithm 4 also work for angular distance. Although MIPS can also be transformed into Eucli… view at source ↗
Figure 3
Figure 3. Figure 3: Result distribution for MIPS be much larger than the others. This can cause the worker holding the large sub-dataset to run out of memory. For query processing, the larger norm partition is very likely to contain the top-K MIPS of most queries for meta-HNSW search, which makes the worker holding the large norm partition much more heavily loaded than the other workers and may become a straggler in the syste… view at source ↗
Figure 5
Figure 5. Figure 5: Access rate vs. branching factor for Deep (left) and SIFT (right) [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Precision vs. branching factor for Deep (left) and SIFT (right) [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: 90th PCT latency vs. branching factor for Deep (left) and SIFT (right) [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Throughput and precision comparison of the systems [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: The scalability of Pyramid 100% 70% 50% 30% 10% CPU Limitation 0 2 4 6 8 10 12 Throughput (10^3) [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Performance of Pyramid under straggler 100 200 300 400 500 600 700 800 Time (s) 0 6K 11K 17K 23K 29K 34K 40K 46K Throughput [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗

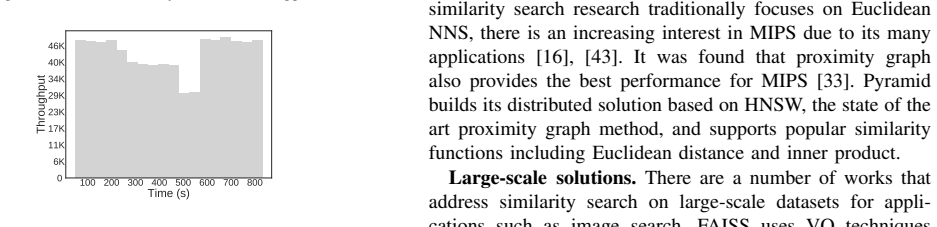

Figure 13
Figure 13. Figure 13: Performance of Pyramid under failure of its peak throughput and measured the throughput of the queries that would access the sub-HNSWs hosted on the CPU limited machine. The results in [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
read the original abstract

Similarity search is a core component in various applications such as image matching, product recommendation and low-shot classification. However, single machine solutions are usually insufficient due to the large cardinality of modern datasets and stringent latency requirement of on-line query processing. We present Pyramid, a general and efficient framework for distributed similarity search. Pyramid supports search with popular similarity functions including Euclidean distance, angular distance and inner product. Different from existing distributed solutions that are based on KD-tree or locality sensitive hashing (LSH), Pyramid is based on Hierarchical Navigable Small World graph (HNSW), which is the state of the art similarity search algorithm on a single machine. To achieve high query processing throughput, Pyramid partitions a dataset into sub-datasets containing similar items for index building and assigns a query to only some of the sub-datasets for query processing. To provide the robustness required by production deployment, Pyramid also supports failure recovery and straggler mitigation. Pyramid offers a set of concise API such that users can easily use Pyramid without knowing the details of distributed execution. Experiments on large-scale datasets show that Pyramid produces quality results for similarity search, achieves high query processing throughput and is robust under node failure and straggler.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents Pyramid, a distributed framework for similarity search supporting Euclidean, angular, and inner-product distances. It builds HNSW indexes on a dataset partitioned into sub-datasets of similar items, routes each query to only a subset of those partitions, and adds failure recovery plus straggler mitigation. The authors claim that the approach yields high query throughput while preserving result quality on large-scale datasets and that a concise API hides the distributed execution details from users.

Significance. If the partitioning and routing preserve recall at the levels claimed, Pyramid would be a useful systems contribution: it leverages the current single-machine state-of-the-art (HNSW) rather than older KD-tree or LSH techniques, adds production-oriented robustness features, and exposes a simple API. The combination of data locality, selective query routing, and fault tolerance could improve throughput in distributed settings where single-machine HNSW is already memory- or latency-bound.

major comments (2)
  1. [§3] §3 (Partitioning and query routing): The central efficiency claim rests on the assertion that partitioning into similar-item sub-datasets allows a query to be sent to only a subset of partitions while HNSW indexes on those partitions still return high-recall results. No analysis, probability bound, or even empirical measurement is supplied showing that nearest neighbors remain inside the routed subset with high probability; without this, the distributed search reduces to an uncontrolled approximation whose recall cannot be guaranteed relative to single-machine HNSW.
  2. [§5] §5 (Experimental evaluation): Throughput and quality claims are made for large-scale datasets, yet the reported results do not include (a) recall@K curves comparing routed-subset search against full-dataset HNSW, (b) the fraction of partitions actually contacted per query, or (c) head-to-head numbers against existing distributed baselines (e.g., LSH- or KD-tree-based systems). These omissions make it impossible to verify that the partitioning strategy delivers the advertised quality-throughput trade-off.
minor comments (2)
  1. [Abstract] Abstract: 'a set of concise API' should read 'a set of concise APIs'.
  2. [§3] The paper would benefit from an explicit statement of the clustering or routing rule used to decide which partitions receive a given query; the current description is too high-level for reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to incorporate the suggested improvements.

read point-by-point responses
  1. Referee: [§3] §3 (Partitioning and query routing): The central efficiency claim rests on the assertion that partitioning into similar-item sub-datasets allows a query to be sent to only a subset of partitions while HNSW indexes on those partitions still return high-recall results. No analysis, probability bound, or even empirical measurement is supplied showing that nearest neighbors remain inside the routed subset with high probability; without this, the distributed search reduces to an uncontrolled approximation whose recall cannot be guaranteed relative to single-machine HNSW.

    Authors: We agree that the manuscript would benefit from explicit validation of recall preservation under the routing scheme. Section 3 describes a partitioning approach that groups similar items via clustering to promote locality. In the revision we will add empirical measurements (e.g., the fraction of true nearest neighbors retained within routed partitions) and direct recall@K comparisons between routed-subset search and full-dataset HNSW. revision: yes

  2. Referee: [§5] §5 (Experimental evaluation): Throughput and quality claims are made for large-scale datasets, yet the reported results do not include (a) recall@K curves comparing routed-subset search against full-dataset HNSW, (b) the fraction of partitions actually contacted per query, or (c) head-to-head numbers against existing distributed baselines (e.g., LSH- or KD-tree-based systems). These omissions make it impossible to verify that the partitioning strategy delivers the advertised quality-throughput trade-off.

    Authors: We acknowledge these omissions. The revised evaluation section will include (a) recall@K curves for routed versus full search, (b) the average fraction of partitions contacted per query, and (c) head-to-head comparisons against representative distributed LSH- and KD-tree-based systems (either via new experiments or reference to published results where direct re-implementation is impractical). revision: yes

Circularity Check

0 steps flagged

No circularity: system architecture with no derivations or self-referential predictions

full rationale

The paper presents Pyramid as a distributed framework that partitions data into similar-item sub-datasets, builds per-partition HNSW indexes, and routes queries to subsets of partitions. No equations, first-principles derivations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the abstract or described content. The partitioning and routing strategy is introduced as an engineering design choice rather than a result derived from prior results by the same authors. Claims rest on system implementation and experimental throughput/robustness rather than any reduction of outputs to inputs by construction. This is the expected non-finding for a systems paper without mathematical modeling.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities can be identified from the provided text.
