From Causal Discovery to Implementation: An Agentic AI Framework for E-Scooter Mobility Hub Planning Across 29 German Cities

Meng Jin , Melanie Handrich , Simone Martinenz , Nicholas Hoeser , Ziyue Li This is my paper

Pith reviewed 2026-06-25 19:49 UTC · model grok-4.3

classification 💻 cs.CY econ.GNq-fin.ECstat.AP
keywords causal discoverye-scootermobility hubsurban planningagentic AIGBFS datacity typologiesdemand modeling
0
0 comments X

The pith

A causal template library built from public data across 29 German cities distinguishes core and peripheral drivers of e-scooter demand to inform hub placement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a three-phase agentic AI framework that processes GBFS data from 29 German cities to create a Causal Template Library. This library captures how environmental features causally influence e-scooter hotspot demand differently for core and peripheral clusters within various city types. An LLM-orchestrated pipeline adapts causal discovery algorithms to local conditions across 57 units. The resulting templates support a planning tool that scores candidate sites and generates reports, with evidence of use in actual construction projects in Heilbronn.

Core claim

The framework constructs a Causal Template Library encoding causal drivers of hotspot demand for each combination of city type and cluster type. Core demand is driven by activity access and transit proximity while peripheral demand responds to built form, with city-type-specific patterns enabling transferable siting templates. A planning tool built on the library scores sites, calibrates infrastructure to demographics, and has informed two hub sites now under construction in Heilbronn.

What carries the argument

The Causal Template Library, which encodes city-type and cluster-type specific causal relationships between environmental features and e-scooter hotspot demand.

If this is right

  • Transferable siting templates can be derived for different city types based on the identified causal patterns.
  • The planning tool can score candidate sites and calibrate recommendations using local demographics.
  • Practitioner-ready reports can be generated to support real-world mobility hub decisions.
  • City-type-specific patterns allow for generalizable application across similar urban typologies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Frameworks like this could extend to planning for other micromobility options using similar public data sources.
  • Validation in additional cities beyond Heilbronn would test the transferability of the templates.
  • Integrating demographic data more deeply might further refine the infrastructure recommendations.
  • The approach highlights the potential for public data to replace proprietary trip data in urban planning models.

Load-bearing premise

The causal discovery methods reliably identify true causal effects from the GBFS data without being misled by correlations or unmeasured factors.

What would settle it

If applying the templates to a new set of cities produces demand predictions that do not match observed hotspot locations after controlling for the identified features.

Figures

Figures reproduced from arXiv: 2606.25484 by Melanie Handrich, Meng Jin, Nicholas Hoeser, Simone Martinenz, Ziyue Li.

Figure 1
Figure 1. Figure 1: Study area overview. Figure 1a shows the geographic distribution of the 29 study cities, with point size reflecting population class and colour indicating functional typology. Figure 1b shows normalised mean environmental feature profiles for each functional typology, revealing distinct characteristics that reflect the urban identity of each city type. University cities are distinguished by a high number o… view at source ↗
Figure 2

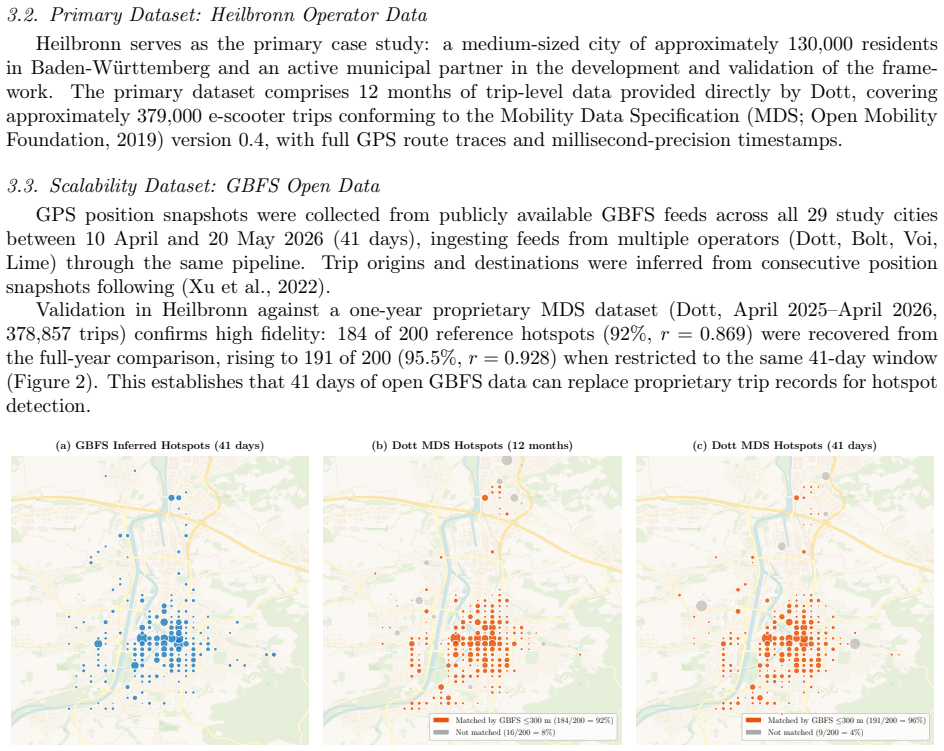

Figure 2. Figure 2: Spatial validation of GBFS-derived hotspots against concurrent 41-day and full-year MDS data in Heilbronn (300 m [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

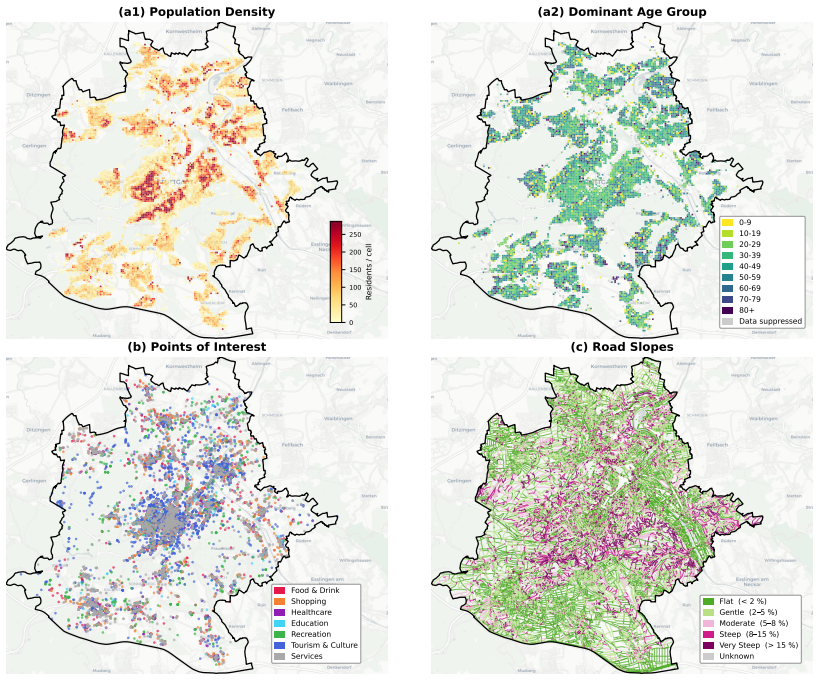

Figure 3. Figure 3: Representative environmental feature layers for Stuttgart: (a1) population density at 100 m grid resolution, (a2) dom [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

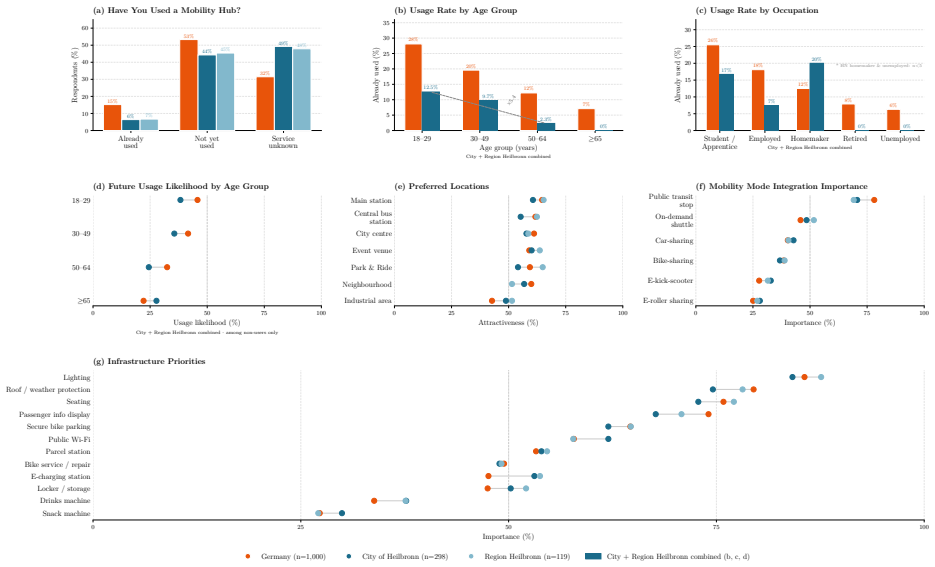

Figure 4. Figure 4: Citizen preference survey results: hub usage rates, location attractiveness, mobility mode importance, and infras [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Three-phase agentic AI framework for e-scooter mobility hub planning. [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

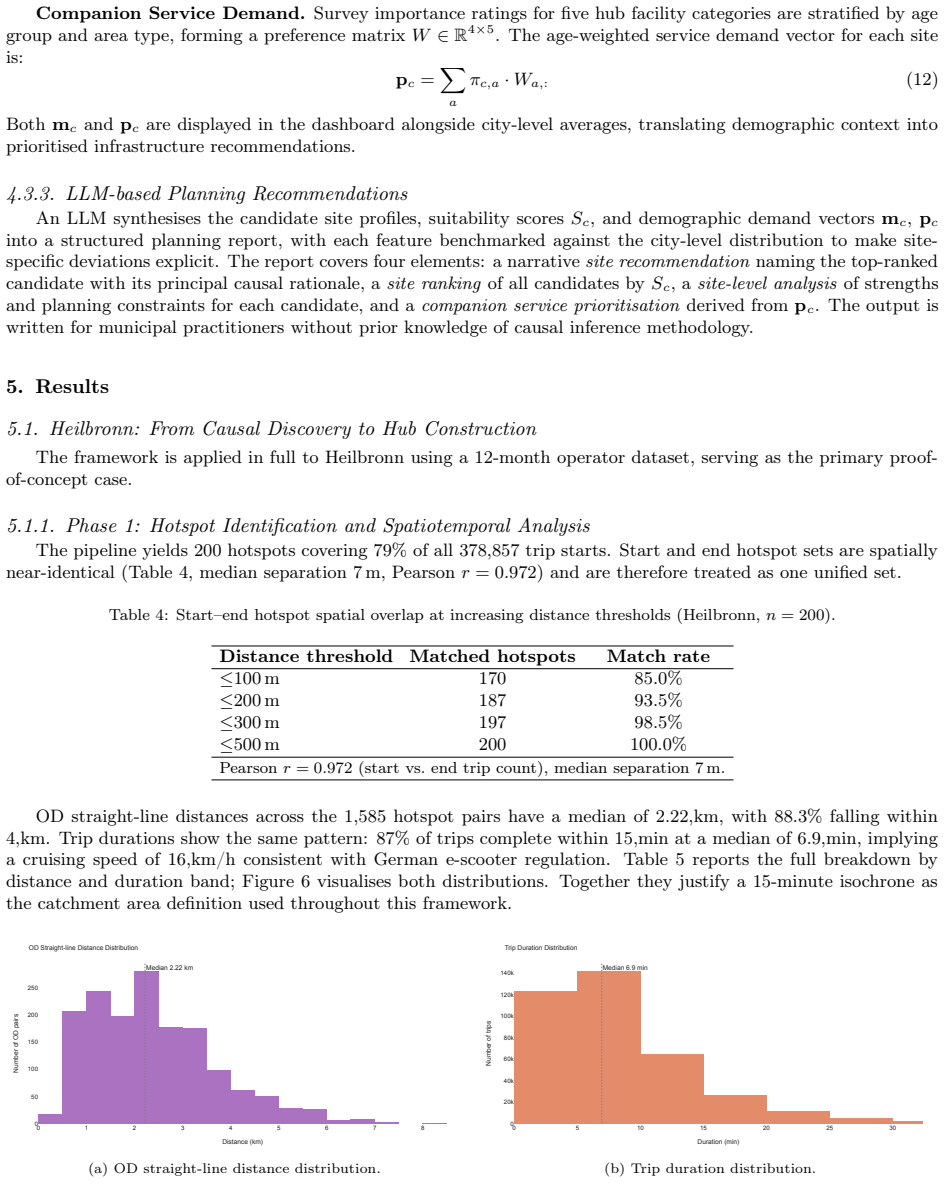

Figure 6. Figure 6: OD distance and trip duration distributions for Heilbronn (Apr 2025–Apr 2026). Dashed vertical lines mark the [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7

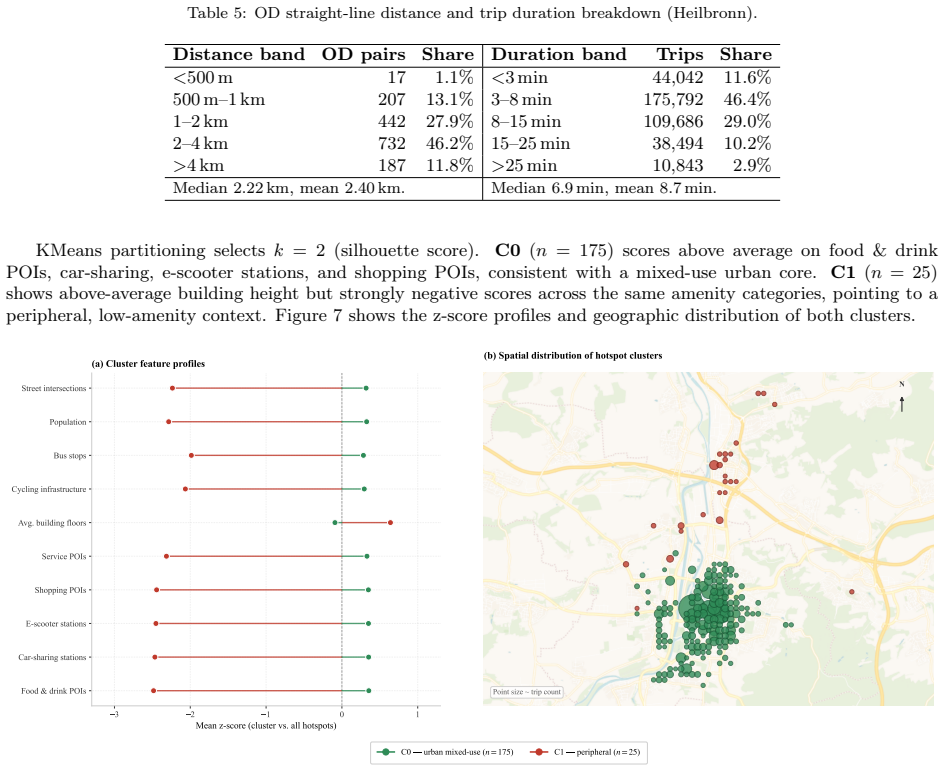

Figure 7. Figure 7: Spatial clusters in Heilbronn (k = 2): built-environment z-score profiles (left) and geographic distribution (right). Point size proportional to trip count. 5.1.2. Phase 2: Agentic Causal Discovery Cluster Profiles. The city–cluster profiles for Heilbronn’s two spatial clusters are: Heilbronn (130,093 inhabitants, 99.9 km2 ) is a mid-sized city in northern Baden-Württemberg with predominantly flat terrain … view at source ↗
Figure 8

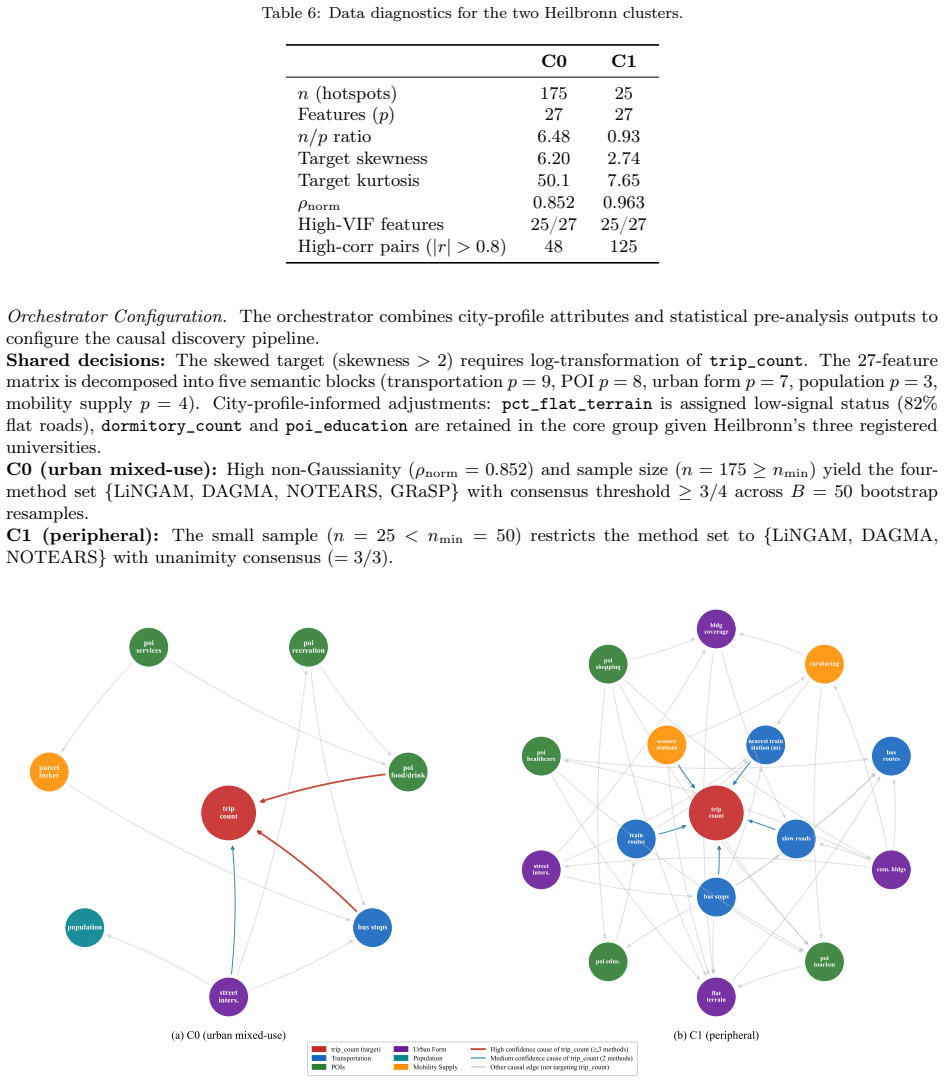

Figure 8. Figure 8: Consensus causal DAGs for C0 (urban mixed-use, left) and C1 (peripheral, right), Heilbronn. [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9

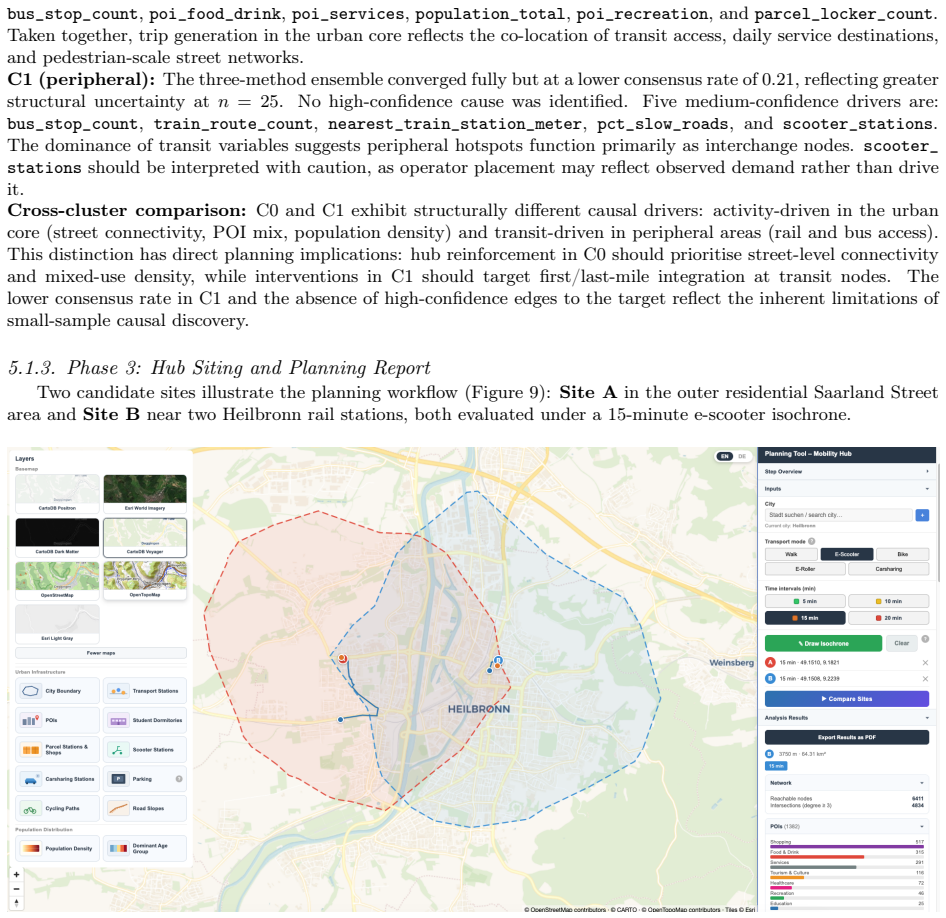

Figure 9. Figure 9: Planning tool: 15-minute e-scooter isochrones for Site A (red) and Site B (blue), Heilbronn. [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Site comparison panel: network metrics, POI counts, and mobility usage likelihood for Site A and Site B (15-minute [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11

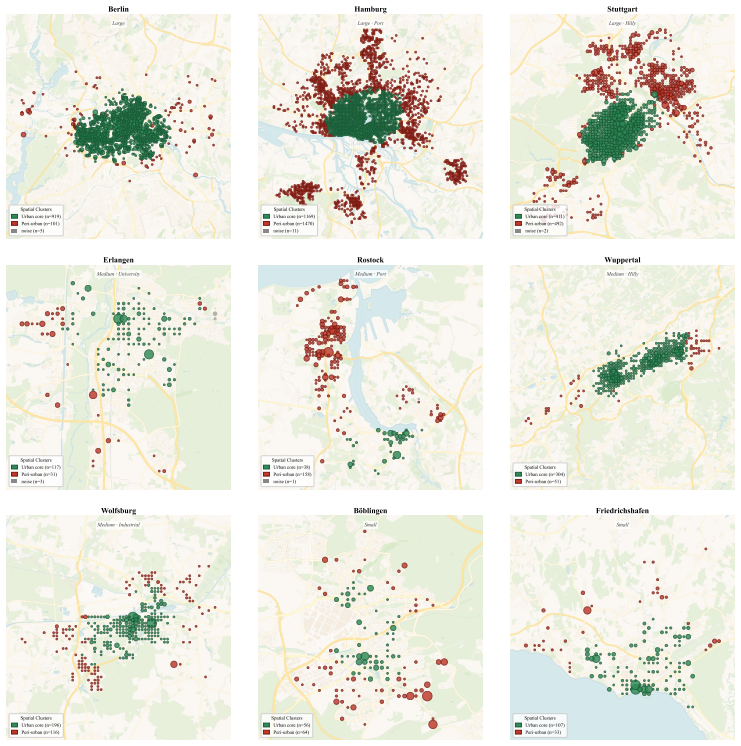

Figure 11. Figure 11: Spatial distribution of C0 (core high-activity) and C1 (peripheral low-activity) hotspot clusters for nine representative [PITH_FULL_IMAGE:figures/full_fig_p019_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Consensus causal graphs grouped by city size class (columns: large [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
Figure 13

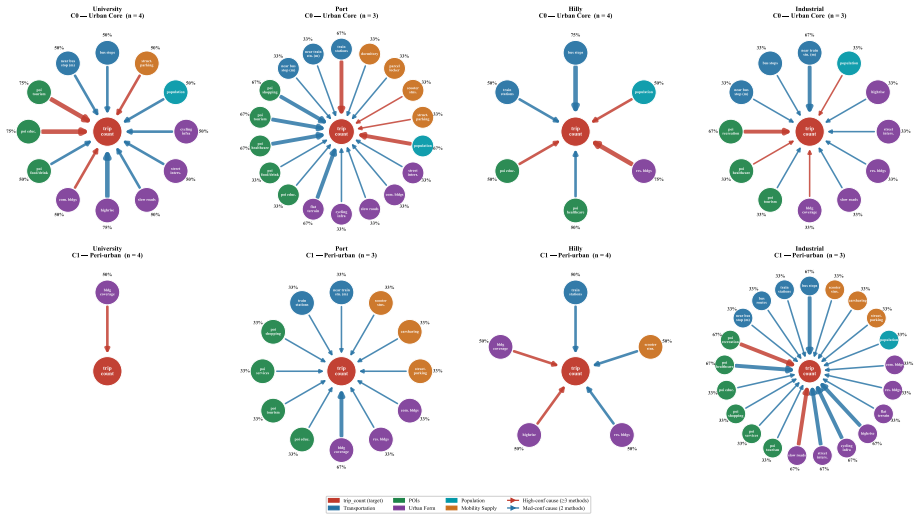

Figure 13. Figure 13: Consensus causal graphs grouped by functional city type (columns: university, port, hilly, industrial) and cluster [PITH_FULL_IMAGE:figures/full_fig_p021_13.png] view at source ↗
read the original abstract

Existing approaches to e-scooter mobility hub planning lack city-type-specific causal evidence. Demand models are typically correlational, built on proprietary trip data, and do not distinguish how driver profiles vary across urban typologies. This paper presents a three-phase agentic AI framework that constructs a Causal Template Library from public GBFS data across 29 German cities, encoding which environmental features causally drive hotspot demand for each combination of city type (large, university, industrial, hilly) and cluster type (core, peripheral). A large language model (LLM) orchestrated causal discovery pipeline adapts algorithm selection to local data conditions across 57 city-cluster units. The library reveals systematic variation. Core demand is driven by activity access and transit proximity, while peripheral demand responds to built form, with city-type-specific patterns supporting transferable siting templates. A planning tool built on the library scores candidate sites, calibrates infrastructure recommendations to local demographics, and generates practitioner-ready reports. In Heilbronn, Germany, two hub sites informed by the framework's causal evidence are currently under construction, illustrating how the outputs can support real-world siting decisions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. This paper proposes a three-phase agentic AI framework for planning e-scooter mobility hubs. It employs an LLM to orchestrate causal discovery on GBFS data from 29 German cities, building a Causal Template Library that identifies causal drivers of demand differentiated by city type (large, university, industrial, hilly) and core/peripheral clusters. The library supports a planning tool for site scoring and report generation, with two sites in Heilbronn under construction based on its outputs.

Significance. Should the causal relationships prove robust and generalizable beyond the sample, the work would offer a significant advance in mobility hub planning by supplying city-type-specific causal templates derived from public data, moving past purely correlational approaches. The demonstrated real-world implementation in Heilbronn is a positive indicator of practical utility.

major comments (3)
  1. [Abstract] Abstract: The assertion that the LLM-orchestrated pipeline produces 'causal evidence' and a 'Causal Template Library' encoding true causal drivers is load-bearing for all downstream claims, yet the manuscript supplies no validation details, sensitivity analyses, robustness checks, or baseline comparisons for the discovery step on observational GBFS data.
  2. [Causal Template Library construction] Causal Template Library construction: The reported patterns (core demand driven by activity access/transit; peripheral by built form) are derived from the same 57 city-cluster GBFS observations used to fit the pipeline, creating a circularity risk that is not addressed by external benchmarks or pre-registered predictions.
  3. [Heilbronn implementation] Heilbronn implementation: The note that two hub sites are under construction provides downstream consistency but does not validate the causal identification step, as no details are given on how the specific causal edges (versus correlations) informed site selection or any falsification test.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments correctly identify that stronger validation of the causal discovery component is needed to support the paper's claims. We respond to each major comment below and commit to revisions that address the identified gaps.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that the LLM-orchestrated pipeline produces 'causal evidence' and a 'Causal Template Library' encoding true causal drivers is load-bearing for all downstream claims, yet the manuscript supplies no validation details, sensitivity analyses, robustness checks, or baseline comparisons for the discovery step on observational GBFS data.

    Authors: We agree that the manuscript lacks sufficient validation details for the causal discovery step. In the revision we will add a new subsection detailing sensitivity analyses (varying algorithm hyperparameters and data subsamples), robustness checks across multiple causal discovery algorithms, and explicit baseline comparisons against purely correlational models. These additions will directly support the claims of causal drivers. revision: yes

  2. Referee: [Causal Template Library construction] Causal Template Library construction: The reported patterns (core demand driven by activity access/transit; peripheral by built form) are derived from the same 57 city-cluster GBFS observations used to fit the pipeline, creating a circularity risk that is not addressed by external benchmarks or pre-registered predictions.

    Authors: The patterns are data-driven from the 57 observations, which is inherent to constructing templates from the available sample. We will add external benchmark comparisons against independent mobility datasets where feasible and will explicitly discuss the exploratory nature of the analysis. Pre-registration was not performed as this was an exploratory study; we will note this limitation and its implications for generalizability. revision: partial

  3. Referee: [Heilbronn implementation] Heilbronn implementation: The note that two hub sites are under construction provides downstream consistency but does not validate the causal identification step, as no details are given on how the specific causal edges (versus correlations) informed site selection or any falsification test.

    Authors: We will expand the Heilbronn section to specify how particular causal edges (e.g., activity access and transit proximity in core clusters) were used in the site scoring function and how they differed from correlational alternatives in the decision process. We will also describe candidate falsification tests that could be applied once post-implementation data become available. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical causal discovery on observational data is self-contained

full rationale

The paper applies standard causal discovery algorithms (orchestrated by LLM) to public GBFS data across 29 cities to construct a Causal Template Library encoding feature-demand relationships, then uses the resulting library for site scoring and reports. This is a conventional data-driven pipeline with no self-definitional equations, no fitted parameters renamed as out-of-sample predictions, and no load-bearing self-citations or uniqueness theorems invoked. The derivation chain does not reduce any claimed result to its own inputs by construction; the templates are outputs of the discovery step on the same data, which is the intended empirical process rather than a circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the framework implicitly assumes GBFS data quality and LLM reliability for causal tasks but does not enumerate them.
