On the Energy Efficiency of Limited-Backhaul Cell-Free Massive MIMO

Manijeh Bashar , Kanapathippillai Cumanan , Alister G. Burr , Hien Quoc Ngo , Erik G. Larsson , Pei Xiao This is my paper

Pith reviewed 2026-05-25 15:06 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords cell-free massive MIMOenergy efficiencylimited backhaulquantizationsuccessive convex approximationBussgang theoremmaximum ratio combiningthroughput constraints
0
0 comments X

The pith

Sending quantized MRC signals over limited backhaul improves energy efficiency in cell-free massive MIMO

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines energy efficiency maximization in cell-free Massive MIMO with limited backhaul capacity links. Access points use distributed maximum ratio combining so only quantized weighted signals are sent to the central processing unit. Channel estimation and quantization errors are modeled with the Bussgang theorem in the formulation of the optimization problem, which includes per-user power, backhaul capacity, and throughput constraints. The non-convex problem is decomposed into two sub-problems solved by successive convex approximation. Numerical results demonstrate the superiority of this approach.

Core claim

Thanks to the distributed maximum ratio combining weighting at the access points, only the quantized version of the weighted signals are sent back to the CPU. Considering the effects of channel estimation errors and using the Bussgang theorem to model the quantization errors, an energy efficiency maximization problem is formulated with per-user power and backhaul capacity constraints as well as with throughput requirement constraints. To handle this non-convex optimization problem, we decompose the original problem into two sub-problems and exploit a successive convex approximation to solve original energy efficiency maximization problem.

What carries the argument

Decomposition of the non-convex energy efficiency problem into two sub-problems solved via successive convex approximation, with quantization errors modeled by the Bussgang theorem.

If this is right

  • Numerical results confirm higher energy efficiency than other schemes.
  • The optimization meets all per-user power, backhaul capacity, and throughput constraints.
  • The approach accounts for channel estimation errors in addition to quantization effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could lower the backhaul capacity needed for cell-free systems to operate efficiently.
  • Similar decomposition techniques might apply to other resource allocation problems in distributed MIMO.
  • Practical implementations could benefit from reduced infrastructure costs due to lower backhaul demands.

Load-bearing premise

The decomposition of the non-convex energy efficiency problem into two sub-problems combined with successive convex approximation produces a solution whose performance is representative of the original problem under the stated constraints.

What would settle it

Numerical experiments where an alternative method or exact solver yields a higher energy efficiency value under the same system parameters and constraints would falsify the claim of superiority.

Figures

Figures reproduced from arXiv: 1906.11639 by Alister G. Burr, Erik G. Larsson, Hien Quoc Ngo, Kanapathippillai Cumanan, Manijeh Bashar, Pei Xiao.

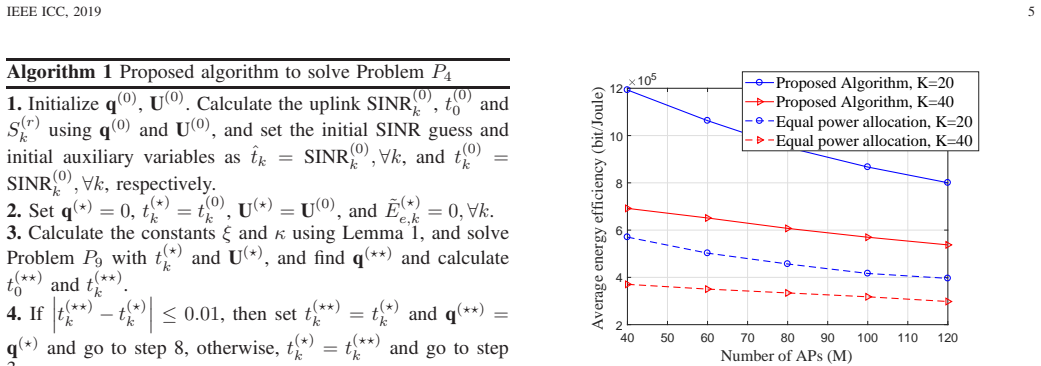

Figure 2
Figure 2. Figure 2: Average energy efficiency versus number of APs with [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

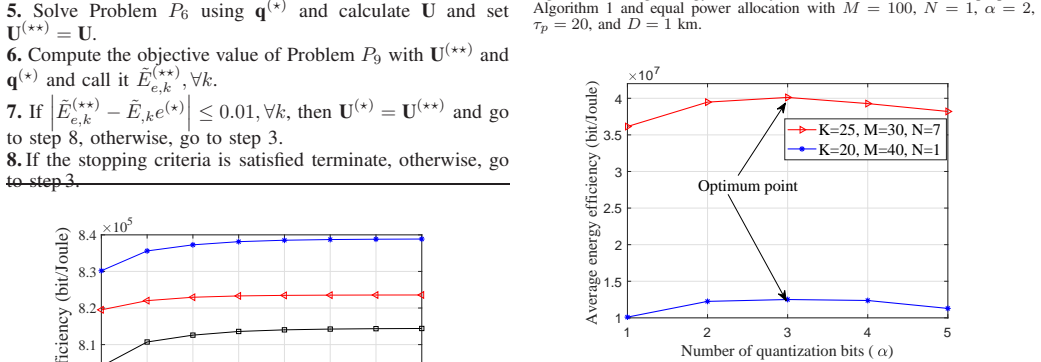

Figure 3
Figure 3. Figure 3: The average energy efficiency of proposed Algorith [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

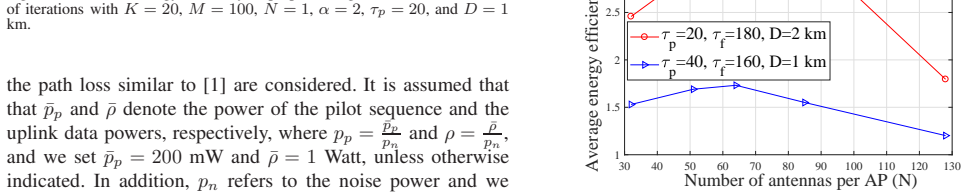

Figure 4
Figure 4. Figure 4: The average energy efficiency of proposed Algorith [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

We investigate the energy efficiency performance of cell-free Massive multiple-input multiple-output (MIMO), where the access points (APs) are connected to a central processing unit (CPU) via limited-capacity links. Thanks to the distributed maximum ratio combining (MRC) weighting at the APs, we propose that only the quantized version of the weighted signals are sent back to the CPU. Considering the effects of channel estimation errors and using the Bussgang theorem to model the quantization errors, an energy efficiency maximization problem is formulated with per-user power and backhaul capacity constraints as well as with throughput requirement constraints. To handle this non-convex optimization problem, we decompose the original problem into two sub-problems and exploit a successive convex approximation (SCA) to solve original energy efficiency maximization problem. Numerical results confirm the superiority of the proposed optimization scheme.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript studies energy efficiency in limited-backhaul cell-free Massive MIMO. It proposes sending only quantized MRC-weighted signals from the APs to the CPU, models quantization noise via the Bussgang theorem, formulates a non-convex EE maximization problem subject to per-user power, backhaul capacity, and minimum-throughput constraints, decomposes the problem into two sub-problems, applies successive convex approximation (SCA) to obtain a solution, and reports numerical results that the proposed scheme outperforms baselines.

Significance. If the numerical gains are shown to be robust to the non-convexity, the work would provide a practical optimization approach for cell-free systems under realistic backhaul constraints. The modeling choices (distributed MRC + Bussgang) are standard and the decomposition idea is a reasonable attempt to handle the fractional objective.

major comments (2)
  1. [optimization formulation and SCA solution method] The central claim that numerical results confirm superiority rests on the output of the decomposed SCA procedure. No analysis is given showing that the obtained stationary point is close to the global optimum of the original non-convex problem, nor is an upper bound (e.g., via relaxation or exhaustive search on small instances) provided for comparison. This makes it impossible to rule out that the reported EE gains are artifacts of the particular local solution.
  2. [numerical results] The numerical-results section reports performance curves but does not state whether multiple random initializations were used for the SCA iterations or whether the same initialization strategy was applied to all compared schemes. Without this, the superiority claim cannot be assessed as representative of the original problem.
minor comments (2)
  1. [system model] Notation for the quantized signals and the Bussgang gain factor should be introduced with an explicit equation reference when first used.
  2. [abstract] The abstract should specify the simulation parameters (number of APs, users, backhaul capacities) that underlie the claimed superiority.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [optimization formulation and SCA solution method] The central claim that numerical results confirm superiority rests on the output of the decomposed SCA procedure. No analysis is given showing that the obtained stationary point is close to the global optimum of the original non-convex problem, nor is an upper bound (e.g., via relaxation or exhaustive search on small instances) provided for comparison. This makes it impossible to rule out that the reported EE gains are artifacts of the particular local solution.

    Authors: We agree that the manuscript does not provide a theoretical guarantee or upper bound establishing closeness to the global optimum. The SCA procedure yields a stationary point of the approximated problem, which is standard for this class of non-convex fractional programs but does not preclude the possibility of better local solutions. In the revised version we will add a dedicated paragraph in Section IV discussing the local nature of the solution, the convergence behavior of the algorithm, and the practical value of the obtained operating point. We will also include a small-scale exhaustive-search comparison on a reduced system to illustrate the gap to the global optimum where feasible. revision: yes

  2. Referee: [numerical results] The numerical-results section reports performance curves but does not state whether multiple random initializations were used for the SCA iterations or whether the same initialization strategy was applied to all compared schemes. Without this, the superiority claim cannot be assessed as representative of the original problem.

    Authors: The referee is correct that the current numerical section omits this information. In the revision we will explicitly state that (i) the same deterministic initialization (based on equal power allocation and uniform quantization) was used across all schemes for fairness, and (ii) additional Monte-Carlo trials with random initial points were performed; the best feasible objective value among those trials is reported for each scheme. The corresponding text and a short table summarizing the variation across initializations will be added to Section V. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper formulates an energy efficiency maximization problem for limited-backhaul cell-free Massive MIMO using the external Bussgang theorem to model quantization, decomposes the non-convex problem into two sub-problems, and applies successive convex approximation (SCA) to obtain a solution. Numerical results then evaluate the scheme's performance under the stated constraints. No load-bearing step reduces by construction to its own inputs via self-definition, fitted parameters renamed as predictions, or self-citation chains; the approach relies on standard external techniques and direct numerical evaluation rather than any renaming or forced equivalence. The derivation is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of the Bussgang theorem to model quantization and on the effectiveness of the SCA solver after decomposition; both are domain-standard assumptions rather than new entities or fitted constants introduced by the paper.

axioms (1)
  • domain assumption Bussgang theorem accurately models the quantization error when only the weighted signal is quantized at each AP
    Explicitly invoked in the abstract to handle quantization effects alongside channel estimation errors.

pith-pipeline@v0.9.0 · 5691 in / 1224 out tokens · 29037 ms · 2026-05-25T15:06:44.340770+00:00 · methodology
