A Reward-Directed Diffusion Framework for Generative Design Optimization

T0 review · 4 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper argues that a two-stage reward-directed diffusion pipeline—reward-weighted fine-tuning followed by soft value-based decoding—can generate ship hulls and airfoils whose simulated performance exceeds the training-data maximum…

desk verdict A competent combination of reward-weighted MLE fine-tuning and soft-value decoding applied to airfoil and ship hull design, but the headline gains are measured by the optimizing surrogate and the ship numbers are not displacement-normalized. read the letter →

arxiv 2508.01509 v1 pith:CSC6FJYF submitted 2025-08-02 cs.LG cs.CE

Hadi Keramati , Patrick Kirchen , Mohammed Hannan , Rajeev K. Jaiman This is my paper
classification cs.LGcs.CE
keywords reward-directeddiffusiondesignoptimizationsoftvaluefunctionreward-weightedmaximumlikelihoodgradient-freeshiphullairfoilmodels
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper tries to establish that a diffusion model can become a design optimizer by steering it toward high reward during both training and inference, using only reward queries and never gradients. It recasts the reverse denoising chain as an entropy-regularized Markov decision process, fine-tunes the pretrained model with reward-weighted maximum likelihood, and then decodes with a soft value function that reweights candidate samples at each step. On a 2D airfoil task it reports more than a 10 percent improvement in lift-to-drag ratio; on a 3D ship hull task it reports more than a 25 percent reduction in calm-water resistance, with generated designs that sit beyond the training-data reward range. The practical payoff would be a gradient-free optimization pipeline for engineering settings where performance comes from costly simulation or a non-differentiable surrogate model.

What carries the argument

The central object is the soft value function $v_t(x_t)$, defined through the soft Bellman recursion $\exp(v_t(x_t)/\alpha) = \mathbb{E}[\exp(r(x_0)/\alpha) \mid x_t]$ under the pretrained reverse process. It turns each denoising step into a soft optimal policy $p^*_t(x_{t-1} \mid x_t) \propto \exp(v_{t-1}(x_{t-1})/\alpha)\, p^{\mathrm{pre}}_t(x_{t-1} \mid x_t)$, so earlier states with higher expected terminal reward receive more probability. The paper approximates the soft value without reward gradients using the posterior mean $\hat{x}_0 = (x_t - \sqrt{1-\bar{\alpha}_t}\,\epsilon_\theta(x_t,t))/\sqrt{\bar{\alpha}_t}$: at each reverse step it samples $M$ candidate states, scores them with $\exp(r(\hat{x}_0)/\alpha)$, and selects one by categorical sampling. The same soft-value weighting appears in the fine-tuning loss, so training and inference optimize the same objective.

What would settle it

A decisive check would be to take the full set of reward-directed hulls and airfoils and measure their resistance and lift-to-drag with high-fidelity CFD or experiment; if the median measured gains fall well below the surrogate-reported 25% and 10%, or if no generated design beats the best training design once re-scored, the extrapolation claim is refuted.

Watch

Extended reading notes

Core claim

The central claim is that pushing a pretrained diffusion model toward high reward in two stages, reward-weighted maximum-likelihood fine-tuning followed by soft value-based decoding, produces engineering designs whose performance exceeds the best designs in the training data without differentiating the reward function. The paper demonstrates this on 2D airfoils (over 10 percent improvement in lift-to-drag ratio) and 3D ship hulls (over 25 percent reduction in calm-water resistance). The improvement is attributed to the iterative coupling: fine-tuning shifts the generative distribution toward high-reward regions, and soft value decoding concentrates each denoising step on candidate states with high expected terminal reward, so the final samples land outside the training reward envelope while staying near the pretrained distribution.

Load-bearing premise

The load-bearing premise is that the fast stand-in model used to score designs is accurate precisely in the extrapolated region where the claimed 25% and 10% gains occur, because only single generated designs, not the whole improved distribution, were re-checked with independent simulation software.

Editorial extensions

If this is right

  • Designers can optimize shapes whose performance is rated by non-differentiable simulators or tree-based surrogates, without building a differentiable proxy for the objective.
  • Because fine-tuning absorbs part of the alignment cost, the inference-time candidate budget $M$ can stay small (10 in the experiments), which limits memory and GPU time compared with decoding that only reweights samples.
  • The generated designs fall outside the training reward envelope, so the method acts as an extrapolation tool rather than an interpolation tool, even in design spaces that are already highly optimized.
  • The same two-stage pipeline should transfer to other parametric engineering geometries as long as a reward function can be queried, since the framework never needs the reward's gradient.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • My inference: the headline gains should be re-scored with an ensemble or uncertainty-aware surrogate, because the same XGBoost model both guides generation and measures the claimed 25% and 10% improvements; a biased surrogate could inflate both numbers together.
  • My inference: the soft-value formulation suggests a natural multi-objective extension, replacing the scalar reward $r(x_0)$ with a weighted combination or Pareto reward while keeping the same fine-tune-then-decode pipeline, which the paper does not explore.
  • My inference: ablating the reward temperature $\alpha$ and the noise schedule would clarify how much of the gain comes from fine-tuning versus decoding, since both stages use the same exponential weighting and the paper does not separate their contributions.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes a reward-directed diffusion framework for generative design optimization. A pre-trained DDPM is fine-tuned with reward-weighted maximum likelihood estimation, and at inference time reward-based importance sampling (soft value-based decoding) is applied. The method is gradient-free and intended for non-differentiable reward functions such as tree-based surrogates. Experiments are conducted on 2D airfoil design (38,000 UIUC-derived airfoils, XGBoost surrogate, R²=0.994) and 3D ship hull design (10,000 parametric hulls, XGBoost surrogate, R²=0.985), with claims of over 10% improvement in Cl/Cd and over 25% reduction in calm-water resistance relative to training data. Partial external validation is provided for one airfoil via XFOIL and one hull via Maxsurf, but the headline improvements are measured with the same surrogate used for guidance.

Significance. If the claims hold, the framework would be a practical contribution: it extends diffusion-based optimization to non-differentiable and expensive reward models while distributing the cost of reward alignment across fine-tuning and inference, and it demonstrates results in two realistic engineering design tasks. The paper also ships a clear algorithmic description and two case studies with some external validation. However, the empirical evidence as presented does not yet establish the headline 'beyond training data' improvements, because the central metrics are evaluated with the same surrogate that guides generation and because the ship resistance objective is not normalized by displacement.

major comments (4)
  1. [§5.1, §5.2 (Figs. 10, 16; Abstract)] The claimed improvements of over 10% in Cl/Cd and over 25% in resistance are computed using the XGBoost surrogate that also serves as the reward model during generation. Because tree ensembles are piecewise constant outside the training hull, the generated 'beyond-distribution' samples can be adversarial inputs to the surrogate rather than genuinely superior physical designs. The XFOIL check of a single airfoil and the Maxsurf check of a single hull are illustrative but do not re-measure the headline improvements on a sample of generated designs against a baseline. Please provide a distribution-level high-fidelity evaluation (or, at minimum, multiple seeds plus a clear statement that the reported numbers are surrogate-based and should be interpreted accordingly).
  2. [§4, §5.2 (Eqs. 21–24, Fig. 16)] The ship resistance objective aggregates total resistance over eight speeds and four drafts without normalizing by displacement or a fixed size proxy. Since the frictional and wave components scale with LOA² and wetted surface area, the optimizer can reduce resistance simply by shrinking the hull. The Maxsurf validation reports displacement for the single selected hull (95.160 t) but does not compare at matched displacement against a baseline design, so the claimed >25% resistance reduction is confounded with size change. Please either fix displacement in the reward or report displacement/wetted-area distributions for the training and generated sets and re-evaluate the comparison at matched displacement.
  3. [§3.4 (Eq. 15, Algorithm 1)] The fine-tuning loss replaces the soft-value expectation E[exp(r(x₀)/α) | x_t] with the single-sample weight exp(r(x₀⁽ⁱ⁾)/α) in Eq. 15 and Algorithm 1. This is a high-variance Monte Carlo approximation, and its validity is not assessed: the paper does not report the variance or effective sample size of these weights, nor a comparison against multi-sample estimates. If the weights concentrate on a few samples, the fine-tuning signal may be dominated by noise rather than by a stable reward direction. Please add a diagnostic of the weight distribution and, ideally, an ablation with a multi-sample approximation to justify this substitution.
  4. [§5 (Figs. 7–17)] All reported results come from a single run of the full pipeline (pre-training, fine-tuning, and sampling) without multiple seeds or confidence intervals. Because both fine-tuning and stochastic sampling are random processes, the observed boxplot shifts and the claimed improvement percentages could be within run-to-run variability. Please report results over at least 3–5 independent seeds (or a bootstrap over generated samples) and specify the statistic used for the improvement (e.g., median or mean relative to the training-data median or mean).
minor comments (6)
  1. [Eq. (16)] Equation (16) appears to contain a typesetting error: the loss expression subtracts both ϵ(·; θ_pre) and ϵ(·; θ) and includes an ambiguous '{σ⋄t}²' term, making the definition unreadable. Algorithm 1 presents a cleaner loss and could be used as the canonical form.
  2. [§5.1, §5.2, Conclusion] The '10% improvement' and '25% reduction' are not tied to a precise baseline in the text (e.g., training-data mean or median, or the pre-trained DDPM). Please state the exact statistic, the baseline value, and the achieved value for each case.
  3. [§5.1 (Fig. 13)] The statement that the XFOIL-validated airfoil with Cl/Cd = 275.56 is 'well beyond the highest value in the training data' would be substantiated by reporting the training-data maximum Cl/Cd value.
  4. [§4, §5.1 (surrogate training)] The XGBoost surrogates are described only by in-sample or single-split R² values (0.994 and 0.985). Please describe the train/test split or cross-validation, and report additional error metrics such as RMSE or MAE, especially for the low-resistance/high-reward region that is targeted by optimization.
  5. [§3.4 (Algorithm 1)] The algorithm collects samples using a mixture of the current fine-tuned policy and the pre-trained policy without an importance-correction term. Reward-weighted maximum likelihood in this off-policy setting is known to be biased; the paper neither discusses this nor justifies the omission, which is worth clarifying.
  6. [§3.5, §5 (hyperparameters)] The sensitivity of the results to the temperature parameter α and the number of candidates M is only partially examined (M is swept in Fig. 8 and Fig. 14, but α is not). A brief sensitivity study or selection procedure for α would strengthen the empirical claims.

Circularity Check

2 steps flagged · score 5.0 of 10

Headline 'beyond-training' improvements (25% ship resistance, >10% airfoil Cl/Cd) are measured by the same fitted XGBoost reward model used to guide generation; the Maxsurf and XFOIL checks validate only single designs, not the reported distribution-level gains.

  1. fitted input called prediction [Section 4 (Data Processing and Geometry Representation) and Section 5.2 (3D Ship Hull Design Optimization)]
    "The aggregated RT on eight different velocities (Froude numbers ranging from 0.1 to 0.45) and four different drafts (0.25, 0.33, 0.5, and 0.67) is considered the performance criterion and is used in this study as an objective function in the RDD model. An XGBoost surrogate model [71] is trained to accelerate resistance prediction, achieving an R2 value of 0.985, which facilitates faster design generation and reward evaluation. ... further fine-tuning and iterative soft value guidance reduce the resistance of the generated samples even more, achieving over 25% reduction in resistance."

    The XGBoost surrogate is simultaneously the reward model that guides reward-weighted MLE fine-tuning and soft-value sampling and the evaluator used to report the 'over 25% reduction in resistance.' The claimed improvement is therefore a value of the very function being maximized, not an independent physical prediction. The MAXSURF validation of one hull checks hydrostatics, stability, and produces a resistance curve, but it does not compare the generated hull against a baseline at matched displacement; hence the distribution-level 'beyond training data' reduction is not re-measured by an independent model.

  2. fitted input called prediction [Section 5.1 (2D Airfoil Generative Design) and Section 6 (Conclusion)]
    "An XGBoost is trained as a regression model to predict Cl/Cd value for each airfoil design. The coefficient of determination (R2 value) of the trained model is equal to 0.994 which shows high prediction performance. This regression model was used to act as a reward model during fine-tuning. ... Our empirical results show that the iterative reward-directed framework achieves ... an improvement of over 10% in Cl/Cd for airfoil designs."

    The reward-weighted MLE loss weights samples by w(i,t)=exp(r(x0)/alpha) with r being the XGBoost Cl/Cd prediction, and the reported 'over 10% improvement' is computed from that same fitted model. The single XFOIL validation reports one design with Cl/Cd=275.56, which supports extrapolation for one sample, but it does not re-measure the distribution-level 10% improvement stated in the Conclusion. Thus the headline airfoil gain is a self-report of the surrogate used as the optimization objective.

full rationale

The central methodological contribution — iterative reward-weighted MLE plus soft-value importance sampling for non-differentiable rewards — is not itself circular: it cites external derivations (Uehara et al.; Li et al.) and the pipeline would work for any reward oracle. No load-bearing self-citation was found: the authors' prior works [21,35] appear only as background. The circularity concern is narrower but real: the paper's headline empirical claims are evaluated by the same fitted XGBoost reward that guides generation. For ships, Section 4 defines the objective as aggregated total resistance from a simplified integral and an XGBoost surrogate with R2=0.985; Section 5.2 reports 'over 25% reduction in resistance' from that surrogate, and the MAXSURF validation does not recompute the reduction against a matched-displacement baseline (it reports displacement 95.160 t for one hull without a baseline comparison). For airfoils, Section 5.1 reports R2=0.994 and uses the same model as reward; the distribution-level 'over 10% improvement' is surrogate-generated, with only one XFOIL-validated sample. This makes the 'beyond training data' claims partially reductions to the fitted reward function rather than independently established physical gains. The external checks prevent a score of 8-10, but the absence of distribution-level independent validation keeps the headline claim partially circular.

Assumptions & free parameters 7 free parameters · 6 assumptions · 0 invented entities

The central claim relies on several assumptions pulled from prior work or introduced without independent evidence: the soft-policy form, the single-sample reward approximation, and trust in the surrogate's extrapolation. No new physical entities are introduced.

free parameters (7)
  • Temperature alpha for soft value weighting
    Controls the strength of reward guidance in both fine-tuning (Eq. 16) and importance sampling (Algorithm 2); no value or sensitivity analysis is reported.
  • Candidate count M per reverse step = 10
    Set to 10 for both tasks; authors state it is limited by 40GB A100 memory. M affects performance (Figs. 8, 14), so the headline results depend on this choice.
  • Diffusion noise schedule and timesteps T
    The DDPM forward and reverse process requires a variance schedule beta_t and T; not specified in the paper.
  • Fine-tuning hyperparameters (learning rate gamma, iterations S, batch size m)
    Algorithm 1 lists gamma, S, and m but provides no values; these affect the fine-tuned policy.
  • XGBoost surrogate hyperparameters
    Only R2 is reported; tree depth, learning rate, and number of estimators are not given.
  • Ship dataset composition (10,000 point subset)
    The combined dataset includes Ship-D, C-ShipGen, and 'data generated during pre-training of the DDPM'; the subset-selection rule is not described.
  • Reward normalization and feasibility penalty weights
    Rewards are 'normalized' (airfoil) and 'linearly scaled' (ship); exact scaling and penalty magnitudes are not given.
assumptions (6)
  • domain assumption Optimal soft policy form p*_t(x_{t-1}|x_t) = exp(v_{t-1}/alpha) p_pre / exp(v_t/alpha) holds for the reverse diffusion MDP
    Adopted from Uehara et al. via Eq. 11; the paper does not re-derive it and assumes the entropy-regularized MDP setup applies to DDPM denoising steps.
  • ad hoc to paper Single-sample reward exp(r(x0)/alpha) is a valid substitute for the soft-value expectation E[exp(r(x0)/alpha)|x_t] in fine-tuning
    Eq. 15 replaces the expectation in Eq. 13 with the reward of a sampled x0; this approximation is not flagged or justified.
  • domain assumption XGBoost surrogate (R2=0.994 for airfoil, R2=0.985 for ship) is sufficiently accurate to guide optimization and to measure improvements beyond the training distribution
    The headline improvements are computed with this surrogate; accuracy in extrapolation is assumed. Maxsurf validation checks feasibility, not resistance improvement.
  • domain assumption Simplified physics (Michell integral for wave resistance and ITTC friction formula) adequately represents true calm-water resistance for hull optimization
    Used to generate the ship reward dataset; the paper acknowledges simplified physics but does not quantify its discrepancy from high-fidelity CFD.
  • domain assumption Feasibility constraints from [52] for all 44 ship parameters prevent unrealistic hulls
    The reward is penalized by feasibility constraint g(x0) 'following the definitions in [52]', without restating or verifying them.
  • standard math Standard DDPM Gaussian forward and reverse process assumptions
    Section 2 uses the standard DDPM formulation; this is a routine background assumption.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Reward-Directed Diffusion Framework for Generative Design Optimization." pith.science (2026). https://pith.science/paper/CSC6FJYF

@misc{pith2026250801509,
  author       = {Pith},
  title        = {Pith review of: A Reward-Directed Diffusion Framework for Generative Design Optimization},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CSC6FJYF}},
  note         = {Machine review of arXiv:2508.01509}
}
read the original abstract

This study presents a generative optimization framework that builds on a fine-tuned diffusion model and reward-directed sampling to generate high-performance engineering designs. The framework adopts a parametric representation of the design geometry and produces new parameter sets corresponding to designs with enhanced performance metrics. A key advantage of the reward-directed approach is its suitability for scenarios in which performance metrics rely on costly engineering simulations or surrogate models (e.g. graph-based, ensemble models, or tree-based) are non-differentiable or prohibitively expensive to differentiate. This work introduces the iterative use of a soft value function within a Markov decision process framework to achieve reward-guided decoding in the diffusion model. By incorporating soft-value guidance during both the training and inference phases, the proposed approach reduces computational and memory costs to achieve high-reward designs, even beyond the training data. Empirical results indicate that this iterative reward-directed method substantially improves the ability of the diffusion models to generate samples with reduced resistance in 3D ship hull design and enhanced hydrodynamic performance in 2D airfoil design tasks. The proposed framework generates samples that extend beyond the training data distribution, resulting in a greater 25 percent reduction in resistance for ship design and over 10 percent improvement in the lift-to-drag ratio for the 2D airfoil design. Successful integration of this model into the engineering design life cycle can enhance both designer productivity and overall design performance.

Figures

Figures reproduced from arXiv: 2508.01509 by the authors.

Figure 1
Figure 1. A simple illustration of design optimization trajectories for reinforcement learn [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Conceptual schematic of the generative design optimization framework for shape [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Visual workflow of the reward-directed generative optimization framework. [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (17 more)
Figure 4
Figure 4. Figure 4: Graphical model of the vanilla DDPM (bottom) and reward-directed diffusion [PITH_FULL_IMAGE:figures/full_fig_p016_4.png]
Figure 5
Figure 5. Figure 5: Graphical illustration of selected parameters used in the general hull form [PITH_FULL_IMAGE:figures/full_fig_p019_5.png]
Figure 6

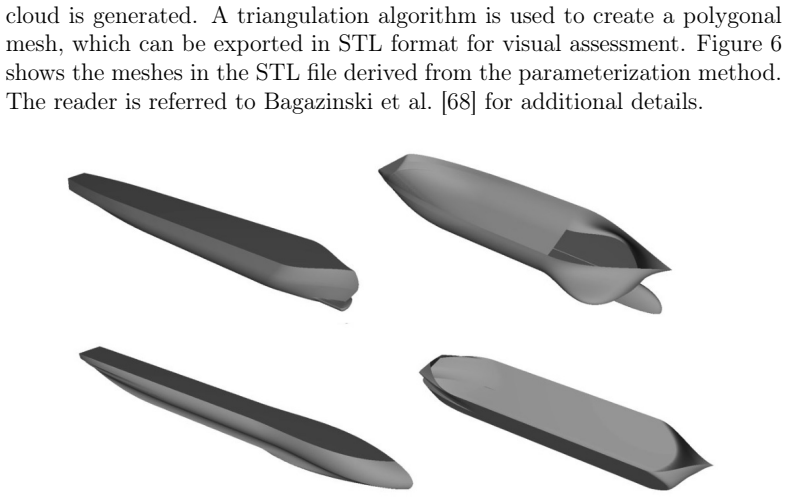

Figure 6. Figure 6: Representative 3D ship hull designs from the dataset. [PITH_FULL_IMAGE:figures/full_fig_p020_6.png]
Figure 7
Figure 7. Figure 7: Boxplot comparing Cl/Cd distributions from training data, pre-trained DDPM, and reward-directed diffusion in the 2D airfoil design task. Reward-directed diffusion shifts the distribution toward higher-performance regions [PITH_FULL_IMAGE:figures/full_fig_p023_7.png]
Figure 8
Figure 8. Figure 8: Distribution of sampled designs from pre-trained DDPM using reward-based [PITH_FULL_IMAGE:figures/full_fig_p024_8.png]
Figure 9
Figure 9. Figure 9: Reward history during fine-tuning 2D model using reward-weighted MLE. A [PITH_FULL_IMAGE:figures/full_fig_p025_9.png]
Figure 10

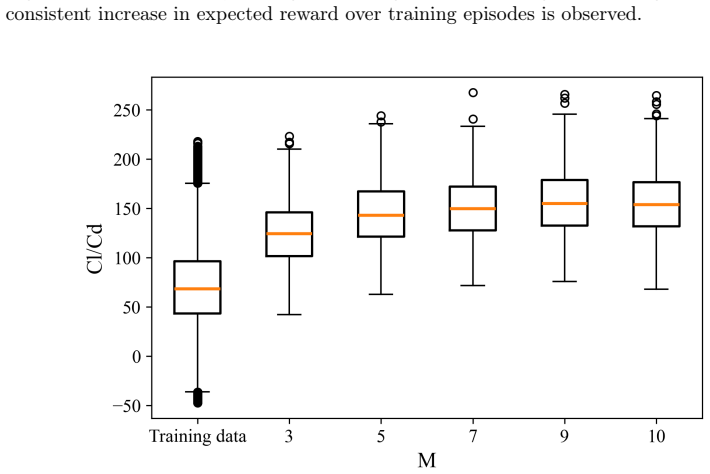

Figure 10. Figure 10: Distribution of the training data and sampled designs from the reward-directed [PITH_FULL_IMAGE:figures/full_fig_p025_10.png]
Figure 11
Figure 11. Figure 11: Probability density function of Cl/Cd values comparing the training data and sample airfoil designs generated by the reward-directed diffusion model, showing a positive shift toward higher-performance designs [PITH_FULL_IMAGE:figures/full_fig_p026_11.png]
Figure 12
Figure 12. Figure 12: High-performance airfoil designs generated via reward-directed diffusion. Cubic [PITH_FULL_IMAGE:figures/full_fig_p026_12.png]
Figure 13
Figure 13. Figure 13: Airfoil shape and pressure distribution along the airfoil surface for one of the [PITH_FULL_IMAGE:figures/full_fig_p027_13.png]
Figure 14
Figure 14. Figure 14: Box plot of calm-water resistance values for training data and samples generated [PITH_FULL_IMAGE:figures/full_fig_p028_14.png]
Figure 15
Figure 15. Figure 15: Reward history during fine-tuning for 3D Ship hull design using reward [PITH_FULL_IMAGE:figures/full_fig_p029_15.png]
Figure 16
Figure 16. Figure 16: Box plot of resistance values for samples generated from the reward-directed [PITH_FULL_IMAGE:figures/full_fig_p030_16.png]
Figure 17
Figure 17. Figure 17: Probability density of resistance for training and sampled 3D hull designs from [PITH_FULL_IMAGE:figures/full_fig_p030_17.png]
Figure 18
Figure 18. Figure 18: Example ship hull geometries generated by reward-directed diffusion. Visual [PITH_FULL_IMAGE:figures/full_fig_p031_18.png]
Figure 19
Figure 19. Figure 19: GPU computation time versus number of candidates [PITH_FULL_IMAGE:figures/full_fig_p031_19.png]
Figure 20
Figure 20. Figure 20: Validation against Maxsurf simulation: (a) Righting arm curve for the gen￾erated 3D ship hull design, verifying compliance with IMO intact stability criteria, (b) Resistance vs. speed curve confirming smooth hydrodynamic behavior. Running the hydrostatics routine acro…
