Underwater MEMS Gyrocompassing: A Virtual Testing Ground

Daniel Engelsman , Itzik Klein This is my paper

Pith reviewed 2026-05-24 03:17 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords gyrocompassingunderwater navigationUUVinertial measurementsmachine learningMEMSEarth rotation rate
0
0 comments X

The pith

A learning framework refines disturbed inertial signals to isolate Earth's rotation for accurate UUV gyrocompassing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a machine learning framework to improve gyrocompassing for unmanned underwater vehicles by handling environmental disturbances. It analyzes the dynamic signature in inertial measurements to refine signals and focus on the Earth's rotation rate vector. This matters for maintaining accurate heading during extended underwater missions where ocean currents degrade traditional model-based methods. Simulations assess the framework's adaptability to challenging conditions using recent machine learning techniques.

Core claim

Through the analysis of the dynamic UUV signature obtained from inertial measurements, the proposed learning framework learns to refine disturbed signals, enabling a focused examination of the earth's rotation rate vector. This provides a resilient gyrocompassing solution for UUVs susceptible to ocean currents, with empirical simulations assessing adaptability to challenging underwater conditions.

What carries the argument

The learning framework that analyzes the dynamic UUV signature from inertial measurements to refine signals and isolate the Earth's rotation rate vector.

If this is right

  • Enables accurate initial heading determination for continuous UUV trajectory tracking during long missions.
  • Mitigates performance degradation in model-based gyrocompassing caused by ocean currents and disturbances.
  • Supports adaptability to varied underwater conditions through signal refinement learned from inertial data.
  • Delivers a resilient alternative solution when traditional approaches fail due to environmental effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be tested for integration with real-time UUV sensor streams beyond offline simulations.
  • Similar signal refinement might apply to inertial navigation in other disturbance-heavy domains like aerial or surface vehicles.
  • Hybrid combinations with physics-based models could further stabilize the isolated rotation vector estimate.

Load-bearing premise

Inertial measurements contain a learnable dynamic UUV signature that can be separated from environmental disturbances to isolate the Earth's rotation rate vector.

What would settle it

A test in which the framework's refined signals produce no improvement in estimated Earth rotation rate accuracy compared to standard model-based gyrocompassing under strong current disturbances.

Figures

Figures reproduced from arXiv: 2402.05790 by Daniel Engelsman, Itzik Klein.

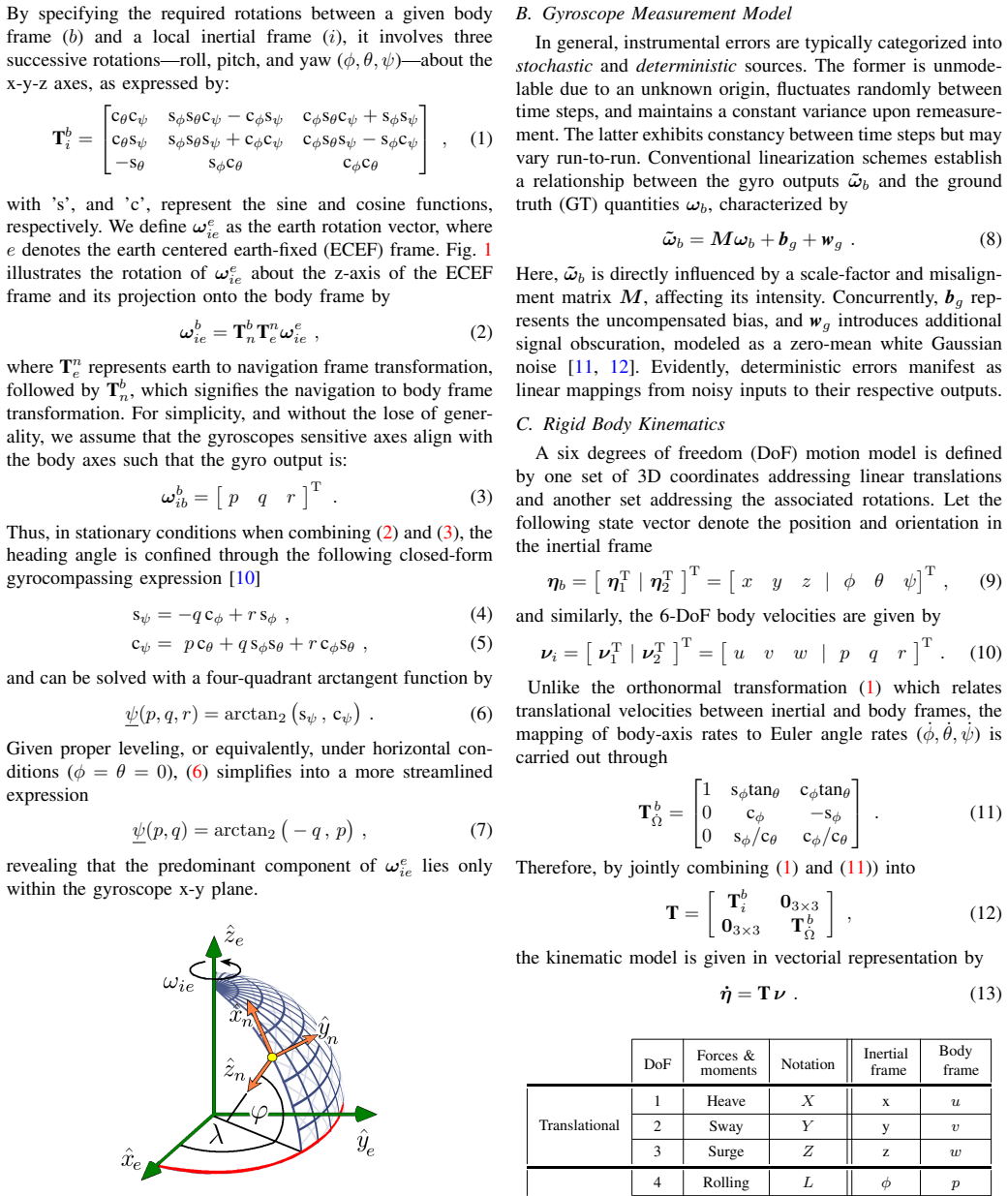

Figure 1
Figure 1. Figure 1: Diagrammatic representation of the transformation [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

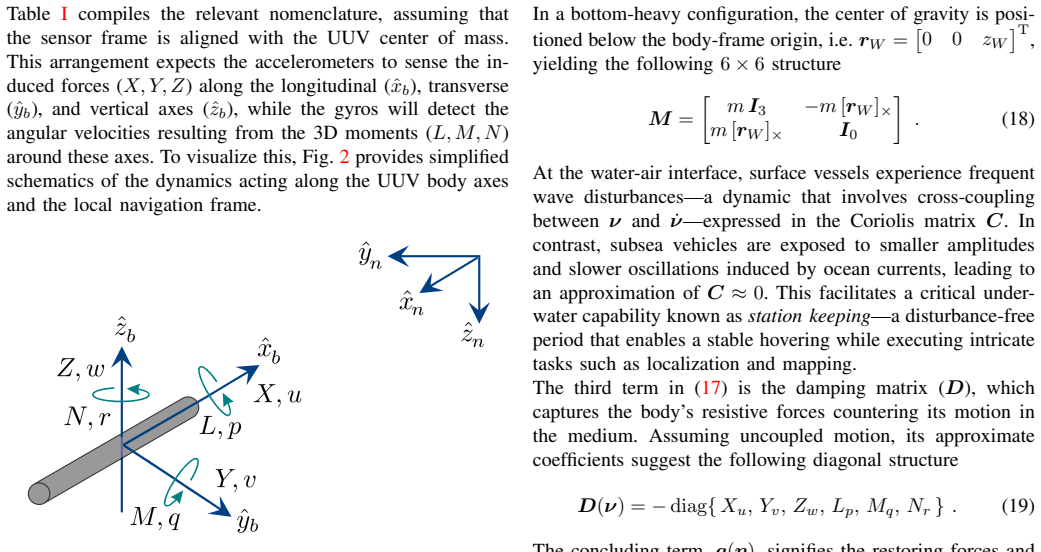

Figure 2
Figure 2. Figure 2: Relationship between the navigation frame and UUV [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

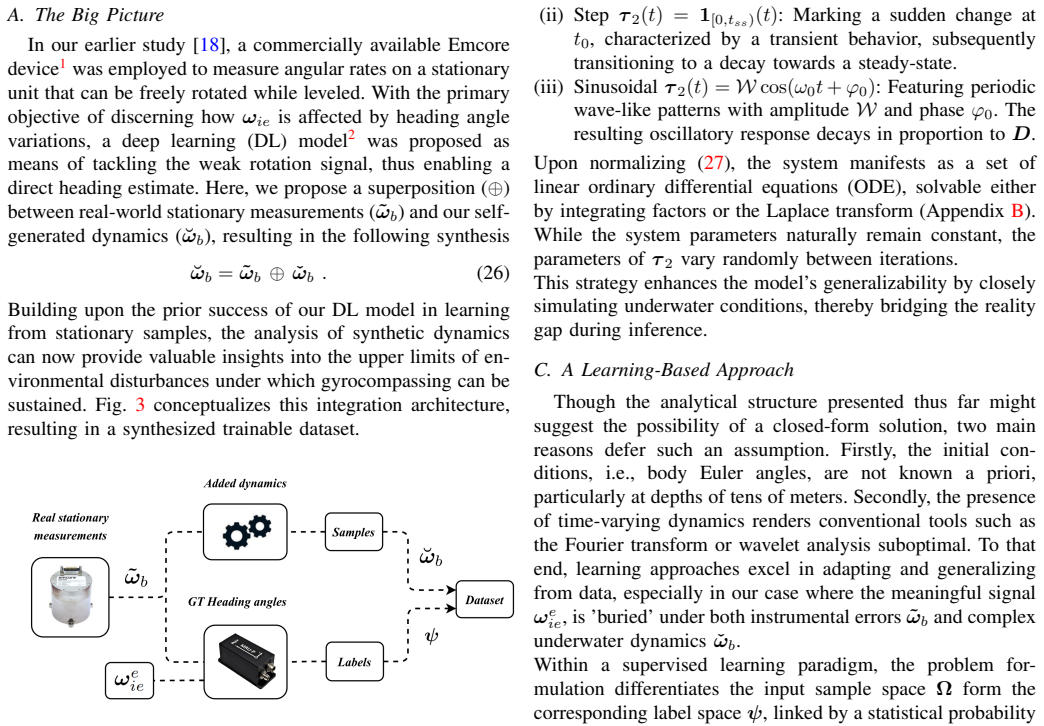

Figure 3
Figure 3. Figure 3: Conceptual flow of the proposed setup. B. Simulated Dynamics The complete 6-DoF dynamic model (23) establishes the an￾alytical relationship between linear accelerations and angular velocities, correlating them with external forces and moments, respectively. Upon further examination of the gyrocompassing equation (7), it becomes evident that accelerations (ν˙1) have no impact on it, rendering it translation… view at source ↗

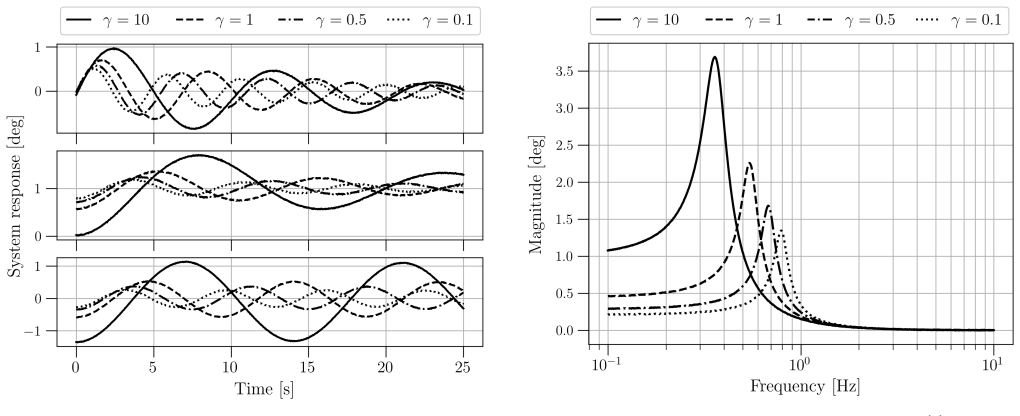

Figure 5
Figure 5. Figure 5: Spectral response to unit input τ (t) [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

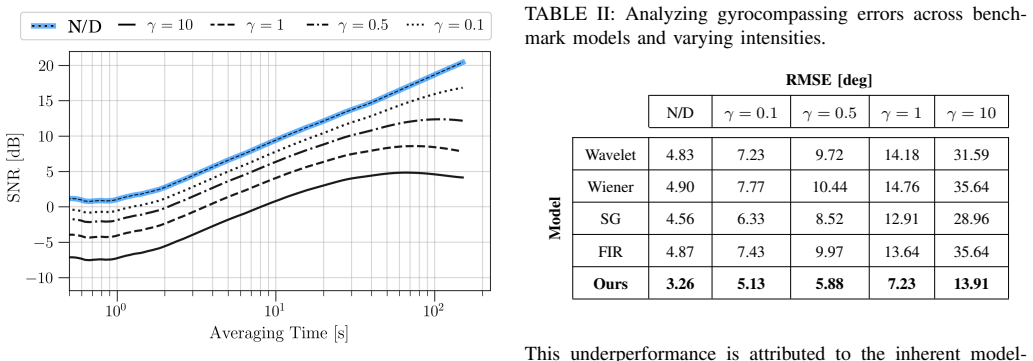

Figure 6
Figure 6. Figure 6: SNR comparison with varying averaging time and [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

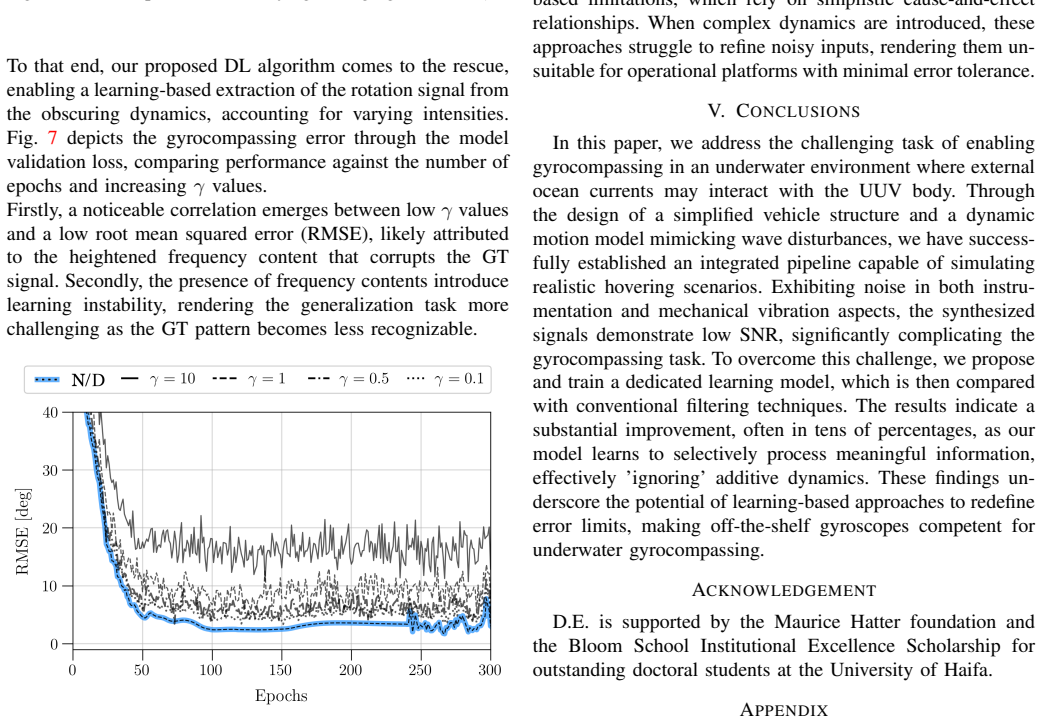

Figure 7
Figure 7. Figure 7: Validation curve against number of epochs. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

In underwater navigation, accurate heading information is crucial for accurately and continuously tracking trajectories, especially during extended missions beneath the waves. In order to determine the initial heading, a gyrocompassing procedure must be employed. As unmanned underwater vehicles (UUV) are susceptible to ocean currents and other disturbances, the model-based gyrocompassing procedure may experience degraded performance. To cope with such situations, this paper introduces a dedicated learning framework aimed at mitigating environmental effects and offering precise underwater gyrocompassing. Through the analysis of the dynamic UUV signature obtained from inertial measurements, our proposed framework learns to refine disturbed signals, enabling a focused examination of the earth's rotation rate vector. Leveraging recent machine learning advancements, empirical simulations assess the framework's adaptability to challenging underwater conditions. Ultimately, its contribution lies in providing a resilient gyrocompassing solution for UUVs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a dedicated machine learning framework for underwater MEMS gyrocompassing on UUVs. It claims that analysis of the dynamic UUV signature extracted from inertial measurements allows the framework to refine signals disturbed by ocean currents and other environmental effects, thereby enabling isolation and focused examination of the Earth's rotation rate vector for initial heading determination. The approach is said to leverage recent ML advancements and is assessed via empirical simulations under challenging underwater conditions.

Significance. A working data-driven method that reliably separates the ~15°/h Earth-rate component from MEMS noise and motion disturbances would be a meaningful contribution to resilient UUV navigation where conventional model-based gyrocompassing degrades. No quantitative results, architectures, loss functions, training labels, or simulation parameters are supplied in the manuscript, so it is not possible to determine whether the claimed separation is achieved or merely assumed.

major comments (2)
  1. [Abstract] Abstract (paragraph on the learning framework): the central claim that the framework 'learns to refine disturbed signals, enabling a focused examination of the earth's rotation rate vector' is unsupported by any derivation, model architecture, loss, or error metric. This is load-bearing because typical MEMS gyro bias and noise exceed the horizontal Earth-rate component by orders of magnitude; without evidence that the 'dynamic UUV signature' is independently identifiable and separable, the refinement step cannot be shown to perform the required physics-informed isolation rather than generic denoising.
  2. [Abstract] Abstract (final paragraph): the statement that 'empirical simulations assess the framework's adaptability' provides no simulation parameters, disturbance models, performance metrics, or comparison against model-based baselines, preventing evaluation of whether the separability assumption holds under realistic ocean-current and motion conditions.
minor comments (1)
  1. [Abstract] The title refers to a 'Virtual Testing Ground' yet the abstract supplies no description of the virtual environment, sensor models, or disturbance generation used for testing.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that the submitted manuscript lacks the necessary technical details on the ML framework, loss functions, training labels, simulation parameters, and quantitative results to substantiate the claims. A major revision will add these elements, including model architecture, error metrics, and baseline comparisons, to allow proper evaluation.

read point-by-point responses

  1. Referee: [Abstract] Abstract (paragraph on the learning framework): the central claim that the framework 'learns to refine disturbed signals, enabling a focused examination of the earth's rotation rate vector' is unsupported by any derivation, model architecture, loss, or error metric. This is load-bearing because typical MEMS gyro bias and noise exceed the horizontal Earth-rate component by orders of magnitude; without evidence that the 'dynamic UUV signature' is independently identifiable and separable, the refinement step cannot be shown to perform the required physics-informed isolation rather than generic denoising.

    Authors: We acknowledge that the current abstract provides no supporting details. In the revised manuscript we will add a dedicated methods section describing the framework: a physics-informed recurrent network whose loss combines reconstruction error with an explicit term enforcing consistency with the known Earth-rate vector magnitude and direction; training labels generated from noise-free inertial simulations augmented with labeled UUV motion signatures; and quantitative metrics (Earth-rate vector error, heading error) demonstrating isolation performance when MEMS bias exceeds the 15°/h signal. This will show that the dynamic signature enables separability beyond generic denoising. revision: yes

  2. Referee: [Abstract] Abstract (final paragraph): the statement that 'empirical simulations assess the framework's adaptability' provides no simulation parameters, disturbance models, performance metrics, or comparison against model-based baselines, preventing evaluation of whether the separability assumption holds under realistic ocean-current and motion conditions.

    Authors: We agree the abstract omits these specifics. The revised manuscript will include a full simulation section specifying MEMS parameters (bias 5–20°/h, ARW 0.1°/√h), ocean-current models (0–2 m/s with 0.2 m/s turbulence), UUV motion profiles (surge/sway/heave at 0.5–2 m/s), metrics (heading RMSE, Earth-rate estimation error), and direct comparisons to model-based gyrocompassing under identical disturbances, confirming improved resilience when the separability assumption is tested. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical ML framework proposal with no derivation chain

full rationale

The paper proposes an ML-based framework for refining inertial signals to isolate Earth rate, evaluated via simulations. No mathematical derivation, parameter fitting presented as prediction, or self-citation load-bearing steps appear in the abstract or described content. The central claim is an empirical method whose validity rests on simulation results rather than reducing to its own inputs by construction. This is the expected non-finding for a methods paper without closed-form claims.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the central claim implicitly rests on the unexamined premise that ML can isolate the rotation signal from disturbances without further specification.

pith-pipeline@v0.9.0 · 5661 in / 1013 out tokens · 38138 ms · 2026-05-24T03:17:43.833941+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

22 extracted references · 22 canonical work pages · 1 internal anchor

  1. [1]

    Strapdown inertial navigation technology, volume 17

    David Titterton and John L Weston. Strapdown inertial navigation technology, volume 17. IET, 2004

    work page 2004

  2. [2]

    Aided navigation: GPS with high rate sensors

    Jay Farrell. Aided navigation: GPS with high rate sensors . McGraw- Hill, Inc., 2008

    work page 2008

  3. [3]

    Inertial navigation systems analysis

    Kenneth R Britting. Inertial navigation systems analysis. Artech House, 2010, 2010

    work page 2010

  4. [4]

    Fundamentals of high accuracy inertial navigation, volume 174

    Averil Burton Chatfield. Fundamentals of high accuracy inertial navigation, volume 174. Aiaa, 1997

    work page 1997

  5. [5]

    Covariance analysis of strapdown INS considering gyrocompass characteristics

    Heung Won Park, Jang Gyu Lee, and Chan Gook Park. Covariance analysis of strapdown INS considering gyrocompass characteristics. IEEE Transactions on Aerospace and Electronic Systems , 31(1):320– 328, 1995

    work page 1995

  6. [6]

    The effect of carouseling on MEMS- IMU performance for gyrocompassing applications

    Benjamin Matthew Renkoski. The effect of carouseling on MEMS- IMU performance for gyrocompassing applications . PhD thesis, Mas- sachusetts Institute of Technology, 2008

    work page 2008

  7. [7]

    Data-driven meets navigation: Concepts, models, and experimental validation

    Itzik Klein. Data-driven meets navigation: Concepts, models, and experimental validation. In 2022 DGON Inertial Sensors and Systems (ISS), pages 1–21. IEEE, 2022

    work page 2022

  8. [8]

    Inertial navigation meets deep learning: A survey of current trends and future directions

    Nadav Cohen and Itzik Klein. Inertial navigation meets deep learning: A survey of current trends and future directions. arXiv preprint arXiv:2307.00014, 2023

    work page arXiv 2023

  9. [9]

    A-KIT: Adaptive Kalman-informed transformer

    Nadav Cohen and Itzik Klein. A-KIT: Adaptive Kalman-informed transformer. arXiv preprint arXiv:2401.09987 , 2024

    work page arXiv 2024

  10. [10]

    Principles of GNSS, inertial, and multisensor integrated navigation systems, [book review]

    Paul D Groves. Principles of GNSS, inertial, and multisensor integrated navigation systems, [book review]. IEEE Aerospace and Electronic Systems Magazine, 30(2):26–27, 2015

    work page 2015

  11. [11]

    An introduction to inertial navigation

    Oliver J Woodman. An introduction to inertial navigation. Technical report, University of Cambridge, Computer Laboratory, 2007

    work page 2007

  12. [12]

    Parametric and State Estimation of Stationary MEMS-IMUs: A Tutorial

    Daniel Engelsman, Yair Stolero, and Itzik Klein. Parametric and state estimation of stationary MEMS-IMUs: A tutorial. arXiv preprint arXiv:2307.08571, 2023

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  13. [13]

    A simplified dynamics model for autonomous underwater vehicles

    Meyer Nahon. A simplified dynamics model for autonomous underwater vehicles. In Proceedings of Symposium on Autonomous Underwater Vehicle Technology, pages 373–379. IEEE, 1996. 7

    work page 1996

  14. [14]

    Verification of a six-degree of freedom simulation model for the REMUS autonomous underwater vehicle

    Timothy Timothy Jason Prestero. Verification of a six-degree of freedom simulation model for the REMUS autonomous underwater vehicle . PhD thesis, Massachusetts institute of technology, 2001

    work page 2001

  15. [15]

    Underwater vehicle dynamic modeling

    Sebasti ˜ao C´ıcero Pinheiro Gomes, Carlos Eduardo Motta Moraes, PLJ Drews Jr, Tom ´as Garcia Moreira, and Adilson Melcheque Tavares. Underwater vehicle dynamic modeling. In 18th Int. Cong. of Mechanical Engineering-COBEM, volume 5, 2005

    work page 2005

  16. [16]

    Guidance and control of ocean vehicles

    Thor I Fossen. Guidance and control of ocean vehicles. University of Trondheim, Norway, Printed by John Wiley & Sons, Chichester, England, ISBN: 0 471 94113 1, Doctors Thesis , 1999

    work page 1999

  17. [17]

    Marine hydrodynamics, volume 40th Anniver- sary Edition, pages 321–332

    John Nicholas Newman. Marine hydrodynamics, volume 40th Anniver- sary Edition, pages 321–332. The MIT press, 2018

    work page 2018

  18. [18]

    Towards learning-based gyrocom- passing

    Daniel Engelsman and Itzik Klein. Towards learning-based gyrocom- passing. arXiv preprint arXiv:2312.12121 , 2023

    work page arXiv 2023

  19. [19]

    Three-dimensional fully-nonlinear simulations of waves and wave body interactions

    Ming Xue. Three-dimensional fully-nonlinear simulations of waves and wave body interactions . PhD thesis, Massachusetts Institute of Technology, 1997

    work page 1997

  20. [20]

    New insights into the noise reduction Wiener filter

    Jingdong Chen, Jacob Benesty, Yiteng Huang, and Simon Doclo. New insights into the noise reduction Wiener filter. IEEE Transactions on audio, speech, and language processing , 14(4):1218–1234, 2006

    work page 2006

  21. [21]

    What is a Savitzky-Golay filter? [lecture notes]

    Ronald W Schafer. What is a Savitzky-Golay filter? [lecture notes]. IEEE Signal processing magazine , 28(4):111–117, 2011

    work page 2011

  22. [22]

    4 finite impulse response filter

    Tapio Saram ¨aki. 4 finite impulse response filter. Handbook for digital signal processing, page 155, 1993. 8

    work page 1993
