arxiv: 2605.04126 · v2 · pith:CXUV5FHRnew · submitted 2026-05-05 · 💻 cs.LG · cs.NA· math.NA

Simultaneous CNN Approximation on Manifolds with Applications to Boundary Value Problems

Hanfei Zhou , Lei Shi This is my paper

Pith reviewed 2026-07-01 00:10 UTC · model grok-4.3

classification 💻 cs.LG cs.NAmath.NA
keywords convolutional neural networksRiemannian manifoldsSobolev approximationboundary value problemsphysics-informed neural networksLaplace-Beltrami eigenmodestrace norms
0
0 comments X

The pith

CNNs approximate functions on manifolds at rates set by intrinsic dimension and solve elliptic boundary problems with a spectral loss.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proves that single- and multichannel convolutional neural networks can approximate target functions on compact Riemannian manifolds in Sobolev norms, where the convergence rates depend on the manifold's intrinsic dimension and the difference in smoothness between the target and the network class. It constructs a physics-informed training framework whose boundary loss expands the residual in Laplace-Beltrami eigenmodes on the boundary and weights them by Sobolev trace factors so that the penalty matches the natural trace norm required by elliptic theory. This construction separates approximation error, generalization error, and spectral truncation error, and numerical tests on hemispheres and half-tori show one-to-two-order gains over standard PINNs when boundary data contain high frequencies.

Core claim

Convolutional neural networks achieve simultaneous Sobolev approximation on manifolds with rates governed by intrinsic dimension and smoothness gap; the associated spectral boundary loss, formed by eigenmode expansion and trace-norm weights, aligns with the H^{2s-1/2} boundary norm for 2s-order elliptic problems and yields an error decomposition consistent with fast-rate generalization bounds.

What carries the argument

Spectral boundary loss that expands the boundary residual in boundary Laplace-Beltrami eigenmodes and penalizes the coefficients by Sobolev trace weights.

If this is right

  • Approximation and generalization errors decouple from spectral truncation error under the stated loss.
  • Both single-channel and multichannel CNNs inherit the same dimension-dependent rates.
  • The loss permits FFT-based or precomputed implementations without singular double integrals or auxiliary boundary extensions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same eigenmode-weighted loss could be tested on other linear elliptic operators whose natural boundary norms admit spectral characterizations.
  • If the rates truly track intrinsic dimension, the method should show larger gains on data supported on lower-dimensional submanifolds embedded in higher-dimensional space.
  • Precomputed eigenbases on standard manifolds make the approach immediately usable for any 2s-order problem whose trace space is captured by the same weights.

Load-bearing premise

The chosen eigenmode expansion together with the trace weights reproduces the exact Sobolev trace norm of the boundary residual without further manifold regularity or discretization mismatch.

What would settle it

A manifold and target function where measured CNN approximation rates fail to improve when intrinsic dimension drops, or where the spectral-loss method shows no accuracy gain over standard PINN training on high-frequency boundary data.

Figures

Figures reproduced from arXiv: 2605.04126 by Hanfei Zhou, Lei Shi.

Figure 1
Figure 1. Figure 1: Empirical convergence curves (log–log) and fitted slopes on two manifolds view at source ↗
Figure 2
Figure 2. Figure 2: We compare the function error |uθ − u| and Laplacian error |∆Muθ − ∆Mu| across all four settings. To study the optimization behavior, we track the test RelL 2 and Rel H2 errors over epochs on both MS and MT. With all other hyperparameters fixed, we compare the Sobolev penalty with the standard L 2 penalty. Empirically, the Sobolev penalty L H3/2 bnd yields faster 13 view at source ↗

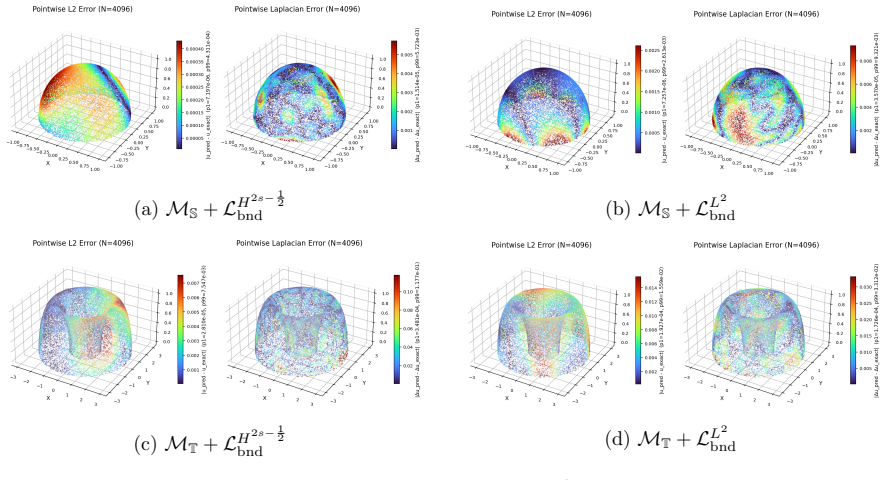

Figure 2
Figure 2. Figure 2: Pointwise error visualization at N = 4096: left/right subplots correspond to the spatial distributions of |uθ−u| and |∆Muθ−∆Mu|, comparing four combinations of boundary penalty and manifold type. error decay in the early stage and smoother convergence trajectories view at source ↗

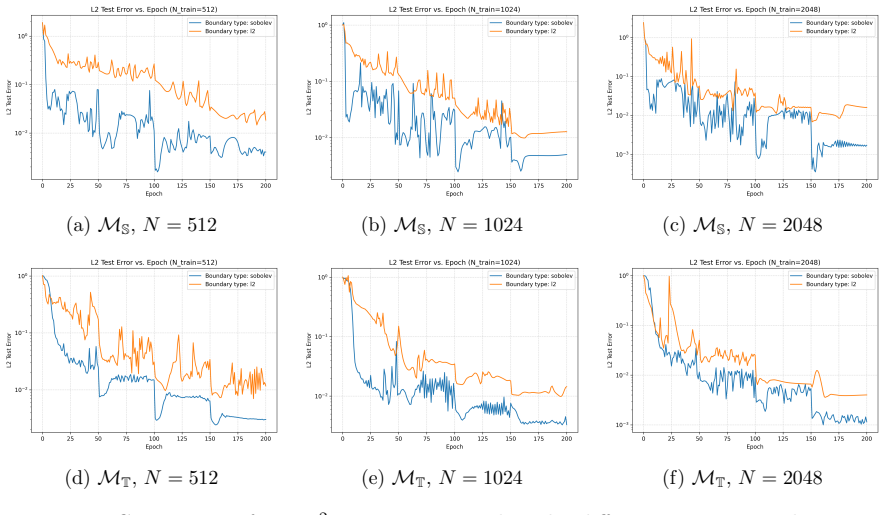

Figure 3
Figure 3. Figure 3: Comparison of test L 2 error versus epoch under different interior sample sizes. (a) RelL 2 , N = 16384 (b) RelL 2 , N = 32768 (c) Rel H2s , N = 16384 (d) Rel H2s , N = 32768 view at source ↗

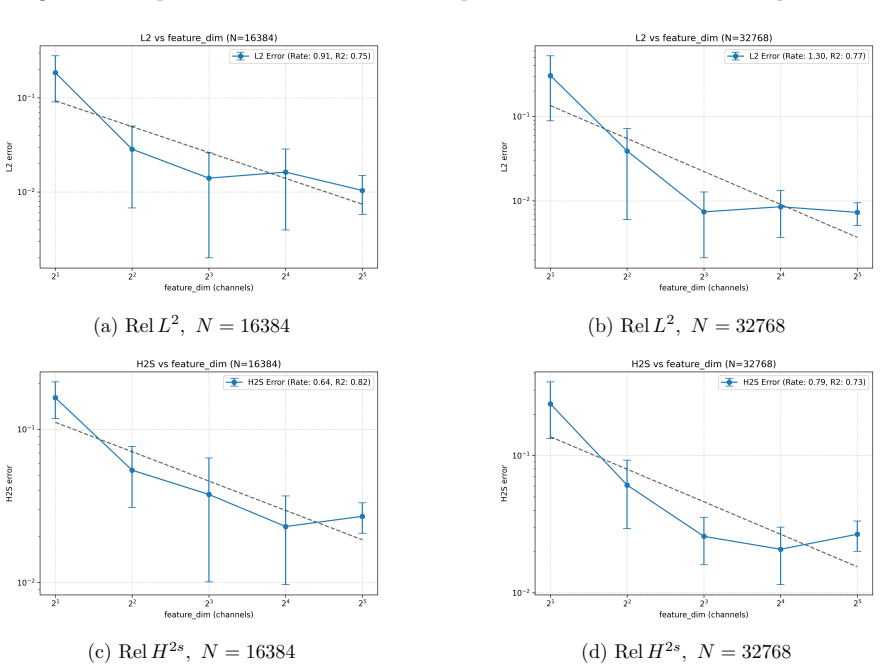

Figure 4
Figure 4. Figure 4: Channel-width sweep results on the upper-torus manifold view at source ↗
read the original abstract

This paper develops convolutional neural network (CNN) methods for simultaneous Sobolev approximation and elliptic boundary value problems on compact Riemannian manifolds. We prove approximation estimates for single- and multichannel CNNs, with rates governed by the intrinsic dimension and the smoothness gap. Motivated by elliptic stability, we propose a physics-informed CNN framework with a spectral boundary loss. The boundary residual is expanded in boundary Laplace--Beltrami eigenmodes and penalized by Sobolev trace weights, matching the natural \(\mathcal H^{2s-1/2}(\partial\mathcal M^d)\) trace norm for \(2s\)-order elliptic problems. This avoids smooth auxiliary constructions for exact boundary enforcement and singular Sobolev--Slobodeckij double integrals, while allowing FFT-based or precomputed spectral implementations. We also derive an error decomposition separating approximation, generalization, and spectral truncation errors, showing that the proposed loss is aligned with localized fast-rate generalization analysis. Numerical experiments on the upper hemisphere and upper half-torus demonstrate improved accuracy, convergence, and stability over standard PINNs, with one to two orders of magnitude gains for high-frequency boundary data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops CNN-based methods for simultaneous Sobolev approximation on compact Riemannian manifolds and for solving 2s-order elliptic boundary value problems. It proves approximation rates for single- and multichannel CNNs governed by intrinsic dimension and smoothness gap, proposes a physics-informed framework whose spectral boundary loss expands the residual in boundary Laplace-Beltrami eigenmodes and applies Sobolev trace weights to match the natural H^{2s-1/2}(∂M^d) trace norm, derives an error decomposition separating approximation, generalization, and truncation terms, and reports numerical gains of one to two orders of magnitude over standard PINNs on the upper hemisphere and upper half-torus, especially for high-frequency boundary data.

Significance. If the norm-equivalence claim and the supporting analysis hold, the work supplies a theoretically grounded alternative to auxiliary boundary constructions or singular double-integral penalties, together with explicit rates and a decomposition aligned with fast-rate generalization. The combination of manifold CNN approximation theory, spectral loss design, and reproducible numerical comparisons on non-Euclidean domains constitutes a substantive contribution to physics-informed learning on manifolds.

major comments (2)
  1. [Abstract; spectral boundary loss section] Abstract and the section introducing the spectral boundary loss: the claim that the eigenmode expansion penalized by Sobolev trace weights is equivalent (with manifold-independent constants) to the full H^{2s-1/2}(∂M^d) trace norm is asserted without a detailed verification of eigenbasis completeness or reproduction of the fractional seminorm on manifolds of only C^{2s} regularity. This equivalence is load-bearing for both the elliptic-stability motivation and the subsequent error decomposition.
  2. [Error decomposition section] Error-decomposition section: the separation into approximation, generalization, and spectral-truncation errors, together with the assertion that the proposed loss aligns with localized fast-rate generalization, presupposes that the spectral loss controls the stability term with constants independent of the manifold and the frequency content. If the trace-norm equivalence fails to hold at the required strength, the decomposition no longer supports the claimed alignment.
minor comments (2)
  1. [Introduction] The notation distinguishing intrinsic dimension d, manifold dimension, and the order 2s should be introduced with a single consistent table or paragraph early in the manuscript.
  2. [Numerical experiments] Numerical-experiment figures would benefit from explicit labels indicating the Sobolev index s and the highest frequency retained in the boundary data for each curve.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on the manuscript. We address the two major comments point by point below and will revise the paper accordingly.

read point-by-point responses

  1. Referee: [Abstract; spectral boundary loss section] Abstract and the section introducing the spectral boundary loss: the claim that the eigenmode expansion penalized by Sobolev trace weights is equivalent (with manifold-independent constants) to the full H^{2s-1/2}(∂M^d) trace norm is asserted without a detailed verification of eigenbasis completeness or reproduction of the fractional seminorm on manifolds of only C^{2s} regularity. This equivalence is load-bearing for both the elliptic-stability motivation and the subsequent error decomposition.

    Authors: We appreciate the referee highlighting the need for explicit verification. The completeness of the Laplace-Beltrami eigenbasis holds on compact Riemannian manifolds of class C^{2s} by standard results in spectral geometry. The weighted spectral penalty is constructed to match the trace norm via the spectral characterization of the fractional Sobolev space on the boundary. We acknowledge that the manuscript asserted this equivalence without a self-contained proof. In revision we will add a dedicated appendix that verifies eigenbasis completeness, reproduces the fractional seminorm, and confirms manifold-independent constants under the stated regularity, citing the relevant spectral theory. revision: yes

  2. Referee: [Error decomposition section] Error-decomposition section: the separation into approximation, generalization, and spectral-truncation errors, together with the assertion that the proposed loss aligns with localized fast-rate generalization, presupposes that the spectral loss controls the stability term with constants independent of the manifold and the frequency content. If the trace-norm equivalence fails to hold at the required strength, the decomposition no longer supports the claimed alignment.

    Authors: The error decomposition and its alignment with fast-rate generalization analysis rest on the stability constants furnished by the spectral loss. Once the appendix establishes the required norm equivalence with manifold- and frequency-independent constants, the decomposition holds as stated. We will revise the error-decomposition section to reference the new appendix explicitly and to clarify the resulting control on the stability term. revision: yes

Circularity Check

0 steps flagged

No circularity: derivations and claims remain independent of inputs

full rationale

The abstract and provided text describe new CNN approximation estimates on manifolds with rates depending on intrinsic dimension and smoothness gap, plus a spectral boundary loss constructed via Laplace-Beltrami eigenmode expansion and Sobolev weights. The error decomposition into approximation, generalization, and truncation terms is presented as derived from the framework rather than presupposed. No quoted equations reduce a result to a fitted parameter renamed as prediction, a self-citation chain, or a definitional equivalence. The matching to the trace norm is asserted as a design choice aligned with elliptic stability, not shown to be tautological. This is the common case of a self-contained analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only abstract available, so ledger is necessarily incomplete; the domain assumption of compact Riemannian manifolds is explicit, while choices such as Sobolev trace weights and eigenmode truncation order are not quantified as fitted parameters.

axioms (1)
  • domain assumption The manifold is a compact Riemannian manifold
    Stated directly in the abstract as the setting for the CNN approximation and boundary value problems.

pith-pipeline@v0.9.1-grok · 5724 in / 1401 out tokens · 37256 ms · 2026-07-01T00:10:52.540178+00:00 · methodology

Review history (2 revisions) →
