Flow-matching vision-language-action policies can be made to stream in real time by caching the timestep-invariant parts of the network and recomputing only the dynamic flow state.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

T0 review · deepseek-v4-flash

2026-08-02 01:20 UTC pith:DHE4TIOD

load-bearing objection Reflex is a solid systems paper with a clean caching idea and honest scoping; the main risk is an under-specified timestep-invariance assumption, and the '50Hz' headline overstates the effective policy rate. the 3 major comments →

arxiv 2607.14695 v1 pith:DHE4TIOD submitted 2026-07-16 cs.RO

Reflex: Real-Time VLA Control through Streaming Inference

classification cs.RO
keywords streaming inferencevision-language-action modelsflow matchingKV cachingpartitioned attentiontimestep invariancereal-time robot controlmixed-precision stability
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Reflex claims that the blocking "stop-think-act" cycle of flow-matching vision-language-action models is not an inherent cost but a scheduling artifact, and that it can be removed by streaming inference. The central move is to exploit the timestep-invariance property: because the perception encoder does not depend on the flow-matching denoising timestep, its key and value representations can be cached and reused, while only the small dynamic flow state is recomputed. Splitting the attention context into a pinned instruction prefix, a sliding window of past observations, and a per-cycle dynamic suffix reduces per-step updates to O(1) and reproduces full-batch attention exactly for a fixed observation window. A precision-aware normalization layer, AdaRMSNorm, prevents BFloat16 numerical collapse over long streaming runs, and an asynchronous pipeline decouples vision encoding from action generation. If right, this would make 50 Hz continuous control with heavy VLA models practical without sacrificing task success; the paper reports 2.58x inference speedup, up to 54% lower reaction latency, and stable 50 Hz streaming.

Core claim

The paper's central claim is that the timestep-invariance of perception encoders in two-stage flow-matching VLA models is a resource, not a limitation. Because the visual and language encoders are functionally independent of the denoising timestep t, their key/value states can be pinned and reused while the action expert's dynamic suffix is recomputed at each denoising step. This partitioned attention is proven to produce outputs identical to full-batch attention for a fixed observation window and fixed inputs, with O(1) incremental cache updates. To make this work in continuous deployment, Reflex adds AdaRMSNorm, which computes normalization statistics in FP32 and gates the RMSNorm scale on

What carries the argument

Partitioned Attention: the context is divided into a static prefix (instruction tokens, computed once and pinned), a sliding history (the last N visual frames, updated by FIFO eviction and incremental prefill), and a dynamic suffix (flow state and timestep embeddings, reset each denoising cycle). The timestep-invariance property—that the observation encoder satisfies ∂Enc/∂t_k = 0—is what makes the non-dynamic partitions cacheable; without it, the cached keys and values would be stale and the O(1) claim would fail. The identity that carries the argument is Eq. (1), which treats attention over the concatenated [static; sliding; dynamic] keys and values as exactly equal to pooled attention ove

Load-bearing premise

The load-bearing assumption is timestep-invariance: the key and value representations of language and observation tokens computed before denoising remain exactly valid while the denoising timestep changes—if timestep conditioning reaches those representations through the action expert or any other path, the cached values are stale and the O(1) speedup, together with the exact-equivalence guarantee, collapses.

What would settle it

Compare the dynamic-suffix hidden states produced by Reflex's partitioned attention to a full-batch recomputation on identical inputs while sweeping the denoising timestep t; any nonzero difference in the outputs beyond numerical noise falsifies the exactness claim. A direct probe is to cache the language and vision keys at t=0, recompute them at t>0 through the action expert, and measure whether they diverge—if they diverge, the timestep-invariance assumption fails.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Real-time control becomes feasible for heavy VLA models: stable 50 Hz streaming rather than 10–20 Hz blocking inference, with up to 54% lower reaction latency in the reported experiments.
  • A fixed observation window and fixed inputs yield attention outputs reported to match full-batch attention exactly (MSE 0.00), so the speedup does not trade semantic correctness for latency.
  • Memory stays flat over time because only the newest frame is encoded and old frames are evicted (27% lower peak VRAM on LIBERO, 24% on Kinetix).
  • Larger models benefit as much or more: the reported speedup rises from 2.58x on the smaller model to 2.73x on the larger one.
  • The reported 0% stall rate across LIBERO and Kinetix implies the 'act while thinking' loop can be realized in practice, not only in simulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Editorial: The exact-equivalence proof is stated only for a fixed observation window and fixed inputs; whether the equivalence survives across window slides (new frames arriving between denoising cycles) is not proven, and that regime is what truly indefinite streaming would need.
  • Editorial: The timestep-invariance assumption is verified only for two-stage architectures where timestep conditioning bypasses the encoder; a unified architecture that injects t into the vision stack would need a different factorization, as the paper itself notes.
  • Editorial: Because the future-state predictor approximates the robot's future state by the last commanded action, its validity depends on low-level tracking accuracy; in high-slip or contact-rich tasks, the latency compensation could introduce oscillation—this is the riskiest engineering assumption beyond the formal proof.
  • Editorial: A testable extension is to apply the same cache partitioning to other iterative generative policies, such as diffusion-based action generation, and to variable-rate observation streams, checking whether O(1) per-step updates and output equivalence hold outside flow matching.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes Reflex, an inference system for flow-matching Vision-Language-Action (VLA) models. Its central idea is to partition the attention context into a pinned instruction prefix, a sliding window of visual observations, and a per-step dynamic flow suffix; under a "timestep-invariance" assumption, the K/V of the first two partitions are cached so that each denoising step avoids re-encoding observations. Appendix A.1 gives a proof that partitioned softmax equals full softmax when the same K/V blocks are used. The paper also introduces AdaRMSNorm for BFloat16 stability, an asynchronous vision/action pipeline with a future-state predictor, and fused CUDA kernels. Experiments on LIBERO/Kinetix and a real robot report about 2.5x latency reduction, memory savings, and success-rate parity or gains relative to a synchronous baseline.

Significance. If the timestep-invariance premise holds for the Pi0 family, the system contribution is nontrivial: exact partition-based caching plus asynchronous scheduling gives a plausible path to high-frequency control without degrading task success. The paper is commendably explicit that the exactness claim (G1) covers only fixed inputs and a fixed observation window, and that asynchronous scheduling, future-state prediction, and mixed-precision behavior are empirical. The proof itself is essentially a restatement of softmax partition equivariance; the load-bearing architectural fact is the timestep-invariance of the cached K/V. The latency breakdown, ablations, and stress tests are extensive and, conditional on that premise, support the main claims.

major comments (3)
  1. [§3.1, Appendix A.1] The proof of Proposition A.1 does not establish the premise that makes the equivalence meaningful. The final sentence asserts that timestep-invariance ensures cached Ks, Vs, Kl, Vl are valid at inference time t, but the derivative ∂Enc/∂t_k=0 concerns only the observation encoder, not the action expert. The action expert receives t, and §3.4 mentions FusedAdaLN, indicating adaptive layers inside the expert; if those layers transform the context tokens before K/V projection, the cached context K/V are t-dependent and the speedup is not output-equivalent to full-batch attention. The scope exclusion in §3.1 excludes only t entering the vision encoder. The manuscript needs either an architectural argument that the context-token path in the Pi0/Pi0.5 action expert is t-independent, or a direct drift measurement of cached K/V across denoising steps.
  2. [§4.2, Table 4] The reported MSE=0.00 is not yet a verification of exactness. If the "full-batch attention oracle" reuses the same cached K/V as Partitioned Attention, the equality holds by construction and does not test timestep-invariance. The text should state explicitly whether the oracle recomputes all action-expert layers at every flow step, and should report, for each cached partition, the difference between K/V computed at t=0 and K/V recomputed at later t. Without that, the deterministic consistency check is not evidence for the central correctness claim in deployments where the cached context passes through t-conditioned expert layers.
  3. [§4.6, Table 5 vs Table 3] There is an internal inconsistency in the stability story. Table 5 says the BFloat16 baseline collapses after 120–220 steps, while LIBERO episodes last 300–500 steps and Table 3 reports 68–85% success for the "Standard" baseline. If "Standard" runs in FP32 or a different precision, this must be stated and the AdaRMSNorm comparison should be made against an equally fair precision baseline. If it runs in BFloat16, the success numbers are unexplained. Additionally, "BF16 + FP32 norm-only" already extends stability to 700–1200 steps, so the marginal contribution of the adaptive gating beyond FP32 RMS statistics should be isolated.
minor comments (4)
  1. [§3.1, Appendix A.1] The symbol t is used both for observation time and for the flow-matching denoising timestep; in Eq. (1) and in the proof, "computed at t=0" and "inference time t" conflate the two. This makes the invariance assumption hard to parse.
  2. [§3.1] "O(1) incremental cache updates" is imprecise: Eq. (1) still performs full attention over the concatenated context at every denoising step. The complexity reduction is relative to re-encoding a growing history under a fixed context window, not to the per-step attention computation itself. The phrasing should be qualified.
  3. [Figure 7] The numeric labels (79.5, 68.6, 81.8, 71.2) are not clearly tied to a specific bar in the figure; for Pi0.5, the LIBERO average for Reflex in Table 3 is 79.5, so the figure should label it explicitly. Also, the reported "50Hz stable streaming" in the abstract conflicts with the effective control frequencies in Table 9 (19.1 Hz for chunk size 50); explain the relationship between action chunk streaming and effective control frequency.
  4. [Table 5] "Max Stable Steps >2000" should report the actual test horizon and the variance across seeds; the table currently gives a single range without stating how stability is defined (e.g., first NaN, first Inf, or first success drop).

Circularity Check

0 steps flagged

No significant circularity; exactness is a conditional theorem, with the unverified timestep-invariance premise being a correctness risk rather than a circular reduction.

full rationale

Reflex's central correctness claim is Proposition A.1: partitioned attention equals full-batch attention when the observation encoder is timestep-invariant. The proof is a standard softmax-partition identity and is not fitted to data; the reported MSE=0.00 (Table 4) is an implementation consistency check against a full recomputation oracle, not a fitted curve renamed as prediction. The only load-bearing premise is timestep invariance (∂Enc/∂t_k=0), stated in §3.1 and used in A.1. That premise is an architectural assumption about Pi0-family models and is explicitly scoped ('Reflex applies to VLA architectures whose perception encoder is timestep-invariant... outside the current scope'); the paper does not prove it from experiments, and the final sentence of A.1 asserts rather than derives that cached action-expert K/V remain valid. This is a correctness/verification gap, not circularity: the conditional theorem would be valid if the premise holds, and no parameter is fit to make the equality true. There is no load-bearing self-citation: all cited results (FlashAttention, PagedAttention, prior VLA caching works) are external and used as related work. AdaRMSNorm, async pipelining, and future-state prediction are explicitly evaluated empirically and are not presented as derivations from the exactness theorem. Consequently, I find no step in the claimed derivation chain that reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

4 free parameters · 5 axioms · 1 invented entities

The paper's central correctness claim rests on the unproven architectural assumption that the perception path is fully timestep-invariant at the level of the cached K/V. This is explicitly scoped in §3.1 but not verified for the actual Pi0-family internals. All other free parameters are engineering choices (window size, chunk size, denoising steps) that affect performance but not the correctness guarantee.

free parameters (4)
  • Context window size N = 10
    Chosen as task-dependent window (§3.1); ablation in Fig. 10 shows K=10 balances latency and accuracy.
  • Action chunk size = 50
    Default in §C; ablation in Table 9 shows trade-off between speedup and control frequency.
  • Flow matching steps = 10
    Number of denoising iterations (§C); affects latency and quality.
  • AdaRMSNorm gate MLP parameters = unspecified (learned?)
    Equation (2) defines γ(c)=1+MLP(c), but the paper gives no training protocol or initialization for this MLP, so its weights are either learned or hand-set; either way they are parameters introduced for this paper and not derived.
axioms (5)
  • domain assumption Perception encoder is timestep-invariant: ∂Enc/∂t_k = 0
    Core premise of Partitioned Attention (§3.1, used in Eq. 1 and proof A.1). If false, cached K/V are stale and the equivalence claim breaks.
  • domain assumption Cached K/V of static and sliding regions are not altered by the action expert's t-conditioned layers
    The proof A.1 says 'Ks, Vs (computed at t=0) and Kl, Vl (computed at observation time τ<t) remain valid representations at inference time t'. This requires the mapping from observation tokens to K/V inside the action expert to be t-invariant, which is not demonstrated for Pi0-family internals.
  • domain assumption Policy depends only on the last N observations (FIFO eviction discards older frames without changing outputs)
    §3.1: 'Sliding History maintains a FIFO queue... evicting the oldest tokens'. The equivalence A.1 relies on strict FIFO of size N.
  • standard math Softmax is invariant to partitioning of key/value blocks when all logits are present
    Standard property used in A.1.
  • domain assumption The low-level controller tracks commanded actions well enough for future-state approximation ŝ ≈ a_cmd
    §3.3 equation (3) and the <3cm deviation observation on AgileX PiPer; if the robot does not track commands, the async overlap fails. This is specific to the empirical async component, not the correctness claim.
invented entities (1)
  • AdaRMSNorm no independent evidence
    purpose: Adaptive normalization layer that gates RMSNorm output by an MLP on timestep/proprioception to prevent BFloat16 numerical collapse in infinite-horizon streaming
    Introduced in §3.2 Eq. (2). Only evidence is internal Table 5 (>2000 steps stability). No independent falsifiable handle outside this paper; the exact mechanism (BF16 'underflow' given BFloat16's exponent range) is not externally validated.

pith-pipeline@v1.3.0-alltime-deepseek · 19206 in / 20881 out tokens · 190288 ms · 2026-08-02T01:20:01.787181+00:00 · methodology

0 comments
read the original abstract

Flow matching Vision-Language-Action (VLA) models promise precise continuous control, but their iterative denoising nature introduces fundamental incompatibilities with real-time robotics: global timestep injection invalidates KV-caching, forcing a choice between slow $O(N^2)$ re-computation or mathematically incorrect cache reuse. We present \textbf{Reflex}, a framework that enables \textit{real-time streaming inference} for flow matching policies by exploiting the \textit{Timestep-Invariance Property} -- that perception encoders are functionally independent of the denoising loop. Reflex partitions the attention context into static, sliding, and dynamic regions, enabling $O(1)$ incremental cache updates while preserving full-batch-equivalent attention outputs for fixed inputs. To ensure stability under continuous high-frequency inference, we introduce \textit{AdaRMSNorm}, an adaptive normalization layer that prevents BFloat16 numerical collapse by gating on flow phase. We further maximize throughput through an \textit{async pipeline} that decouples visual encoding from action generation, combined with \textit{operator fusion} that reduces kernel overhead. On LIBERO and Kinetix benchmarks, Reflex achieves a 2.58$\times$ inference speedup and 50Hz stable streaming, reducing reaction latency by up to 54\% and enabling efficient deployment without performance degradation.

Figures

Figures reproduced from arXiv: 2607.14695 by Bingyan Liu, Yuanchun Guo.

Figure 1
Figure 1. Figure 1: Standard Blocking vs. Reflex Streaming. Top: Stan￾dard flow matching inference blocks execution, leading to missed grasps on moving targets due to reaction latency. Bottom: Reflex partitions the VLA backbone into independent streams, enabling overlapping execution. ligence, enabling robots to translate natural language instruc￾tions into continuous manipulation. Recent Flow Matching architectures (Lipman e… view at source ↗
Figure 2
Figure 2. Figure 2: Flow Matching VLA architecture. transports noise to actions via ODE integration (Chen et al., 2018). As shown in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The Reflex System Architecture. the Action Expert and Flow Matching denoiser. The two streams communicate asynchronously, with a Future State Predictor compensating for execution delays. Reflex achieves this design goal through three key components: par￾titioned attention for correctness (§3.1), AdaRMSNorm for stability (§3.2), and asynchronous pipelining for throughput (§3.3). These are supported by low-l… view at source ↗
Figure 5
Figure 5. Figure 5: Asynchronous Pipeline Scheduling. Thread A con￾tinuously encodes visual observations while Thread B generates actions through iterative denoising. The system achieves lower latency (τasync < τsync) by overlapping vision encoding with ac￾tion execution. The policy conditions on predicted future states (sˆt+∆ ≈ a cmd t ) to compensate for the asynchronous delay. Gray shaded region highlights parallel executi… view at source ↗
Figure 6
Figure 6. Figure 6: System efficiency comparison. Pi0 and Pi0.5 results demonstrate scale invariance. Naive Cache (omitted from plot for clarity) produces incorrect outputs (MSE>1.0). 4.2. System Efficiency [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

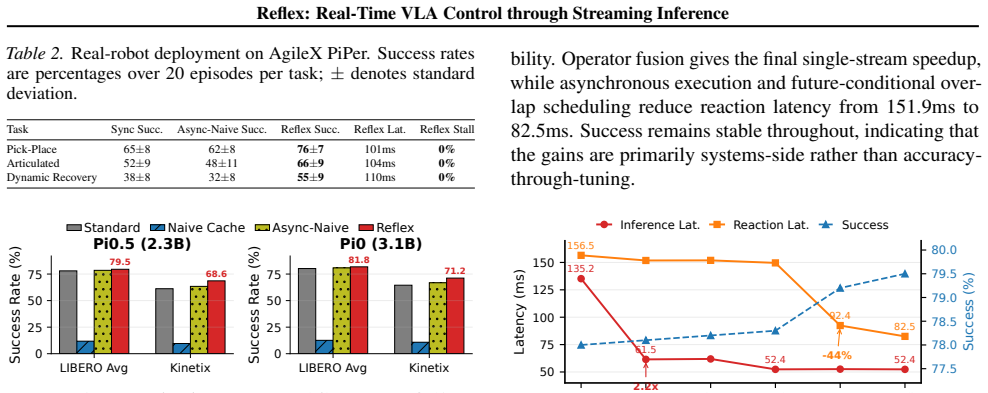

Figure 7
Figure 7. Figure 7: Aggregated task success rates (%) on LIBERO (Aver￾age) and Kinetix. Reflex consistently outperforms baselines, with particularly large gains on the dynamic Kinetix benchmark. 4.5. Task Performance We evaluate task success rates on both benchmarks and both model scales [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Controlled-delay ablation on Kinetix success rates (%). Context Window Size [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Context window size ablation. K = 10 balances latency and accuracy optimally. between context length K, latency, and task accuracy. The results reveal a clear pattern: very small windows (K = 1) achieve the highest speedup but suffer significant accuracy degradation because the model lacks sufficient temporal context to understand the task progression. As K increases, accuracy improves rapidly up to K = 1… view at source ↗

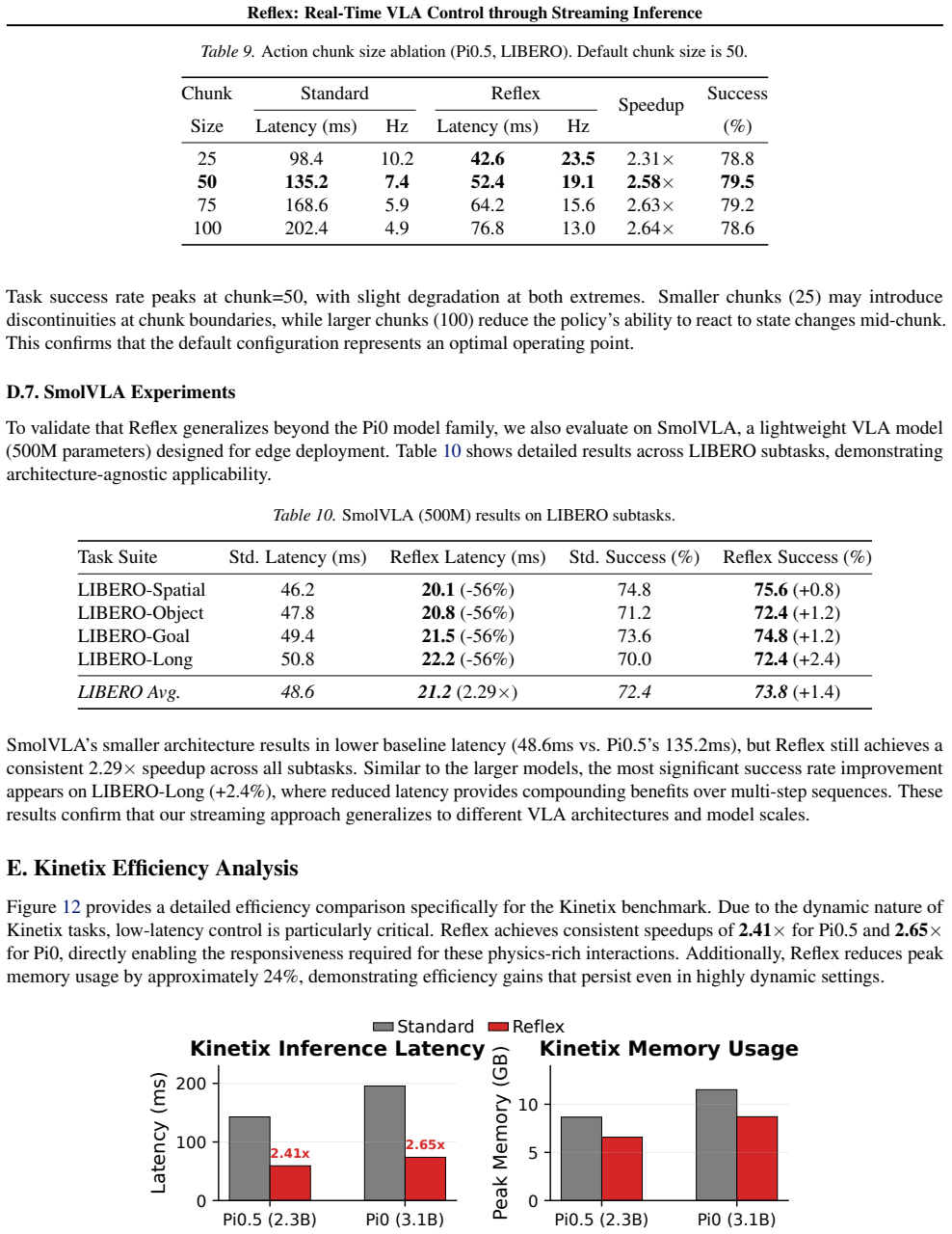

Figure 12
Figure 12. Figure 12: provides a detailed efficiency comparison specifically for the Kinetix benchmark. Due to the dynamic nature of Kinetix tasks, low-latency control is particularly critical. Reflex achieves consistent speedups of 2.41× for Pi0.5 and 2.65× for Pi0, directly enabling the responsiveness required for these physics-rich interactions. Additionally, Reflex reduces peak memory usage by approximately 24%, demonstrat… view at source ↗
