arxiv: 2606.05796 · v2 · pith:DKPSGDPJnew · submitted 2026-06-04 · 💻 cs.CR

GCD: Garbled, Corrected, Demonstrandum -- Fixing and Proving Go's Extended GCD Implementation

Linard Arquint This is my paper

Pith reviewed 2026-06-28 00:38 UTC · model grok-4.3

classification 💻 cs.CR
keywords extended GCDformal verificationGo standard libraryGobraBoringSSLRSA key generationdeductive verificationnon-linear arithmetic
0
0 comments X

The pith

Go's extended GCD implementation contained two invariant-breaking deviations from BoringSSL that were fixed and then formally proven correct and terminating.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that Go's extendedGCD in crypto/internal/fips140/bigmod deviates from its BoringSSL source in coefficient updates and permitted input sizes, each breaking the algorithm's required properties. Correcting the coefficient logic produces an average 24 percent speedup. The authors port the existing BoringSSL proof, extend it to the larger domain, and discharge the full correctness and termination argument in Gobra, a deductive verifier for Go, by importing selected Lean lemmas on non-linear arithmetic. The effort demonstrates that even heavily reviewed cryptographic code can harbor subtle bugs and that deductive verification combined with external arithmetic provers can locate and eliminate them.

Core claim

After repairing the coefficient-update deviation, the Go extendedGCD function satisfies its specification for the declared input domain; the repaired program is both partially correct and terminating. The argument is obtained by mechanically porting and extending a prior BoringSSL proof, with Gobra handling the imperative Go code and Lean supplying the necessary non-linear arithmetic facts.

What carries the argument

Gobra deductive verifier for Go together with the ported and extended BoringSSL extended-GCD proof and imported Lean lemmas on arithmetic.

If this is right

  • The repaired implementation can be used for RSA key-pair generation with a mechanically checked guarantee of correctness.
  • Termination of the fixed code is now established, eliminating the possibility of non-termination on any valid input.
  • The same port-and-extend strategy can be reused for other BoringSSL-derived cryptographic primitives in Go.
  • AI-assisted refinement of invariants, guided by Gobra error messages, can accelerate similar verification tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Other language ports of the same BoringSSL GCD routine may contain analogous coefficient-update errors.
  • Embedding Gobra-style verification in the Go standard-library release process could catch future deviations before they ship.
  • The observed 24 percent speedup indicates that correctness fixes can also improve performance when they remove unnecessary operations.

Load-bearing premise

The two deviations identified in the paper are the only ones that break the algorithm invariants, and the BoringSSL proof can be ported and extended to the larger input domain without introducing new gaps.

What would settle it

An input pair inside the documented domain for which the repaired Go code returns coefficient pairs that fail the extended-GCD relation a*x + b*y = gcd would falsify the claim.

Figures

Figures reproduced from arXiv: 2606.05796 by Linard Arquint.

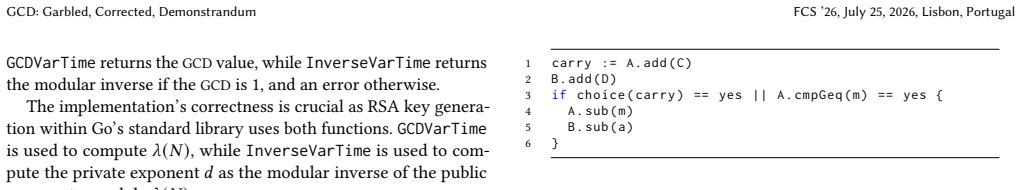

Figure 1
Figure 1. Figure 1: Proposed synchronized reduction for updating the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

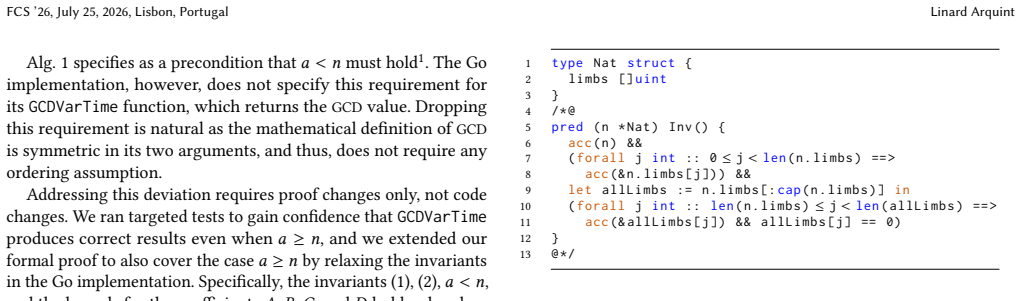

Figure 2
Figure 2. Figure 2: Definition of the Nat struct that the Go standard library uses to represent arbitrary-length natural numbers and our invariant predicate. zero and smaller than 1 grants read-only access. Permission for a particular heap object can be split and combined, e.g., to share read access among multiple threads. Since permissions are non￾duplicable, a proof in separation logic guarantees memory safety and absence o… view at source ↗

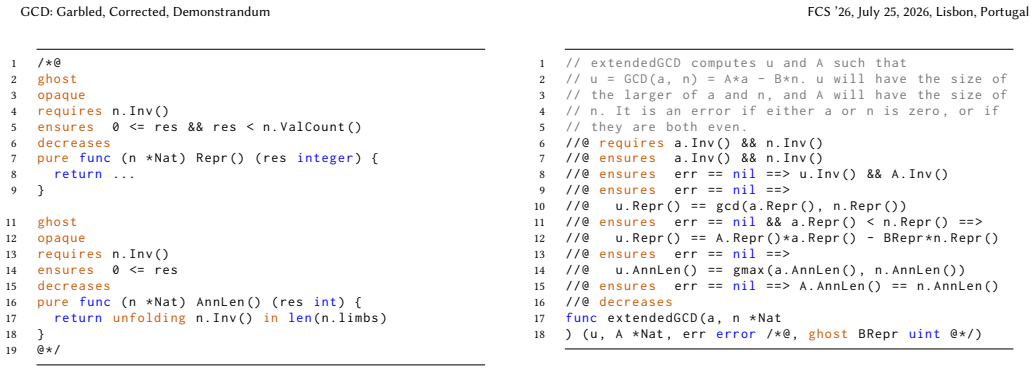

Figure 4
Figure 4. Figure 4: Specification for the verified extendedGCD function. For presentation purposes, we use full instead of fractional permissions for a and n and omit that a and n remain unmod￾ified. gmax returns the maximum of its arguments. these functions are not called from any verified code, preventing unsound assumptions about their behavior from creeping into the proof of extendedGCD. 4.2 Specifications and Proofs Than… view at source ↗

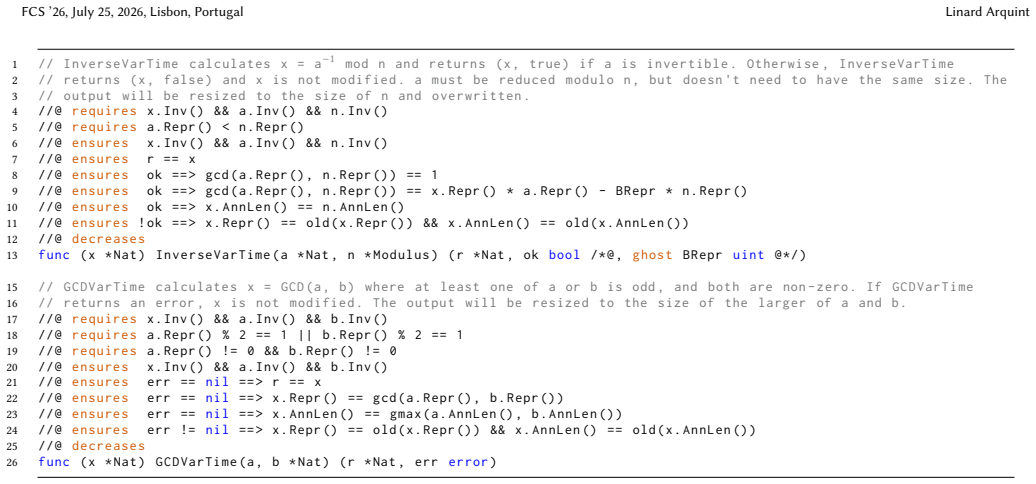

Figure 5
Figure 5. Figure 5: Specifications for the verified InverseVarTime and GCDVarTime functions. We make similar presentation choices as in [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

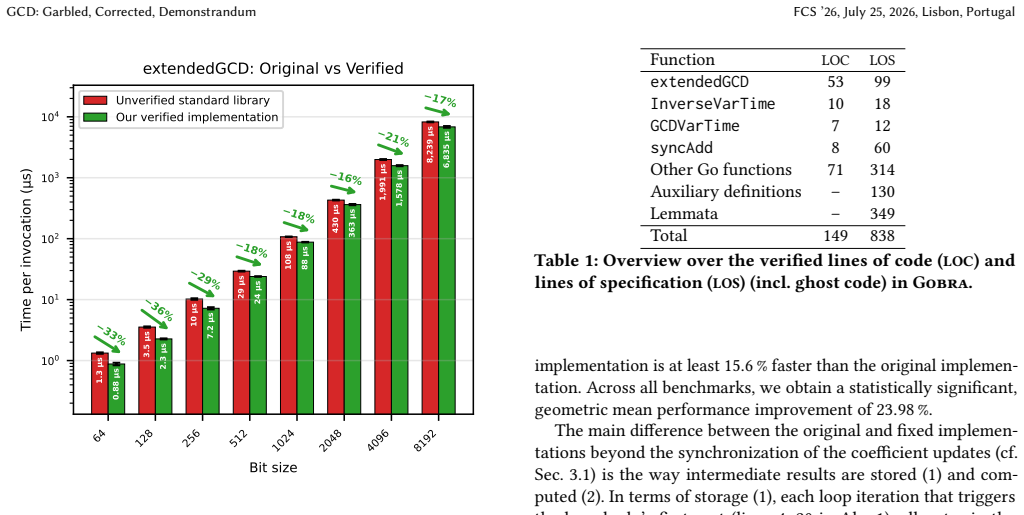

Figure 6
Figure 6. Figure 6: Performance comparison between the original and [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

We verify the 'extendedGCD' implementation in Go's standard library ('crypto/internal/fips140/bigmod'), which plays a crucial role in the generation of RSA key pairs. Even though the Go implementation is supposedly a direct port from BoringSSL's implementation, we uncovered two deviations that each break the algorithm's invariants: (1) the Go implementation deviates in the way coefficients are updated, and (2) it permits a larger input domain. We address both deviations; the first by fixing the Go implementation, which results in an on average 24% speedup, and the second deviation by porting an existing proof for BoringSSL and extending it to cover the larger input domain. We prove correctness and termination of the fixed Go implementation using Gobra, a deductive program verifier for Go. Where necessary, we used Lean to prove key lemmata on non-linear arithmetic, which we import into Gobra. Our verification effort reveals three key insights: subtle bugs can slip into even well-reviewed code with surprising ease; formal verification is a powerful tool for uncovering them; and AI agents can facilitate the verification process by iteratively refining invariants and lemmata based on Gobra's error messages.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper identifies two deviations between Go's extendedGCD implementation in crypto/internal/fips140/bigmod and the BoringSSL version from which it was ported: an incorrect update rule for the coefficients and an expanded input domain. The authors correct the coefficient update (yielding an average 24% speedup), port the existing BoringSSL proof, and extend it to the larger domain. They establish correctness and termination of the repaired Go code via a machine-checked proof in Gobra, importing auxiliary Lean lemmata for the non-linear arithmetic that arises from the domain extension. The work also reports three meta-insights on the ease with which subtle bugs enter reviewed code, the utility of formal verification, and the role of AI agents in invariant refinement.

Significance. If the machine-checked proof is sound, the contribution is significant: it supplies a verified, faster implementation of a core primitive used in RSA key generation, demonstrates that deductive verification (Gobra + Lean) can scale to non-linear arithmetic arising from realistic input domains, and furnishes concrete evidence that formal methods can detect deviations invisible to conventional review. The explicit reuse and extension of a prior BoringSSL proof, together with the machine-checked status of both the program and the supporting arithmetic lemmata, strengthens the result.

minor comments (2)
  1. [Abstract] Abstract: the claim that the two deviations are exhaustive would benefit from an explicit statement (in the body) that the authors performed a systematic comparison of the two code bases rather than relying solely on the two observed failures.
  2. The description of how the Lean lemmata are imported into Gobra (e.g., via trusted axioms or a verified embedding) is only sketched; a short paragraph or appendix entry would improve reproducibility.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work on verifying and correcting Go's extendedGCD implementation, including the recognition of its significance for RSA key generation and the value of the machine-checked proof. We appreciate the recommendation to accept.

Circularity Check

0 steps flagged

No significant circularity; machine-checked proof against external spec

full rationale

The paper's central claim is a deductive verification of a fixed Go extendedGCD implementation using Gobra (with Lean lemmata for non-linear arithmetic). It ports and extends an existing BoringSSL proof to a larger input domain. This is self-contained against external benchmarks: the specification, BoringSSL reference, and proof tools are independent of the present manuscript. No step reduces by construction to a fitted parameter, self-defined quantity, or load-bearing self-citation chain. The two identified deviations and the fix are justified by direct comparison to the external BoringSSL code, not by internal redefinition.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The verification rests on the soundness of Gobra and Lean, standard properties of integer arithmetic, and the assumption that the BoringSSL proof is a valid base; no free parameters or invented entities are introduced.

axioms (2)
  • domain assumption Soundness of Gobra deductive verifier and Lean theorem prover for the imported lemmata
    Invoked when importing Lean facts into Gobra proofs (abstract).
  • standard math Standard properties of non-linear integer arithmetic
    Used for key lemmata proved in Lean (abstract).
