Beyond Vorticity: An Angular Momentum Perspective on Fluid Flow

Pith reviewed 2026-05-21 01:33 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn physics.ao-phphysics.geo-ph
keywords angular momentum densityfluid kinematicsviscous torqueadded masslift generationboundary layersgeophysical flowshydrodynamic impulse
0
0 comments X

The pith

Angular momentum density L = r × u unifies added mass and circulatory lift through explicit torque balances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the angular momentum density field L = r × u as a complement to vorticity for describing fluid kinematics. It derives generalized transport equations that balance macroscopic torque against rotational momentum, claiming this yields a decomposition of viscous torque, shows how boundary-layer vorticity sources lift, and explains stall. The central advance is that the L formalism supplies kinematic closure to combine non-circulatory added mass and circulatory lift in one dimensionally consistent accounting. Additional claims include clean separation of hydrodynamic impulse terms, direct computation of viscous added mass including wakes, absorption of planetary rotation into conserved axial angular momentum, and treatment of shocks and vortex sheets as singular L sources.

Core claim

The angular momentum density L = r × u, together with its derived transport equations that explicitly equate macroscopic torque to the rate of change of rotational momentum, supplies the missing kinematic closure that unifies non-circulatory added mass and circulatory lift inside a single, dimensionally consistent force budget while also decomposing viscous torque, revealing the angular-momentum source mechanism for lift, and absorbing planetary spin into conserved axial angular momentum m.

What carries the argument

Angular momentum density field L = r × u together with its generalized transport equations that balance macroscopic torque and rotational momentum.

If this is right

  • Viscous torque decomposes into a diffusive component plus a local spin-dissipation term.
  • Vorticity in boundary layers acts as a source of angular momentum that generates lift and accounts for stall.
  • Hydrodynamic impulse separates into dilatational, volumetric, and rotational flux contributions.
  • Viscous added mass can be calculated directly, incorporating inertial resistance from boundary layers and separated wakes.
  • Planetary rotation is absorbed into conserved axial angular momentum m, simplifying torque balances in global circulation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Numerical schemes that evolve L directly might conserve angular momentum more accurately than vorticity-based methods in long-time geophysical simulations.
  • The rotlet identification in the Stokes limit suggests that L-based Green's functions could simplify low-Reynolds-number force calculations on arbitrary bodies.
  • Treating vortex sheets and shocks as singular L sources may yield new jump conditions usable in discontinuous Galerkin or level-set methods.

Load-bearing premise

The derived transport equations for angular momentum density L balance macroscopic torque and rotational momentum in a manner that produces the listed advantages without extra modeling choices or post-hoc fixes.

What would settle it

High-resolution simulation of unsteady flow past an airfoil in which the viscous added-mass force computed from the L budget is compared directly against the integrated surface pressure and shear; exact agreement without adjustable parameters would support the claim.

Figures

Figures reproduced from arXiv: 2605.21191 by Ahmed Farooq.

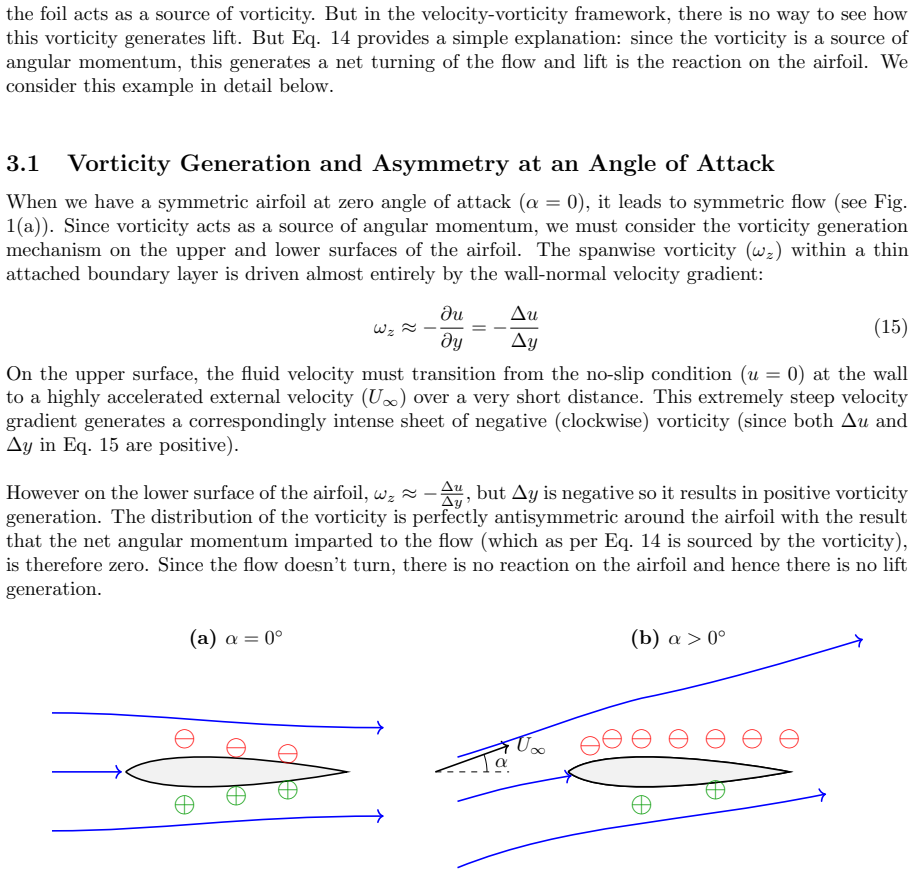

Figure 1
Figure 1. Figure 1: Schematic of boundary layer vorticity generation on a symmetric airfoil. Red minus signs ( [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Control volume representation of the Lamb vector integration. The fluid volume [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Schematic of boundary layer separation at high angles of attack, shown in the body-axis frame. [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

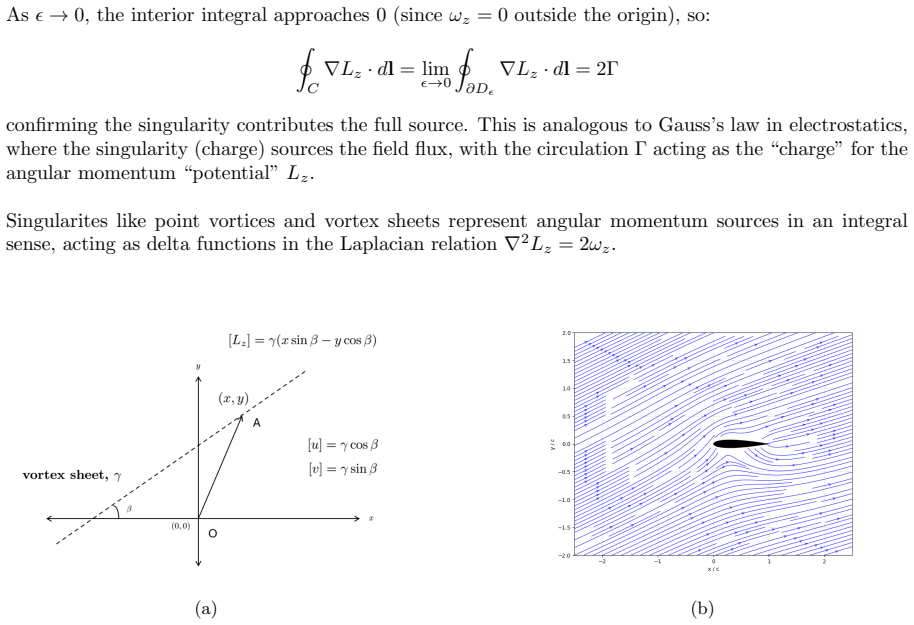

Figure 4
Figure 4. Figure 4: (a) The turning effect of a vortex sheet of strength [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Oblique shock with a flow impinging at an angle [PITH_FULL_IMAGE:figures/full_fig_p027_5.png] view at source ↗

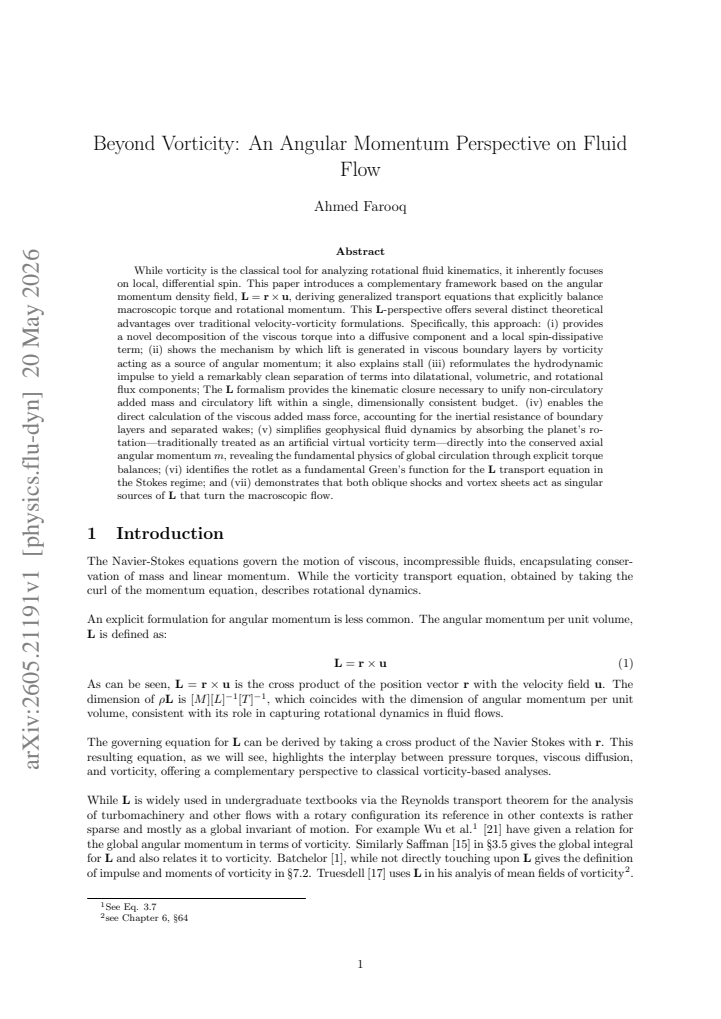

read the original abstract

While vorticity is the classical tool for analyzing rotational fluid kinematics, it inherently focuses on local, differential spin. This paper introduces a complementary framework based on the angular momentum density field, $\mathbf{L} = \mathbf{r} \times \mathbf{u}$, deriving generalized transport equations that explicitly balance macroscopic torque and rotational momentum. This $\mathbf{L}$ perspective offers several distinct theoretical advantages over traditional velocity/vorticity formulations. Specifically, this approach: (i) provides a novel decomposition of the viscous torque into a diffusive component and a local spin dissipative term; (ii) shows the mechanism by which lift is generated in viscous boundary layers by vorticity acting as a source of angular momentum; it also explains stall (iii) reformulates the hydrodynamic impulse to yield a remarkably clean separation of terms into dilatational, volumetric, and rotational flux components; The $\mathbf{L}$ formalism provides the kinematic closure necessary to unify non-circulatory added mass and circulatory lift within a single, dimensionally consistent budget. (iv) enables the direct calculation of the viscous added mass force, accounting for the inertial resistance of boundary layers and separated wakes; (v) simplifies geophysical fluid dynamics by absorbing the planet's rotation, traditionally treated as an artificial virtual vorticity term which directly gets absorbed into the conserved axial angular momentum $m$, revealing the fundamental physics of global circulation through explicit torque balances; (vi) identifies the rotlet as a fundamental Green's function for the $\mathbf{L}$ transport equation in the Stokes regime; and (vii) demonstrates that both oblique shocks and vortex sheets act as singular sources of $\mathbf{L}$ that turn the macroscopic flow.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces an angular momentum density field L = r × u as a complement to vorticity for analyzing fluid kinematics. It derives generalized transport equations that balance macroscopic torque and rotational momentum, and asserts seven theoretical advantages: (i) a decomposition of viscous torque into diffusive and local spin dissipative terms; (ii) explanation of lift generation via vorticity as a source of angular momentum in boundary layers, including stall; (iii) a clean separation of hydrodynamic impulse into dilatational, volumetric, and rotational flux components; (iv) direct calculation of viscous added mass force accounting for boundary layers and wakes; (v) absorption of planetary rotation into conserved axial angular momentum m for simplified geophysical flows; (vi) identification of the rotlet as a fundamental Green's function in the Stokes regime; and (vii) treatment of oblique shocks and vortex sheets as singular sources of L.

Significance. If the transport equations and claimed mechanisms are shown to follow directly from the Navier-Stokes equations without additional modeling choices, the L framework could offer a useful complementary perspective for unifying non-circulatory added mass with circulatory lift in a single dimensionally consistent budget, as well as for torque balances in geophysical and viscous flows. The explicit separation of impulse components and absorption of Coriolis effects into m would be notable strengths if rigorously demonstrated.

major comments (1)
  1. The central unification claim—that the L formalism supplies kinematic closure to unify non-circulatory added mass and circulatory lift within one budget—depends on the generalized transport equations for L explicitly balancing macroscopic torque and rotational momentum to produce the listed advantages. It is not clear whether the decompositions (viscous torque into diffusive plus local spin terms, or impulse into dilatational/volumetric/rotational fluxes) follow directly from the definition L = r × u plus the NS equations, or whether they require unstated boundary handling, integration limits, or post-hoc adjustments. This must be shown explicitly with the full equations to establish that the unification is general rather than constructed.
minor comments (2)
  1. The abstract asserts the seven advantages but does not cross-reference the specific sections or equations where the derivations and demonstrations appear; adding such pointers would improve readability.
  2. Phrases such as 'remarkably clean separation' and 'fundamental physics' are subjective; they should be supported by direct comparison to standard vorticity results or quantitative metrics.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying the need for greater explicitness in the derivations. We address the major comment below and have revised the manuscript to include the full step-by-step derivations from the Navier-Stokes equations.

read point-by-point responses
  1. Referee: The central unification claim—that the L formalism supplies kinematic closure to unify non-circulatory added mass and circulatory lift within one budget—depends on the generalized transport equations for L explicitly balancing macroscopic torque and rotational momentum to produce the listed advantages. It is not clear whether the decompositions (viscous torque into diffusive plus local spin terms, or impulse into dilatational/volumetric/rotational fluxes) follow directly from the definition L = r × u plus the NS equations, or whether they require unstated boundary handling, integration limits, or post-hoc adjustments. This must be shown explicitly with the full equations to establish that the unification is general rather than constructed.

    Authors: We agree that explicit derivation from the Navier-Stokes equations is required to substantiate the generality of the framework. The transport equation for L is obtained directly by forming the cross product r × (momentum equation) and applying standard vector calculus identities (including the product rule for divergence and the decomposition of the viscous stress tensor). This produces an exact balance between the material derivative of L, the divergence of the angular-momentum flux tensor, and the torque terms without additional modeling. The viscous-torque decomposition arises by splitting the deviatoric stress into its symmetric (strain-rate) and antisymmetric (rotation-rate) contributions, yielding a diffusive term proportional to ∇²L and a local dissipative term proportional to ω·ω. The impulse decomposition follows from volume integration of the L equation, application of the divergence theorem, and substitution of the Helmholtz decomposition of velocity; the resulting surface integrals separate cleanly into dilatational, volumetric, and rotational flux contributions. All steps are algebraic identities valid for any sufficiently smooth velocity field satisfying the no-slip condition at solid boundaries; no special integration limits or post-hoc adjustments are introduced. To address the concern, we have inserted a new subsection (2.1) that reproduces the complete derivation from the NS equations through to the decomposed torque and impulse expressions, together with the resulting unified budget for added-mass and lift forces. revision: yes

Circularity Check

0 steps flagged

Derivation chain is self-contained from NS equations plus L definition

full rationale

The paper defines L = r × u and states that generalized transport equations are derived to balance macroscopic torque and rotational momentum. All seven listed advantages, including the unification of non-circulatory added mass and circulatory lift, are presented as consequences of these explicit balances rather than as fitted quantities or renamed inputs. No self-citation chain, ansatz smuggling, or reduction of a prediction to a prior fit is quoted or required in the provided abstract and structure. The framework is therefore independent of the target results and does not reduce by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities can be identified from the abstract alone; the framework appears to build on standard fluid equations but introduces L as a primary field without specifying new postulates here.
