dtControl2+$\varepsilon$: Trading Optimality for Explainability in MDPs via Decision Trees

T0 review · 2 major / 4 minor · reviewed 2026-08-01 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A small, user-chosen allowance of imprecision ε makes decision-tree controllers for Markov decision processes orders of magnitude smaller, while a model-checking loop certifies that every returned tree stays within ε of the optimal value.

desk verdict Credible tool paper with a real ε-optimality theorem and strong empirical results; the practical guarantee leans on Storm's numerics more than the proof admits. read the letter →

arxiv 2607.25925 v1 pith:DXN64TPD submitted 2026-07-28 cs.AI

Tereza Kinská , Jan Křetínský , Tobias Meggendorfer , Sabine Rieder , Maximilian Weininger This is my paper · ORCID
classification cs.AI
keywords decisiontreesMarkovprocessescontrollersynthesisepsilon-optimalityexplainabilityprobabilisticmodelcheckingpermissivecontrollerspolicycompression
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Markov decision processes get their controllers from synthesis tools as huge tables of state-action pairs; decision trees make them readable, but even trees from the current state-of-the-art tool are too large for humans once the system has many corner cases. This paper's claim is that the size problem is mostly unnecessary: if the user allows a small, specified error ε, most decisions can be dropped, and a decision tree capturing only the decisions that matter is enough, with its performance guaranteed to be within ε of optimal. The tool dtControl2+ε couples decision-tree learning with a probabilistic model checker: safe reductions delete states whose choices cannot influence the outcome by more than ε, and aggressive shrink steps (simulation-weighted learning, early stopping, pruning) are each verified by model checking and backed off if they break the guarantee. On 38 standard benchmarks the resulting trees are at least as small as, and often orders of magnitude smaller than, those of prior tools, and at ε=0.01 nearly half the benchmarks collapse to a single rule: one action (with random fallback when unavailable) is already ε-optimal. If correct, this gives controller design a genuine explainability dial — the user picks the error budget and receives a certified, human-readable rule.

What carries the argument

The load-bearing mechanism is the permissive dataset plus a verification loop. Rather than learning a tree from one optimal controller (one action per state), the tool builds a dataset assigning each state a set of allowed actions so that every controller consistent with it is provably ε-optimal (Theorem 1). Safe reductions delete states — AllOpt (all actions equally good), Agency (best-vs-worst value gap ≤ ε), Dominance (another state reached with probability 1 regardless of choice), Unreach (never reached from the start) — while keeping the ε-claim. Greedier steps (simulation-weighted learning, early stopping, pruning) may break the guarantee, so each candidate tree is model-checked and th

What would settle it

On a benchmark where the tool aborts at ε=0 because the model checker's returned controller was confirmed non-optimal (e.g., consensus4-4-c2 or zeroconf-1000-2-false-correctmax), compute the true optimal value with an independent exact-arithmetic solver, then model-check the tree the tool outputs at ε=1e-6; if the true gap exceeds 1e-6, the ε-optimality guarantee is broken. The paper supplies the ingredients for this test: its own second model checking query disagreed with the first by more than 10^-14 on those benchmarks.

Watch

Extended reading notes

Core claim

On its own terms, the paper establishes a guarantee and an empirical fact. The guarantee: given any MDP, any standard objective (reachability, safety, reach-avoid, expected reward, LTL with memory), and any precision ε ≥ 0, the tool returns a decision tree T with |V^T(s̄) − V(s̄)| ≤ ε — the tree's value at the initial state is within ε of optimal; ε=0 recovers an exact optimal controller. The empirical fact: on 38 benchmarks the trees beat all four competitors, more than two orders of magnitude smaller than the previous tool on 12 of 38, and at ε=1e-2 produce trees of at most 15 nodes on 30 benchmarks and single-node trees on 18 — in nearly half the benchmark systems, always playing one fixe

Load-bearing premise

The whole guarantee rests on the model checker computing exact optimal values: the verification loop that certifies ε-optimality compares the candidate tree's value with the solver's own optimum, and the appendix reports ε=0 runs where the solver's 'optimal' controller was provably not optimal (differing by more than 10^-14 between two queries) — so if the solver's numerical error exceeds the allowed ε, an output tree can violate its certificate without the tool detecting it.

Editorial extensions

If this is right

  • The user can dial a single parameter ε and receive a certified bound on the controller's suboptimality, so the simplicity/performance trade-off becomes explicit and auditable rather than a gamble on a pruning heuristic.
  • The single-node results at ε=1e-2 imply that many standard benchmark MDPs do not actually need a complex policy: a fixed action with uniform random fallback is within 1% of optimal, a structural fact about the models that exact controller synthesis had hidden.
  • The guarantee transfers across the full objective spectrum — reachability, safety, reach-avoid, expected reward/cost, and LTL with memory (the only tool in its class with LTL support) — so the same ε-optimal simplification applies in each of these settings.
  • Even at ε=0 the pipeline is strictly better than the predecessor tool on every benchmark, by more than two orders of magnitude on 12 of 38 — the permissive dataset, safe reductions, and automatic predicates improve exact representation too.
  • Because the verification loop certifies the final tree, future aggressive heuristics can be added without endangering correctness: if they produce an ε-violating tree, the tool detects it and relaxes them.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A cheap complexity probe suggests itself: run the pipeline at a coarse ε (say 1e-2) before committing to full synthesis; if the result is one or a few nodes, the system's apparent decision complexity is not load-bearing for the specification, and the remaining work in building and maintaining a detailed controller may be unnecessary.
  • The reduced dataset size (after safe reductions) could serve as a definition of an MDP's decision complexity per se, separating 'hard' systems from merely 'large' ones — a distinction the paper itself notes indirectly when observing no correlation between model size and runtime.
  • For ε near the solver's numerical noise floor, a practical hardening would run the verification loop with exact rational arithmetic: the certifier, not the learner, is what must be made exact, and the paper's appendix shows ε=0 cases where the solver's own two query results disagreed beyond floating-point precision.
  • The permissive-dataset formulation points toward a transfer route for parameterised model families: a tree certified on one instance could be checked and locally patched on nearby instances, turning per-instance compression into a reusable rule.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper presents dtControl2+ε, an extension of dtControl2 that constructs decision-tree controllers for MDPs with a formal ε-optimality guarantee. The workflow solves the MDP with Storm, constructs a permissive/reduced dataset of 'relevant' decisions, learns and prunes a DT, and validates the result by model checking. The central Theorem 1 states that the dataset construction and reductions are ε-optimal; the appendix contains a proof. Empirically, on 38 PRISM benchmarks the tool reports substantially smaller DTs than dtControl2, dtPaynt, dtNESt, and CAV15, including single-node DTs for 18 benchmarks at ε=1e-2. The paper also documents that on several ε=0 benchmarks Storm returned a controller that was not optimal and the tool aborts.

Significance. If the guarantee is delivered, this is a notable advance: it provides tunable explanations for MDP controllers with a formal bound, covers standard objectives, and has a reproducible artifact. The proof of Theorem 1 is a genuine effort, and the evaluation is extensive with full tables. The main caveat is that the practical guarantee depends on numerical exactness of Storm. Since the paper itself reports failures of that exactness, the advertised absolute guarantee is currently too strong. With a clarified assumption or a certified downstream check, the contribution would be solid.

major comments (2)
  1. [§III Problem Statement and §III-C; Appendix E3/E4] The paper states: 'Given an MDP, objective, and precision ε≥0, obtain a (small) decision tree T such that |V^T(¯s)-V(¯s)| ≤ ε.' Appendix E3/E4 reports that for several ε=0 benchmarks the controller obtained from Storm 'was not optimal, as confirmed through a second model checking query; it also differed by more than the float precision of 10^-14', and the tool aborts. Thus the claim as stated is false for the implemented tool. Theorem 1's proof assumes the initial dataset is built from a truly optimal controller. Please either (a) restrict all claims to the case where Storm's oracle is exact, or (b) provide a certified exact solving/validation path that justifies the absolute statement.
  2. [§III-C verification loop] The verification step compares the DT's value against Storm's computed optimal value, both produced by Storm. If Storm's optimal value has numerical error δ > 0, a DT whose true error is ε+δ can pass the check. The paper gives no bound on δ and indeed documents numerical inexactness in Appendix E3/E4. This is not a remote edge case: the same solver is used both to construct the dataset and to validate the DT. Please add a numerical error analysis or an external exact checker, or at minimum explicitly state that the guarantee is relative to Storm's arithmetic.
minor comments (4)
  1. [§III] The statement 'if a decision tree exists, our tool will always find one by omitting aggressive heuristics when necessary' is not justified by Algorithm 1, which is a greedy heuristic with a fixed predicate set. If the dataset contains states with identical feature values but different required actions, no axis-aligned split can separate them. Please either weaken this claim or provide a proof.
  2. [Appendix E3/E4] The sentence 'Even though we set Storm to sound solving, we were not able to avoid such cases. In these cases, dtControl 2+ε aborts.' appears verbatim in both E3 and E4. Please remove the duplication and clarify whether the abort is triggered by the second model-checking query or by an exception.
  3. [§V-B] For Imp_Simulation and Imp_CoE, the text says that adding a small positive weight 'ensures ε-optimality'. A small weight by itself does not guarantee the bound; the final model-checking step is what enforces it. Please rephrase to avoid the implication that the weighting alone is sufficient.
  4. [Appendix A] The LTL support is described as a differentiator, but the appendix admits that memory states are opaque numbers and that no LTL benchmarks are evaluated. Please label this as preliminary and provide at least the hand-crafted instances or a clear statement that LTL is not part of the experimental comparison.

Circularity Check

0 steps flagged · score 1.0 of 10

No circular reduction found; the ε-optimality guarantee is derived from standard MDP arguments and an external published certificate, not from fitted benchmark values.

full rationale

The paper's central correctness claim (Theorem 1, Appendix D) is not built by fitting or by defining the target in terms of the output. Lemma 1 and Lemma 2 are proved in the appendix from MDP semantics. The permissive initial dataset construction relies on [20]'s fixed-point certificate (used as Lemma 3); although [20] shares an author with this paper, it is an externally published TACAS result with stated assumptions that do not include the current benchmarks, and the paper reproduces the argument rather than merely citing it as a uniqueness theorem. No benchmark constant or measured DT size is fed back into the derivation, and ε is an input, not a fitted parameter. The tool's final model-checking step is a verification oracle, not a fitted source of the claimed guarantee. The appendix's admission that on some ε=0 instances Storm's controller 'was not optimal, as confirmed through a second model checking query; it also differed by more than the float precision of 10^-14' is a real numerical-correctness risk, but it is a limitation of the external oracle, not a circular step in the derivation. Accordingly, no circularity step is warranted.

Assumptions & free parameters 3 free parameters · 5 assumptions · 1 invented entities

The central guarantee is built on standard MDP semantics plus external certificate results; there are no fitted scientific parameters, but several heuristic constants (θ, 1e-6 weight) and toolchain assumptions enter the practical pipeline.

free parameters (3)
  • Early-stopping threshold θ = 0.5, decremented by 0.1 until success (min 0.0)
    Controls how impure a node may be before becoming a leaf; chosen for efficiency and does not affect final correctness because the verification loop checks.
  • Importance weight floor for Imp_Simulation = 1e-6
    Added to unsampled states so the dataset remains ε-optimal; arbitrary small constant.
  • Unspecified small positive weight in Imp_CoE = not given
    Paper says 'we add a small positive weight to all states' (§V-B) but does not specify value; implementation detail affecting trees.
assumptions (5)
  • domain assumption Storm returns a truly optimal controller and exact model-checking values for the MDP/objective.
    Needed in Steps 1 and 3; contradicted on some ε=0 benchmarks as admitted in Appendix E3/E4.
  • domain assumption GoodActions correctness follows from Chatterjee et al. [20, Prop. 5 and Section 3].
    Lemma 3 in Appendix D delegates proof to this external certificate result; overlapping authors but independent publication.
  • domain assumption Lemma 1: mixture of ε-optimal actions preserves ε-optimality, including when a state is revisited infinitely often.
    Proof is sketched for reachability and asserted for reward objectives; relies on objective-specific progress/reward structure.
  • ad hoc to paper For LTL, extending states with memory-state pairs preserves ε-optimality and produces interpretable DTs.
    Asserted in Appendix A with no proof; interpretability itself is doubted by authors due to opaque memory-state numbering.
  • domain assumption PRISM guard expressions are good candidate predicates for DT splits.
    §V-A; valid only when a high-level PRISM description is available.
invented entities (1)
  • Unif special leaf label
    purpose: Allows the decision tree to output 'choose one of the available actions uniformly at random' instead of a concrete action, unifying states with equal action values without losing progress.
    Introduced in §II-B/§IV-A; not an external physical entity; Remark 1 notes it assumes the runtime can pick a random available action.

how reviews work

0 comments
Cite this review

Pith. "Pith review of dtControl2+$\varepsilon$: Trading Optimality for Explainability in MDPs via Decision Trees." pith.science (2026). https://pith.science/paper/DXN64TPD

@misc{pith2026260725925,
  author       = {Pith},
  title        = {Pith review of: dtControl2+$\varepsilon$: Trading Optimality for Explainability in MDPs via Decision Trees},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DXN64TPD}},
  note         = {Machine review of arXiv:2607.25925}
}
abstract

Over the past decade, decision trees have been used to represent controllers (a.k.a. policies) in an explainable way, with dtControl2 as a current state-of-the-art tool. However, for systems that are large or have many corner cases, even such representations tend to be too complex and not human-comprehensible. Unfortunately, reducing the size of the decision tree is not straightforward, as missing just a single crucial case might result in an incorrect controller. We tackle this issue in the setting of Markov decision processes, extending dtControl2 by "$\varepsilon$" functionality: Given an allowed imprecision $\varepsilon \geq 0$, we construct a smaller decision tree, distilling the essence of the controller, while still guaranteeing its $\varepsilon$-optimality. This enables us to provide tunably simpler explanations, omitting a controllable amount of detail. Our tool constructs decision trees that are orders of magnitude smaller than the state of the art.

Figures

Figures reproduced from arXiv: 2607.25925 by the authors.

Figure 1
Figure 1. Visualisation of a grid-world robot navigation task (left) and [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Structural overview of dtControl 2+ε. The tool builds a DT representing an ε-optimal controller for an MDP. Given the model description, objective, and precision, our tool calls Storm (Ë) [36] to build the model and obtain the optimal value and controller. This controller is transformed into a reduced dataset of relevant decisions using our, in the DT-learning context novel, “safe” methods preserving the value of th… view at source ↗
Figure 3
Figure 3. MDP illustrating permissive strategies. DT to “unify” states which otherwise have disjoint sets of allowed actions, as follows: In the example, Unif is added for both states, i.e. D = {s → {l,Unif}, t → {r,Unif}}, and thus there is a consistent one-node DT, recommending Unif. Note that explicitly adding Unif is different from setting D(s) = A(s) or removing s from D: In the latter two cases, the constructed DT T may… view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Quantile plot comparing the DT size of different configurations of [PITH_FULL_IMAGE:figures/full_fig_p009_4.png]
Figure 5
Figure 5. Figure 5: Comparison of dtControl 2 and dtNESt to our methods. The quantile plot compares the size of the final DT of dtControl 2 and dtNESt to the best DTs of dtControl 2+ε with different precision requirements. The y-axis uses logarithmic scale. DTs are always at least as smal…
Figure 6

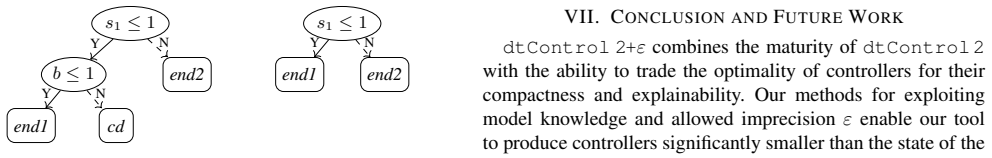

Figure 6. Figure 6: CSMA/CD (N=2, K=6) DTs produced by dtControl 2+ε. Left: ε = 10−6 , right: ε = 10−2 . insight that is invisible to dtControl 2. Recall that in states not covered by the DT actions are chosen randomly. Pnueli-Zuck randomized mutual exclusion (n=5) [35, 62] models n proce…
Figure 7
Figure 7. Figure 7: Complete DT (left) and reduced DT (right) learnt for the optimal controller of the example in Section [PITH_FULL_IMAGE:figures/full_fig_p015_7.png]
Figure 8
Figure 8. Figure 8: DT sizes comparing dtNESt with the best of dtControl 2+ε. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 10

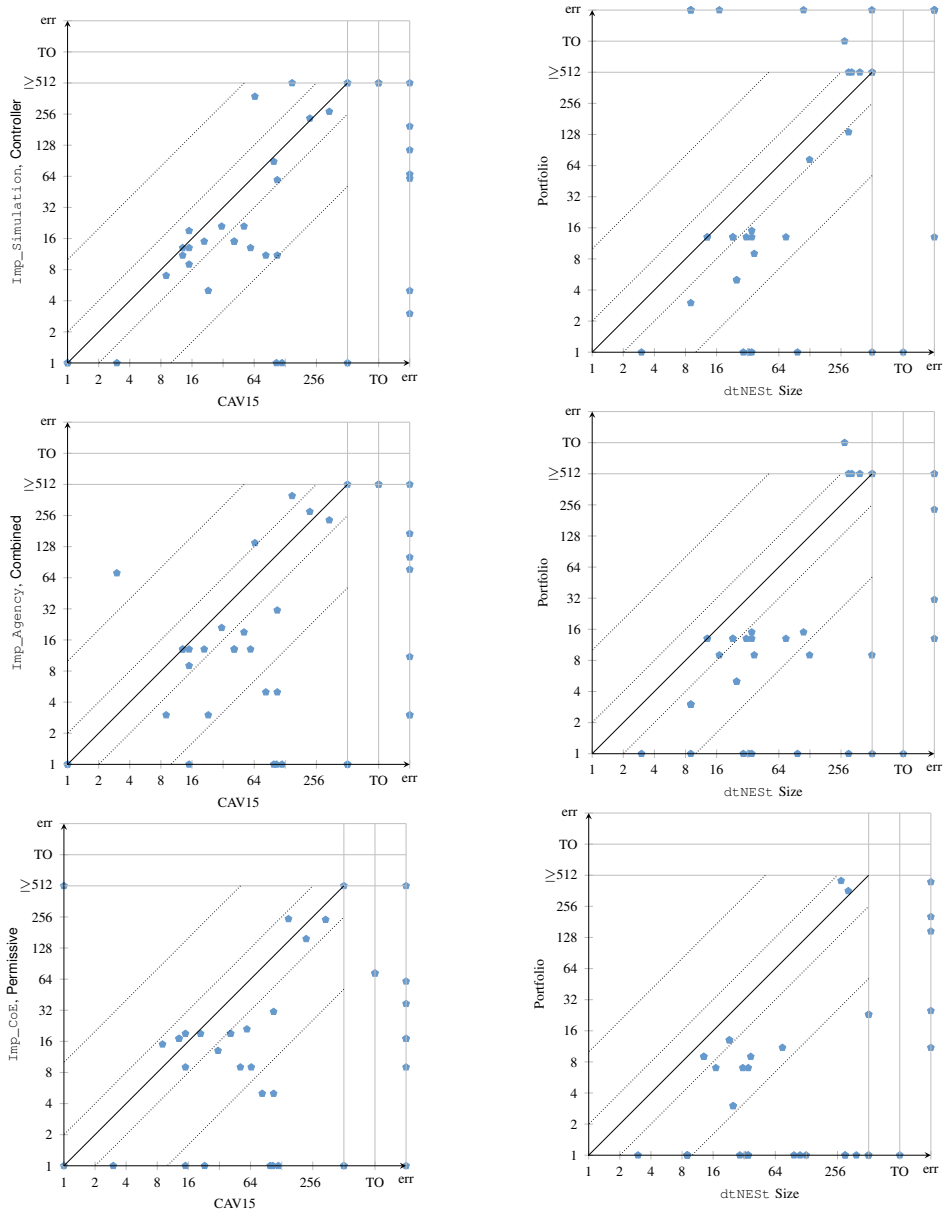

Figure 10. Figure 10: DT size comparison between dtNESt and the dtControl 2+ε portfolio. While dtNESt always uses ε = 0, dtControl 2+ε is shown with ε = 0 (top left), ε = 10−6 (top right) and ε = 10−2 (bottom). 19 [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
Figure 11
Figure 11. Figure 11: Comparison of runtime and DT size in relationship to the [PITH_FULL_IMAGE:figures/full_fig_p020_11.png]
Figure 12
Figure 12. Figure 12: Runtime comparison between dtNESt and the dtControl 2+ε portfolio. While dtNESt always uses ε = 0, dtControl 2+ε is shown with ε = 0 (top left), ε = 10−6 (top right) and ε = 10−2 (bottom). 21 [PITH_FULL_IMAGE:figures/full_fig_p021_12.png]
