Cross-view Relation Networks for Mammogram Mass Detection

Bjoern H Menze; Hongwei Li; Jiechao Ma; Rongguo Zhang; Sen Liang; Wei-Shi Zheng; Xiang Li

arxiv: 1907.00528 · v1 · pith:EE5EBSQWnew · submitted 2019-07-01 · 💻 cs.CV

Cross-view Relation Networks for Mammogram Mass Detection

Jiechao Ma , Sen Liang , Xiang Li , Hongwei Li , Bjoern H Menze , Rongguo Zhang , Wei-Shi Zheng This is my paper

Pith reviewed 2026-05-25 12:25 UTC · model grok-4.3

classification 💻 cs.CV

keywords mammogram mass detectioncross-view relation networksCVR-RCNNbreast cancer screeningmulti-view deep learningregion-based convolutional networkscomputer aided detection

0 comments

The pith

CVR-RCNN captures cross-view relations to improve mammogram mass detection accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Doctors rely on two complementary mammogram views to detect breast masses, but automated systems have not jointly used this relational information. The paper proposes CVR-RCNN, a region-based network with a cross-view relation module designed to link and learn from corresponding regions in the paired views. Experiments on a large private dataset and a public dataset demonstrate better performance than existing methods. This suggests that modeling the latent relations between views can lead to more effective detection models. The framework does not require explicit registration of the views.

Core claim

The proposed CVR-RCNN is expected to capture the latent relation information between the corresponding mass region of interests from the two paired views and outperforms existing state-of-the-art mass detection methods, as shown on a new large-scale private dataset and a public mammogram dataset.

What carries the argument

The cross-view relation module that extracts and uses latent relation information between ROIs from the two paired mammogram views.

Load-bearing premise

The two paired mammogram views contain learnable complementary relational information about the same mass that the cross-view relation module can exploit without explicit geometric registration or perfect correspondence between ROIs.

What would settle it

A controlled test where the cross-view relation module is ablated and detection performance does not decrease would indicate that the claimed relational benefit is not driving the results.

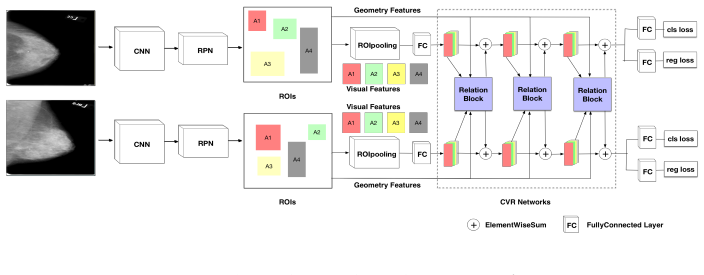

Figures

Figures reproduced from arXiv: 1907.00528 by Bjoern H Menze, Hongwei Li, Jiechao Ma, Rongguo Zhang, Sen Liang, Wei-Shi Zheng, Xiang Li.

read the original abstract

Mammogram is the most effective imaging modality for the mass lesion detection of breast cancer at the early stage. The information from the two paired views (i.e., medio-lateral oblique and cranio-caudal) are highly relational and complementary, and this is crucial for doctors' decisions in clinical practice. However, existing mass detection methods do not consider jointly learning effective features from the two relational views. To address this issue, this paper proposes a novel mammogram mass detection framework, termed Cross-View Relation Region-based Convolutional Neural Networks (CVR-RCNN). The proposed CVR-RCNN is expected to capture the latent relation information between the corresponding mass region of interests (ROIs) from the two paired views. Evaluations on a new large-scale private dataset and a public mammogram dataset show that the proposed CVR-RCNN outperforms existing state-of-the-art mass detection methods. Meanwhile, our experimental results suggest that incorporating the relation information across two views helps to train a superior detection model, which is a promising avenue for mammogram mass detection.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

CVR-RCNN adds a cross-view relation module to RCNN for paired mammogram views, but the abstract shows no numbers or ablations to support the outperformance claim.

read the letter

The main takeaway is that this paper adds a cross-view relation module inside an RCNN pipeline to model relations between ROIs in the CC and MLO mammogram views. That is the concrete technical step beyond single-view detectors. The motivation is reasonable: radiologists use both views together, and the abstract correctly notes that most prior detection work does not jointly learn from them. The architecture itself is a straightforward engineering extension of Faster RCNN with an added relation component, which is fine as far as it goes. The paper does well to keep the focus on a practical clinical task and to treat the paired views as relational rather than independent. No obvious circularity or invented math here; it is a standard supervised detection setup on image data. The soft spots are clear and central. The abstract asserts that CVR-RCNN outperforms existing methods on a private dataset and a public one, yet supplies zero numbers, no baseline details, no statistical tests, and no ablation results. Without those, the claim that the relation module is responsible for any gain cannot be checked. The stress-test concern also lands: the two views have different projection geometries, and the method uses no explicit registration or correspondence supervision. It is therefore unclear whether the module learns genuine relational information or simply performs generic multi-view feature fusion. If the latter, the headline contribution shrinks. This work is aimed at researchers building CAD systems for breast cancer screening or multi-view medical detection. A reader already working on RCNN variants in mammography could pick up the relation module idea, but would need the full experimental section to decide whether it is worth adopting. The paper shows clear thinking about the clinical setting and engages with the relevant detection literature, so it is coherent on its own terms. I would send it to peer review rather than desk reject so the experiments can be examined, but the current version is too light on evidence to stand alone.

Referee Report

3 major / 1 minor

Summary. The paper proposes CVR-RCNN, a region-based CNN for mammogram mass detection that augments standard detection with a cross-view relation module intended to capture latent relational information between mass ROIs in paired MLO and CC views. It claims this yields superior performance over existing SOTA methods on a new large-scale private dataset and a public dataset, and that the relation information helps train a better model.

Significance. If the empirical gains hold and can be attributed specifically to relational modeling of complementary information (rather than generic multi-view fusion), the work would offer a practical advance in two-view mammogram analysis for early breast-cancer detection. The absence of explicit registration makes the approach potentially scalable, but this also makes validation of the relational premise essential.

major comments (3)

[Abstract] Abstract: the central claim that CVR-RCNN 'outperforms existing state-of-the-art mass detection methods' is stated without any quantitative metrics, baseline comparisons, statistical tests, or ablation results, so the magnitude and reliability of the reported improvement cannot be assessed from the provided text.
[Method (cross-view relation module)] Method section (cross-view relation module description): the module is presented as learning latent relations between ROIs from the two views without any explicit geometric registration or correspondence supervision; given the distinct projection geometries of MLO and CC views, it is unclear whether the learned relations reflect true anatomical correspondence or spurious correlations, and no analysis tests this premise.
[Experiments] Experiments section: no ablation isolating the contribution of the relation module (e.g., CVR-RCNN vs. a multi-view Faster R-CNN baseline that simply concatenates or averages features from the two views) is described, which is required to support the claim that 'incorporating the relation information across two views helps to train a superior detection model.'

minor comments (1)

[Experiments] The private dataset is described only as 'new large-scale'; additional details on its size, annotation protocol, and train/test split would strengthen reproducibility claims.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that CVR-RCNN 'outperforms existing state-of-the-art mass detection methods' is stated without any quantitative metrics, baseline comparisons, statistical tests, or ablation results, so the magnitude and reliability of the reported improvement cannot be assessed from the provided text.

Authors: We agree the abstract is high-level. In the revision we will insert the key quantitative gains (e.g., AP improvements on both datasets versus the cited baselines) while remaining within length limits. revision: yes
Referee: [Method (cross-view relation module)] Method section (cross-view relation module description): the module is presented as learning latent relations between ROIs from the two views without any explicit geometric registration or correspondence supervision; given the distinct projection geometries of MLO and CC views, it is unclear whether the learned relations reflect true anatomical correspondence or spurious correlations, and no analysis tests this premise.

Authors: Avoiding explicit registration is deliberate because reliable geometric alignment between MLO and CC views is difficult owing to tissue deformation. The module learns relations end-to-end from data. We will add a short discussion of this design choice and its limitations; however, we do not have a dedicated correspondence-verification experiment and therefore treat the addition as partial. revision: partial
Referee: [Experiments] Experiments section: no ablation isolating the contribution of the relation module (e.g., CVR-RCNN vs. a multi-view Faster R-CNN baseline that simply concatenates or averages features from the two views) is described, which is required to support the claim that 'incorporating the relation information across two views helps to train a superior detection model.'

Authors: We accept that an explicit ablation against a non-relational multi-view fusion baseline is needed to isolate the module's contribution. We will add this comparison (feature concatenation/averaging baseline versus CVR-RCNN) in the revised experiments section. revision: yes

Circularity Check

0 steps flagged

No circularity: standard supervised detection pipeline with no self-referential derivations

full rationale

The paper introduces CVR-RCNN as a region-based CNN augmented with a cross-view relation module, trained end-to-end via standard supervised detection losses on paired mammogram views. No equations define a quantity in terms of itself, no fitted parameters are relabeled as predictions, and no load-bearing claims rest on self-citations whose validity depends on the current work. Performance is measured against external baselines on held-out image data, so the central claim that the module captures relational information remains an empirical hypothesis rather than a definitional tautology.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 1 invented entities

The central claim rests on standard deep-learning training assumptions plus one domain assumption about view complementarity; the relation module itself is an invented architectural component with no independent evidence outside the reported experiments.

free parameters (2)

relation module weights
Learned parameters inside the cross-view relation network that are fitted to the training data.
ROI proposal thresholds
Standard RCNN hyperparameters tuned on validation data.

axioms (1)

domain assumption Paired MLO and CC views contain complementary relational information about the same mass
Invoked to justify the design of the cross-view relation module.

invented entities (1)

Cross-view relation module no independent evidence
purpose: To capture latent relations between corresponding ROIs across the two views
New architectural component introduced by the paper.
