Analysis of the frequency shift in coherent population trapping resonance's dynamic continuous-wave spectroscopy at the phase-jump modulation and its comparison with the conventional approach

E. D. Chivilis , E. A. Tsygankov This is my paper

Pith reviewed 2026-06-26 05:48 UTC · model grok-4.3

classification ⚛️ physics.atom-ph quant-ph
keywords coherent population trappingfrequency shiftphase-jump modulationcontinuous-wave spectroscopyerror signalLambda systemunisotropic relaxationbichromatic field
0
0 comments X

The pith

Asymmetry in bichromatic fields produces nonlinear frequency shifts in CPT error signals at phase-jump modulation, while conventional harmonic modulation yields more linear behavior at high frequencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines frequency shifts in coherent population trapping resonances during dynamic continuous-wave spectroscopy that uses phase-jump modulation. It models a Lambda system plus a nonabsorbing state driven by a bichromatic field whose two components have unequal intensities. The authors show that this intensity asymmetry, together with unisotropic relaxation of ground-state density-matrix elements, creates an extra nonlinear shift in the error-signal frequency. Direct comparison with the conventional method of harmonic modulation of the frequency difference reveals that the conventional approach maintains greater linearity in the high-frequency regime when integration times are not short.

Core claim

In the Lambda system supplemented by a nonabsorbing state and driven by a bichromatic optical field whose spectral components have different intensities, the asymmetry leads to an additional nonlinear shift of the error-signal frequency under unisotropic relaxation of the ground-state density-matrix elements. Comparison with the conventional approach of harmonically modulating the frequency difference demonstrates that in the high-frequency modulation regime the corresponding frequency shift is more linear than at the phase-jump modulation for nonshort integration times.

What carries the argument

Phase-jump modulation of the bichromatic field in the Lambda system, which generates an error signal whose frequency experiences an additional nonlinear shift due to intensity asymmetry combined with anisotropic ground-state relaxation.

If this is right

  • The error-signal frequency acquires an additional nonlinear shift traceable to field asymmetry and relaxation anisotropy.
  • In the high-frequency regime the conventional harmonic modulation produces a more linear frequency shift than phase-jump modulation for nonshort integration times.
  • The shift analysis applies specifically to dynamic continuous-wave spectroscopy of CPT resonances.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The linearity advantage of conventional modulation may influence selection of modulation schemes in precision frequency references that rely on CPT error signals.
  • Varying the integration time across a wider range could map the boundary between short and nonshort regimes where the linearity difference appears.
  • Including other relaxation channels beyond unisotropic ground-state effects might produce additional shift terms that interact with the reported nonlinearity.

Load-bearing premise

The analysis assumes a Lambda system with a nonabsorbing state, unequal intensities in the bichromatic field components, and unisotropic relaxation of the ground-state density-matrix elements.

What would settle it

Measurement of whether the error-signal frequency shift remains more linear under conventional high-frequency harmonic modulation than under phase-jump modulation when integration times exceed short values.

Figures

Figures reproduced from arXiv: 2606.23908 by E. A. Tsygankov, E. D. Chivilis.

Figure 1

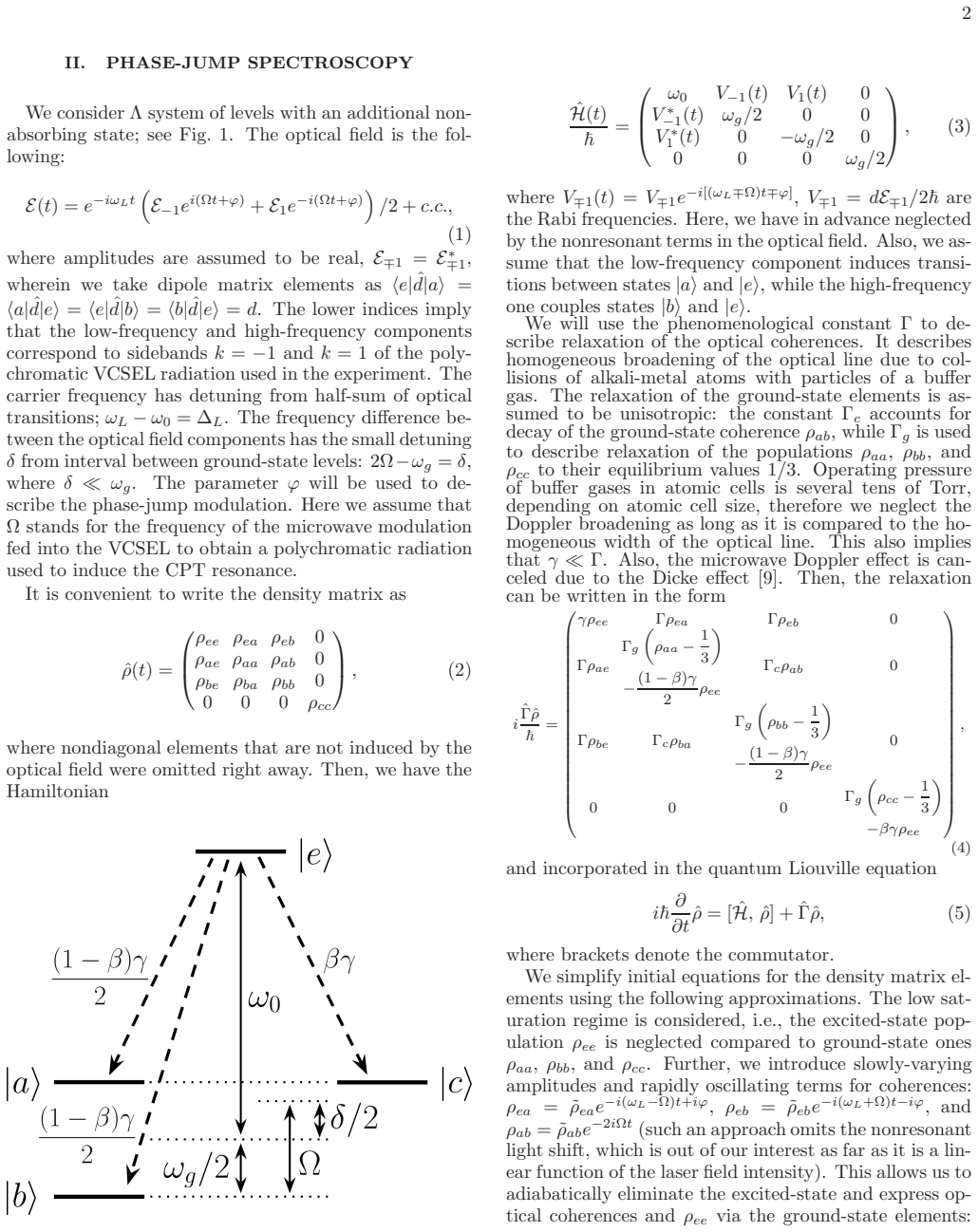

Figure 1. Figure 1: FIG. 1. System of levels under consideration. Natural width [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

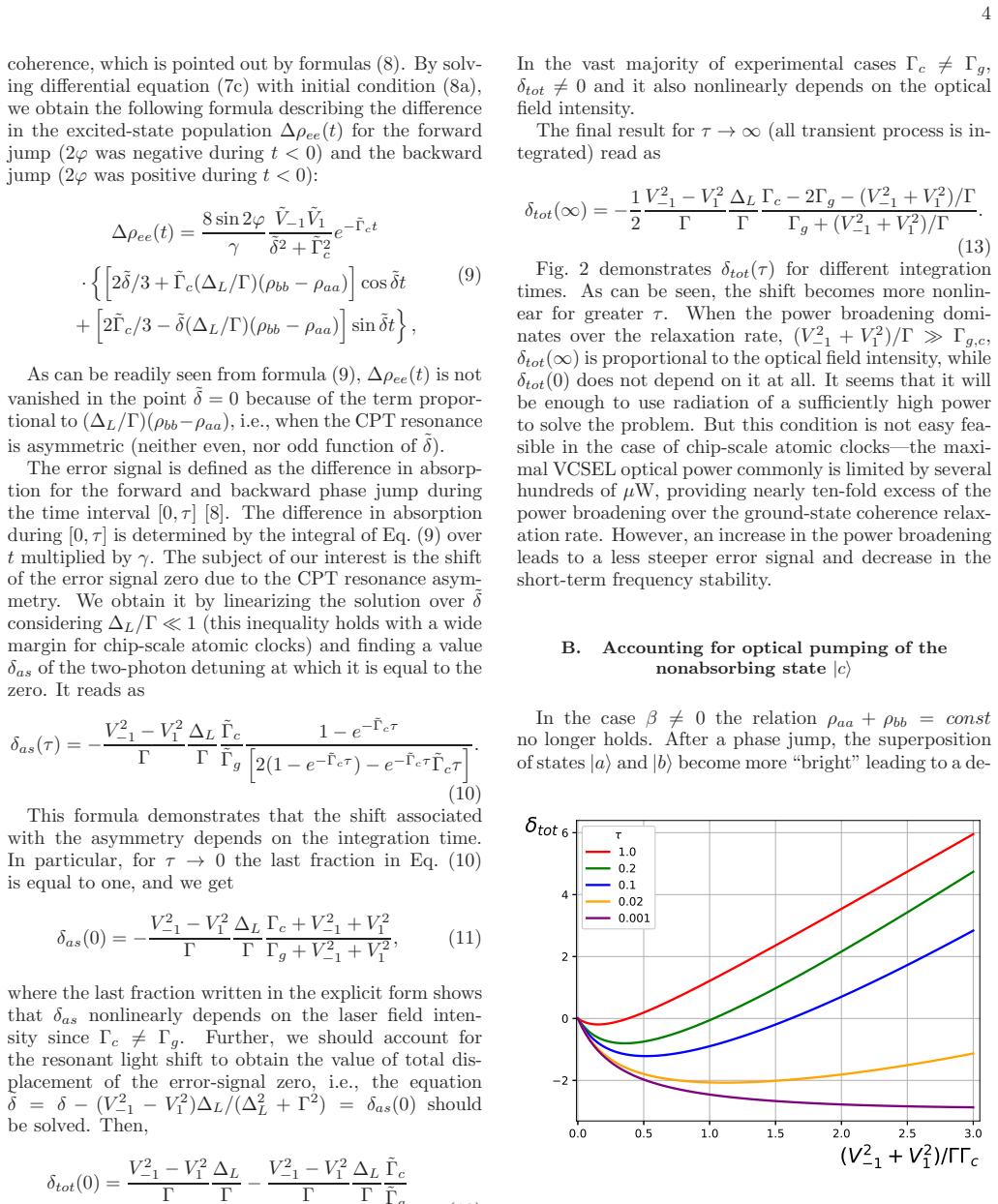

Figure 2. Figure 2: FIG. 2. Frequency shift of the error-signal zero for differen [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

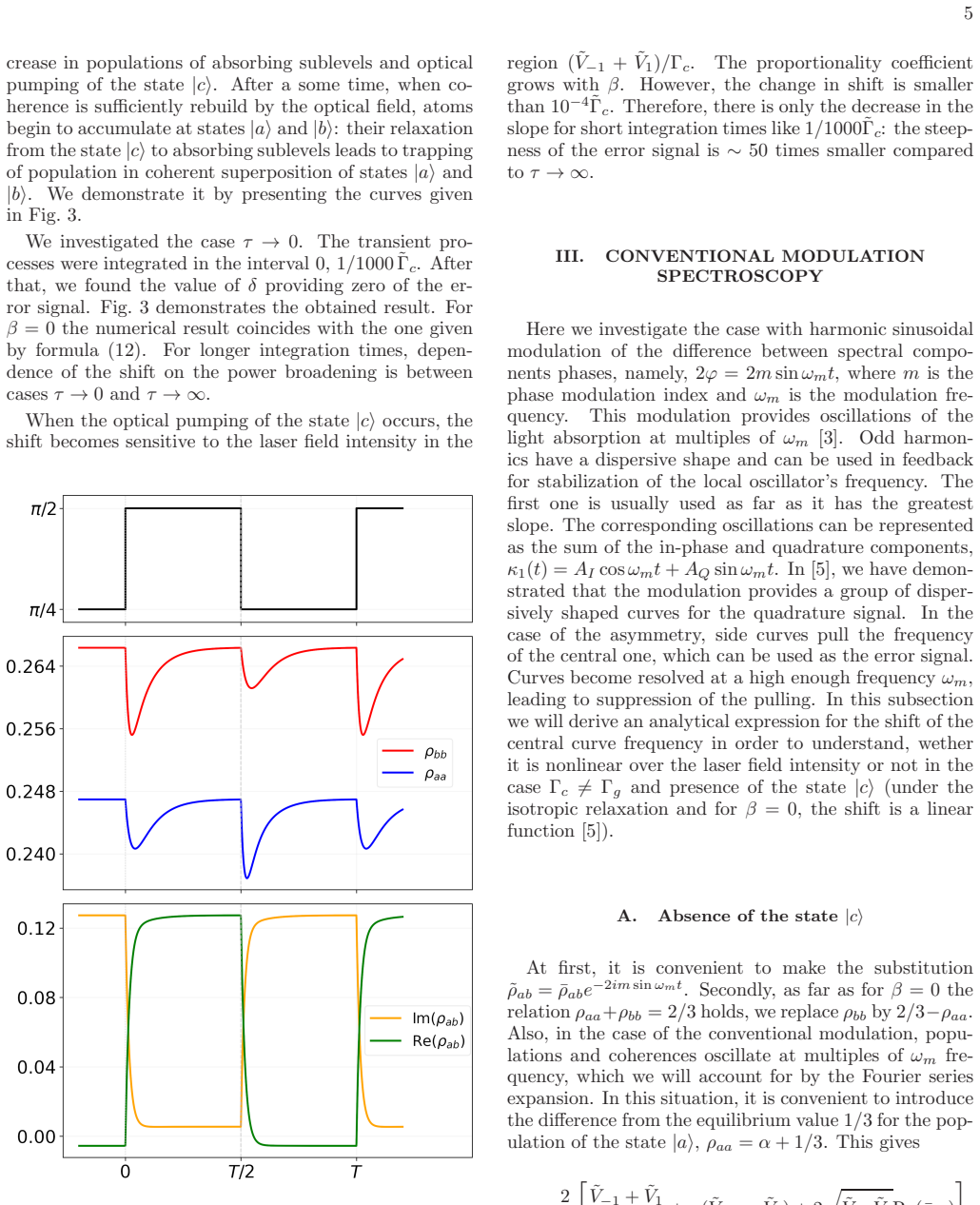

Figure 3. Figure 3: FIG. 3. Dynamics of the ground-state density-matrix ele [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

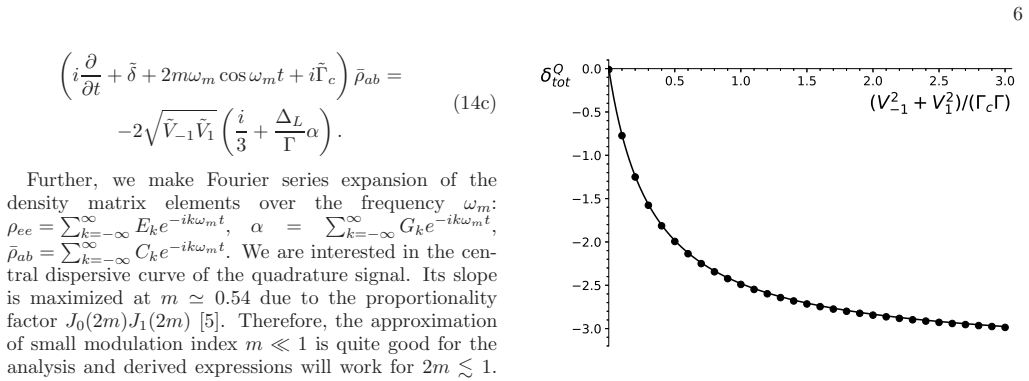

Figure 4. Figure 4: FIG. 4. The frequency shift of the central dispersive curve’ [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

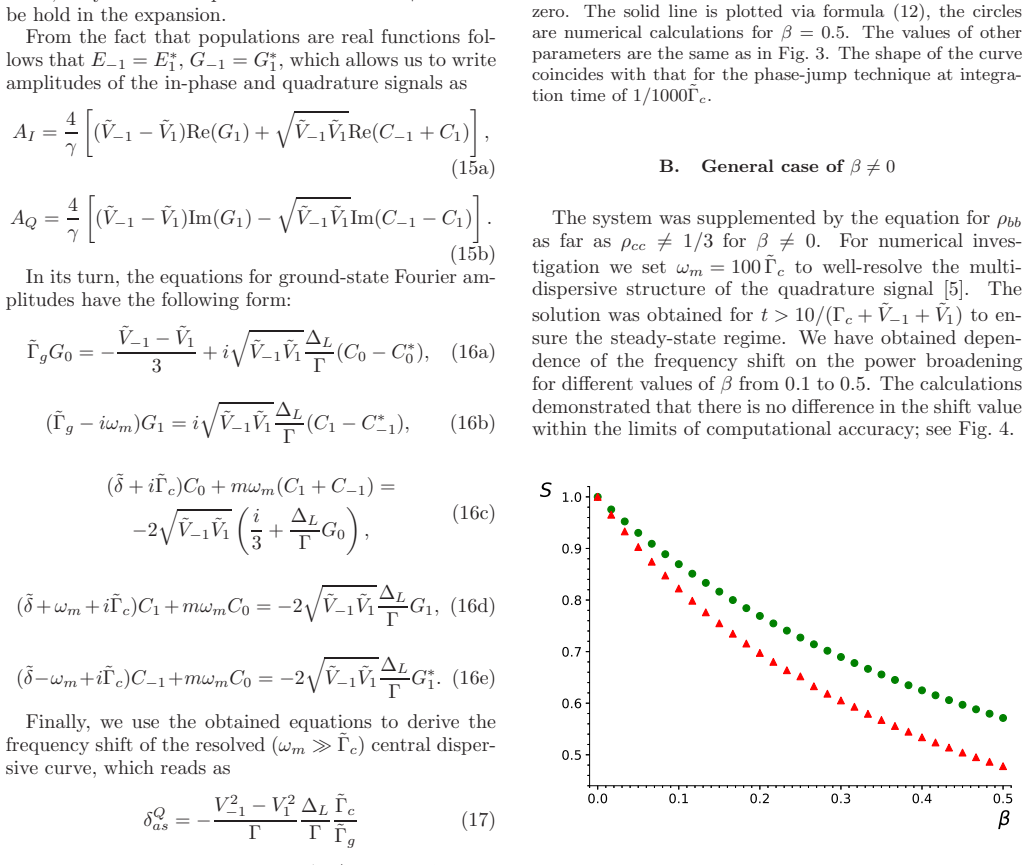

Figure 5. Figure 5: FIG. 5. Dependence of the normalized slope on [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

We present the research of dynamic continuous-wave spectroscopy of the coherent population trapping resonance at the phase-jump modulation. {\Lambda} system of levels supplemented by a nonabsorbing state and bichromatic optical field, whose spectral components have different intensities, are considered. We demonstrate that the asymmetry leads to an additional nonlinear shift of the error-signal frequency under unisotropic relaxation of the ground-state density-matrix elements. We also investigate the conventional approach where the frequency difference of the optical field components is harmonically modulated to obtain the error signal. Comparison demonstrates that in the high-frequency modulation regime the corresponding frequency shift is more linear than at the phase-jump modulation for nonshort integration times.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript analyzes dynamic continuous-wave spectroscopy of coherent population trapping (CPT) resonances under phase-jump modulation. It models a Λ system supplemented by a nonabsorbing state driven by a bichromatic optical field with unequal component intensities. The authors show that this asymmetry, combined with unisotropic relaxation of ground-state density-matrix elements, produces an additional nonlinear shift in the error-signal frequency. They compare this to the conventional approach of harmonically modulating the frequency difference between the optical components and conclude that, in the high-frequency modulation regime and for non-short integration times, the conventional method yields a more linear frequency shift.

Significance. If the density-matrix modeling is accurate, the result identifies a concrete advantage of conventional harmonic modulation over phase-jump modulation for reducing nonlinear systematic shifts in CPT-based frequency references or sensors. The work supplies a model-specific comparison that can inform experimental choices of modulation waveform when unisotropic relaxation is present.

minor comments (3)
  1. [Abstract] The abstract states that the effects are demonstrated but does not indicate the range of modulation frequencies or integration times treated as 'high-frequency' and 'non-short'; adding these bounds in §3 or §4 would make the comparison claim easier to evaluate.
  2. [Modeling section (likely §2)] Notation for the relaxation rates (e.g., γ_{ij} versus γ_{ij}^anis) should be introduced once in the text and used consistently; the current usage in the modeling section risks ambiguity when unisotropic terms are introduced.
  3. [Results section (likely §4)] Figure captions for the error-signal plots should explicitly state the integration time and modulation frequency values used, rather than referring only to 'high-frequency regime'.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their review and recommendation of minor revision. The referee summary accurately captures the scope and conclusions of our work on the nonlinear frequency shifts arising from bichromatic-field asymmetry under unisotropic relaxation in phase-jump CPT spectroscopy, and the comparison with harmonic modulation. No specific major comments or criticisms were raised.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper derives its claims by solving the density-matrix equations for the explicitly stated Lambda system plus nonabsorbing state, bichromatic drive with unequal intensities, and anisotropic ground-state relaxation. The frequency-shift results and the comparison between phase-jump and harmonic modulation follow directly from those equations under the given conditions; no step reduces by construction to a fitted parameter, self-citation, or renamed input. The analysis is self-contained against the model premises.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available, limiting visibility into any free parameters, axioms, or entities; the model implicitly relies on standard atomic physics assumptions for the Lambda system and relaxation.

axioms (1)
  • domain assumption Unisotropic relaxation of the ground-state density-matrix elements in the Lambda system
    Invoked to produce the additional nonlinear shift (abstract).

pith-pipeline@v0.9.1-grok · 5658 in / 1116 out tokens · 26170 ms · 2026-06-26T05:48:50.758120+00:00 · methodology
