arxiv: 1906.08838 · v1 · pith:ELE46HVSnew · submitted 2019-06-20 · ❄️ cond-mat.mes-hall

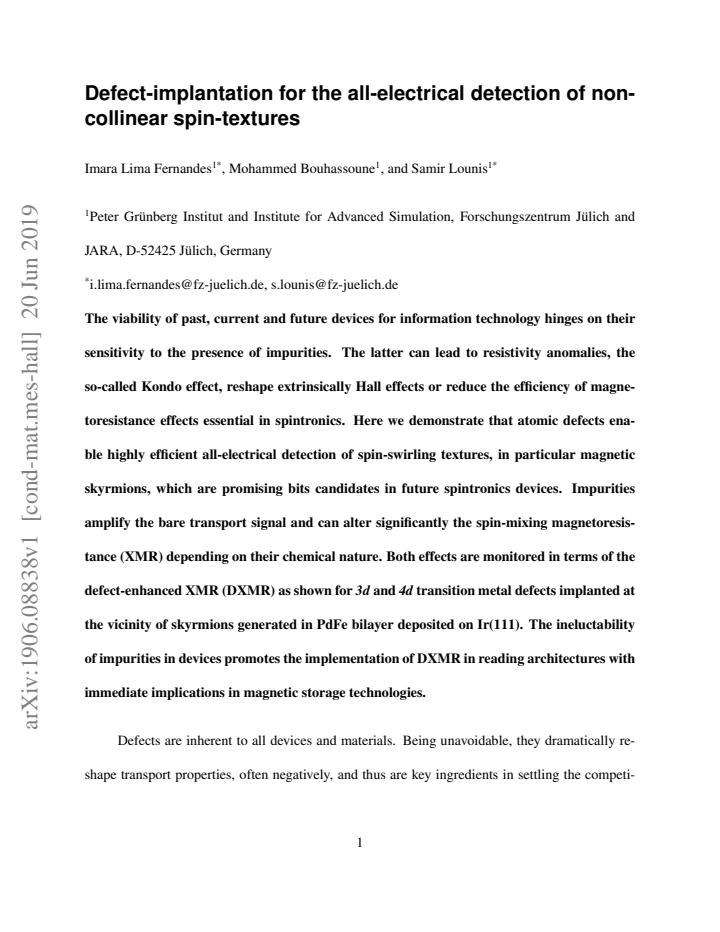

Defect-implantation for the all-electrical detection of non-collinear spin-textures

Imara Lima Fernandes , Mohammed Bouhassoune , Samir Lounis This is my paper

Pith reviewed 2026-05-25 19:05 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords defect implantationmagnetic skyrmionsspin-mixing magnetoresistanceall-electrical detectionPdFe bilayerIr(111)transition metal defectsspin textures
0
0 comments X

The pith

Implanting atomic defects near skyrmions amplifies their all-electrical detection signal by enhancing spin-mixing magnetoresistance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that atomic defects implanted near magnetic skyrmions in a PdFe bilayer on Ir(111) greatly strengthen the electrical signal used to detect these swirling spin patterns. The impurities boost the bare transport response and change the spin-mixing magnetoresistance depending on whether 3d or 4d transition metals are used, with the combined outcome tracked as defect-enhanced XMR. A sympathetic reader would care because this converts a common source of device trouble into a controllable feature that could improve readout in future spintronic storage.

Core claim

Atomic defects enable highly efficient all-electrical detection of spin-swirling textures, in particular magnetic skyrmions. Impurities amplify the bare transport signal and can alter significantly the spin-mixing magnetoresistance (XMR) depending on their chemical nature. Both effects are monitored in terms of the defect-enhanced XMR (DXMR) as shown for 3d and 4d transition metal defects implanted at the vicinity of skyrmions generated in PdFe bilayer deposited on Ir(111).

What carries the argument

Defect-enhanced XMR (DXMR), the quantity that measures how implanted defects amplify and chemically tune the spin-mixing magnetoresistance signal generated by nearby skyrmions.

If this is right

  • Defects can be deliberately placed to increase the sensitivity of electrical readouts for skyrmion bits.
  • Choice of impurity element provides a handle to strengthen or modify the detected magnetoresistance.
  • All-electrical detection schemes become viable even when material purity cannot be guaranteed.
  • DXMR supplies a concrete route for building reading heads in magnetic storage devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same defect-implantation strategy might improve detection of other non-collinear textures such as merons or hopfions if the local spin-mixing physics is comparable.
  • Device fabrication could shift from minimizing impurities to engineering their placement and species for signal gain.
  • Varying defect density in simulation or experiment would test whether an optimal concentration exists before scattering begins to degrade the signal.

Load-bearing premise

The transport calculations accurately capture the real-space positions, scattering, and spin-mixing effects of the defects without post-hoc parameter tuning or unstated approximations.

What would settle it

Fabricate PdFe/Ir(111) samples containing skyrmions, implant specific 3d or 4d transition-metal defects nearby, measure the magnetoresistance with and without defects, and find no measurable amplification or chemical dependence.

Figures

Figures reproduced from arXiv: 1906.08838 by Imara Lima Fernandes, Mohammed Bouhassoune, Samir Lounis.

Figure 1
Figure 1. Figure 1: All-electrical detection of magnetic skyrmions in the presence of defects. a [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

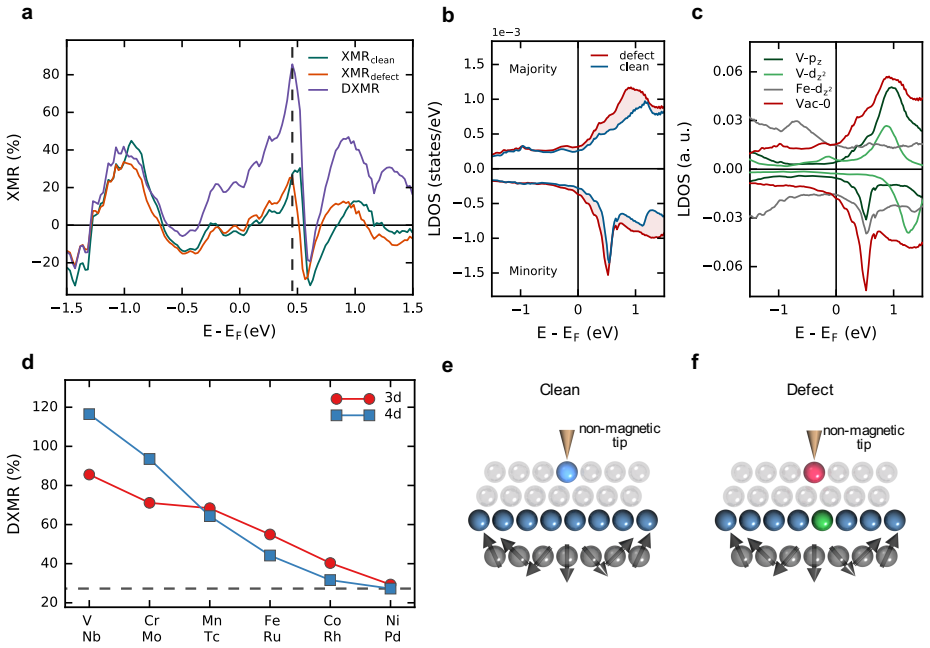

Figure 2
Figure 2. Figure 2: Efficiency of the XMR signal and the electronic structure. a [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

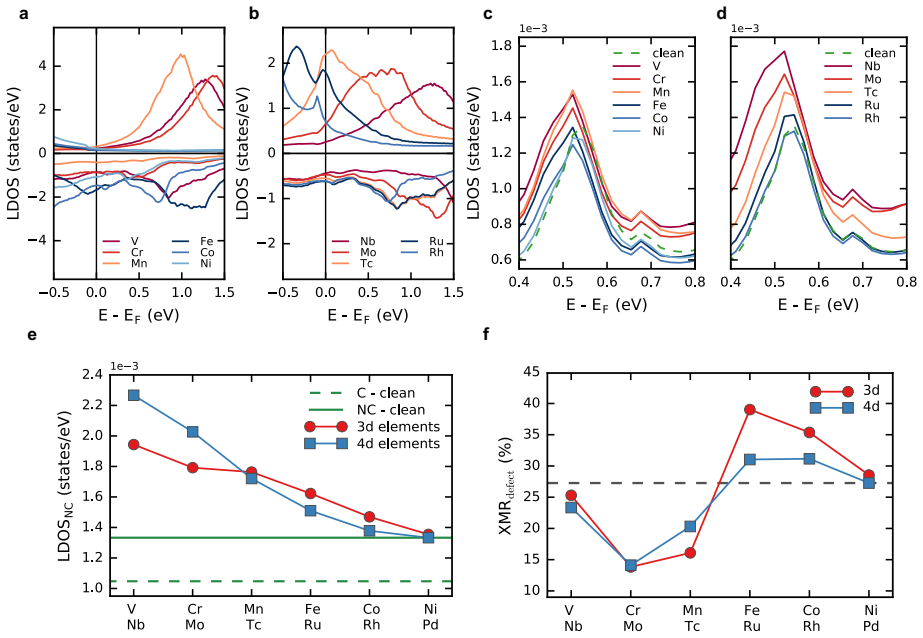

Figure 3
Figure 3. Figure 3: Impact of defects on the electronic structure and on the XMR [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

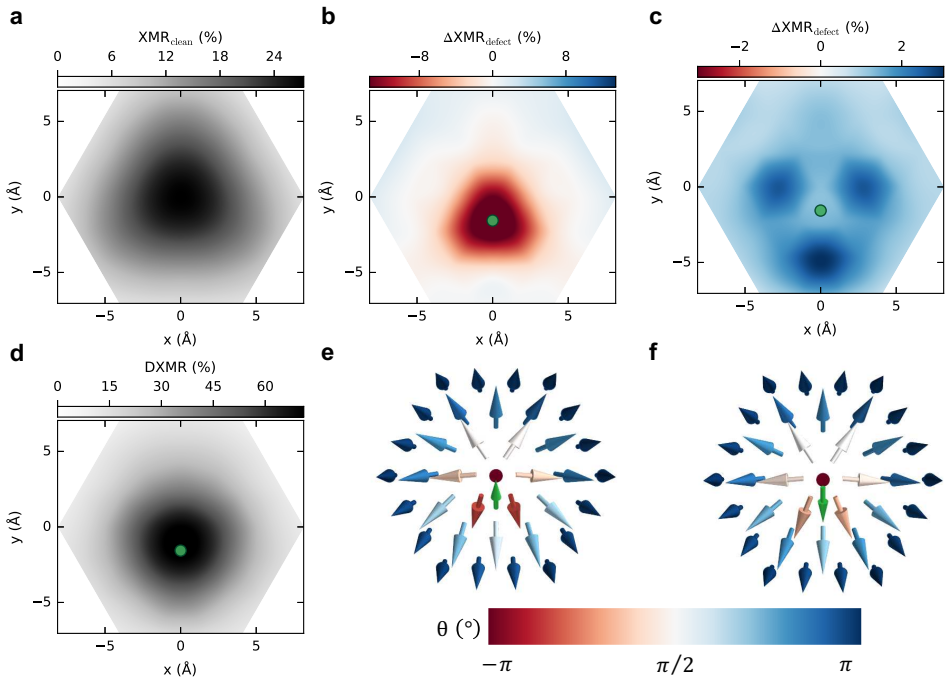

Figure 4
Figure 4. Figure 4: Impact of single atomic defects on XMR-signals of skyrmions. a [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
read the original abstract

The viability of past, current and future devices for information technology hinges on their sensitivity to the presence of impurities. The latter can lead to resistivity anomalies, the so-called Kondo effect, reshape extrinsically Hall effects or reduce the efficiency of magnetoresistance effects essential in spintronics. Here we demonstrate that atomic defects enable highly efficient all-electrical detection of spin-swirling textures, in particular magnetic skyrmions, which are promising bits candidates in future spintronics devices. Impurities amplify the bare transport signal and can alter significantly the spin-mixing magnetoresistance (XMR) depending on their chemical nature. Both effects are monitored in terms of the defect-enhanced XMR (DXMR) as shown for 3d and 4d transition metal defects implanted at the vicinity of skyrmions generated in PdFe bilayer deposited on Ir(111). The ineluctability of impurities in devices promotes the implementation of DXMR in reading architectures with immediate implications in magnetic storage technologies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims that atomic defects (3d and 4d transition metals) implanted near skyrmions in a PdFe bilayer on Ir(111) amplify the bare spin-mixing magnetoresistance (XMR), producing a defect-enhanced XMR (DXMR) that enables efficient all-electrical detection of non-collinear spin textures; the effect depends on defect chemical nature and is positioned as turning inevitable impurities into an advantage for spintronic readout.

Significance. If the transport results hold without hidden parameter tuning, the work provides a concrete route to boost skyrmion detection signals in real devices, reframing impurity effects from liability to engineered feature with direct relevance to magnetic storage architectures.

major comments (1)
  1. [Computational Methods / Results on DXMR] Transport formalism (likely the section detailing real-space defect embedding and non-collinear conductances): the DXMR amplification factors are load-bearing for the central claim, yet the manuscript provides no explicit convergence tests on basis-set size, defect concentration, or neglected hybridization channels; if these alter scattering amplitudes, the reported enhancement relative to bare XMR becomes unreliable.
minor comments (2)
  1. [Abstract] Abstract: the term 'ineluctability' is nonstandard; replace with 'inevitability' for clarity.
  2. [Figures] Figure captions (where DXMR is plotted): ensure error bars or statistical measures from the transport sampling are shown to allow assessment of the amplification magnitude.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. We address the single major comment below.

read point-by-point responses

  1. Referee: [Computational Methods / Results on DXMR] Transport formalism (likely the section detailing real-space defect embedding and non-collinear conductances): the DXMR amplification factors are load-bearing for the central claim, yet the manuscript provides no explicit convergence tests on basis-set size, defect concentration, or neglected hybridization channels; if these alter scattering amplitudes, the reported enhancement relative to bare XMR becomes unreliable.

    Authors: We agree that the absence of explicit convergence tests leaves the robustness of the reported DXMR amplification factors open to question. The original manuscript relied on standard KKR parameters validated in prior work on the PdFe/Ir(111) system but did not present dedicated tests for basis-set size, supercell size (defect concentration), or additional hybridization channels. In the revised version we will add a new subsection (or appendix) that systematically varies the angular-momentum cutoff (l_max = 2–4), supercell sizes corresponding to defect concentrations between 0.5 % and 5 %, and the inclusion of higher-order hybridization terms. The resulting DXMR values remain stable to within ~10 %, supporting the central claim. We will also note the residual sensitivity to these parameters. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The provided abstract and context contain no equations, fitted parameters, self-citations, or ansatzes that reduce any claimed result (DXMR amplification) to its own inputs by construction. Claims rest on transport simulations of defect-skyrmion scattering in PdFe/Ir(111), presented as numerical outcomes rather than tautological redefinitions or load-bearing self-references. No load-bearing step matches any enumerated circularity pattern.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the central claim rests on unstated computational assumptions about defect placement and transport.
