arxiv: 2606.25222 · v1 · pith:EZLENAVTnew · submitted 2026-06-23 · 💻 cs.RO

Swazure: Swarm Measurement of Pose for Flying Light Specks

Hamed Alimohammadzadeh , Shahram Ghandeharizadeh This is my paper

Pith reviewed 2026-06-25 23:30 UTC · model grok-4.3

classification 💻 cs.RO
keywords flying light specksswazureswarm pose measurementrelative pose estimation3D multimedia displaysensor cooperationobstruction heuristicsphysical data independence
0
0 comments X

The pith

Swazure lets flying light specks measure relative poses by cooperating to fill gaps when individual sensors fall outside their accurate range.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Swazure as a method for swarms of miniature drones equipped with light sources to determine their positions relative to one another. These flying light specks must localize accurately to form 3D shapes and animations from point cloud data, but each sensor works best only within a limited sweet range. When point cloud requirements place neighbors outside that range, Swazure uses information shared across the swarm to supply the missing measurements. This approach abstracts away the details of any particular sensor hardware. Tests indicate the method succeeds completely for medium-sized specks and offers partial relief from blockages through simple movement rules.

Core claim

Swazure solves missing sensor data for relative pose in flying light speck swarms through cooperation among the specks. It implements physical data independence by abstracting sensor hardware details so that point cloud data remains independent of specific devices. With medium-sized FLSs the method positions 100 percent of neighbors. Larger sizes introduce obstructions that two heuristics address, and experiments show the Move Obstructing heuristic resolves roughly 30 percent of obstructions in the worst case.

What carries the argument

Swazure, a swarm-cooperation technique that supplies missing relative-pose data and abstracts sensor hardware to achieve physical data independence.

If this is right

  • Medium-sized FLSs achieve complete neighbor positioning with Swazure.
  • Physical data independence separates point-cloud requirements from any one sensor model.
  • The Move Obstructing heuristic resolves about 30 percent of obstructions in the worst case and outperforms Move Source.
  • FLS swarms can therefore illuminate complex 3D shapes and animated sequences drawn from point clouds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cooperation pattern could extend to other swarm tasks that need relative localization when direct sensing is incomplete.
  • Obstruction rates might drop further if the heuristics incorporated predictions of future point-cloud motion rather than reacting only to current positions.
  • Scaling the approach to thousands of specks would require testing whether communication overhead remains low enough to preserve real-time display updates.

Load-bearing premise

FLSs can share partial sensor readings and combine them into accurate relative-pose values without adding large errors.

What would settle it

A controlled swarm test in which cooperation produces relative-pose errors larger than those obtained from direct sweet-range sensing on the same geometry.

Figures

Figures reproduced from arXiv: 2606.25222 by Hamed Alimohammadzadeh, Shahram Ghandeharizadeh.

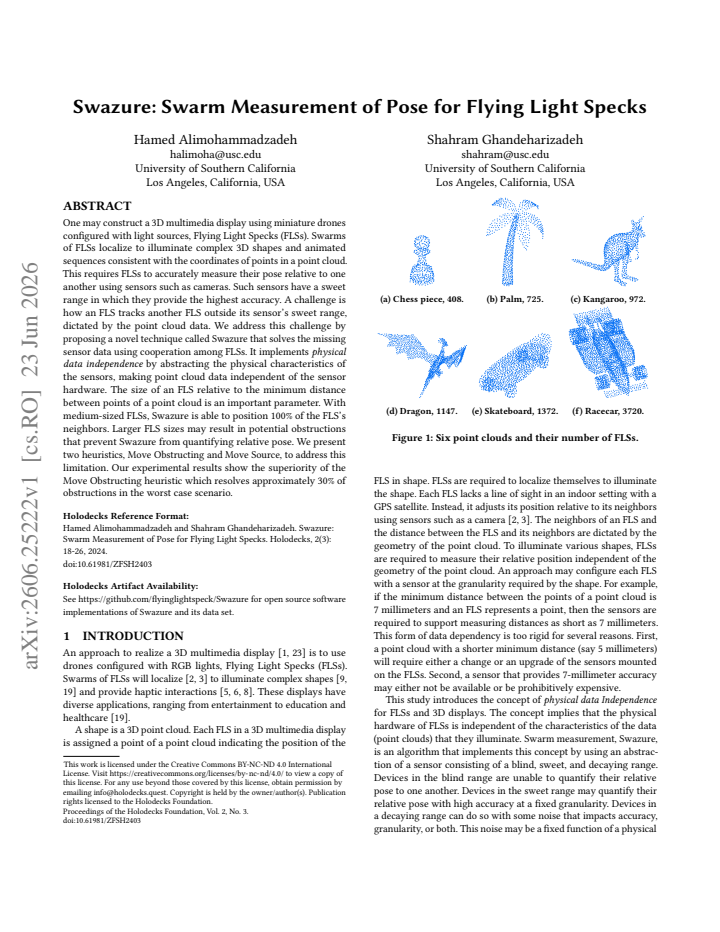

Figure 1

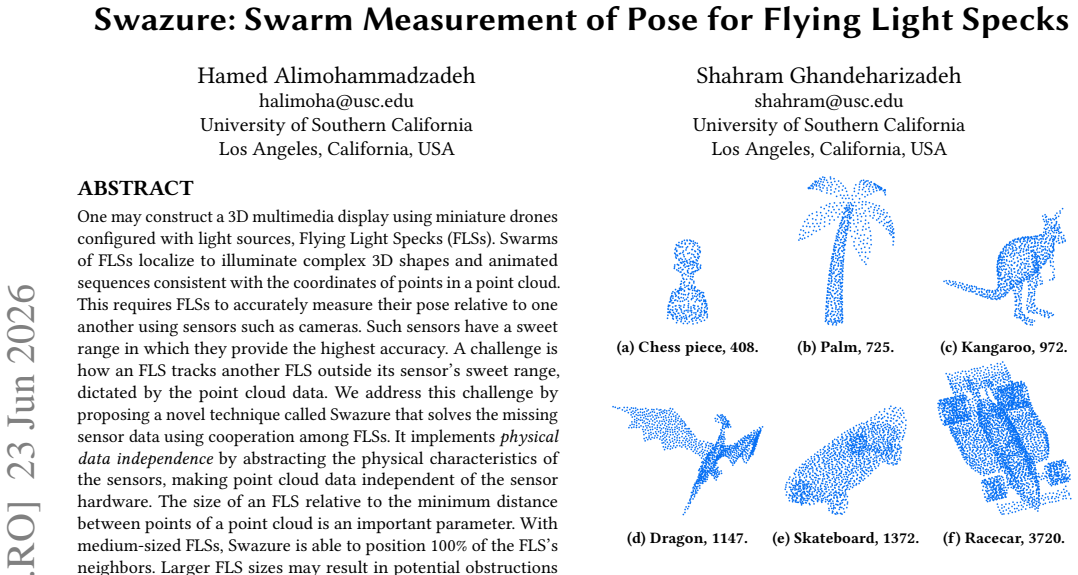

Figure 1. Figure 1: Six point clouds and their number of FLSs. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

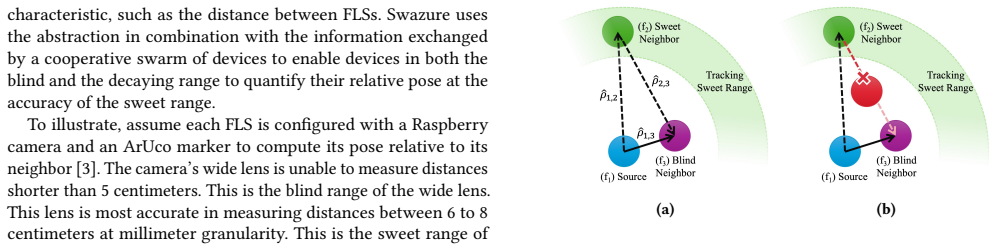

Figure 2
Figure 2. Figure 2: (a) Source FLS uses a sweet neighbor to compute [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

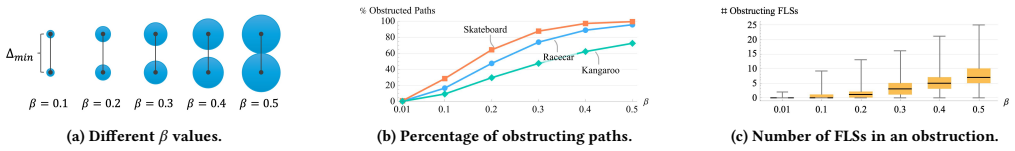

Figure 3
Figure 3. Figure 3: (a) 𝛽 is the ratio of FLS radius to the minimum distance Δ𝑚𝑖𝑛 between FLSs, it impacts (b) the percentage of obstructed paths and (c) the number of FLSs participating in obstruction [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

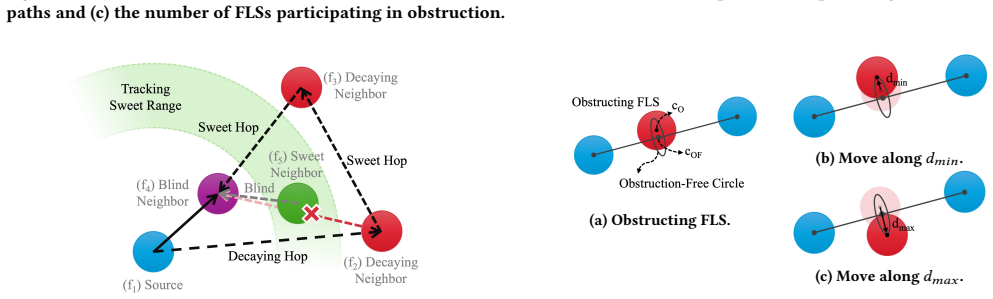

Figure 6
Figure 6. Figure 6: The minimum and maximum distance an obstruct [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

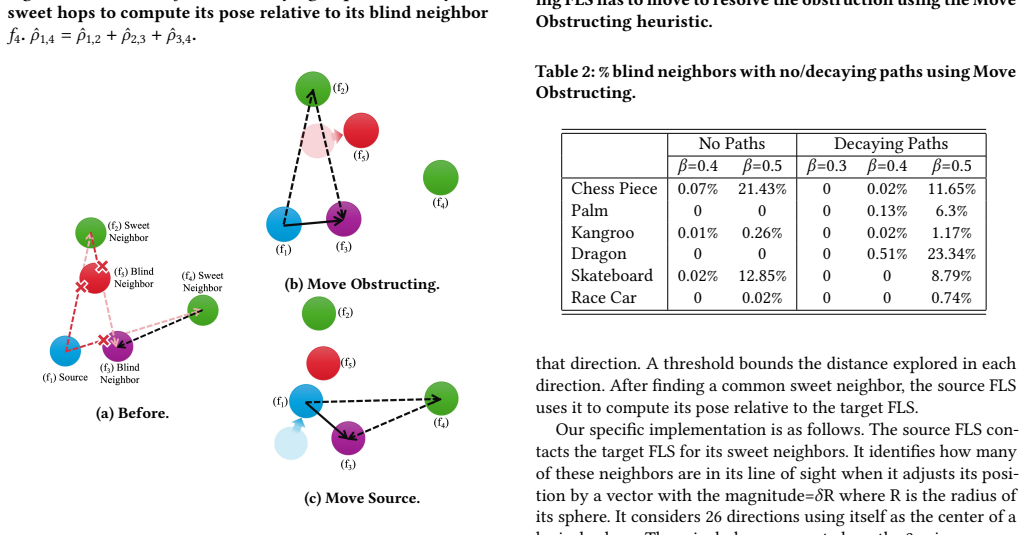

Figure 5
Figure 5. Figure 5: Move Obstructing and Move Source. 3.3 Move Source This technique finds a common sweet neighbor and moves the source to establish a path. The source FLS starts to explore the area in its vicinity until it finds at least one common sweet neighbor with the target FLS. It may explore a prespecified set of directions. If it encounters a collision in a certain direction, it will stop exploring (a) Obstructing FL… view at source ↗

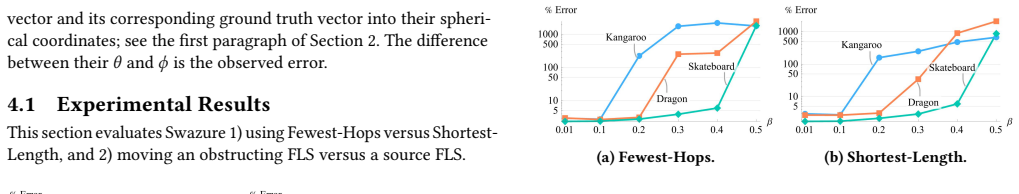

Figure 9
Figure 9. Figure 9: Maximum percentage error in estimated distance [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗

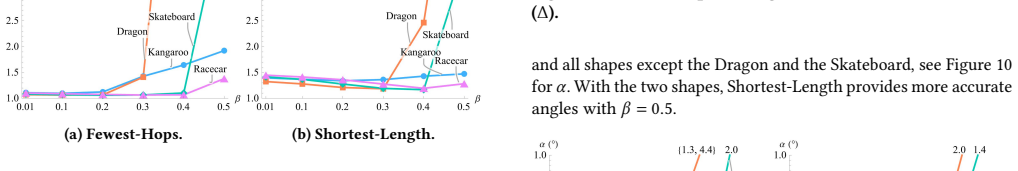

Figure 7
Figure 7. Figure 7: Average percentage error in estimated distance ( [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

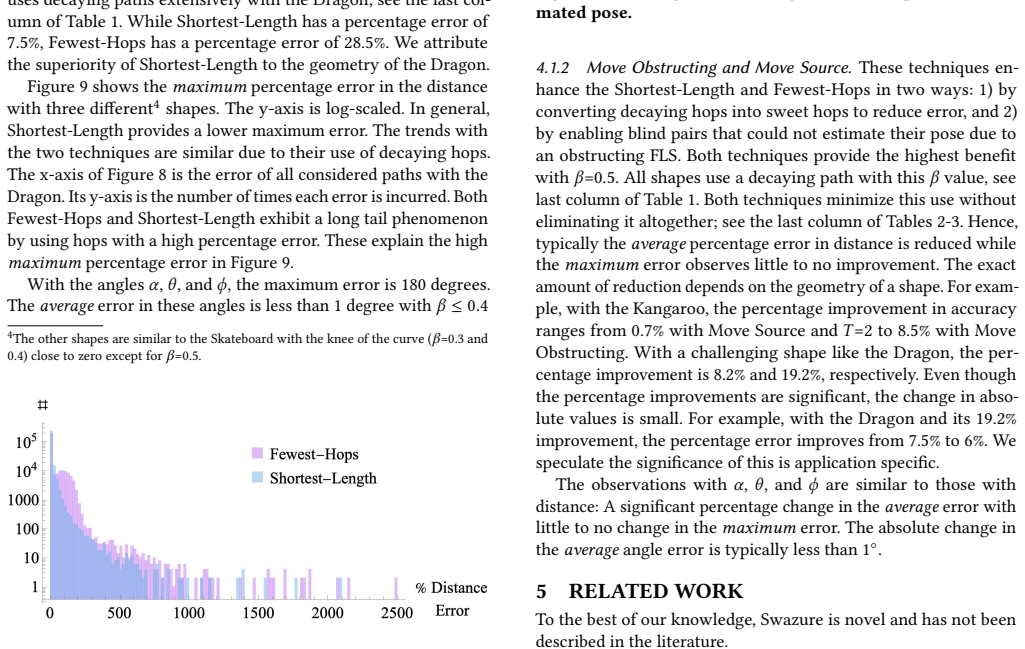

Figure 8
Figure 8. Figure 8: Distribution of observed percentage error in dis [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
read the original abstract

One may construct a 3D multimedia display using miniature drones configured with light sources, Flying Light Specks (FLSs). Swarms of FLSs localize to illuminate complex 3D shapes and animated sequences consistent with the coordinates of points in a point cloud. This requires FLSs to accurately measure their pose relative to one another using sensors such as cameras. Such sensors have a sweet range in which they provide the highest accuracy. A challenge is how an FLS tracks another FLS outside its sensor's sweet range, dictated by the point cloud data. We address this challenge by proposing a novel technique called Swazure that solves the missing sensor data using cooperation among FLSs. It implements physical data independence by abstracting the physical characteristics of the sensors, making point cloud data independent of the sensor hardware. The size of an FLS relative to the minimum distance between points of a point cloud is an important parameter. With medium-sized FLSs, Swazure is able to position 100% of the FLS's neighbors. Larger FLS sizes may result in potential obstructions that prevent Swazure from quantifying relative pose. We present two heuristics, Move Obstructing and Move Source, to address this limitation. Our experimental results show the superiority of the Move Obstructing heuristic which resolves approximately 30% of obstructions in the worst case scenario.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes Swazure, a cooperation-based technique for relative pose estimation among Flying Light Specks (FLSs) that abstracts away individual sensor characteristics to achieve physical data independence. It identifies FLS size relative to minimum point-cloud spacing as a key parameter and claims that medium-sized FLSs enable 100% neighbor positioning; two heuristics (Move Obstructing and Move Source) are introduced to mitigate obstructions, with experimental results asserted to show the superiority of Move Obstructing in resolving approximately 30% of obstructions in the worst case.

Significance. If the performance claims hold under rigorous validation, the work would be significant for swarm robotics applications in 3D multimedia displays by providing a sensor-agnostic solution to out-of-range localization via inter-FLS cooperation. The explicit treatment of FLS size as a free parameter and the focus on obstruction resolution heuristics represent practical engineering contributions.

major comments (1)
  1. [Abstract] Abstract: the claim that Swazure achieves '100% of the FLS's neighbors' positioning for medium sizes and that 'Move Obstructing' resolves 'approximately 30% of obstructions in the worst case scenario' is presented without any description of the experimental setup, sensor models, error bars, dataset, number of trials, or statistical tests, rendering the central performance claims unverifiable and load-bearing for the paper's contribution.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting the need for greater verifiability in the abstract. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that Swazure achieves '100% of the FLS's neighbors' positioning for medium sizes and that 'Move Obstructing' resolves 'approximately 30% of obstructions in the worst case scenario' is presented without any description of the experimental setup, sensor models, error bars, dataset, number of trials, or statistical tests, rendering the central performance claims unverifiable and load-bearing for the paper's contribution.

    Authors: We agree that the abstract's brevity leaves the central claims without supporting context on methodology, which reduces immediate verifiability. The body of the manuscript (Evaluation section) contains the simulation environment, sensor models, trial counts, and figures with error bars, but the abstract itself does not reference these. We will revise the abstract to add one concise sentence summarizing the validation approach (simulation-based evaluation across FLS size ratios with repeated trials) while preserving length constraints and directing readers to the detailed experimental description. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The provided manuscript text (abstract and description) contains no equations, derivations, fitted parameters, or self-citations. The technique is described as a direct engineering response to sensor-range limitations via swarm cooperation, with experimental claims about positioning success and obstruction resolution. No load-bearing step reduces to its own inputs by construction, self-definition, or imported uniqueness. This is the most common honest finding for papers without mathematical derivations.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Ledger populated from abstract only; no new physical entities postulated and no fitted constants described beyond the noted size parameter.

free parameters (1)
  • FLS size relative to minimum point-cloud spacing
    Explicitly called an important parameter that determines whether 100% neighbor positioning or obstructions occur.
axioms (1)
  • domain assumption Each sensor has a limited sweet range providing highest accuracy.
    Stated directly in abstract as the source of the missing-data challenge.
