Accelerating HEVC Intra Partitioning via a CNN-Hierarchical Attention Transformer Hybrid

T0 review · 1 major / 0 minor · reviewed 2026-06-29 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read HFViT hybrid model reduces HEVC intra partition quality penalty by 2.4 to 7.9 points over ETH-CNN at near-CNN CPU latency.

desk verdict HFViT is a straightforward hybrid that beats the ETH-CNN baseline on VMAF BD-rate for HEVC partitioning at comparable CPU speed. read the letter →

arxiv 2605.29063 v1 pith:F25F2OFH submitted 2026-05-27 eess.IV cs.CV

Krishna Kumar Sharma , Somdyuti Paul This is my paper
classification eess.IVcs.CV
keywords HEVCintrapartitioningCNNtransformerhybridarchitecturepartitionpredictionBD-ratevideoencodingacceleration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper introduces HFViT to speed up the quad-tree partition decision inside HEVC intra coding. CNNs run fast but miss long-range texture patterns, while transformers capture those patterns yet run too slowly on CPU. HFViT therefore stacks a reparameterized depthwise-separable convolutional backbone with a Hierarchical Attention Transformer that uses carrier tokens to move global information at sub-quadratic cost. After training, batch-normalization layers are fused into the convolutions to cut further latency. On JCT-VC test sets the resulting model lowers the VMAF BD-rate penalty relative to the ETH-CNN baseline by 2.4, 2.6 and 7.9 percentage points on Classes A, B and E while keeping CPU inference time within 8 percent of the CNN baseline and running 40 percent faster on GPU.

What carries the argument

HFViT, the hybrid architecture that combines a reparameterized depthwise-separable convolutional backbone with Hierarchical Attention Transformer blocks and carrier tokens to capture both local features and long-range context at low computational cost.

What would settle it

A side-by-side test on the same JCT-VC sequences showing that the fused HFViT model produces a measurably higher VMAF BD-rate penalty or lower partition accuracy than the unfused version.

Watch

Extended reading notes

Core claim

HFViT fuses a reparameterized depthwise-separable convolutional backbone with a Hierarchical Attention Transformer mechanism that employs a carrier token scheme for efficient global information propagation at sub-quadratic complexity; after post-training structural fusion of batch normalization layers the model delivers lower average VMAF BD-rate penalties than the ETH-CNN baseline on standard JCT-VC sequences while maintaining CPU inference latency within 8 percent of the CNN baseline.

Load-bearing premise

The post-training structural fusion of batch normalization layers into preceding convolutions preserves the partition prediction accuracy that was measured during training.

Editorial extensions

If this is right

  • HEVC encoders can adopt HFViT for intra-mode decisions and obtain measurable rate-distortion improvement without exceeding the latency budget of current CNN accelerators.
  • The same hybrid pattern of depthwise-separable convolution plus carrier-token attention can be reused for other block-level prediction tasks inside video codecs.
  • Real-time encoding pipelines that are currently CPU-bound become feasible on commodity hardware once the reported latency numbers hold after integration.
  • The reported gains on Classes A, B and E indicate that the architecture scales across the resolution range typical of broadcast and conferencing content.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the carrier-token mechanism proves stable across different transformer depths, it could serve as a drop-in replacement for full self-attention in other low-latency vision pipelines.
  • The fusion step may be applicable to any CNN-transformer hybrid, suggesting a general post-training recipe for reducing inference cost without retraining.
  • Extending the evaluation to screen-content or high-motion sequences would test whether the observed gains generalize beyond the JCT-VC classes used here.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

1 major / 0 minor

Summary. The paper proposes HFViT, a hybrid architecture combining a reparameterized depthwise-separable CNN backbone with a Hierarchical Attention Transformer (HAT) using carrier tokens for efficient global context, to accelerate HEVC intra CTU partition prediction. Post-training BN fusion is applied for latency reduction. On JCT-VC sequences, it claims to reduce average VMAF BD-rate penalty by 2.4/2.6/7.9 percentage points vs. ETH-CNN on Classes A/B/E while keeping CPU latency within 8% of the CNN baseline and improving GPU latency by 40%.

Significance. If the empirical claims hold under proper validation, the work demonstrates a practical hybrid design that mitigates the receptive-field limitations of CNNs and the latency issues of transformers for a real deployment constraint (CPU-bound video encoding), with a standard reparameterization technique that preserves accuracy while cutting inference cost.

major comments (1)
  1. [Abstract] Abstract: the central performance claims (BD-rate reductions of 2.4/2.6/7.9 pp and latency figures) are presented with no information on training dataset, validation/test splits, hyperparameter search, or statistical testing. This information is required to determine whether the reported gains over ETH-CNN are robust or sensitive to unstated choices.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and the constructive comment on the abstract. We address the point below and agree that additional context will strengthen the presentation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central performance claims (BD-rate reductions of 2.4/2.6/7.9 pp and latency figures) are presented with no information on training dataset, validation/test splits, hyperparameter search, or statistical testing. This information is required to determine whether the reported gains over ETH-CNN are robust or sensitive to unstated choices.

    Authors: We agree that the abstract would benefit from a concise reference to the experimental protocol. The training dataset consists of 200,000 CTU patches extracted from the first 100 frames of JCT-VC Class A/B/C/D sequences (excluding the test classes), with an 80/10/10 train/validation/test split; hyperparameters were selected via grid search on the validation set as detailed in Section IV-B; all reported figures are means over the standard JCT-VC test classes following common test conditions. No formal statistical hypothesis testing was performed beyond reporting per-class and average BD-rate values, which is conventional in video-coding literature. We will revise the abstract to include a one-sentence summary of the dataset and evaluation protocol together with a pointer to Section IV for full reproducibility details. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; empirical claims rest on external test data

full rationale

The paper proposes HFViT, a hybrid CNN-Transformer architecture, and reports empirical results: VMAF BD-rate improvements versus the external ETH-CNN baseline on public JCT-VC sequences, plus measured CPU/GPU latencies. No derivation chain, equations, or fitted parameters are invoked to 'predict' the reported gains; the improvements are measured outcomes on held-out sequences. Batch-norm fusion is described as a post-training reparameterization that preserves equivalence, which is mathematically standard and does not create self-definition. No self-citation load-bearing steps, uniqueness theorems, or ansatz smuggling appear in the central claims. The work is therefore self-contained against external benchmarks.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

The contribution is an empirical neural-network architecture with no explicit mathematical derivations, free parameters beyond standard training, or invented physical entities.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Accelerating HEVC Intra Partitioning via a CNN-Hierarchical Attention Transformer Hybrid." pith.science (2026). https://pith.science/paper/F25F2OFH

@misc{pith2026260529063,
  author       = {Pith},
  title        = {Pith review of: Accelerating HEVC Intra Partitioning via a CNN-Hierarchical Attention Transformer Hybrid},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/F25F2OFH}},
  note         = {Machine review of arXiv:2605.29063}
}
read the original abstract

The recursive quad-tree partitioning in High Efficiency Video Coding (HEVC) incurs considerable computational overhead, with exhaustive rate-distortion optimization for CTU partition prediction consuming the dominant share of encoding time. Although partition prediction through deep learning has emerged as a viable encoding accelerator, an architectural dichotomy remains largely unaddressed: CNNs are computationally efficient but spatially myopic due to their localized effective receptive fields, failing to capture long range semantic relationships and repetitive textures; conversely, transformer based architectures are better at capturing global context but incur prohibitive CPU latency, a critical liability that impedes deployment which is predominantly CPU-bound. This paper introduces Hybrid Fast Vision Transformer (HFViT), a hybrid architecture designed to accelerate HEVC intra-mode partition prediction. HFViT fuses a reparameterized depthwise-separable convolutional backbone with a Hierarchical Attention Transformer (HAT) mechanism, leveraging a carrier token scheme to enable efficient global information propagation at sub-quadratic complexity. Post-training structural fusion collapses batch normalization into preceding layers to further reduce latency. Comprehensive evaluation reveals the efficacy of HFViT in accelerating HEVC intra-encoding across resolutions. On standard JCT-VC test sequences, HFViT reduces the average VMAF BD-rate penalty by 2.4, 2.6, and 7.9 percentage points on Classes A, B and E, respectively, as compared to the competing ETH-CNN baseline while maintaining CPU inference latency within 8% of the CNN baseline and surpassing it on GPU by 40%, establishing practical viability for real-time encoder integration.

Figures

Figures reproduced from arXiv: 2605.29063 by the authors.

Figure 1

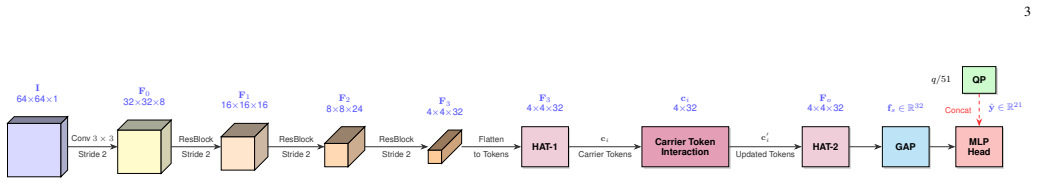

Figure 1. HFViT architecture: hierarchical convolutional stages extract multi-scale features [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Internal structure of a HAT block. Spatial tokens and a carrier token are [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Internal processing of the carrier token interaction layer. The four [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: Layer fusion process: batch normalization parameters [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5

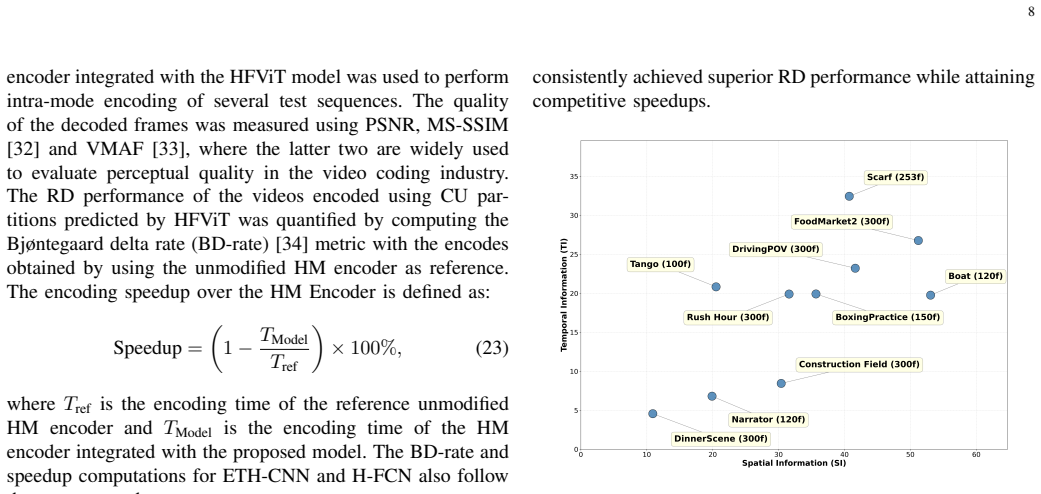

Figure 5. Figure 5: Spatial Information (SI) vs. Temporal Information (TI) [35] of the ten [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Rate-distortion curves comparing HFViT, ETH-CNN [10], and H-FCN [15] against the HM 16.5 anchor across three video sequences and three quality [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
Figure 7
Figure 7. Figure 7: CU partition visualization on IntraValid_1536×1024: (a) QP 37 and (b) QP 32. Each panel shows from top to bottom: Ground truth from HM 16.5 RDO (red), HFViT prediction (blue), ETH-CNN [10] prediction (green), and H-FCN [15] prediction (magenta). HFViT most accurately r…

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

37 extracted references · 4 canonical work pages

  1. [1]

    Overview of the high efficiency video coding (HEVC) standard,

    G. J. Sullivan, J.-R. Ohm, W.-J. Han, and T. Wiegand, “Overview of the high efficiency video coding (HEVC) standard,”IEEE Trans. Circuits Syst. Video Technol., vol. 22, no. 12, pp. 1649–1668, 2012

    2012

  2. [2]

    HEVC complexity and 12 implementation analysis,

    F. Bossen, B. Bross, K. Suhring, and D. Flynn, “HEVC complexity and 12 implementation analysis,”IEEE Trans. Circuits Syst. Video Technol., vol. 22, no. 12, pp. 1685–1696, 2012

    2012

  3. [3]

    Rate-distortion optimization for video compression,

    G. J. Sullivan and T. Wiegand, “Rate-distortion optimization for video compression,”IEEE Signal Process. Mag., vol. 15, no. 6, pp. 74–90, 1998

    1998

  4. [4]

    Early determination of mode decision for HEVC,

    J. Kim, J. Yang, K. Won, and B. Jeon, “Early determination of mode decision for HEVC,” inProc. Picture Coding Symp.IEEE, 2012, pp. 449–452

    2012

  5. [5]

    A fast HEVC inter CU selection method based on pyramid motion divergence,

    J. Xiong, H. Li, Q. Wu, and F. Meng, “A fast HEVC inter CU selection method based on pyramid motion divergence,”IEEE Trans. Multimedia, vol. 16, no. 2, pp. 559–564, 2013

    2013

  6. [6]

    Adaptive inter-mode decision for HEVC jointly utilizing inter-level and spatiotemporal correlations,

    L. Shen, Z. Zhang, and Z. Liu, “Adaptive inter-mode decision for HEVC jointly utilizing inter-level and spatiotemporal correlations,”IEEE Trans. Circuits Syst. Video Technol., vol. 24, no. 10, pp. 1709–1722, 2014

    2014

  7. [7]

    Machine learning-based coding unit depth decisions for flexible complexity allocation in high efficiency video coding,

    Y . Zhang, S. Kwong, X. Wang, H. Yuan, Z. Pan, and L. Xu, “Machine learning-based coding unit depth decisions for flexible complexity allocation in high efficiency video coding,”IEEE Trans. Image Process., vol. 24, no. 7, pp. 2225–2238, 2015

    2015

  8. [8]

    Fast coding unit partition decision for HEVC using support vector machines,

    M. Grellert, B. Zatt, S. Bampi, and L. A. da Silva Cruz, “Fast coding unit partition decision for HEVC using support vector machines,”IEEE Trans. Circuits Syst. Video Technol., vol. 29, no. 6, pp. 1741–1753, 2018

    2018

Show all 37 references
  1. [9]

    CU partition mode decision for HEVC hardwired intra encoder using convolution neural network,

    Z. Liu, X. Yu, Y . Gao, S. Chen, X. Ji, and D. Wang, “CU partition mode decision for HEVC hardwired intra encoder using convolution neural network,”IEEE Trans. Image Process., vol. 25, no. 11, pp. 5088–5103, 2016

    2016

  2. [10]

    Reducing complexity of HEVC: A deep learning approach,

    M. Xu, T. Li, Z. Wang, X. Deng, R. Yang, and Z. Guan, “Reducing complexity of HEVC: A deep learning approach,”IEEE Trans. Image Process., vol. 27, no. 10, pp. 5044–5059, 2018

    2018

  3. [11]

    A deep convolutional neural network approach for complexity reduction on intra-mode HEVC,

    T. Li, M. Xu, and X. Deng, “A deep convolutional neural network approach for complexity reduction on intra-mode HEVC,” inProc. IEEE Int. Conf. Multimedia Expo (ICME). IEEE, 2017, pp. 1255–1260

    2017

  4. [12]

    Understanding the effective receptive field in deep convolutional neural networks,

    W. Luo, Y . Li, R. Urtasun, and R. Zemel, “Understanding the effective receptive field in deep convolutional neural networks,”Adv. Neural Inf. Process. Syst., vol. 29, 2016

    2016

  5. [13]

    An image is worth 16x16 words: Transformers for image recognition at scale,

    A. Dosovitskiy, L. Beyer, A. Kolesnikov, D. Weissenborn, X. Zhai, T. Unterthiner, M. Dehghani, M. Minderer, G. Heigold, S. Gellyet al., “An image is worth 16x16 words: Transformers for image recognition at scale,”arXiv preprint arXiv:2010.11929, 2020

    2010 arXiv

  6. [14]

    Batch normalization: Accelerating deep network training by reducing internal covariate shift,

    S. Ioffe and C. Szegedy, “Batch normalization: Accelerating deep network training by reducing internal covariate shift,” inProc. Int. Conf. Mach. Learn., 2015, pp. 448–456

    2015

  7. [15]

    Speeding up VP9 intra encoder with hierarchical deep learning-based partition prediction,

    S. Paul, A. Norkin, and A. C. Bovik, “Speeding up VP9 intra encoder with hierarchical deep learning-based partition prediction,”IEEE Trans. Image Process., vol. 29, pp. 8134–8148, 2020

    2020

  8. [16]

    Adaptive CU split decision with pooling-variable CNN for VVC intra encoding,

    G. Tang, M. Jing, X. Zeng, and Y . Fan, “Adaptive CU split decision with pooling-variable CNN for VVC intra encoding,” inProc. IEEE Vis. Commun. Image Process. (VCIP). IEEE, 2019, pp. 1–4

    2019

  9. [17]

    Swin transformer: Hierarchical vision transformer using shifted windows,

    Z. Liu, Y . Lin, Y . Cao, H. Hu, Y . Wei, Z. Zhang, S. Lin, and B. Guo, “Swin transformer: Hierarchical vision transformer using shifted windows,” inProc. IEEE/CVF Int. Conf. Comput. Vis., 2021, pp. 10 012– 10 022

    2021

  10. [18]

    LeViT: A vision transformer in convnet’s clothing for faster inference,

    B. Graham, A. El-Nouby, H. Touvron, P. Stock, A. Joulin, H. J ´egou, and M. Douze, “LeViT: A vision transformer in convnet’s clothing for faster inference,” inProc. IEEE/CVF Int. Conf. Comput. Vis., 2021, pp. 12 259–12 269

    2021

  11. [19]

    Mobile-Former: Bridging MobileNet and transformer,

    Y . Chen, X. Dai, D. Chen, M. Liu, X. Dong, L. Yuan, and Z. Liu, “Mobile-Former: Bridging MobileNet and transformer,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2022, pp. 5270–5279

    2022

  12. [20]

    EfficientViT: Memory efficient vision transformer with cascaded group attention,

    X. Liu, H. Peng, N. Zheng, Y . Yang, H. Hu, and Y . Yuan, “EfficientViT: Memory efficient vision transformer with cascaded group attention,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2023, pp. 14 420–14 430

    2023

  13. [21]

    FastViT: A fast hybrid vision transformer using structural reparameterization,

    P. K. A. Vasu, J. Gabriel, J. Zhu, O. Tuzel, and A. Ranjan, “FastViT: A fast hybrid vision transformer using structural reparameterization,” in Proc. IEEE/CVF Int. Conf. Comput. Vis., 2023, pp. 5785–5795

    2023

  14. [22]

    FasterViT: Fast vision transformers with hierarchical attention,

    A. Hatamizadeh, G. Heinrich, H. Yin, A. Tao, J. M. Alvarez, J. Kautz, and P. Molchanov, “FasterViT: Fast vision transformers with hierarchical attention,”arXiv preprint arXiv:2306.06189, 2023

    2023

  15. [23]

    EfficientFormer: Vision transformers at MobileNet speed,

    Y . Li, G. Yuan, Y . Wen, J. Hu, G. Evangelidis, S. Tulyakov, Y . Wang, and J. Ren, “EfficientFormer: Vision transformers at MobileNet speed,” Adv. Neural Inf. Process. Syst., vol. 35, pp. 12 934–12 949, 2022

    2022

  16. [24]

    Mobilenets: Efficient convo- lutional neural networks for mobile vision applications,

    A. G. Howard, M. Zhu, B. Chen, D. Kalenichenko, W. Wang, T. Weyand, M. Andreetto, and H. Adam, “Mobilenets: Efficient convo- lutional neural networks for mobile vision applications,”arXiv preprint arXiv:1704.04861, 2017

    2017 arXiv

  17. [25]

    Overview of the versatile video coding (VVC) standard and its applications,

    B. Bross, Y .-K. Wang, Y . Ye, S. Liu, J. Chen, G. J. Sullivan, and J.-R. Ohm, “Overview of the versatile video coding (VVC) standard and its applications,”IEEE Trans. Circuits Syst. Video Technol., vol. 31, no. 10, pp. 3736–3764, 2021

    2021

  18. [26]

    A deep transformer-based fast CU partition approach for inter-mode VVC,

    T. Li, M. Xu, Z. Liu, Y . Chen, and K. Li, “A deep transformer-based fast CU partition approach for inter-mode VVC,”IEEE Trans. Image Process., vol. 34, pp. 1133–1148, 2025

    2025

  19. [27]

    Xception: Deep learning with depthwise separable convo- lutions,

    F. Chollet, “Xception: Deep learning with depthwise separable convo- lutions,” inProc. IEEE Conf. Comput. Vis. Pattern Recognit., 2017, pp. 1251–1258

    2017

  20. [28]

    Gaussian error linear units (GELUs),

    D. Hendrycks and K. Gimpel, “Gaussian error linear units (GELUs),” arXiv preprint arXiv:1606.08415, 2016

    2016 arXiv

  21. [29]

    On layer normalization in the transformer architecture,

    R. Xiong, Y . Yang, D. He, K. Zheng, S. Zheng, C. Xing, H. Zhang, Y . Lan, L. Wang, and T. Liu, “On layer normalization in the transformer architecture,” inProc. Int. Conf. Mach. Learn., 2020, pp. 10 524–10 533

    2020

  22. [30]

    Dropout: a simple way to prevent neural networks from overfit- ting,

    N. Srivastava, G. Hinton, A. Krizhevsky, I. Sutskever, and R. Salakhut- dinov, “Dropout: a simple way to prevent neural networks from overfit- ting,”J. Mach. Learn. Res., vol. 15, no. 1, pp. 1929–1958, 2014

    1929

  23. [31]

    CPH: A large-scale database for coding unit partition of HEVC intra-mode,

    T. Li, M. Xu, and X. Deng, “CPH: A large-scale database for coding unit partition of HEVC intra-mode,” 2017, [Online]. Available: https: //github.com/tianyili2017/CPH

    2017

  24. [32]

    Multiscale structural similarity for image quality assessment,

    Z. Wang, E. P. Simoncelli, and A. C. Bovik, “Multiscale structural similarity for image quality assessment,” inProc. 37th Asilomar Conf. Signals, Syst., Comput., vol. 2. IEEE, 2003, pp. 1398–1402

    2003

  25. [33]

    Toward a practical perceptual video quality metric,

    Z. Li, A. Aaron, I. Katsavounidis, A. Moorthy, and M. Manohara, “Toward a practical perceptual video quality metric,” Netflix Tech. Blog, Jun. 2016, [Online]. Available: https://netflixtechblog.com/toward-a-p ractical-perceptual-video-quality-metric-653f208b9652

    2016

  26. [34]

    Calculation of average PSNR differences between RD-curves,

    G. Bjøntegaard, “Calculation of average PSNR differences between RD-curves,” ITU-T Video Coding Experts Group (VCEG), Tech. Rep. VCEG-M33, Apr. 2001

    2001

  27. [35]

    Subjective video quality assessment methods for multimedia applica- tions,

    “Subjective video quality assessment methods for multimedia applica- tions,” Recommendation P.910, 1999

    1999

  28. [36]

    Impact of spatial and temporal information on video quality and compressibility,

    W. Robitza, R. R. R. Rao, S. G ¨oring, and A. Raake, “Impact of spatial and temporal information on video quality and compressibility,” inProc. 13th Int. Conf. Qual. Multimedia Exper. (QoMEX). IEEE, 2021, pp. 65–68

    2021

  29. [37]

    Common test conditions and software reference configura- tions,

    F. Bossen, “Common test conditions and software reference configura- tions,” inProc. 3rd JCT-VC Meeting, 2010

    2010
