arxiv: 2606.22327 · v2 · pith:F7AJY4QInew · submitted 2026-06-21 · 💻 cs.AI

Geometry-Aware Online Scheduling for LLM Serving: From Theoretical Bound to System Practice

Li Kong , Qi Qi , Yinyu Ye , Zijie Zhou This is my paper

Pith reviewed 2026-06-26 11:15 UTC · model grok-4.3

classification 💻 cs.AI
keywords LLM servingonline schedulingKV cachecompetitive ratiogeometry-aware algorithmsvLLMmemory management
0
0 comments X

The pith

Scheduling LLM requests by smallest KV-cache volume growth improves the worst-case competitive ratio from 48 to 3.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to replace time-centric heuristics such as Shortest Job First with a scheduling rule that accounts for the two-dimensional growth of memory in the key-value cache during LLM inference. It introduces the Smallest Volume First algorithm and proves, via a volume-certificate argument, that this rule guarantees a competitive ratio of 3 against the optimal offline schedule in high-concurrency settings. The same framework yields an efficient one-bit variant and a full classification of performance across traffic patterns and information levels. When inserted into vLLM, the method produces measurable drops in both average and tail latency on Llama-3.1 workloads. A reader would care because interactive LLM services are bottlenecked by memory pressure, and a tighter theoretical bound directly informs how much headroom can be reclaimed in production engines.

Core claim

The central claim is that modeling KV-cache expansion as a two-dimensional spatio-temporal geometric volume makes the Smallest Volume First ordering optimal in the sense that its worst-case competitive ratio is at most 3 in the high-concurrency regime, a sharpening of the previous best bound of 48; the proof is supplied by a novel volume-certificate technique, and the result extends to a complete taxonomy of the algorithm family under varying traffic and information assumptions.

What carries the argument

The Smallest Volume First (SVF) algorithm, which at each decision point selects the pending request whose projected KV-cache memory volume is smallest.

If this is right

  • SVF produces lower average and tail latency than time-centric baselines on Llama-3.1 models.
  • The one-bit SVF variant matches the performance of full SVF while requiring only a single bit of per-request information.
  • The algorithm integrates directly as a plug-and-play scheduler inside vLLM without altering the rest of the engine.
  • A complete theoretical taxonomy classifies the competitive ratios of SVF and its variants across different traffic scenarios and degrees of information availability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the volume metric remains predictive under request mixing, the same scheduler could be applied without modification to serving multiple model sizes or architectures on one GPU.
  • A direct measurement of realized competitive ratio on production traces would indicate whether the bound of 3 is tight or can be tightened further by refined volume estimators.
  • Extending the geometric model to account for cache eviction or quantization effects would test whether the same proof technique continues to deliver constant-factor guarantees.

Load-bearing premise

That the memory footprint of an LLM request grows in a way that is accurately summarized by a single scalar volume metric derived from a two-dimensional geometric model.

What would settle it

A high-concurrency request trace for which the total latency or makespan produced by SVF is more than three times larger than the latency of the optimal offline schedule computed from the same trace.

Figures

Figures reproduced from arXiv: 2606.22327 by Li Kong, Qi Qi, Yinyu Ye, Zijie Zhou.

Figure 1

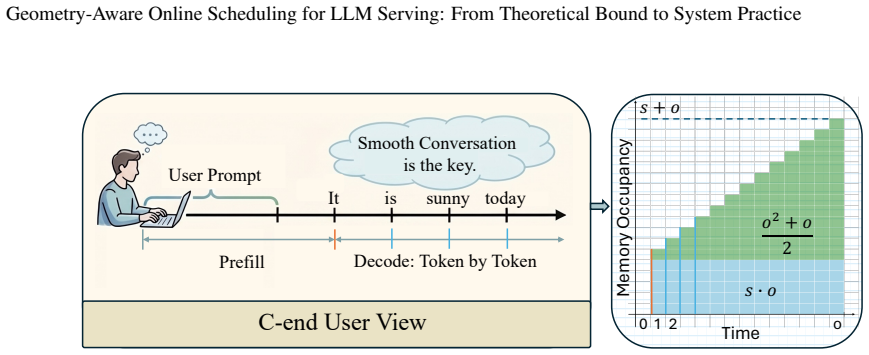

Figure 1. Figure 1: LLM Inference Process and the Calculation of Volume. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

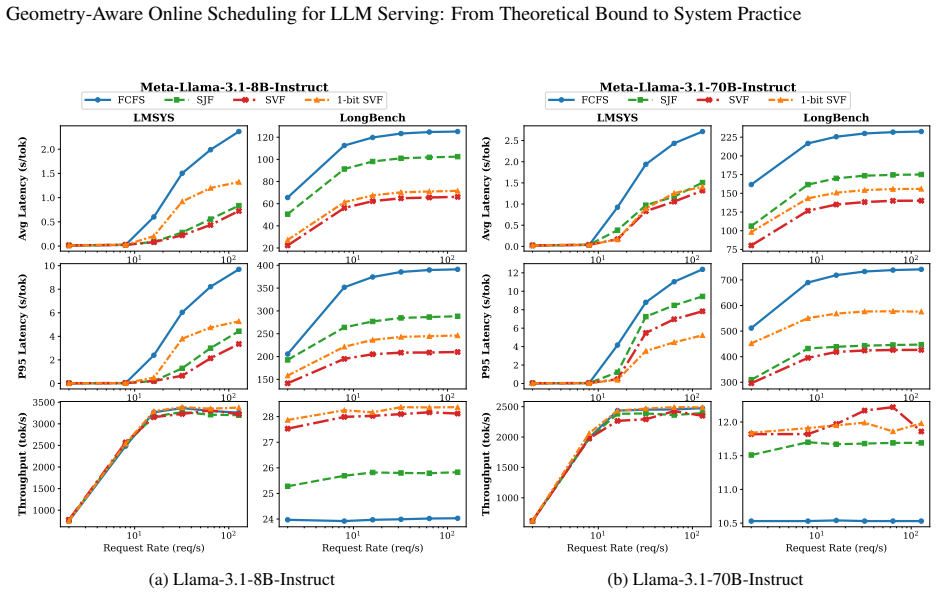

Figure 2. Figure 2: Practical Performance under Poisson Arrivals [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

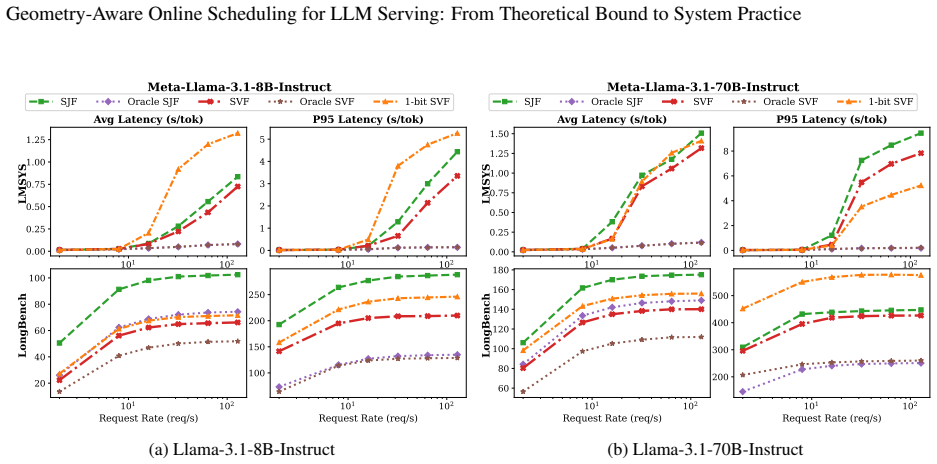

Figure 3. Figure 3: Validation of Theoretical Claims under Poisson Arrivals [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
read the original abstract

The explosive demand for interactive Large Language Model serving has highlighted the management of the Key-Value cache's dynamic memory footprint as a critical area for performance optimization in inference engines. Modern inference systems overwhelmingly rely on time-centric scheduling heuristics, such as Shortest Job First. However, their theoretical optimality is rooted in traditional schedule modeling, failing to capture the highly dynamic, 2D spatio-temporal geometric growth specific to LLM inference mechanisms. To resolve this, we propose the geometry-aware online scheduling by introducing the Smallest Volume First (SVF) algorithm and its highly efficient variant, 1-bit SVF. Theoretically, we provide a rigorous mathematical foundation for our approach. Via a novel volume-certificate proof, we sharpen SVF's worst-case competitive ratio from the prior best of 48 towards \textbf{3} in the high-concurrency regime of LLM serving. Building upon this core breakthrough, we complete a comprehensive theoretical taxonomy analyzing our algorithms across different traffic scenarios and information availability. Practically, we seamlessly integrate our approach as a plug-and-play layer in vLLM. Extensive evaluations on Llama-3.1 models demonstrate comprehensive performance gains: SVF delivers strong reductions in both average and tail latency, while 1-bit SVF, with merely a single bit information, achieves competitive throughput and latency. This work establishes a theoretically sound and empirically proven approach for resolving memory-constrained scheduling in modern LLM deployments. To facilitate future research, our code is available at https://github.com/Aurora-Kl/Geometry-Aware-Online-Scheduling.git.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes Smallest Volume First (SVF) and 1-bit SVF as geometry-aware online schedulers for LLM inference, motivated by a 2D spatio-temporal geometric model of KV-cache growth. It claims a novel volume-certificate proof that tightens the worst-case competitive ratio to 3 (from prior 48) in high-concurrency regimes, supplies a theoretical taxonomy across traffic and information settings, and reports latency/throughput gains when plugged into vLLM on Llama-3.1 models.

Significance. If the geometric model is faithful and the proof is correct, the work would supply the first non-trivial competitive-ratio improvement for memory-constrained LLM scheduling and a practical drop-in replacement for time-centric heuristics such as SJF. The open-source integration and code release would further strengthen its impact.

major comments (2)
  1. [Abstract] Abstract and introduction: the central claim of a volume-certificate proof sharpening the competitive ratio to 3 is asserted without any model equations, derivation steps, or statement of the 2D geometric growth assumptions; this prevents verification of whether the ratio is independent of input parameters or reduces by construction.
  2. [Abstract] No quantitative experimental numbers, tables, or figures are referenced in the abstract or summary; the claimed reductions in average and tail latency therefore cannot be assessed for effect size or statistical significance.
minor comments (1)
  1. The abstract states that code is available at a GitHub link; confirm that the repository contains the exact experimental configurations and the proof scripts used to obtain the ratio-3 bound.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and will make targeted revisions to the abstract and introduction to improve verifiability while preserving the manuscript's focus.

read point-by-point responses

  1. Referee: [Abstract] Abstract and introduction: the central claim of a volume-certificate proof sharpening the competitive ratio to 3 is asserted without any model equations, derivation steps, or statement of the 2D geometric growth assumptions; this prevents verification of whether the ratio is independent of input parameters or reduces by construction.

    Authors: The full manuscript presents the 2D spatio-temporal geometric model of KV-cache growth in Section 3 and the volume-certificate proof in Section 4, establishing that the competitive ratio of 3 holds in the high-concurrency regime and is independent of specific input parameters under the model's assumptions (rather than reducing by construction). To address the concern about accessibility in the abstract and introduction, we will revise both sections to include a concise statement of the key geometric assumptions and a high-level outline of the proof technique. revision: yes

  2. Referee: [Abstract] No quantitative experimental numbers, tables, or figures are referenced in the abstract or summary; the claimed reductions in average and tail latency therefore cannot be assessed for effect size or statistical significance.

    Authors: We agree that referencing specific quantitative results would allow better assessment of effect sizes. In the revised version, we will update the abstract to include key experimental outcomes from the vLLM integration on Llama-3.1 models (e.g., observed reductions in average and tail latency) and explicitly reference the relevant tables and figures that report the full statistical details. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's central claim is a novel volume-certificate proof deriving an improved worst-case competitive ratio of 3 for the SVF algorithm under an explicit 2D spatio-temporal KV-cache model. No equations, fitted parameters, or self-citations are shown that would reduce this ratio to a quantity defined by the input data or prior results by construction. The modeling assumption is stated upfront as the reason time-centric bounds fail, and the proof technique is presented as independent mathematical content. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on a single domain modeling assumption about KV-cache geometry; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption The dynamic memory footprint of LLM KV cache exhibits highly dynamic 2D spatio-temporal geometric growth.
    This modeling premise is invoked to explain why time-centric heuristics are suboptimal and to motivate the volume-based metric.

pith-pipeline@v0.9.1-grok · 5817 in / 1179 out tokens · 37560 ms · 2026-06-26T11:15:32.074017+00:00 · methodology
