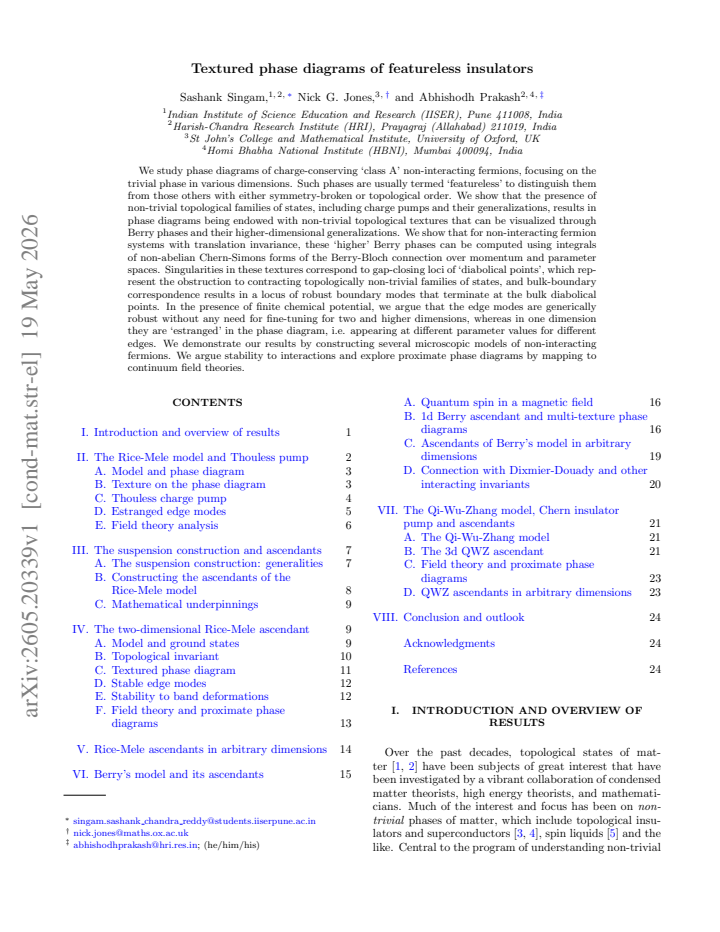

Textured phase diagrams of featureless insulators

Sashank Singam , Nick G. Jones , Abhishodh Prakash This is my paper

Pith reviewed 2026-05-21 00:30 UTC · model grok-4.3

classification ❄️ cond-mat.str-el hep-th
keywords featureless insulatorstopological textureshigher Berry phasesChern-Simons formsdiabolical pointscharge pumpsclass A fermionsphase diagrams
0
0 comments X

The pith

Non-trivial topological families of states endow phase diagrams of featureless insulators with topological textures visualized by higher Berry phases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines phase diagrams for charge-conserving class A non-interacting fermions in their trivial phase, often called featureless. It shows that non-trivial topological families, such as charge pumps and their generalizations, create non-trivial topological textures in these diagrams. These textures appear through Berry phases and higher-dimensional generalizations. For translation-invariant systems the phases are computed from integrals of non-abelian Chern-Simons forms of the Berry-Bloch connection over momentum and parameter spaces. The textures contain singularities at gap-closing points that produce robust boundary modes via bulk-boundary correspondence.

Core claim

We show that the presence of non-trivial topological families of states, including charge pumps and their generalizations, results in phase diagrams being endowed with non-trivial topological textures that can be visualized through Berry phases and their higher-dimensional generalizations. For non-interacting fermion systems with translation invariance these higher Berry phases can be computed using integrals of non-abelian Chern-Simons forms of the Berry-Bloch connection over momentum and parameter spaces. Singularities in these textures correspond to gap-closing loci of diabolical points, which represent the obstruction to contracting topologically non-trivial families of states.

What carries the argument

Higher Berry phases computed as integrals of non-abelian Chern-Simons forms of the Berry-Bloch connection over momentum and parameter spaces.

If this is right

  • Singularities in the textures correspond to gap-closing loci of diabolical points.
  • Bulk-boundary correspondence produces a locus of robust boundary modes that terminate at the bulk diabolical points.
  • With finite chemical potential the edge modes are generically robust without fine-tuning in two and higher dimensions.
  • In one dimension the edge modes appear estranged, at different parameter values for different edges.
  • The textures remain stable under interactions, with nearby phases described by continuum field theories.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same topological textures may appear in interacting systems once an appropriate many-body generalization of the higher Berry phase is defined.
  • Parameter tuning in lattice models or cold-atom experiments could directly map out the diabolical loci and associated boundary-mode loci.
  • The approach offers a way to classify the adiabatic connectivity of featureless phases across parameter space without reference to symmetry breaking or topological order.
  • Extensions to disordered or open systems would test whether the Chern-Simons computation survives when translation invariance is relaxed.

Load-bearing premise

The systems remain non-interacting fermions with translation invariance so that the higher Berry phases follow from the Berry-Bloch connection.

What would settle it

Construct a microscopic model of class A fermions containing a non-trivial topological family such as a charge pump yet find no corresponding texture or gap-closing singularity in the computed phase diagram.

Figures

Figures reproduced from arXiv: 2605.20339 by Abhishodh Prakash, Nick G. Jones, Sashank Singam.

Figure 1

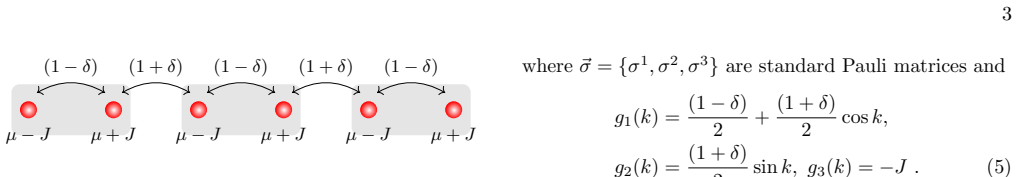

Figure 1. Figure 1: FIG. 1. Schematic representation of the Rice-Mele model. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Single-particle energy dispersion of the Hamiltonian [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Phase diagram of Eq. ( [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. The image of ˆg [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6

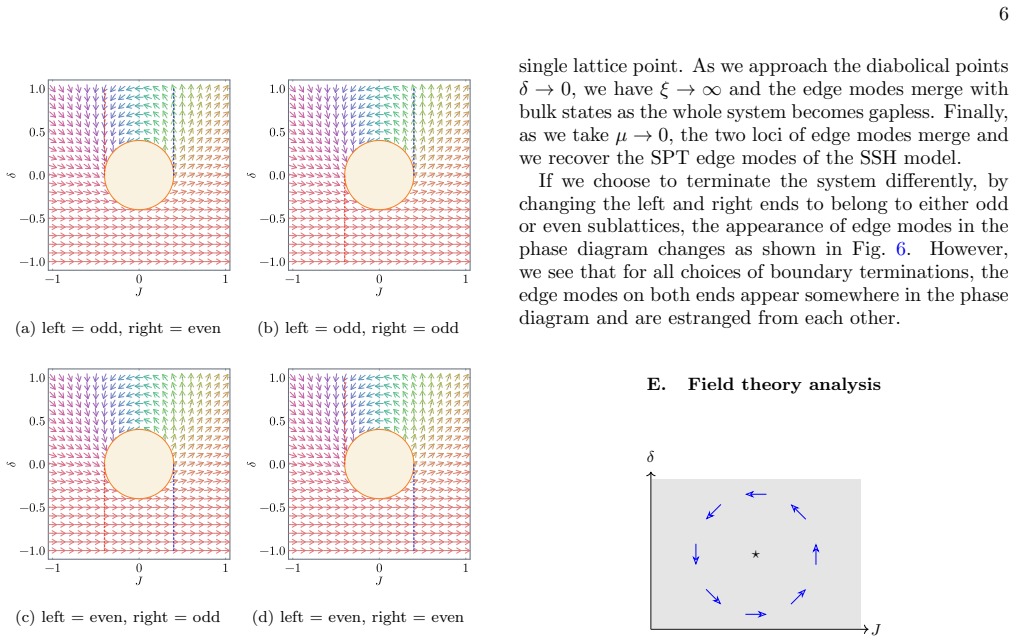

Figure 6. Figure 6: FIG. 6. Estranged edge modes for various terminations of [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Schematic representation of Kitaev’s pump [ [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. H [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. The phase diagram of 2d Rice-Mele ascendant for [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Single particle band dispersions for the 2d Rice-Mele [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: (a) shows ˇγ computed at each latitude δ2 ∈ [−1, 1] of a unit sphere δ 2 1 + δ 2 2 + J 2 = 1. To visualize Eq. (52) on the phase diagram, consider foliating the trivial phase surrounding the origin with a collection of 2-spheres. Let us further break each of these spheres into a series of parallel circles at different latitudes, for which we assign a ˇγ ( [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. For each fixed latitude [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Boundary conditions used to study edge modes [PITH_FULL_IMAGE:figures/full_fig_p012_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: FIG. 16. Adiabatic deformation to a flat-band limit. [PITH_FULL_IMAGE:figures/full_fig_p013_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: FIG. 17. (a) The phase diagram of the 2d Rice-Mele ascen [PITH_FULL_IMAGE:figures/full_fig_p013_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: FIG. 18. Texture on [PITH_FULL_IMAGE:figures/full_fig_p015_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: FIG. 19. Single-particle Bloch energies of the 1d Berry ascen [PITH_FULL_IMAGE:figures/full_fig_p016_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: FIG. 20. Evolution of the diabolical point of the [PITH_FULL_IMAGE:figures/full_fig_p017_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: FIG. 21. Rice-Mele textures in the Berry ascendant perturbed ⃗ [PITH_FULL_IMAGE:figures/full_fig_p018_21.png] view at source ↗
Figure 23

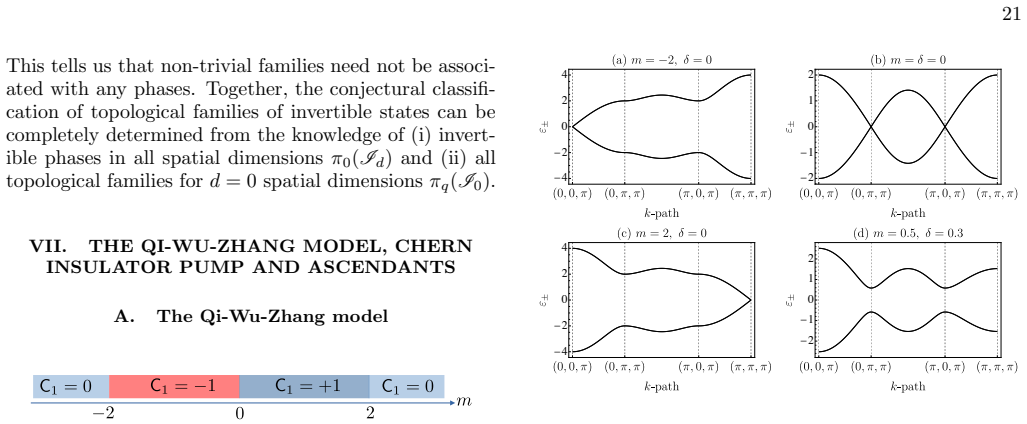

Figure 23. Figure 23: FIG. 23. Single particle band dispersions for the [PITH_FULL_IMAGE:figures/full_fig_p021_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: FIG. 24. Chern number for the filled bands of the 3d ascen [PITH_FULL_IMAGE:figures/full_fig_p022_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: FIG. 25. Textured phase diagrams of the 3d QWZ ascen [PITH_FULL_IMAGE:figures/full_fig_p022_25.png] view at source ↗
Figure 26

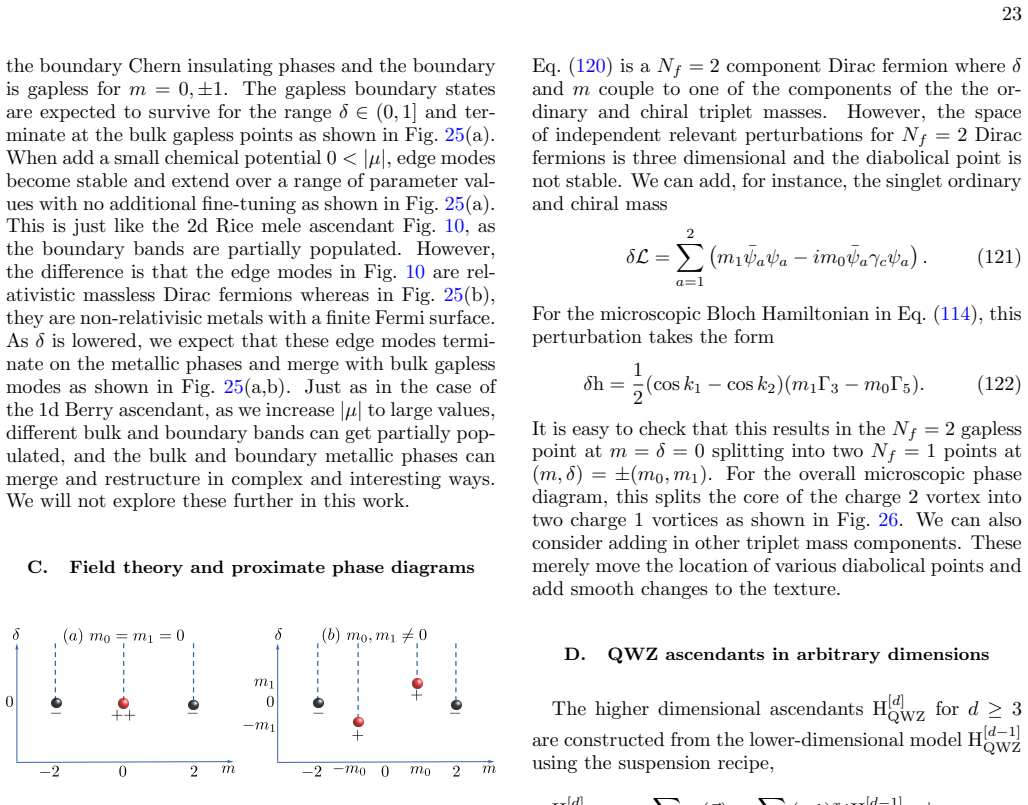

Figure 26. Figure 26: FIG. 26. The addition of singlet masses [PITH_FULL_IMAGE:figures/full_fig_p023_26.png] view at source ↗
read the original abstract

We study phase diagrams of charge-conserving `class A' non-interacting fermions, focusing on the trivial phase in various dimensions. Such phases are usually termed `featureless' to distinguish them from those others with either symmetry-broken or topological order. We show that the presence of non-trivial topological families of states, including charge pumps and their generalizations, results in phase diagrams being endowed with non-trivial topological textures that can be visualized through Berry phases and their higher-dimensional generalizations. We show that for non-interacting fermion systems with translation invariance, these `higher' Berry phases can be computed using integrals of non-abelian Chern-Simons forms of the Berry-Bloch connection over momentum and parameter spaces. Singularities in these textures correspond to gap-closing loci of `diabolical points', which represent the obstruction to contracting topologically non-trivial families of states, and bulk-boundary correspondence results in a locus of robust boundary modes that terminate at the bulk diabolical points. In the presence of finite chemical potential, we argue that the edge modes are generically robust without any need for fine-tuning for two and higher dimensions, whereas in one dimension they are `estranged' in the phase diagram, i.e. appearing at different parameter values for different edges. We demonstrate our results by constructing several microscopic models of non-interacting fermions. We argue stability to interactions and explore proximate phase diagrams by mapping to continuum field theories.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript studies phase diagrams of charge-conserving class A non-interacting fermions in the trivial ('featureless') phase. It claims that non-trivial topological families of gapped states, including charge pumps and generalizations, endow these phase diagrams with non-trivial topological textures. These textures are visualized via Berry phases and higher-dimensional generalizations, computed for translation-invariant systems as integrals of non-abelian Chern-Simons forms of the Berry-Bloch connection (from the occupied-band projector) over the combined momentum-parameter space. Singularities in the textures correspond to diabolical points (gap closings) that obstruct contraction of the families; bulk-boundary correspondence implies robust boundary modes terminating at these points. The work constructs explicit microscopic models, argues stability under interactions, and maps proximate diagrams to continuum field theories, with special discussion of edge-mode robustness in the presence of finite chemical potential.

Significance. If the higher Berry phase construction is rigorously validated, the paper provides a concrete visualization tool for topological structures in otherwise featureless insulators and unifies concepts of pumps, diabolical points, and boundary modes across dimensions. Explicit microscopic models and the continuum mapping are positive features; the interaction-stability argument and the distinction between estranged edge modes in 1D versus robust modes in higher D add value. The approach could influence studies of parameter-space topology in gapped fermionic systems.

major comments (2)
  1. [§3] §3 (Computation of higher Berry phases): the central claim that the integral of the non-abelian Chern-Simons form of the Berry-Bloch connection over the torus × parameter manifold is a topological invariant that vanishes for contractible families and jumps at diabolical points is load-bearing. The manuscript must explicitly demonstrate gauge invariance of this integral in the non-abelian setting and confirm that the connection remains smooth away from gap closings; without this, the correspondence between textures, singularities, and robust boundary modes is not secured.
  2. [§4.1, Eq. (12)] §4.1, Eq. (12): the normalization factor for the higher Berry phase over the Brillouin zone is not stated explicitly. The integer-valued nature of the texture and the precise location of jumps at diabolical points depend on this normalization; an explicit formula or reference to the standard normalization used in the literature is required.
minor comments (3)
  1. [Figure 2] Figure 2: the color scale for the Berry-phase texture is not labeled with units or range; this makes it difficult to read the magnitude of the visualized phase.
  2. [Introduction] Introduction, paragraph 3: the relation to prior work on higher Berry phases (e.g., references to existing Chern-Simons constructions in parameter space) should be stated more explicitly to clarify the incremental advance.
  3. [§5] §5: a brief table summarizing the microscopic models, their dimensions, and the observed textures would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments. We address the major comments point by point below and have revised the manuscript to incorporate the requested clarifications.

read point-by-point responses

  1. Referee: [§3] §3 (Computation of higher Berry phases): the central claim that the integral of the non-abelian Chern-Simons form of the Berry-Bloch connection over the torus × parameter manifold is a topological invariant that vanishes for contractible families and jumps at diabolical points is load-bearing. The manuscript must explicitly demonstrate gauge invariance of this integral in the non-abelian setting and confirm that the connection remains smooth away from gap closings; without this, the correspondence between textures, singularities, and robust boundary modes is not secured.

    Authors: We agree that an explicit demonstration of gauge invariance for the non-abelian Chern-Simons integral is essential to secure the central claims. In the revised manuscript we have added a dedicated paragraph in §3 that derives the gauge invariance: under a unitary gauge transformation the variation of the Chern-Simons form produces a total derivative whose integral vanishes over the closed manifold (Brillouin-zone torus × parameter space) by virtue of the cyclic property of the trace and the absence of boundary contributions. We also state explicitly that the Berry-Bloch connection remains smooth wherever the gap is open, because the occupied-band projector is a smooth function of momentum and parameters in the gapped region. These additions directly support the topological invariance, the vanishing on contractible families, the jumps at diabolical points, and the bulk-boundary correspondence for robust edge modes. revision: yes

  2. Referee: [§4.1, Eq. (12)] §4.1, Eq. (12): the normalization factor for the higher Berry phase over the Brillouin zone is not stated explicitly. The integer-valued nature of the texture and the precise location of jumps at diabolical points depend on this normalization; an explicit formula or reference to the standard normalization used in the literature is required.

    Authors: We thank the referee for noting this omission. The normalization in Eq. (12) follows the conventional choice that renders the higher Berry phase integer-valued: the integral of the non-abelian Chern-Simons form is divided by (2π)^d, where d is the dimension of the Brillouin zone. We have now inserted an explicit statement of this prefactor immediately after Eq. (12) in the revised §4.1 and added a reference to the standard literature on non-abelian Berry phases and higher Chern-Simons invariants. This clarification fixes the integer quantization of the textures and the precise parameter values at which jumps occur when diabolical points are crossed. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses standard topological invariants

full rationale

The paper defines higher Berry phases via integrals of non-abelian Chern-Simons forms over momentum-parameter space and uses them to visualize textures arising from non-trivial families of gapped states. This follows established constructions in topological band theory for class-A insulators rather than reducing any central claim to a self-definition, fitted input, or self-citation chain. Microscopic models and continuum mappings supply independent content that can be checked against the stated assumptions of translation invariance and gap preservation. No load-bearing step equates a prediction to its own input by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions of non-interacting fermions and translation invariance; no new free parameters or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption Systems are non-interacting charge-conserving class A fermions
    Stated as the focus of the study in the abstract.
  • domain assumption Translation invariance permits computation of higher Berry phases via non-abelian Chern-Simons forms
    Invoked for the explicit calculation method described in the abstract.
