AirCANS: CFD 2D Mesh Optimisation-based Airfoil Classification and Assessment using Neural Networks

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A CNN can classify airfoil thickness directly from CFD mesh geometry, without solving the flow equations.

desk verdict Proof-of-concept for airfoil mesh classification with MeshCNN, but the accuracy claim is undercut by possible train/test leakage. read the letter →

arxiv 2506.22662 v1 pith:FCGVHHWN submitted 2025-06-27 physics.comp-ph

Lushun Fan , Yuqin Xia , Jun Li , Karl Jenkins This is my paper
classification physics.comp-ph
keywords convolutionalneuralnetworkCFDmeshclassificationairfoilthicknessunstructurededge-basedconvolutionpoolingCNNdeeplearning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to show that a convolutional neural network can take a 2D unstructured CFD mesh around an airfoil and classify which thickness range the airfoil belongs to, using only local edge geometry rather than solving the flow equations. The authors build a framework called AirCANS, adapted from MeshCNN, that represents each mesh edge by angles and normalized length ratios and then applies convolution and edge-collapse pooling. On their own generated dataset of more than 50 airfoil meshes grouped into three thickness bands, the best configuration reaches about 83% peak accuracy and settles near 67% stable accuracy. The intended payoff is faster mesh assessment for CFD, with classification used to guide mesh refinement and cut simulation time.

What carries the argument

The input tensor has shape (batch, 5, edges, 1); each edge is described by the dihedral angle between adjacent face normals (constant in 2D), the two opposite angles within its neighboring triangles, and the two normalized edge-length ratios inside those triangles. The backbone is four MResConv blocks that convolve each edge jointly with its four neighbors using symmetric functions, then MeshPool collapses low-importance edges based on an L2-norm score, progressively reducing edge counts from 3600 to 1200. This edge-based representation lets the network ignore raw vertex positions and operate purely on local geometry and topology.

What would settle it

Generate meshes for a held-out set of airfoil shapes that were not used in training, for example NACA 4-digit series with thickness values not present in the training bands, and run the trained AirCANS model on them; if stable accuracy falls to the chance level of about 33% while training accuracy stays high, the mesh-edge features do not generalize and the central claim fails.

Watch

Extended reading notes

Core claim

The central claim is that CNNs are fully adaptable and understandable to CFD airfoil mesh data structures. Concretely, AirCANS classifies an airfoil's thickness range from the unstructured triangular mesh alone, without the Navier-Stokes solve, and the experimental evidence is that with a 4:1 train-test split the model maintains roughly 67% stable accuracy with peaks near 83%, while denser meshes train more stably than sparse ones. The paper treats this as evidence that mesh geometry encodes enough aerodynamic-relevant information for neural assessment, so that mesh quality and thickness could be evaluated quickly before or during simulation.

Load-bearing premise

The classification target must be recoverable from the local edge geometry of the unstructured mesh; if thickness information is not robustly encoded there for unseen airfoils, the reported accuracy reflects memorization of the small self-generated dataset rather than a generalizable skill.

Editorial extensions

If this is right

  • Mesh quality and airfoil thickness can be assessed directly from mesh files, avoiding an initial simulation pass.
  • The same edge-convolution pipeline could be extended back to 3D by re-enabling the dihedral angle feature, which is kept in the 5-channel format.
  • Dense meshes give more stable training than sparse ones, suggesting mesh resolution should be preserved when feeding data to such networks.
  • Classification output could be used to trigger mesh refinement or coarsening decisions, accelerating CFD workflows.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The 67% stable accuracy on a 3-class problem is modest; a stronger test would be whether the edge features generalize to airfoil families not used in generating the meshes, since the current dataset is self-generated and small.
  • If verified on held-out geometry, the approach could be extended to predict continuous thickness values rather than coarse bands, or to regress other geometric parameters such as camber and chord position.
  • A label-shuffle control would isolate whether the network learns genuine geometric signals versus dataset artifacts such as mesh statistics correlated with thickness.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper presents AirCANS, a framework based on MeshCNN for classifying 2D CFD unstructured airfoil meshes into three thickness ranges (1-10%, 11-20%, 21-30%). The authors generate over 50 self-made airfoil meshes at two densities (fine and coarse), adapt the MeshCNN edge-based convolution/pooling architecture to 2D, and report stable accuracies around 67% and peak accuracies around 83% for the best configuration. They also compare dense versus sparse meshes, claiming that dense meshes yield more stable performance. The central claim is that CNNs are fully adaptable and understandable for CFD airfoil mesh data structures, with potential applications in mesh refinement and acceleration.

Significance. If the results were robust, this paper would provide a useful proof-of-concept for applying geometric deep learning to unstructured CFD mesh data, potentially enabling fast preprocessing and classification without flow solving. The dataset-generation effort and the comparative dense/sparse design are positive aspects, as is the intended public release of a mesh dataset. However, the experimental evidence is thin: roughly 50 samples, no repeated-seed statistics or airfoil-grouped splits, and the mathematical description in Section 3.4 is internally inconsistent. The paper does not provide the promised dataset or code, so reproducibility cannot be checked. These issues substantially weaken the support for the abstract's strong claim.

major comments (5)
  1. [Section 3.4] Equations (1)-(13) are inconsistent with the described architecture and with the input specification in Section 3.1. Equations (1)-(4) define Sobel gradient features on a dense 2D pixel grid I ∈ R^{H×W×C}, whereas Section 3.1 defines the input as an edge-based tensor R^{B×5×E×1} with features [θ_i, α_i1, α_i2, r_i1, r_i2] computed from mesh edges. Equations (5)-(13) describe 5×5 and 2×2 image-style neighborhoods and a dynamic importance score, but the text states that convolution operates on each edge and its four neighboring edges in a mesh. Please provide a coherent mathematical description of the actual edge-based convolution and pooling operations, or clearly explain why these image-based equations are included.
  2. [Section 4.2 / Tables 2-3 / Figure 8] There are numerical contradictions between the text and the tables. Section 4.2 states that with a 3:1 train-test ratio the highest accuracy was about 83% and the stable accuracy about 67%, but Table 2 shows the 3:1 row with Stable Acc 59.091% and Highest Acc 81.818%; the 66.667% stable and 83.333% highest values correspond to the 4:1 row with pooling [510,360,210,180]. Figure 8 and its caption claim dense grids 'regularly achieving accuracy levels >80%' and sparse grids occasionally reaching '>99%', neither of which appears in Tables 2 and 3 (best stable are 66.7% and 50%, best peaks are 83.3%). Please correct these inconsistencies and define precisely what 'Stable ACC' and 'Highest ACC' measure (e.g., best test accuracy over all epochs, final-epoch test accuracy).
  3. [Section 3.2 / Section 4.1] The experimental protocol does not rule out data leakage between training and testing. The dataset contains over 50 airfoil meshes, with each airfoil meshed at both fine and coarse densities (Table 1). The train/test splits are reported only as file ratios (3:1, 4:1), with no statement that all meshes of a single airfoil are kept in one split. If fine and coarse versions of the same airfoil appear in both training and test sets, the model can achieve high accuracy by recognizing near-duplicate geometry rather than by learning thickness as a general property. Please perform a grouped split by airfoil identity, report the resulting accuracies, and, given the small test set (~10 samples), also provide per-class results and confidence intervals.
  4. [Section 4.1 / Figure 7] Hyperparameters appear to have been selected by inspecting the same training curves that are reported as results. The text says that 'Based on the convergence trends, we selected the pooling parameters [510, 360, 210, 180] ... with a learning rate' directly from the loss trajectories shown in Figure 7. Without a separate validation set or repeated-seed trials, this procedure risks overfitting to the test set. Please report mean and standard deviation across multiple random seeds, and explicitly separate model selection (validation) from final evaluation (test), or justify why this is not needed for the small dataset.
  5. [Section 2 / Section 6 / Title] The manuscript makes claims that are not supported by its content. The Introduction and Section 2 announce a publicly released comprehensive CFD mesh dataset, but no dataset URL, repository, or access details are given anywhere. The task performed is airfoil thickness classification, not 'mesh assessment' or 'mesh optimisation'; the title uses 'Mesh Optimisation-based' although no mesh optimization is conducted (only fine vs. coarse meshes are compared). The abstract's statement that 'CNNs are fully adaptable as well as understandable to CFD airfoil mesh data structures' is an overreach given the limited experiments. Please align the claims, title, and release statement with what the paper actually delivers.
minor comments (5)
  1. [Throughout] There are many typographical and grammatical errors, e.g., 'exposion' in Table 1, 'airfilm' in Section 2, 'hypermeters' in Section 6, 'parse matrices' in Section 5, and 'we Our aim' in Section 3.5. A careful proofread is needed.
  2. [Section 3.1] The input tensor shape is given as R^{B×C_in×E×1} and later as R^{B×5×E×1}; please clarify the channel order and whether the extra dimension is a singleton, since this affects how the convolution is applied.
  3. [Section 4.2] The terms 'Stable Acc' and 'Highest Acc' are used without formal definitions. Please state whether 'Highest Acc' is the best test accuracy during training (which is an optimistically biased statistic) and how 'Stable' is computed (e.g., average over last N epochs).
  4. [References] The paper frequently cites MeshCNN [24] and its fundamentals [26] but does not specify which version of the code or which training hyperparameters (e.g., optimizer, batch size, epoch count) were used. Please add these details for reproducibility.
  5. [Section 3.4] The text says 'the pooling layer requires soft-edge attribution; otherwise, the lack of geometric information may not adequately represent key features' (Section 5), but this concept is not defined or elaborated anywhere. Please explain what soft-edge attribution means and how it affects the experiments.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found: AirCANS is an empirical MeshCNN application; measured accuracies are test-set observations, not predictions forced by construction.

full rationale

AirCANS does not claim a first-principles derivation whose output reduces to its inputs. The network input is an edge-feature tensor [θ, α1, α2, r1, r2] (Section 3.1), the labels are thickness ranges 1-10, 11-20, and 21-30 assigned from the airfoil geometries used to generate the meshes (Section 3.2), and the reported 83% and 67% accuracies are test-set measurements after training with different ratios and pooling configurations (Tables 2-3). Nothing in these tables is a fitted parameter renamed as a prediction: the model is trained on labeled meshes and evaluated on held-out meshes. The architecture (MeshCNN edge convolution and pooling) is borrowed from external references [24, 26], and no load-bearing claim is justified by a self-citation, since no cited work is by the present authors. The self-generated dataset and file-level train/test splits raise a legitimate external-validity and small-sample concern; the authors themselves note the dataset is small (Section 5). That is a data-validity criticism, not a definitional or self-referential reduction. Because no equation reduces to an input and no fitted quantity is relabeled as a prediction, the circularity score is 0.

Assumptions & free parameters 6 free parameters · 4 assumptions · 0 invented entities

The central claim rests on the external MeshCNN architecture, the authors' self-generated mesh dataset, and the assumption that mesh edge geometry encodes airfoil thickness. No new physical entity is postulated, and the free parameters are standard ML hyperparameters plus manually chosen class boundaries.

free parameters (6)
  • Network filter widths (ncf) = [64,128,256,256] in best config; also [128] and [64,128]
    Chosen by comparing configurations in Table 2 and Figure 7; stable accuracy ranges from 33% to 67% depending on this choice.
  • Dense pooling resolutions = [2100,1800,1500,1200] dense; [510,360,210,180] and sparse [450,420,390,360] variants
    Manually set to reduce edge counts in Section 3.1 and Tables 2-3; the best value was selected by observing training loss in Figure 7.
  • Learning rate = 2e-4 best, 2e-5 also tried
    Varied in Table 2; 2e-4 was selected as best because 2e-5 gives 33-45% stable accuracy.
  • Pool size = 50 for dense, 30 for sparse
    Inherited from MeshCNN defaults and adapted for sparse meshes; not systematically tuned.
  • Thickness class boundaries = 1-10%, 11-20%, 21-30%
    Chosen by hand from aerodynamic convention in Section 3.2; this defines the classification target itself.
  • Train-test ratio = 4:1 best, 3:1 also tested
    Varied to search for best accuracy; reported results depend on this split.
assumptions (4)
  • domain assumption The mesh edge features used by MeshCNN (two opposite angles, two normalized edge length ratios, and a dihedral angle) capture enough shape information for airfoil thickness classification.
    Section 3.1 constructs the input tensor; in 2D the dihedral component is constant, so the remaining four features must carry the signal.
  • domain assumption Unstructured meshes generated from Airfoil Tool outlines with Ansys ICEMCFD are a valid proxy for real CFD airfoil meshes.
    Section 3.2 describes the generation process, but no validation against established CFD benchmark meshes is provided.
  • domain assumption The grouping of airfoils into thickness ranges 1-10, 11-20, 21-30 is a meaningful classification for aerodynamic design.
    Section 3.2 justifies the grouping through flight regime differences, but the boundaries are asserted rather than derived.
  • standard math MeshCNN's edge convolution and edge-collapse pooling behave as described in the cited papers.
    Section 3.4 builds on Hanocka et al. [24] and Barda et al. [26]; no formal verification is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of AirCANS: CFD 2D Mesh Optimisation-based Airfoil Classification and Assessment using Neural Networks." pith.science (2026). https://pith.science/paper/FCGVHHWN

@misc{pith2026250622662,
  author       = {Pith},
  title        = {Pith review of: AirCANS: CFD 2D Mesh Optimisation-based Airfoil Classification and Assessment using Neural Networks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/FCGVHHWN}},
  note         = {Machine review of arXiv:2506.22662}
}
read the original abstract

This study explores the possibilities of automating the loading, classification and assessment of Computational Fluid Dynamics (CFD) mesh data by Convolutional Neural Networks (CNNs). The research aim is finding a feasible way to quickly make classification and assessment on airfoil mesh data. For this purpose, this study designed a new framework named CFD-based airfoil Classification and Assessment Network (AirCANS) for CFD mesh data which including the data loader and improved the CNN structure to achieve our target. In our research, we found that CNNs are fully adaptable as well as understandable to CFD airfoil mesh data structures, which suggests that our hypothesis is successful and that neural networks can be used to have a greater positive impact on the CFD industry, such as it can be used to refine the mesh and accelerate the solution. This could allow CFD to spend much less time.

Figures

Figures reproduced from arXiv: 2506.22662 by the authors.

Figure 1
Figure 1. FIGURE 1 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. FIGURE 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. FIGURE 3 [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4

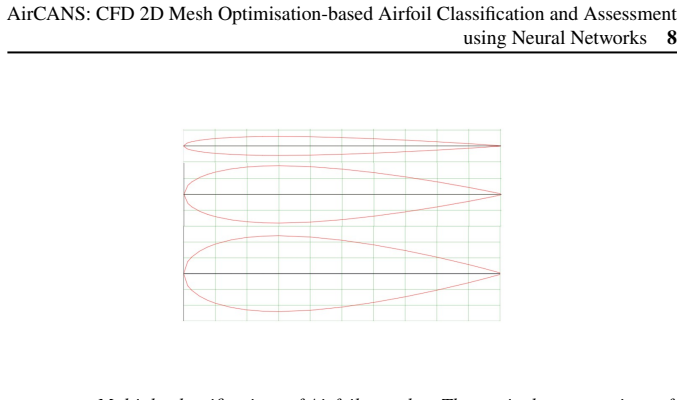

Figure 4. Figure 4: FIGURE 4 [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: FIGURE 5 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: FIGURE 6 [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 7
Figure 7. Figure 7: FIGURE 7 [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
Figure 8
Figure 8. Figure 8: FIGURE 8 [PITH_FULL_IMAGE:figures/full_fig_p016_8.png]
