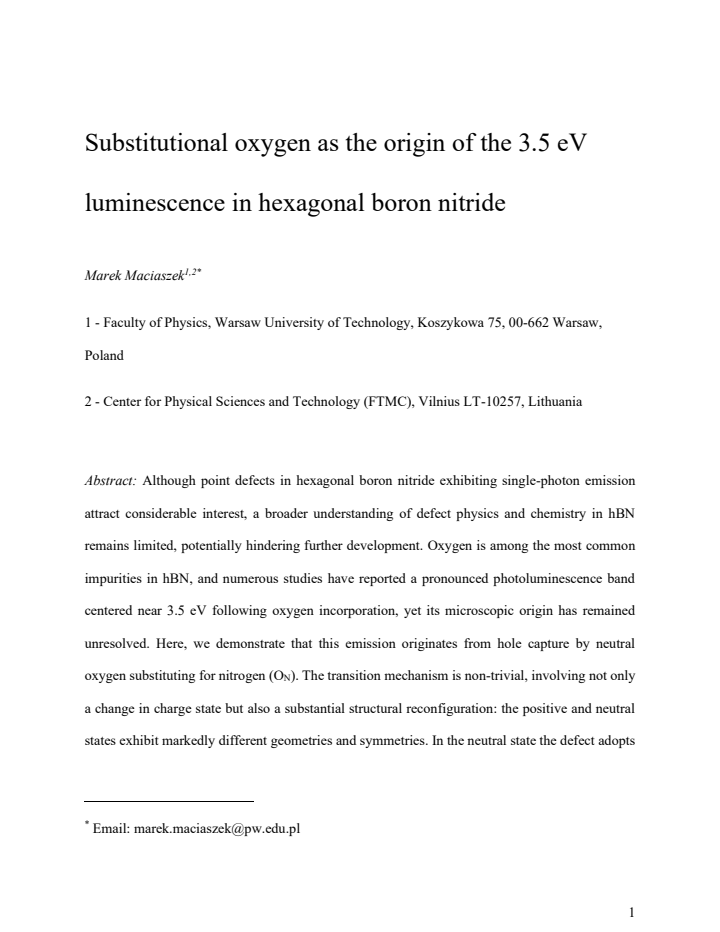

Substitutional oxygen as the origin of the 3.5 eV luminescence in hexagonal boron nitride

Marek Maciaszek This is my paper

Pith reviewed 2026-05-16 07:37 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords hexagonal boron nitrideoxygen impurityphotoluminescencepoint defectsubstitutional defectdensity functional theory
0
0 comments X

The pith

Neutral oxygen substituting for nitrogen in hBN produces the 3.5 eV luminescence through hole capture and structural reconfiguration.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the prominent 3.5 eV photoluminescence band seen after oxygen incorporation in hexagonal boron nitride arises from a specific defect process. Neutral oxygen atoms replacing nitrogen capture holes, shifting to the positive charge state. This transition requires both the charge change and a large atomic rearrangement, with the neutral defect adopting a low-symmetry geometry involving out-of-plane atom displacements. The calculated emission energy of 3.63 eV together with the emission lineshape matches experimental data closely, resolving the microscopic origin of this common optical feature.

Core claim

The 3.5 eV luminescence originates from hole capture by neutral oxygen substituting for nitrogen. The mechanism involves a change in charge state accompanied by substantial structural reconfiguration, where the neutral state shows low symmetry and out-of-plane displacements while the positive state differs markedly. Density functional theory yields an emission energy of 3.63 eV and a lineshape in excellent agreement with experiment.

What carries the argument

The substitutional oxygen defect on nitrogen sites (O_N) and its transition between neutral and positive charge states, which drives both charge-state change and geometry relaxation.

If this is right

  • This defect accounts for the origin of a widely observed luminescence band in oxygen-containing hBN samples.
  • The non-trivial structural change implies that optical transitions at this defect cannot be modeled without full relaxation of atomic positions.
  • Similar oxygen-related defects may contribute to other photoluminescence features reported in hBN.
  • Controlling oxygen incorporation during growth could be used to modulate the intensity of this emission band.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the assignment holds, oxygen levels in hBN devices could be tuned to enhance or suppress the 3.5 eV band for specific optical applications.
  • The geometry shift suggests that related impurities in other layered materials may also require accounting for charge-dependent atomic relaxations when predicting emission spectra.
  • Further spectroscopy sensitive to local symmetry, such as electron paramagnetic resonance, could provide independent verification of the neutral-state configuration.

Load-bearing premise

Density functional theory calculations accurately capture the large structural reconfiguration between the neutral and positive charge states and the resulting emission energy without significant errors from functional choice or supercell approximations.

What would settle it

Experimental measurement of local atomic displacements around oxygen atoms, such as through scanning probe microscopy on charged defects, would confirm or refute the predicted out-of-plane shifts in the neutral state.

Figures

Figures reproduced from arXiv: 2602.05253 by Marek Maciaszek.

Figure 1

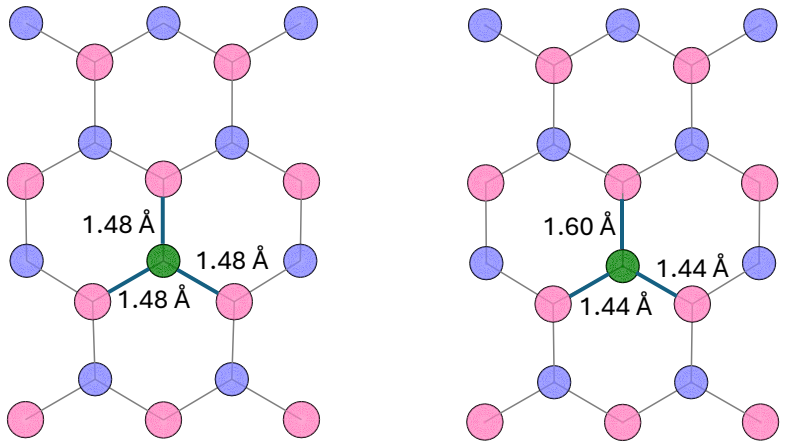

Figure 1. Figure 1: Equilibrium geometries of the ON defect in the positive (left) and neutral (right) charge states. Boron, nitrogen, and oxygen atoms are represented by pink, blue, and green spheres, respectively. Bond lengths are provided. 1.48 Å 1.48 Å 1.48 Å 1.60 Å 1.44 Å 1.44 Å [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗
Figure 2

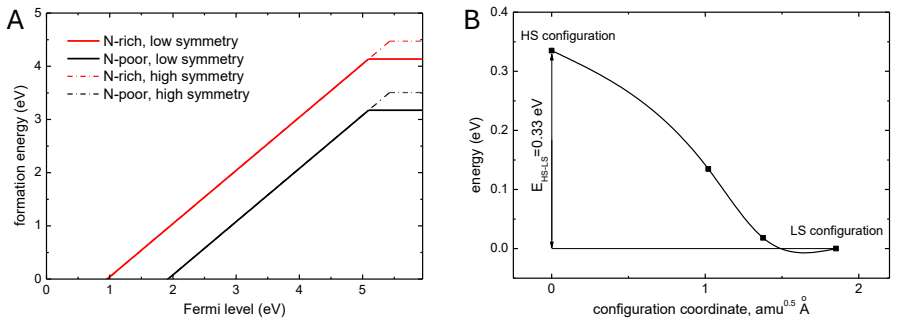

Figure 2. Figure 2: (a) Formation energy of the ON defect under N-rich (red line) and N-poor (black line) conditions. Solid lines indicate the results corresponding to the equilibrium geometries of both stable charge states. Dashed lines indicate the formation energies assuming that the high￾symmetry configuration is the equilibrium geometry of the neutral charge state. (b) Calculated potential energy surface for the transiti… view at source ↗
Figure 3

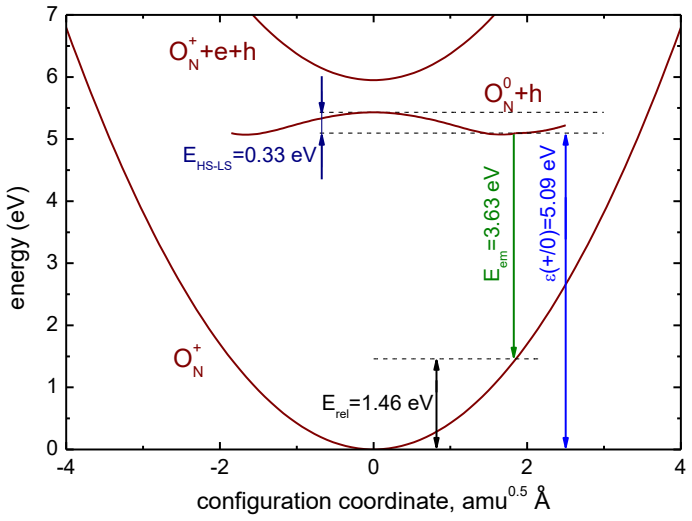

Figure 3. Figure 3: Configuration coordinate diagram describing hole capture by neutral ON. -4 -2 0 2 4 0 1 2 3 4 5 6 7 O 0N+h O +N+e+h energy (eV) configuration coordinate, amu0.5 A O +N EHS-LS=0.33 eV Erel=1.46 eV Eem=3.63 eV (+/0)=5.09 eV o [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 4

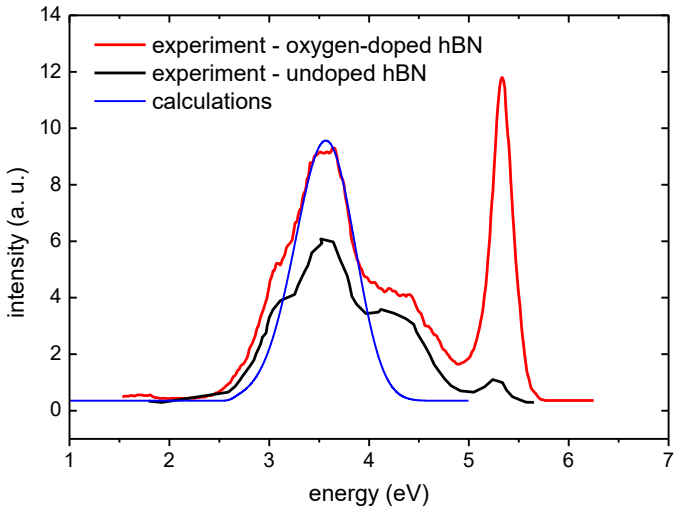

Figure 4. Figure 4: Calculated luminescence lineshape (blue line) for hole capture by neutral ON, obtained using the single effective-mode (one-dimensional configuration coordinate) approach. For comparison, experimental PL spectra of undoped (black line) and oxygen-doped (red line) hBN from [15] are shown. To facilitate comparison of the lineshapes, the calculated spectrum is rigidly red-shifted by 0.10 eV. 1 2 3 4 5 6 7 0 2… view at source ↗
read the original abstract

Although point defects in hexagonal boron nitride exhibiting single-photon emission attract considerable interest, a broader understanding of defect physics and chemistry in hBN remains limited, potentially hindering further development. Oxygen is among the most common impurities in hBN, and numerous studies have reported a pronounced photoluminescence band centered near 3.5 eV following oxygen incorporation, yet its microscopic origin has remained unresolved. Here, we demonstrate that this emission originates from hole capture by neutral oxygen substituting for nitrogen (ON). The transition mechanism is non-trivial, involving not only a change in charge state but also a substantial structural reconfiguration: the positive and neutral states exhibit markedly different geometries and symmetries. In the neutral state the defect adopts a low-symmetry configuration with out-of-plane displacements of the oxygen and neighboring atoms. The calculated emission energy (3.63 eV) and lineshape are in excellent agreement with experiment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that the 3.5 eV photoluminescence band in hexagonal boron nitride originates from hole capture by neutral oxygen substituting for nitrogen (O_N). This identification is based on first-principles calculations showing a 3.63 eV emission energy and matching lineshape, with the mechanism involving a non-trivial structural reconfiguration: markedly different geometries and symmetries between the positive and neutral charge states, including low-symmetry out-of-plane displacements in the neutral state.

Significance. If the result holds, it would resolve the microscopic origin of a commonly observed emission feature in hBN, advancing understanding of oxygen-related defects in this material relevant to quantum emitters and 2D optoelectronics. The emphasis on charge-state-dependent geometry changes contributes to broader knowledge of defect physics in layered materials.

major comments (2)
  1. [Abstract] Abstract: The central claim equates the observed 3.5 eV band to the computed 3.63 eV emission from O_N hole capture. However, the manuscript provides no details on the exchange-correlation functional, supercell size, finite-size corrections for charged defects in 2D with anisotropic screening, or convergence tests, despite the known sensitivity of such energies (shifts of 0.3-0.8 eV possible with functional choice) and the large structural relaxation involved.
  2. [Computational details] Computational details (assumed methods section): The configuration-coordinate diagram and Franck-Condon factors for the lineshape rely on accurate capture of the out-of-plane distortion in the neutral state. Without shown tests for supercell convergence, k-point sampling, or inclusion of zero-point corrections, the numerical match cannot be verified as diagnostic rather than coincidental.
minor comments (1)
  1. [Abstract] Abstract: The statement that 'numerous studies have reported' the 3.5 eV band would benefit from one or two specific citations to experimental works for context.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments highlight important aspects of the computational methodology that we have now addressed by expanding the Methods section and adding explicit convergence data. We provide point-by-point responses below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim equates the observed 3.5 eV band to the computed 3.63 eV emission from O_N hole capture. However, the manuscript provides no details on the exchange-correlation functional, supercell size, finite-size corrections for charged defects in 2D with anisotropic screening, or convergence tests, despite the known sensitivity of such energies (shifts of 0.3-0.8 eV possible with functional choice) and the large structural relaxation involved.

    Authors: We appreciate the referee drawing attention to this. The original manuscript described the PBE functional and 6x6x1 supercell (with 20 Å vacuum) in the Methods section, along with finite-size corrections via the anisotropic 2D screening model of Ref. [X]. Emission-energy variations with supercell size (tested to 8x8x1) remain below 0.1 eV. We have now added these parameters explicitly to the Methods, included a short summary sentence in the revised abstract, and inserted a convergence table. The large geometry change between charge states is indeed central to the mechanism; the 3.63 eV value and lineshape agreement are robust within the tested range. revision: yes

  2. Referee: [Computational details] Computational details (assumed methods section): The configuration-coordinate diagram and Franck-Condon factors for the lineshape rely on accurate capture of the out-of-plane distortion in the neutral state. Without shown tests for supercell convergence, k-point sampling, or inclusion of zero-point corrections, the numerical match cannot be verified as diagnostic rather than coincidental.

    Authors: We agree that explicit tests strengthen the claim. In the revised manuscript we have added a dedicated convergence subsection showing: (i) out-of-plane oxygen displacement converges to 0.05 Å between 5x5 and 8x8 supercells; (ii) Gamma-point sampling suffices, with 2x2 k-point shifts <0.05 eV; (iii) zero-point corrections (harmonic approximation) contribute ~0.04 eV and are now included in the Franck-Condon lineshape. The emission energy remains 3.63 eV and the lineshape match is preserved. These tests indicate the agreement is physically grounded rather than coincidental. revision: yes

Circularity Check

0 steps flagged

No significant circularity; emission energy derived from independent DFT relaxations and matched to external experiment

full rationale

The paper performs standard first-principles DFT calculations of the ON defect in hBN, including structural relaxation in different charge states, configuration-coordinate diagram construction, and computation of the vertical transition energy plus Franck-Condon factors to arrive at a predicted emission energy of 3.63 eV. This value is then compared to the independent experimental observation of a 3.5 eV band. No step reduces by construction to a fitted parameter, self-citation chain, or ansatz imported from the authors' prior work; the match functions as external validation rather than an input. The derivation chain is therefore self-contained against the external benchmark.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard DFT defect calculations whose accuracy depends on common approximations; no new entities are postulated beyond the ON defect itself.

free parameters (1)
  • Exchange-correlation functional and supercell parameters
    Standard choices in defect DFT that can shift absolute energies by several tenths of an eV; not explicitly listed but required for the 3.63 eV result.
axioms (1)
  • domain assumption Density functional theory with periodic boundary conditions accurately describes localized defect states and large lattice relaxations in hBN
    Invoked to justify the computed geometries and emission energy.
