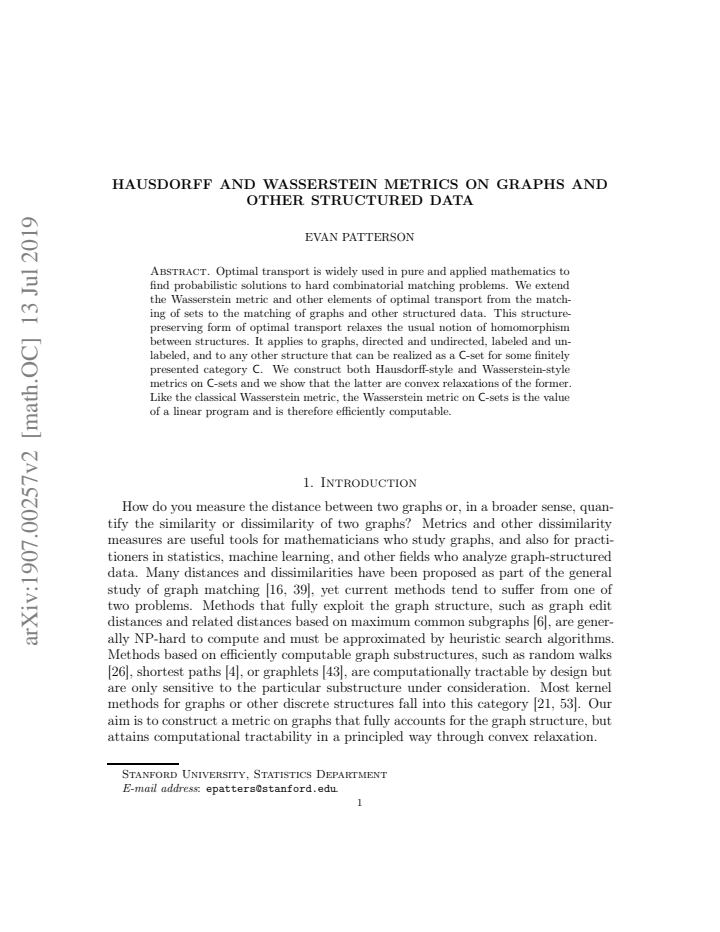

Hausdorff and Wasserstein metrics on graphs and other structured data

Evan Patterson This is my paper

Pith reviewed 2026-05-25 12:36 UTC · model grok-4.3

classification 🧮 math.OC math.MG
keywords optimal transportWasserstein metricHausdorff metricC-setsgraphsstructured dataconvex relaxationlinear programming
0
0 comments X

The pith

Wasserstein metrics on C-sets are convex relaxations of Hausdorff metrics and reduce to linear programs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends optimal transport from plain sets to graphs and other structured data by modeling them as C-sets for finitely presented categories. It defines Hausdorff-style metrics that enforce strict structure-preserving maps and Wasserstein-style metrics that allow probabilistic transport plans instead. These Wasserstein metrics are shown to be convex relaxations of the Hausdorff ones, and like the classical case they equal the optimum of a linear program. A sympathetic reader would care because the construction turns combinatorial matching of structures into a tractable optimization task that applies uniformly to directed graphs, undirected graphs, labeled data, and similar objects.

Core claim

We extend the Wasserstein metric and other elements of optimal transport from the matching of sets to the matching of graphs and other structured data. This structure-preserving form of optimal transport relaxes the usual notion of homomorphism between structures. It applies to graphs, directed and undirected, labeled and unlabeled, and to any other structure that can be realized as a C-set for some finitely presented category C. We construct both Hausdorff-style and Wasserstein-style metrics on C-sets and we show that the latter are convex relaxations of the former. Like the classical Wasserstein metric, the Wasserstein metric on C-sets is the value of a linear program and is therefore efic

What carries the argument

The Wasserstein metric on C-sets, which assigns to a pair of C-sets the optimal value of a linear program whose feasible region encodes structure-preserving transport plans.

If this is right

  • Graphs and other C-set structures can be compared using efficiently solvable linear programs.
  • Optimal transport supplies probabilistic rather than deterministic solutions to matching problems on structured data.
  • The same construction works for directed graphs, undirected graphs, labeled graphs, and unlabeled graphs.
  • Hausdorff-style distances on C-sets possess convex relaxations that remain computable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be used to define similarity measures for database schemas or chemical reaction networks modeled as C-sets.
  • Software implementations could leverage existing linear programming libraries to compute distances between large graphs.
  • The relaxation might be combined with other convex optimization techniques for tasks such as structure alignment in machine learning.

Load-bearing premise

Structures that can be realized as C-sets for a finitely presented category admit a well-defined structure-preserving optimal transport that relaxes the usual notion of homomorphism.

What would settle it

A concrete pair of C-sets for which the linear program either fails to produce a value that relaxes the Hausdorff distance or violates the metric axioms.

Figures

Figures reproduced from arXiv: 1907.00257 by Evan Patterson.

Figure 1.1
Figure 1.1. Figure 1.1: Relations of major concepts and section dependencies Other authors have proposed convex or otherwise tractable relaxations of graph matching, based on spectral methods [10], semidefinite programming [42], and dou￾bly stochastic matrices [1]. Closest to ours is the last method, which relaxes the vertex permutation of a graph isomorphism into a doubly stochastic matrix. Unlike ours, this method does not st… view at source ↗
Figure 2.1

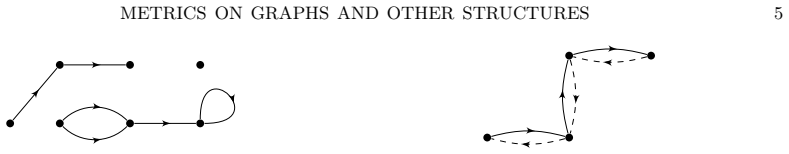

Figure 2.1. Figure 2.1: A graph [PITH_FULL_IMAGE:figures/full_fig_p005_2_1.png] view at source ↗
Figure 2.3
Figure 2.3. Figure 2.3: A reflexive graph [PITH_FULL_IMAGE:figures/full_fig_p006_2_3.png] view at source ↗
Figure 2.5
Figure 2.5. Figure 2.5: A two-dimensional semi-simplicial set We take this list of examples to establish that many graph-like structures can be represented as C-sets. The next example is rather trivial, but later we use its attributed variant to recover the classical Hausdorff and Wasserstein distances as special cases of metrics on C-sets. Example 2.8 (Sets). If 1 = {∗} is the discrete category on one object, then 1-sets are s… view at source ↗
Figure 3.1
Figure 3.1. Figure 3.1: Graphs whose Markov morphisms are mixtures of graph homomorphisms X Y [PITH_FULL_IMAGE:figures/full_fig_p012_3_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: looks superficially similar, with the graph [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 3.4

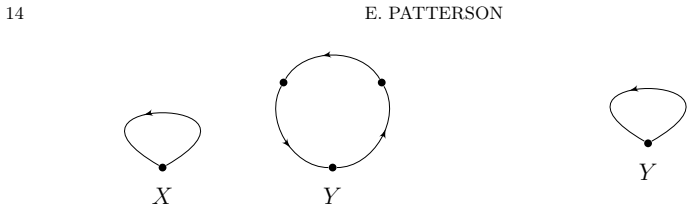

Figure 3.4. Figure 3.4: The terminal graph, for both homomorphisms and Markov morphisms One might suppose that the strategy for relaxing C-set homomorphism carries over directly to C-set isomorphism, but that is not so. The constraints imposed by isomorphism are bilinear, not linear, so convexity would be lost in a direct translation. The problem is not just computational, though, as the following result shows. Proposition 3.9 … view at source ↗
Figure 4.1
Figure 4.1. Figure 4.1: An approximate graph homomorphism between two cycles 5. Wasserstein metric on Markov kernels Our goal is now to define a Wasserstein-style metric on metric measure C-spaces, thus bringing together the threads of the two preceding sections. As a first step, we define a metric on Markov kernels, to serve the same role for the Wasserstein metric as the supremum or L p metrics do for the Hausdorff metric. De… view at source ↗
Figure 5.1

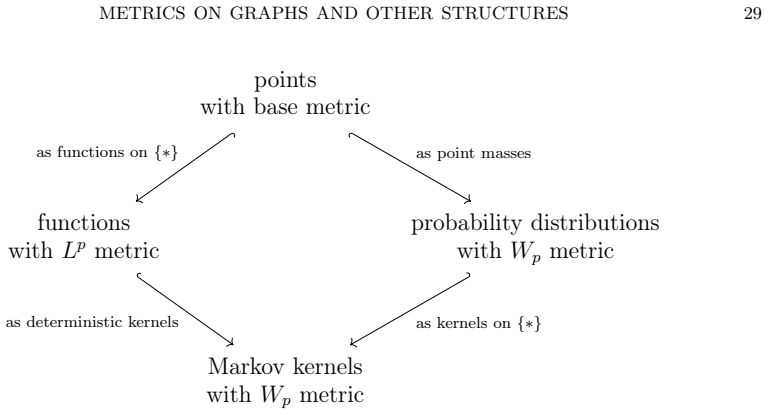

Figure 5.1. Figure 5.1: Lifting a metric from points to functions, distributions, and Markov kernels W → Z are Markov kernels, and ΠXY ∈ Coup(MX , MY ) and ΠY Z ∈ Coup(MY , MZ) are couplings thereof. Then there exists a Markov kernel ΠXY Z : W → X × Y × Z with marginals ΠXY along X × Y and ΠY Z along Y × Z. Proof. By the disintegration theorem for Markov kernels (Theorem A.5), there exist Markov kernels ΠX | Y : W ×Y → X and ΠZ… view at source ↗
read the original abstract

Optimal transport is widely used in pure and applied mathematics to find probabilistic solutions to hard combinatorial matching problems. We extend the Wasserstein metric and other elements of optimal transport from the matching of sets to the matching of graphs and other structured data. This structure-preserving form of optimal transport relaxes the usual notion of homomorphism between structures. It applies to graphs, directed and undirected, labeled and unlabeled, and to any other structure that can be realized as a $C$-set for some finitely presented category $C$. We construct both Hausdorff-style and Wasserstein-style metrics on $C$-sets and we show that the latter are convex relaxations of the former. Like the classical Wasserstein metric, the Wasserstein metric on $C$-sets is the value of a linear program and is therefore efficiently computable.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper extends optimal transport concepts to structured data by defining Hausdorff-style and Wasserstein-style metrics on C-sets for finitely presented categories C (encompassing graphs and similar structures). It constructs these metrics and claims that the Wasserstein versions serve as convex relaxations of the Hausdorff ones, with the Wasserstein metric computable as the optimum of a linear program.

Significance. If the constructions and relaxation property are rigorously established, the work offers a principled way to apply optimal transport to matching problems on graphs and other relational structures while preserving the underlying categorical structure, with the added benefit of efficient LP-based computation.

major comments (1)
  1. [LP formulation and relaxation proof] The central relaxation claim (Wasserstein metric as convex relaxation of Hausdorff metric, with zero distance implying a structure-preserving map) requires that the LP constraints encode all relations from the finite presentation of C. The formulation must be shown to enforce functoriality or naturality conditions derived from the morphisms and relations in C; otherwise the relaxation property fails for categories with non-trivial relations.
minor comments (1)
  1. Clarify in the introduction or abstract how the finite presentation of C is used to derive the explicit LP constraints.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying this key point about the LP formulation. We address the major comment below.

read point-by-point responses

  1. Referee: [LP formulation and relaxation proof] The central relaxation claim (Wasserstein metric as convex relaxation of Hausdorff metric, with zero distance implying a structure-preserving map) requires that the LP constraints encode all relations from the finite presentation of C. The formulation must be shown to enforce functoriality or naturality conditions derived from the morphisms and relations in C; otherwise the relaxation property fails for categories with non-trivial relations.

    Authors: We agree that the LP must encode the relations of the finite presentation to guarantee the relaxation property. Our construction defines the Wasserstein metric via an LP whose variables are maps on the generating objects of the C-set and whose constraints are generated exactly by the morphisms and relations in the presentation of C; feasible solutions are therefore required to satisfy the corresponding naturality conditions. The proof that the Wasserstein metric relaxes the Hausdorff metric (and that zero distance yields a structure-preserving map) is built on this encoding. To make the dependence on the presentation fully explicit, we will insert a short lemma in the revised manuscript showing that every relation in the presentation induces a corresponding linear constraint and that the resulting feasible set is precisely the convex hull of the set of functors. This addition will not change the stated theorems but will strengthen their justification. revision: yes

Circularity Check

0 steps flagged

No circularity: metrics constructed from standard OT and C-set homomorphisms without self-referential reduction.

full rationale

The abstract and description present a direct construction: Wasserstein metrics on C-sets are defined via linear programs that relax the classical notion of homomorphism, with Hausdorff-style metrics as the non-relaxed counterpart. No equations, parameters, or uniqueness claims are shown to reduce to fitted inputs or prior self-citations by construction. The derivation relies on external category theory and optimal transport, remaining self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard results from optimal transport theory and category theory. No free parameters, new axioms beyond standard math, or invented entities are apparent from the abstract.

axioms (1)
  • standard math Standard theorems of optimal transport and category theory for C-sets
    The constructions build directly on existing OT and category-theoretic frameworks.
