Experimental Characterization of Bulk Micromegas for Development of Active Target Time Projection Chamber for Nuclear Astrophysics Studies
Pith reviewed 2026-05-22 10:50 UTC · model grok-4.3
The pith
A Micromegas-based TPC prototype reconstructs alpha-particle tracks and matches simulations in argon gas mixtures.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The SAT-TPC prototype with its field-optimized Micromegas readout plane can accurately reconstruct the direction and length of alpha-particle trajectories in the active gas volume, and a hydrodynamic simulation model based on Geant4, Garfield++, and COMSOL reproduces the experimental tracks for alpha particles in Ar-CO2 (90:10) and Ar-iC4H10 (95:5) gases.
What carries the argument
The Micromegas amplification and readout plane, operated at the optimized drift-to-amplification field ratio, that supplies both charge gain and two-dimensional pad signals for reconstructing particle trajectories in the time projection chamber.
If this is right
- Accurate track reconstruction enables direct measurement of reaction kinematics in low-energy nuclear astrophysics studies.
- The validated simulation chain supports predictive design of larger or modified versions of the detector.
- Measured energy resolution with standard sources indicates the detector can distinguish different reaction products.
- The prototype results establish a baseline for scaling the active-target approach to rarer processes.
Where Pith is reading between the lines
- If the reconstruction remains stable with actual beams, the detector could support real-time identification of reaction channels without separate target foils.
- Further tests at higher pressures or with different gas admixtures would expand the energy range for astrophysical reaction studies.
- Combining the TPC with external veto detectors might reduce backgrounds in future underground or low-rate experiments.
Load-bearing premise
The field optimization and track reconstruction performance measured in the prototype will hold under the conditions of actual nuclear astrophysics experiments without major additional calibration or background issues.
What would settle it
A clear mismatch between measured and simulated alpha track lengths or directions when the same detector is exposed to a known-energy particle beam would show that the models or optimizations do not translate to real experimental conditions.
read the original abstract

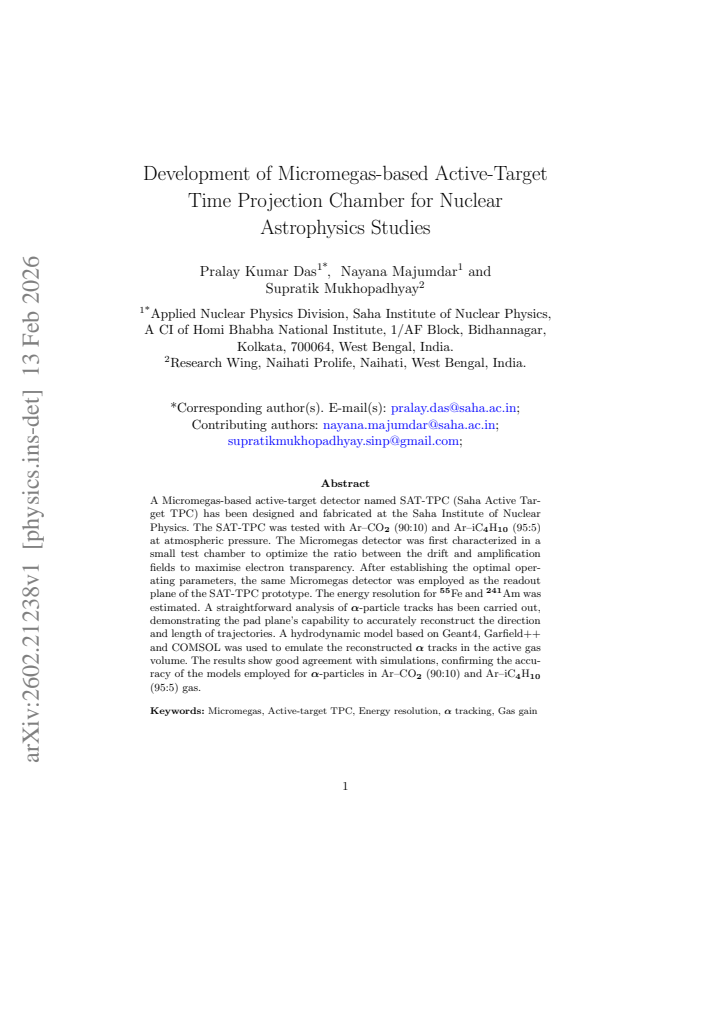

A Micromegas-based active target Time Projection Chamber, namely Saha Active Target TPC (SAT-TPC), is under development at Saha Institute of Nuclear Physics for its application in nuclear astrophysics experiment to measure the branching ratio of the direct and sequential decay of the Hoyle state of $^{12}$C. A bulk Micromegas was characterized to optimize its operating parameters and its performance for $\alpha$-particle tracking was investigated using gas mixtures Ar + CO$_{2}$ (90:10) and Ar + i-C$_4$H$_{10}$ (95:5) at atmospheric pressure using 5.9~keV X-ray and 5.48~MeV $\alpha$-particles from radioactive sources. A hydrodynamic transport model was used to simulate the charge-deposit profile of the $\alpha$-particle track on the Micromegas readout and compared to the experimental data to complement the experimental measurement as well as validate the numerical model. A good agreement was observed that confirmed the suitability of the choice of the bulk Micromegas in the development of the SAT-TPC prototype and the hydrodynamic modelling of the detector dynamics
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript describes the design, fabrication, and initial testing of the SAT-TPC, a Micromegas-based active-target time projection chamber intended for nuclear astrophysics studies. It reports characterization of the Micromegas in a small test chamber to optimize drift-to-amplification field ratios for electron transparency, energy resolution estimates with 55Fe and 241Am sources, a straightforward analysis demonstrating the pad plane's ability to reconstruct alpha-particle direction and length in Ar-CO2 (90:10) and Ar-iC4H10 (95:5) at atmospheric pressure, and comparison of the reconstructed tracks to a hydrodynamic model combining Geant4, Garfield++, and COMSOL, with the abstract stating that the results show good agreement confirming model accuracy.
Significance. If the performance claims are substantiated with quantitative metrics, the work would represent a useful step toward validated active-target TPCs for low-cross-section nuclear reactions in astrophysics, where the gas volume serves simultaneously as target and detector. The direct experimental comparison to independent simulation packages is a positive feature that could support future detector optimization if the agreement is shown to be rigorous rather than qualitative.
major comments (1)
- [Abstract] Abstract: The central claim that the hydrodynamic model 'accurately reproduces observed α-track properties' and confirms 'the accuracy of the models employed' rests on the statement of 'good agreement with simulations' without any reported figures of merit. No angular or length resolution values, residual distributions, χ² or KS-test statistics, or separate validation of drift, diffusion, and amplification parameters are provided. This absence prevents rigorous assessment of whether the Geant4/Garfield++/COMSOL combination reproduces the data at a level sufficient to support the model-accuracy conclusion.
minor comments (2)
- The energy resolution for 55Fe and 241Am is described only as 'estimated' without numerical values, uncertainties, or comparison to expected performance; including these data (with error bars) would strengthen the detector characterization section.
- Notation for the gas mixtures is inconsistent in spacing (Ar-CO2 (90:10) vs. Ar-iC4H10(95:5)); uniform formatting would improve readability.
Simulated Author's Rebuttal
We thank the referee for the careful review and constructive feedback on our manuscript describing the SAT-TPC prototype. We address the major comment below and have prepared revisions to strengthen the presentation of our results.
read point-by-point responses
-
Referee: [Abstract] Abstract: The central claim that the hydrodynamic model 'accurately reproduces observed α-track properties' and confirms 'the accuracy of the models employed' rests on the statement of 'good agreement with simulations' without any reported figures of merit. No angular or length resolution values, residual distributions, χ² or KS-test statistics, or separate validation of drift, diffusion, and amplification parameters are provided. This absence prevents rigorous assessment of whether the Geant4/Garfield++/COMSOL combination reproduces the data at a level sufficient to support the model-accuracy conclusion.
Authors: We agree that quantitative figures of merit would enable a more rigorous assessment of the model-data agreement. The original manuscript presented the comparison primarily through visual overlays of reconstructed and simulated α-tracks (in the figures showing track projections for both gas mixtures), which illustrate close correspondence in direction and length. To address this point directly, we will revise the manuscript to include explicit quantitative metrics: the standard deviation of the angular difference between reconstructed and simulated tracks (reported separately for each gas mixture), the mean relative difference in track lengths, and a short discussion of the input drift and diffusion parameters validated against our field-ratio optimization data and literature values. We will also update the abstract to reference these metrics while retaining the overall conclusion. These additions will be incorporated in the revised version without altering the underlying data or analysis. revision: yes
Circularity Check
No circularity: direct experimental data compared to independent external simulation packages
full rationale
The manuscript reports prototype fabrication, Micromegas field optimization in a test chamber, energy resolution measurements with 55Fe and 241Am sources, straightforward alpha-track reconstruction from pad-plane data, and comparison of observed tracks against a hydrodynamic model implemented in Geant4/Garfield++/COMSOL. These steps rely on physical measurements and third-party simulation codes whose parameters are not derived from the present dataset; no equations, fitted parameters, or self-citations are shown to reduce the reported agreement to a tautology or self-definition. The central claim of model accuracy is therefore an external validation rather than an internal re-expression of the inputs.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Electron drift and amplification in Ar-CO2 and Ar-iC4H10 mixtures follow established models under the applied fields.
