Calabi-Yau Orientifold Hypersurfaces and their F-theory Uplifts

Pith reviewed 2026-06-26 19:37 UTC · model grok-4.3

classification ✦ hep-th
keywords Calabi-Yau orientifoldsF-theory upliftsreflexive polytopestoric varietiesCalabi-Yau fourfoldselliptic fibrationsmirror symmetryseven-brane superpotential
0
0 comments X

The pith

An algorithm constructs Calabi-Yau threefold orientifolds and their F-theory uplifts as elliptically fibered fourfolds from 6d reflexive polytopes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an algorithm to generate Calabi-Yau threefold orientifolds together with their F-theory uplifts realized as elliptically fibered Calabi-Yau fourfolds. These fourfolds sit inside toric varieties and arise via triangulations of six-dimensional reflexive polytopes that the algorithm builds directly from the given orientifold data. A reader would care because the construction yields geometries that stay smooth except at isolated terminal singularities and, for many examples, immediately supplies the mirror manifold so that fourfold periods and the seven-brane superpotential become computable.

Core claim

We present an algorithm that constructs Calabi-Yau threefold orientifolds and their F-theory uplifts to elliptically-fibered Calabi-Yau fourfolds, embedded in toric varieties at codimension one and two respectively. The resulting Calabi-Yau fourfolds arise from triangulations of 6d reflexive polytopes which our method constructs from orientifold data and are smooth away from isolated terminal singularities. For many of our fourfolds, the construction of the mirror manifold is immediate, enabling the computation of fourfold periods, and thus the seven-brane superpotential.

What carries the argument

The algorithm that builds 6d reflexive polytopes from orientifold data so that their triangulations produce elliptically fibered Calabi-Yau fourfolds.

If this is right

  • Immediate mirror manifold construction becomes available for many of the generated fourfolds.
  • Fourfold periods can be computed directly from the mirror data.
  • The seven-brane superpotential follows from those periods.
  • The fourfolds remain smooth except at isolated terminal singularities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method supplies explicit geometric data that could support systematic enumeration of F-theory vacua.
  • It may link to broader mirror-symmetry calculations in string compactifications beyond the examples shown.
  • Extensions could test whether the same orientifold-to-polytope map works for non-toric or higher-codimension embeddings.

Load-bearing premise

The polytopes generated by the algorithm from orientifold data always produce fourfolds that remain smooth away from isolated terminal singularities after triangulation.

What would settle it

An orientifold input for which the algorithm outputs a 6d reflexive polytope whose triangulation produces a fourfold with singularities that are neither isolated nor terminal.

Figures

Figures reproduced from arXiv: 2606.19423 by Bjoern Hassfeld, Jakob Moritz.

Figure 1
Figure 1. Figure 1: The trilayer polytope of P[1, 1, 2] and its dual are displayed in their trilayer normal form. While the former polytope does not have any points in its zero-layer besides the origin, the latter has the two points (0, 1) and (0, −1). and this property gives the polytope its name. Only the special point v∗ is mapped to −1 and all points in the hyperplane H get mapped to +1 under the map above. We will refer … view at source ↗
Figure 2

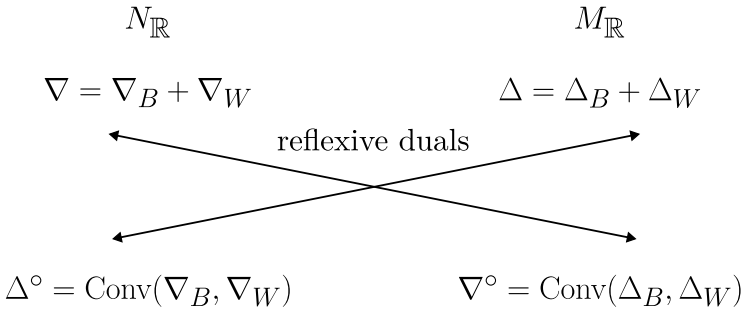

Figure 2. Figure 2: Dualities for Batyrev-Borisov [65, 70] symmetry coming from nef-partitions. [PITH_FULL_IMAGE:figures/full_fig_p030_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The fan of P 2 and of P 2/Z2 after orbifolding with respect to the vector ξ = (1, 1). The red lattice points are due to refinement. The blue ray is the blow-up divisor v4 resolving the A1-singularity. The generic anticanonical hypersurface therein is a T 2 cut out by a cubic polynomial in the homogeneous coordinates. Orbifolding P 2 by refining the lattice with the lattice vector ξ/2 = (1, 1)/2 leads to a … view at source ↗
Figure 4

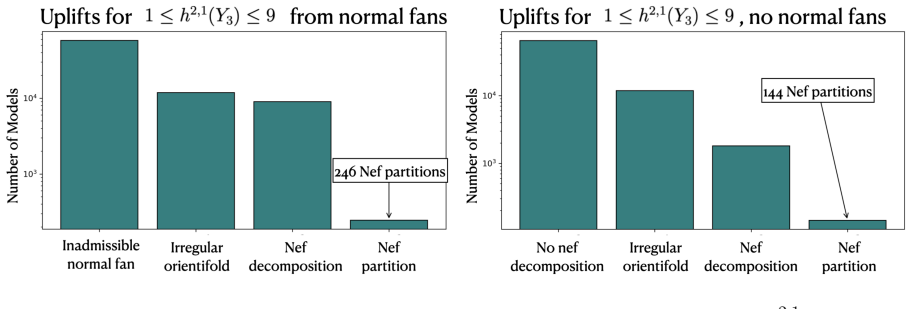

Figure 4. Figure 4: Properties of 78, 724 uplifts of Calabi-Yau threefolds with 1 ≤ h 2,1 ≤ 9. Left: results after appealing to the normal fan construction of §4.4. Right: results without using this technology. from the columns v1, . . . , v6 of pnormal =   −2 0 0 0 1 −1 −1 0 0 1 0 0 −1 0 1 0 0 0 −1 1 0 0 0 0   . (5.40) In the resulting toric variety, we have DbB = 5D1 + 2D6 , Db 6KB = −24D1 + 6D2 + 6D3 + 6D4 + 6D… view at source ↗
Figure 5

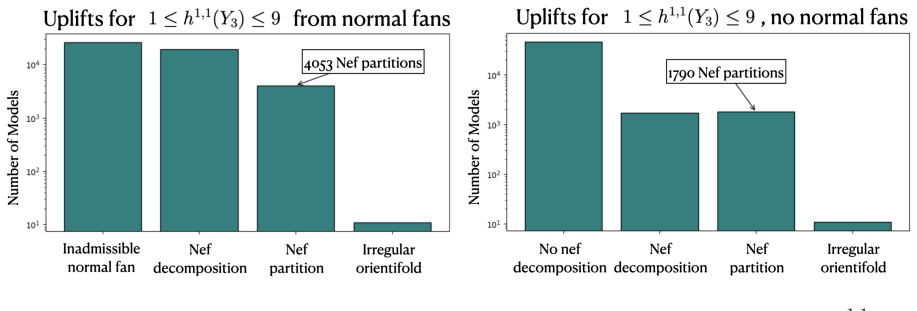

Figure 5. Figure 5: Properties of 49, 411 uplifts arising from Calabi-Yau threefolds with 1 ≤ h 1,1 ≤ 9. Left: results after appealing to the normal fan construction of §4.4. Right: results without using this technology. are shown, while [PITH_FULL_IMAGE:figures/full_fig_p052_5.png] view at source ↗
Figure 6

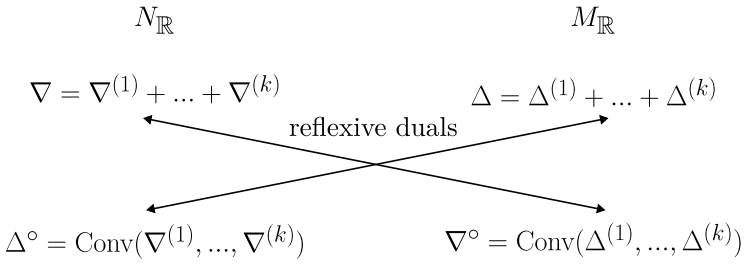

Figure 6. Figure 6: Dualities for Batyrev-Borisov mirror symmetry coming from nef-partitions. [PITH_FULL_IMAGE:figures/full_fig_p059_6.png] view at source ↗
read the original abstract

We present an algorithm that constructs Calabi-Yau threefold orientifolds and their $F$-theory uplifts to elliptically-fibered Calabi-Yau fourfolds, embedded in toric varieties at codimension one and two respectively. The resulting Calabi-Yau fourfolds arise from triangulations of $6d$ reflexive polytopes -- which our method constructs from orientifold data -- and are smooth away from isolated terminal singularities. For many of our fourfolds, the construction of the mirror manifold is immediate, enabling the computation of fourfold periods, and thus the seven-brane superpotential. We present multiple examples that demonstrate these capabilities. Our algorithms work with $\mathtt{CYTools}$ and are available through a GitHub repository.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper presents an algorithm that constructs Calabi-Yau threefold orientifolds and their F-theory uplifts to elliptically-fibered Calabi-Yau fourfolds, embedded in toric varieties at codimension one and two respectively. The resulting Calabi-Yau fourfolds arise from triangulations of 6d reflexive polytopes—which the method constructs from orientifold data—and are smooth away from isolated terminal singularities. For many of the fourfolds the mirror manifold construction is immediate, enabling computation of fourfold periods and thus the seven-brane superpotential. Multiple explicit examples are provided, and the algorithms are implemented in CYTools with public code release.

Significance. If the algorithm reliably generates the claimed fourfolds with the stated smoothness properties and supports period computations via mirrors, the work would provide a concrete, reproducible tool for systematic construction of F-theory models with orientifold data. The public code release and integration with CYTools constitute a clear strength for reproducibility and further use in the field.

minor comments (2)
  1. [Abstract] Abstract: the smoothness statement ('smooth away from isolated terminal singularities') is presented as a property of the outputs; a short statement in §3 or the examples section confirming how terminal singularities are identified and counted in the explicit constructions would strengthen the claim without altering the central result.
  2. The manuscript states that mirror construction is 'immediate' for many fourfolds; a brief clarification on the criterion used to identify those cases (e.g., a reference to a specific triangulation property or polytope feature) would improve clarity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our work, the assessment of its significance, and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

Algorithmic construction with explicit code release; no circular reductions

full rationale

The paper describes a constructive algorithm that ingests orientifold data, builds 6d reflexive polytopes, performs triangulations, and outputs elliptically fibered CY4 hypersurfaces. Smoothness away from terminal singularities is stated as an observed property of the algorithm's outputs across presented examples, not a derived claim that reduces to fitted parameters or prior self-referential definitions. The work is implemented in CYTools with public GitHub code, making the central claims empirically verifiable from the construction steps rather than tautological. No load-bearing self-citations, ansatze smuggled via citation, or renamings of known results appear in the provided abstract or description. The derivation chain is therefore self-contained as an explicit procedure.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no details on free parameters, axioms, or invented entities; ledger is empty pending full text.
