arxiv: 1907.09558 · v1 · pith:FSW4B5VAnew · submitted 2019-07-12 · 💻 cs.RO · cs.SE

System-Level Development of a User-Integrated Semi-Autonomous Lawn Mowing System: Problem Overview, Basic Requirements, and Proposed Architecture

Albert E. Patterson , Yang Yuan , William R. Norris This is my paper

Pith reviewed 2026-05-24 22:26 UTC · model grok-4.3

classification 💻 cs.RO cs.SE
keywords semi-autonomous roboticslawn mowing systemssystems engineeringuser-integrated systemshome roboticssystem architecturedesign requirements
0
0 comments X

The pith

A systems engineering perspective yields a proposed architecture for user-integrated semi-autonomous home lawn mowers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reviews current progress on home-sized lawn mowing robots and frames the problem from a systems engineering viewpoint. It introduces a general system architecture that combines user input with semi-autonomous operation and provides a preliminary set of design requirements. The work positions this as a baseline to motivate further development in robotics and systems engineering communities. A sympathetic reader would care because the framing identifies what practical home systems must balance between autonomy and human oversight.

Core claim

The paper proposes a general system architecture for user-integrated semi-autonomous home-sized lawn mowing systems, developed from a systems engineering perspective, along with a preliminary set of design requirements, to serve as a baseline and motivation for further development and refinement.

What carries the argument

The general system architecture that integrates user input with semi-autonomous mowing functions to address home-scale operational needs.

If this is right

  • Development efforts can use the architecture directly to build and test functional prototypes.
  • The preliminary requirements provide a checklist for evaluating or improving existing mowing systems.
  • Academic and commercial groups can reference this structure as a shared starting point for collaboration.
  • It underscores how systems engineering can organize requirements for emerging home robotics applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This framing may favor incremental user-assisted designs over waiting for fully autonomous solutions that face harder terrain and safety challenges.
  • The architecture could extend to other household robotics tasks that benefit from occasional human correction.
  • Real-home trials measuring task completion time and user intervention frequency would test whether the semi-autonomous balance delivers measurable gains.

Load-bearing premise

That a user-integrated semi-autonomous approach is the appropriate framing for home lawn mowing and that the proposed architecture captures the essential requirements.

What would settle it

Implementation of systems that ignore the user-integration element or the proposed architecture yet achieve superior reliability, safety, or user acceptance in varied home environments would show the baseline is not essential.

Figures

Figures reproduced from arXiv: 1907.09558 by Albert E. Patterson, William R. Norris, Yang Yuan.

Figure 1

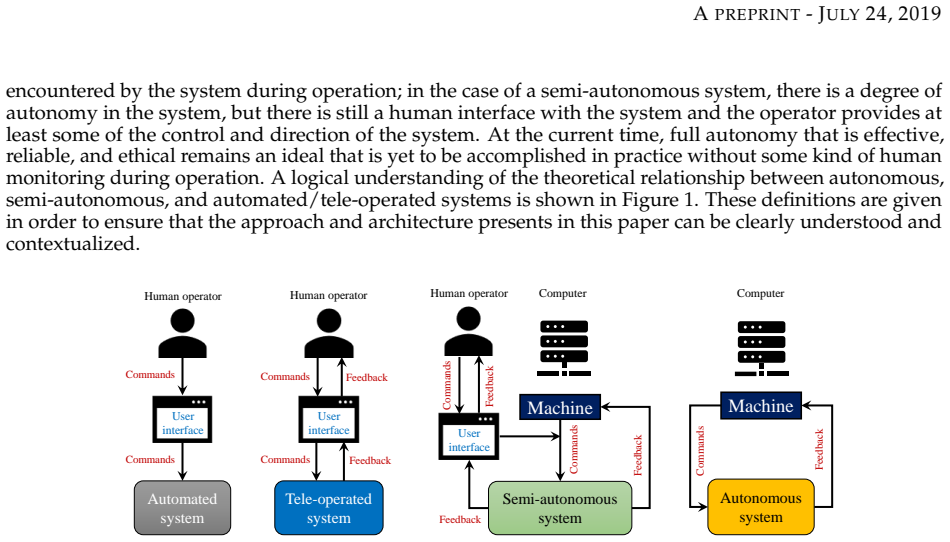

Figure 1. Figure 1: Automated/tele-operated, semi-autonomous, and autonomous system concepts [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

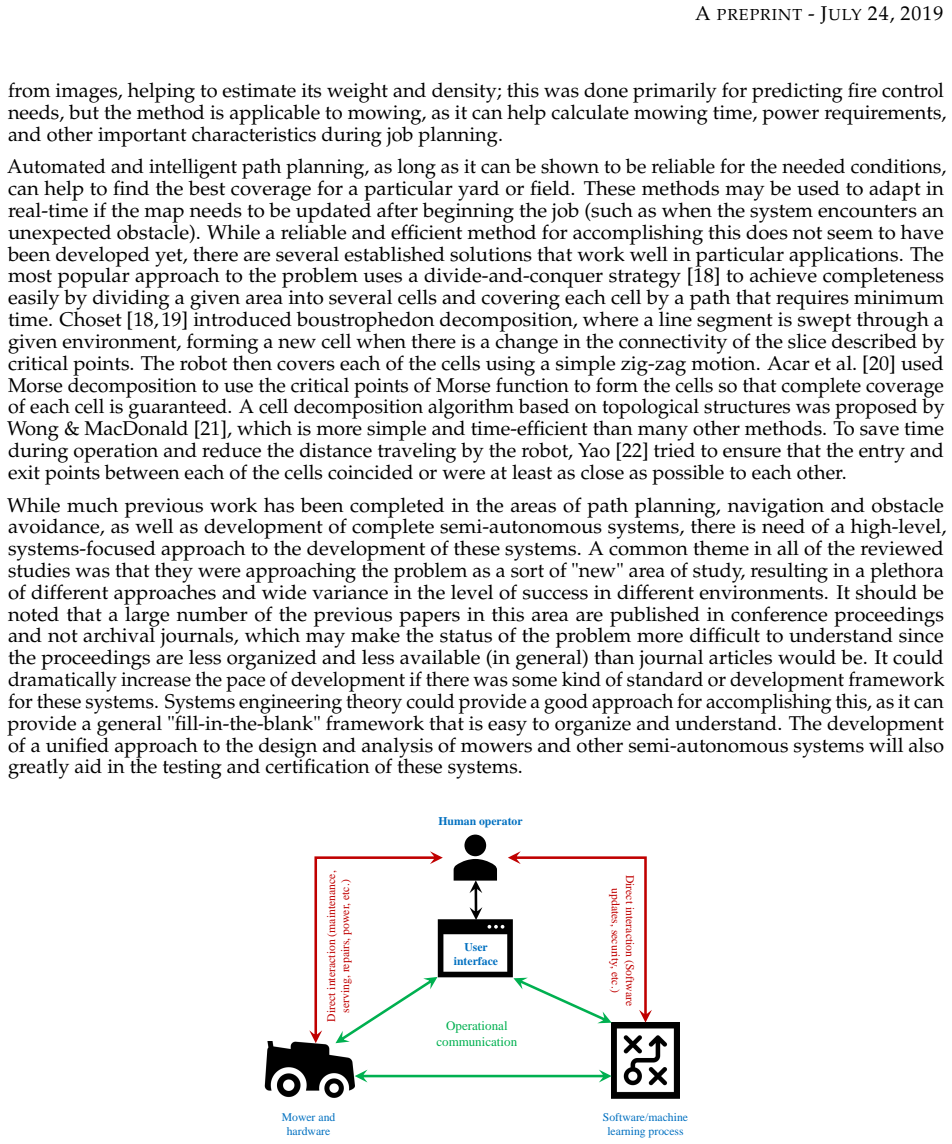

Figure 2. Figure 2: Semi-autonomous mowing system top-level interfaces [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

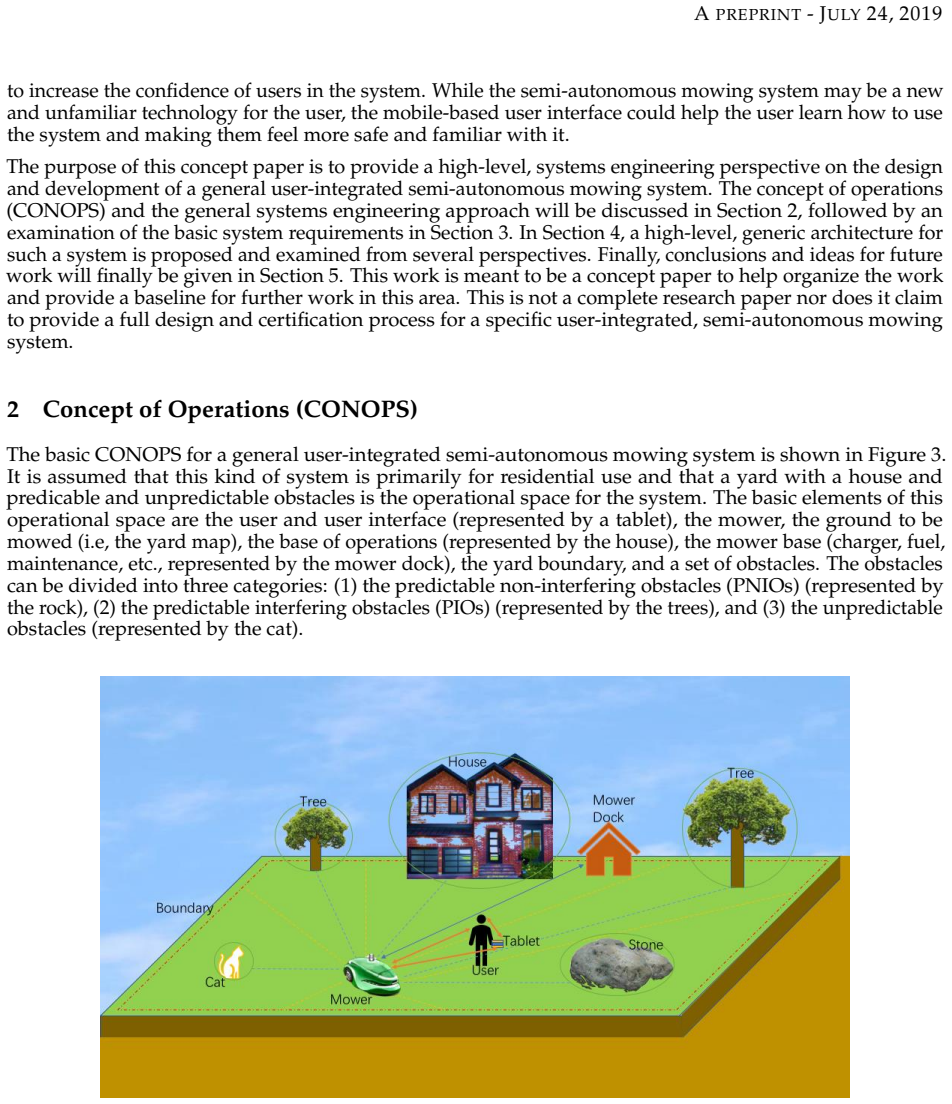

Figure 3. Figure 3: Concept of operations (CONOPS) for home-based semi-autonomous lawn mowing system [23] [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

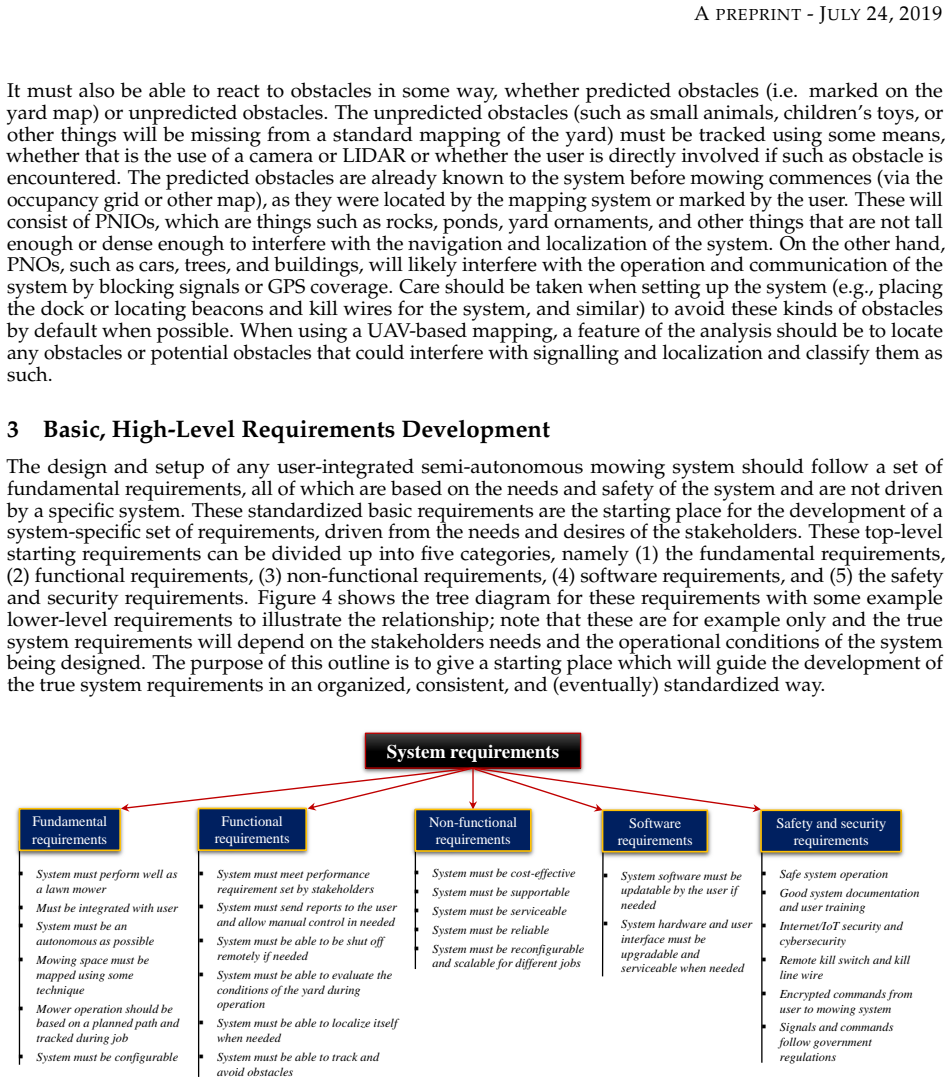

Figure 4. Figure 4: Basic top-level requirement categories for a general user-integrated semi-autonomous mowing system with example [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

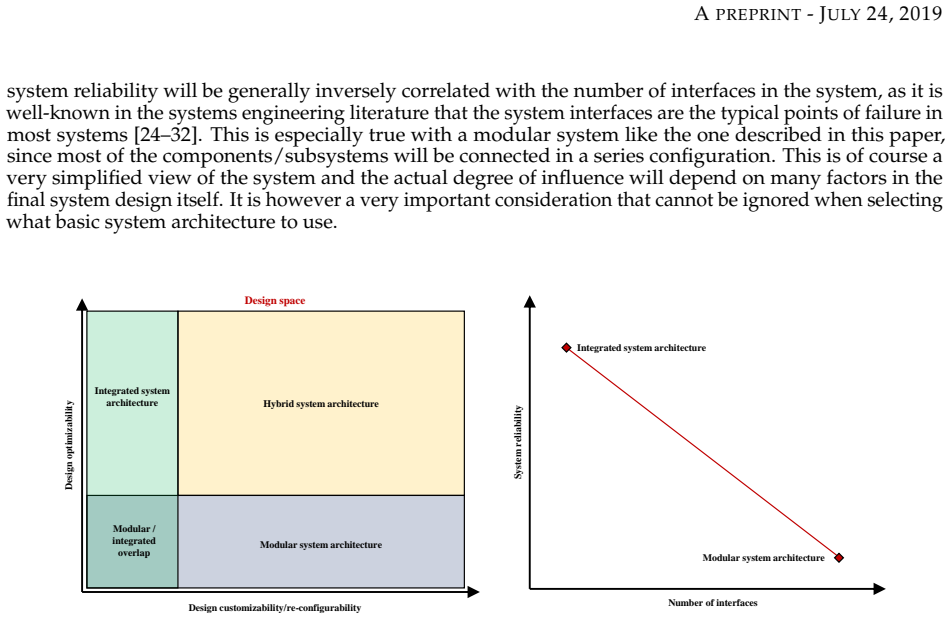

Figure 5. Figure 5: Modular, integrated, and hybrid architecture complexity and reliability [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

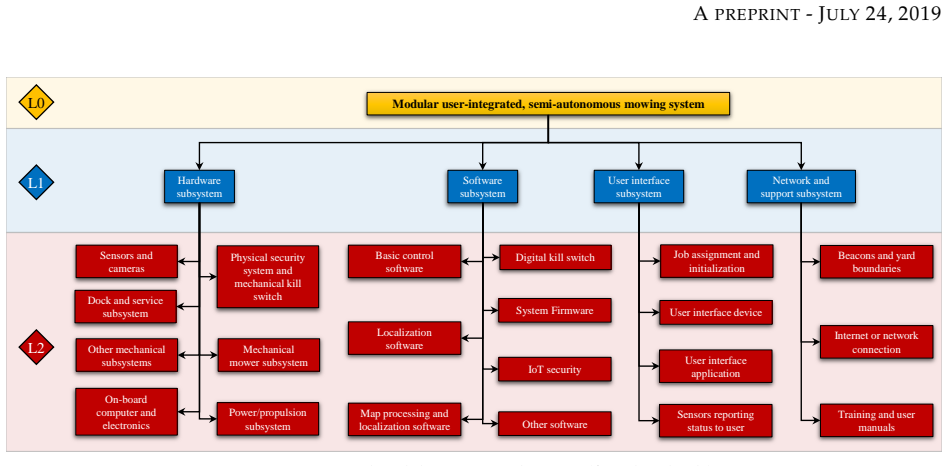

Figure 6. Figure 6: Proposed modular system architecture (first three levels) [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

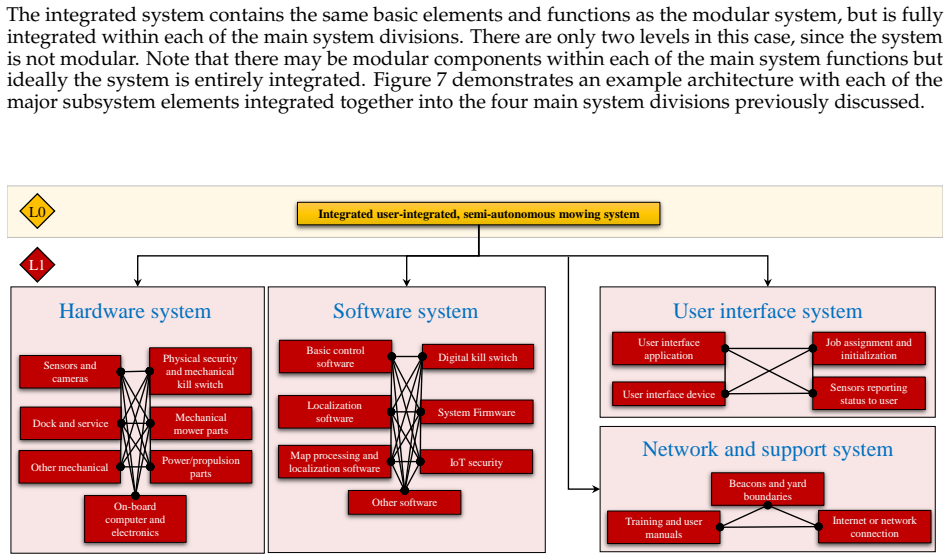

Figure 7. Figure 7: Proposed integrated system architecture Likely the most useful and practical case would be the hybrid system architecture, which combines elements of both the modular and hybrid cases to find a good balance between system flexibility and optimizability. For example, ( [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

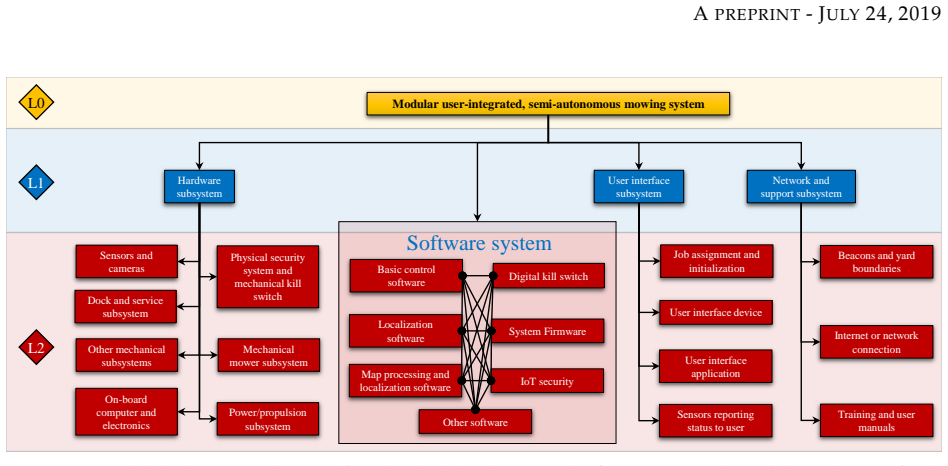

Figure 8. Figure 8: Example hybrid system architecture (first three levels) with integrated software system and a modular architecture for the [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
read the original abstract

This concept paper outlines some recent efforts toward the design and development of user-integrated semi-autonomous home-sized lawn mowing systems from a systems engineering perspective. This is an important and emerging field of study within the robotics and systems engineering communities. The work presented includes a review of current progress on this problem, a discussion of the problem from a systems engineering perspective, a general system architecture developed by the authors, and a preliminary set of design requirements. This work is meant to provide a baseline and motivation for the further development and refinement of these systems within the systems engineering and robotics communities and is relevant to both academic and commercial research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. This concept paper reviews progress on user-integrated semi-autonomous home-sized lawn mowing systems, frames the problem from a systems-engineering viewpoint, presents a proposed general system architecture, and lists preliminary design requirements. The stated contribution is to supply a baseline and motivation for subsequent work in the robotics and systems-engineering communities rather than to deliver validated performance data or formal proofs.

Significance. If the architecture and requirements accurately reflect essential integration points between user input and autonomous subsystems, the paper could usefully seed further community efforts. Its primary strength is the explicit positioning as a non-empirical baseline document; no machine-checked proofs, reproducible code, or falsifiable predictions are supplied, so significance remains motivational rather than demonstrative.

minor comments (3)
  1. [Proposed Architecture section] The abstract states that a 'general system architecture developed by the authors' is presented, yet the corresponding section supplies only high-level block descriptions without interface specifications or data-flow details; adding a single schematic would improve clarity for readers intending to build upon the baseline.
  2. [Basic Requirements section] The preliminary requirements list mixes functional and non-functional items without explicit traceability to the systems-engineering discussion that precedes it; a short traceability matrix or numbered cross-references would make the linkage between problem framing and requirements explicit.
  3. [Review of current progress] Several citations to commercial robotic mowers appear in the review of current progress but lack publication years or version identifiers, making it difficult for readers to locate the exact systems being contrasted with the proposed user-integrated approach.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the review and for recommending minor revision. The report correctly characterizes the manuscript as a non-empirical concept paper whose contribution is motivational rather than demonstrative.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper is a systems-engineering concept document presenting a review of progress, a problem discussion, a proposed general architecture, and preliminary design requirements. It explicitly frames its contribution as a baseline and motivation for community development rather than any formal derivation, prediction, or validated claim. No equations, fitted parameters, self-citations used as load-bearing premises, or reductions of outputs to inputs by construction appear anywhere in the manuscript. The central claim therefore stands independently of any circular step.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The document is a high-level concept paper and introduces no new free parameters, axioms, or invented entities beyond ordinary systems-engineering terminology.
