A dataset of aligned real-world channels and environment sensors shows environment data predicts path loss at 2.02 dB mean error.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.3

2026-06-25 22:27 UTC pith:FUWKGQXQ

load-bearing objection Dataset release pairing dual-band CIR with multi-modal sensors on one campus route, with a basic path-loss case study but thin validation on alignment. the 2 major comments →

arxiv 2606.24476 v2 pith:FUWKGQXQ submitted 2026-06-23 eess.SP

WiWorld-RealData: A Real-World Multi-Modal Dataset for 6G Wireless World Models

Yinyin Jiao , Huixin Xu , Jianhua Zhang , Yuelong Qiu , Jingjing Wang , Shaoyi Liu , Yuxiang Zhang , Li Yu
show 2 more authors
Xuebin Sun Guangyi Liu
This is my paper
classification eess.SP
keywords WiWorld-RealDatamulti-modal datasetchannel impulse responseenvironment-assisted predictionpath-loss prediction6G wireless modelingreal-world outdoor datamulti-modal sensing
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces WiWorld-RealData, a multi-modal outdoor dataset that pairs measured channel impulse responses at 3.7 GHz and 6.775 GHz with images, panoramic views, LiDAR point clouds, mmWave radar, and GNSS trajectories collected along campus routes. Unified file organization and metadata manifests create direct sample-level links between each channel response and its corresponding environment observations, timestamps, and antenna settings. A case study uses these alignments for environment-assisted path-loss prediction and reports a mean absolute error of 2.02 dB together with a root mean squared error of 2.69 dB. This result indicates that the paired observations carry information useful for modeling how physical surroundings shape wireless propagation. The work supplies a concrete resource for building 6G wireless world models that operate on measured rather than purely simulated conditions.

Core claim

WiWorld-RealData supplies measured dual-band channel impulse responses together with multi-modal environment data and uses unified file organization and metadata manifests to establish sample-level correspondences; these alignments enable environment-assisted path-loss prediction with a mean absolute error of 2.02 dB and root mean squared error of 2.69 dB, demonstrating that the environment observations contain predictive information for channel variations under real outdoor conditions.

What carries the argument

The unified file organization and metadata manifests that establish sample-level correspondences among channel responses, environment observations, timestamps, route information, antenna configurations, and quality flags.

Load-bearing premise

The sample-level correspondences established through unified file organization and metadata manifests accurately align channel responses with environment observations without significant timing, positioning, or sensor calibration errors.

What would settle it

Re-collect the same routes with independent high-precision timing and position verification, then test whether path-loss prediction error using the original alignments stays below 3 dB; a large increase in error would indicate the alignments do not reliably link environment to channel data.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • The aligned data can be used to train models that jointly process environment states and channel responses for propagation prediction.
  • The acquisition framework supports extension of the dataset to additional frequency bands and scenarios beyond the released dual-band route.
  • Environment-assisted prediction methods achieve mean absolute error of 2.02 dB for path loss when the provided alignments are used.
  • The 10 TB multi-modal field data volume supplies extensive real-world coverage for developing digital twin channel representations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same alignment technique could be applied to indoor or high-mobility routes to test whether predictive performance holds across different propagation environments.
  • Fusion of multiple sensor types (images, LiDAR, radar) might further reduce prediction error compared with single-modality inputs.
  • If the alignments prove robust, network planning tools could incorporate live environment sensing to forecast channel conditions without repeated full measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript presents WiWorld-RealData, a real-world outdoor multi-modal dataset for 6G wireless world models. It includes measured dual-band channel impulse responses (CIRs) at 3.7 GHz and 6.775 GHz collected along campus mobile routes, together with multi-view images, panoramic images, LiDAR point clouds, mmWave radar records, and GNSS trajectories. Sample-level correspondences between channel responses and environment observations are established through unified file organization and metadata manifests. A case study reports that environment-assisted path-loss prediction achieves MAE of 2.02 dB and RMSE of 2.69 dB, indicating that the aligned observations contain predictive information for channel variations. The dataset release is 10 TB-scale with one representative dual-band route made public.

Significance. If the sample-level alignments are accurate to within the relevant spatial and temporal correlation scales, the dataset would provide a valuable public resource for training and validating environment-aware wireless propagation models. The concrete MAE/RMSE numbers in the case study supply a falsifiable baseline for the utility claim, which is a strength for a dataset paper.

major comments (2)
  1. [Abstract / case study] Abstract / case study section: the reported MAE of 2.02 dB and RMSE of 2.69 dB for environment-assisted path-loss prediction presuppose that the sample-level correspondences are accurate; however, the manuscript provides no quantitative validation of synchronization method, clock offsets, GNSS positioning accuracy, sensor calibration residuals, or measured misalignment statistics. If residual timing errors exceed channel coherence time or positioning errors exceed spatial correlation distance at the operating frequencies, the prediction performance could be spurious.
  2. [Dataset description / alignment method] Dataset description: the claim that 'unified file organization and metadata manifests' establish accurate sample-level correspondences is load-bearing for the headline utility result, yet no error bounds, sync-check procedures, or misalignment statistics are reported to support this.
minor comments (2)
  1. [Abstract] The abstract states the overall campaign produced '10 TB-level' data but the public release is limited to one route; clarify the scope of the released subset versus the full campaign in the main text.
  2. [Methods / data collection] No details are given on measurement calibration procedures, data exclusion criteria, or quality-flag definitions; these should be added to the methods section for reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive feedback emphasizing the importance of validating sample-level alignments. This is a substantive point for a dataset paper. We respond to each major comment below and indicate where revisions will be made.

read point-by-point responses

  1. Referee: [Abstract / case study] Abstract / case study section: the reported MAE of 2.02 dB and RMSE of 2.69 dB for environment-assisted path-loss prediction presuppose that the sample-level correspondences are accurate; however, the manuscript provides no quantitative validation of synchronization method, clock offsets, GNSS positioning accuracy, sensor calibration residuals, or measured misalignment statistics. If residual timing errors exceed channel coherence time or positioning errors exceed spatial correlation distance at the operating frequencies, the prediction performance could be spurious.

    Authors: We agree this is a valid concern; without explicit validation, the reported prediction metrics could be influenced by unquantified misalignment. The manuscript currently relies on timestamp-based matching via unified file organization without reporting error bounds or coherence context. We will revise by adding a dedicated subsection on synchronization procedures, including GNSS receiver specifications and typical positioning accuracy, common timestamp reference across sensors, and a discussion of expected channel coherence time and spatial correlation distance at 3.7 GHz and 6.775 GHz. The case study performance provides supporting (though indirect) evidence of utility. However, we cannot supply post-campaign measured misalignment statistics, as no dedicated verification experiments were performed during collection. revision: partial

  2. Referee: [Dataset description / alignment method] Dataset description: the claim that 'unified file organization and metadata manifests' establish accurate sample-level correspondences is load-bearing for the headline utility result, yet no error bounds, sync-check procedures, or misalignment statistics are reported to support this.

    Authors: We acknowledge that the alignment description is insufficiently detailed to support the load-bearing claim. We will expand the dataset description section to explicitly describe the alignment method (timestamp matching with metadata quality flags), include available error bounds from sensor datasheets, and outline the sync-check procedures used in the field. This will make the correspondence claims more transparent and allow readers to assess potential impact on downstream tasks. revision: yes

standing simulated objections not resolved
  • Quantitative measured misalignment statistics or results from independent synchronization validation experiments, as these were not part of the original measurement campaign.

Circularity Check

0 steps flagged

No circularity: empirical dataset release with direct performance reporting

full rationale

The paper is a dataset description that releases measured multi-modal data and reports one empirical case-study result (environment-assisted path-loss prediction MAE 2.02 dB, RMSE 2.69 dB) obtained from that data. No equations, derivations, fitted parameters, or model structures are presented whose outputs reduce to their inputs by construction. The alignment of samples is asserted via file organization and metadata manifests, but this is an operational claim about data release rather than a mathematical derivation that could be circular. The reported prediction performance is therefore an external benchmark on the released data, not a self-referential result.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical dataset collection and release paper; no free parameters, axioms, or invented entities are introduced.

pith-pipeline@v0.9.1-grok · 5861 in / 1288 out tokens · 36283 ms · 2026-06-25T22:27:43.342846+00:00 · methodology

0 comments
read the original abstract

Wireless world models aim to represent, predict, and reason about wireless propagation by jointly understanding physical environments and channel responses. Realizing such models in sixth-generation (6G) digital twin channels requires datasets that capture measured wireless responses and environment states under real-world propagation conditions. This paper presents WiWorld-RealData, a real-world outdoor multi-band channel and multi-modal sensing dataset collected along campus mobile routes. WiWorld-RealData provides measured channel impulse responses (CIRs) at 3.7 GHz and 6.775 GHz, together with multi-view images, panoramic images, light detection and ranging (LiDAR) point clouds, millimeter-wave (mmWave) radar records, and global navigation satellite system (GNSS) trajectories. Through unified file organization and metadata manifests, the dataset establishes sample-level correspondences among channel responses, environment observations, timestamps, route information, antenna configurations, and quality flags. The overall measurement campaign has produced 10 TB-level multi-modal field data. The current public release provides one representative dual-band route at 3.7 GHz and 6.775 GHz with complete channel-environment alignment, while the acquisition framework supports extension to more frequency bands and scenarios. A case study on environment-assisted path-loss prediction achieves a mean absolute error (MAE) of 2.02 dB and a root mean squared error (RMSE) of 2.69 dB, indicating that the aligned environment observations contain predictive information for channel variations. The dataset is available at https://scc.bupt.edu.cn/dataset-manage/datasets/44, and a ScienceDB mirror will be provided upon release.

Figures

Figures reproduced from arXiv: 2606.24476 by Guangyi Liu, Huixin Xu, Jianhua Zhang, Jingjing Wang, Li Yu, Shaoyi Liu, Xuebin Sun, Yinyin Jiao, Yuelong Qiu, Yuxiang Zhang.

Figure 1
Figure 1. Figure 1: Overall architecture of WiWorld-RealData. The dataset is organized by scenario, Tx/Rx link pair, frequency band, and [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Measurement routes of WiWorld-RealData. The light [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Representative synchronized channel–environment sample in WiWorld-RealData, including multi-view images, [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

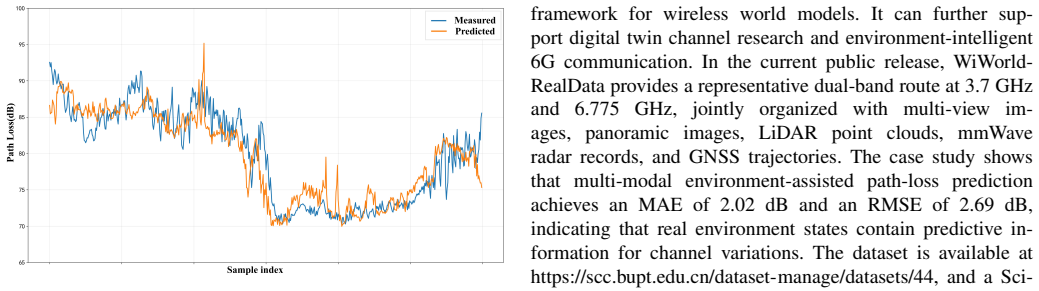

Figure 4. Figure 4: Measured and predicted path loss along the target [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
