Explainable Mapper: Charting LLM Embedding Spaces Using Perturbation-Based Explanation and Verification Agents

T0 review · 3 major / 6 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper claims that mapper graphs of LLM embedding spaces can be annotated semi-automatically by two classes of LLM-based agents—explainers that generate candidate linguistic explanations and verifiers that test them via…

desk verdict A solid mapper-agent framework for exploring LLM embeddings, but the verification scores only measure GPT-4o self-consistency, so the replication claims are suggestive rather than proven. read the letter →

arxiv 2507.18607 v1 pith:GDKLOXXJ submitted 2025-07-24 cs.CG cs.LG

Xinyuan Yan , Rita Sevastjanova , Sinie van der Ben , Mennatallah El-Assady , Bei Wang This is my paper
classification cs.CGcs.LG
keywords mappergraphstopologicaldataanalysisLLMembeddingsexplainableAIperturbation-basedverificationagentsBERTlayervisualanalytics
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Large language models encode rich linguistic information in their high-dimensional embedding spaces, but reading that information off a topological summary of the space usually requires heavy manual analysis. This paper claims that the job can be largely automated: two families of LLM-based agents, Explanation Agents and Verification Agents, generate candidate linguistic explanations for elements of a mapper graph (nodes, edges, paths, components, trajectories) and then robustness-check those explanations by perturbing the underlying sentences. The authors instantiate the agents in a visual analytics workspace, Explainable Mapper, and demonstrate through case studies that the pipeline reproduces well-known findings about how BERT encodes syntactic and semantic properties across its layers. If the framework works as claimed, it gives linguists and model developers a scalable, semi-automatic way to turn the shape of an embedding space into verifiable hypotheses about what the model has learned.

What carries the argument

The load-bearing mechanism is the perturbation-based verification loop: for a given mapper element, the Verification Agent generates five perturbed sentences per input sentence using one-token substitution or rephrasing that keeps the focus word, filters the perturbed embeddings so only those staying within the original node's neighborhood are kept (using the average pairwise distance within the node as a threshold), re-runs the original summarization or comparison prompt on those perturbed data points, and measures the cosine similarity between the original and new explanations using MiniLM sentence embeddings. That similarity score is the operational definition of explanation robustness. The mapper graph itself, constructed with an L2-norm lens and DBSCAN clustering, supplies the topological neighborhoods that make the comparisons meaningful.

What would settle it

Take a mapper node whose true linguistic property is independently known, for example a node whose tokens are all prepositions, run the full explanation-plus-verification pipeline, and compare the consistency score against a human judgment of whether the explanation is correct; if explanations with high cosine similarity are still factually wrong about the node's part of speech or semantic role, the verification score fails as a proxy for faithfulness. A more direct version is to hold out a labeled set of sentences, perturb them, and check whether the cosine-similarity threshold that the paper treats as high separates true statements from false ones.

Watch

Extended reading notes

Core claim

The central claim is that mapper graphs of LLM embedding spaces can be made interpretable through a divergence-convergence workflow in which LLM-based Explanation Agents generate candidate explanations of topological neighborhoods and LLM-based Verification Agents test those explanations for robustness. Robustness is operationalized as consistency: five perturbed sentences are generated for each input sentence via one-token changes or rephrasings that preserve the focus token, the perturbed embeddings that remain inside the same mapper neighborhood are re-summarized with the same method, and the cosine similarity between the original and perturbed summaries (computed with a MiniLM sentence encoder) is reported as the explanation's consistency score. The paper argues that explanations surviving this perturbation test are more likely to faithfully describe the embedding properties, and it supports this by replicating prior results on BERT: possessive pronouns in early layers are non-contextualized and cluster into one component, middle layers separate syntactic functions such as conjunctive versus prepositional uses of 'as', and upper layers separate temporal prepositions by initiation versus culmination. Each replicated finding is accompanied by consistency scores (for example, 0.83 for a path explanation and 0.86 for a path) that the authors interpret as validating the explanations.

Load-bearing premise

The entire verification logic rests on the premise that if the same language model produces a similar explanation after light, meaning-preserving perturbations of the input sentences, then the explanation is robust and faithful—but the check only measures self-consistency of one model, not whether the explanation matches the actual linguistic properties of the neighborhood.

Editorial extensions

If this is right

  • Users can generate candidate explanations for any mapper element without manually inspecting thousands of embeddings.
  • Explanation robustness is reported as a single consistency score, letting users prioritize which insights to trust.
  • The same divergence-convergence agent pattern transfers to edge, path, component, and trajectory explanations.
  • Because the workspace records annotations and interaction provenance, each verified insight is traceable to the nodes and sentences that produced it.
  • Replication of prior BERT findings suggests the pipeline can serve as a literature-validation tool for embedding studies.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the same-model consistency score were replaced or augmented by cross-model agreement, for instance having two different LLMs explain the same perturbed neighborhood, the verification would better guard against model-specific hallucination patterns; the paper only mentions such ensembles as future work.
  • The filtering step that keeps only perturbed sentences whose embeddings stay inside the node implicitly assumes the node's metric threshold is stable, so a testable extension is to check whether consistency scores change when the DBSCAN epsilon or mapper overlap parameters are varied.
  • The paper's trajectory explanations, verified manually by the user, suggest that automated trajectory similarity scoring, such as comparing multiple generated trajectories via embedding distance, would extend the same robustness logic to path-level claims.
  • A direct practical downstream use is model-difficulty auditing: nodes whose explanations have low consistency scores may mark contexts where the model's embeddings are unstable, providing a candidate list for targeted fine-tuning.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper introduces Explainable Mapper, a visual analytics framework for exploring large language model embedding spaces through mapper graphs. It defines a taxonomy of mapper elements (nodes, edges, paths, components, trajectories) and proposes two classes of LLM-based agents: Explanation Agents, which generate candidate explanations via summarization, comparison, and perturbation operations, and Verification Agents, which assess the robustness of those explanations by perturbing input sentences, regenerating explanations, and comparing them with cosine similarity using MiniLM. The framework is instantiated in a workspace, and the evaluation consists of case studies on BERT embeddings that aim to replicate known layer-wise linguistic properties, such as the encoding of possessive pronouns, conjunction/preposition roles, and temporal prepositions. The paper also includes prompt templates in the supplement and discusses limitations in Section 8.

Significance. The framework addresses a real need in embedding-space analysis: the labor-intensive, largely manual interpretation of topological neighborhoods in high-dimensional embedding spaces. The taxonomy of mapper elements and the clear specification of agent operations (summarization, comparison, perturbation) are useful contributions, and the case studies are internally consistent and anchored to established BERT findings. The paper also provides full prompt templates, which supports reproducibility of the agent behavior. However, the significance is limited by two issues. First, the verification mechanism measures self-consistency of a single LLM under its own perturbations, not correctness or fidelity of the explanation to the underlying embedding structure; thus, the reported consistency scores (0.83, 0.86) do not validate the explanations. Second, the evaluation is qualitative and based on a handful of hand-picked examples, with no systematic comparison to prior work, no user study, and no sensitivity analysis of mapper parameters.

major comments (3)
  1. [Section 5.2.2] The Verification Agent's consistency score is computed by having GPT-4o generate the original explanation, generate perturbed sentences for the same node, regenerate an explanation from those perturbed sentences, and then compare the two explanations using MiniLM cosine similarity. This measures the self-consistency of one model's text generation, not whether the explanation captures a real property of the embedding neighborhood. The case studies in Section 7.3 and the supplement rely on this score (e.g., 0.83, 0.86, "high consistency") as evidence that explanations are robust, but the score could be inflated by the model's stylistic consistency and by shared template tokens in the prompts (e.g., 'focus word', 'summary', 'keywords'). Section 8 concedes that verification 'does not guarantee absolute correctness,' yet the framework's stated purpose—'to converge the explanation space to the most reliable candidates'—depends on this measure. I recommend either reframing the score as a self-consistency proxy with no correctness connotation, or adding a validation study: for instance, verifying a deliberately wrong explanation (contradicting the actual node content) and showing that its score is lower, or comparing the score against human expert judgments on a sample of mapper elements.
  2. [Section 9 and Section 7.3] The conclusion states that 'through multiple case studies, we show how the Explainable Mapper workspace can be used to replicate findings from prior work,' but the evaluation does not support the word 'replicate' in a systematic sense. The three case studies in Section 7.3 (possessive pronouns, 'as' as conjunction/preposition, temporal prepositions) and the additional cases in the supplement are qualitative, hand-picked examples with descriptive explanations and consistency scores. No selection criteria are given for the mapper elements analyzed, no quantitative comparison to the original TopoBERT or BERTology results is reported, and no user study or inter-annotator agreement is included. If the contribution is meant to be an 'evaluation through replication studies' (Section 1), the authors should define what constitutes a successful replication and apply that criterion consistently, or explicitly frame the case studies as demonstrations of the system's potential rather than as evidence of replication.
  3. [Section 6.1 and Section 7.3] The mapper graph construction depends on several user-specified parameters: the number of cover intervals n, the cover overlap p, DBSCAN's minPts and ε. While Section 6.1 states that ε is estimated using the elbow method, no sensitivity analysis is reported for the other parameters or for ε itself. The case-study observations, such as the separation of 'as' into two distinct components in layer 5 (Figure 8), could depend on the particular parameter choices. Because the replication claims rest on structural observations like these, a sensitivity analysis—for example, varying n, p, and minPts over a reasonable range and reporting how often the qualitative findings persist—is needed to demonstrate that the reported structures are not artifacts of cherry-picked parameters.
minor comments (6)
  1. [Section 2.2] In the formal definition of a trajectory, the phrase 'a embedding in a target node' should be 'an embedding in a target node.'
  2. [Section 5.2.1] The text introducing the Node Explainer says the comparison operation 'shares the input with the summarization operation,' but the accompanying table shows the comparison operation taking two non-adjacent nodes as input. This inconsistency should be clarified.
  3. [Supplement, Appendix A (Fig. 12)] The explanation text contains the typo 'This my suggest' which should read 'This may suggest.'
  4. [Section 5.2.2 and Section 6.4] The paper reports cosine similarity values (e.g., 0.83, 0.86) and describes them as 'high consistency' or 'highly consistent,' but no threshold or scale is defined. Please specify what range of cosine similarity is considered high, and state the exact MiniLM variant and pooling method used.
  5. [Section 9] The paper states that the workspace 'will be made publicly available under acceptance,' but no repository, data, or demo link is provided. For reproducibility of the case studies, please include an anonymous repository or supplementary material with the code, data, and model configurations.
  6. [Section 3.2] The citation to 'Varbench' should be formatted as 'VarBench' to match the cited paper's title.

Circularity Check

1 steps flagged · score 4.0 of 10

Verification scores are self-consistency by construction; the framework and replication anchors remain independent.

  1. self definitional [Section 5.2.2 (Verification Agents); cf. Section 7.3 and Section 8.]
    "A new explanation is created on the perturbed examples using the same method as for the original Explainer. We then evaluate the similarity between the original and the new explanation applying a cosine similarity on the sentence embedding vectors extracted using the MiniLM model [60]. The similarity is used as an indicator of the explanation’s robustness."

    The robustness score is, by construction, the cosine similarity between two summaries that both come from the same GPT-4o prompt template: one on the original node sentences and one on GPT-4o's own perturbed paraphrases that remain in the node. 'Robustness' is therefore operationalized as same-model self-consistency, and the score is exactly the measured quantity. Reporting a 'high consistency score' (e.g., 0.83 for the Path Verifier, 0.86 in the supplement) as evidence that an explanation is 'more likely to faithfully explain' the embedding space reduces to saying the model's summary resembles its own summary under its own perturbations.

full rationale

The mapper graph construction, taxonomy, and agent prompt design are self-contained: embeddings are extracted from a fine-tuned BERT, mapper is computed with standard parameters, and explanations are generated by GPT-4o prompts. No fitted parameter is relabeled as a prediction, and no uniqueness theorem or ansatz is imported from the authors' prior work to force the choice. The case studies anchor against published BERT findings (Rogers et al., Tenney et al., plus TopoBERT), which gives the replication claim independent content even though TopoBERT is by overlapping authors. The one genuinely circular step is the Verification Agent's operationalization of robustness: the score is, by construction, the cosine similarity between two summaries produced by the same GPT-4o prompt on the original and on LLM-perturbed in-node sentences. Thus a 'high consistency score' restates that the model's summary resembles itself under its own perturbations; it does not validate that the explanation captures a true shared property of the mapper node. The paper's Section 8 disclaimer limits but does not remove this self-definitional reduction, because the verification claims rely on this score as the convergence criterion. Since the central framework and the replication studies do not otherwise reduce to their inputs, the overall circularity is partial (4/10).

Assumptions & free parameters 6 free parameters · 7 assumptions · 0 invented entities

The central claim rests on mapper theory, the lens and clustering choices, the fidelity of LLM summarization, and the validity of self-consistency as a verification signal. The framework introduces no new mathematical entities or fitted constants, but the case-study evidence depends on several domain assumptions, especially the robustness proxy.

free parameters (6)
  • Mapper cover intervals n = not specified (user-set)
    Set in the Control Panel (Section 6.1); determines granularity of the mapper graph and hence the observed components and paths in the case studies.
  • Mapper cover overlap p = not specified (user-set)
    Set in the Control Panel; controls edge connectivity between nodes.
  • DBSCAN minPts = default 3
    User-set clustering parameter (Section 2.2); affects which embeddings form nodes.
  • DBSCAN epsilon = estimated via elbow method
    Estimated automatically from data (Section 2.2); central to both classical and ball mapper node formation.
  • Verification retention threshold = node-specific average pairwise distance
    Used in Section 5.2.2 to decide if a perturbed sentence remains in the node; a hand-chosen criterion that influences consistency scores.
  • Number of perturbed sentences per input = 5
    Default perturbation count stated in Section 5.2.2; affects the stability estimate.
assumptions (7)
  • standard math Mapper graph construction (1D nerve of a pullback cover) faithfully summarizes the topological structure of the embedding point cloud.
    Invoked in Section 2.2 as the foundation of the entire analysis; accepted mathematical construction, but its faithfulness for arbitrary high-dimensional embeddings is an interpretive assumption.
  • domain assumption The L2-norm lens captures meaningful activation strength for token embeddings.
    Section 2.2 states this and cites prior work [45,47]; the choice of lens determines which convergences appear in the mapper graph.
  • domain assumption Prior BERT layer-wise findings (early surface, middle syntax, upper semantics) are correct and serve as ground truth for the replication studies.
    Section 7.2 summarizes these findings from Rogers et al. and TopoBERT; the case-study claims are 'replications', so the paper assumes these external results are true.
  • domain assumption LLM-generated summaries and keywords accurately describe the common linguistic properties of the input sentences.
    The entire explanation pipeline (Section 5.2.1) trusts GPT-4o to summarize clusters; Section 8 acknowledges hallucination risk.
  • domain assumption Cosine similarity between original and perturbed explanations (via MiniLM) is a valid robustness indicator.
    Section 5.2.2 uses this similarity as the verification score and Section 8 admits it does not guarantee correctness.
  • domain assumption A perturbed sentence whose embedding is within the node's average pairwise distance still belongs to the same topological neighborhood.
    The Node Verifier in Section 5.2.2 retains perturbed sentences based on this distance criterion.
  • domain assumption 1-token perturbations and paraphrases have minimal impact on embeddings, so stability under them reflects explanation robustness.
    Section 8 explicitly acknowledges this assumption can fail in both directions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Explainable Mapper: Charting LLM Embedding Spaces Using Perturbation-Based Explanation and Verification Agents." pith.science (2026). https://pith.science/paper/GDKLOXXJ

@misc{pith2026250718607,
  author       = {Pith},
  title        = {Pith review of: Explainable Mapper: Charting LLM Embedding Spaces Using Perturbation-Based Explanation and Verification Agents},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GDKLOXXJ}},
  note         = {Machine review of arXiv:2507.18607}
}
read the original abstract

Large language models (LLMs) produce high-dimensional embeddings that capture rich semantic and syntactic relationships between words, sentences, and concepts. Investigating the topological structures of LLM embedding spaces via mapper graphs enables us to understand their underlying structures. Specifically, a mapper graph summarizes the topological structure of the embedding space, where each node represents a topological neighborhood (containing a cluster of embeddings), and an edge connects two nodes if their corresponding neighborhoods overlap. However, manually exploring these embedding spaces to uncover encoded linguistic properties requires considerable human effort. To address this challenge, we introduce a framework for semi-automatic annotation of these embedding properties. To organize the exploration process, we first define a taxonomy of explorable elements within a mapper graph such as nodes, edges, paths, components, and trajectories. The annotation of these elements is executed through two types of customizable LLM-based agents that employ perturbation techniques for scalable and automated analysis. These agents help to explore and explain the characteristics of mapper elements and verify the robustness of the generated explanations. We instantiate the framework within a visual analytics workspace and demonstrate its effectiveness through case studies. In particular, we replicate findings from prior research on BERT's embedding properties across various layers of its architecture and provide further observations into the linguistic properties of topological neighborhoods.

Figures

Figures reproduced from arXiv: 2507.18607 by the authors.

Figure 1
Figure 1. We apply mapper graphs—a widely used tool in topological data analysis and visualization—to investigate the topological [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

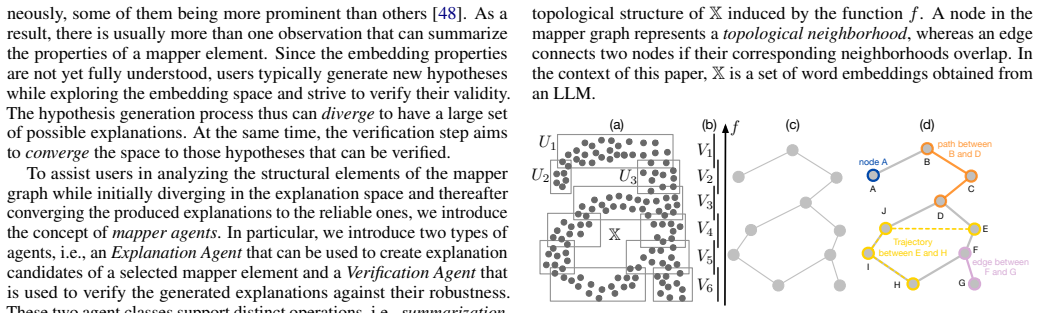

Figure 2. A simple example of computing a mapper graph. A point cloud [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. We use the analogy of a decoder-encoder model, where the main [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (17 more)
Figure 4
Figure 4. Figure 4: The Explainable Mapper workspace consists of two main visualizations, i.e., the Mapper Graph and Projection visualized as a scatter plot. Properties associated with the mapper graph and its underlying embeddings are displayed in the Settings Panel. The user can specify…
Figure 5
Figure 5. Figure 5: A Node Verifier takes a node (with its data points) and the ini [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6

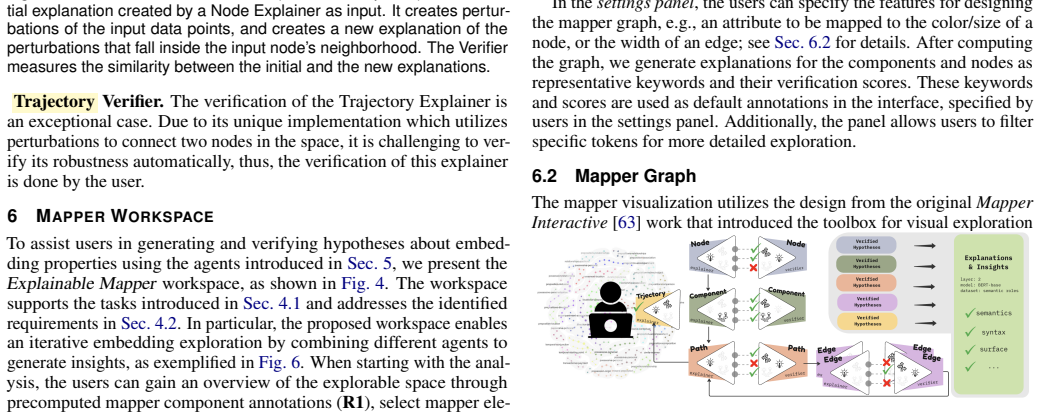

Figure 6. Figure 6: We support an iterative process involving numerous combinations [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7

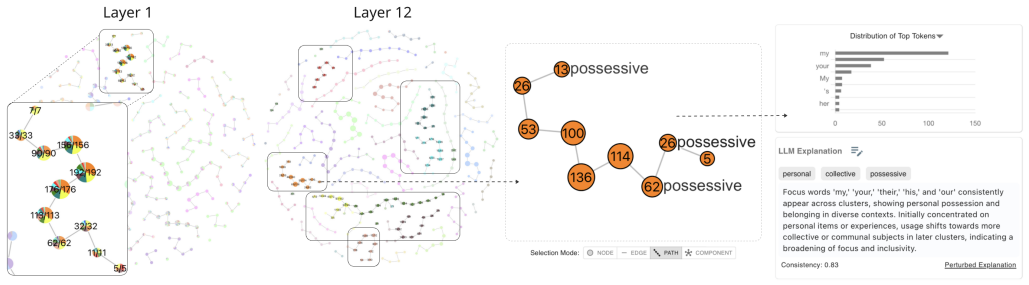

Figure 7. Figure 7: Exploring occurrences of the token ‘my.’ In layer 1, embeddings remain noncontextualized and all tokens are clustered into a single component. In layer 12, the embeddings are contextualized to the specific classification task for which the model has been fine-tuned. Th…
Figure 10
Figure 10. Figure 10: We use the Component Explainer to compare the two compo [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
Figure 9

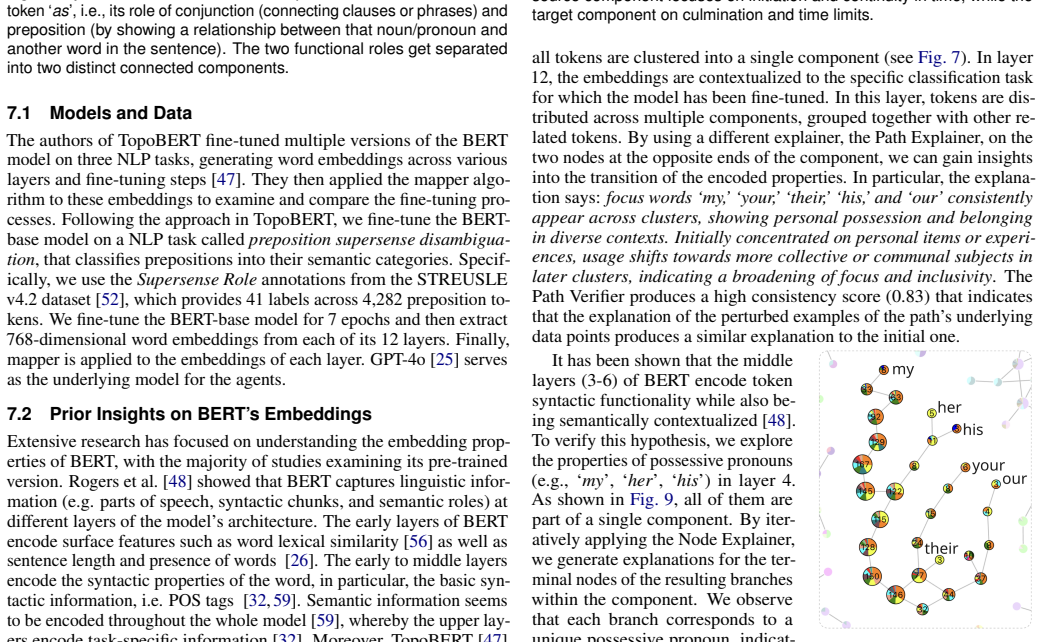

Figure 9. Figure 9: BERT embeddings for pronouns in layer 4. It has been shown that the middle layers (3-6) of BERT encode token syntactic functionality while also be￾ing semantically contextualized [48]. To verify this hypothesis, we explore the properties of possessive pronouns (e.g., ‘…
Figure 11
Figure 11. Figure 11: Trajectory exploration from node A to node B in layer 12 of [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 13
Figure 13. Figure 13: Two edges originating from the same mapper node in the final [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 14
Figure 14. Figure 14: The word ‘since’ across layers 1, 6, and 12, along with its path explanation in layer 6. neighborhood. Component Investigation. In the ball mapper, we observe that tokens are generally grouped into components based on their supersense-role labels, with more complex in…
Figure 17
Figure 17. Figure 17: A component (left) and a path (right) in the ball mapper. [PITH_FULL_IMAGE:figures/full_fig_p013_17.png]
Figure 16
Figure 16. Figure 16: Ball mapper of the final layer of the fine-tuned BERT model, with [PITH_FULL_IMAGE:figures/full_fig_p013_16.png]
Figure 19

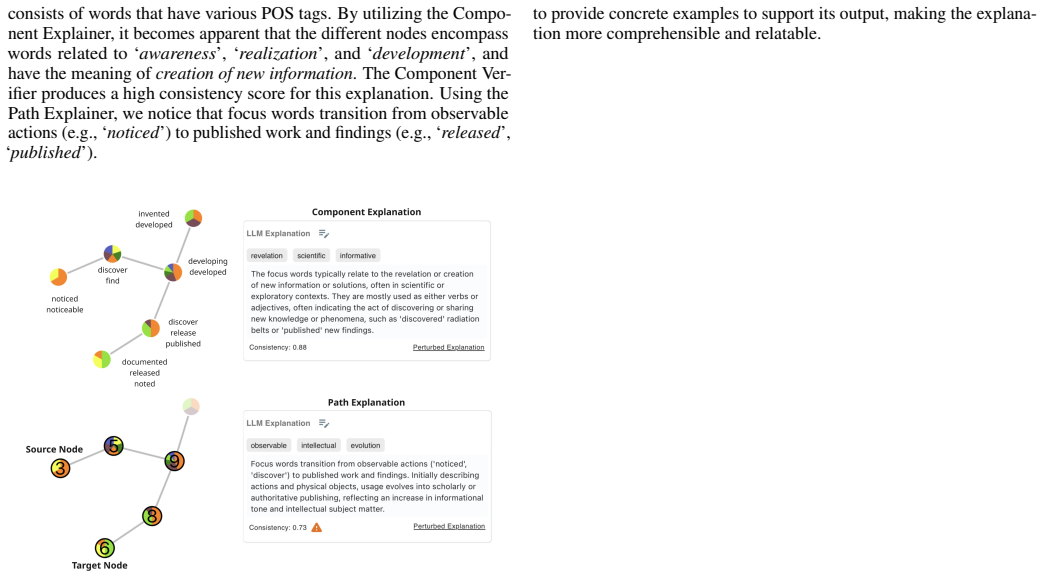

Figure 19. Figure 19: A component of concepts related to discovering information in layer 1. The Component Explainer and Path Explainer are used to get insight into common characteristics among nodes and the transition between the encoded concepts along a path. POS Tags Encoded in Middle L…
Figure 20

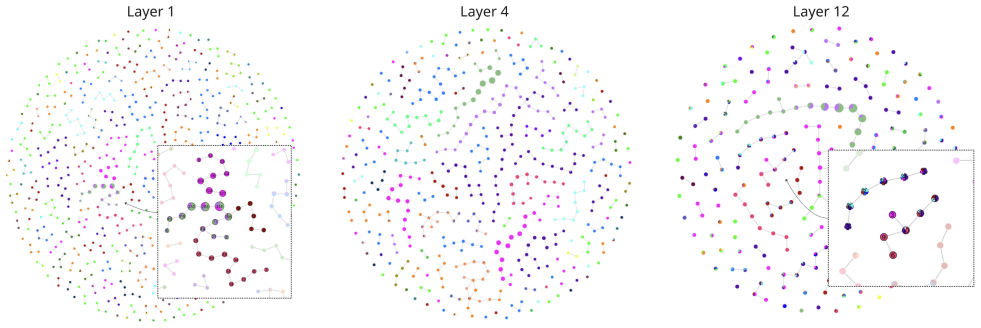

Figure 20. Figure 20: Layer comparison. Node colors represent token POS tags. Prior work has shown that BERT encodes POS tag information in the middle [PITH_FULL_IMAGE:figures/full_fig_p015_20.png]
Figure 22
Figure 22. Figure 22: Prompt template for comparing two mapper nodes/components. [PITH_FULL_IMAGE:figures/full_fig_p015_22.png]
Figure 25
Figure 25. Figure 25: Prompt template for creating a perturbation trajectory between [PITH_FULL_IMAGE:figures/full_fig_p016_25.png]
Figure 26
Figure 26. Figure 26: Prompt template for generating the perturbed sentences of a [PITH_FULL_IMAGE:figures/full_fig_p016_26.png]
Figure 27
Figure 27. Figure 27: An example of prompt engineering for the mapper node summary. Left: the final prompt, with Statements 1–3 added incrementally. Top right: [PITH_FULL_IMAGE:figures/full_fig_p017_27.png]
