Peering through the veil: Investigating protoplanetary disk outer edges using backside visibility

T0 review · 2 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Using radiative transfer simulations, this paper argues that a protoplanetary disk's backside is visible in scattered light only when the outer edge is sharp: exponential tapers hide the far side, so a detected backside at low inclination…

desk verdict Useful new diagnostic — low-inclination backside visibility implies a truncated outer disk — but the claim needs a wider stellar-parameter scan before applying it to T Tauri stars. read the letter →

arxiv 2506.03624 v2 pith:GHLXGLDV submitted 2025-06-04 astro-ph.EP

Joel George , Carsten Dominik , Christian Ginski This is my paper
classification astro-ph.EP
keywords protoplanetarydisksscatteredlightimagingradiativetransfersimulationsbacksidevisibilitydisktruncationinclinationpolarimetricdifferentialouterstructure
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Most protoplanetary disks imaged in scattered light do not show their backside, the far surface that flares away from the observer, and this paper asks what determines whether that back surface is visible. Through a parameter study of radiative transfer models, it argues that the shape of the outer edge is the controlling factor: disks whose surface density fades exponentially outward keep enough small dust to absorb the backside's scattered light, while disks with a sharp cut-off let that light reach the observer. Because tapered disks also make the backside geometrically thinner and dimmer as the viewing angle approaches face-on, a securely detected backside in a disk inclined below about 60 degrees should be read as evidence of a sharp truncation. If the claim holds, backside visibility becomes a practical diagnostic for identifying disks whose outer edges were sculpted by flybys, companions, or external photoevaporation.

What carries the argument

Three outer-edge prescriptions carry the argument: a cut-off disk whose surface density stops abruptly at $R_\mathrm{out}$, a tapered disk following the Lynden-Bell--Pringle exponential decay $\Sigma(R)\propto R^{-\gamma}\exp[-(R/R_c)^{2-\gamma}]$, and an extended disk that adds a low-density outer component to a cut-off profile. Backside flux is quantified with a crescent-scan method in which an arc fitted to the front side is stepped through the image while the integrated flux is recorded; the backside appears as a secondary peak after a dark midplane dip. The physical quantity that decides visibility is the line-of-sight optical depth $\tau_{AB}=\kappa\,\Sigma_d(R')\,/\,\cos\theta$ through the outer disk toward the backside, which is zero for cut-off disks, below about 0.1 for tapered backsides that are detectable, and above roughly 1 when the backside is hidden. Model detection limits are calibrated against 1-$\sigma$ and 3-$\sigma$ noise levels measured from real $U_\phi$ polarimetric frames.

What would settle it

Rerun the tapered-disk parameter sequence with a cooler, less luminous T Tauri star (roughly $0.5\,M_\odot$, $4{,}000$ K) at inclinations of $30^\circ$--$60^\circ$: if any low-inclination tapered model shows a backside above the 3-$\sigma$ noise threshold, the claim that low-inclination backsides diagnose truncation would be weakened, since most observed disks host T Tauri stars. Observationally, take a low-inclination disk with a clearly detected backside and measure its outer-edge surface-density profile: a smooth exponential taper with no steepening beyond the scattering edge would contradict the diagnostic.

Watch

Extended reading notes

Core claim

The central claim is that the visibility of a protoplanetary disk's backside in H-band polarized scattered light is set primarily by the outer-disk surface-density profile. In the tapered (Lynden-Bell--Pringle viscous) models, the exponential decay of $\Sigma(R)$ leaves enough dust along the inclined line of sight to attenuate backside-scattered light while remaining too tenuous to scatter it toward the observer, so the backside is obscured; in cut-off models the optical depth beyond the edge is zero, and the backside flux exceeds the tapered case by one to two orders of magnitude. Measured against noise thresholds derived from real polarimetric observations, backsides of tapered disks fall below the 3-$\sigma$ level at inclinations of $45^\circ$ and $30^\circ$, whereas cut-off backsides remain detectable. The paper concludes that disks with visible backsides at low inclinations could indeed be cut-off, that is, truncated disks, with genuine truncation attributable to close encounters, dynamical interactions, or external photoevaporation.

Load-bearing premise

The load-bearing premise is that the star's properties can be fixed at one value ($2.4\,M_\odot$, $2.4\,R_\odot$, $10{,}000$ K) because stellar luminosity changes only the overall signal-to-noise ratio, not the relative visibility of the front and back sides; since the disk's vertical thickness and flaring angle depend on the temperature of stellar irradiation, the conclusions are carried over to cooler T Tauri stars without running those models.

Editorial extensions

If this is right

  • A secure backside detection in a disk inclined below about $60^\circ$ becomes a truncation candidate, motivating searches for flybys, companions, or external photoevaporation as the cause.
  • Viscous, exponentially tapered disks should rarely show backsides, which matches the observed rarity of backside features in roughly 18 of about 200 scattered-light disks.
  • The one to two order-of-magnitude gap in backside flux between cut-off and tapered models gives observers a quantitative expectation for how bright a backside should be when the edge is sharp.
  • A tenuous outer extension with only half the inner disk's surface density can entirely hide the backside, so an undetected backside does not by itself prove that a disk is smoothly tapered.
  • Observed low-inclination backside disks such as IM Lup and PDS 111 are, under this interpretation, likely truncated, with external photoevaporation favored for IM Lup and a dynamical perturber for PDS 111.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The stellar-parameter assumption is the point most worth testing: because the disk's scale height and flaring angle are set by the irradiation temperature of the star, the taper-hides-backside result was computed only for a $2.4\,M_\odot$, $10{,}000$ K star and may shift for the cooler T Tauri stars that host most observed disks.
  • Backside visibility could be used as a cheap screening diagnostic on existing archival scattered-light images: a census of low-inclination backsides would yield a list of truncation candidates to verify with high-resolution ALMA continuum and gas observations.
  • The optical-depth threshold ($\tau\approx0.1$--$1$) ties backside visibility to a measurable column density, suggesting that outer-disk mass estimates from CO or millimeter continuum could predict which disks should show backsides.
  • If the diagnostic holds, it sharpens the solar-system comparison: the Kuiper Cliff would no longer be an isolated curiosity but one example of a class of truncated outer edges, distinguishable from the smooth viscous fade-out that characterizes most disks.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper uses RADMC-3D radiative transfer simulations to investigate when the far side (backside) of an inclined protoplanetary disk is visible in scattered light, with the aim of using backside visibility as a diagnostic of the outer-edge structure. Three outer-density prescriptions are compared: sharp cut-off disks, exponentially tapered (Lynden-Bell–Pringle) disks, and cut-off disks surrounded by a low-density extended outer disk. The parameter study varies inclination, dust surface density, turbulence parameter α, surface-density power-law index γ, characteristic radius Rc, and outer-disk reduction factor, and it quantifies backside flux with a crescent-aperture method. The main conclusions are that tapered disks usually hide the backside, that visible backsides at low inclinations therefore favor truncated (cut-off) disks, and that outer-disk dust mass, settling, and stratification control the attenuation. The paper also adds realistic Uphi noise from IM Lup, MY Lup, and PDS 453 to estimate 1σ and 3σ detection thresholds and applies the diagnostic to IM Lup and PDS 111.

Significance. If the central diagnostic holds, it offers an observationally accessible way to identify outer-edge truncation in protoplanetary disks, with implications for spotting dynamical encounters and external photoevaporation. The study is a transparent forward-modeling parameter survey rather than an inversion, and it has the strength of comparing three clearly specified outer-edge prescriptions on a common grid, using a quantitative crescent-integration measurement and real observational noise files to set detection thresholds. The comparative statement that tapered disks obscure backsides more than cut-off disks is well supported by the simulation grid. However, the generalization of the low-inclination backside diagnostic to low-mass T Tauri stars rests on an unverified invariance assumption about stellar parameters, which limits the domain of validity of the headline conclusion until that assumption is tested.

major comments (2)
  1. [Section 4 (p. 6), Eqs. (14)–(15) and §5.2] The claim that 'the visibility of the backside is related to the stellar luminosity only insofar as the overall S/N of the image depends on it, but not the relative visibility of front and backsides' is not a consequence of the model equations. In Eq. (15), T_disk ∝ (L*/r^2)^(1/4), and Eq. (3) sets h_p = c_s/Ω, so h_p/r depends on L* and M* separately through both the temperature and the Keplerian frequency. The settling profile in Eq. (11) also depends on h_p. The entire parameter study uses M* = 2.4 M_sun, R* = 2.4 R_sun, T* = 10,000 K, yet the conclusions are applied in §5.2 to T Tauri stars (IM Lup at 48°, GM Aur at 55°, DG Tau at 31°). A cooler, smaller star changes the flaring geometry and the optical depth along the backside line of sight (Eq. (29)), and with α_irr fixed at 0.05 this could plausibly move a tapered disk across the detection threshold shown in Fig. 10. I ask the authors to either rerun the key low-inclination cases for representative T Tauri parameters (e.g., M* ~ 1 M_sun, R* ~ 1-2 R_sun, T* ~ 4000 K) or explicitly restrict the conclusion to intermediate-mass stars.
  2. [§5.1 and Figs. 5–8] The detectability criterion is not applied consistently. The heat maps in Figs. 5 and 6 classify a backside as detected or not based on the 'absence of secondary peak' in the crescent integrated-flux plot (Fig. 3), which is a visual criterion. In §5.1 the authors quantify detection by comparing integrated backside flux against a 3σ threshold derived from real Uphi noise. These two criteria need not agree: a secondary peak can be present even when the integrated flux falls below the 3σ threshold, and noise can create spurious peaks. Since the central conclusion that tapered disks hide backsides at low inclination is based on the black cells in the heat maps, the manuscript should state explicitly which criterion defines those cells and should show that the qualitative conclusions are robust to using the quantitative 3σ criterion instead.
minor comments (5)
  1. [Throughout] The unit 'Janksy' appears repeatedly (e.g., §5.1 and Fig. 8); this should be 'Jansky'.
  2. [Introduction] There is a typo: 'coronaraphy' should be 'coronagraphy'.
  3. [§5.1, Eq. (22)] The conversion from Jy/arcsec² to Jy/pixel using σ_total = σ√N is not self-evident; converting surface brightness to flux per pixel normally requires multiplying by the pixel solid angle. Please clarify the definition of σ, N, and how σ_total is used in Fig. 8.
  4. [Figs. 5 and 6] Several heat-map cells are empty (e.g., Fig. 5 left panel at 30° for α = 10^-2 and 10^-3; Fig. 6 left panel at 45° and 60° for some γ). Please state whether these are cases without a detected backside that were omitted from the numerics or cases that were not simulated.
  5. [§5.3] The discussion of IM Lup cites CO extending beyond the millimeter continuum as evidence of external photoevaporation, but the relationship between gas extension and a sharp dust edge would benefit from an explicit statement of how the dust surface-density profile is inferred to be truncated.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: this is a forward-modeling parameter study whose diagnostic conclusion is inferred from independently constructed model families and external noise measurements, not from fitted inputs.

full rationale

The paper does not fit any parameter to the observed backside detections it interprets. It constructs three physically motivated outer-disk density structures (cut-off, tapered, extended), solves the radiative transfer with RADMC-3D, and compares the resulting backside integrated flux against detection thresholds derived from real U_phi noise files (Sec. 5.1, Eq. 22). The central claim that low-inclination backside detections favor truncated disks is an inference from the relative fluxes of the model families (Figs. 5, 6, 8), not a quantity that equals its inputs by construction. The temperature and scale-height relations in Secs. 2.1-2.4 are standard radiative-equilibrium physics with external citations; the presence of a co-author citation (Dullemond & Dominik 2004) for the dust-settling equation is not load-bearing for the paper's diagnostic claim. The only notable limitation is the explicit assumption in Sec. 4 that stellar luminosity affects only overall S/N and not the relative visibility of front and backsides; this is an untested generalization to T Tauri stars, but it is a domain-of-validity assumption rather than a circular reduction. Accordingly, the derivation chain is self-contained and non-circular.

Assumptions & free parameters 10 free parameters · 6 assumptions · 0 invented entities

The central claim rests on a moderate stack of standard disk-model assumptions and fixed parameters (stellar type, irradiation angle, opacities, settling recipe). None of these are fitted to the observed backside detections; the parameter study varies many of them explicitly. The main gap is the untested stellar-parameter independence and the simplified noise model.

free parameters (10)
  • Stellar mass, radius, effective temperature = M*=2.4 Msun, R*=2.4 Rsun, T*=10000 K
    Fixed central star; the paper assumes relative front/back visibility is independent of luminosity, an unverified generalization to cooler T Tauri stars.
  • Flaring irradiation incidence angle alpha_irr = 0.05 rad
    Constant from Chiang & Goldreich (1997); sets the disk temperature and scale height, affecting scattering geometry.
  • Dust surface density normalization = Sigma0 = 1 or 10 g/cm^2 at Rc = 1 AU (cut-off); Sigma_c = 1 g/cm^2 at Rc (tapered)
    Chosen to give representative disk masses; varied across the parameter study.
  • Surface density power-law index gamma = gamma = 0.25 to 1.25 (tapered), 1.0 (cut-off)
    Spans steep to shallow outer density profiles.
  • Characteristic radius Rc = 25 and 50 AU (tapered)
    Positions the exponential taper; bracketing observed disk sizes.
  • Turbulence parameter alpha (Shakura-Sunyaev) = 10^-2 to 10^-6
    Controls vertical grain settling and hence the opacity in the outer disk.
  • Dust size distribution = MRN: n(a) ~ a^-3.5, a = 0.05 to 2000 micron, 15 discrete sizes
    Standard MRN distribution with DIANA opacities; not varied in the study.
  • Outer radii and extended-disk reduction factor = R_out = 100 AU (cut-off), 500 AU (extended); outer disk surface density reduced by factors 1/2 to 1/20
    Defines the three outer-edge morphologies that are the core of the comparison.
  • Coronagraph radius = 92.5 mas (12.95 AU)
    Mimics the SPHERE Lyot coronagraph; blocks the inner 13 AU and affects the measured flux geometry.
  • Crescent measurement aperture thickness = 4 pixels (8 AU)
    Chosen to match the SPHERE angular resolution; directly sets the integrated backside flux values.
assumptions (6)
  • domain assumption Axisymmetric, vertically isothermal disk in hydrostatic equilibrium with Gaussian density profile (Eqs. 1-4).
    Basis of the gas structure; neglects self-gravity, radial temperature gradients, and non-Gaussian vertical profiles.
  • domain assumption Dust vertical settling balanced by turbulent diffusion with constant diffusion coefficient and Schmidt number of order unity (Eqs. 9-11).
    Quasi-static solution from Fromang & Nelson (2009); neglects radial migration and accretion evolution.
  • domain assumption Dust scattering treated with MRN size distribution and DIANA amorphous pyroxene + carbon opacities (Section 3.2).
    Standard optical properties; the paper does not test other compositions or porosities despite noting this in future work.
  • ad hoc to paper Backside visibility is independent of stellar parameters except overall signal-to-noise (Section 4, page 6).
    Used to justify fixing the star at 2.4 Msun and 10000 K; no simulation explores lower-mass stars, so the generalization is untested.
  • domain assumption PDI noise can be represented by averaged Uphi noise from three disks (IM Lup, MY Lup, PDS453) with sqrt(N) scaling to per-pixel values (Eq. 22).
    Assumes statistically independent noise pixels; ignores correlated speckle noise typical of adaptive-optics PDI.
  • standard math Stokes-Mueller scattering formalism and radiative transfer as implemented in RADMC-3D (Section 3.1).
    Background formalism for polarized scattered light; assumed correct.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Peering through the veil: Investigating protoplanetary disk outer edges using backside visibility." pith.science (2026). https://pith.science/paper/GHLXGLDV

@misc{pith2026250603624,
  author       = {Pith},
  title        = {Pith review of: Peering through the veil: Investigating protoplanetary disk outer edges using backside visibility},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GHLXGLDV}},
  note         = {Machine review of arXiv:2506.03624}
}
read the original abstract

Protoplanetary disks observed in scattered light reveal essential insights into the disk's three-dimensional architecture and dust properties. These disks, which play a crucial role in planet formation, have complex structures where the visibility of the disk's backside can vary significantly based on several parameters. This study aims to explore the factors impacting backside visibility in protoplanetary disks, particularly under variations in inclination, dust distribution, grain characteristics, and outer disk morphology. Using RADMC-3D radiative transfer simulations, we investigate how these variables influence the appearance of the backside in scattered light images. Tapered disk models with exponential tapers, frequently obscure the backside, which supports the rarity of observed backside features. In cases where backside features are visible at lower inclinations, they likely indicate cut-off disks, as backside detection is challenging in standard tapered models at these inclinations. Additionally, factors like dust mass, grain distribution, and disk material stratification play crucial roles in backside observability, affecting its potential detection in real observations. This study contributes to understanding the detectability of the backside in protoplanetary disks, with implications for refining observational strategies and interpreting backside features in scattered light images. These findings help frame backside visibility as a critical aspect of assessing disk structure and evolution.

Figures

Figures reproduced from arXiv: 2506.03624 by the authors.

Figure 1
Figure 1. displays a few protoplanetary disks where the pres￾ence of a visible backside has been observed. Investigating the backside of these disks offers us a 3D perspective on the whole disk, including the structure of the disk and properties of the dust that scatters the starlight, since the detectability of the backside hinges on factors such as disk inclination, the scattering proper￾ties of dust grains, and the wavelen… view at source ↗
Figure 2
Figure 2. Top: Contour plots illustrating the dust density cross-section for a cut-off disk, a tapered disk, and an extended disk, respectively. The horizontal axis represents the radial distance from the central star, while the vertical axis shows the height above and below the disk midplane (90◦ ). The colour scale denotes dust density, with warmer colours indicating higher densities. Bottom: Corresponding logarithmic plots… view at source ↗
Figure 3

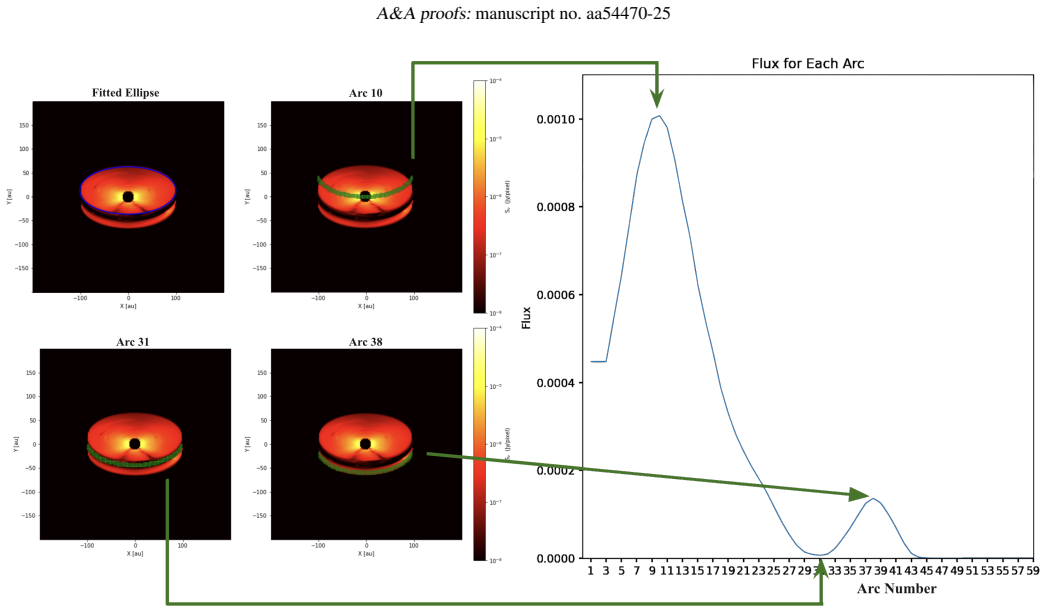

Figure 3. Illustration of measuring the backside using integrated flux in a ‘crescent’. The left-hand side shows the disk image with a fitted ellipse at the top and three instances of a solid crescent moving through the image. The right-hand side displays the plot of integrated flux versus the index of the crescent’s position. Green arrows indicate points on the plot corresponding to the instances shown on the left-hand side.… view at source ↗
Figures from the paper (7 more)
Figure 4

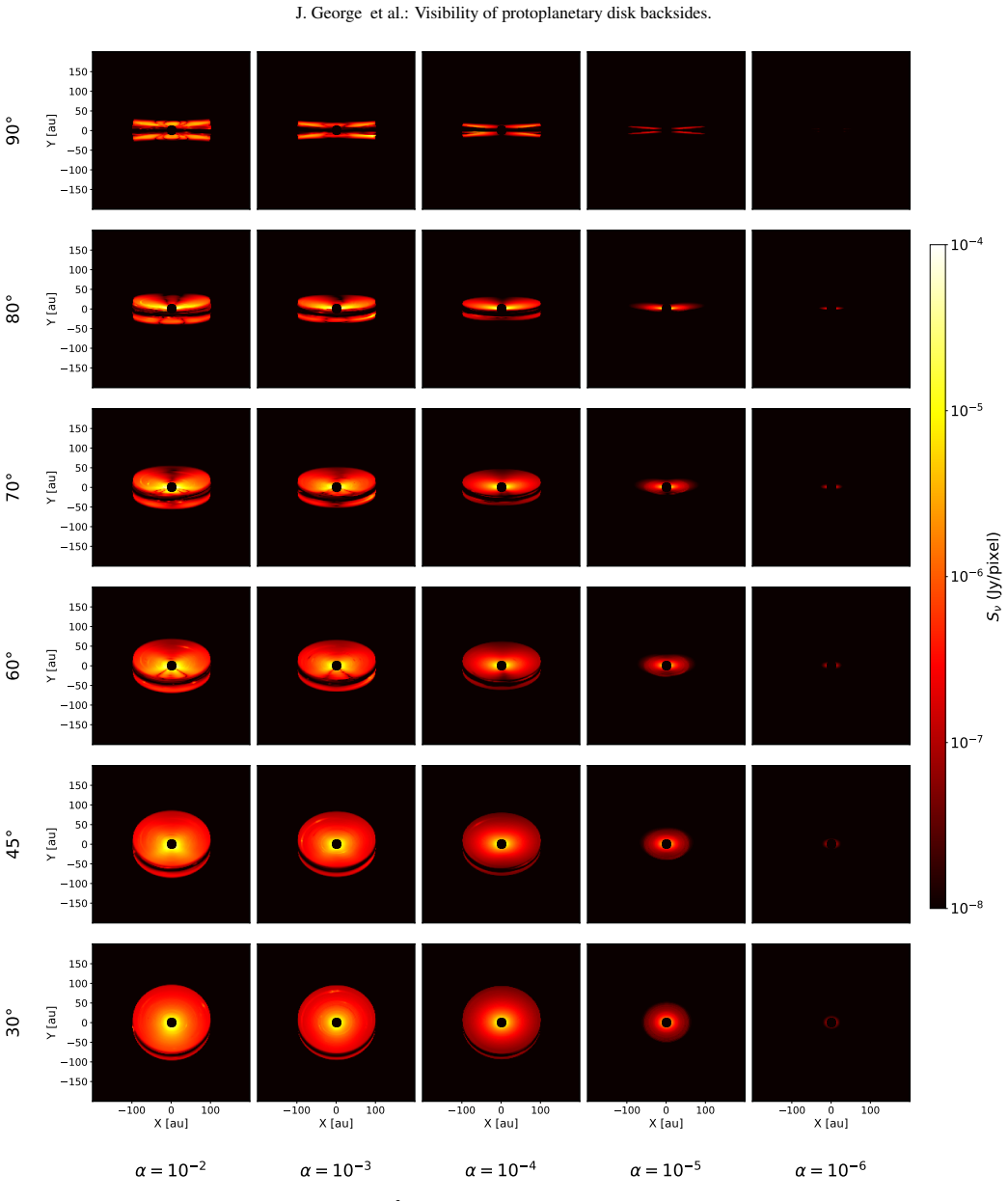

Figure 4. Figure 4: Parameter study of cut-off disks with Σd = 1 g/cm2 at Rc = 1 AU for varying the Shakura-Sunyaev turbulence parameter (α). Each column represents observations of the disk at different inclinations for a specific α value, with corresponding α values listed on the x-axis.…
Figure 5
Figure 5. Figure 5: Annotated heat map showing integrated backside flux in parameter studies of cut-off disks. The left panel shows the flux for a surface density Σ0 (dust) fixed at 1 g/cm2 at Rc = 1 AU, while the right panel shows the flux for 10 g/cm2 at Rc = 1 AU. The cells in brighter…
Figure 6
Figure 6. Figure 6: Annotated heat map showing integrated backside flux in parameter studies of tapered disks. The left panel shows the flux for disks with a characteristic radius, Rc = 25 AU, while the right panel shows the flux for disks with Rc = 50 AU. Brighter yellow cells indicate h…
Figure 7
Figure 7. Figure 7: Impact of noise addition on a simulated disk image. The top row presents an image of a tapered disk with Rc = 25 au and a power-law exponent γ = 0.75 at an inclination of 45◦ . Correspondingly, the right panel illustrates the integrated flux as the ‘crescent’ (refer to…
Figure 8
Figure 8. Figure 8: Line plot of integrated flux vs α parameter for cut-off and tapered disks at inclinations of 80◦ and 30◦ , with flux values in jansky. The flux values are presented for cut-off disks with Σd = 1 g/cm2 (solid lines) and Σd = 10 g/cm2 (dash-dot lines), as well as tapered…
Figure 9
Figure 9. Figure 9: Top: Geometry of the disk used for optical depth calculations. Bottom: Representation of how R and T are inferred from the simulation of an edge-on disk. 0 10 6 10 5 10 4 10 3 10 2 10 1 10 0 10 1 Optical Depth ( ) 0 1 Backside Detection (1=Detected, 0=No Detection) Cut…
Figure 10
Figure 10. Figure 10 [PITH_FULL_IMAGE:figures/full_fig_p011_10.png]
