Funnel cruise control

Thomas Berger , Anna-Lena Rauert This is my paper

Pith reviewed 2026-05-25 00:31 UTC · model grok-4.3

classification 🧮 math.OC
keywords funnel controladaptive cruise controlvehicle followingsafety distancemodel-free controlvelocity regulationdistance regulation
0
0 comments X

The pith

A model-free funnel cruise controller maintains safety distance while approaching a target velocity by switching between speed and distance regulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a funnel cruise controller for the vehicle following problem. It guarantees a minimum safety distance to the leader at all times and reaches a favorite velocity as much as possible. The design is model-free and combines a velocity funnel controller for distant leaders with a distance funnel controller for close ones. A switching logic determines which controller is active. The authors prove that the overall design is feasible and demonstrate it through simulations of everyday traffic situations.

Core claim

The funnel cruise controller achieves guaranteed safety distance and maximal approach to favorite velocity. It consists of a velocity funnel controller that acts when the leader is far and a distance funnel controller that acts when the leader is close, together with a logic that switches between them. The feasibility of this combined controller is established by rigorous proof.

What carries the argument

The funnel cruise controller, which switches between a velocity funnel controller and a distance funnel controller according to the leader distance.

If this is right

  • The safety distance is guaranteed at all times regardless of the leader's behavior.
  • The favorite velocity is reached whenever the leader vehicle is sufficiently far ahead.
  • The controller requires no model of the vehicle dynamics or the leader.
  • The same design works across multiple common traffic scenarios.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may extend to platoons of several vehicles by applying the same switching idea between consecutive pairs.
  • Sensor noise or actuator limits could be incorporated by adjusting the funnel boundaries without changing the core structure.
  • The model-free property suggests the method could be combined with learning-based velocity selection.

Load-bearing premise

The switching logic between the two funnel controllers must be arranged so that the safety distance is never violated during any transition.

What would settle it

A concrete simulation or vehicle test in which the distance to the leader drops below the safety threshold at any time while the controller is running.

Figures

Figures reproduced from arXiv: 1907.04120 by Anna-Lena Rauert, Thomas Berger.

Figure 1
Figure 1. Figure 1: Vehicle following framework. to be taken into account. Therefore, we use the following sim￾ple models which are taken from [3, Sec. 3.1]: Fg : R≥0 → R, t 7→ mgsinθ(t), Fa : R≥0 ×R → R, (t, v) 7→ 1 2 ρ(t)CdAv2 , Fr : R → R, v 7→ mgCr sgn(v), where m (in kg) denotes the mass of the (following) vehicle, g = 9.81m/s 2 is the acceleration of gravity, θ(t) ∈ [− π 2 rad, π 2 rad] and ρ(t) (in kg/m3 ) denote the s… view at source ↗
Figure 2

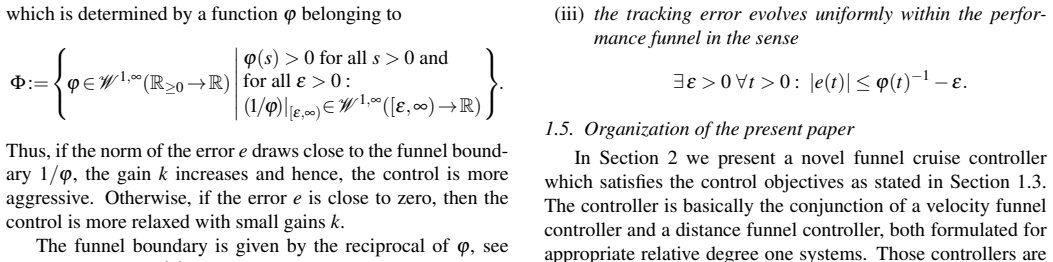

Figure 2. Figure 2: The case ϕ(0) = 0 is explicitly allowed, meaning that no restriction is put on the initial value since ϕ(0)|e(0)| < 1; the funnel boundary 1/ϕ has a pole at t = 0 in this case. λ b (0, e(0)) 1/φ(t) t 1 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

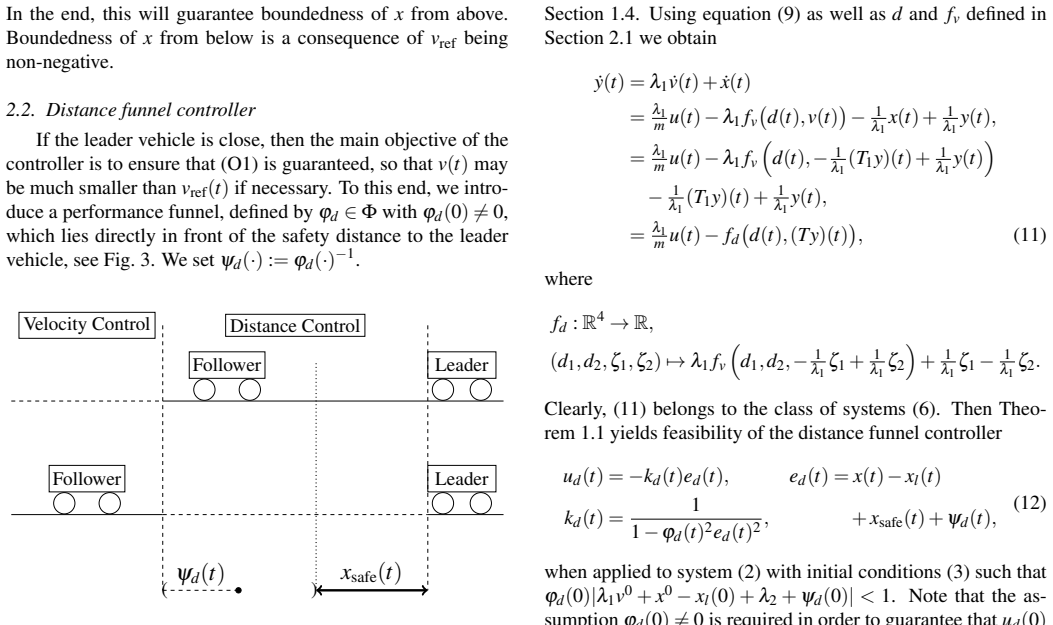

Figure 3. Figure 3: Illustration of the distance funnel controller. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

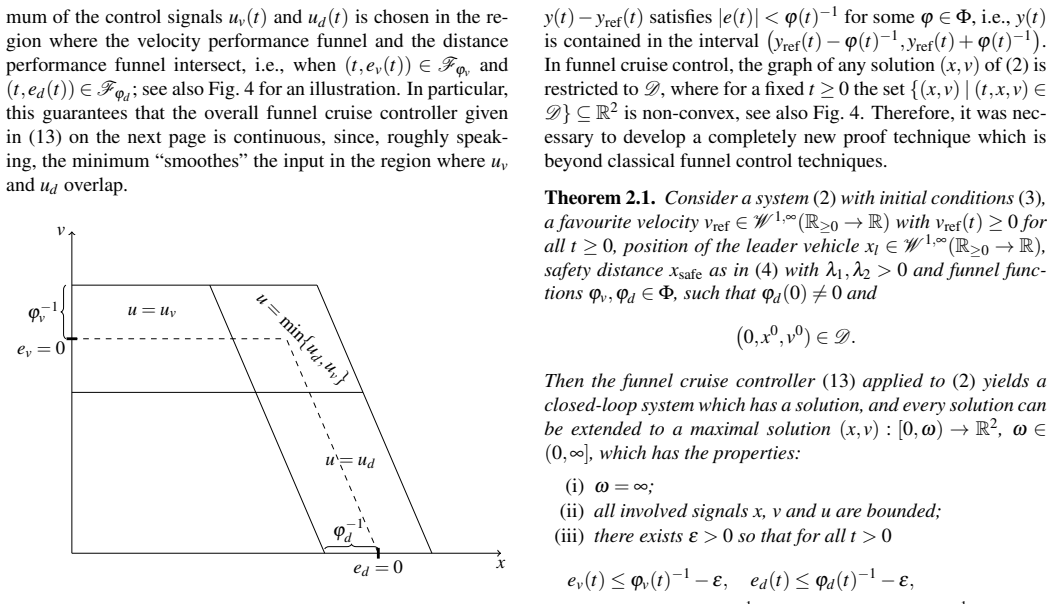

Figure 4. Figure 4: Illustration of the final control design. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

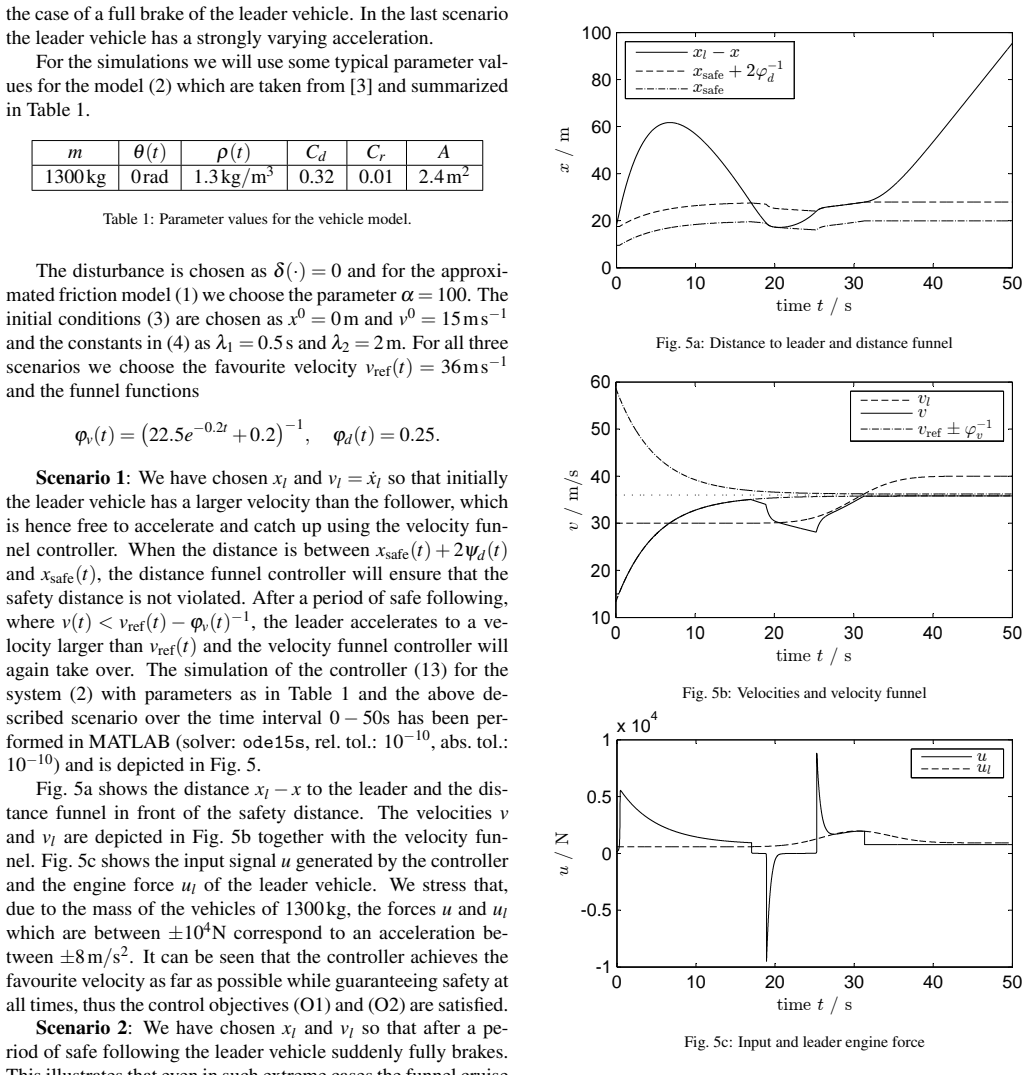

Figure 5. Figure 5: Simulation of the funnel cruise controller (13) for the system (2) with [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

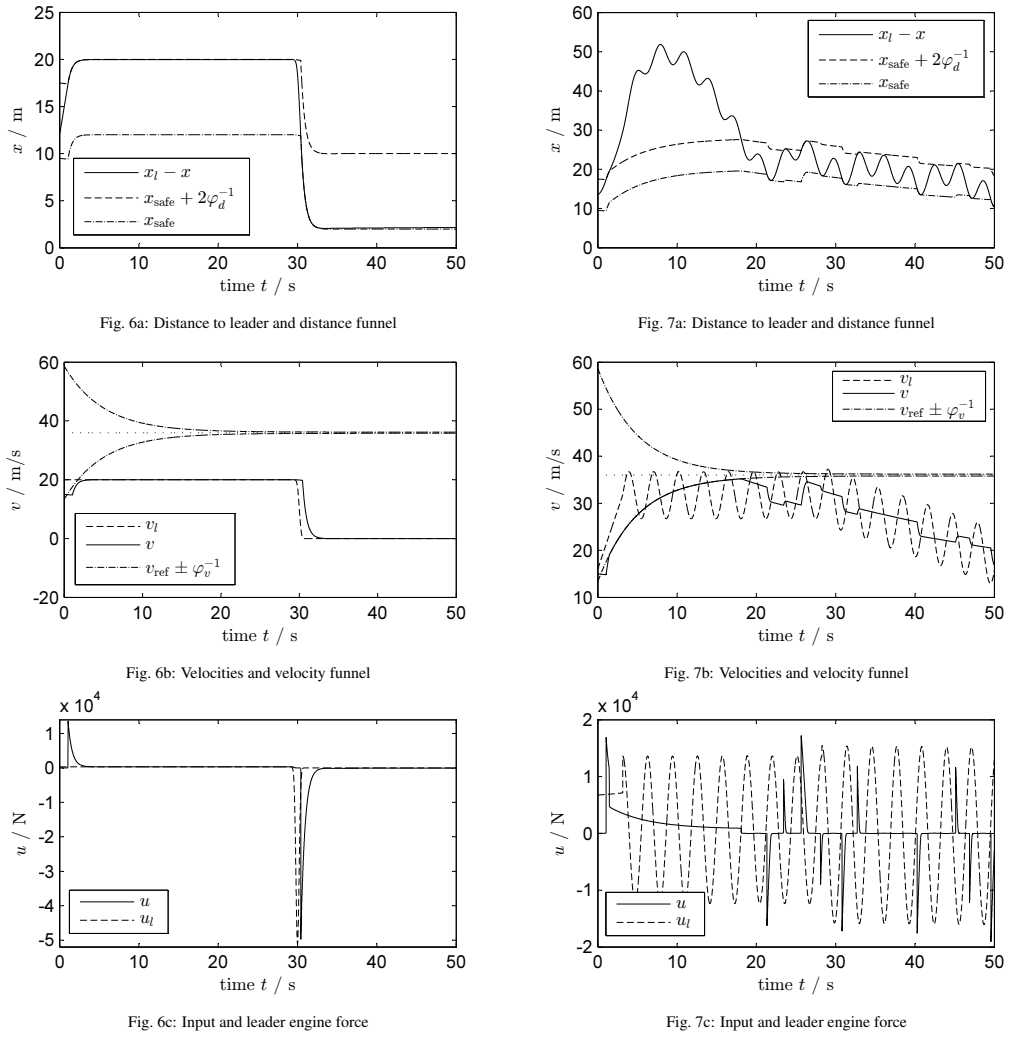

Figure 6. Figure 6: Simulation of the funnel cruise controller (13) for the system (2) with [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

We consider the problem of vehicle following, where a safety distance to the leader vehicle is guaranteed at all times and a favourite velocity is reached as far as possible. We introduce the funnel cruise controller as a novel universal adaptive cruise control mechanism which is model-free and achieves the aforementioned control objectives. The controller consists of a velocity funnel controller, which directly regulates the velocity when the leader vehicle is far away, and a distance funnel controller, which regulates the distance to the leader vehicle when it is close so that the safety distance is never violated. We provide a rigorous proof for the feasibility of the overall controller design. The funnel cruise controller is illustrated by a simulation of three different scenarios which may occur in daily traffic.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper introduces the funnel cruise controller, a model-free adaptive cruise control mechanism for vehicle following. It combines a velocity funnel controller (active when the leader is far) with a distance funnel controller (active when close) to guarantee a safety distance at all times while approaching a favorite velocity when possible. The design is supported by a rigorous feasibility proof for the overall switched system and illustrated via simulations of three daily traffic scenarios.

Significance. If the feasibility proof holds, the result offers a novel model-free approach to adaptive cruise control with explicit safety invariants, which could be significant for control theory applications in autonomous vehicles. The combination of funnel-based regulation for both velocity and distance, with a switching mechanism, provides a universal controller without requiring vehicle models.

major comments (1)
  1. [overall controller design and switching logic] The feasibility proof for the composite controller (the section describing the overall controller design and switching logic): the argument that the switching condition preserves the safety distance for arbitrary leader trajectories must explicitly show that the distance error remains inside the funnel boundary at the instant of activation, accounting for worst-case closing speeds before the switch. The provided description of the 'close' threshold does not bound this, which is load-bearing for the central safety claim.
minor comments (2)
  1. [simulations] The simulation section would benefit from explicit parameter values for the funnels and switching threshold to allow reproducibility.
  2. [controller definitions] Notation for the funnel boundaries and error signals should be defined consistently across the velocity and distance controllers.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and the constructive comment regarding the switching logic in the feasibility proof. We address the point below.

read point-by-point responses

  1. Referee: The feasibility proof for the composite controller (the section describing the overall controller design and switching logic): the argument that the switching condition preserves the safety distance for arbitrary leader trajectories must explicitly show that the distance error remains inside the funnel boundary at the instant of activation, accounting for worst-case closing speeds before the switch. The provided description of the 'close' threshold does not bound this, which is load-bearing for the central safety claim.

    Authors: We agree that an explicit verification of the funnel invariant at the switching instant is essential for arbitrary leader trajectories. The existing feasibility argument establishes that the velocity funnel maintains sufficient separation prior to the switch and that the distance funnel is only activated when the error lies inside its boundary by construction of the threshold; however, to strengthen clarity we will revise the overall controller design section to include a dedicated lemma that explicitly bounds the distance error at activation, incorporating a worst-case relative-velocity estimate derived from the velocity funnel performance. This addition will make the preservation of the safety distance fully rigorous without altering the controller or the core proof strategy. revision: yes

Circularity Check

0 steps flagged

No circularity; feasibility proof stands independently of inputs

full rationale

The paper presents a novel model-free funnel cruise controller composed of velocity and distance funnel components plus switching logic, with an explicit claim of a rigorous feasibility proof. No equations or claims reduce a prediction to a fitted parameter by construction, no self-citation is invoked as the sole justification for a uniqueness or invariance result, and the switching safety argument is asserted to rest on an independent proof rather than on redefinition of the funnels themselves. This matches the default case of a self-contained derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, no specific free parameters, axioms, or invented entities are identifiable. The controller is described as model-free, suggesting avoidance of typical system parameters, but details are absent.

pith-pipeline@v0.9.0 · 5632 in / 1130 out tokens · 31461 ms · 2026-05-25T00:31:25.658971+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

38 extracted references · 38 canonical work pages

  1. [1]

    Control barrier function based quadratic programs with application to adaptive cruise control, in: Proc

    Ames, A., Grizzle, J., Tabuada, P., 2014. Control barrier function based quadratic programs with application to adaptive cruise control, in: Proc. 53rd IEEE Conf. Decis. Control, Los Angeles, USA, pp. 6271–6278

    work page 2014

  2. [2]

    A sur- vey of models, analysis tools and compensation methods for the control of machines with friction

    Armstrong-Hélouvry, B., Dupont, P.E., Canudas-de Wit, C., 1994. A sur- vey of models, analysis tools and compensation methods for the control of machines with friction. Automatica 30, 1083–1138

    work page 1994

  3. [3]

    Feedback Systems: An Introduction for Scientists and Engineers

    Åström, K.J., Murray, R.M., 2008. Feedback Systems: An Introduction for Scientists and Engineers. Princeton University Press, Princeton, NJ

    work page 2008

  4. [4]

    Model predic- tive control of transitional maneuvers for adaptive cruise control vehicles

    Bageshwar, V .L., Garrard, W.L., Rajamani, R., 2004. Model predic- tive control of transitional maneuvers for adaptive cruise control vehicles. IEEE Trans. Vehicular Technology 53, 1573–1885

    work page 2004

  5. [5]

    Funnel control for nonlinear systems with known strict relative degree

    Berger, T., Lê, H.H., Reis, T., 2018. Funnel control for nonlinear systems with known strict relative degree. Automatica 87, 345–357

    work page 2018

  6. [6]

    Combined open-loop and funnel control for underactuated multibody systems

    Berger, T., Otto, S., Reis, T., Seifried, R., 2019a. Combined open-loop and funnel control for underactuated multibody systems. Nonlinear Dy- namics 95, 1977–1998

    work page 1977

  7. [7]

    Funnel control for a moving water tank

    Berger, T., Puche, M., Schwenninger, F.L., 2019b. Funnel control for a moving water tank. Submitted for publication, preprint available from the website of the authors

    work page

  8. [8]

    Funnel control in the presence of infinite-dimensional internal dynamics

    Berger, T., Puche, M., Schwenninger, F.L., 2019c. Funnel control in the presence of infinite-dimensional internal dynamics. Submitted for publi- cation, preprint available from the website of the authors

    work page

  9. [9]

    A universal model-free and safe adap- tive cruise control mechanism, in: Proceedings of the MTNS 2018, Hong Kong

    Berger, T., Rauert, A.L., 2018. A universal model-free and safe adap- tive cruise control mechanism, in: Proceedings of the MTNS 2018, Hong Kong. pp. 925–932

    work page 2018

  10. [10]

    Zero dynamics and funnel control for linear electrical circuits

    Berger, T., Reis, T., 2014. Zero dynamics and funnel control for linear electrical circuits. J. Franklin Inst. 351, 5099–5132

    work page 2014

  11. [11]

    PI-funnel control with anti-windup and its application to speed control of electrical drives, in: Proc

    Hackl, C.M., 2013. PI-funnel control with anti-windup and its application to speed control of electrical drives, in: Proc. 52nd IEEE Conf. Decis. Control, Florence, Italy, pp. 6250–6255

    work page 2013

  12. [12]

    Funnel control for wind turbine systems, in: Proc

    Hackl, C.M., 2014. Funnel control for wind turbine systems, in: Proc. 2014 IEEE Int. Conf. Contr. Appl., Antibes, France, pp. 1377–1382

    work page 2014

  13. [13]

    Current PI-funnel control with anti-windup for syn- chronous machines, in: Proc

    Hackl, C.M., 2015a. Current PI-funnel control with anti-windup for syn- chronous machines, in: Proc. 54th IEEE Conf. Decis. Control, Osaka, Japan, pp. 1997–2004

    work page 1997

  14. [14]

    Speed funnel control with disturbance observer for wind turbine systems with elastic shaft, in: Proc

    Hackl, C.M., 2015b. Speed funnel control with disturbance observer for wind turbine systems with elastic shaft, in: Proc. 54th IEEE Conf. Decis. Control, Osaka, Japan, pp. 12005–2012

    work page 2012

  15. [15]

    Non-identifier Based Adaptive Control in Mechatronics–Theory and Application

    Hackl, C.M., 2017. Non-identifier Based Adaptive Control in Mechatronics–Theory and Application. volume 466 of Lecture Notes in Control and Information Sciences. Springer-Verlag, Cham, Switzerland

    work page 2017

  16. [16]

    Advanced smart cruise control with safety distance considered road friction coefficient

    Hong, D., Park, C., Yoo, Y ., Hwang, S., 2016. Advanced smart cruise control with safety distance considered road friction coefficient. Int. J. Comp. Theory Engin. 8, 198–202

    work page 2016

  17. [17]

    Decentralized tracking of interconnected systems, in: Hüper, K., Trumpf, J

    Ilchmann, A., 2013. Decentralized tracking of interconnected systems, in: Hüper, K., Trumpf, J. (Eds.), Mathematical System Theory - Festschrift in Honor of Uwe Helmke on the Occasion of his Sixtieth Birthday. Cre- ateSpace, pp. 229–245

    work page 2013

  18. [18]

    High-gain control without identification: a survey

    Ilchmann, A., Ryan, E.P., 2008. High-gain control without identification: a survey. GAMM Mitt. 31, 115–125

    work page 2008

  19. [19]

    Performance funnels and tracking con- trol

    Ilchmann, A., Ryan, E.P., 2009. Performance funnels and tracking con- trol. Int. J. Control 82, 1828–1840

    work page 2009

  20. [20]

    Tracking with prescribed transient behaviour

    Ilchmann, A., Ryan, E.P., Sangwin, C.J., 2002. Tracking with prescribed transient behaviour. ESAIM: Control, Optimisation and Calculus of Vari- ations 7, 471–493

    work page 2002

  21. [21]

    Tracking with prescribed transient behavior for nonlinear systems of known relative degree

    Ilchmann, A., Ryan, E.P., Townsend, P., 2007. Tracking with prescribed transient behavior for nonlinear systems of known relative degree. SIAM J. Control Optim. 46, 210–230

    work page 2007

  22. [22]

    The Byrnes-Isidori form for infinite-dimensional systems

    Ilchmann, A., Selig, T., Trunk, C., 2016. The Byrnes-Isidori form for infinite-dimensional systems. SIAM J. Control Optim. 54, 1504–1534

    work page 2016

  23. [23]

    Input constrained funnel control with applications to chemical reactor models

    Ilchmann, A., Trenn, S., 2004. Input constrained funnel control with applications to chemical reactor models. Syst. Control Lett. 53, 361–375

    work page 2004

  24. [24]

    Intelligent cruise control: Theory and experiment, in: Proc

    Ioannou, P., Xu, Z., Eckert, S., Clemons, D., Sieja, T., 1993. Intelligent cruise control: Theory and experiment, in: Proc. 32nd IEEE Conf. Decis. Control, pp. 1885–1890

    work page 1993

  25. [25]

    Autonomous intelligent cruise control

    Ioannou, P.A., Chien, C.C., 1993. Autonomous intelligent cruise control. IEEE Trans. Vehicular Technology 42, 657–672

    work page 1993

  26. [26]

    Dynamics and bifurcations of non- smooth mechanical systems

    Leine, R.I., Nijmeijer, H., 2004. Dynamics and bifurcations of non- smooth mechanical systems. volume 18 of Lecture notes in applied and computational mechanics. Springer-Verlag, Berlin-Heidelberg

    work page 2004

  27. [27]

    Model predictive multi- objective vehicular adaptive cruise control

    Li, S., Li, K., Rajamani, R., Wang, J., 2011. Model predictive multi- objective vehicular adaptive cruise control. IEEE Trans. Control Systems Technology 19, 556–566

    work page 2011

  28. [28]

    Adaptive cruise control with safety guar- antees for autonomous vehicles

    Magdici, S., Althoff, M., 2017. Adaptive cruise control with safety guar- antees for autonomous vehicles. IFAC PapersOnLine 50, 5774–5781

    work page 2017

  29. [29]

    Adaptive cruise control: Experimental validation of advanced controllers on scale-model cars, in: Proc

    Mehra, A., Ma, W.L., Berg, F., Tabuada, P., Grizzle, J., Ames, A., 2015. Adaptive cruise control: Experimental validation of advanced controllers on scale-model cars, in: Proc. American Control Conf. 2015, pp. 1411– 1418

    work page 2015

  30. [30]

    Correct-by-construction adaptive cruise control: Two approaches

    Nilsson, P., Hussien, O., Balkan, A., Chen, Y ., Ames, A., Grizzle, J., Ozay, N., Peng, H., Tabuada, P., 2016. Correct-by-construction adaptive cruise control: Two approaches. IEEE Trans. Control Systems Technol- ogy 24, 1294–1307

    work page 2016

  31. [31]

    Pomprapa, A., Alfocea, S.R., Göbel, C., Misgeld, B.J., Leonhardt, S.,

    work page

  32. [32]

    Funnel control for oxygenation during artificial ventilation therapy, in: Proceedings of the 19th IFAC World Congress, Cape Town, South Africa. pp. 6575–6580

    work page

  33. [33]

    Periodic funnel-based control for peak inspiratory pressure, in: Proc

    Pomprapa, A., Weyer, S., Leonhardt, S., Walter, M., Misgeld, B., 2015. Periodic funnel-based control for peak inspiratory pressure, in: Proc. 54th IEEE Conf. Decis. Control, Osaka, Japan, pp. 5617–5622

    work page 2015

  34. [34]

    On spacing policies for high- way vehicle automation

    Santhanakrishnan, K., Rajamani, R., 2003. On spacing policies for high- way vehicle automation. IEEE Trans. Intelligent Transp. Systems 4, 198– 204

    work page 2003

  35. [35]

    Electrical drive DC link power flow con- trol with adaptive approach, in: Proc

    Senfelds, A., Paugurs, A., 2014. Electrical drive DC link power flow con- trol with adaptive approach, in: Proc. 55th Int. Sci. Conf. Power Electr. Engg. Riga Techn. Univ., Riga, Latvia, pp. 30–33

    work page 2014

  36. [36]

    Ordinary Differential Equations

    Walter, W., 1998. Ordinary Differential Equations. Springer-Verlag, New York

    work page 1998

  37. [37]

    A comprehensive review of the development of adaptive cruise control systems

    Xiao, L., Gao, F., 2010. A comprehensive review of the development of adaptive cruise control systems. Vehicle System Dynamics 48, 1167– 1192

    work page 2010

  38. [38]

    Nonlinear spacing policies for automated heavy-duty vehicles

    Yanakiev, D., Kanellakopoulos, I., 1998. Nonlinear spacing policies for automated heavy-duty vehicles. IEEE Trans. Vehicular Technology 47, 1365–1377. 13

    work page 1998
