OffsetAxis: UDF Mesh Reconstruction via Offset-Volume Medial Axis Extraction

Qijia Huang , Pierre Kraemer , Dominique Bechmann This is my paper

Pith reviewed 2026-05-19 15:11 UTC · model grok-4.3

classification 💻 cs.GR
keywords unsigned distance fieldsmesh reconstructionmedial axisoffset volumenon-manifold geometryopen boundariesray casting
0
0 comments X p. Extension
pith:GXHNEIKT Add to your LaTeX paper What is a Pith Number?
\usepackage{pith}
\pithnumber{GXHNEIKT}

Prints a linked pith:GXHNEIKT badge after your title and writes the identifier into PDF metadata. Compiles on arXiv with no extra files. Learn more

The pith

Mesh extraction from unsigned distance fields reduces to medial axis extraction of the alpha-offset volume

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that extracting meshes from unsigned distance fields is harder than from signed ones because UDFs lack a consistent inside-outside distinction, preventing standard iso-surfacing. It establishes that the zero-level set problem can instead be solved by extracting the medial axis of an alpha-offset volume around the UDF. This restatement lets the method apply existing medial axis algorithms, which already handle open boundaries, non-manifold junctions, and curve elements. The pipeline samples the offset surface by ray casting and optimizes medial balls inside the volume using a variational sampling variant; the final mesh is the dual of the resulting ball-cluster connectivity. The approach works on imperfect UDFs from neural networks, triangle soups, or point clouds.

Core claim

The 0-level set extraction problem can be restated as the extraction of the medial axis of the α-offset volume of the UDF. This formulation unlocks mature medial-axis machinery that naturally supports boundaries, non-manifold junctions and curves. To avoid the biases of grid-based techniques, we sample the α-offset surface using ray casting and optimize medial balls inside the offset volume with an efficient variant of Variational Medial Axis Sampling. The final mesh is recovered by taking the dual of the connectivity of the medial ball clusters.

What carries the argument

Medial axis of the α-offset volume of the UDF, which carries the argument by letting medial-axis algorithms produce topologically coherent meshes directly from unsigned distances

Load-bearing premise

Sampling the alpha-offset surface via ray casting and optimizing medial balls with a variant of Variational Medial Axis Sampling produces clusters whose dual connectivity yields structurally coherent meshes across open, non-manifold, and curve-like topologies even for imperfect neural or point-cloud UDFs.

What would settle it

A concrete UDF with known open non-manifold junctions where the dual mesh from the optimized medial-ball clusters shows topological mismatches or structural breaks compared with ground truth.

Figures

Figures reproduced from arXiv: 2605.15369 by Dominique Bechmann, Pierre Kraemer, Qijia Huang.

Figure 1
Figure 1. Figure 1: Starting from a function providing the distance from any point in space to the shape, our method can extract structurally coherent meshes from various [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

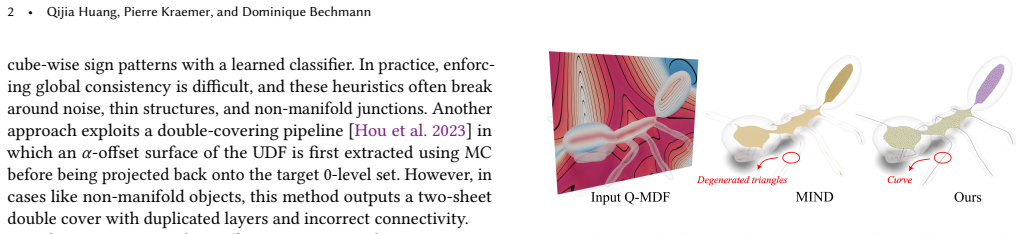

Figure 2. Figure 2: This example illustrates the reconstruction of a medial axis encoded [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

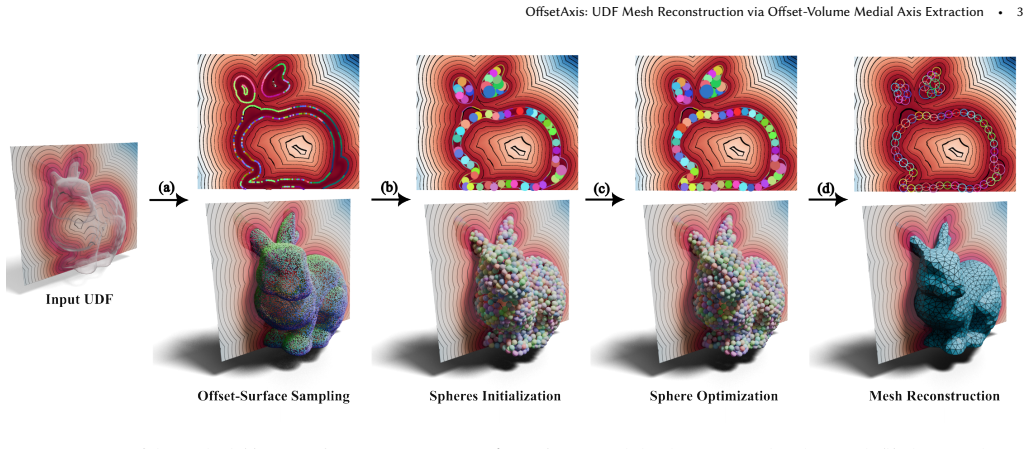

Figure 3. Figure 3: Overview of the method: (a) Starting from a given UDF, its 𝛼-offset surface is sampled with a raycasting-based approach. (b) These samples are projected onto the medial axis of the offset volume, producing a set of maximally inscribed spheres, among which a subset is selected using a covering approach. (c) These spheres are then optimized with a simple variational formulation relating each sphere to a clus… view at source ↗
Figure 5
Figure 5. Figure 5: In some challenging situations like this learned Q-MDF of a CAD [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

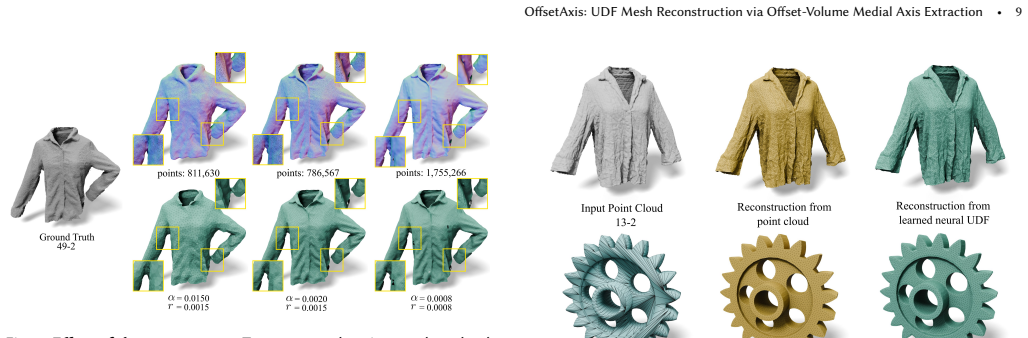

Figure 6. Figure 6: Effect of the 𝛼 parameter: Top row: sample points on the 𝛼-level set. Bottom row: the corresponding reconstructions. An excessively large value (𝛼 = 0.015) can cause the merging of nearby geometric features while an excessively small value (𝛼 = 0.0008) may introduce holes in the reconstructed mesh if the distance function is not precise enough near the shape. For small 𝛼, we reduce 𝑟 to satisfy 𝑟 < 𝛼, resu… view at source ↗
Figure 7
Figure 7. Figure 7: Effect of the 𝛿 parameter: As 𝛿 decreases, the initialization selects a denser set of spheres, which leads to reconstructed meshes with more vertices and captures finer details from the input point cloud. This increased geometric fidelity consistently reduces the Chamfer distance [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Robustness to noisy inputs. We perturb the input point cloud by random displacements with magnitudes of 0.1%, 0.3%, and 0.5% of the bounding-box diagonal, and train a UDF from each noisy input. Despite the increasing noise level, our method still produces reasonable reconstructions that preserve the geometric structures well [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 12

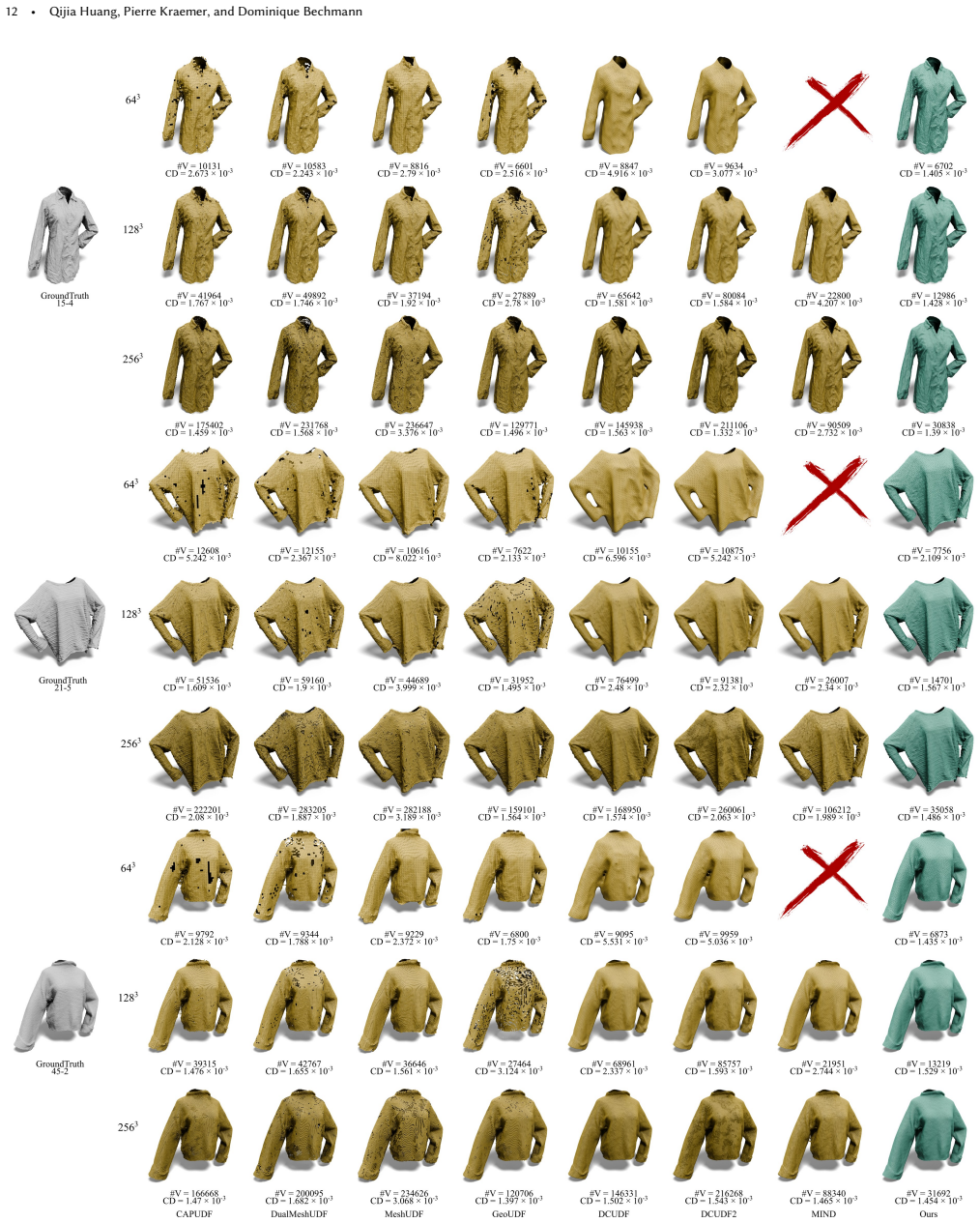

Figure 12. Figure 12: Comparison on the DeepFashion dataset. We compare our method against seven state-of-the-art methods under three grid resolutions, 643 , 1283 , and 2563 . For each reconstruction, we report the number of vertices (#V) and the Chamfer distance (CD) [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
