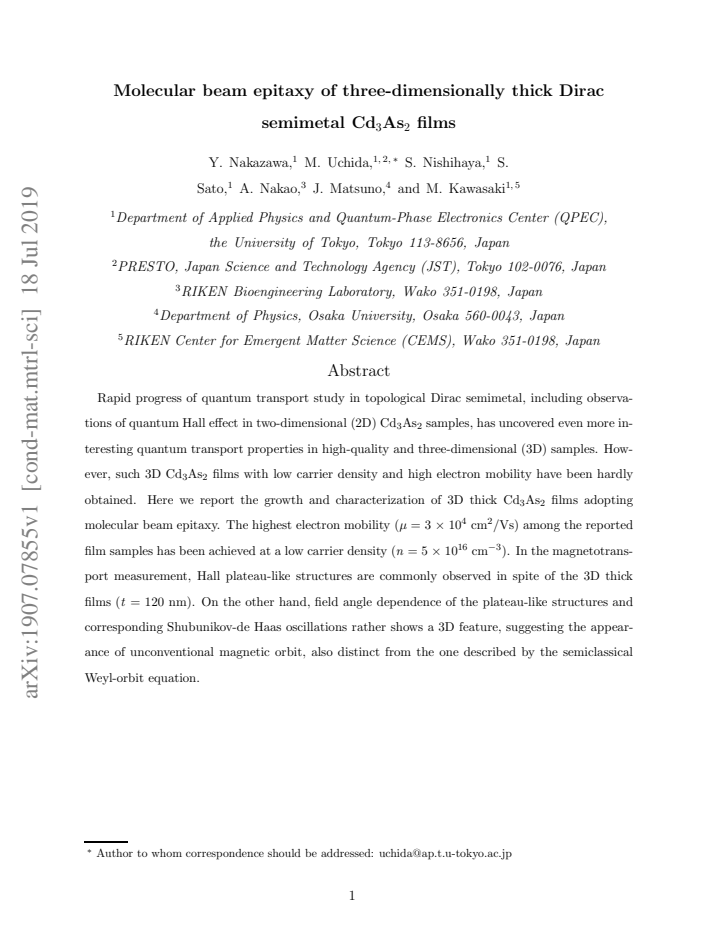

Molecular beam epitaxy of three-dimensionally thick Dirac semimetal Cd3As2 films

Pith reviewed 2026-05-24 20:02 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.str-el
keywords Cd3As2Dirac semimetalmolecular beam epitaxymagnetotransportHall effectShubnikov-de Haasquantum Hall effecttopological materials
0
0 comments X

The pith

Thick Cd3As2 Dirac semimetal films grown by molecular beam epitaxy reach electron mobility of 3×10^4 cm²/Vs at low carrier density and display three-dimensional Hall plateaus.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates the growth of high-quality, three-dimensional thick films of the Dirac semimetal Cd3As2 using molecular beam epitaxy. These films achieve the highest mobility reported for any Cd3As2 film samples while maintaining low carrier density. Magnetotransport measurements reveal Hall plateau-like structures that persist in 120-nm thick samples, with their dependence on magnetic field angle indicating an unconventional three-dimensional magnetic orbit distinct from standard Weyl orbits. This matters because it opens the way to studying three-dimensional topological quantum effects in practical film geometries rather than relying on bulk crystals or thinned samples.

Core claim

Three-dimensionally thick Cd3As2 films with thickness of 120 nm, grown by molecular beam epitaxy, attain electron mobility of 3 × 10^4 cm²/Vs at carrier density of 5 × 10^16 cm^{-3}. These films exhibit Hall plateau-like structures in magnetotransport whose field-angle dependence and associated Shubnikov-de Haas oscillations display three-dimensional character, pointing to the appearance of an unconventional magnetic orbit that differs from the semiclassical Weyl-orbit equation.

What carries the argument

Molecular beam epitaxy growth of 120-nm Cd3As2 films combined with angle-dependent magnetotransport measurements that distinguish three-dimensional orbital features.

Load-bearing premise

The Hall plateau-like structures and their magnetic field angle dependence originate from an intrinsic unconventional three-dimensional magnetic orbit in the bulk rather than from surface states, film inhomogeneities, or geometric effects.

What would settle it

Demonstrating that the plateau positions and angular dependence match predictions from surface state models or two-dimensional confinement would falsify the three-dimensional orbit interpretation.

Figures

Figures reproduced from arXiv: 1907.07855 by A. Nakao, J. Matsuno, M. Kawasaki, M. Uchida, S. Nishihaya, S. Sato, Y. Nakazawa.

Figure 1

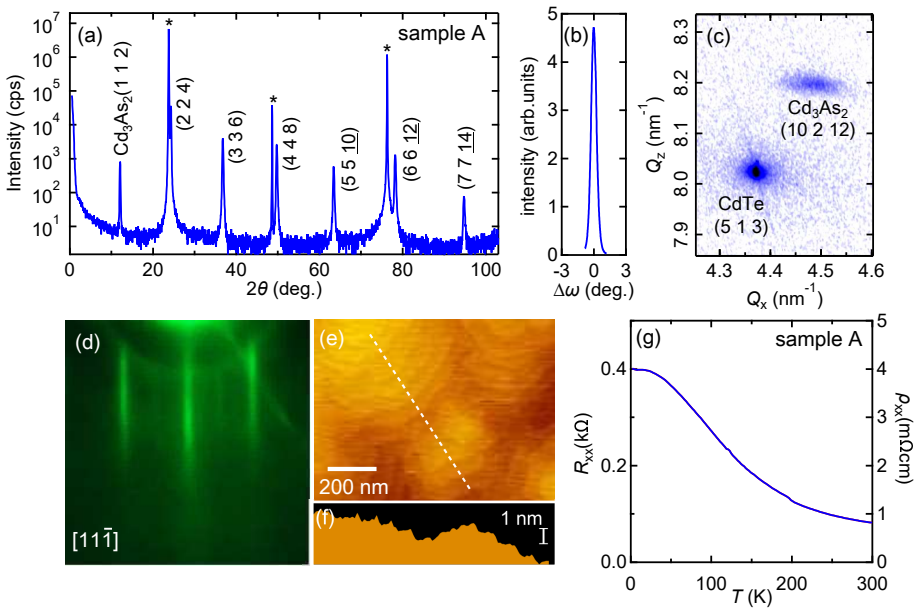

Figure 1. Figure 1: FIG. 1. (a) XRD [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

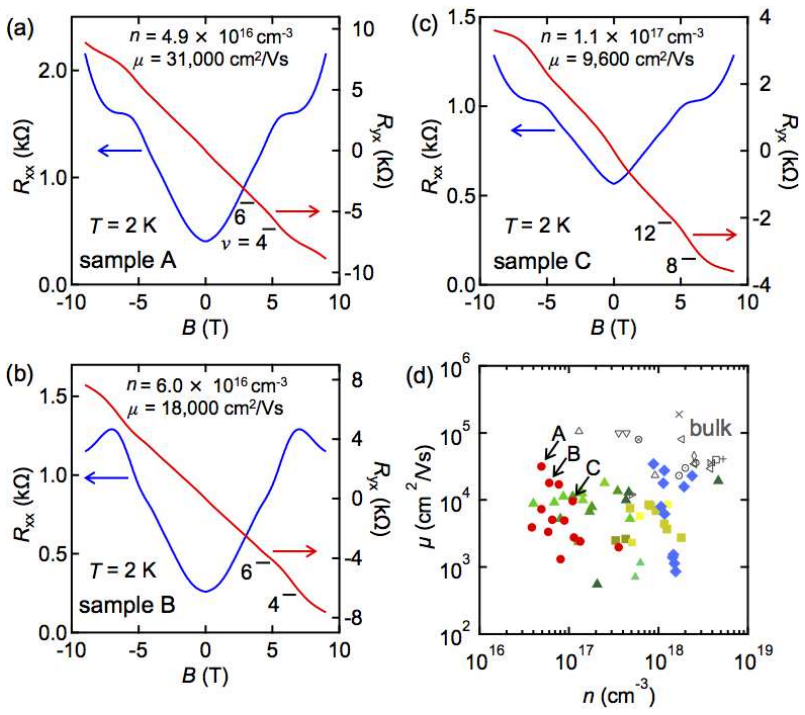

Figure 2. Figure 2: FIG. 2. (a)–(c) Out-of-plane transverse magnetoresistances [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

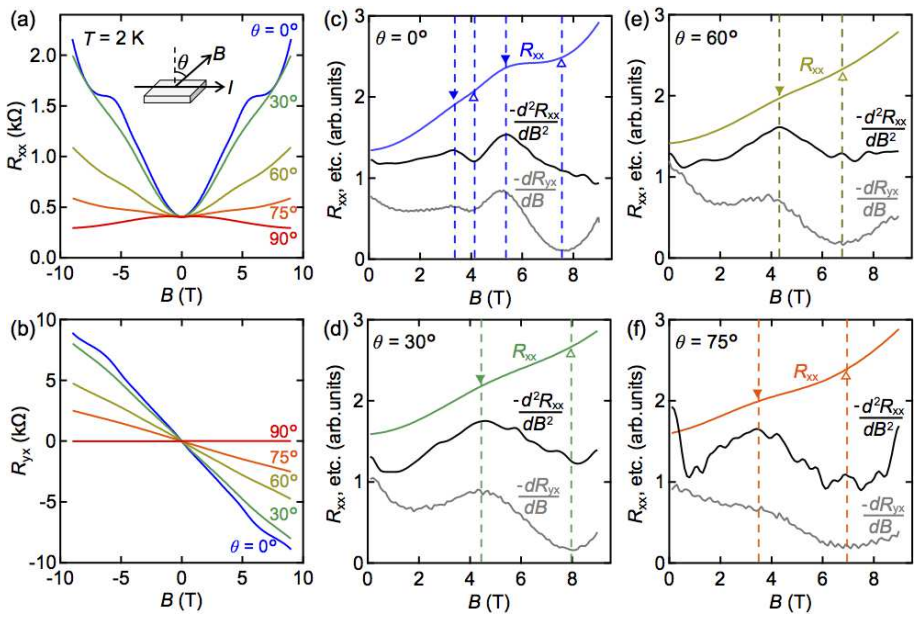

Figure 3. Figure 3: FIG. 3. (a) Transverse magnetoresistance [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
