A New Framework to Analyse the Distributional Robustness of Deep Neural Networks
Pith reviewed 2026-05-21 05:48 UTC · model grok-4.3
The pith
A framework modeling weight-activation interactions with Bernoulli distributions distinguishes memorized networks from those that generalize and detects robustness loss under shifts.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

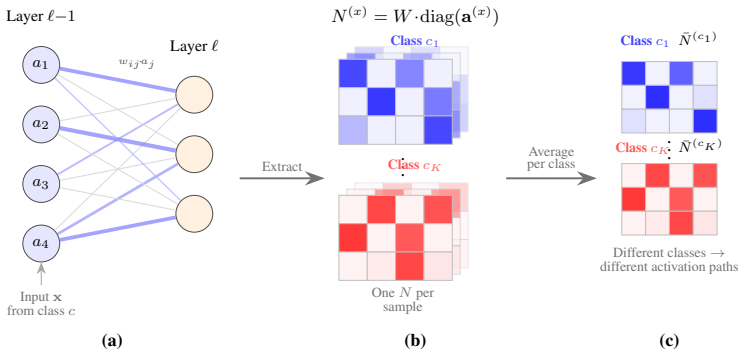

By modeling the interactions between weights and activations in each layer as Bernoulli distributions and measuring the separation between classes under this model, the framework provides diagnostics for whether a network has learned robust representations or merely memorized its training set. Networks without memorization show greater class separation, and this separation decreases when the input distribution shifts.
What carries the argument
The path-based diagnostic that models weight-activation interactions via Bernoulli distributions and uses class separation as a robustness proxy. It quantifies representation structure by tracking how these probabilistic interactions distinguish classes.
If this is right
- Metrics derived from this framework can identify networks that have memorized training data versus those that generalize.

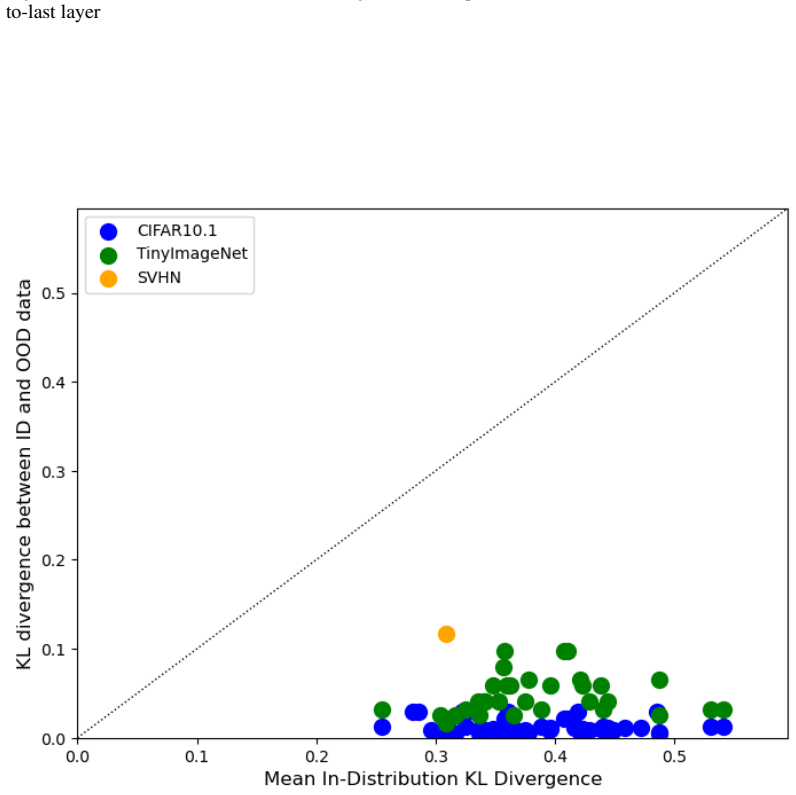

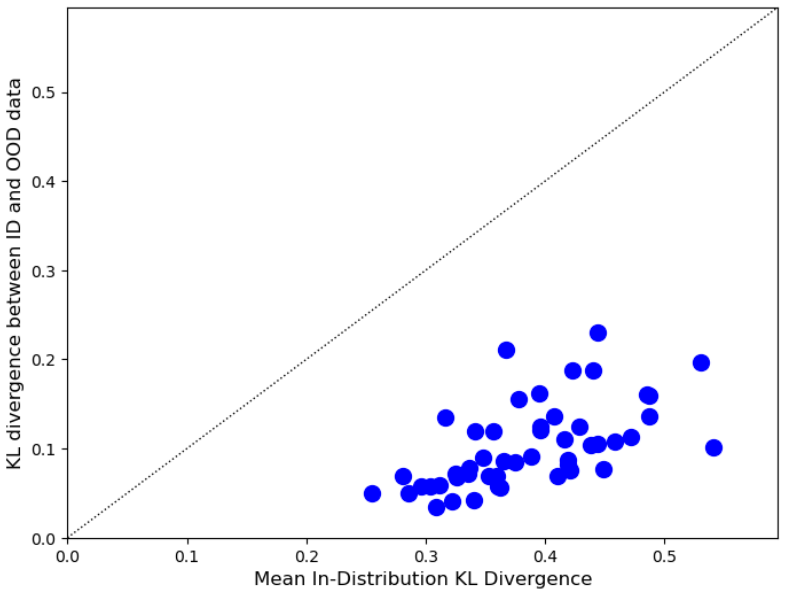

- Distribution shifts lead to reduced class separation under the proposed diagnostics.
- Analysis in activation space alone does not yield the same ability to distinguish memorization.
- The framework supplies model-level diagnostics focused on how weights interact with activations to structure representations.
Where Pith is reading between the lines
- Training procedures could be modified to optimize for higher class separation scores to encourage better robustness.
- The framework might extend to other data modalities or network types beyond image classification.
- If the Bernoulli modeling captures key interactions, it could inspire new ways to regularize networks against overfitting.
Load-bearing premise
Modeling weight-activation interactions with Bernoulli distributions and using class separation as a proxy accurately reflects the distributional robustness of the network.
What would settle it
A clear counterexample would be a network that generalizes well to new distributions but scores low on these separation metrics, or a memorized network that scores high.
Figures

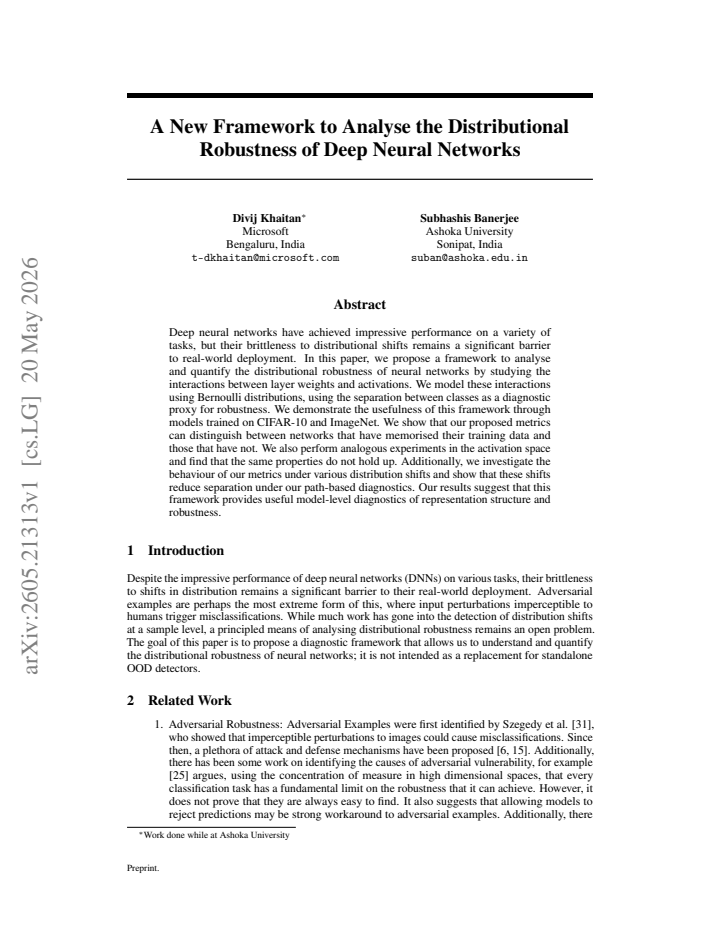

read the original abstract
Deep neural networks have achieved impressive performance on a variety of tasks, but their brittleness to distributional shifts remains a significant barrier to real-world deployment. In this paper, we propose a framework to analyse and quantify the distributional robustness of neural networks by studying the interactions between layer weights and activations. We model these interactions using Bernoulli distributions, using the separation between classes as a diagnostic proxy for robustness. We demonstrate the usefulness of this framework through models trained on CIFAR-10 and ImageNet. We show that our proposed metrics can distinguish between networks that have memorised their training data and those that have not. We also perform analogous experiments in the activation space and find that the same properties do not hold up. Additionally, we investigate the behaviour of our metrics under various distribution shifts and show that these shifts reduce separation under our path-based diagnostics. Our results suggest that this framework provides useful model-level diagnostics of representation structure and robustness.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a framework to analyze the distributional robustness of deep neural networks by modeling weight-activation interactions via Bernoulli distributions and treating class separation as a diagnostic proxy for robustness. Experiments on CIFAR-10 and ImageNet are used to show that the resulting path-based metrics distinguish networks that have memorized their training data from those that have not; analogous checks in activation space fail to replicate the property, and various distribution shifts are shown to reduce separation under the diagnostics.
Significance. If validated, the framework could supply a practical model-level diagnostic for representation structure that does not require exhaustive shift testing. The explicit weight-space versus activation-space contrast and the use of memorization as a controlled test case are constructive elements that help isolate the contribution of the Bernoulli construction.
major comments (2)
- [Experiments on CIFAR-10 and ImageNet] The central claim that the metrics isolate distributional robustness (rather than merely detecting memorization correlates) rests on the experiments distinguishing memorized from non-memorized networks. However, the manuscript does not report whether the metric correlates with or predicts actual robustness measures such as accuracy under ImageNet-C corruptions or adversarial perturbations; without such evidence the Bernoulli separation could simply reflect reduced class-conditional weight structure induced by label noise.
- [Results under distribution shifts] The abstract and results sections state that distribution shifts reduce separation, yet no quantitative tables or correlation coefficients are supplied linking the path-based metric values to downstream robustness performance. This gap is load-bearing because the diagnostic utility of the framework depends on demonstrating that lower separation anticipates degraded behavior under shifts.
minor comments (2)
- The abstract would be strengthened by including one or two key quantitative results (e.g., separation values or statistical significance) rather than qualitative statements alone.
- [Methods] Notation for the Bernoulli parameters (p, success probability, etc.) should be introduced once in the methods and used consistently thereafter to avoid reader confusion when moving between weight-space and path-based formulations.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed feedback. We address each major comment below, indicating where revisions will be made to strengthen the presentation of the framework's diagnostic value.
read point-by-point responses
-
Referee: [Experiments on CIFAR-10 and ImageNet] The central claim that the metrics isolate distributional robustness (rather than merely detecting memorization correlates) rests on the experiments distinguishing memorized from non-memorized networks. However, the manuscript does not report whether the metric correlates with or predicts actual robustness measures such as accuracy under ImageNet-C corruptions or adversarial perturbations; without such evidence the Bernoulli separation could simply reflect reduced class-conditional weight structure induced by label noise.
Authors: We appreciate the referee's point that direct validation against explicit robustness benchmarks would further isolate the contribution of the Bernoulli construction. The memorization experiments serve as a controlled test because label noise is known to induce both memorization and degraded robustness to shifts; the fact that path-based metrics detect this while activation-space checks do not provides evidence that the weight-activation modeling captures relevant structure. We agree this does not fully substitute for correlations with ImageNet-C or adversarial accuracy. We will revise the manuscript to include a discussion of this distinction and, where feasible, additional analysis correlating the metrics with such measures. revision: yes
-
Referee: [Results under distribution shifts] The abstract and results sections state that distribution shifts reduce separation, yet no quantitative tables or correlation coefficients are supplied linking the path-based metric values to downstream robustness performance. This gap is load-bearing because the diagnostic utility of the framework depends on demonstrating that lower separation anticipates degraded behavior under shifts.
Authors: We acknowledge that the current presentation shows reduced separation under shifts but does not supply explicit quantitative linkages such as correlation coefficients or tables relating metric values to accuracy degradation. We will revise the results section to incorporate such quantitative summaries, including tables of metric values and performance drops under the tested shifts, to more directly support the diagnostic interpretation. revision: yes
Circularity Check
No significant circularity; metrics derived from Bernoulli model and empirically tested
full rationale
The paper defines a framework that models weight-activation interactions via Bernoulli distributions and adopts class separation as an explicit diagnostic proxy for distributional robustness. The central metrics are constructed directly from this modeling choice and path-based diagnostics rather than being fitted to memorization labels or robustness outcomes. Experiments on CIFAR-10 and ImageNet then demonstrate that these derived metrics distinguish memorized from non-memorized networks and respond to distribution shifts; this is an empirical observation, not a definitional reduction. No self-citations, uniqueness theorems, or ansatzes are invoked in a load-bearing way that collapses the derivation back to its inputs. The framework remains self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We model these interactions using Bernoulli distributions, using the separation between classes as a diagnostic proxy for robustness... Sij = I{|Nij| > n* sum Nik} ... Bij(p) ... KL(B1||B2) = sum (i,j) ...
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

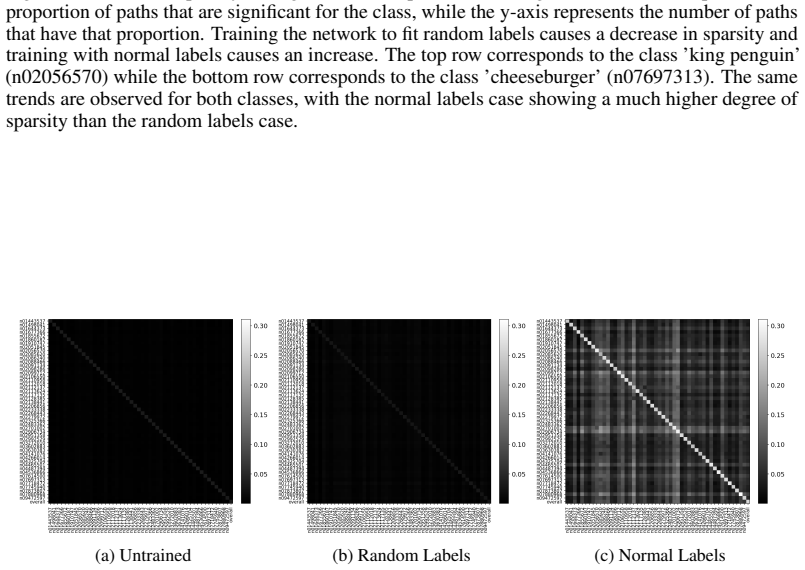

the structure of the significance matrix is closely related to memorisation and robustness, with better-performing models typically exhibiting sparser and more well-separated paths
