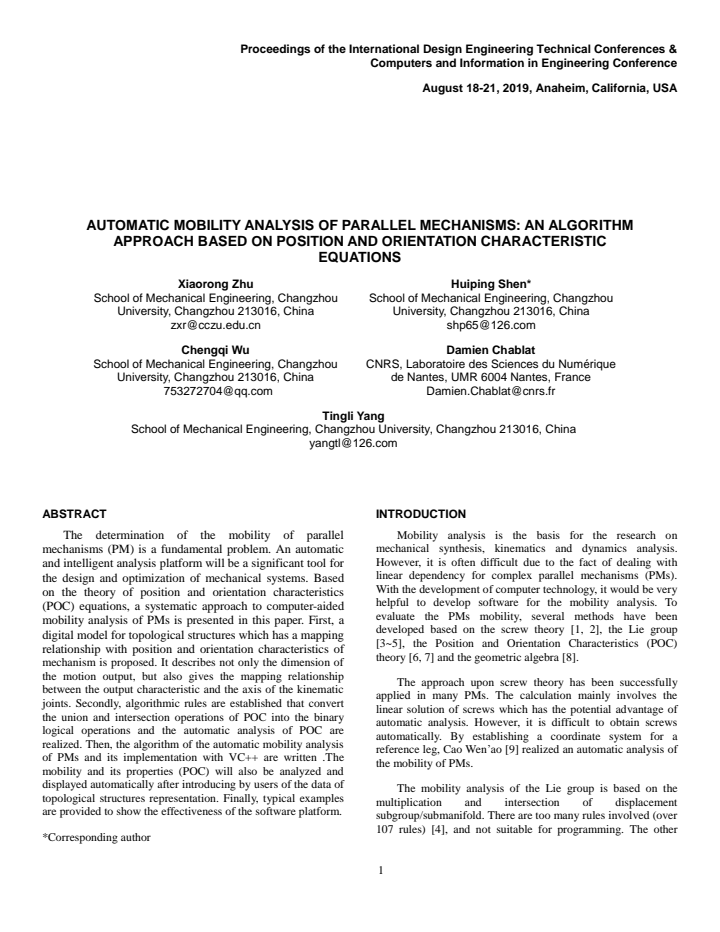

Automatic mobility analysis of parallel mechanisms: an algorithm approach based on position and orientation characteristic equations
Pith reviewed 2026-05-24 19:36 UTC · model grok-4.3
The pith
A digital model of topological structures maps directly to position and orientation characteristics, enabling software to compute mobility of parallel mechanisms automatically.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Based on the theory of position and orientation characteristics equations, a systematic approach to computer-aided mobility analysis of PMs is presented. A digital model for topological structures is proposed that has a mapping relationship with position and orientation characteristics of the mechanism. Algorithmic rules are established that convert the union and intersection operations of POC into binary logical operations. The algorithm of automatic mobility analysis and its VC++ implementation allow the mobility and its properties to be analyzed and displayed automatically after the user introduces the data of topological structures representation.
What carries the argument
The digital model of topological structures that encodes the mapping between mechanism topology and position-orientation characteristics, together with the conversion rules that turn POC union and intersection into binary logical operations.
If this is right
- Users supply only topological structure data and receive automatic mobility and POC output.
- The platform supports design and optimization of mechanical systems through repeated automatic analyses.
- The same rules and model handle multiple typical parallel mechanism examples without manual recalculation each time.
Where Pith is reading between the lines
- The binary-logic conversion could be embedded in larger CAD environments to give immediate mobility feedback during mechanism sketching.
- If the mapping rules generalize, the same structure might apply to hybrid or serial kinematic chains beyond the parallel cases shown.
- Extending the digital model to include joint limits or assembly modes would allow the software to flag additional practical constraints automatically.
Load-bearing premise
The digital model has a correct and complete mapping to position and orientation characteristics, and the algorithmic rules convert the operations into binary logic without loss of information.
What would settle it
Input a known parallel mechanism with established mobility into the implemented software and check whether the displayed POC and mobility degree match the manually derived values.
read the original abstract
The determination of the mobility of parallel mechanisms (PM) is a fundamental problem. An automatic and intelligent analysis platform will be a significant tool for the design and optimization of mechanical systems. Based on the theory of position and orientation characteristics (POC) equations, a systematic approach to computer-aided mobility analysis of PMs is presented in this paper. First, a digital model for topological structures which has a mapping relationship with position and orientation characteristics of mechanism is proposed. It describes not only the dimension of the motion output, but also gives the mapping relationship between the output characteristic and the axis of the kinematic joints. Secondly, algorithmic rules are established that convert the union and intersection operations of POC into the binary logical operations and the automatic analysis of POC are realized. Then, the algorithm of the automatic mobility analysis of PMs and its implementation with VC++ are written .The mobility and its properties (POC) will also be analyzed and displayed automatically after introducing by users of the data of topological structures representation. Finally, typical examples are provided to show the effectiveness of the software platform.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to present a systematic computer-aided approach to mobility analysis of parallel mechanisms (PMs) based on position and orientation characteristics (POC) equations. It introduces a digital model of topological structures that maps to POC (capturing both motion dimension and joint axis relations), establishes algorithmic rules converting POC union and intersection operations into binary logical operations, implements the full algorithm in VC++, and demonstrates the resulting automatic analysis and display of mobility and POC properties on user-input topological data, with typical examples to illustrate effectiveness.
Significance. If the digital model and conversion rules are shown to be faithful, the work would supply a practical automated platform for a core task in mechanism design, reducing manual analysis effort. The explicit implementation in VC++ and the provision of runnable examples constitute a concrete engineering contribution that could be extended or reproduced by others.
major comments (2)
- [Algorithmic rules section] The section describing the algorithmic rules for converting POC union and intersection into binary logical operations does not supply an explicit proof, enumeration, or counter-example check that directional and incidence relations among joint axes are preserved; because POC encodes both output dimension and explicit axis directions, treating characteristics as independent bits risks information loss precisely when joints share axes or impose non-orthogonal constraints, which is load-bearing for the claim of automatic and correct mobility output.
- [Examples section] The examples section presents typical mechanisms to illustrate effectiveness but contains no quantitative verification data, error metrics, comparison against known mobility results from the literature, or test cases exercising shared-axis configurations; without such checks the central claim that the platform performs automatic and correct analysis remains unsupported.
minor comments (2)
- [Digital model section] Notation for the binary encoding of POC characteristics is introduced without a compact tabular summary relating each bit pattern to the corresponding axis directions, which would aid readability.
- [Abstract] The abstract states that the mobility and its properties (POC) are analyzed and displayed automatically, yet the manuscript does not indicate whether the output includes the full set of independent axes or only the dimension count.
Simulated Author's Rebuttal
We thank the referee for the constructive comments on our manuscript. We address each major comment below and indicate planned revisions to strengthen the presentation of the algorithmic rules and the verification of the examples.
read point-by-point responses
-
Referee: [Algorithmic rules section] The section describing the algorithmic rules for converting POC union and intersection into binary logical operations does not supply an explicit proof, enumeration, or counter-example check that directional and incidence relations among joint axes are preserved; because POC encodes both output dimension and explicit axis directions, treating characteristics as independent bits risks information loss precisely when joints share axes or impose non-orthogonal constraints, which is load-bearing for the claim of automatic and correct mobility output.
Authors: We acknowledge that the manuscript does not provide an explicit proof, enumeration, or counter-example verification demonstrating preservation of directional and incidence relations under the binary operations. The digital model is intended to capture axis mappings, but the current text does not explicitly demonstrate that the logical operations avoid information loss in shared-axis or non-orthogonal cases. We will revise the algorithmic rules section to include a detailed justification, including enumeration of shared-axis configurations and a proof sketch showing how the operations maintain the required relations. revision: yes
-
Referee: [Examples section] The examples section presents typical mechanisms to illustrate effectiveness but contains no quantitative verification data, error metrics, comparison against known mobility results from the literature, or test cases exercising shared-axis configurations; without such checks the central claim that the platform performs automatic and correct analysis remains unsupported.
Authors: We agree that the examples section lacks quantitative verification, error metrics, literature comparisons, and dedicated shared-axis test cases. The presented examples are intended to demonstrate the software output, but they do not include the requested checks. In the revised manuscript we will add comparisons of computed mobility and POC values against established results from the literature for each example, include at least two additional shared-axis configurations with reported results, and provide error metrics relative to the reference values. revision: yes
Circularity Check
POC-based algorithmic rules presented as independent implementation without definitional reduction
full rationale
The paper introduces a digital topological model and conversion rules from POC union/intersection to binary logic as its core contribution, then implements them in VC++ with example validation. No quoted step equates an output mobility result to an input fit or prior self-citation by construction; the mapping and rules are asserted as newly established rather than derived tautologically from the referenced POC theory. The approach is therefore self-contained as an engineering automation layer atop an external foundational framework.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Position and orientation characteristic (POC) equations provide a complete and accurate description of the mobility of parallel mechanisms.
