Long-range order and thermal stability of thin Co₂FeSi films on GaAs(111)B

B Jenichen , J Herfort , K Kumakura , A Trampert This is my paper

Pith reviewed 2026-05-24 23:00 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords Co2FeSiGaAs(111)Bmolecular beam epitaxyL21 phaseB2 phaselong-range orderTEM imagingthermal stability
0
0 comments X

The pith

Co₂FeSi films on GaAs(111)B contain fully ordered L2₁ and partially ordered B2 phases with interface stability up to 275°C.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates thin Co₂FeSi films grown by molecular-beam epitaxy on GaAs(111)B substrates and characterizes their structural order and thermal behavior. It establishes that the films form in an island growth mode over substrate temperatures from 100°C to 425°C and that the interface with the substrate stays stable without reactions up to 275°C. The films consist of regions with full L2₁ long-range order alongside areas of partial B2 order. Spatial variations in that order are mapped by comparing transmission electron microscopy images taken with superlattice reflections against those using fundamental reflections. These variations are traced to local non-stoichiometry arising from lateral segregation or stress relaxation, all without generating extended defects.

Core claim

The Co₂FeSi films on GaAs(111)B exhibit both fully ordered L2₁ and partially ordered B2 phases, with the interface remaining stable up to a substrate temperature of 275°C. The spatial inhomogeneities in long-range order arise from local non-stoichiometry due to lateral segregation or stress relaxation, occurring without the formation of extended defects.

What carries the argument

Comparison of TEM images taken with superlattice reflections versus the corresponding fundamental reflections, used to map the spatial distribution of long-range order.

If this is right

  • The hybrid structures maintain a stable, non-reacting interface with GaAs up to Ts=275°C.
  • The films incorporate both fully ordered L2₁ regions and partially ordered B2 regions.
  • Order inhomogeneities occur solely through local non-stoichiometry or stress relaxation and do not involve extended defects.
  • Island-mode growth persists across the full temperature window from 100°C to 425°C.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Minimizing lateral segregation during growth could produce more uniform long-range order across the film.
  • The absence of extended defects supports the use of these films in heterostructures where crystalline continuity is required.
  • The identified thermal limit at 275°C defines an upper bound for any post-growth processing steps that preserve the interface.

Load-bearing premise

The comparison of TEM images with superlattice and fundamental reflections accurately maps the spatial distribution of long-range order without significant influence from sample preparation artifacts, local strain, or thickness variations.

What would settle it

Detection of extended defects in the films or a mismatch between the TEM-derived order map and independent local composition or diffraction measurements would undermine the non-stoichiometry explanation.

Figures

Figures reproduced from arXiv: 1907.05306 by A Trampert, B Jenichen, J Herfort, K Kumakura.

Figure 1

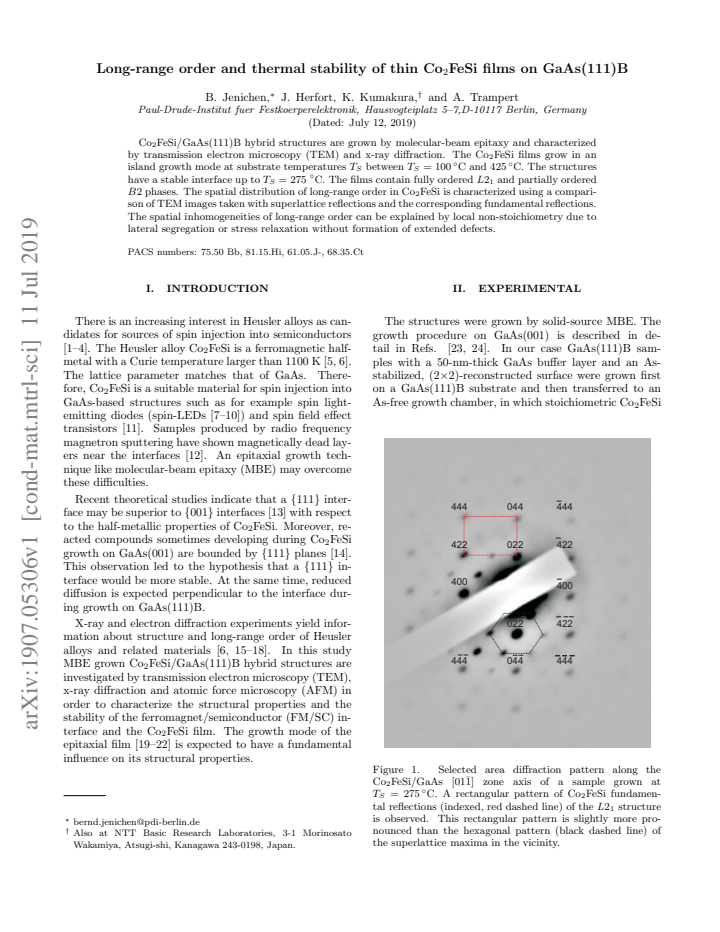

Figure 1. Figure 1: Selected area diffraction pattern along the [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

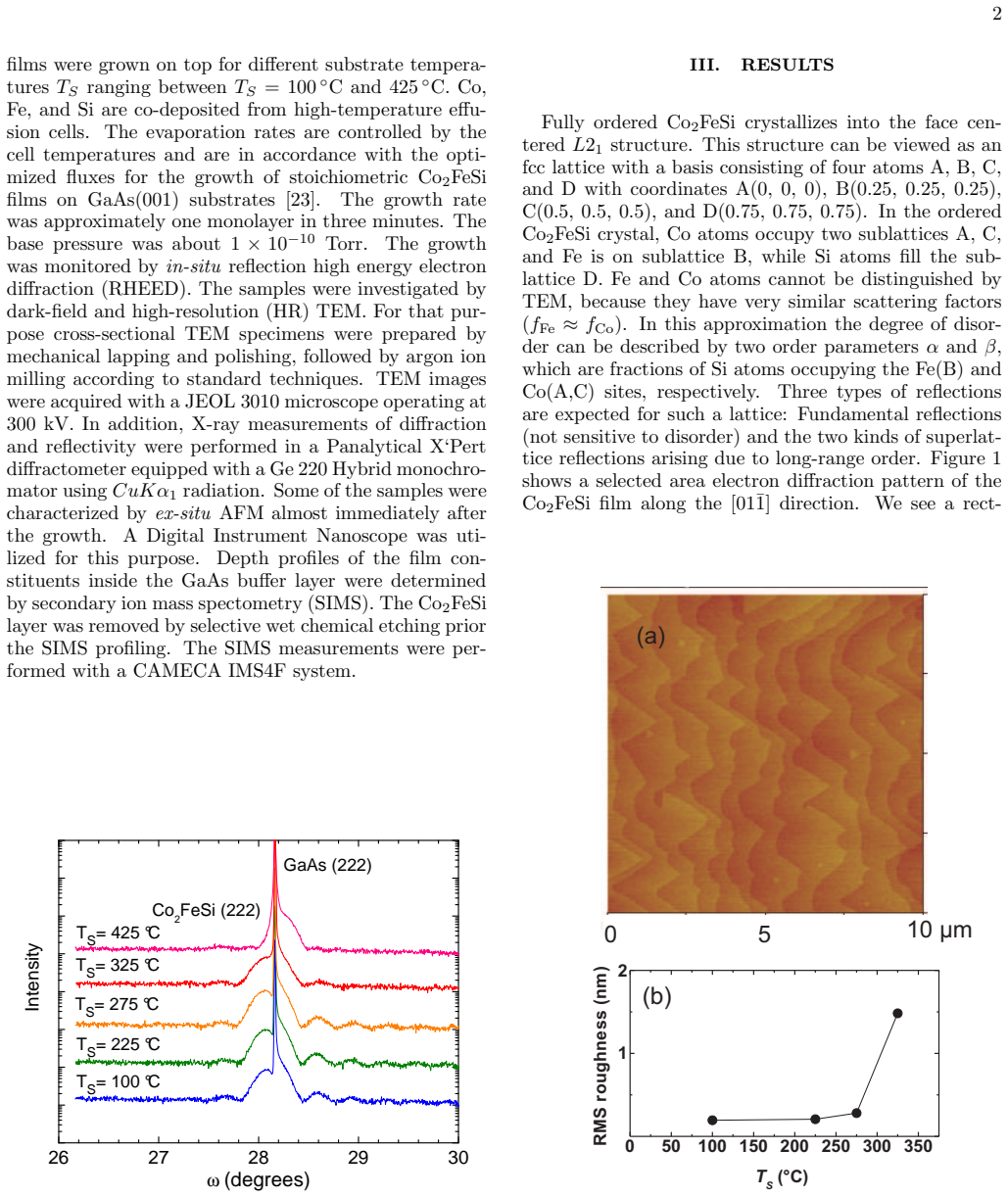

Figure 2. Figure 2: High resolution x-ray diffraction curves measured [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 4

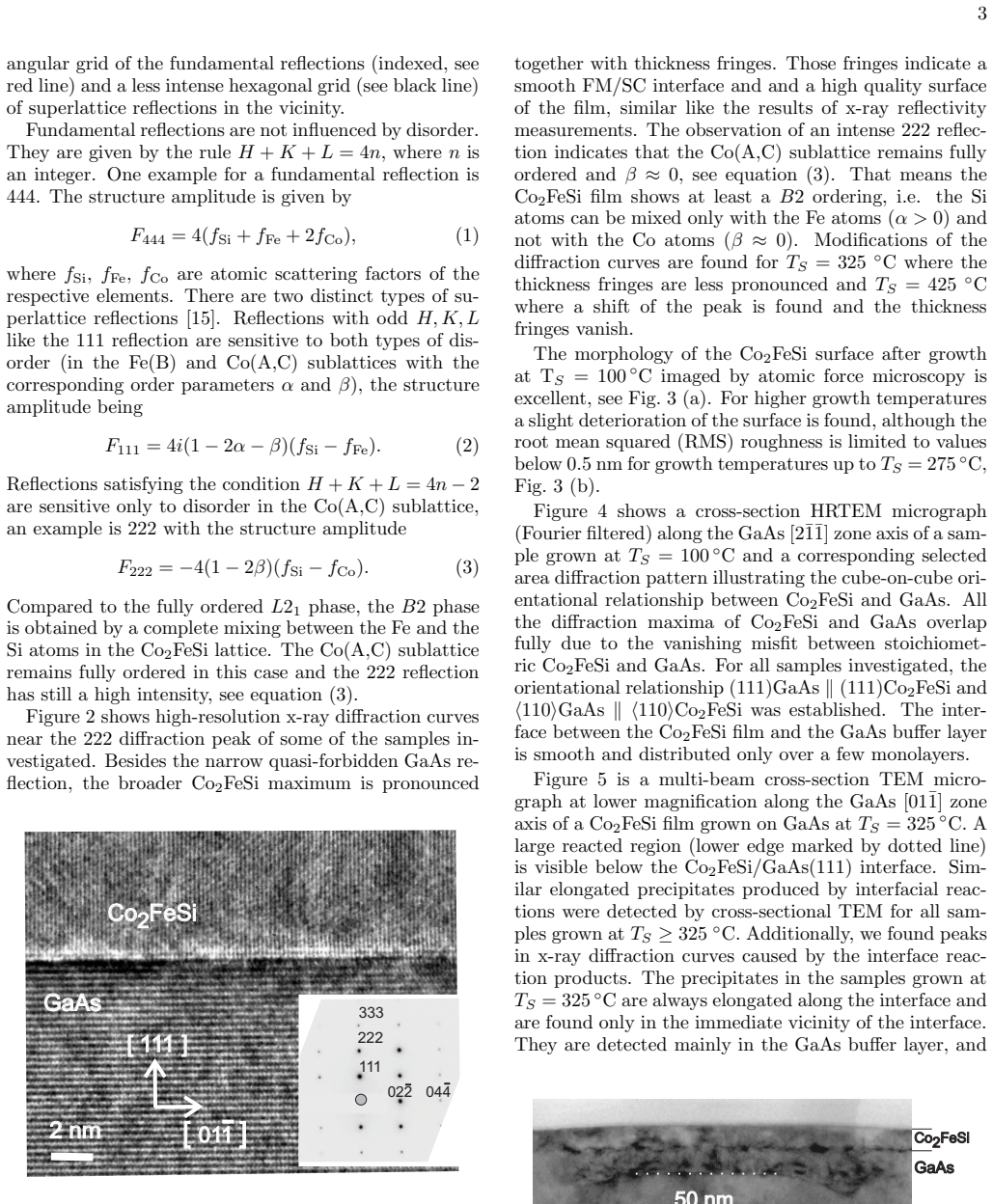

Figure 4. Figure 4: Cross-section HRTEM micrograph (Fourier fil [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 7

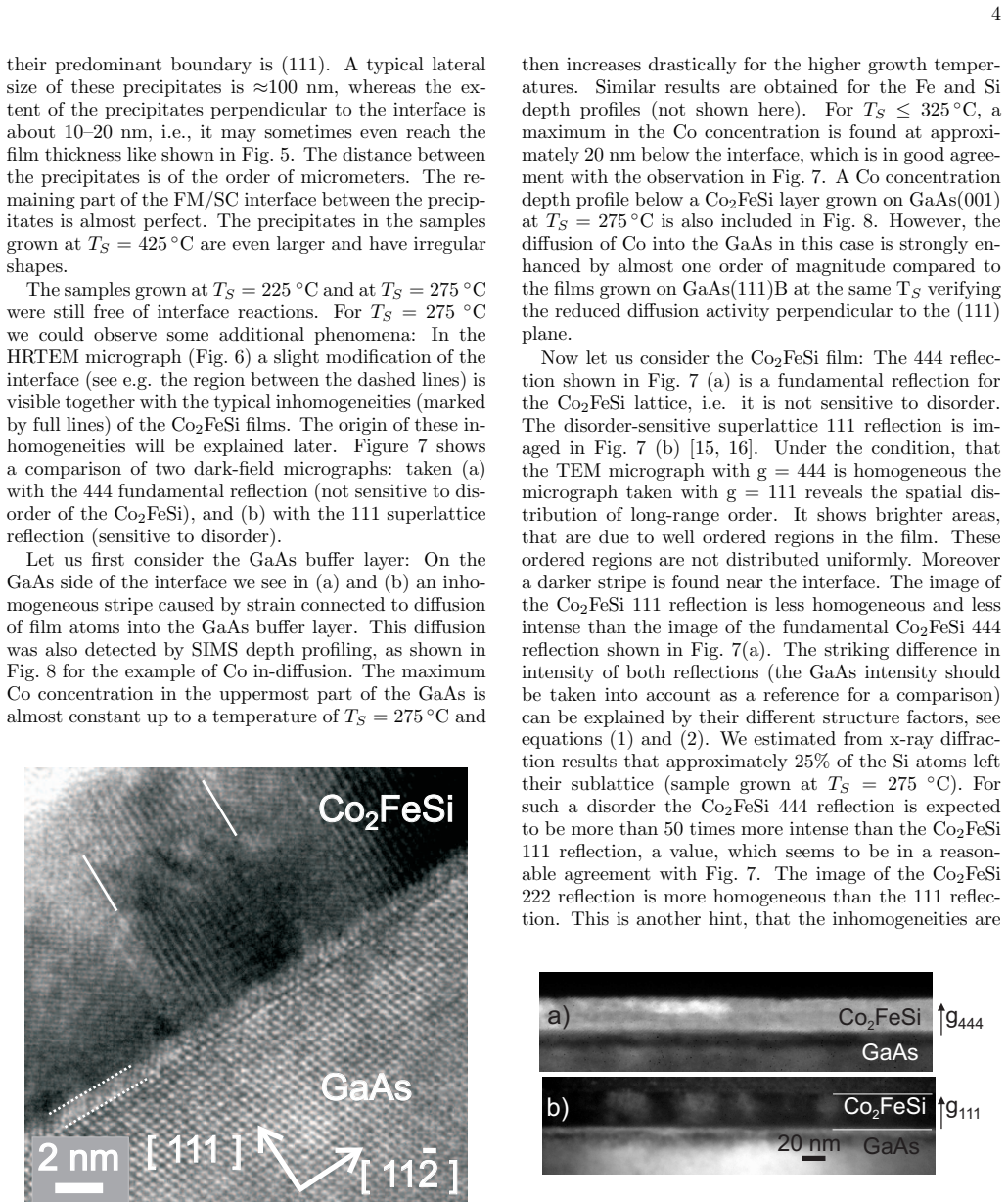

Figure 7. Figure 7: Dark-field cross-section TEM micrographs of the [PITH_FULL_IMAGE:figures/full_fig_p004_7.png] view at source ↗
Figure 9

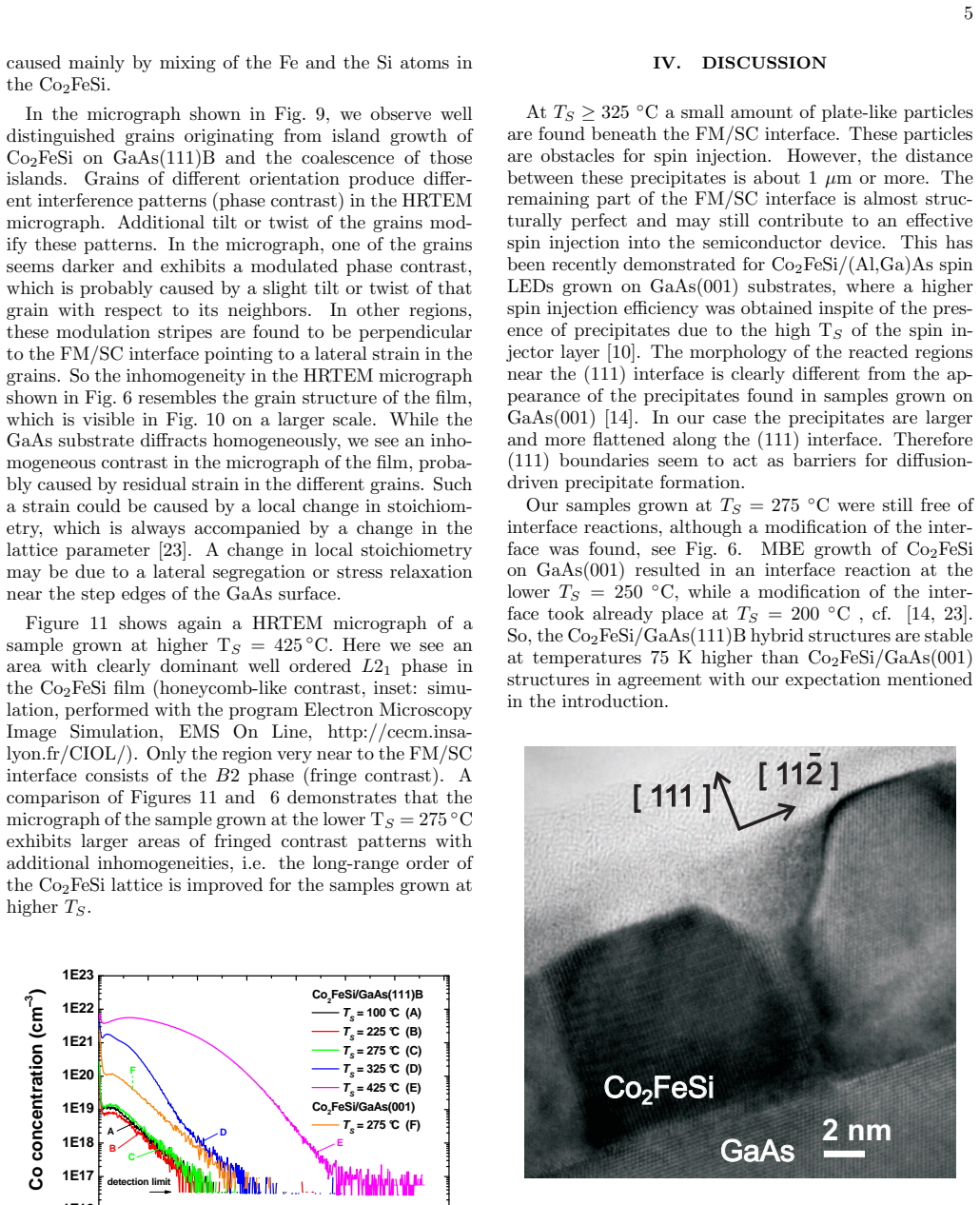

Figure 9. Figure 9: Cross-section HRTEM micrograph along the [PITH_FULL_IMAGE:figures/full_fig_p005_9.png] view at source ↗
Figure 11

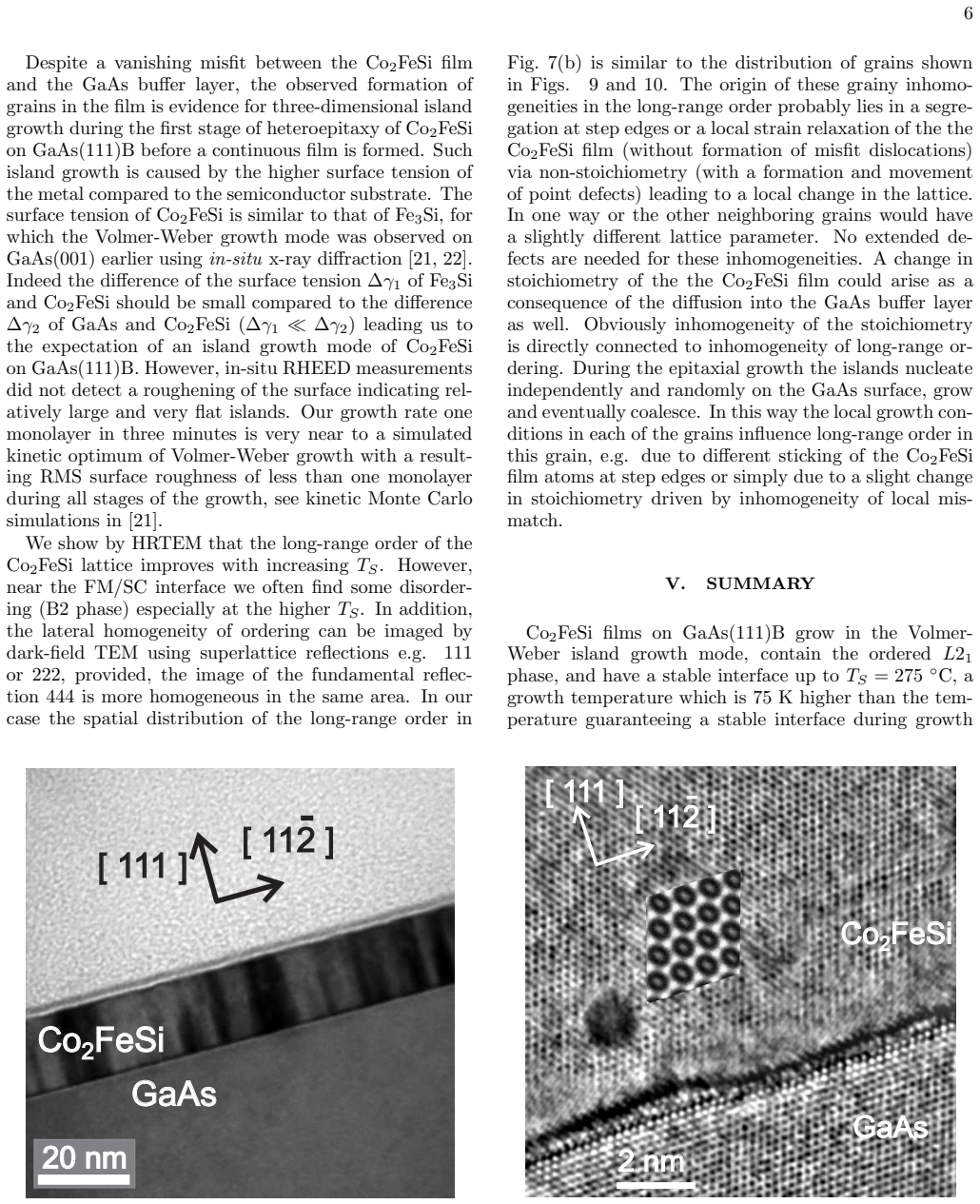

Figure 11. Figure 11: Cross-section HRTEM micrograph (Fourier fil [PITH_FULL_IMAGE:figures/full_fig_p006_11.png] view at source ↗
read the original abstract

Co$_{2}$FeSi/GaAs(111)B hybrid structures are grown by molecular-beam epitaxy and characterized by transmission electron microscopy (TEM) and x-ray diffraction. The Co$_{2}$FeSi films grow in an island growth mode at substrate temperatures $T_{S}$ between $T_{S}$~=~100$\thinspace^{\circ}$C and 425$\thinspace^{\circ}$C. The structures have a stable interface up to $T_{S}=275~^{\circ}$C. The films contain fully ordered $L2_{1}$ and partially ordered $B2$ phases. The spatial distribution of long-range order in Co$_{2}$FeSi is characterized using a comparison of TEM images taken with superlattice reflections and the corresponding fundamental reflections. The spatial inhomogeneities of long-range order can be explained by local non-stoichiometry due to lateral segregation or stress relaxation without formation of extended defects.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports molecular-beam epitaxy growth of thin Co₂FeSi films on GaAs(111)B at substrate temperatures from 100°C to 425°C, characterized primarily by TEM and XRD. It claims island-mode growth, interface stability up to Ts=275°C, coexistence of fully ordered L2₁ and partially ordered B2 phases, and that spatial inhomogeneities in long-range order arise from local non-stoichiometry (lateral segregation or stress relaxation without extended defects), inferred from intensity comparisons between TEM images recorded with superlattice reflections and the corresponding fundamental reflections.

Significance. If the central TEM-based mapping of the order parameter holds after artifact correction, the work supplies useful experimental data on thermal stability and phase ordering in Co₂FeSi/GaAs(111) hybrids, which are of interest for spintronic devices. The identification of a temperature window for stable interfaces is a concrete, application-relevant result. The absence of quantitative metrics, error bars, or reproducibility details on the order-parameter extraction reduces the immediate impact.

major comments (2)
  1. [TEM characterization section] TEM characterization section (description of superlattice vs. fundamental reflection imaging): the manuscript states that the spatial distribution of long-range order is obtained by direct comparison of the two image sets, yet provides no quantitative assessment or correction for possible contributions from local strain fields, foil-thickness variations, or preparation-induced relaxation. Because this mapping is the sole basis for the claim that inhomogeneities reflect local non-stoichiometry rather than imaging artifacts, the physical interpretation rests on an untested assumption.
  2. [Results on phase identification and interface stability] Results on phase identification and interface stability: the assertion of a stable interface up to Ts=275°C and the coexistence of L2₁ and B2 phases is presented without tabulated quantitative metrics (e.g., order-parameter values with uncertainties, interface roughness statistics, or XRD rocking-curve widths), making it difficult to judge the strength of the thermal-stability conclusion.
minor comments (2)
  1. [Figure captions] Figure captions and text should explicitly state the acceleration voltage, objective aperture, and sample-preparation method (e.g., FIB or ion milling) used for the TEM images, as these parameters affect contrast interpretation.
  2. [Growth and structural characterization] The growth-temperature series is described qualitatively; inclusion of a table summarizing film thickness, RMS roughness, and phase fractions versus Ts would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment below and indicate where revisions have been made to strengthen the presentation.

read point-by-point responses

  1. Referee: [TEM characterization section] TEM characterization section (description of superlattice vs. fundamental reflection imaging): the manuscript states that the spatial distribution of long-range order is obtained by direct comparison of the two image sets, yet provides no quantitative assessment or correction for possible contributions from local strain fields, foil-thickness variations, or preparation-induced relaxation. Because this mapping is the sole basis for the claim that inhomogeneities reflect local non-stoichiometry rather than imaging artifacts, the physical interpretation rests on an untested assumption.

    Authors: We acknowledge that the original manuscript lacks explicit quantitative corrections for strain fields, foil thickness, or preparation effects. However, the observed spatial variations in superlattice intensity do not correlate with strain contrast or thickness variations visible in the corresponding fundamental-reflection images, and no extended defects are present to explain the patterns via relaxation. This supports local non-stoichiometry as the dominant cause, consistent with standard TEM order-mapping approaches in Heusler compounds. In the revised manuscript we have added a dedicated paragraph discussing these potential artifacts and the reasoning that they are unlikely to dominate the observed inhomogeneities. revision: partial

  2. Referee: [Results on phase identification and interface stability] Results on phase identification and interface stability: the assertion of a stable interface up to Ts=275°C and the coexistence of L2₁ and B2 phases is presented without tabulated quantitative metrics (e.g., order-parameter values with uncertainties, interface roughness statistics, or XRD rocking-curve widths), making it difficult to judge the strength of the thermal-stability conclusion.

    Authors: We agree that tabulated quantitative metrics would improve clarity and allow better assessment of the claims. The revised manuscript now includes a table with estimated order-parameter values (from intensity ratios) for the different growth temperatures, interface roughness statistics extracted from TEM images, and available XRD rocking-curve widths. These additions directly support the reported interface stability up to 275°C and the coexistence of L2₁ and B2 phases. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental observations with no derivations or fitted predictions

full rationale

The paper is an experimental materials science report on MBE-grown films characterized by TEM and XRD. It contains no equations, no claimed derivations, no predictions from models, and no self-citations used as load-bearing premises. All statements (island growth mode, phase identification, interface stability, spatial order distribution via TEM contrast) are direct interpretations of measured data. The reader's assessment of score 0.0 is confirmed; the skeptic concern addresses experimental validity (possible artifacts in TEM contrast) rather than any reduction of a derivation to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard materials science techniques and domain assumptions about TEM contrast interpretation for ordered alloys; no free parameters, invented entities, or ad hoc axioms are introduced.

axioms (1)
  • domain assumption Standard interpretation of TEM contrast for superlattice reflections in ordered alloys accurately reflects long-range order
    The paper uses comparison of TEM images with superlattice and fundamental reflections to characterize order distribution.
