Advancement and Field Evaluation of a Dual-arm Apple Harvesting Robot

T0 review · 4 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A dual-arm, vacuum-based apple harvesting robot reaches 80.7% and 79.7% success rates in two commercial orchards and cuts harvest time 28% versus a single-arm system.

desk verdict A genuine field advance in dual-arm apple harvesting, with real numbers that need a bit more documentation before the headline comparisons fully land. read the letter →

arxiv 2506.05714 v1 pith:HLBPESLW submitted 2025-06-06 cs.RO

Keyi Zhu , Kyle Lammers , Kaixiang Zhang , Chaaran Arunachalam , Siddhartha Bhattacharya , Jiajia Li , Renfu Lu , Zhaojian Li This is my paper
classification cs.RO
keywords appleharvestingrobotdual-armmanipulationvacuumend-effectorfoundationmodeldetectionpointcloudclusteringtemporallogiccoordinationpressuresensorfeedbackorchardfieldevaluation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that a dual-arm, vacuum-based apple harvesting robot can reach per-attempt success rates of 80.7% and 79.7% in commercial orchards with an average 5.97-second picking cycle, and that the gain comes from a pressure-sensor-aware coordination policy that lets two arms share one vacuum source without stalling each other. The authors build on their earlier dual-arm platform, adding a repositioning platform, a foundation-model-based detection and segmentation pipeline, and clustering-based depth estimation. They report a 28% reduction in harvest time over a single-arm baseline. If these figures hold, the system is closer to the speed and reliability needed for commercial fruit-by-fruit harvesting, where cycle times above 10 seconds were previously common. The headline results are computed over apples the robot attempted, so overall orchard-level yield would depend on how many apples the perception system misses.

What carries the argument

The central mechanism is the shared-vacuum dual-arm system with four butterfly valves and three pressure sensors. Pressure at each arm and at the vacuum source tells the controller whether an apple is sealed to the end-effector; the temporal-logic policy expresses that both arms should always eventually retract with fruit attached, that valves open only after approach, that at most one arm attempts attachment unless the other has already sealed, and that failed or dropped attachments close the valve immediately. This lets two arms run approach and retraction in parallel while sharing one suction source, and it converts failure detection into a faster retry. On the perception side, the load-bearing object is the three-stage pipeline: Grounding-DINO detection boxes prompt a dual-branch segmentation network producing instance masks, and DBSCAN clustering of the masked point cloud picks the densest cluster to give a depth estimate.

What would settle it

Count every apple visible in the camera images inside the robot's reachable workspace before a harvest run, then count how many of those apples end up in the storage bin; if that ratio is substantially below 80.7% and 79.7%, the per-attempt metric overstates the system's picking capability. A single orchard row with pre- and post-harvest enumeration would settle this.

Watch

Extended reading notes

Core claim

The central claim is that an integrated dual-arm harvesting robot, with a fixed Time-of-Flight camera, a centralized vacuum shared by two 4-degree-of-freedom suction arms, and a temporal-logic coordination policy driven by pressure feedback, achieves 80.7% and 79.7% harvest success rates in Gala and Fuji commercial orchards, with a 5.97-second mean cycle time per attempt and a 28% time saving over a single-arm baseline. The paper attributes this performance to three interacting components: a detection-to-segmentation-to-DBSCAN localization pipeline that tolerates localization errors of about 1.5 centimeters, a valve system that dynamically routes vacuum to one or both arms, and a coordination policy that forbids simultaneous attachment while allowing parallel approach and retraction based on inferred attachment success. The work is presented as a full-system field validation rather than a component study.

Load-bearing premise

The success rates count only apples the robot chose to attempt; apples the perception system never detected or that were classified as too occluded to harvest are not in the denominator, so the reported 80 percent is not the share of all apples in the robot's workspace that got picked.

Editorial extensions

If this is right

  • A 5.97-second average cycle per attempt is well below the greater-than-10-second cycle times cited for earlier fruit-by-fruit harvesting robots, bringing per-attempt speed closer to commercial practicality.
  • The 28% time saving over a single-arm baseline shows that a shared-vacuum dual-arm configuration can outperform two independent arms if the coordination policy reacts to attachment failures in real time.
  • The failure analysis identifies perception issues, especially exposure, occlusion, and apple clustering, as the dominant cause of missed pick attempts, pointing future improvements toward detection and segmentation rather than arm mechanics.
  • Because arm movement speed was deliberately capped at 60% of maximum during field tests, the paper claims substantial efficiency headroom if the system can operate faster without damaging the canopy.
  • The interaction between the dropping module and protruding branches suggests that platform movement and trajectory planning, not just picking, now limit safe continuous operation.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Beyond the paper: the reported 80% success is a per-attempt rate, not a per-tree yield rate, because apples the perception system never detects or the authors classify as unharvestable due to heavy occlusion are excluded from the denominator; counting all apples in the robot's workspace would likely give a lower effective harvest fraction.
  • Beyond the paper: the pressure-feedback coordination policy is not apple-specific; the pattern of serializing only the resource-contended operation while allowing parallel approach and retraction could transfer to other shared-pump or shared-gripper harvesting robots for strawberries, peppers, or citrus.
  • Beyond the paper: the 28% time saving assumes the vacuum seal holds during parallel retraction; if end-effector seals degrade with canopy contact or fruit orientation, the policy would need to serialize retraction more often, making the saving dependent on orchard conditions.
  • Beyond the paper: a direct test of the coordination gain would run the same orchard rows with the 2024 policy versus the 2023 policy under matched apple density and arm speed, measuring not just cycle time but also apples harvested per row.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper describes the design, implementation, and field evaluation of a dual-arm apple harvesting robot. The system combines a Time-of-Flight camera, two 4-DOF vacuum-based arms, a centralized valve system with pressure feedback, a platform movement module, and a fruit handling module. A perception pipeline based on a fine-tuned Grounding-DINO detector, semantic/instance segmentation, and DBSCAN-based depth estimation is presented, together with a temporal-logic-inspired coordination strategy for the two arms. Field demonstrations in two commercial Michigan orchards (Gala and Fuji) are reported, with success rates of 80.7% and 79.7%, an average cycle time of 5.97 s per attempt, and a claimed 28% harvest-time reduction relative to a single-arm baseline. The paper concludes that the system is approaching practical deployment.

Significance. If the reported field performance is reproducible, this work is a useful contribution to agricultural robotics: it demonstrates a fully integrated dual-arm harvesting platform evaluated in real commercial orchards, with a detailed failure analysis and an honest discussion of limitations. The system-level integration effort is substantial, and the explicit reporting of field conditions and failure categories is a strength. However, the headline performance metrics—success rate and cycle-time reduction—are presently defined over an operator-filtered set of attempts and compared against a baseline whose measurement protocol is not described. These gaps must be addressed before the quantitative claims can be accepted as stated.

major comments (4)
  1. [Section 4.2, Table 2] The reported success rates (80.7% and 79.7%) are computed only over apples that the system attempted to pick. The text acknowledges that some apples were heavily occluded and thus 'effectively unharvestable', but it never quantifies how many such apples were present in the robot's workspace, nor how many apples were missed entirely by the perception system. If the denominator were expanded to include all apples in the workspace, the success rates could be materially lower. The paper should either report the number of unharvestable/missed apples and recompute rates over the full crop, or explicitly frame the headline numbers as per-attempt success rates conditional on detection and operator selection.
  2. [Section 4.2, single-arm baseline] The claim that the coordination strategy reduced harvest time by 28% rests on a single-arm baseline cycle time of 8.29 s, but the manuscript provides no experimental protocol for how this baseline was measured. It is not stated whether a single arm was disabled in the same orchard conditions, how many cycles were timed, what the success rate was in that configuration, or whether the baseline reflects the same perception and control software. Without this information, the 28% reduction cannot be evaluated. The authors should report the baseline setup, the number of trials, and ideally the raw per-cycle times.
  3. [Section 4.2, performance statistics] No confidence intervals, standard deviations, or statistical tests are reported for the success rates or cycle times. With 322 and 285 attempted apples, the binomial 95% confidence intervals for the success rates are roughly ±3–4 percentage points, so the two orchard results (80.7% vs 79.7%) are statistically indistinguishable. Similarly, the average cycle time of 5.97 s should be accompanied by a measure of variability across cycles. Reporting only point estimates makes it difficult to assess the precision and generality of the headline claims.
  4. [Section 4.2, Fig. 12] The theoretical cycle-time analysis in Fig. 12 uses assumed phase durations (arm movement ≈1.5 s, attachment ≈1.0 s, release ≈0.5 s) and derives per-apple cycle times of roughly 2.25 s for the 2024 coordination strategy under ideal conditions. The measured field cycle time is 5.97 s, a large discrepancy that the text attributes to non-uniform distances and harvest failures. The figure and accompanying comparison of 'Baseline', '2023 Version', and '2024 Version' are therefore illustrative rather than measurements. If the 28% reduction claim is based on the field-measured dual-arm time compared to a field-measured single-arm time, the theoretical analysis is not the basis for that claim and should be presented as a separate, clearly labeled idealized analysis.
minor comments (5)
  1. [Throughout] The manuscript contains several grammatical errors and typos, e.g., 'post high requirement' in Section 1, 'trailor' in the Fig. 1 caption, 'for from' in Section 2.4, and inconsistent capitalization of 'fruit Handling system'. A careful proofreading pass is recommended.
  2. [Section 2.4] The citations 'Lu et al. (2022)' and 'Zhang et al. (2017)' appear in the text without supporting context or parentheses, making them read as dangling references. They should be integrated into the sentences properly.
  3. [Section 3.3] The text states that a temporal logic policy was 'synthesized', but the method described is a manual specification of formulas (Eqs. 7–12) followed by hand-construction of a directed graph. It would be more accurate to describe this as a temporal-logic-based specification and manual translation to a finite-state controller rather than automated synthesis.
  4. [Section 4.3, Table 3] The failure counts in Table 3 (e.g., 101 exposure, 207 occlusion, 159 cluster) sum to far more than the total number of failed attempts (62 + 58 = 120). The text notes that some failures involve multiple overlapping causes, but it should state explicitly that the counts are per-cause and not per-attempt, so readers are not misled.
  5. [Section 4.3] The paper says 130 harvesting videos were reviewed, but the two trials involved 607 attempted apples. It is unclear whether these videos cover all attempts or only a subset. Clarifying the selection criterion for the video review would strengthen the failure analysis.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: field success rates and cycle-time comparisons are empirical measurements; the temporal-logic policy is a hand-authored specification, not a fit to its own output.

full rationale

Walking the paper's derivation chain, the central quantities are measured rather than derived from fitted parameters. The success rates (80.7% and 79.7%), the average dual-arm cycle time (5.97 s), and the single-arm comparison (8.29 s) are reported as field observations or averaged operational values, not as outputs of a model fitted to those same numbers. The localization pipeline uses a pre-trained Grounding-DINO detector fine-tuned on a proprietary dataset and a DBSCAN-based depth estimate; its performance is evaluated in the field, not inferred from the pipeline's own assumptions. The temporal-logic coordination policy in Eqs. (7)-(12) encodes the authors' intended workflow and hardware constraints (no simultaneous attachment, immediate valve closure on failure) and is a specification of a hand-designed reactive controller, not a regression or fitted predictor of the measured success rate. The claimed 28% harvest-time reduction is a post-hoc comparison of the measured 5.97 s dual-arm figure against the 8.29 s single-arm figure, so it is not circular in the sense of predicting a fitted constant. Heavy self-citation exists (Chu et al., Lammers et al., Zhang et al.), but these citations are used as background for prior hardware, perception, and coordination designs; the present field results are independent empirical evidence and are not forced by those citations. Concerns about the success-rate denominator excluding missed or heavily occluded apples, and about the lack of a detailed single-arm experimental protocol, are legitimate external-validity and measurement-transparency issues, not circularity. No equation in the paper reduces to its own input, and no fitted parameter is renamed as a prediction. Therefore the circularity score is 0.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central performance claims rest mainly on the empirical field protocol and hardware assumptions. The key unquantified premises are the representativeness of the orchards, the reliability of pressure-based attachment detection, the accuracy of the perception and localization pipeline, and the accuracy of the kinematic model. No new physical entities are introduced.

free parameters (4)
  • Detection confidence threshold = 0.3
    Chosen by hand to balance recall and precision; affects which apples enter the attempted set (Sec. 3.1.1).
  • DBSCAN parameters (eps, min_samples) = not reported
    DBSCAN clustering is used for depth estimation, but the paper never states eps or min_samples, leaving implicit free parameters in Sec. 3.1.3.
  • Arm movement speed factor = 60% of maximum
    Field tests ran arms at 60% of max speed to avoid canopy damage; the 5.97s cycle time depends on this conservative setting (Sec. 4.2).
  • Controller gains k_x, k_y, k_z, t_x, t_y, t_z = not reported
    Positive constants in the tracking controller (Eqs. 5-6) are chosen but not specified; stability is asserted via a cited methodology.
assumptions (5)
  • domain assumption The two field orchards and apple varieties are representative of commercial conditions
    Section 4.1 states the orchards had average fruit density and a mix of clustered and isolated apples, but no quantitative crowding or occlusion distribution is given.
  • domain assumption Pressure sensor readings reliably indicate apple attachment status
    The LTL coordination policy treats AppleAttached as a reliable boolean from pressure; no sensor accuracy or calibration data is provided (Sec. 3.3).
  • domain assumption ToF camera depth accuracy and RGB-depth alignment meet the stated specifications
    Depth localization (Sec. 3.1.3) relies on the camera's specified accuracy and on alignment between RGB and depth, which is not re-verified in the field.
  • domain assumption Kinematic parameters in Table 1 are accurate for both arms
    Inverse kinematics and workspace filtering depend on these constants; no calibration procedure is described.
  • standard math Xian et al. (2004) stability methodology applies to the proposed controller without modification
    Section 3.2.3 defers the stability proof to a cited paper; the robust integral terms (Eq. 6) must satisfy that framework's conditions.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Advancement and Field Evaluation of a Dual-arm Apple Harvesting Robot." pith.science (2026). https://pith.science/paper/HLBPESLW

@misc{pith2026250605714,
  author       = {Pith},
  title        = {Pith review of: Advancement and Field Evaluation of a Dual-arm Apple Harvesting Robot},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HLBPESLW}},
  note         = {Machine review of arXiv:2506.05714}
}
read the original abstract

Apples are among the most widely consumed fruits worldwide. Currently, apple harvesting fully relies on manual labor, which is costly, drudging, and hazardous to workers. Hence, robotic harvesting has attracted increasing attention in recent years. However, existing systems still fall short in terms of performance, effectiveness, and reliability for complex orchard environments. In this work, we present the development and evaluation of a dual-arm harvesting robot. The system integrates a ToF camera, two 4DOF robotic arms, a centralized vacuum system, and a post-harvest handling module. During harvesting, suction force is dynamically assigned to either arm via the vacuum system, enabling efficient apple detachment while reducing power consumption and noise. Compared to our previous design, we incorporated a platform movement mechanism that enables both in-out and up-down adjustments, enhancing the robot's dexterity and adaptability to varying canopy structures. On the algorithmic side, we developed a robust apple localization pipeline that combines a foundation-model-based detector, segmentation, and clustering-based depth estimation, which improves performance in orchards. Additionally, pressure sensors were integrated into the system, and a novel dual-arm coordination strategy was introduced to respond to harvest failures based on sensor feedback, further improving picking efficiency. Field demos were conducted in two commercial orchards in MI, USA, with different canopy structures. The system achieved success rates of 0.807 and 0.797, with an average picking cycle time of 5.97s. The proposed strategy reduced harvest time by 28% compared to a single-arm baseline. The dual-arm harvesting robot enhances the reliability and efficiency of apple picking. With further advancements, the system holds strong potential for autonomous operation and commercialization for the apple industry.

Figures

Figures reproduced from arXiv: 2506.05714 by the authors.

Figure 1
Figure 1. Overview of the dual-arm apple harvesting robot. The system is mounted on a trailer designed to [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. The CAD model of the dual-arm manipulator design. [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Configuration of the valve system. Valves 1 and 2 control airflow to Arm 1, while Valves 3 and [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (9 more)
Figure 4

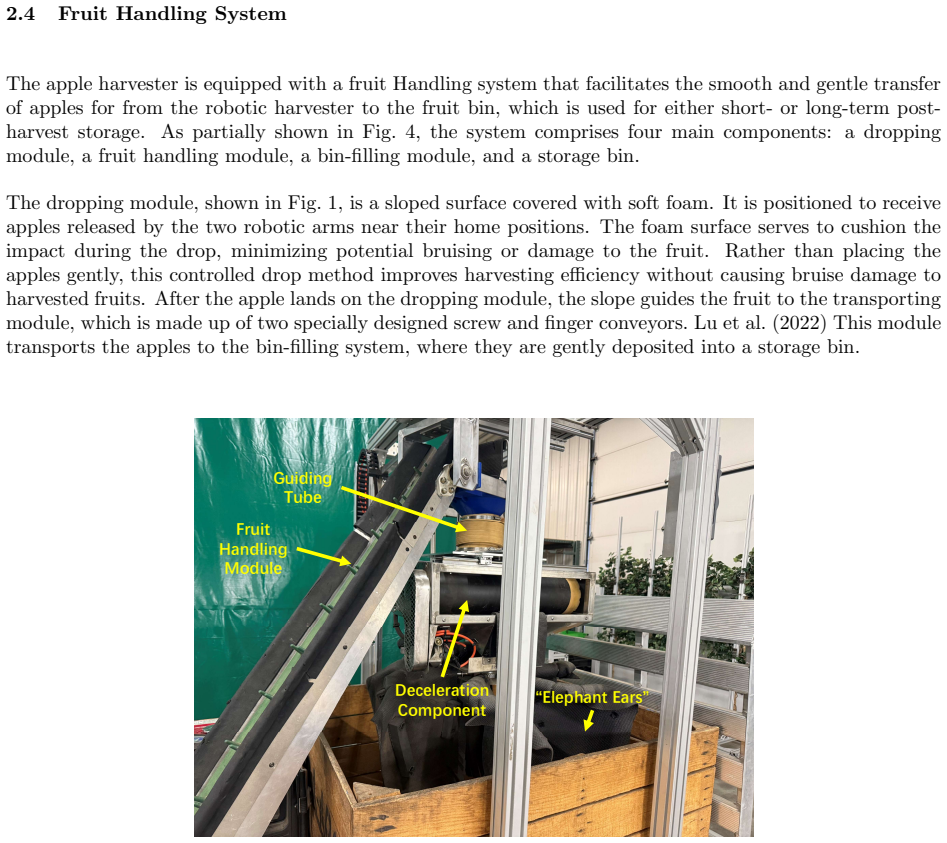

Figure 4. Figure 4: Partial view of the fruit gathering system. The dropping module and storage bin are not shown [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
Figure 5
Figure 5. Figure 5: Network architecture of the detection and segmentation pipeline. The detection model (Grounding [PITH_FULL_IMAGE:figures/full_fig_p010_5.png]
Figure 6

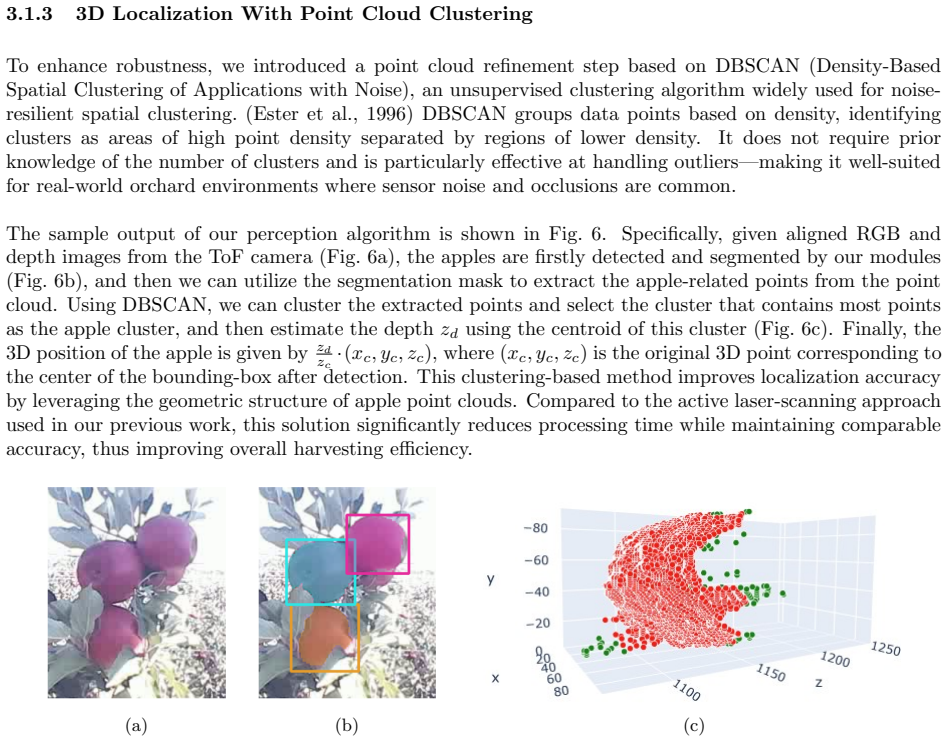

Figure 6. Figure 6: The sample output of our perception algorithm. (a) The original image. (b) The detection and [PITH_FULL_IMAGE:figures/full_fig_p011_6.png]
Figure 7
Figure 7. Figure 7: The kinematic model of one 4-Degree-of-Freedom robotic arm. [PITH_FULL_IMAGE:figures/full_fig_p012_7.png]
Figure 8
Figure 8. Figure 8: Illustration of the apple assignment algorithm. The top view of the joint workspace is shown in [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
Figure 9
Figure 9. Figure 9: Illustration of (a) the workflow of a single arm and (b) the coordinated flow of the dual-arm system. [PITH_FULL_IMAGE:figures/full_fig_p017_9.png]
Figure 10
Figure 10. Figure 10: Graphical user interface (GUI) for the harvesting robot. (a) The control panel allows for system [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
Figure 11
Figure 11. Figure 11: Example images of apple trees from the two commercial orchards used for field evaluation. [PITH_FULL_IMAGE:figures/full_fig_p020_11.png]
Figure 12
Figure 12. Figure 12: Cycle time analysis comparing the baseline (the dual-arm version without coordination), the 2023 [PITH_FULL_IMAGE:figures/full_fig_p022_12.png]
