arxiv: 2607.01217 · v1 · pith:HP3AGC4Gnew · submitted 2026-07-01 · 🪐 quant-ph

Diverse efficiency of observable optimization for four-level quantum systems with higher-order traps

Alexander Pechen , Boris Volkov This is my paper

Pith reviewed 2026-07-02 11:25 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum control landscapesobservable optimizationhigher-order trapsfour-level systemsV-V systemanharmonic systemGRAPE algorithmgradient projection method
0
0 comments X

The pith

The null control is a fifth-order trap for observable optimization in specific four-level quantum systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proves that the null control functions as a fifth-order trap in the quantum control landscape for observable optimization in two special four-level systems: a V-V system and an anharmonic system. It then runs numerical tests with the GRAPE algorithm for unconstrained controls and the Gradient Projection Method for constrained controls to track how optimization efficiency changes as one moves away from the null control. The tests reveal sharply different behaviors: efficiency rises quickly to 100 percent at modest distances for the V-V system, while it rises more slowly and sometimes decreases for the chain-interaction system. The authors link the contrast to the detailed structure of the control subspace in which the second derivative of the objective vanishes.

Core claim

The null control is a five-order trap for a V-V system and an anharmonic system; numerical optimization of an observable shows a sharp efficiency increase up to 100 percent at certain distances from the null control for the V-V case, contrasted with slower and less significant increase (and occasional small decrease) for the chain-interaction Hamiltonian, possibly due to the fine structure of the subspace where the second derivative is zero.

What carries the argument

The fifth-order trap at the null control, analyzed through higher-order derivatives of the objective functional in the quantum control landscape.

If this is right

  • For the V-V Hamiltonian, optimization efficiency rises sharply to 100 percent once the control moves a modest distance from the null point.
  • For the chain-interaction Hamiltonian, the efficiency increase remains slower and can even turn negative over the same distances.
  • The contrasting behaviors trace to the fine structure of the subspace of controls where the second derivative of the objective is zero.
  • Unconstrained (GRAPE) and constrained (GPM) methods both exhibit the same system-dependent pattern.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Higher trap order may set how far an optimizer must travel before efficiency recovers in multi-level quantum systems.
  • The observed contrast suggests that Hamiltonian interaction topology can dominate the practical performance of gradient-based control algorithms.
  • Extending the same higher-order trap analysis to other four-level or five-level systems could reveal whether the sharp-versus-slow distinction is generic.

Load-bearing premise

The systems studied have the specific V-V or anharmonic/chain interaction structures that allow the null control to be treated as a higher-order trap.

What would settle it

A direct calculation showing that the fourth-order term in the expansion of the objective around the null control is nonzero for one of the listed Hamiltonians, or a numerical run in which efficiency does not exhibit the reported sharp versus slow contrast.

Figures

Figures reproduced from arXiv: 2607.01217 by Alexander Pechen, Boris Volkov.

Figure 1

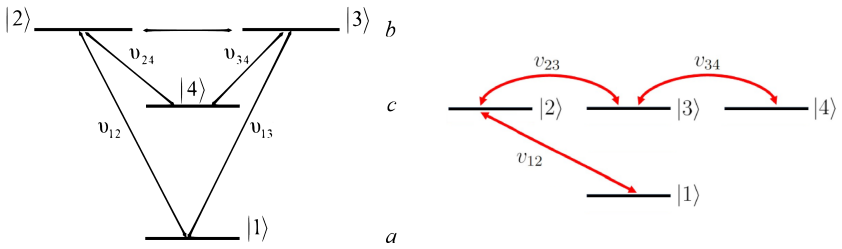

Figure 1. Figure 1: Left: Energy level structure of an example class of four-level quantum systems with the free Hamiltonian H0 = diag(a, b, b, c) and with allowed transitions |1⟩ ↔ |2⟩, |1⟩ ↔ |3⟩, |2⟩ ↔ |3⟩, |2⟩ ↔ |4⟩, and |3⟩ ↔ |4⟩. We denote this system as a V − V since it has a couple of V -connected triples of levels: One triple is level |1⟩ connected with two levels |2⟩ and |3⟩, an another triple is level |4⟩ connected … view at source ↗
Figure 2

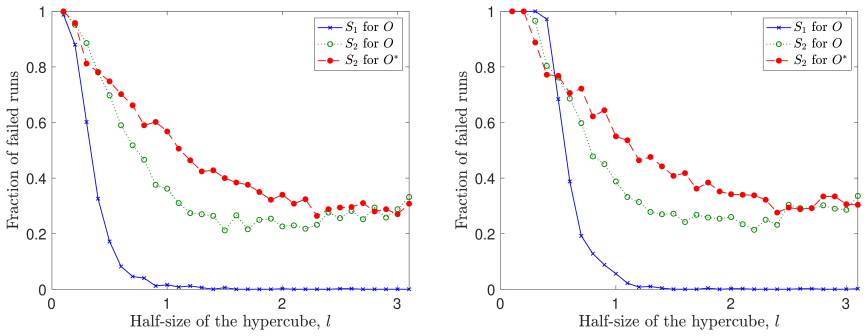

Figure 2. Figure 2: Fraction of failed runs for l = 0.1, 0.2, 0.3, . . . , 3.1 for the system S1 (blue solid line) and S2 (green dotted and red dashed lines for the two target observables O and O∗, respectively). Left: Unconstrained optimization using GRAPE. Right: Constrained optimization using GPM. The target observable is O = diag(1, −6, −6, 0) for S1 and S2, and also O∗ = diag(1, 6, −6, 0) for S2. The initial state is ρ0 … view at source ↗
Figure 3

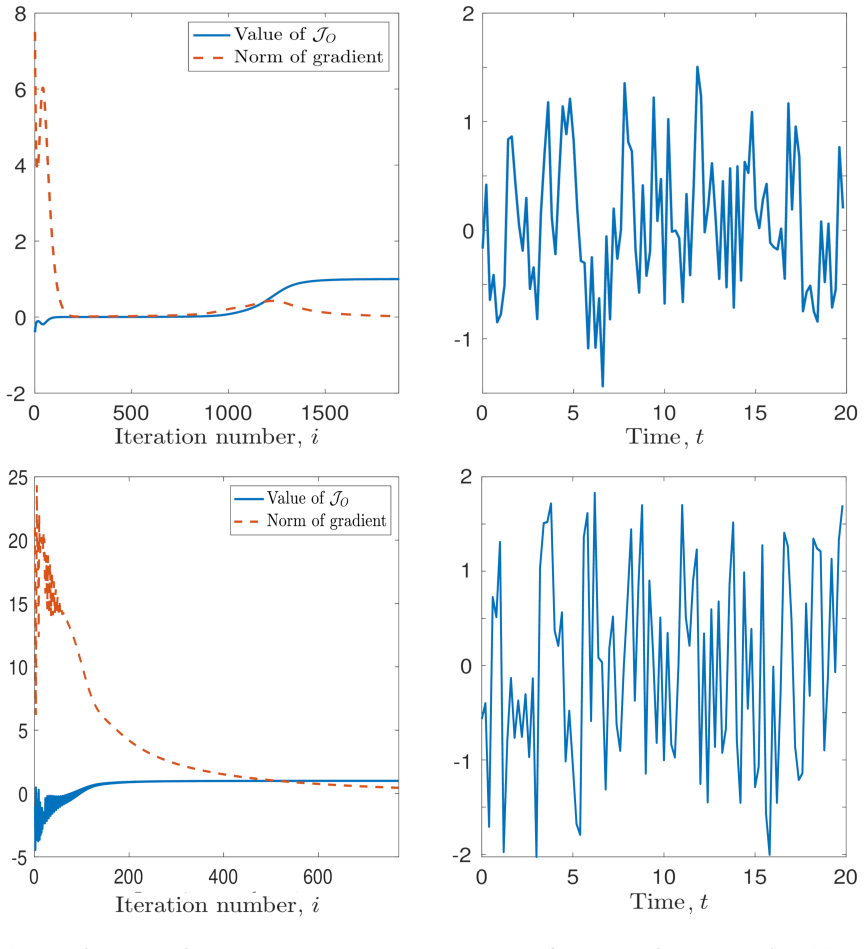

Figure 3. Figure 3: An example of the optimization results with target observable O. Upper row for the system S1 and l = 1. Bottom row for the system S2 and l = 2. Other parameters are the same as for [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
read the original abstract

In this work, we perform an analytical and numerical analysis of quantum landscapes for controlling special four-level quantum systems for which we prove that the null control is a five-order trap: a $V-V$ system and an anharmonic system. As a control goal, an observable optimization is considered. The rigorous theoretical analysis is followed by the numerical experiments based on the GRadient Ascent Pulse Engineering (GRAPE) algorithm and Gradient Projection Method (GPM), performed to investigate the behavior of the efficiency of optimization for unconstrained (using GRAPE) and constrained (using GPM) controls. As the main result, we observe an interesting phenomenon with a diverse behavior of the optimization efficiency depending on the system Hamiltonian -- sharp increase of the optimization efficiency up to 100% at certain distance from the null control for a V-V system, while much slower and less significant increase (and even small decrease) for a system with the chain interaction. This sharp difference might be related with the fine structure of the subspace of controls where second derivative of the objective functional is zero.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proves that the null control is a fifth-order trap for observable optimization in two explicitly constructed special four-level quantum systems (a V-V system and an anharmonic/chain system). This analytical result is followed by numerical experiments using the GRAPE algorithm (unconstrained) and GPM (constrained) that document a sharp difference in optimization efficiency: rapid rise to 100% efficiency at finite distance from the null control for the V-V Hamiltonian versus slower and weaker improvement (sometimes a small decrease) for the chain Hamiltonian. The authors attribute the difference to the fine structure of the subspace where the second derivative of the objective vanishes.

Significance. The explicit construction of four-level systems for which a higher-order trap can be rigorously identified supplies a concrete, falsifiable example that advances the theory of quantum control landscapes. The combination of an analytical trap-order proof with reproducible numerical protocols (GRAPE/GPM) is a strength; if the derivation holds, the observed Hamiltonian-dependent efficiency divergence offers a testable prediction for how trap order influences practical optimization performance.

minor comments (3)
  1. [Abstract] Abstract: 'five-order trap' is nonstandard; replace with 'fifth-order trap'.
  2. [Abstract] Abstract: 'GRadient Ascent Pulse Engineering' contains an inconsistent capital 'R'; standardize to 'Gradient Ascent Pulse Engineering (GRAPE)'.
  3. [§2 or §3] The manuscript states that the systems are 'chosen precisely so that the higher-order trap analysis can be carried out'; a brief sentence in §2 or §3 clarifying the design criteria used to select the V-V and anharmonic Hamiltonians would improve readability.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and accurate summary of our work, including the analytical proof that the null control is a fifth-order trap for the specified four-level systems and the numerical comparison of GRAPE and GPM efficiencies. The report correctly identifies the key observation of Hamiltonian-dependent optimization behavior. No specific major comments requiring point-by-point rebuttal were listed in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central claim is an analytical proof that the null control is a fifth-order trap for two explicitly defined special four-level systems (V-V and anharmonic/chain). This is followed by numerical GRAPE/GPM experiments presented only as supporting observations. No load-bearing steps reduce to self-definition, fitted inputs renamed as predictions, or self-citation chains; the derivation is self-contained against the stated Hamiltonians.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review supplies minimal information on underlying assumptions; the systems are described as special four-level quantum systems but no explicit free parameters or invented entities are stated.

axioms (1)
  • domain assumption The quantum systems are special four-level systems with V-V or anharmonic interaction Hamiltonians for which the null control forms a fifth-order trap.
    This premise defines the scope of the analytical and numerical study described in the abstract.

pith-pipeline@v0.9.1-grok · 5711 in / 1047 out tokens · 39638 ms · 2026-07-02T11:25:57.453144+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

48 extracted references · 43 canonical work pages

  1. [1]

    C. Koch, U. Boscain, T. Calarco, G. Dirr, S. Filipp, S. Glaser, R. Kosloff, S. Montangero, T. Schulte-Herbr¨ ueggen, D. Sugny and F. Wilhelm. Quantum optimal control in quantum tech- nologies. Strategic report on current status, visions and goals for research in Europe. EPJ Quantum Technol., 9: 19, 2022. doi: 10.1140/epjqt/s40507-022-00138-x

    work page doi:10.1140/epjqt/s40507-022-00138-x 2022

  2. [2]

    D.J. Tannor. Introduction to quantum mechanics: A time-dependent perspective. University Science Books, Sausilito, 2007

    2007

  3. [3]

    C. Brif, R. Chakrabarti, and H. Rabitz. Control of quantum phenomena: Past, present and future. New J. Phys., 12: 075008, 2010. doi: 10.1088/1367-2630/12/7/075008

    work page doi:10.1088/1367-2630/12/7/075008 2010

  4. [4]

    J. E. Gough. Principles and applications of quantum control engineering. Phil. Trans. R. Soc. A, 370: 5241–5258, 2012. doi: 10.1098/rsta.2012.0370

    work page doi:10.1098/rsta.2012.0370 2012

  5. [6]

    Schulte-Herbr¨ uggen, S.J

    T. Schulte-Herbr¨ uggen, S.J. Glaser, G. Dirr and U. Helmke. Gradient flows for optimization in quantum information and quantum dynamics: foundations and applications. Rev. Math. Phys., 22: 597–667, 2010. doi: 10.1142/S0129055X10004053

    work page doi:10.1142/s0129055x10004053 2010

  6. [7]

    Tannor, V

    D.J. Tannor, V. Kazakov and V. Orlov. Control of photochemical branching: novel procedures for finding optimal pulses and global upper bounds. NATO ASI Ser., 299: 347–360, 1992. doi: 10.1007/978-1-4899-2326-4 24

    work page doi:10.1007/978-1-4899-2326-4 1992

  7. [9]

    Caneva, T

    T. Caneva, T. Calarco and S. Montangero. Chopped random-basis quantum optimization. Phys. Rev. A, 84: 022326, 2011. doi: 10.1103/PhysRevA.84.022326

    work page doi:10.1103/physreva.84.022326 2011

  8. [11]

    Dalgaard, F

    M. Dalgaard, F. Motzoi, J.H.M. Jensen and J. Sherson. Hessian-based optimization of con- strained quantum control. Phys. Rev. A, 102: 042612, 2020. doi: 10.1103/PhysRevA.102.042612

    work page doi:10.1103/physreva.102.042612 2020

  9. [12]

    Wollenhaupt, A

    M. Wollenhaupt, A. Pr¨ akelt, C. Sarpe-Tudoran, D. Liese and T. Baumert. Quantum control and quantum control landscapes using intense shaped femtosecond pulses. J. Mod. Opt., 52: 2187–2195, 2005. doi: 10.1080/09500340500275884

    work page doi:10.1080/09500340500275884 2005

  10. [13]

    Marquetand, P

    P. Marquetand, P. Nuernberger, G. Vogt, T. Brixner and V. Engel. Properties of wave pack- ets deduced from quantum control fitness landscapes. Europhys. Lett., 80: 53001, 2007. doi: 10.1209/0295-5075/80/53001

    work page doi:10.1209/0295-5075/80/53001 2007

  11. [14]

    Ruetzel, C

    S. Ruetzel, C. Stolzenberger, S. Fechner, F. Dimler, T. Brixner, D.J. Tannor. Molecular quan- tum control landscapes in von Neumann time-frequency phase space. J. Chem. Phys., 133: 164510, 2010. doi: 10.1063/1.3495950

    work page doi:10.1063/1.3495950 2010

  12. [15]

    Palao, D.M

    J.P. Palao, D.M. Reich and C.P. Koch. Steering the optimization pathway in the control land- scape using constraints. Phys. Rev. A, 88: 053409, 2013. doi: 10.1103/PhysRevA.88.053409

    work page doi:10.1103/physreva.88.053409 2013

  13. [16]

    Zahedinejad, S

    E. Zahedinejad, S. Schirmer and B.C. Sanders. Evolutionary algorithms for hard quantum con- trol. Phys. Rev. A, 90: 032310, 2014. doi: 10.1103/PhysRevA.90.032310. 10

    work page doi:10.1103/physreva.90.032310 2014

  14. [17]

    Q. Sun, I. Pelczer, G. Riviello, R.-B. Wu, and H. Rabitz. Experimental observation of saddle points over the quantum control landscape of a two-spin system. Phys. Rev. A, 91: 043412,

  15. [18]

    doi: 10.1103/PhysRevA.91.043412

    work page doi:10.1103/physreva.91.043412

  16. [19]

    X. Li. Optimal control of quantum state preparation and entanglement creation in two-qubit quantum system with bounded amplitude. Sci. Rep., 13: 14734, 2023. doi: 10.1038/s41598-023- 41688-z

    work page doi:10.1038/s41598-023- 2023

  17. [20]

    N. Rach, M. M. M¨ uller, T. Calarco, and S. Montangero. Dressing the chopped-random-basis optimization: A bandwidth-limited access to the trap-free landscape. Phys. Rev. A, 92:062343,

  18. [21]

    doi: 10.1103/PhysRevA.92.062343

    work page doi:10.1103/physreva.92.062343

  19. [23]

    Rabitz, M.M

    H.A. Rabitz, M.M. Hsieh, and C.M. Rosenthal. Quantum optimally controlled transition land- scapes. Sci., 303: 1998–2001, 2004. doi: 10.1126/science.1093649

    work page doi:10.1126/science.1093649 1998

  20. [24]

    Pechen and N.B

    A.N. Pechen and N.B. Il’in. Coherent control of a qubit is trap-free. Proc. Steklov Inst. Math., 285: 233–240, 2014. doi: 10.1134/S0081543814040166

    work page doi:10.1134/s0081543814040166 2014

  21. [25]

    A. N. Pechen and D. J. Tannor. Are there traps in quantum control landscapes? Phys. Rev. Lett., 106: 120402, 2011. doi: 10.1103/PhysRevLett.106.120402

    work page doi:10.1103/physrevlett.106.120402 2011

  22. [26]

    Pechen and D

    A. Pechen and D. Tannor. Pechen and Tannor Reply. Phys. Rev. Lett., 108: 198902, 2012. doi: 10.1103/PhysRevLett.108.198902

    work page doi:10.1103/physrevlett.108.198902 2012

  23. [27]

    de Fouquieres and S.G

    P. de Fouquieres and S.G. Schirmer. A closer look at quantum control landscapes and their implication for control optimization. Infin. Dimens. Anal. Quantum Probab. Relat. Top., 16: 1350021, 2013. doi: 10.1142/S0219025713500215

    work page doi:10.1142/s0219025713500215 2013

  24. [28]

    Volkov and A.N

    B.O. Volkov and A.N. Pechen. Higher-order traps for some strongly degenerate quantum control systems. Russ. Math. Surv., 78: 390–392, 2023. doi: 10.4213/rm10069e

    work page doi:10.4213/rm10069e 2023

  25. [29]

    Pechen, H

    A. Pechen, H. Rabitz. Unified analysis of terminal-time control in classical and quantum systems. Europhys. Lett., 91: 60005, 2010. doi: 10.1209/0295-5075/91/60005

    work page doi:10.1209/0295-5075/91/60005 2010

  26. [30]

    Pechen, C

    A. Pechen, C. Brif, R. Wu, R. Chakrabarti, H. Rabitz. General unifying features of controlled quantum phenomena. Phys. Rev. A, 82: 030101, 2010. doi: 10.1103/PhysRevA.82.030101

    work page doi:10.1103/physreva.82.030101 2010

  27. [31]

    Nanduri, A

    A. Nanduri, A. Donovan, T.-S. Ho, and H. Rabitz. Exploring quantum control landscape struc- ture. Phys. Rev. A, 88: 033425, 2013. doi: 10.1103/PhysRevA.88.033425

    work page doi:10.1103/physreva.88.033425 2013

  28. [32]

    R.-B. Wu, R. Long, J. Dominy, T.-S. Ho and H. Rabitz. Singularities of quantum control landscapes. Phys. Rev. A, 86: 013405, 2012. doi: 10.1103/PhysRevA.86.013405

    work page doi:10.1103/physreva.86.013405 2012

  29. [33]

    R. L. Kosut, C. Arenz, and H. Rabitz. Quantum control landscape of bipartite systems. J. Phys. A-Math. Theor., 52: 165305, 2019. doi: 10.1088/1751-8121/ab0dc9

    work page doi:10.1088/1751-8121/ab0dc9 2019

  30. [34]

    Larocca, P

    M. Larocca, P. M. Poggi, and D. A. Wisniacki. Quantum control landscape for a two-level system near the quantum speed limit. J. Phys. A-Math. Theor., 51: 385305, 2018. doi: 10.1088/1751- 8121/aad657

    work page doi:10.1088/1751- 2018

  31. [35]

    B. O. Volkov, O. V. Morzhin, and A. N. Pechen. Quantum control landscape for ultrafast generation of single-qubit phase shift quantum gates. J. Phys. A-Math. Theor., 54: 215303,

  32. [36]

    doi: 10.1088/1751-8121/abf45d

    work page doi:10.1088/1751-8121/abf45d

  33. [37]

    Dalgaard, F

    M. Dalgaard, F. Motzoi, and J. Sherson. Predicting quantum dynamical cost landscapes with deep learning. Phys. Rev. A, 105: 012402, 2022. doi: 10.1103/PhysRevA.105.012402

    work page doi:10.1103/physreva.105.012402 2022

  34. [39]

    H. W. Fentaw, S. Campbell, and S. Caton. Exploring quantum control landscape and solution space complexity through dimensionality reduction & optimization algorithms. Sci. Rep., 15: 14605, 2025. doi: 10.1038/s41598-025-95161-0. 11

    work page doi:10.1038/s41598-025-95161-0 2025

  35. [40]

    R. S. Judson and H. Rabitz. Teaching lasers to control molecules. Phys. Rev. Lett., 68: 1500– 1503, 1992. doi: 10.1103/PhysRevLett.68.1500

    work page doi:10.1103/physrevlett.68.1500 1992

  36. [41]

    Pechen and H

    A. Pechen and H. Rabitz. Teaching the environment to control quantum systems. Phys. Rev. A, 73: 062102, 2006. doi: 10.1103/PhysRevA.73.062102

    work page doi:10.1103/physreva.73.062102 2006

  37. [42]

    A. N. Pechen and D. J. Tannor. Quantum control landscape for a Lambda-atom in the vicinity of second-order traps. Isr. J. Chem., 52: 467–472, 2012. doi: 10.1002/ijch.201100165

    work page doi:10.1002/ijch.201100165 2012

  38. [43]

    Optimal control of coupled spin dynamics: De- sign of NMR pulse sequences by gradient ascent algorithms,

    N. Khaneja, T. Reiss, C. Kehlet, T. Schulte-Herbr¨ uggen, and S. J. Glaser. Optimal control of coupled spin dynamics: design of NMR pulse sequences by gradient ascent algorithms. J. Magn. Reson., 172: 296–305, 2005. doi: 10.1016/j.jmr.2004.11.004

    work page doi:10.1016/j.jmr.2004.11.004 2005

  39. [44]

    V. N. Petruhanov and A. N. Pechen. GRAPE optimization for open quantum systems with time-dependent decoherence rates driven by coherent and incoherent controls. J. Phys. A: Math. Theor., 56: 305303, 2023. doi: 10.1088/1751-8121/ace13f

    work page doi:10.1088/1751-8121/ace13f 2023

  40. [45]

    A. Oza, A. Pechen, J. Dominy, V. Beltrani, K. Moore, and H. Rabitz. Optimization search effort over the control landscapes for open quantum systems with Kraus-map evolution. J. Phys. A- Math. Theor., 42: 205305, 2009. doi: 10.1088/1751-8113/42/20/205305

    work page doi:10.1088/1751-8113/42/20/205305 2009

  41. [46]

    O. V. Morzhin and A. N. Pechen. Gradient projection method for constrained quantum control. J. Phys. A-Math. Theor., 58: 135302, 2025. doi: 10.1088/1751-8121/adbe1a

    work page doi:10.1088/1751-8121/adbe1a 2025

  42. [47]

    A. N. Pechen. On the analysis of quantum control landscapes using gradient projection method and Pontryagin maximum principle. Lobachevskii J. Math., 46: 2615, 2025. doi: 10.1134/S1995080225607957

    work page doi:10.1134/s1995080225607957 2025

  43. [49]

    Soro and A

    R. Eitan, M. Mundt, and D. J. Tannor. Optimal control with accelerated convergence: Combin- ing the Krotov and quasi-Newton methods. Phys. Rev. A, 83: 053426, 2011. doi: 10.1103/Phys- RevA.83.053426

    work page doi:10.1103/phys- 2011

  44. [50]

    A. A. Myachkova and A. N. Pechen. Some controllable and uncontrollable degener- ate four-level quantum systems. Proc. Steklov Inst. Math., 321: 222–235, 2022. doi: 10.1134/S0081543823020165

    work page doi:10.1134/s0081543823020165 2022

  45. [51]

    S. G. Schirmer, H. Fu, and A. I. Solomon. Complete controllability of quantum systems. Phys. Rev. A, 63: 063410, 2001. doi: 10.1103/PhysRevA.63.063410

    work page doi:10.1103/physreva.63.063410 2001

  46. [52]

    A. A. Goldstein. Convex programming in Hilbert space. Bull. Amer. Math. Soc., 70: 709–710,

  47. [53]

    doi: 10.1090/S0002-9904-1964-11178-2

    work page doi:10.1090/s0002-9904-1964-11178-2 1964

  48. [54]

    E. S. Levitin and B. T. Polyak. Constrained minimization methods. USSR Comput. Math. & Math. Phys, 6: 1–50, 1966. doi: 10.1016/0041-5553(66)90114-5. 12

    work page doi:10.1016/0041-5553(66)90114-5 1966
