SpectraMorph: Structured Latent Learning for Self-Supervised Hyperspectral Super-Resolution

Marco F Duarte; Ritik Shah

arxiv: 2510.20814 · v1 · pith:HQ53SLPRnew · submitted 2025-10-23 · 💻 cs.CV

SpectraMorph: Structured Latent Learning for Self-Supervised Hyperspectral Super-Resolution

Ritik Shah , Marco F Duarte This is my paper

Pith reviewed 2026-05-22 12:53 UTC · model grok-4.3

classification 💻 cs.CV

keywords hyperspectral super-resolutionself-supervised learningimage fusionspectral unmixinglinear mixing modelmultispectral imaginglatent space

0 comments

The pith

SpectraMorph reconstructs high-resolution hyperspectral images by extracting endmembers from low-resolution data and predicting abundances from multispectral inputs via linear mixing trained self-supervisedly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to increase the spatial resolution of hyperspectral images that capture many narrow spectral bands but suffer from low spatial detail by fusing them with co-registered multispectral images that provide high spatial resolution but fewer bands. It achieves this without paired high-resolution hyperspectral training data by using a self-supervised process grounded in the known spectral response of the multispectral sensor. The method structures its processing around an unmixing step where basic spectral signatures called endmembers are taken from the low-resolution hyperspectral input and a small neural network predicts the proportions of each signature at every high-resolution pixel from the multispectral input. These are then combined with a simple linear sum to form the output hyperspectral image. Experiments indicate this yields interpretable steps, fast training, robustness to minimal multispectral bands, and performance that beats other unsupervised methods while matching supervised ones.

Core claim

SpectraMorph is a physics-guided self-supervised fusion framework that structures its latent space around a linear mixing model. Endmember signatures are extracted from the low-resolution hyperspectral image while a compact multilayer perceptron predicts abundance-like maps from the multispectral image. The high-resolution hyperspectral image is reconstructed by linearly mixing these endmembers according to the predicted abundances, with training driven by consistency between the output and the observed multispectral image after applying the sensor's known spectral response function.

What carries the argument

the unmixing bottleneck, where endmember signatures come from the low-resolution hyperspectral image, a multilayer perceptron predicts abundance maps from the multispectral image, and linear mixing reconstructs spectra while self-supervision uses the multispectral sensor response function

Load-bearing premise

The linear mixing model with a small number of endmembers accurately represents the observed spectra, and the multispectral sensor's spectral response function is known precisely enough to serve as a reliable self-supervision signal.

What would settle it

Performance on a dataset exhibiting strong nonlinear spectral mixing, such as intimate material mixtures, would fall below that of direct regression baselines if the unmixing assumption fails to hold.

Figures

Figures reproduced from arXiv: 2510.20814 by Marco F Duarte, Ritik Shah.

**Figure 1.** Figure 1: SpectraMorph pipeline: the latent estimation network (LEN) produces a abundance-like latent estimate (ALLE) from a MSI pixel that is combined with a set of endmembers obtained from NMF (gray box) to estimate the corresponding HSI pixel. Training occurs at low resolution using a synthesized LR-MSI and the source LR-HSI. During inference, the same HSI pixel estimation process (orange box) is applied to the H… view at source ↗

**Figure 2.** Figure 2: Endmember Signatures E obtained from the LR-HSI and Abundance-like latent estimate (ALLE) maps A obtained from the HR-MSI during inference on Washington DC Mall. Spectra 4 Spectra 1 LR-HSI Coarse Spectral Prior Spectra 1 Spectra 2 Spectra 3 Spectra 1 Spectra 1 Spectra 1 Spectra 3 Spectra 3 Spectra 3 Spectra 3 Spectra 2 Spectra 2 Spectra 2 Spectra 2 Spectra 4 Spectra 4 Spectra 4 Spectra 4 [PITH_FULL_IMAGE:… view at source ↗

**Figure 3.** Figure 3: The coarse spectral prior replicates the spectra of the LR-HSI Y to obtain a CSP PY that serves as side information for inference from a panchromatic image. Here, Y ≈ D2(H(X, Q)) (r = 2), hence the spectra of each pixel of Y is replicated 2 × 2 times to obtain PY . low-frequency spatial context. The LEN is then modified to have a concatenation of a LR-MSI pixel zn and the corresponding CSP pixel pVn as its… view at source ↗

**Figure 4.** Figure 4: Point Spread Functions used for Synthetic LR HSI generation [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

**Figure 5.** Figure 5: UH SR results and corresponding spectra for two test scenes. (a, c) Super-resolved images [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗

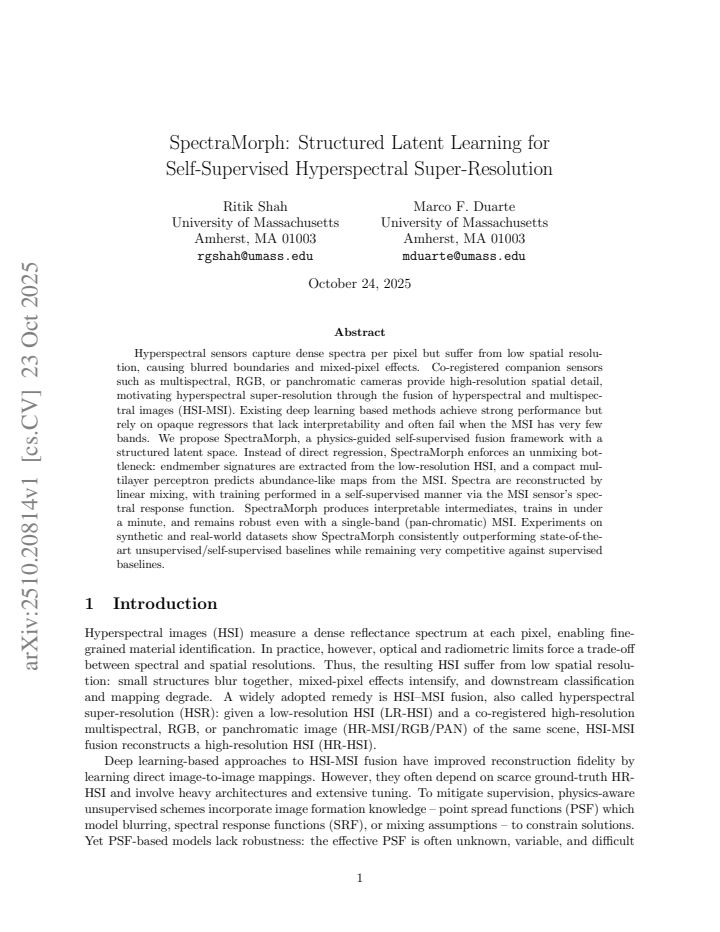

read the original abstract

Hyperspectral sensors capture dense spectra per pixel but suffer from low spatial resolution, causing blurred boundaries and mixed-pixel effects. Co-registered companion sensors such as multispectral, RGB, or panchromatic cameras provide high-resolution spatial detail, motivating hyperspectral super-resolution through the fusion of hyperspectral and multispectral images (HSI-MSI). Existing deep learning based methods achieve strong performance but rely on opaque regressors that lack interpretability and often fail when the MSI has very few bands. We propose SpectraMorph, a physics-guided self-supervised fusion framework with a structured latent space. Instead of direct regression, SpectraMorph enforces an unmixing bottleneck: endmember signatures are extracted from the low-resolution HSI, and a compact multilayer perceptron predicts abundance-like maps from the MSI. Spectra are reconstructed by linear mixing, with training performed in a self-supervised manner via the MSI sensor's spectral response function. SpectraMorph produces interpretable intermediates, trains in under a minute, and remains robust even with a single-band (pan-chromatic) MSI. Experiments on synthetic and real-world datasets show SpectraMorph consistently outperforming state-of-the-art unsupervised/self-supervised baselines while remaining very competitive against supervised baselines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

SpectraMorph's unmixing bottleneck gives a clean self-supervised path for HSI-MSI fusion that stays interpretable and works with few bands, but the fixed linear mixing model from low-res endmembers looks like the main risk.

read the letter

SpectraMorph stands out for its self-supervised unmixing bottleneck that keeps the method interpretable while working with minimal MSI bands, though the fixed linear mixing from low-resolution endmembers raises questions about handling real spectral complexity. The approach extracts endmember signatures directly from the low-res hyperspectral image and uses a compact MLP to map the high-res multispectral input to abundance maps. Reconstruction happens through linear mixing, and the training signal comes from projecting back to the MSI domain using the known spectral response function. This avoids direct regression and gives intermediate outputs that make sense physically. It does well by staying grounded in the linear mixing model common in hyperspectral unmixing literature. The fast training time under a minute and performance even with single-band MSI are clear practical advantages over heavier supervised networks. The abstract positions it as beating unsupervised baselines and staying close to supervised ones on both synthetic and real datasets. One area that needs scrutiny is whether the small fixed set of endmembers from the low-res data can represent the full variability in a scene. If there are more materials or spatial changes in signatures, the self-supervision might not constrain the high-res output tightly enough. The stress test note points to this, and it seems like a load-bearing assumption that the paper should validate more explicitly, perhaps with ablations on endmember count or nonlinear cases. Overall, this is for remote sensing practitioners and researchers interested in fusing HSI with MSI or RGB data in an interpretable way. Anyone looking at self-supervised techniques for inverse problems in imaging could get something out of it. The work shows clear thinking on combining physics with a neural component, so it merits a serious referee. I would send this to peer review with a note to strengthen the experimental validation around the mixing model's limits.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes SpectraMorph, a physics-guided self-supervised framework for hyperspectral super-resolution via HSI-MSI fusion. It enforces an unmixing bottleneck: endmember signatures are extracted from the low-resolution HSI, a compact MLP predicts abundance-like maps from the high-resolution MSI, and spectra are reconstructed by linear mixing. Training uses the known MSI spectral response function as self-supervision. The method is claimed to produce interpretable intermediates, train in under a minute, remain robust even with single-band (panchromatic) MSI, and consistently outperform unsupervised/self-supervised baselines while staying competitive with supervised methods on synthetic and real-world datasets.

Significance. If the results and modeling assumptions hold, the work offers an efficient, interpretable alternative to opaque deep regressors for HSI super-resolution. The structured latent space via unmixing, fast training, and robustness to minimal MSI bands address practical needs in remote sensing where labeled data or computational resources are limited. Credit is given for the explicit physics guidance and potential for real-world deployment.

major comments (1)

[Section 3.2, Eq. (4)] Section 3.2 and Eq. (4): The reconstruction S = E * A with E fixed from the low-resolution HSI assumes the linear mixing model with a small endmember set accurately represents observed spectra. This assumption is load-bearing for the central self-supervised claim; if the scene exhibits spectral variability, nonlinear mixing, or more materials than the chosen endmembers, the MSI projection loss alone cannot guarantee faithful high-resolution spectra and the self-supervision signal becomes under-constrained.

minor comments (2)

The abstract states consistent outperformance but provides no quantitative metrics, error bars, or dataset details; the evaluation section should include these explicitly along with ablations on endmember count and sensitivity to the linear mixing assumption.
Clarify the exact procedure for extracting and selecting the fixed endmembers from the LR HSI, including any preprocessing or dimensionality reduction steps.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment below and outline the revisions we will make.

read point-by-point responses

Referee: [Section 3.2, Eq. (4)] Section 3.2 and Eq. (4): The reconstruction S = E * A with E fixed from the low-resolution HSI assumes the linear mixing model with a small endmember set accurately represents observed spectra. This assumption is load-bearing for the central self-supervised claim; if the scene exhibits spectral variability, nonlinear mixing, or more materials than the chosen endmembers, the MSI projection loss alone cannot guarantee faithful high-resolution spectra and the self-supervision signal becomes under-constrained.

Authors: We acknowledge that the linear mixing model with endmembers extracted from the low-resolution HSI is a core modeling choice, as described in Section 3.2. This assumption enables the interpretable unmixing bottleneck and is standard in the hyperspectral unmixing literature. While spectral variability, nonlinear mixing, or an insufficient number of endmembers can occur in some scenes and may limit reconstruction fidelity, the self-supervised loss is not solely reliant on the MSI projection; it is combined with the reconstruction objective that enforces consistency between the predicted high-resolution spectra and the observed low-resolution HSI through the fixed endmembers. In practice, extracting endmembers directly from the input HSI allows adaptation to the dominant signatures present in each scene. Our experiments on real-world datasets, which typically contain some degree of variability, demonstrate competitive performance against supervised baselines. To address the referee's concern, we will revise Section 3.2 to explicitly discuss the assumptions and their limitations, and add an ablation study on endmember count and a limitations paragraph in the experiments section. revision: yes

Circularity Check

0 steps flagged

Derivation chain is self-contained with no circular reductions

full rationale

The paper grounds its unmixing in the standard linear mixing model, extracts endmembers directly from the input low-resolution HSI, and uses the independently known MSI spectral response function for self-supervision. No step defines a quantity in terms of itself or renames a fit as a prediction; the self-supervised loss compares the MSI-projected reconstruction to observed data, providing an external constraint. Empirical outperformance is demonstrated on datasets rather than following by construction from the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on the standard linear spectral mixing model and the availability of an accurate MSI spectral response function; no new free parameters or invented entities are introduced beyond the MLP weights and the number of endmembers.

axioms (2)

domain assumption Linear mixing model holds: observed spectrum equals sum of endmember signatures weighted by abundances
Reconstruction step explicitly uses linear mixing of endmembers and abundance maps.
domain assumption MSI spectral response function is known and can be used for self-supervision
Training loss is defined via consistency with the MSI sensor response.

pith-pipeline@v0.9.0 · 5738 in / 1431 out tokens · 45587 ms · 2026-05-22T12:53:48.526407+00:00 · methodology
