The SKA View of the Sunyaev-Zeldovich Effect from Massive Cosmic Halos

Yvette C. Perrott , Luca Di Mascolo , R\'emi Adam , Chiara Ferrari , Keith J. B. Grainge , Matthias Hoeft , Mamta Pandey-Pommier This is my paper

Pith reviewed 2026-06-26 04:22 UTC · model grok-4.3

classification 🌌 astro-ph.CO
keywords Sunyaev-Zeldovich effectSKAintracluster mediumgalaxy clustersthermal SZcosmic halosradio observationspressure substructures
0
0 comments X

The pith

SKA band 5b will map thermal SZ effect in clusters at high resolution while retaining large-scale emission sensitivity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that the Square Kilometre Array operating in band 5b will observe the thermal Sunyaev-Zeldovich effect from massive cosmic halos with enough resolution to detect pressure substructures inside clusters and enough sensitivity to capture the overall intracluster medium emission. This dual capability follows from the instrument's performance at the radio frequencies where the SZ signal is produced by CMB photon scattering off hot electrons. A sympathetic reader would care because it offers a way to study gas pressure distributions at multiple scales in galaxy clusters, which informs models of cluster growth and their use as cosmological probes. The demonstration rests on expected SKA technical specifications applied to this observational problem.

Core claim

The SKA will be sensitive to the thermal SZ effect in its highest frequency band, 5b. The paper shows that the SKA will provide a high-resolution, high-sensitivity view of the thermal SZ effect, allowing detailed observations of pressure substructures in clusters while retaining sensitivity to the large-scale global ICM emission.

What carries the argument

The thermal Sunyaev-Zeldovich effect, the distortion of cosmic microwave background radiation by scattering off electrons in the hot intracluster medium that directly traces gas pressure.

If this is right

  • High-resolution maps of pressure substructures within galaxy clusters will become feasible.
  • Sensitivity to the large-scale global emission from the intracluster medium will remain available.
  • Observations of the thermal properties of the ICM in massive halos will cover both small and large spatial scales.
  • The approach will complement existing SZ measurements by adding radio-frequency detail without sacrificing global signals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the capability holds, SKA data could help test whether unresolved substructures systematically affect total SZ flux measurements used for cluster mass calibration.
  • Multi-wavelength follow-up combining SKA SZ maps with X-ray data might tighten constraints on non-thermal pressure support in clusters.
  • The same dual-scale approach could extend to lower-mass halos if sensitivity improvements allow, broadening the sample for cosmological studies.

Load-bearing premise

The SKA band 5b will achieve the sensitivity and resolution needed for SZ observations without major unforeseen technical limitations or foreground contamination that prevents the claimed dual-scale capability.

What would settle it

If SKA band 5b observations or detailed simulations demonstrate that foreground emission or noise prevents either resolving individual pressure substructures or recovering the integrated large-scale ICM signal, the central claim would be falsified.

Figures

Figures reproduced from arXiv: 2606.26562 by Chiara Ferrari, Keith J. B. Grainge, Luca Di Mascolo, Mamta Pandey-Pommier, Matthias Hoeft, R\'emi Adam, Yvette C. Perrott.

Figure 1

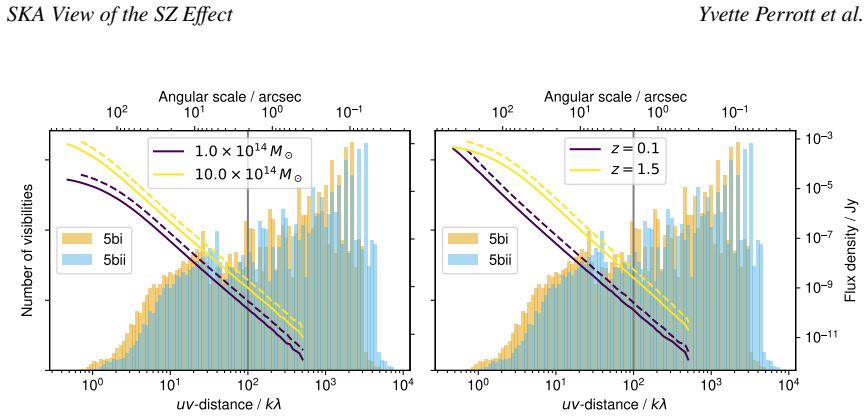

Figure 1. Figure 1: Representative examples of cluster profiles in 𝑢𝑣-space (lines, right-hand axes) compared to the SKA-MID baseline distribution for a 10 hour observation (AA4, no MeerKAT; histograms, left-hand axes). ‘5bi’ and ‘5bii’ refer to the lower and upper frequency bands within 5b, respectively. Solid (dashed) lines show cluster signal profiles in 5bi (5bii). In the left-hand plot, 𝑧 = 0.5 and mass is indicated in t… view at source ↗
Figure 2

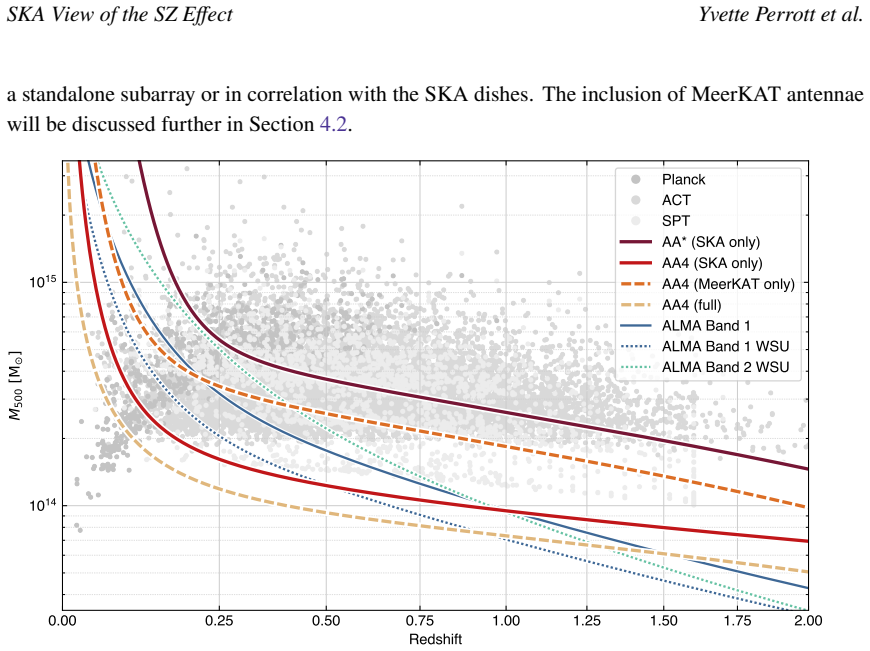

Figure 2. Figure 2: tSZ detection thresholds as a function of cluster mass and redshift for different SKA configurations, assuming a target significance of 5𝜎, for 10 hours of on-source integration and a dual-band spectral setup (2 × 2.5 GHz; see [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

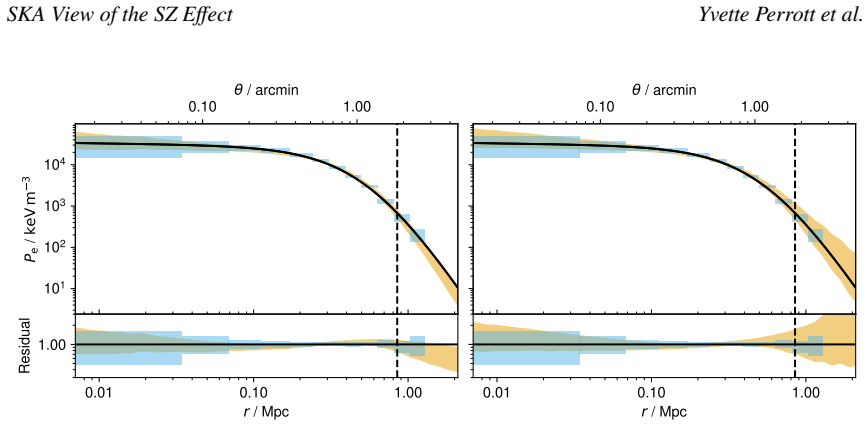

Figure 3. Figure 3: Pressure profile constraints derived from a simulated 10 hour observation of a non-cool-core cluster with the SKA (orange bands) compared to the constraints from the stacked X-ray observations of the 20-cluster non-cool-core sample from McDonald et al. (2014) (blue bins). Both SKA 5b subbands are included in these simulations. In the left-hand plot, prior constraints on the large-scale cluster parameters h… view at source ↗
Figure 4

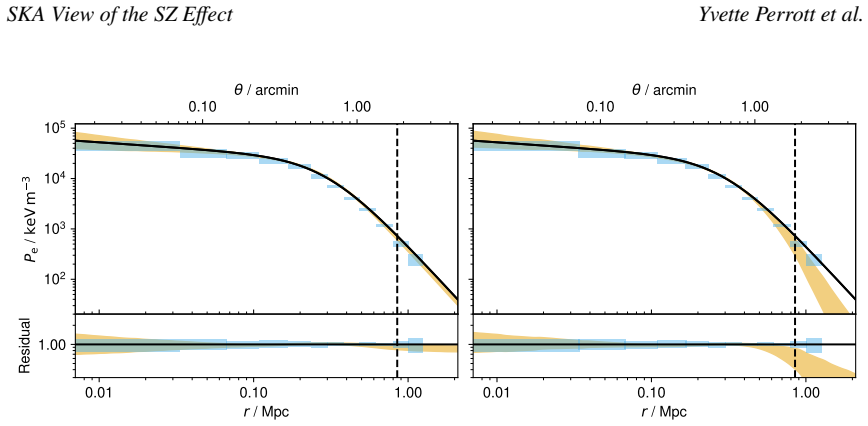

Figure 4. Figure 4: Pressure profile constraints derived from a joint analysis of simulated 10× 10 hour observations of a cool-core cluster with the SKA (orange bands) compared to the constraints from the stacked X-ray observations of the 20-cluster cool-core sample from McDonald et al. (2014) (blue bins). Only the upper SKA subband is included in these simulations. In the left-hand plot, prior constraints on the large-scale … view at source ↗
Figure 5

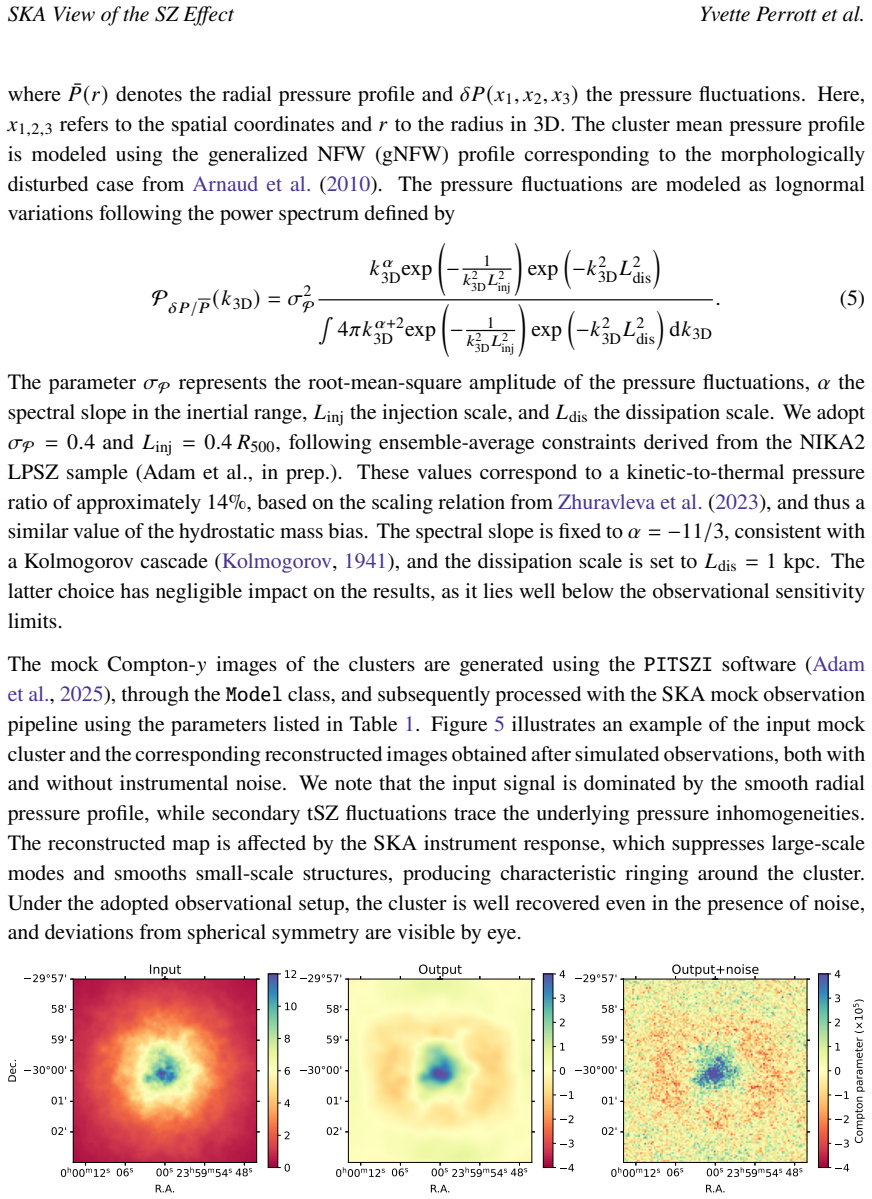

Figure 5. Figure 5: Mock cluster simulation in the presence of SZ fluctuations. Left: input SZ Compton parameter map. Middle: output map without noise contribution. Right: output map with noise contribution. We analyze the mock data in real space using the InferenceFluctuation subpackage of PITSZI, which performs forward fitting of the relevant fluctuation parameters. The tSZ fluctuation map, 12 [PITH_FULL_IMAGE:figures/full… view at source ↗

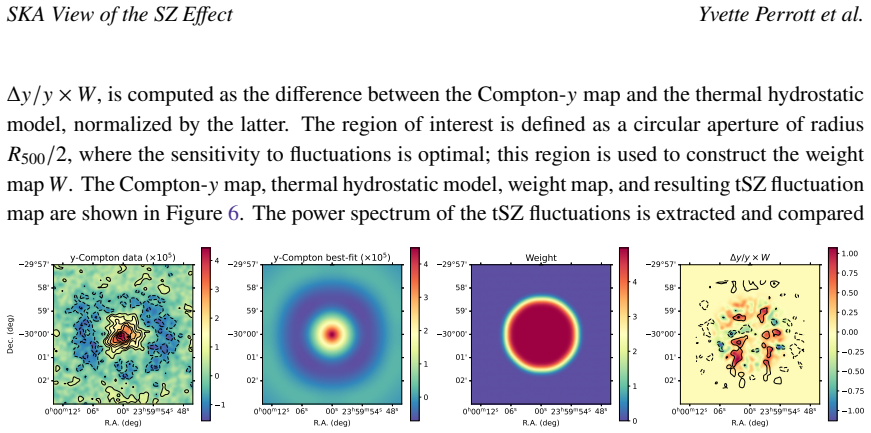

Figure 6
Figure 6. Figure 6: tSZ fluctuation data. Left: SKA mock Compton parameter map. The map was smoothed with a 10 arcsec Gaussian (FWHM) for visual purpose and contours are every 2𝜎. Middle left: Compton parameter model for the thermal hydrostatic component. Middle right: weight map 𝑊. Right: tSZ fluctuation map, multiplied by the weight. to a pressure fluctuation model that incorporates line-of-sight projection, instrumental ef… view at source ↗

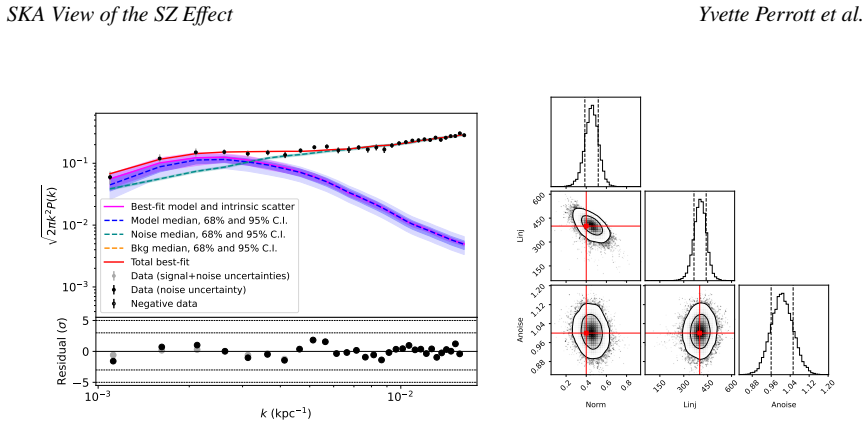

Figure 7
Figure 7. Figure 7: Left: 2D power spectrum of the tSZ fluctuations. The data points are given in black. We report the error bars arising from the noise only (black) and when accounting for the model variance (grey). The green line and contours correspond to the noise 𝐴noise × Pnoise. The blue line and contours are for the tSZ fluctuation median confidence interval (P𝛿 𝑦/𝑦 (𝜎P, 𝐿inj)). The magenta line and shaded region give … view at source ↗

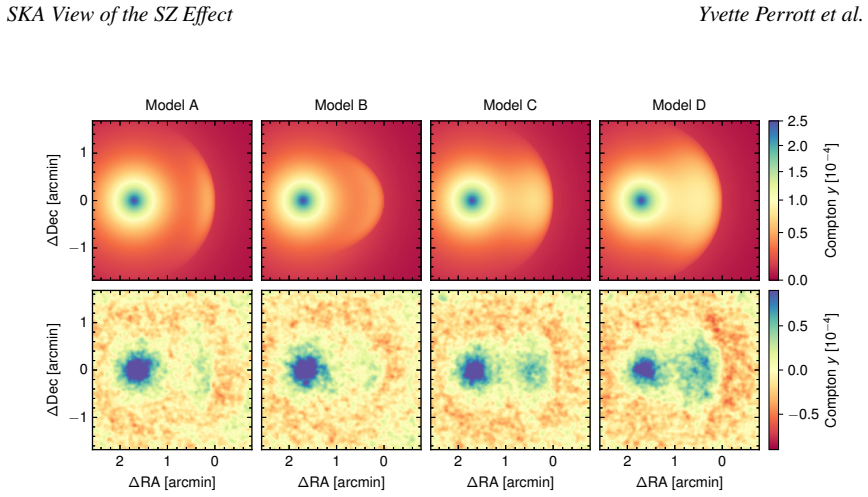

Figure 8
Figure 8. Figure 8: Selection of shock models employed in the forecast analysis. For all panels, we are considering a cluster with mass 𝑀500 = 5 × 1014 M⊙ at redshift 𝑧 = 1, and a shock front with a Mach number M = 3 at a distance 𝑟500 from the cluster centre. Model A: spherical shock cone, square cosine azimuthal variation of the Mach number. Model B: same as A, but for an ellipsoidal shock surface. Model C: same as A, but f… view at source ↗

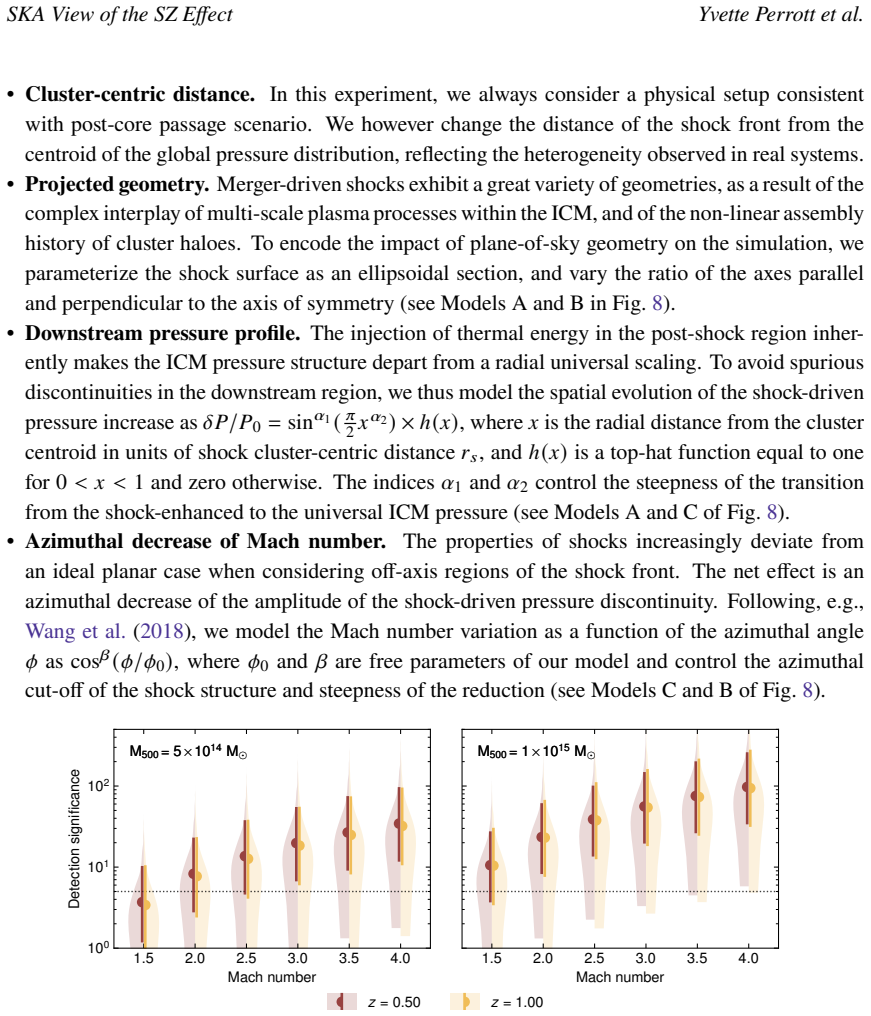

Figure 9
Figure 9. Figure 9: Detection significance of shock fronts as a function of Mach number for massive clusters (𝑀500 = 5 × 1014 M⊙, left panel; 𝑀500 = 1 × 1015 M⊙, right panel) at redshift 𝑧 = 0.50 (red) and 𝑧 = 1.00 (yellow). The shaded regions summarize the distribution of significance level values obtained for the set of shock parameters explored in our analysis. The markers and the error bars denote the median and 16th and … view at source ↗

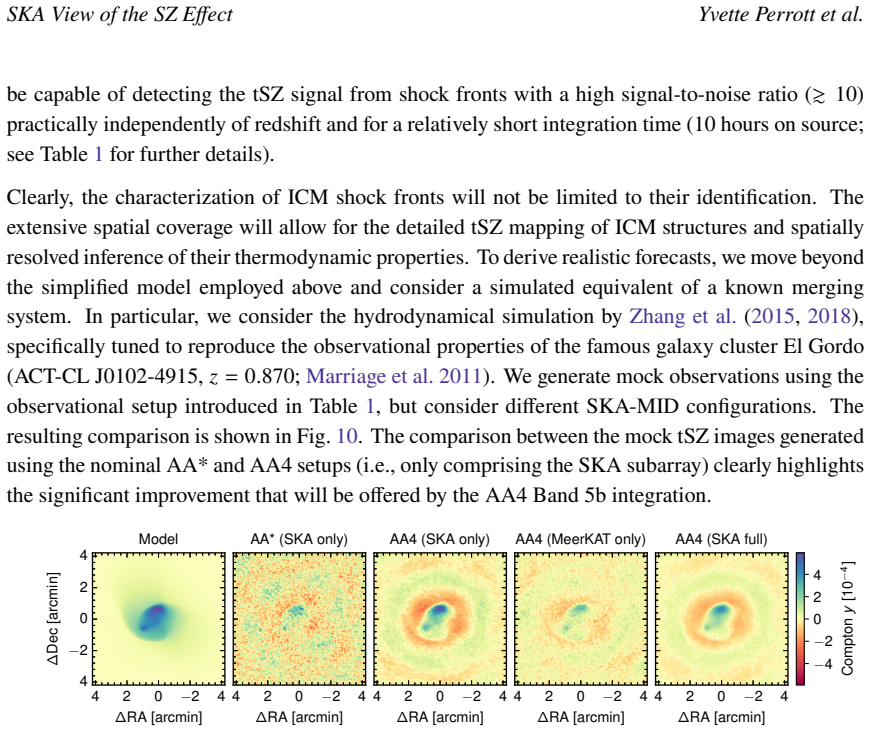

Figure 10
Figure 10. Figure 10: Mock observations of the SZ effect from El Gordo (ACT-CL J0102-4915, 𝑧 = 0.870; Marriage et al. 2011). The input model (first panel) is based on the hydrodynamical simulation by Zhang et al. (2015, 2018). The second and third panels show the mock images obtained from the nominal AA* and AA4 SKA-MID configurations. The fourth and fifth panels provide an additional comparison of the tSZ imaging capabilities… view at source ↗
Figure 11

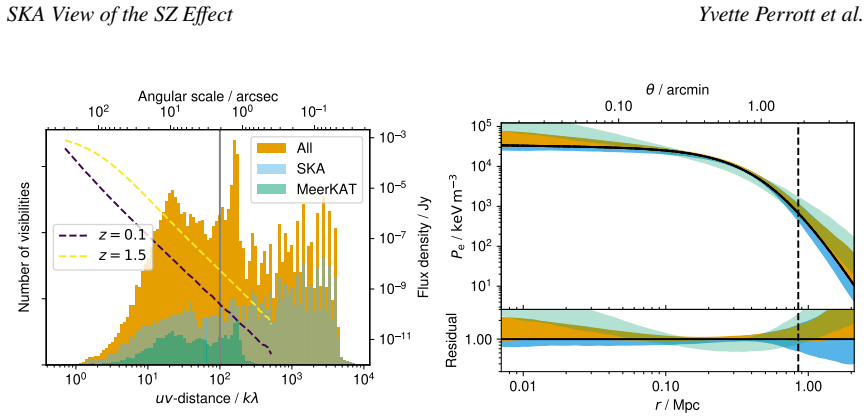

Figure 11. Figure 11: Left: baseline distributions for a 10 hour observation in AA4 configuration, including SKA-MID antennas only, MeerKAT antennas only, and all baselines (Band 5bii; histograms, left-hand axis). We note that the ‘all baselines’ observation includes SKA-only, MeerKAT-only and SKA × MeerKAT baselines and therefore contains more visibilities than the sum of the SKA-only and MeerKAT-only observations. Dashed lin… view at source ↗
Figure 12

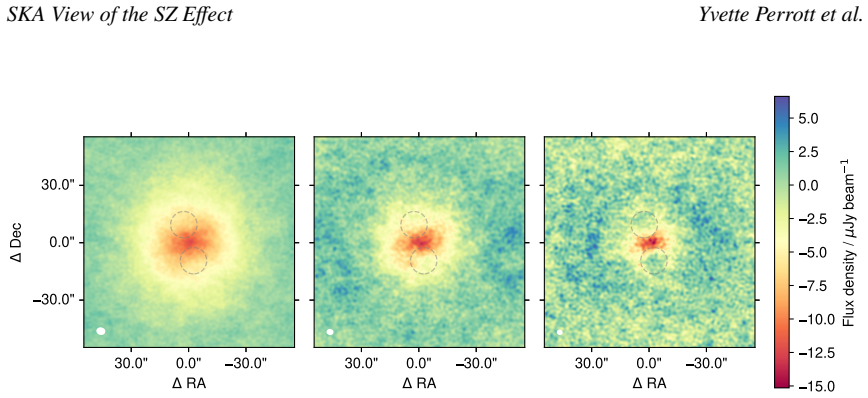

Figure 12. Figure 12: Example (dirty) images of ICM cavities in a 𝑧 = 1.5 cluster after two 10-hour observations, with Band 5bii (left), 5+ (centre) and 6 (right). It can be seen that as the frequency increases, sensitivity to the global ICM decreases, but sensitivity to the smaller-scale cavities increases. The model cavity positions are shown with dashed grey circles for comparison, and the synthesised beams are shown with w… view at source ↗
read the original abstract

The thermal intracluster medium (ICM) can be observed via its interaction with Cosmic Microwave Background photons, known as the Sunyaev-Zeldovich (SZ) effect. This effect produces an observable signal at radio to sub-mm wavelengths which probes the pressure of the ICM. The SKA will be sensitive to the thermal SZ effect in its highest frequency band, 5b. In this Chapter, we show that the SKA will provide a high-resolution, high-sensitivity view of the thermal SZ effect, allowing detailed observations of pressure substructures in clusters while retaining sensitivity to the large-scale global ICM emission.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript is a forward-looking capabilities assessment of the Square Kilometre Array (SKA) in band 5b for observing the thermal Sunyaev-Zeldovich (SZ) effect from the intracluster medium (ICM) of massive halos. It claims that SKA observations will combine high angular resolution and sensitivity to resolve pressure substructures within clusters while preserving sensitivity to the large-scale global ICM emission.

Significance. If the projected dual-scale capability is realized, the work would position SKA as a distinctive instrument for ICM pressure studies that bridges substructure and global scales, complementing existing SZ facilities. However, because the manuscript supplies only a qualitative description with no quantitative forecasts, simulated observations, sensitivity calculations, or foreground assessments, its significance is limited to an informed projection rather than a validated prediction.

major comments (1)
  1. Abstract: The central claim that SKA band 5b 'will provide a high-resolution, high-sensitivity view ... allowing detailed observations of pressure substructures in clusters while retaining sensitivity to the large-scale global ICM emission' is presented without any supporting end-to-end simulations, uv-coverage analysis, primary-beam modeling, or quantitative error budgets, rendering the dual-scale feasibility assertion unsubstantiated.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review. The manuscript is a qualitative forward-looking capabilities assessment of SKA band 5b for thermal SZ observations of massive halos. We respond to the single major comment below.

read point-by-point responses

  1. Referee: Abstract: The central claim that SKA band 5b 'will provide a high-resolution, high-sensitivity view ... allowing detailed observations of pressure substructures in clusters while retaining sensitivity to the large-scale global ICM emission' is presented without any supporting end-to-end simulations, uv-coverage analysis, primary-beam modeling, or quantitative error budgets, rendering the dual-scale feasibility assertion unsubstantiated.

    Authors: We acknowledge that the manuscript contains no end-to-end simulations, uv-coverage analysis, primary-beam modeling, or quantitative error budgets; it is explicitly a projection based on published SKA design specifications rather than a validated simulation study. The dual-scale claim follows from the known properties of the SKA as a large-N interferometer whose shortest baselines recover extended emission while longer baselines provide the stated angular resolution in band 5b. We agree that the current abstract wording presents the capability too definitively. We will revise the abstract (and relevant introductory text) to state that SKA observations are expected to enable such dual-scale studies on the basis of instrument design, thereby aligning the language with the qualitative nature of the work. revision: yes

Circularity Check

0 steps flagged

No significant circularity; forward-looking instrument description with no derivations

full rationale

The manuscript is a capabilities chapter describing projected SKA performance for SZ observations. It contains no equations, parameter fits, or derivation chains. The central claim is an informed projection of dual-scale sensitivity in band 5b rather than any result obtained by reducing inputs to outputs via self-definition, fitted predictions, or self-citation load-bearing steps. No load-bearing premise reduces to its own inputs by construction, so the circularity score is 0.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are introduced in the provided abstract; the text relies on standard prior knowledge of the SZ effect and SKA design specifications.
