SAMBLE: Shape-Specific Point Cloud Sampling for an Optimal Trade-Off Between Local Detail and Global Uniformity

T0 review · 4 major / 4 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read SAMBLE samples point clouds to keep edge detail and global uniformity, and reports gains over prior samplers.

desk verdict Genuine extension of APES with strong few-point results, but test-set-selected hyperparameters and a missing k make the headline numbers hard to check independently. read the letter →

arxiv 2504.19581 v2 pith:HQAVIA62 submitted 2025-04-28 cs.CV

Chengzhi Wu , Yuxin Wan , Hao Fu , Julius Pfrommer , Zeyun Zhong , Junwei Zheng , Jiaming Zhang , Jürgen Beyerer This is my paper · ORCID
classification cs.CV
keywords pointcloudsamplingsparseattentionmapshape-specificbin-basededgepreservationglobaluniformityfew-pointclassification
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Point cloud sampling decides which points of a 3D shape survive to a smaller set, and most methods either destroy recognizability by generating artificial points or over-collect sharp edges at the expense of the overall shape. SAMBLE is a learning-based sampler that claims to break that trade-off: it reads a per-point 'edge-ness' signal from a sparse attention map and then learns, per shape, how many points to draw from each score bin. The paper reports that this shape-specific strategy improves ModelNet40 classification to 94.2% overall accuracy, ShapeNet-Part segmentation to 84.5% category mIoU, and produces strong few-point sampling results down to 32 points from raw input. The reason a reader should care is that better sampling is a cheap, drop-in improvement for any point-cloud pipeline that uses FPS or random sampling.

What carries the argument

The load-bearing mechanism is the sparse attention map (SAM) plus a bin-based sampling policy. SAM takes an N×N global attention map and, for each row, carves out only the cells corresponding to that point's k nearest neighbors, setting the rest to zero; the per-column count no and the column sums of these carved cells become the raw material for point-wise sampling scores. The preferred indexing mode, sparse column square-divided, divides each column sum by $no^{2}$, which softens the edge over-emphasis seen in row-standard-deviation modes. The bin policy then divides the score range into nb bins using boundaries updated with momentum over the training set, and nb learnable bin tokens, concatenated to keys and values, produce per-bin sampling weights through a masked point-to-token attention sub-map; within each bin, points are drawn by a softmax over scores with temperature τ. This combination is what turns a fixed top-M rule into a shape-specific strategy.

What would settle it

Run SAMBLE on a real scan with visibly non-uniform point density and compare its top-score points against manually labeled true edges; if dense flat regions are scored as high as genuine sharp edges, the kNN-frequency signal is density, not geometry.

Watch

Extended reading notes

Core claim

The central claim is that the asymmetry of k-nearest-neighbor relations — point pi can be among pj's neighbors without the reverse holding — is an easily computed point property that separates edge points, close-to-edge points, and non-edge points, and that a sparse attention map exposes this property. Starting from a global attention map, SAMBLE keeps only the k selected cells per row; because each point is chosen as a neighbor a different number of times, column variables like the selected-cell count no carry the geometric signal. Among seven indexing modes, the 'sparse column square-divided' mode (column sum divided by $no^{2}$) is chosen as the default because it samples edge points without over-emphasizing them. On top of those per-point scores, bin-based sampling partitions each shape's points into bins with momentum-updated score boundaries and learns one sampling weight per bin through extra bin tokens appended to the keys and values of the attention computation. The paper reports that this yields a better edge/global balance than APES in qualitative comparisons and better numbers on classification, part segmentation, and few-point sampling.

Load-bearing premise

The kNN asymmetry frequency is assumed to reflect local geometry (edge-ness) rather than local point density; that holds on the uniformly sampled CAD meshes of ModelNet40 and ShapeNet-Part, but on real scans with irregular density the sampling scores could be confounded by density.

Editorial extensions

If this is right

  • Interpolation-based upsampling becomes usable: SAMBLE's uniformly spread samples let standard neighbor interpolation replace the cross-attention upsampler that APES required, without the accuracy drop APES shows under interpolation.
  • Few-point sampling works directly from the raw input: SAMBLE reports 90.18% overall accuracy at M=256 and 89.45% at M=32 on ModelNet40 classification without FPS pre-processing, outperforming APES that uses FPS to reduce the input first.
  • Sampling strategies are shape-specific and category-consistent: visualization shows similar bin histograms within a category and different strategies across categories, implying the sampler learns meaningful per-shape importance profiles.
  • The sampled sub-point clouds themselves carry more task signal: SAMBLE beats PointNeXt's FPS-based downsampling on intermediate downsampled sub-point clouds, suggesting the learned points, not the upsampling layer, drive the performance.
  • The method scales to any target sample size M through the bin-quota redistribution algorithm, so the same trained strategy can serve multiple sampling budgets.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • On real-world scans with non-uniform density, the kNN asymmetry signal would conflate edge-ness with density; a density-normalized variant of the sparse column count is a natural extension that could be tested on scanned-object benchmarks.
  • The learned bin boundaries essentially define a shape-specific importance quantile function; they could be exported as a compact descriptor of a shape class and used for rule-based sampling without neural inference.
  • The same sparse-attention plus bin-token design should transfer to other permutation-invariant operators, such as downsampling for point cloud registration or scene understanding, where edge preservation and coverage both matter.
  • The temperature τ in in-bin sampling interpolates between top-M and uniform sampling; per-bin or per-shape temperature schedules might improve the trade-off further.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The paper proposes SAMBLE, a learning-based point cloud sampling method that computes point-wise sampling scores from a sparse attention map (SAM) combining local and global information, and then samples points using a shape-specific bin-based strategy. The sparse attention map is built by masking a global attention map with kNN neighbor indices, and seven indexing modes are proposed for deriving sampling scores. Points are partitioned into bins with momentum-updated boundaries, and bin sampling weights are learned with additional bin tokens. The method is evaluated on ModelNet40 classification, ShapeNet-Part segmentation, few-point sampling on ModelNet40, and intermediate sub-point cloud segmentation, reporting state-of-the-art or competitive results against APES and other baselines. The paper includes extensive ablations over indexing modes, number of bins, momentum factor, temperature, and upsampling layers, plus supplementary material on network architecture, training details, and additional visualizations.

Significance. If the reported results are reliable, SAMBLE makes a useful contribution to task-oriented point cloud sampling by offering a more balanced local-global trade-off than APES, with particularly strong few-point sampling performance. The paper's systematic exploration of multiple indexing modes, the bin-based shape-specific sampling mechanism, the qualitative score heatmaps, and the runtime/complexity analysis are strengths. The central claim is empirical, however, and its validity depends on the evaluation methodology; the selection of design hyperparameters on the test benchmarks and the lack of statistical variance reporting are serious concerns. The method is also not independently reproducible as reported because the kNN neighborhood size k is never specified and no code is provided.

major comments (4)
  1. [Sec. 4.4 and supplementary Tables 11-12] The main results in Tables 2-4 are produced with hyperparameters that appear to be selected on the same test benchmarks used for the headline numbers. Specifically, the indexing mode is chosen from Table 5, the number of bins from Table 6 (and the corresponding main-text sentences), the momentum factor from Table 11 in the supplementary, and the temperature from Table 12 in the supplementary. No held-out validation split is described anywhere; the paper only mentions the official train-test splits for ModelNet40 and ShapeNet-Part. This is a form of test-set selection that can inflate reported accuracy, and it undermines the claim of 'superior performance' over APES, whose margins are only 0.3-0.4 accuracy points in Table 2. The authors should re-run the ablation selection on a validation split and report the final results on the test set only once, or otherwise demonstrate that the selected configuration is not an artifact of test-set tuning.
  2. [Sec. 3.1 and Table 1] The kNN neighborhood size k is a central free parameter of the proposed sparse attention map and of every indexing mode in Table 1 (e.g., the number of selected cells per row, and the column counts n_o used in modes v-vii). Throughout the paper and the supplementary material, k is never given a numeric value, and no ablation over k is reported. Without this value, the method cannot be reproduced or compared against other sampling methods. This missing specification is load-bearing for the empirical claim and must be added, along with an ablation or at least the chosen value for each experiment.
  3. [Table 3] Table 3 reports intermediate sub-point cloud segmentation results where SAMBLE's category mIoU increases as the number of points decreases (84.51 at 2048 points, 84.84 at 1024, 85.04 at 512). This is counterintuitive: a smaller sampled subset would generally not be expected to improve accuracy on a downstream task unless the evaluation protocol differs from what is described. The paper states that 'the learned sampled points contribute more to the overall performance' and that 'the upsampling layer cannot fully reconstruct the features of the discarded points,' but this does not explain why fewer points should yield higher mIoU. The authors should clarify the evaluation protocol for the intermediate sub-point clouds and explain this trend, as it currently undermines the interpretability of a key comparison.
  4. [Tables 2 and 4] All reported accuracy values appear to come from a single run with no seed variance or statistical significance testing. In Table 2, the gap between SAMBLE and APES (global) is 0.4% overall accuracy on ModelNet40 and 0.8% category mIoU on ShapeNet-Part; on a test set of 2,468 shapes, a 0.4% difference corresponds to roughly 10 shapes and may be within run-to-run variation. The few-point sampling gains in Table 4 are large and more convincing, but the classification and segmentation claims should be supported by mean±std over multiple seeds or, at minimum, a statement of the number of runs and the observed variance.
minor comments (4)
  1. [Sec. 3.2] The notation in the indexing-mode formulas is inconsistent: 'oth row' and 'oth column' should be 'o-th row' and 'o-th column', and the definition of S_o is only given in prose rather than in the table. Please align the notation between Table 1 and the surrounding text.
  2. [Sec. 1, Fig. 2] The phrase 'quantum-entangled twin point pair' is informal and not defined; the phenomenon is simply that two points can each be the other's kNN under ties or boundary conditions. Please replace this with a precise geometric description.
  3. [Fig. 5] The figure caption states scores are normalized to N(0.5,1) for visualization, but no colorbar or explicit scale is provided. Adding a colorbar and explaining what '1.0 (or higher)' means would improve interpretability.
  4. [Sec. 3.3, Eq. (5)] The temperature parameter tau is introduced in Eq. (5) for within-bin softmax sampling, and the supplementary extends it to global prior-based sampling in Eq. (10). The relationship between these two uses is clear but should be stated in the main text for completeness.

Circularity Check

1 steps flagged · score 4.0 of 10

The method's equations are self-contained, but the headline superiority is partly a test-set-selected configuration rather than an independent prediction.

  1. fitted input called prediction [Sec. 4.4 (Tables 5 and 6) and Supplementary Sec. 13 (Tables 11 and 12); final settings reused in Sec. 4.1-4.2 and Table 2]
    "From it, we can observe that indexing modes vi and vii achieve best performances. ... In our case,n b = 6and4yield the best performance for the classification and segmentation tasks respectively, and we use it for the corresponding experiments. ... From it, we can see thatγ= 0.99yields the best performance. ... Numerical results are reported in Tab. 12, whereτ= 0.1achieves the best performance."

    Tables 5, 6, 11, and 12 report accuracy/MIoU on the same ModelNet40 and ShapeNet-Part benchmarks used for the headline numbers in Table 2, and no held-out validation split is described. The paper then chooses the indexing mode, number of bins, momentum factor, and temperature that give the best values on those tables, and the main experiments reuse those configurations. The reported 'superior performance' is therefore the maximum over a benchmark hyperparameter search rather than an independent prediction for a fixed method; the headline result is partly a selection artifact, not a test of the sampling strategy alone.

full rationale

There is no equation-level circularity in the derivation chain: the kNN-asymmetry observation is an external geometric fact, the sparse attention map and all seven indexing modes are explicit functions of attention values and neighbor sets (Sec. 3.1-3.2), and bin boundaries and weights are learned from training data through Eqs. 3-5. APES is cited as the baseline architecture and as prior work, but the self-citation is not load-bearing: SAMBLE's components are defined independently and evaluated against external benchmarks. The one substantive circularity-type concern is evaluation: the final configuration was selected by ablating on the same benchmarks whose test numbers are then offered as evidence of 'superior performance', with no validation split, code, or seed variance reported. That makes the headline numbers partly selected rather than independently predicted, but it does not make the method's derivation self-referential. Score 4 reflects this partial selection burden, not a collapsed derivation.

Assumptions & free parameters 5 free parameters · 4 assumptions · 2 invented entities

The method rests on the observation that kNN neighbor frequencies vary across points and encode edge-ness. The central free parameters (k, number of bins, momentum, temperature, indexing mode) are either unreported or selected on the test set. The sparse attention map and bin tokens are new components whose evidence is entirely internal to the paper's experiments.

free parameters (5)
  • kNN neighborhood size k = not reported
    The sparse attention map is built using k-nearest neighbors, but the paper never gives the value of k used in experiments. It directly affects the column frequencies and all sampling scores.
  • Number of bins n_b = 6 for classification, 4 for segmentation
    Selected by ablation on the test set (Tab. 6).
  • Momentum update factor gamma = 0.99
    Selected by ablation on the test set (supplementary Tab. 11).
  • Temperature tau = 0.1
    Selected by ablation on the test set (supplementary Tab. 12).
  • Indexing mode = mode vii (sparse column square-divided)
    Selected based on test performance in Tab. 5; the chosen mode is used for most experiments.
assumptions (4)
  • domain assumption The frequency with which a point is selected as a kNN neighbor reflects local geometric detail, with edge points selected less often.
    Introduced in Sec. 1 and Fig. 2. All indexing modes in Sec. 3.2 depend on this property. It assumes input point clouds are uniformly sampled so that density does not confound the frequency signal.
  • ad hoc to paper Pre-softmax attention values are a usable signal for bin sampling weights.
    Supplementary Sec. 12 shows post-softmax values are too uniform, and the authors switch to pre-softmax after runtime tensor inspection. This is a design decision tailored to their network.
  • domain assumption Bin boundaries learned from training score distributions generalize to test shapes.
    The method computes bin boundaries from training batches via momentum updates and assumes they evenly partition test shapes, as shown in supplementary Fig. 19.
  • domain assumption The APES base network and training scheme constitute a valid testbed for comparing sampling methods.
    The evaluation uses the APES backbone for SAMBLE and most baselines, but the SOTA table also includes methods with different architectures; the comparison assumes the backbone is not the source of the gains.
invented entities (2)
  • Sparse Attention Map (SAM)
    purpose: Computes point-wise sampling scores by carving or inserting kNN cells from a global or local attention map.
    Only evidenced by internal experiments in this paper; no external falsifiable handle.
  • Bin tokens
    purpose: Learned tokens concatenated to Key and Value to produce shape-specific bin sampling weights.
    Only evidenced by internal experiments in this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of SAMBLE: Shape-Specific Point Cloud Sampling for an Optimal Trade-Off Between Local Detail and Global Uniformity." pith.science (2026). https://pith.science/paper/HQAVIA62

@misc{pith2026250419581,
  author       = {Pith},
  title        = {Pith review of: SAMBLE: Shape-Specific Point Cloud Sampling for an Optimal Trade-Off Between Local Detail and Global Uniformity},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HQAVIA62}},
  note         = {Machine review of arXiv:2504.19581}
}
read the original abstract

Driven by the increasing demand for accurate and efficient representation of 3D data in various domains, point cloud sampling has emerged as a pivotal research topic in 3D computer vision. Recently, learning-to-sample methods have garnered growing interest from the community, particularly for their ability to be jointly trained with downstream tasks. However, previous learning-based sampling methods either lead to unrecognizable sampling patterns by generating a new point cloud or biased sampled results by focusing excessively on sharp edge details. Moreover, they all overlook the natural variations in point distribution across different shapes, applying a similar sampling strategy to all point clouds. In this paper, we propose a Sparse Attention Map and Bin-based Learning method (termed SAMBLE) to learn shape-specific sampling strategies for point cloud shapes. SAMBLE effectively achieves an improved balance between sampling edge points for local details and preserving uniformity in the global shape, resulting in superior performance across multiple common point cloud downstream tasks, even in scenarios with few-point sampling.

Figures

Figures reproduced from arXiv: 2504.19581 by the authors.

Figure 1
Figure 1. Our method achieves an improved trade-off between [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. When selecting an equal number of neighbors for each [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. A brief pipeline of our proposed method SAMBLE. It [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (21 more)
Figure 5
Figure 5. Figure 5: Point sampling score heatmaps under different indexing modes. Scores are normalized to [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 6
Figure 6. Figure 6: Network structure of our proposed downsampling layer. [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: Qualitative results of our proposed SAMBLE. Apart from the sampled results, sampling score heatmaps and bin histograms along [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: Segmentation results of our proposed SAMBLE in com [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 10
Figure 10. Figure 10: Heatmaps under different indexing modes with insert [PITH_FULL_IMAGE:figures/full_fig_p012_10.png]
Figure 12
Figure 12. Figure 12: Left: bin partitioning, each color represents the points [PITH_FULL_IMAGE:figures/full_fig_p013_12.png]
Figure 11
Figure 11. Figure 11: Illustration of redistributing excess points to other bins [PITH_FULL_IMAGE:figures/full_fig_p013_11.png]
Figure 13
Figure 13. Figure 13: Qualitative results of our proposed SAMBLE, in comparison with APES. In addition to the sampled results, sampling score [PITH_FULL_IMAGE:figures/full_fig_p014_13.png]
Figure 14
Figure 14. Figure 14: Network architectures for the classification task and the [PITH_FULL_IMAGE:figures/full_fig_p014_14.png]
Figure 15
Figure 15. Figure 15: Segmentation results of our proposed SAMBLE, in comparison with APES. All shapes are from the test set. [PITH_FULL_IMAGE:figures/full_fig_p015_15.png]
Figure 16
Figure 16. Figure 16: Adding bin tokens to Query leads to no gradient being [PITH_FULL_IMAGE:figures/full_fig_p016_16.png]
Figure 17
Figure 17. Figure 17: Learned sampling strategies with the mean-pooling and ReLU operations applied in different orders. [PITH_FULL_IMAGE:figures/full_fig_p017_17.png]
Figure 18
Figure 18. Figure 18: Illustrative figure of the distribution of the element val [PITH_FULL_IMAGE:figures/full_fig_p017_18.png]
Figure 20
Figure 20. Figure 20: Different sampling results using different [PITH_FULL_IMAGE:figures/full_fig_p018_20.png]
Figure 21
Figure 21. Figure 21: An illustration of different sampling policies. Note for [PITH_FULL_IMAGE:figures/full_fig_p019_21.png]
Figure 22
Figure 22. Figure 22: More visualization results of bin partitioning and learned shape-specific sampling strategies on the chair category. Zoom in for [PITH_FULL_IMAGE:figures/full_fig_p020_22.png]
Figure 23

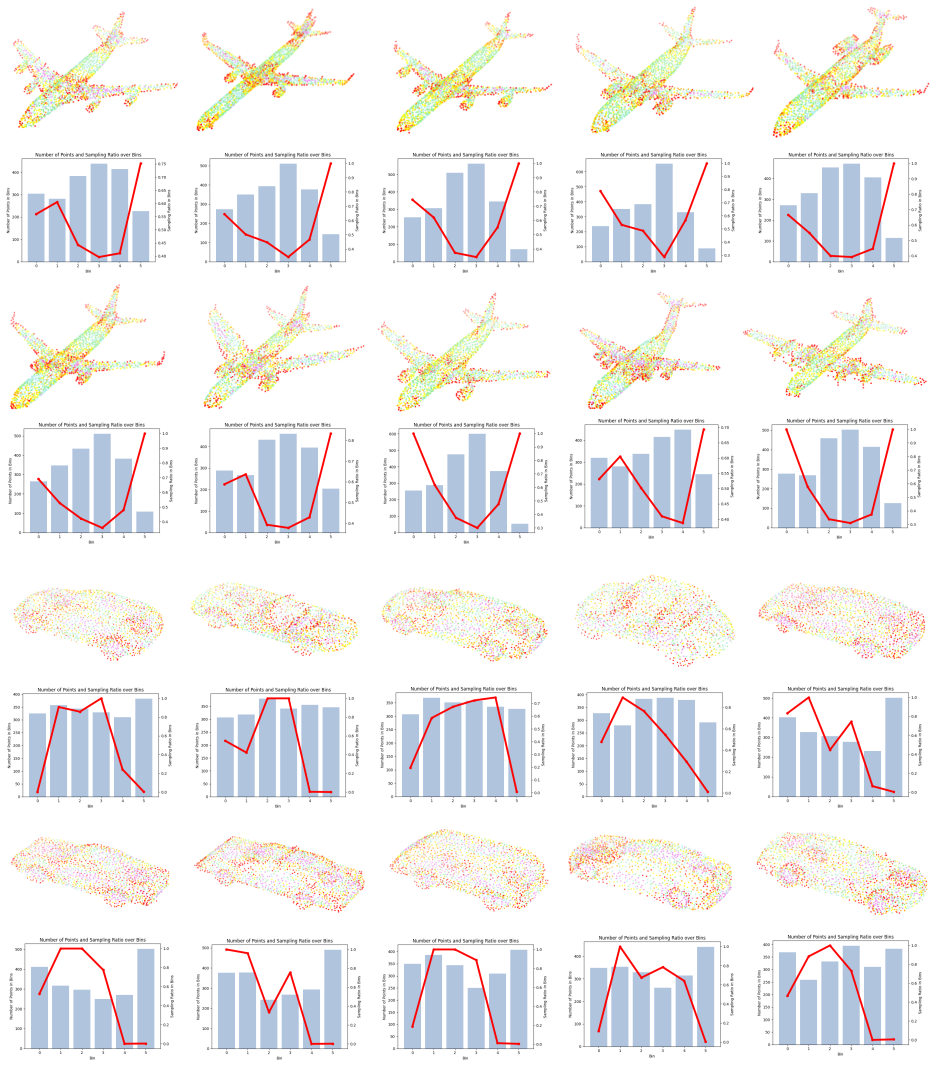

Figure 23. Figure 23: More visualization results of bin partitioning and learned shape-specific sampling strategies on the airplane and car categories. [PITH_FULL_IMAGE:figures/full_fig_p021_23.png]
Figure 24
Figure 24. Figure 24: More visualization results of bin partitioning and learned shape-specific sampling strategies on the guitar, lamp, plant, and [PITH_FULL_IMAGE:figures/full_fig_p022_24.png]
Figure 25
Figure 25. Figure 25: More visualization results of bin partitioning and learned shape-specific sampling strategies on the cone, bottle, toilet, and bed [PITH_FULL_IMAGE:figures/full_fig_p023_25.png]
Figure 26

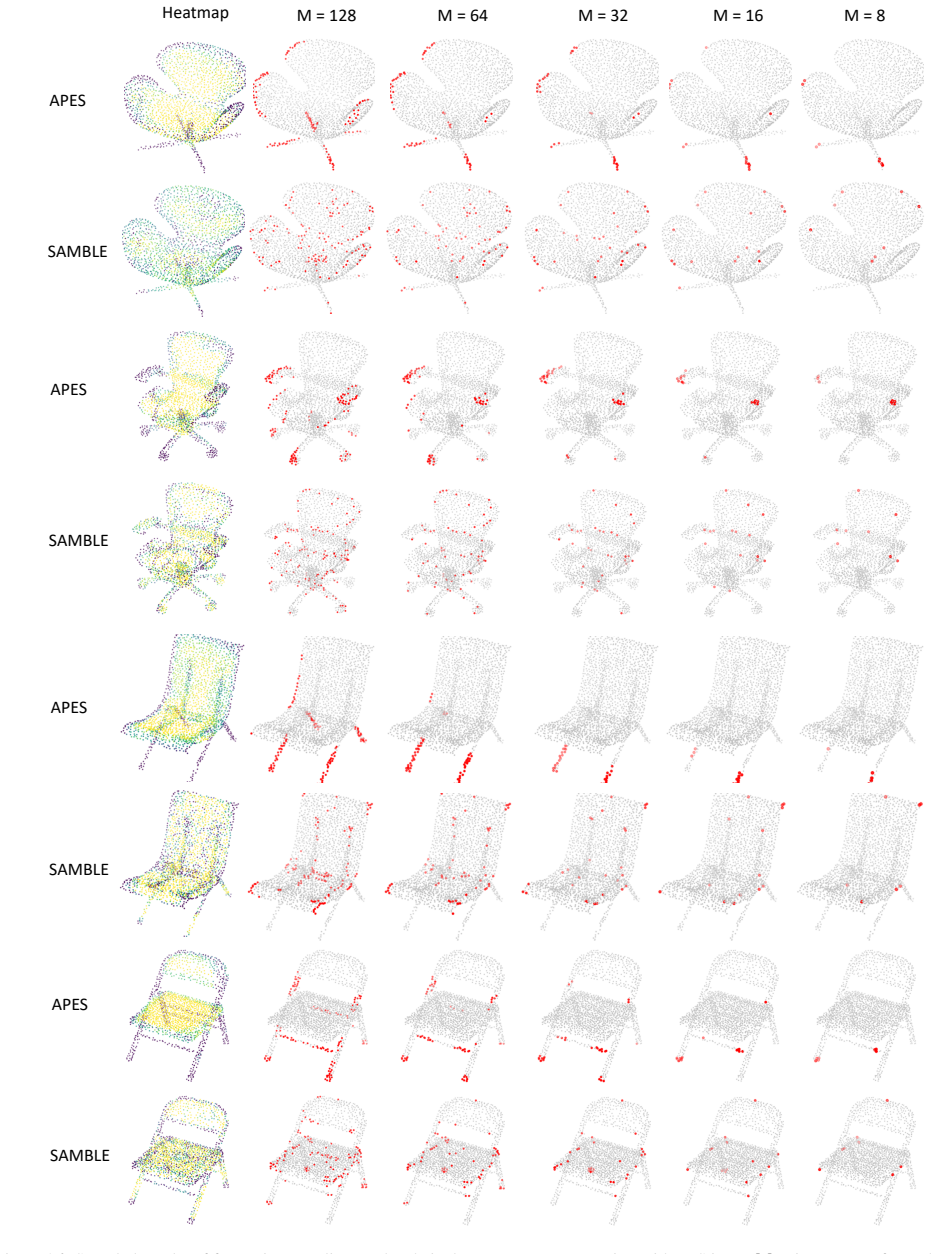

Figure 26. Figure 26: Sampled results of few-point sampling on the chair shapes. No pre-processing with FPS into [PITH_FULL_IMAGE:figures/full_fig_p024_26.png]
Figure 27
Figure 27. Figure 27: Sampled results of few-point sampling on the airplane and lamp shapes. No pre-processing with FPS into [PITH_FULL_IMAGE:figures/full_fig_p025_27.png]
