An open-source finite element toolbox for anisotropic creep and irradiation growth: Application to tube and spacer grid assembly

T0 review · 3 major / 7 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read VPSC-CAFEM embeds grain-level crystal plasticity in Code_Aster and finds that a spacer-grid texture with prismatic planes preferentially normal to the grid minimizes cladding clearance, the quantity that drives fuel-assembly fretting wear.

desk verdict Useful Code_Aster–VPSC coupling, but the spacer-grid texture ranking rests on an underdetermined in-plane orientation. read the letter →

arxiv 2506.02807 v1 pith:HXQ3KR2A submitted 2025-06-03 physics.comp-ph

Fabrizio E. Aguzzi , Santiago M. Rabazzi , Martín S. Armoa , César I. Pairetti , Alejandro E. Albanesi This is my paper · ORCID
classification physics.comp-ph MSC 74S05
keywords anisotropiccreepirradiationgrowthviscoplasticself-consistentmodelCode_Asterspacergridcrystallographictexturefrettingwearzirconiumalloy
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes that a grain-level crystal-plasticity description of irradiated zirconium alloys can be embedded directly in the open-source finite element solver Code_Aster, replacing the semi-empirical constitutive laws such codes normally use. The authors build an interface, VPSC-CAFEM, that couples the viscoplastic self-consistent (VPSC) polycrystal model to the solver at every integration point, and they validate it by reproducing the strain predictions of standalone VPSC for irradiation growth and irradiation creep. Applied to a patented pressurized-water-reactor spacer grid with nonlinear contact, the model predicts a cladding-to-dimple clearance opening of about 13 micrometers at 20 dpa for the as-received texture, and a consistent ranking across four textures: the more prismatic planes point along the normal direction of the grid sheet, the smaller the clearance. The paper concludes that such a texture is the most suitable for spacer design because minimized clearance reduces flow-induced vibration and fretting wear, a concrete, microstructure-based design target for nuclear fuel assemblies.

What carries the argument

The central object is the VPSC-CAFEM interface, a UMAT-like user-material coupling that puts the viscoplastic self-consistent (VPSC) polycrystal model, a mean-field scheme computing the anisotropic response of a textured aggregate of hexagonal grains from slip systems, dislocation densities, and irradiation defect populations, at every Gauss point of the Code_Aster mesh. It carries the argument by splitting each strain increment as $\Delta\boldsymbol{\varepsilon} = \mathbf{C}^{-1}:\Delta\boldsymbol{\sigma} + \Delta\boldsymbol{\varepsilon}_{vp}$, with $\mathbf{C}$ the self-consistent elastic stiffness computed by VPSC and $\Delta\boldsymbol{\varepsilon}_{vp}$ the viscoplastic increment; rotating stress, strain, and tangent tensors between the global frame and local crystallographic axes with the rotation matrix $R$; and iterating the Newton-Raphson residual $\mathbf{X}(\Delta\boldsymbol{\sigma}^*)=\Delta\boldsymbol{\varepsilon}^*-\Delta\boldsymbol{\varepsilon}^*_{FE}$ with Jacobian $\mathbf{J}^*_{NR}=\mathbf{C}^{-1}+\mathbf{M}\Delta t$, where $\mathbf{M}$ is the VPSC viscoplastic tangent modulus. A companion Python script assigns local coordinate systems to curved meshes automatically, which is what makes the texture rotations practical for the cladding tube and grid at millions of integration points.

What would settle it

Measure the cladding-to-dimple clearance of an irradiated spacer grid assembly, or of a fretting rig operating at the predicted amplitudes, and compare with the roughly 13-micrometer opening at 20 dpa and with the texture ranking of Tests 1-4: a materially different magnitude, or a texture that does not favor the prismatic-normal orientation, would refute the central claim. A cheaper check is to compare the coupled model's tube strain anisotropy against dedicated irradiation-growth and irradiation-creep experiments on the same heat of material, since the tube response is the most directly calibrated part of the model.

Watch

Extended reading notes

Core claim

If the VPSC-CAFEM interface is right, then grain-level VPSC constitutive behavior is faithfully embedded in Code_Aster: stress and strain tensors are rotated between the global finite element frame and the local crystallographic axes at every Gauss point, the elastic strain is recovered analytically from the self-consistent elastic stiffness tensor computed by VPSC, and a Newton-Raphson iteration on the strain residual enforces equilibrium. The paper shows the coupled model reproduces standalone VPSC strain histories for irradiation growth without load and for irradiation creep under 100 and 200 MPa axial loads in a quarter-tube geometry. On the full assembly, the model predicts a maximum clearance opening of about 13 micrometers at 20 dpa for the tested grid texture, smaller than the 28 micrometers reported for a similar geometry in a prior Abaqus-based study, and, across four texture variants, that the clearance decreases steadily as the prismatic planes rotate toward the normal direction of the dimple sheet, with a single crystal in that orientation giving the smallest opening. From this the paper draws its central design claim: a grid texture with prismatic planes preferentially normal to the grid minimizes clearance and thereby contributes to fretting-wear resistance.

Load-bearing premise

The load-bearing premise is that the material parameters and reduced crystallographic textures inherited from an earlier study calibrated for cold-worked Zircaloy-2 irradiation growth at 550 K describe the actual spacer grid material over the entire 0-20 dpa range; the interface validation only demonstrates consistency with standalone VPSC, so if the creep compliance, defect fractions, or textures are unrepresentative, the predicted clearance magnitudes and the texture ranking could change.

Editorial extensions

If this is right

  • Code_Aster users can replace semi-empirical constitutive laws for irradiated zirconium with grain-level physics, including texture, dislocation density, and defect population, entirely within an open-source stack.
  • A spacer grid processed so its prismatic planes preferentially point along the grid normal should show reduced cladding clearance and improved fretting-wear resistance relative to the as-received texture.
  • The predicted 13-micrometer opening at 20 dpa falls inside the 5-30 micrometer transverse displacement range used in ex-reactor fretting wear tests, so the model's wear-risk assessment is testable with existing experimental practice.
  • Under a net outward pressure on the cladding, a loss-of-coolant-like condition, the clearance stays closed through 20 dpa, which suggests initial internal pressurization of the cladding could mitigate fretting degradation.
  • Because the elastic response is recovered analytically from the self-consistent stiffness tensor, the open-access version of VPSC, which lacks built-in elasticity, can still be used inside a finite element solver.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The texture ranking rests on reduced textures of 7 and 13 orientations taken from an earlier study; a sensitivity run with the full 1144- and 2428-orientation textures would show whether the ranking survives texture-representation error, which the stated 10 percent deviation criterion does not fully guarantee.
  • The same coupling is transferable to other hexagonal metals, such as titanium and other zirconium alloys, and to the listed extensions of thermal creep, thermal expansion, and precipitation hardening, so the clearance-versus-texture conclusion is one instance of a general screening capability for fuel components.
  • The single-crystal test suggests the benefit scales with prismatic-pole intensity near the grid normal; a few more simulations could produce a design map of clearance against the normal-direction Kearn factor, giving strip processors a quantitative target.
  • Since the validation compares the coupled model with standalone VPSC rather than with independent experiment, the physical realism of the 13-micrometer number inherits entirely from the earlier Zircaloy-2 calibration; a direct experimental constraint on clearance would be the missing independent check.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. The paper introduces VPSC-CAFEM, an open-source interface coupling the viscoplastic self-consistent (VPSC) polycrystal model with the finite element solver Code_Aster for simulating anisotropic creep and irradiation growth in zirconium components. The interface uses an additive elastic-viscoplastic strain decomposition, recovers the elastic stiffness analytically from the VPSC self-consistent tensor, and automatically rotates stress/strain tensors between global and local crystallographic frames. The implementation is first checked against standalone VPSC on a quarter-tube geometry (Appendix B), then applied to a PWR spacer-grid and cladding assembly with nonlinear contact, reporting clearance evolution up to 20 dpa for four texture configurations. The paper concludes that a spacer-grid texture with prismatic planes preferentially aligned with the grid normal direction minimizes clearance and improves fretting-wear resistance.

Significance. The open-source VPSC-CAFEM interface is a valuable software contribution: it provides an explicit, reproducible coupling strategy for grain-level VPSC behavior inside Code_Aster, uses an analytically recovered elastic stiffness, supports automated local-axis assignment on curved meshes, and ships the code in a public repository. The internal consistency checks against standalone VPSC in Figs. 19 and 20 are useful and demonstrate that the coupling does not corrupt the constitutive response. However, the quantitative spacer-grid results and the design-oriented conclusion should be read as a demonstration of the tool rather than as validated design guidance: the material parameters and reduced textures are inherited without revalidation, and the local-coordinate construction leaves the in-plane orientation underdetermined. The physical conclusion that prismatic planes near the normal direction minimize clearance is plausible but currently rests on assumptions that need explicit testing.

major comments (3)
  1. [3.1.1, Appendix A] The local coordinate system is underdetermined. Appendix A's Python script computes only the face normal and the two nautical angles θ and φ; the rotation about that normal is not specified, and Code_Aster's AFFE_CARA_ELEM MASSIF fixes it by an internal convention tied to the global frame rather than to the material's rolling direction. Since the reduced grid texture is not transversely isotropic (F_Ro = 0.1907 vs. F_Tr = 0.1102), an arbitrary in-plane rotation changes which physical direction is treated as rolling or transverse. Tests 2-4 in Section 4.2 vary the basal pole orientation between Ro and Tr as if these were the true sheet directions after forming, but no forming/stamping simulation or additional Euler angle is provided. If the in-plane axes assigned by this convention do not coincide with the actual material directions, the reported CLR values and the ranking of the textures in Fig. 14 are not representative of the spacer-grid material. The authors should specify the full orientation (e.g., a third Euler angle or a reference direction from the forming process) and, ideally, include a sensitivity study over the in-plane rotation.
  2. [Appendix B, Section 4.1] The validation is self-referential. The agreement between VPSC-CAFEM and VPSC-SA in Figs. 19 and 20 demonstrates that the coupling preserves the standalone VPSC response, which is a useful consistency check, but it is not an independent validation of the constitutive model or of the clearance predictions. The comparison with Patra and Tomé (2017) in Section 4.1 is between two simulations sharing the same growth and creep equations, material parameters, and reduced textures. The parameters in Table 1 (B, f_r, f_ic, etc.) are inherited from a calibration of cold-worked Zircaloy-2 irradiation growth at 550 K and are assumed to describe the CONUAR spacer-grid material over the full 0-20 dpa range without revalidation. The paper should state explicitly that the application is a numerical demonstration, and should quantify how sensitive the CLR magnitude and texture ranking are to the inherited parameters.
  3. [Section 4.1, Figs. 14 and 16] No mesh convergence or uncertainty quantification is reported for the contact problem. The 13 µm clearance and the small differences between tests in Fig. 14 (in some cases only a few micrometers) are not supported without a mesh refinement study, especially because the paper attributes a small side-to-side mismatch to a mesh asymmetry 'on the order of micrometers.' The contact algorithm (node-to-segment, master-slave, friction neglected) and the time stepping should also be tested for convergence, since the conclusions are quantitative and compare configurations that differ by small clearances.
minor comments (7)
  1. [Section 2.1.1] The text contains typos: 'reaction-diffusioin' should be 'reaction-diffusion' and 'intestitial' should be 'interstitial' in the paragraph introducing Eq. (2).
  2. [Appendix A] The word 'soubroutine' should be 'subroutine' in the sentence describing the automated local-axis assignment.
  3. [Section 4.1] The reference to 'Apendix B' should be 'Appendix B' in the sentence about the cladding tube's axial elongation and radial/hoop contraction.
  4. [Eqs. (16)-(17), (24)] The rotation convention is stated inconsistently: Eq. (16) writes Δε* = R Δε Rᵀ while Eq. (24) writes σ = Rᵀ σ* R. Please make the direction of the rotation matrix R explicit and consistent throughout.
  5. [Eq. (26)] The convergence metric uses X_ij without identifying it; it should be stated that X_ij is the residual from Eq. (21).
  6. [Section 4.3 and Section 5] The statements about the effect of prismatic planes near the normal direction appear contradictory: Section 4.3 says a higher presence of such planes results in greater CLR under pressure reversal, while Section 5 concludes that prismatic poles aligned with the normal minimize clearance. These statements need to be reconciled or explicitly distinguished by loading scenario.
  7. [References] References U2.04.04 and U3.01.00 both carry the title 'The Code_Aster mesh file' but cite different manuals; the citations should be corrected to the relevant Code_Aster documentation.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the implementation is verified against the standalone constitutive code it embeds, and the application-level results are forward simulations with externally anchored parameters, not fitted or self-defined quantities.

full rationale

The paper's derivation chain is not circular. The constitutive equations (Sections 2.1.1 and 2.2.1) are adopted by explicit citation from Patra et al. (2017) and Patra and Tome (2017), with material parameters listed in Table 1 and traced to external sources such as Holt et al. (1996) and Simmons (1965); these are stated inputs inherited from prior work, not quantities derived from the paper's own outputs. The VPSC-CAFEM interface is specified by explicit equations (Eqs. 15-26) covering the additive strain decomposition, trial stress, Newton-Raphson residual, Jacobian, and tensor rotations, so the elastic-recovery step does not reduce to the self-citation (Aguzzi and Signorelli, 2024) - the formulas are present in the paper itself. Appendix B compares VPSC-CAFEM with standalone VPSC-SA for the same constitutive model; this is code-to-code verification of the wrapper rather than an independent physical validation, but it is not a circular prediction because no parameter is fitted to the compared outputs and no output is relabeled as an input. The application-level CLR predictions in Section 4 are forward simulations: the texture-ranking conclusion follows from varying an input texture while holding all other inputs fixed, and the 13 micrometer result is externally contextualized by comparison with the independent prior simulations of Patra and Tome (2017) (28 micrometers) and Billerey (2005) (10 micrometers). The possible underdetermination of the in-plane orientation of the grid texture and the absence of a forming simulation are modeling-assumption or correctness concerns, not circularity, because the Ro/Tr directions are used as inputs and are not themselves the quantities being predicted. Minor self-citations (Aguzzi and Signorelli, 2024; Rabazzi and Aguzzi, 2024) appear but are not load-bearing: the first is backed by the equations in this paper, and the second is an open-source code repository. Consequently, no step in the paper's claimed derivation reduces by construction to its own inputs.

Assumptions & free parameters 5 free parameters · 6 assumptions · 0 invented entities

The central CLR prediction rests on material parameters fitted in Patra et al. (2017), on reduced texture sets from the same group, and on phenomenological creep and growth laws. None of these are independently tested here.

free parameters (5)
  • Irradiation creep compliance B = 5.0e-5 MPa/dpa
    Table 1; from Patra et al. (2017) fits. Controls creep strain rate in Eq. (9) and therefore the CLR evolution.
  • Recombination fraction f_r = 0.97
    Table 1; from Patra et al. (2017). Sets defect production available for growth in Eqs. (3)-(5).
  • Interstitial cluster fraction f_ic = 0.13
    Table 1; from Patra et al. (2017). Sets cluster contribution to growth strains.
  • Reference dislocation density rho_ref = 2.26e14 m^-2
    Table 1; from Patra et al. (2017). Weights creep anisotropy in Eq. (9).
  • Grain boundary absorption strengths k_j^m = not listed
    Enter Eqs. (3)-(5) but Table 1 does not give values; presumably inherited from Patra's model implementation.
assumptions (6)
  • domain assumption Additive decomposition of total strain increment into elastic and viscoplastic parts (Eq. 15)
    Used throughout VPSC-CAFEM; assumes elastic and viscoplastic strains add and that the VPSC strain rate depends only on current stress.
  • domain assumption Small strain kinematics with fixed local rotation matrix R (Eqs. 16-17)
    The authors state small strain regime and R constant; breaks down for large deformation or texture reorientation in components.
  • domain assumption Reduced texture sets (7 tube, 13 grid) represent full polycrystal within 10% deviation
    Section 3.1.1; taken from Patra and Tome (2017), relies on prior reduction rather than in-paper verification.
  • domain assumption Irradiation growth and creep constitutive laws (Eqs. 3-9) with parameters from Patra et al. (2017)
    The physical fidelity of CLR predictions rests on these phenomenological and rate-theory laws and fitted parameters.
  • standard math VPSC tangent linearization represents the effective polycrystal medium (Eq. 13)
    Standard VPSC self-consistent scheme; inherited from prior literature.
  • domain assumption Frictionless master-slave contact isolates mechanical clearance evolution
    Section 3.2; friction is neglected, so wear-related tangential loads are excluded.

how reviews work

0 comments
Cite this review

Pith. "Pith review of An open-source finite element toolbox for anisotropic creep and irradiation growth: Application to tube and spacer grid assembly." pith.science (2026). https://pith.science/paper/HXQ3KR2A

@misc{pith2026250602807,
  author       = {Pith},
  title        = {Pith review of: An open-source finite element toolbox for anisotropic creep and irradiation growth: Application to tube and spacer grid assembly},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/HXQ3KR2A}},
  note         = {Machine review of arXiv:2506.02807}
}
read the original abstract

This work presents an open-source interface that couples the viscoplastic self-consistent (VPSC) model capable of simulating anisotropic creep and irradiation growth in polycrystalline materials with the finite element solver Code_Aster. The interface enables the simulation of the micromechanical response of irradiated zirconium alloy components by integrating grain-level constitutive behavior into a structural FEM framework. A key feature is the automated rotation of stress and strain tensors between the global FEM frame and the local crystallographic axes, a transformation not natively supported by Code_Aster. The elastic strain is recovered analytically using the inverse of the self-consistently stiffness tensor provided by VPSC. As a demonstration, the framework is applied to an actual model of a pressurized water reactor (PWR) spacer grid, based on a patented design, capturing nonlinear contact and the anisotropic response of the cladding and grid. Simulations reveal the micromechanisms controlling the evolution of clearance between components and highlight the role of crystallographic texture in mitigating wear. In particular, a texture with a high fraction of prismatic planes oriented in the normal direction of the grid appears to be the most suitable for spacer design, as it minimizes clearance and contributes to wear resistance. The interface offers a flexible, extensible platform for high-fidelity simulations in nuclear fuel performance analysis.

Figures

Figures reproduced from arXiv: 2506.02807 by the authors.

Figure 1
Figure 1. Flexible Spacer Grid (CONUAR, 2025). Early modeling efforts typically treated creep and ir￾radiation growth as separate phenomena, using predefined assumptions to estimate gap evolution between the cladding and the grid. While these approaches captured the over￾all trends, they provided limited insight into the underly￾ing micromechanical mechanisms. More recent works have introduced coupled models to simultaneously… view at source ↗
Figure 2
Figure 2. Relative position of the HCP axes crystals with respect to the local coordinate systems solidary to a quarter pipe. Directions A, H, and R correspond to the axial, hoop, and radial directions of the cladding tube. First Author et al.: Preprint submitted to Elsevier Page 4 of 15 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Flowchart of the VPSC-CAFEM interface. 2.3.2. VPSC-CAFEM interaction framework This work uses VPSC 2.2.1 to provide the constitutive deformation behavior in the FEM solver, assuming a single texture at each Gauss point in the mesh. Existing work demonstrates VPSC integration with com￾mercial finite element software (Segurado et al., 2012; Knezevic et al., 2013; Patra et al., 2017) and fuel rod sim￾ulation tools (Liu… view at source ↗
Figures from the paper (14 more)
Figure 4
Figure 4. Figure 4: Basal pole figures for (a) reduced cladding tube texture with 7 orientations, (b) reduced dimples texture with 13 orientations. Directions A, H, and R correspond to the axial, hoop, and radial directions of the cladding tube. Directions Ro, Tr, and No correspond to the…
Figure 5

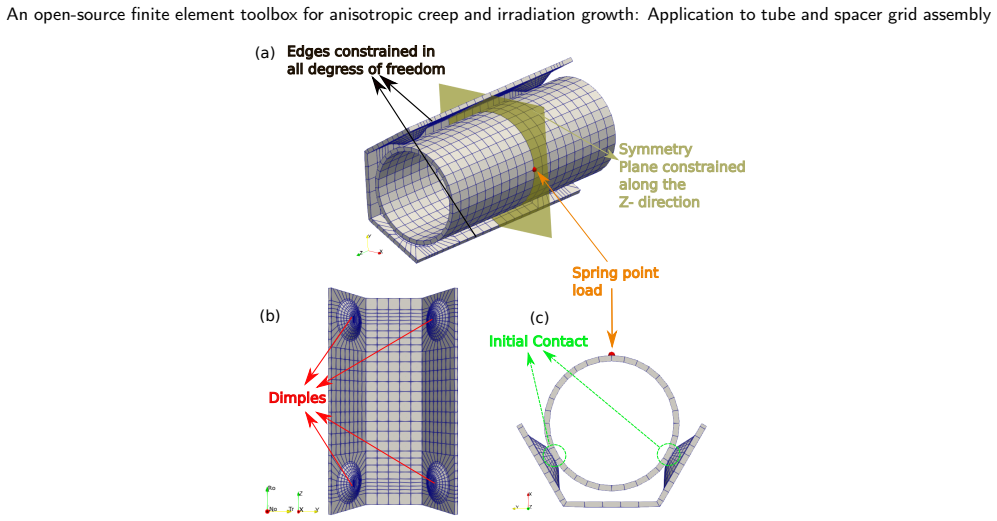

Figure 5. Figure 5: (a) Spreader Tube-Grid arrangement. (b) Front view of the grid with 4 support dimples. The bottom-left corner represents the material system for the grid. (c) Top view of the Tube-Grid configuration, showing the point force due to the spring. Side 1 Side 2 [PITH_FULL_…
Figure 6
Figure 6. Figure 6: CLR corresponding to the slaves surfaces for non-linear contact for 20 dpa. Beyond 1.2 dpa, both components begin to separate due to the deformation mechanisms described in Section 4.1.1. Although the boundary conditions are symmetric, the slight mismatch in CLR betwee…
Figure 10

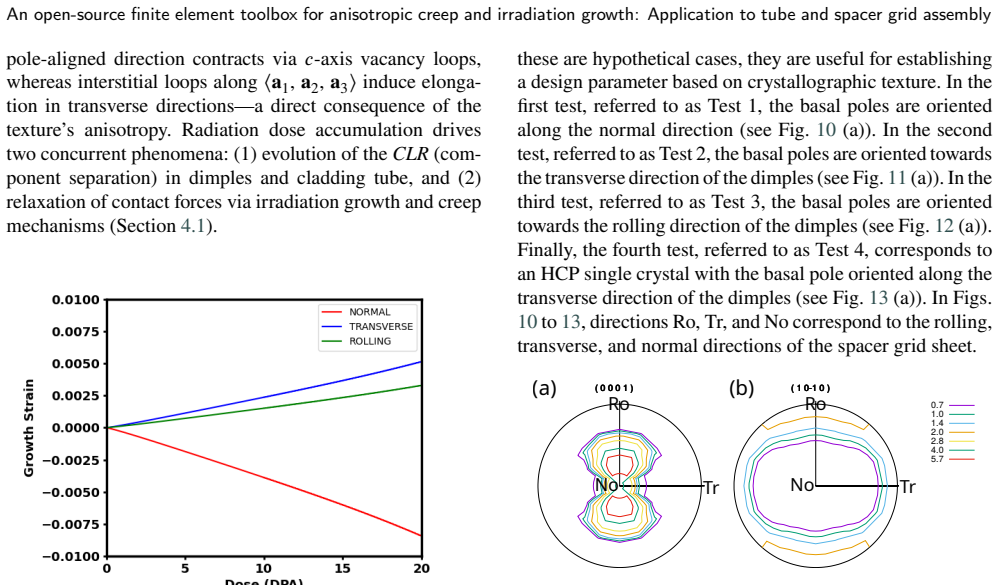

Figure 10. Figure 10: (a) basal pole figure for Test 1. (b) prismatic poles figure for Test 1. ( 0 0 0 1 ) ( 1 0-1 0 ) 2 3 0.7 1.0 1.4 2.0 2.8 4.0 No Tr No Tr Ro Ro (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
Figure 11
Figure 11. Figure 11: (a) basal pole figure for Test 2. (b) prismatic poles figure for Test 2. ( 0 0 0 1 ) ( 1 0-1 0 ) 2 3 0.7 1.0 1.4 2.0 2.8 No Tr No Tr Ro Ro (a) (b) [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 9
Figure 9. Figure 9: Schematic of texture-dependent deformation due to irradiation growth in (a): cladding tube, (b): dimple on the spacer grid, (c): top view of the cladding tube and the dimples on the spacer grid. 4.2. Clearance Sensitivity to Texture Alignment This section highlights th…
Figure 13
Figure 13. Figure 13: (a) basal pole figure for Test 4. (b) prismatic poles figure for Test 4. direction (Test 2), the CLR decreases significantly compared to Test 1, remaining nearly unchanged from its initial value in this Test 2; see the red curves in [PITH_FULL_IMAGE:figures/full_fig_…
Figure 14
Figure 14. Figure 14: Comparison of the maximum CLR for all tests as a function of irradiation dose, considering the dependence on crystalline texture. grid engagement, while irradiation growth and creep provide insufficient stress relaxation to offset these contact forces. Considering the…
Figure 15
Figure 15. Figure 15: Maximum CLR considering effect of pressure reversal: Internal Pressure > External Pressure. 0 5 10 15 20 Dose (DPA) 61 62 63 64 65 66 67 68 69 70 71 72 73 74 CLR Max ( m) Side 1 - Test 1 Side 2 - Test 1 Side 1 - Test 2 Side 2 - Test 2 Side 1 - Test 3 Side 2 - Test 3 S…
Figure 16
Figure 16. Figure 16: Comparison of the maximum CLR for all tests as a function of irradiation dose, considering the dependence on crystalline texture and pressure reversal. solution with explicit resolution (following Segurado et al. (2012); Patra and Tomé (2017); Knezevic et al. (2013), …
Figure 17

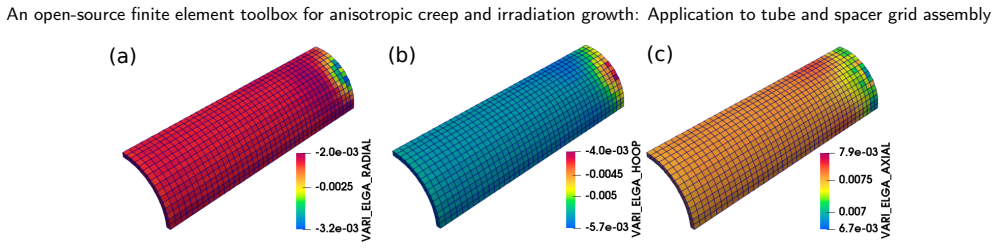

Figure 17. Figure 17: Distribution of (a): Radial, (b): Hoop, and (c): Axial strains in the cladding after irradiation to 20 dpa. Appendix A: Subroutine to define Local Coordinates The script makes uses of Code_Aster utilities along with scientific libraries such as Pandas and NumPy to pro…
Figure 18

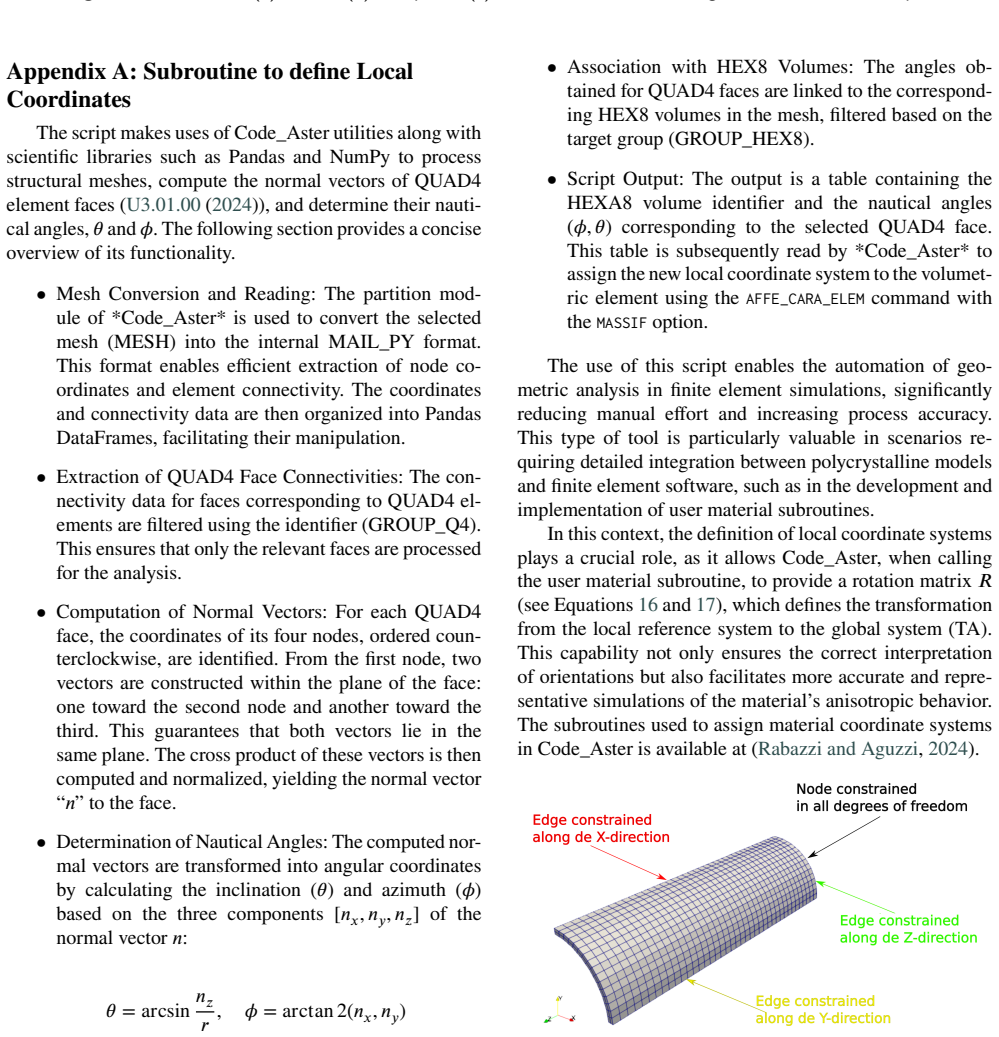

Figure 18. Figure 18: Mesh and boundary conditions for quarter geometry of the cladding tube. First Author et al.: Preprint submitted to Elsevier Page 12 of 15 [PITH_FULL_IMAGE:figures/full_fig_p012_18.png]
Figure 19
Figure 19. Figure 19: Evolution of growth strains (in the absence of applied stress). 0 5 10 15 20 Dose (DPA) 0.000 0.005 0.010 0.015 0.020 0.025 Axial Strain AXIAL-SA-100MPa AXIAL-CAFEM-100MPa AXIAL-SA-200MPa AXIAL-CAFEM-200MPa [PITH_FULL_IMAGE:figures/full_fig_p013_19.png]
Figure 20
Figure 20. Figure 20 [PITH_FULL_IMAGE:figures/full_fig_p013_20.png]
