arxiv: 2605.14515 · v1 · pith:HYIOIAS7new · submitted 2026-05-14 · 🪐 quant-ph

Spin chirality across quantum state copies detects hidden entanglement

Patrycja Tulewicz , Karol Bartkiewicz , Franco Nori This is my paper

Pith reviewed 2026-05-15 01:51 UTC · model grok-4.3

classification 🪐 quant-ph
keywords spin chiralitybound entanglementmulti-copy correlationspartial transposeentanglement detectioncontrolled-SWAPspectral classifiernegativity reconstruction
2
0 comments X

The pith

The moment difference between partial transpose and purity decomposes exactly as a chirality-chirality correlator of the scalar spin chirality operator.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that two types of hidden entanglement—multi-copy correlations inaccessible to single-copy measurements and bound states with positive partial transpose—can be accessed by rewriting the moment difference between the partial transpose and purity as a correlator of scalar spin chirality operators. This decomposition pinpoints the physical mechanism that multi-copy detection actually measures. The authors use controlled-SWAP circuits to build a spectral classifier that adds chirality corrections to realignment features, reaching 99.9 percent recall with zero false positives on all known 3x3 bound-entangled families. They also construct a marginal-noise family of bound-entangled states invisible to the CCNR criterion yet detected by the new classifier, and they validate the full pipeline experimentally on IBM Quantum processors with low-error negativity reconstruction.

Core claim

The moment difference between the partial transpose and purity decomposes exactly as a chirality-chirality correlator, where the relevant operator is the scalar spin chirality. This decomposition identifies the specific physical structure that multi-copy entanglement detection probes. Using the same controlled-SWAP circuits, the authors develop a multi-channel spectral classifier for bound entanglement that combines realignment spectral features with chirality corrections and achieves 99.9 percent recall at zero false positives across all three known 3x3 bound entangled families. They also introduce a marginal-noise construction that produces CCNR-invisible bound entangled states which the 3

What carries the argument

The scalar spin chirality operator, which measures the handedness of three-spin correlations and supplies the exact term in the decomposition of the partial-transpose moment difference relative to purity.

If this is right

  • The classifier detects all three known 3x3 bound-entangled families with 99.9 percent recall at zero false positives.
  • The marginal-noise construction produces CCNR-invisible bound-entangled states that remain detectable once chirality corrections are included.
  • Negativity can be reconstructed from the same circuits with mean errors between 0.002 and 0.027 on superconducting processors.
  • Chirality correlations are measurable for both pure and mixed entangled states on current gate-based hardware.
  • The same protocol distinguishes Horodecki and chessboard families on a single processor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The explicit link to scalar spin chirality suggests that detection protocols could borrow measurement techniques already developed for chiral spin liquids or the topological Hall effect.
  • The marginal-noise construction may be generalized to produce families of bound entanglement that evade any fixed single-parameter criterion while remaining detectable by modest multi-copy extensions.
  • Success on IBM Quantum hardware indicates that the controlled-SWAP overhead is compatible with near-term quantum networks for routine entanglement verification.
  • The decomposition could be lifted to higher local dimensions or to continuous-variable systems to test whether chirality-type operators continue to isolate hidden entanglement.

Load-bearing premise

Controlled-SWAP circuits must implement the required multi-copy measurements with fidelity high enough that the extracted chirality correlator remains faithful to the ideal decomposition under the marginal-noise construction.

What would settle it

An experiment on a prepared bound-entangled state that measures a statistically significant mismatch between the observed chirality-chirality correlator and the independently computed moment difference between partial transpose and purity would disprove the claimed exact decomposition.

Figures

Figures reproduced from arXiv: 2605.14515 by Franco Nori, Karol Bartkiewicz, Patrycja Tulewicz.

Figure 1
Figure 1. Figure 1: Chirality across quantum state copies reveals hidden entanglement. a, Chirality landscape: purity Tr[ρ 2 ] versus negativity N versus |C4| for 107 random states (2×2 blue, 2×3 red). Black curve: pure 2×2 states. Dashed red: separable bound |C4| = 1/27. b, Detection architecture: controlled-SWAP circuits access negativity (NPT), the non-Hermiticity gap Dk (separable vs bound entangled), and the chirality fi… view at source ↗
Figure 2

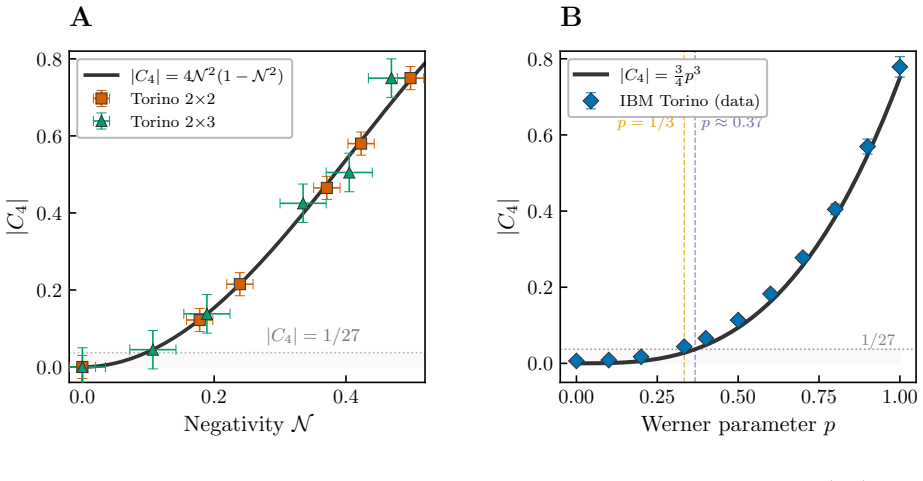

Figure 2. Figure 2: Experimental detection of hidden entanglement on IBM Torino. a, |C4| versus negativity N for the parametrised family |ψ(θ)⟩ in 2×2 (squares) and 2×3 (triangles). Solid curve: |C4| = 4N 2 (1 − N 2 ). b, Werner state chirality |C4|(p). Blue diamonds: hardware data from multiplexed k-copy SWAP tests (k = 2, 3, 4; 10 circuits, 4,000 shots) with matched-depth |00⟩ calibration; all p values reconstructed from a … view at source ↗
Figure 3

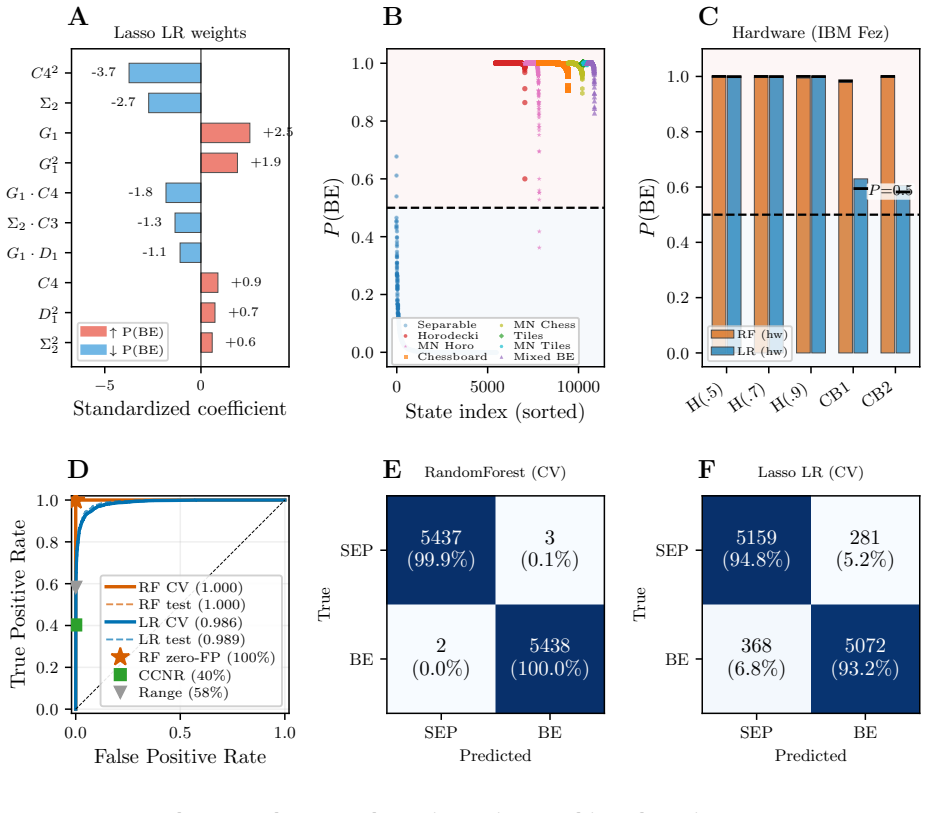

Figure 3. Figure 3: Bound entanglement detection via machine learning. Dataset: 13,600 Carathéodory-certified 3×3 states (6,800 BE from seven families, 6,800 SEP; eight features: Σ1, G1, D1, Σ2, G2, D2, C3, C4). a, Lasso LR coefficients (22/44 non-zero). Red/blue: increases/decreases P(BE). b, RF score P(BE) sorted by state: separable (blue), then BE families. c, Hardware scores (IBM Fez) using hybrid MLE. All BE states above… view at source ↗

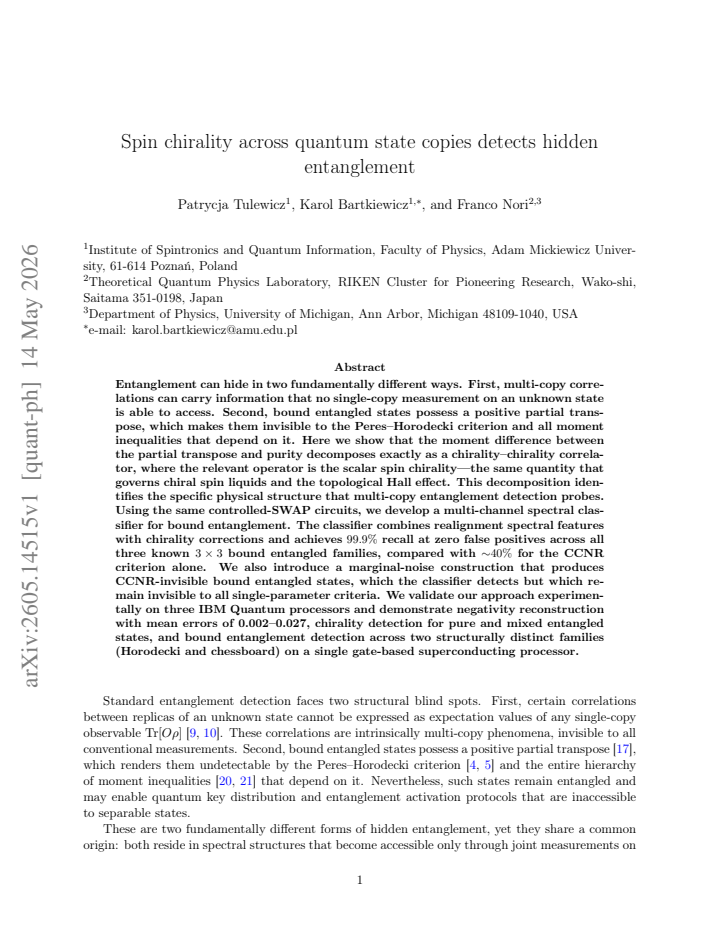

read the original abstract

Entanglement can hide in two fundamentally different ways. First, multi-copy correlations can carry information that no single-copy measurement on an unknown state is able to access. Second, bound entangled states possess a positive partial transpose, which makes them invisible to the Peres-Horodecki criterion and all moment inequalities that depend on it. Here we show that the moment difference between the partial transpose and purity decomposes exactly as a chirality-chirality correlator, where the relevant operator is the scalar spin chirality -- the same quantity that governs chiral spin liquids and the topological Hall effect. This decomposition identifies the specific physical structure that multi-copy entanglement detection probes. Using the same controlled-SWAP circuits, we develop a multi-channel spectral classifier for bound entanglement. The classifier combines realignment spectral features with chirality corrections and achieves 99.9% recall at zero false positives across all three known 3x3 bound entangled families, compared with ~40% for the CCNR criterion alone. We also introduce a marginal-noise construction that produces CCNR-invisible bound entangled states, which the classifier detects but which remain invisible to all single-parameter criteria. We validate our approach experimentally on three IBM Quantum processors and demonstrate negativity reconstruction with mean errors of 0.002-0.027, chirality detection for pure and mixed entangled states, and bound entanglement detection across two structurally distinct families (Horodecki and chessboard) on a single gate-based superconducting processor.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that the difference between partial-transpose moments and purity moments decomposes exactly as the expectation value of a chirality-chirality correlator built from the scalar spin chirality operator. This identity is used to construct a multi-channel spectral classifier for bound entanglement that augments realignment features with chirality corrections, achieving 99.9% recall at zero false positives on known 3x3 bound-entangled families (versus ~40% for CCNR alone). A marginal-noise construction is introduced to generate CCNR-invisible bound states that the classifier detects. The approach is validated numerically and through experiments on IBM Quantum processors, including negativity reconstruction with mean errors 0.002-0.027, chirality detection on pure and mixed states, and bound-entanglement identification for Horodecki and chessboard families.

Significance. If the central operator identity holds exactly, the work supplies a concrete physical interpretation of multi-copy entanglement witnesses in terms of spin chirality, linking them to structures studied in chiral spin liquids and the topological Hall effect. The classifier offers a measurable advance in detecting bound entanglement beyond single-parameter criteria, and the marginal-noise construction identifies a new class of states invisible to CCNR. Experimental results on superconducting hardware provide an external check, though they rest on the fidelity of controlled-SWAP circuits.

major comments (2)
  1. [Section deriving the moment decomposition (operator identity)] The central claim of an exact decomposition (abstract and main derivation) requires explicit algebraic cancellation of all extraneous terms generated by the partial-transpose map acting on the swapped copies in the two-copy space. The operator definitions supplied do not immediately permit independent re-derivation of this cancellation without additional assumptions on state support or commutation relations between the swap and partial-transpose operators; the steps establishing the identity must be shown in full.
  2. [Classifier performance table] Table reporting classifier performance: the 99.9% recall at zero false positives is stated for all three known 3x3 bound-entangled families, yet the precise families and the corresponding CCNR baseline numbers per family are not tabulated; without these, the cross-family superiority claim cannot be verified quantitatively.
minor comments (2)
  1. [Abstract] The abstract refers to 'three known 3x3 bound entangled families' without naming them; listing the families (Horodecki, chessboard, etc.) in the abstract would improve immediate readability.
  2. [Notation and circuit description] Notation for the scalar spin chirality operator and the controlled-SWAP circuit should be introduced with an explicit equation reference on first use to avoid ambiguity when the chirality correlator is later inserted into the moment difference.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and will revise the manuscript to incorporate the requested clarifications and expansions.

read point-by-point responses

  1. Referee: [Section deriving the moment decomposition (operator identity)] The central claim of an exact decomposition (abstract and main derivation) requires explicit algebraic cancellation of all extraneous terms generated by the partial-transpose map acting on the swapped copies in the two-copy space. The operator definitions supplied do not immediately permit independent re-derivation of this cancellation without additional assumptions on state support or commutation relations between the swap and partial-transpose operators; the steps establishing the identity must be shown in full.

    Authors: We agree that the derivation requires a fully explicit algebraic expansion. In the revised manuscript we will expand the relevant section (or add a dedicated appendix) to display the complete step-by-step cancellation of every extraneous term that arises when the partial-transpose map acts on the swapped copies. The expansion will explicitly track the action of the swap and partial-transpose operators on the two-copy space and demonstrate that all non-chirality terms cancel identically, without invoking extra assumptions on state support. revision: yes

  2. Referee: [Classifier performance table] Table reporting classifier performance: the 99.9% recall at zero false positives is stated for all three known 3x3 bound-entangled families, yet the precise families and the corresponding CCNR baseline numbers per family are not tabulated; without these, the cross-family superiority claim cannot be verified quantitatively.

    Authors: We acknowledge the need for a quantitative per-family breakdown. In the revision we will expand the performance table to list each of the three known 3x3 bound-entangled families explicitly, together with the corresponding recall and false-positive rates achieved by the chirality-augmented classifier and by the CCNR baseline alone. This will allow direct verification of the reported superiority across families. revision: yes

Circularity Check

0 steps flagged

No significant circularity; decomposition follows from standard multi-copy operator identities

full rationale

The central claim is an exact algebraic decomposition of the difference between partial-transpose moments and purity moments into the expectation value of a chirality-chirality correlator. This rests on operator identities in the two-copy space that are presented as direct consequences of the definitions of the partial transpose, swap operators, and scalar spin chirality. No parameters are fitted to data and then relabeled as predictions, no uniqueness theorem is imported from prior self-work, and no ansatz is smuggled via citation. Experimental validation on IBM hardware supplies an independent external check. The derivation chain is therefore self-contained against the stated operator definitions and does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard quantum mechanics and linear-algebra properties of the partial transpose and purity operators; no free parameters, ad-hoc axioms, or new entities are introduced in the abstract.

axioms (1)
  • standard math Standard properties of the partial transpose and purity operators in finite-dimensional quantum systems.
    The decomposition identity is asserted to follow directly from these operator definitions.

pith-pipeline@v0.9.0 · 5561 in / 1326 out tokens · 41347 ms · 2026-05-15T01:51:12.701377+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

44 extracted references · 44 canonical work pages

  1. [1]

    & Horodecki, K

    Horodecki, R., Horodecki, P., Horodecki, M. & Horodecki, K. Quantum entanglement.Rev. Mod. Phys.81, 865–942 (2009)

    work page 2009

  2. [2]

    & Preskill, J

    Huang, H.-Y., Kueng, R. & Preskill, J. Predicting many properties of a quantum system from very few measurements.Nat. Phys.16, 1050–1057 (2020)

    work page 2020

  3. [3]

    Elben, A.et al.Mixed-state entanglement from local randomized measurements.Phys. Rev. Lett.125, 200501 (2020)

    work page 2020

  4. [4]

    Separability criterion for density matrices.Phys

    Peres, A. Separability criterion for density matrices.Phys. Rev. Lett.77, 1413–1415 (1996)

    work page 1996

  5. [5]

    & Horodecki, R

    Horodecki, M., Horodecki, P. & Horodecki, R. Separability of mixed states: necessary and sufficient conditions.Phys. Lett. A223, 1–8 (1996)

    work page 1996

  6. [6]

    & Laughlin, R

    Kalmeyer, V. & Laughlin, R. B. Equivalence of the resonating-valence-bond and fractional quantum Hall states.Phys. Rev. Lett.59, 2095–2098 (1987)

    work page 2095

  7. [7]

    Taguchi, Y.et al.Spin chirality, Berry phase, and anomalous Hall effect in a frustrated ferro- magnet.Science291, 2573–2576 (2001)

    work page 2001

  8. [8]

    D., Kang, H., Sundaresan, N

    Nation, P. D., Kang, H., Sundaresan, N. & Gambetta, J. M. Scalable mitigation of measurement errors on quantum computers.PRX Quantum2, 040326 (2021)

    work page 2021

  9. [9]

    & Ekert, A

    Horodecki, P. & Ekert, A. Method for direct detection of quantum entanglement.Phys. Rev. Lett.89, 127902 (2002)

    work page 2002

  10. [10]

    Measuring quantum entanglement without prior state reconstruction.Phys

    Horodecki, P. Measuring quantum entanglement without prior state reconstruction.Phys. Rev. Lett.90, 167901 (2003)

    work page 2003

  11. [11]

    & Nori, F

    Tulewicz, P., Bartkiewicz, K., Miranowicz, A. & Nori, F. Resource-efficient quantum correlation measurements via multicopy neural network methods.Sci. Rep.15, 40868 (2025)

    work page 2025

  12. [12]

    & Lemr, K

    Trávníček, V., Bartkiewicz, K., Černoch, A. & Lemr, K. Experimental measurement of the Hilbert-Schmidt distance between two-qubit states.Phys. Rev. Lett.123, 260501 (2019)

    work page 2019

  13. [13]

    Quantum-state estimation.Phys

    Hradil, Z. Quantum-state estimation.Phys. Rev. A55, R1561–R1564 (1997)

    work page 1997

  14. [14]

    M., Paris, M

    Banaszek, K., D’Ariano, G. M., Paris, M. G. A. & Sacchi, M. F. Maximum-likelihood estimation of the density matrix.Phys. Rev. A61, 010304(R) (2000). 14

    work page 2000

  15. [15]

    & Wu, L.-A

    Chen, K. & Wu, L.-A. A matrix realignment criterion for recognizing entanglement.Quant. Inf. Comput.3, 193–202 (2003)

    work page 2003

  16. [16]

    Further results on the cross norm criterion for separability.Quant

    Rudolph, O. Further results on the cross norm criterion for separability.Quant. Inf. Process. 4, 219–239 (2005)

    work page 2005

  17. [17]

    & Horodecki, R

    Horodecki, M., Horodecki, P. & Horodecki, R. Mixed-state entanglement and distillation: Is there a “bound” entanglement in nature?Phys. Rev. Lett.80, 5239–5242 (1998)

    work page 1998

  18. [18]

    Separability criterion and inseparable mixed states with positive partial transpo- sition.Phys

    Horodecki, P. Separability criterion and inseparable mixed states with positive partial transpo- sition.Phys. Lett. A232, 333–339 (1997)

    work page 1997

  19. [19]

    & Miranowicz, A

    Bartkiewicz, K., Beran, J., Lemr, K., Norek, M. & Miranowicz, A. Quantifying entanglement of a two-qubit system via measurable and invariant moments of its partially transposed density matrix.Phys. Rev. A91, 022323 (2015)

    work page 2015

  20. [20]

    & Gühne, O

    Yu, X.-D., Imai, S. & Gühne, O. Optimal entanglement certification from moments of the partial transpose.Phys. Rev. Lett.127, 060504 (2021)

    work page 2021

  21. [21]

    npj Quantum Inf.7, 152 (2021)

    Neven, A.et al.Symmetry-resolved entanglement detection using partial transpose moments. npj Quantum Inf.7, 152 (2021)

    work page 2021

  22. [22]

    & Černoch, A

    Lemr, K., Bartkiewicz, K. & Černoch, A. Experimental measurement of collective nonlinear entanglement witness for two qubits.Phys. Rev. A94, 052334 (2016)

    work page 2016

  23. [23]

    & Kim, Y.-H

    Lim, H.-T., Kim, Y.-S., Ra, Y.-S., Bae, J. & Kim, Y.-H. Experimental realization of an approx- imate partial transpose for photonic two-qubit systems.Phys. Rev. Lett.107, 160401 (2011)

    work page 2011

  24. [24]

    & Bourennane, M

    Amselem, E. & Bourennane, M. Experimental four-qubit bound entanglement.Nat. Phys.5, 748–752 (2009)

    work page 2009

  25. [25]

    Preprint athttps://arxiv.org/abs/2307.04382(2023)

    Zhang, C.et al.Experimental verification of bound and multiparticle entanglement with the randomized measurement toolbox. Preprint athttps://arxiv.org/abs/2307.04382(2023)

    work page arXiv 2023

  26. [26]

    & Dorai, K

    Gulati, V., Singh, G. & Dorai, K. Using linear and nonlinear entanglement witnesses to generate and detect bound entangled states on an IBM quantum processor.Phys. Scr.99, 095112 (2024)

    work page 2024

  27. [27]

    H.et al.Unextendible product bases and bound entanglement.Phys

    Bennett, C. H.et al.Unextendible product bases and bound entanglement.Phys. Rev. Lett. 82, 5385–5388 (1999)

    work page 1999

  28. [28]

    & Peres, A

    Bruß, D. & Peres, A. Construction of quantum states with bound entanglement.Phys. Rev. A 61, 030301(R) (2000)

    work page 2000

  29. [29]

    C., Parrilo, P

    Doherty, A. C., Parrilo, P. A. & Spedalieri, F. M. Complete family of separability criteria.Phys. Rev. A69, 022308 (2004)

    work page 2004

  30. [30]

    I., Murta, B., Galvão, E

    Reascos, L. I., Murta, B., Galvão, E. F. & Fernández-Rossier, J. Quantum circuits to measure scalar spin chirality.Phys. Rev. Res.5, 043087 (2023)

    work page 2023

  31. [31]

    Tarabunga, P. S. & Haug, T. Quantifying mixed-state entanglement via partial transpose and realignment moments. Preprint athttps://arxiv.org/abs/2507.13840(2025)

    work page arXiv 2025

  32. [32]

    & Fei, S.-M

    Huang, X., Zhu, X., Chen, B., Jing, N. & Fei, S.-M. A note on entanglement detection via the generalized realignment moments.Adv. Quantum Technol.2500794 (2026). 15

    work page 2026

  33. [33]

    Werner, R. F. Quantum states with Einstein-Podolsky-Rosen correlations admitting a hidden- variable model.Phys. Rev. A40, 4277–4281 (1989)

    work page 1989

  34. [34]

    & De Moor, B

    Verstraete, F., Audenaert, K., Dehaene, J. & De Moor, B. A comparison of the entanglement measures negativity and concurrence.J. Phys. A34, 10327–10332 (2001)

    work page 2001

  35. [35]

    P.et al.Evidence for bound entangled states with negative partial transpose

    DiVincenzo, D. P.et al.Evidence for bound entangled states with negative partial transpose. Phys. Rev. A61, 062312 (2000)

    work page 2000

  36. [36]

    Lewenstein, M., Kraus, B., Cirac, J. I. & Horodecki, P. Optimization of entanglement witnesses. Phys. Rev. A62, 052310 (2000)

    work page 2000

  37. [37]

    Wootters, W. K. Entanglement of formation of an arbitrary state of two qubits.Phys. Rev. Lett.80, 2245–2248 (1998)

    work page 1998

  38. [38]

    & Tóth, G

    Gühne, O. & Tóth, G. Entanglement detection.Phys. Rep.474, 1–75 (2009)

    work page 2009

  39. [39]

    InProceedings of the 35th Annual ACM Symposium on Theory of Computing (STOC ’03), 10–19 (ACM, 2003)

    Gurvits, L.ClassicaldeterministiccomplexityofEdmonds’problemandquantumentanglement. InProceedings of the 35th Annual ACM Symposium on Theory of Computing (STOC ’03), 10–19 (ACM, 2003)

    work page 2003

  40. [40]

    handedness

    Johnston, N. QETLAB: A MATLAB toolbox for quantum entanglement, version 0.9.https: //qetlab.com(2016). 16 Supplementary Information Spin chirality across quantum state copies detects hidden entanglement Patrycja Tulewicz, Karol Bartkiewicz, and Franco Nori Contents S1 Invariant identities 20 S1.1 The identityµ2 =I 2 . . . . . . . . . . . . . . . . . . . ....

    work page 2016

  41. [41]

    The realignment matrixR(ρ)commutes with the row-swap permutation:[R(ρ), P] = 0

    work page

  42. [42]

    flatness

    In the eigenbasis ofP(which decomposesR d2 intoP-symmetric andP-antisymmetric sub- spaces of dimensionsd(d+ 1)/2andd(d−1)/2respectively),Ris block-diagonal: R=R + ⊕R −,(S81) whereR + acts on the symmetric sector{|i, k⟩+|k, i⟩}andR − on the antisymmetric sector {|i, k⟩ − |k, i⟩}. Proof.(1) For realρ, transposing subsystemAgives(ρ TA)(i,j),(k,l) =ρ (k,j),(i...

    work page 2000

  43. [43]

    The augmented moments{m k(a, b)}r k=1 determine the overlaps{p i(a, b)}r i=1 uniquely via in- version of the Vandermonde system   λ1 · · ·λ r λ2 1 · · ·λ 2 r ... ... λr 1 · · ·λ r r   | {z } V   p1 p2 ... pr   =   m1 m2 ... mr   .(S96)

    work page

  44. [44]

    ML (A–E)

    The product-vector gap is F(a, b) = 1− rX i=1 pi(a, b) = 1−c T m(a, b),(S97) wherec=V −T 1are coefficients determined entirely by the eigenvalues ofρ. 3.F= min |a⟩,|b⟩ F(a, b), where the minimisation is over normalised product states. Proof.(1) The Vandermonde matrixV ki =λ k i is invertible when eigenvalues are distinct, since detV= Q i<j(λi −λ j)Q i λi ...

    work page 2000
