PressMimic: Pressure-Guided Motion Capture and Control for Humanoid Robot Imitation

Yi Lu , Shenghao Ren , Tianyu Xiong , Zhaoxiang Li , Jiaqi Li , He Zhang , Tao Yu , Qiu Shen
show 1 more author
Xun Cao
This is my paper

Pith reviewed 2026-06-26 05:07 UTC · model grok-4.3

classification 💻 cs.RO cs.CV
keywords humanoid robotsmotion imitationpressure sensingphysical groundingmultimodal fusionreinforcement learningcontact dynamicsmotion capture
0
0 comments X

The pith

Pressure readings from the floor resolve vision ambiguities and enforce stable contacts when humanoids copy human motion.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that pressure measurements supply a physical grounding signal that connects perception to control, letting humanoid robots imitate human motion without the usual artifacts of sliding feet or floor penetration. It introduces a full pipeline that fuses pressure with RGB images to estimate 3D pose and global motion, then feeds pressure-derived signals into a reinforcement-learning policy so the robot reproduces realistic contact patterns. A supporting dataset supplies the required synchronized RGB, pressure, and motion-capture recordings. If this grounding works, imitation shifts from purely kinematic copying to physically consistent reproduction that respects support and contact forces. Readers should care because existing vision-only pipelines often produce motions that look correct in simulation yet fail on real hardware.

Core claim

The central claim is that pressure serves as an effective physical grounding signal, bridging perception and control for physically consistent humanoid motion imitation. In the perception stage, the FRAPPE++ model fuses RGB and pressure to jointly estimate 3D pose and global motion, with pressure providing explicit contact and support constraints that resolve vision ambiguities. In the control stage, a pressure-supervised policy incorporates pressure-derived signals into reinforcement learning so that execution matches observed contact patterns. Experiments on the MotionPRO dataset demonstrate gains in motion-estimation accuracy, trajectory consistency, and execution stability.

What carries the argument

The PressMimic framework, which routes pressure data through both a multimodal perception model (FRAPPE++) and a pressure-supervised control policy (PSP) to enforce physical contact constraints.

If this is right

  • Motion estimation becomes more accurate because pressure supplies explicit support constraints that vision alone cannot resolve.
  • Trajectory consistency rises as the policy learns to reproduce the pressure patterns recorded during human motion.
  • Execution stability improves, reducing foot sliding and floor penetration in real-robot runs.
  • Perception and control become unified through one physical signal instead of being optimized separately.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The pressure-grounding approach could be tested on other contact-rich behaviors such as carrying objects or climbing stairs without changing the core fusion method.
  • If pressure maps remain informative across different floor materials, the perception model might transfer to new environments with minimal retraining.
  • One could check whether retrofitting existing vision-only motion datasets with simulated pressure yields comparable gains, avoiding new hardware collection.

Load-bearing premise

Pressure data can be reliably captured, synchronized with RGB and motion capture, and fused to provide explicit contact and support constraints that resolve vision ambiguities.

What would settle it

Compare imitation performance on identical tasks with and without pressure inputs; if the pressure-free version matches or exceeds accuracy, consistency, and stability, the claim that pressure supplies necessary grounding would fail.

Figures

Figures reproduced from arXiv: 2606.26741 by He Zhang, Jiaqi Li, Qiu Shen, Shenghao Ren, Tao Yu, Tianyu Xiong, Xun Cao, Yi Lu, Zhaoxiang Li.

Figure 1

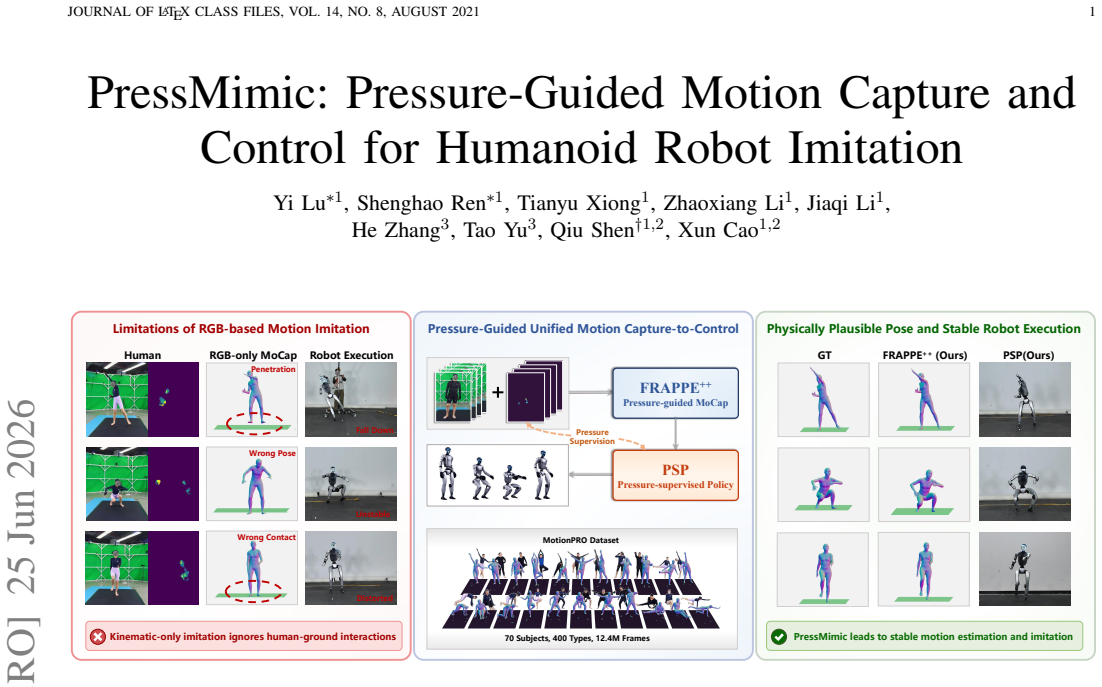

Figure 1. Figure 1: We propose PressMimic, a unified framework that integrates pressure into both motion capture and motion control for humanoid motion imitation. By [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

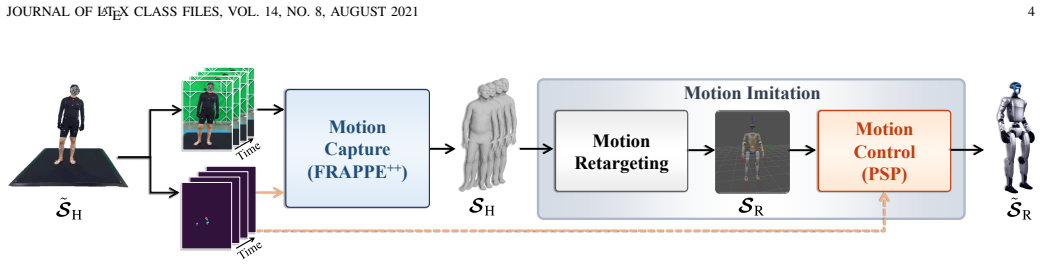

Figure 2. Figure 2: Overview of PressMimic. Given synchronized RGB video and pressure sequences, PressMimic estimates human body motion, retargets it to the humanoid robot, and executes it via a learned control policy. Pressure signals enhance motion estimation accuracy and provide auxiliary contact supervision for the control policy, as indicated by the orange dashed arrow. dependencies within the current window while incorp… view at source ↗
Figure 3

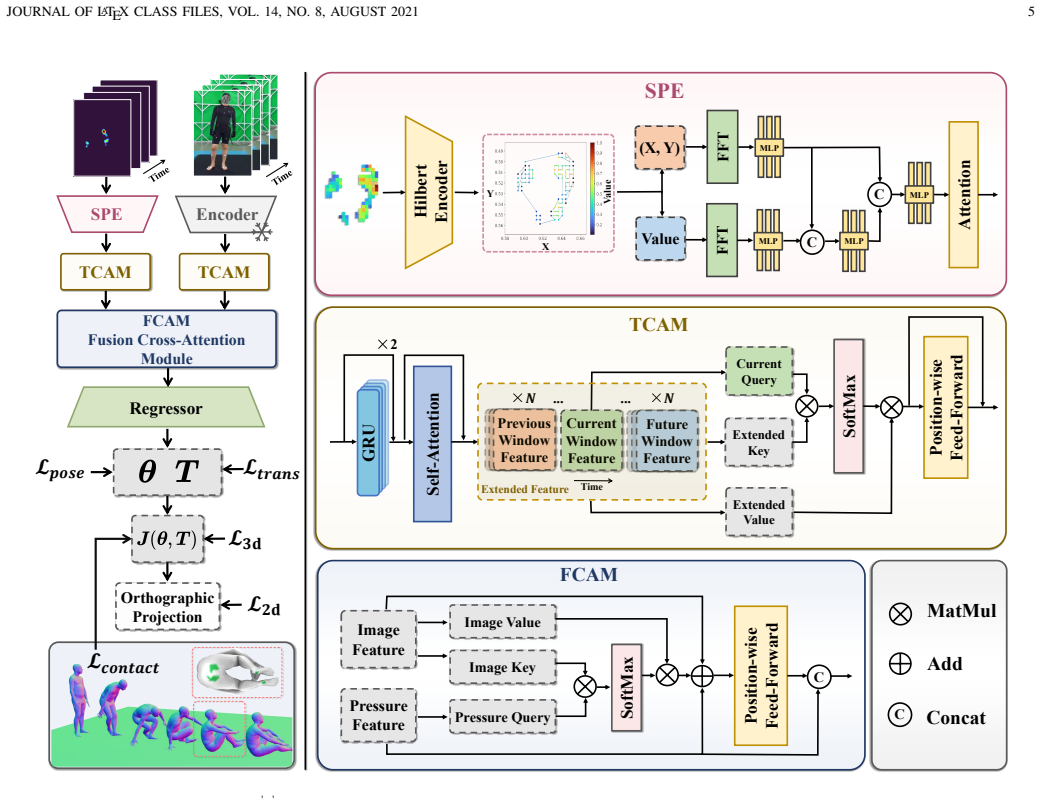

Figure 3. Figure 3: The framework of FRAPPE++. Pressure and RGB video are processed by the SPE and image encoder respectively, followed by TCAM to model spatiotemporal dependencies within each modality. FCAM then fuses the two modalities via cross-attention, where image features serve as key and value while pressure features serve as query. The fused representation is fed into a regressor to estimate SMPL parameters. This all… view at source ↗
Figure 4

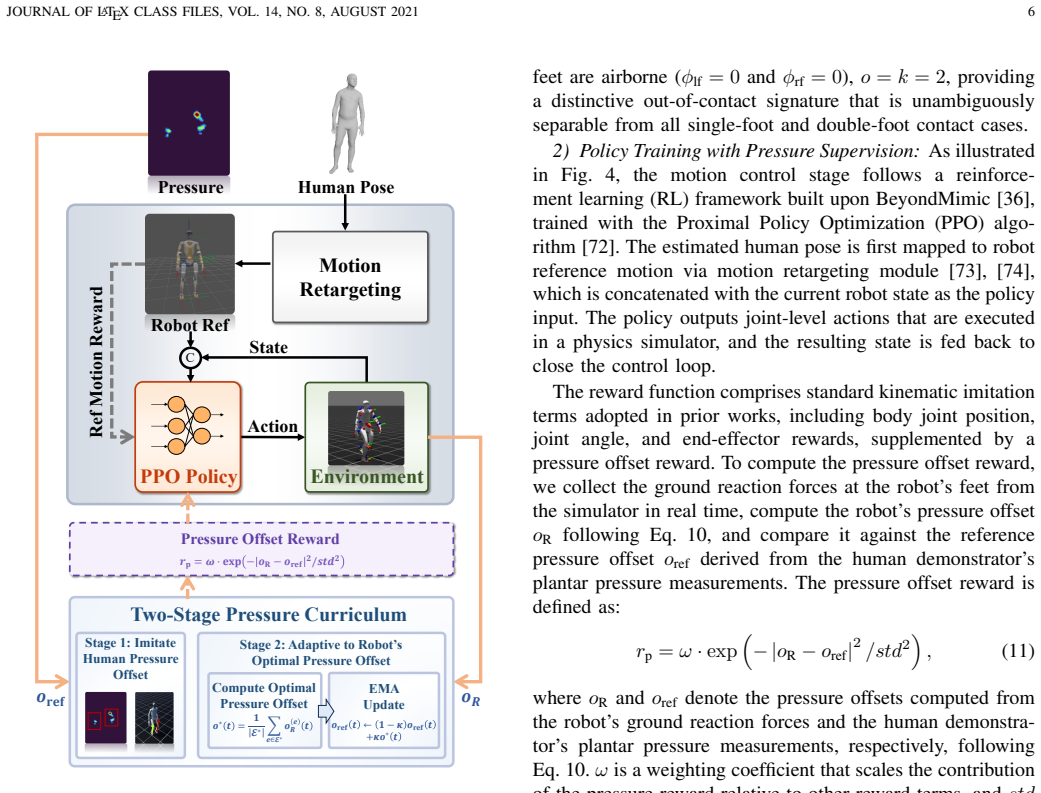

Figure 4. Figure 4: Humanoid motion imitation under pressure-supervised policy (PSP). Human pose and plantar pressure serve as dual inputs: the pose is retargeted to robot reference motion and concatenated with the current state as policy input, while pressure drives a two-stage curriculum that first imitates the human pressure offset and then adapts to the robot’s own optimal contact distribution via EMA updates. Building up… view at source ↗
Figure 5

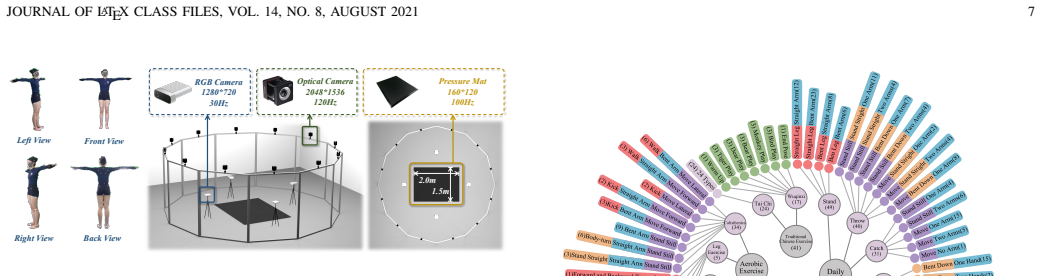

Figure 5. Figure 5: The architecture of our motion capture system for dataset collection. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

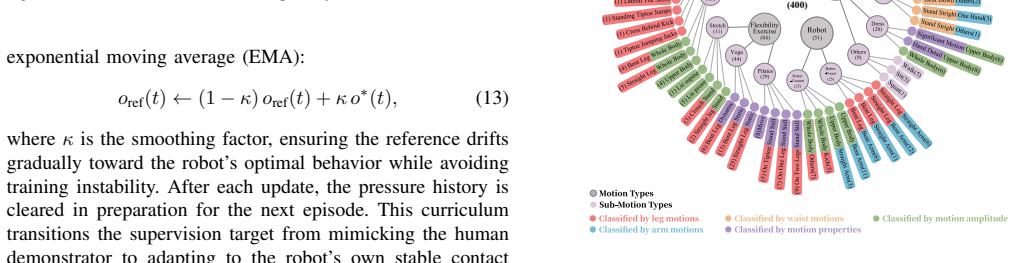

Figure 6. Figure 6: Hierarchal distribution of 400 motion types. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

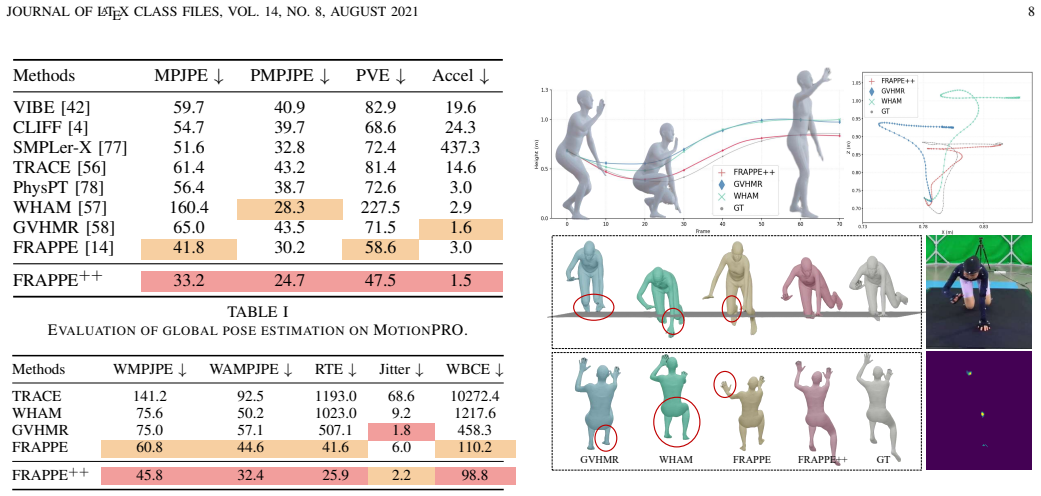

Figure 7. Figure 7: Qualitative comparison with methods for human pose estimation. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

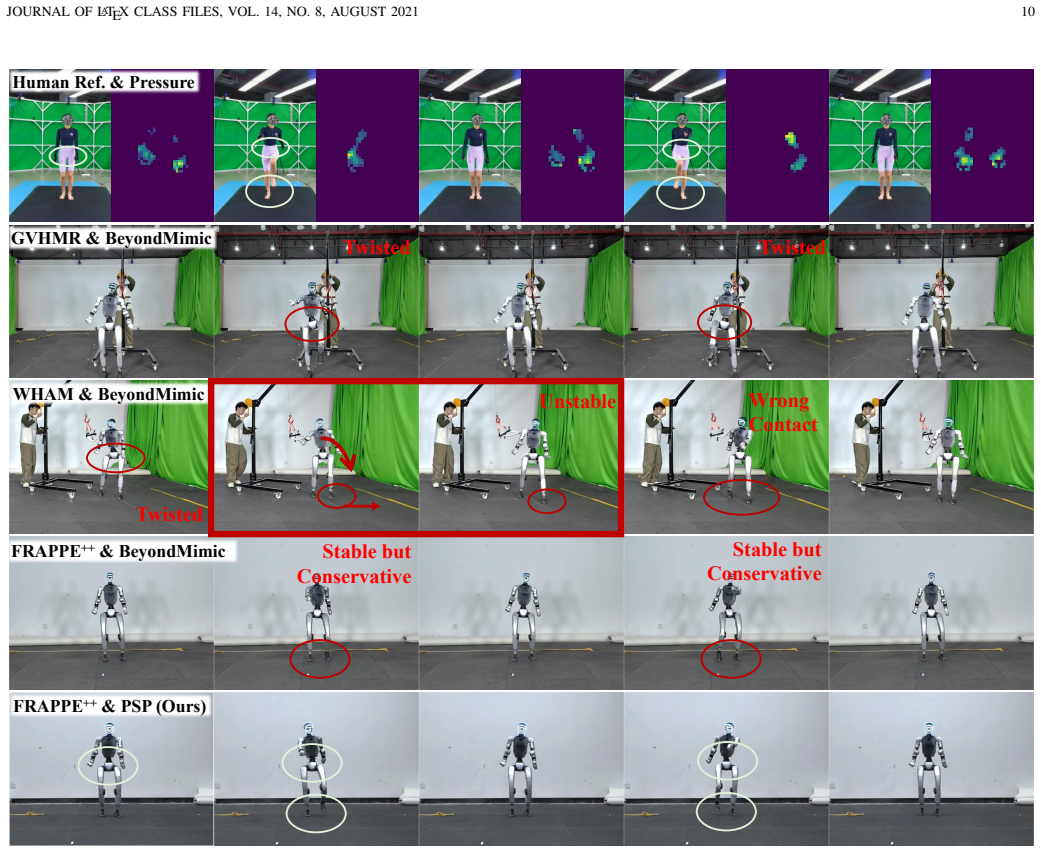

Figure 8. Figure 8: Real-world humanoid motion imitation results. Rows show execution results under different reference sources and control policies. Low-quality references (GVHMR, WHAM) lead to twisted postures and instability, while FRAPPE++ with BeyondMimic achieves stable but conservative foot placement. FRAPPE++ with PSP (Ours) produces stable execution with more natural foot contact dynamics (white circles), validating … view at source ↗
read the original abstract

Humanoid motion imitation requires not only accurate perception of human kinematics but also faithful reproduction of physical interactions with the environment. However, existing pipelines rely primarily on vision-based motion capture and kinematic imitation, largely ignoring contact dynamics, leading to artifacts such as foot sliding, floor penetration, and unstable behaviors. In this work, we revisit humanoid motion imitation from the perspective of physical grounding and leverage pressure as a unified modality across perception and control. We present PressMimic, a framework that integrates pressure into the full pipeline from motion capture to humanoid control. In the perception stage, we introduce FRAPPE++, a multimodal model that fuses RGB and pressure to jointly estimate 3D pose and global motion, where pressure provides explicit contact and support constraints to resolve ambiguity in vision-based estimation. In the control stage, we propose a pressure-supervised policy (PSP) that incorporates pressure-derived signals into reinforcement learning, enabling physically consistent contact patterns during execution. We further construct MotionPRO, a large-scale dataset with synchronized RGB, pressure, and motion capture data. Experiments show that pressure improves motion estimation accuracy, trajectory consistency, and execution stability. These results demonstrate that pressure serves as an effective physical grounding signal, bridging perception and control for physically consistent humanoid motion imitation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper presents PressMimic, a framework for humanoid motion imitation that incorporates pressure sensing as a physical grounding modality across the full pipeline. In perception, FRAPPE++ fuses RGB and pressure to estimate 3D pose and global motion while using pressure for explicit contact and support constraints. In control, a pressure-supervised policy (PSP) incorporates pressure-derived signals into reinforcement learning for consistent contact patterns. The work also introduces the MotionPRO dataset containing synchronized RGB, pressure, and motion capture data. The central claim is that pressure improves motion estimation accuracy, trajectory consistency, and execution stability relative to vision-only methods.

Significance. If the empirical claims are substantiated with quantitative evidence, the work would be significant for humanoid robotics by showing how a single additional modality (pressure) can address common artifacts in kinematic imitation such as foot sliding and instability, while providing a unified signal from perception through control. The release of a large-scale synchronized multimodal dataset would also be a concrete enabling contribution for the community.

major comments (1)
  1. [Abstract] Abstract: The assertion that 'Experiments show that pressure improves motion estimation accuracy, trajectory consistency, and execution stability' supplies no quantitative metrics, ablation results, baseline comparisons, or implementation details. This absence is load-bearing for evaluating whether the central claim that pressure serves as an effective physical grounding signal holds.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work's potential significance. We address the single major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that 'Experiments show that pressure improves motion estimation accuracy, trajectory consistency, and execution stability' supplies no quantitative metrics, ablation results, baseline comparisons, or implementation details. This absence is load-bearing for evaluating whether the central claim that pressure serves as an effective physical grounding signal holds.

    Authors: We agree that the abstract statement would be strengthened by explicit quantitative support. The full manuscript provides these details in Section 4 (Experiments), including tables with pose estimation errors, trajectory metrics (e.g., foot sliding and penetration), stability scores, ablations isolating the pressure modality, and comparisons against vision-only baselines, along with implementation specifics for FRAPPE++ and PSP. To make the abstract self-contained and directly substantiate the central claim, we will revise it to incorporate key numerical highlights and pointers to the experimental results. This change will be reflected in the next version of the manuscript. revision: yes

Circularity Check

0 steps flagged

Empirical framework exhibits no derivational circularity

full rationale

The paper describes an empirical pipeline: FRAPPE++ fuses RGB+pressure for pose estimation, PSP uses pressure signals in RL for control, and MotionPRO supplies synchronized data. No equations, fitted parameters renamed as predictions, self-citations as load-bearing premises, or ansatzes imported via prior work are present in the provided text. Claims rest on experimental improvements rather than any closed logical reduction to inputs by construction. This is the expected honest outcome for a data-driven robotics framework.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no equations or implementation details; no free parameters, axioms, or invented entities can be identified.

pith-pipeline@v0.9.1-grok · 5776 in / 1017 out tokens · 26919 ms · 2026-06-26T05:07:22.956751+00:00 · methodology
