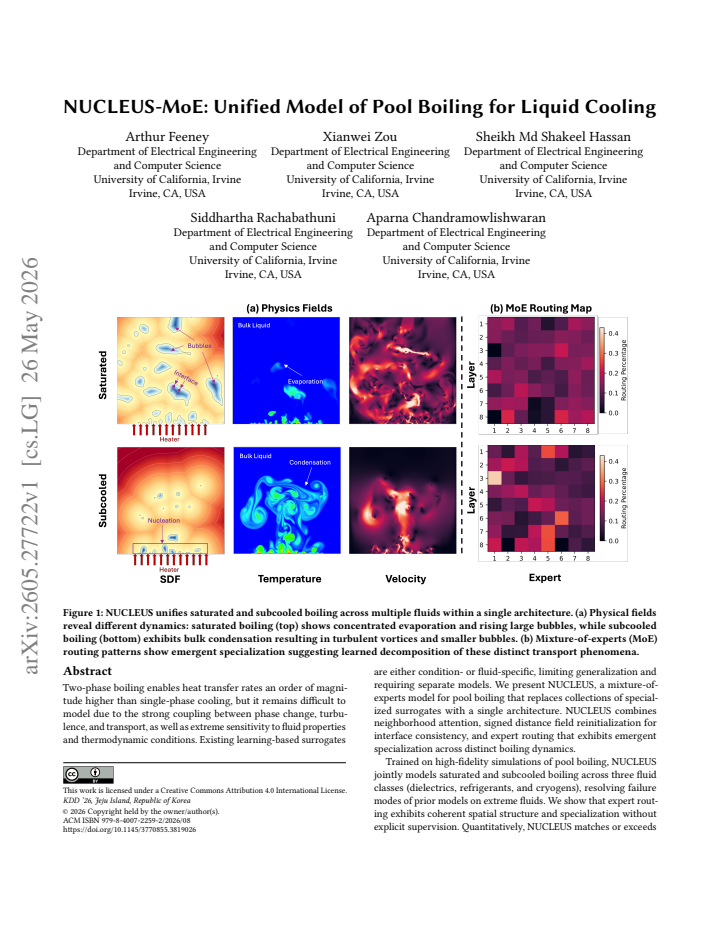

NUCLEUS-MoE: Unified Model of Pool Boiling for Liquid Cooling
Pith reviewed 2026-06-29 18:27 UTC · model grok-4.3
The pith
A single mixture-of-experts model replaces separate surrogates for pool boiling across dielectrics, refrigerants, and cryogens.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
NUCLEUS is a mixture-of-experts surrogate that unifies saturated and subcooled boiling prediction across dielectrics, refrigerants, and cryogens. It employs neighborhood attention and signed distance field reinitialization for interface consistency, with expert routing that develops coherent spatial specialization without supervision. Trained on high-fidelity simulations, the model matches or exceeds baseline performance on heterogeneous configurations, preserves physical consistency, and demonstrates zero-shot and few-shot generalization to a new fluid such as Opteon 2P50.
What carries the argument

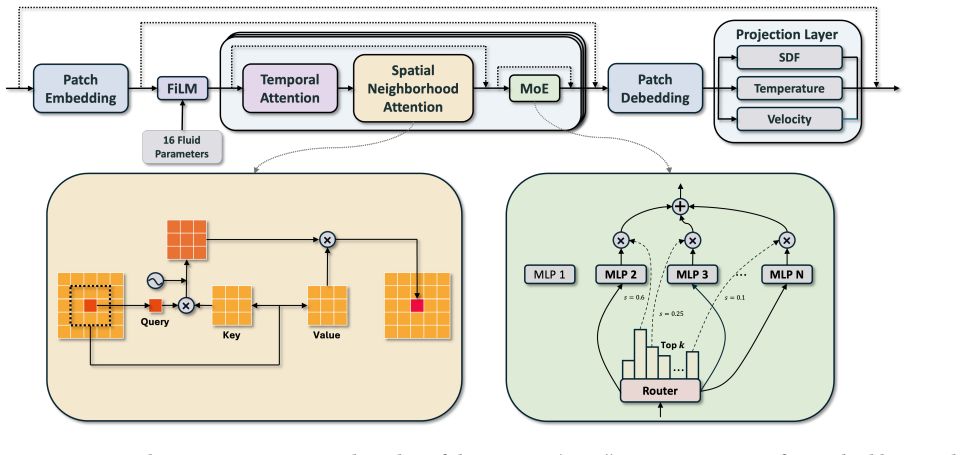

Mixture-of-experts routing combined with neighborhood attention and signed distance field reinitialization, where routing produces emergent specialization across boiling regimes.
If this is right
- One trained model covers saturated and subcooled regimes for dielectrics, refrigerants, and cryogens instead of requiring separate models.

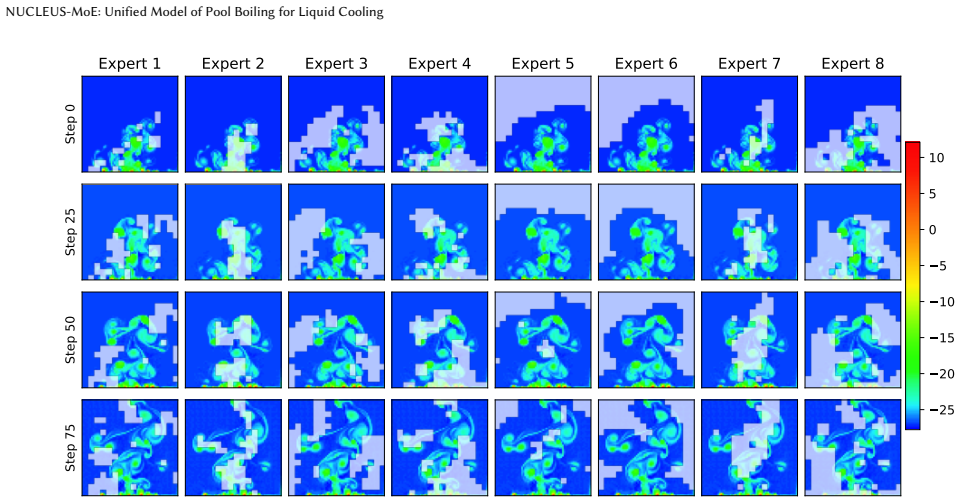

- Expert routing develops spatial structure and regime specialization without explicit supervision.

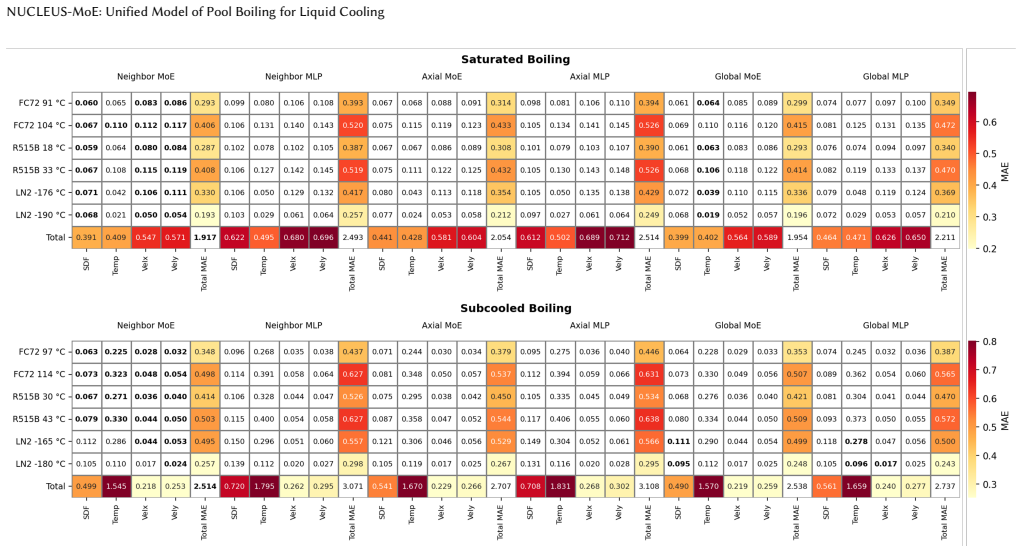

- The architecture maintains physical consistency while matching or exceeding prior surrogates on test configurations.
- Zero-shot and few-shot transfer is possible to a new fluid developed for immersion cooling.
Where Pith is reading between the lines
- The same routing mechanism could be tested on other multiphase transport problems where dynamics change sharply with fluid properties.
- If the emergent specialization aligns with known boiling regimes, it may reduce the need for hand-crafted regime detection in future surrogates.
- Generalization results suggest the model could serve as a starting point for online adaptation when new fluids are introduced in cooling systems.
Load-bearing premise
The high-fidelity simulations used for training accurately capture the real physics of boiling for the fluids and conditions considered.
What would settle it
A direct comparison on an unseen fluid or condition where NUCLEUS produces larger errors or violates conservation laws more than a set of fluid-specific baselines.
Figures
read the original abstract
Two-phase boiling enables heat transfer rates an order of magnitude higher than single-phase cooling, but it remains difficult to model due to the strong coupling between phase change, turbulence, and transport, as well as extreme sensitivity to fluid properties and thermodynamic conditions. Existing learning-based surrogates are either condition- or fluid-specific, limiting generalization and requiring separate models. We present NUCLEUS, a mixture-of-experts model for pool boiling that replaces collections of specialized surrogates with a single architecture. NUCLEUS combines neighborhood attention, signed distance field reinitialization for interface consistency, and expert routing that exhibits emergent specialization across distinct boiling dynamics. Trained on high-fidelity simulations of pool boiling, NUCLEUS jointly models saturated and subcooled boiling across three fluid classes (dielectrics, refrigerants, and cryogens), resolving failure modes of prior models on extreme fluids. We show that expert routing exhibits coherent spatial structure and specialization without explicit supervision. Quantitatively, NUCLEUS matches or exceeds baselines while maintaining physical consistency across heterogeneous boiling configurations. We also show zero-shot and few-shot generalization capabilities on downstream tasks such as a new fluid (Opteon 2P50 developed for immersion cooling). These results demonstrate that mixture-of-experts models are a scalable pathway toward unified surrogate modeling of boiling dynamics and lay the groundwork for broader generalization across scientific ML.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces NUCLEUS-MoE, a single mixture-of-experts architecture combining neighborhood attention and signed-distance-field reinitialization to jointly model saturated and subcooled pool boiling across dielectrics, refrigerants, and cryogens. Trained exclusively on high-fidelity simulations, the model claims to match or exceed prior baselines, exhibit emergent expert specialization without supervision, preserve physical consistency, and demonstrate zero-shot/few-shot generalization to an unseen fluid (Opteon 2P50).
Significance. If the simulation-to-reality gap is closed and the reported generalization holds, the work would demonstrate that MoE routing can capture heterogeneous multiphase physics at scale without hand-crafted per-fluid models, offering a concrete path toward unified surrogates in thermal-fluid engineering.
major comments (2)
- [Methods (training data generation) and Results (quantitative evaluation)] The central performance and generalization claims rest on the premise that the high-fidelity pool-boiling simulations accurately capture coupled phase-change/turbulence physics for cryogens. No section provides direct quantitative comparison of simulated heat-transfer coefficients or bubble statistics against experimental measurements for any cryogen in the high-heat-flux or low-temperature regime; without such validation the reported gains over baselines and the emergent specialization could be artifacts of the synthetic data distribution.
- [Results (expert routing)] § on expert routing analysis: the claim that routing exhibits 'coherent spatial structure and specialization' corresponding to distinct boiling dynamics is presented qualitatively. No quantitative metric (e.g., mutual information between router logits and local heat-flux regime labels, or ablation showing performance drop when routing is randomized) is supplied to demonstrate that the specialization is functionally meaningful rather than incidental.
minor comments (2)

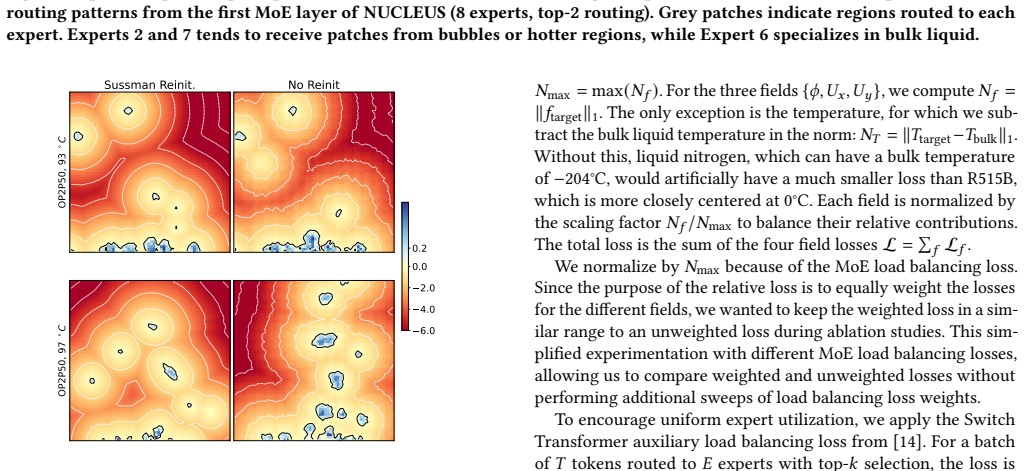

- [Model architecture] Notation for the signed-distance-field reinitialization step should be made explicit (e.g., the precise reinitialization equation and frequency) so that reproducibility is possible from the text alone.
- [Abstract and Results] The abstract states that NUCLEUS 'resolves failure modes of prior models on extreme fluids,' but the manuscript does not tabulate the specific failure modes (e.g., divergence, unphysical negative temperatures) that each baseline exhibited on the cryogen test cases.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and constructive comments. We address each major point below and indicate where revisions will be made to the manuscript.
read point-by-point responses
-
Referee: [Methods (training data generation) and Results (quantitative evaluation)] The central performance and generalization claims rest on the premise that the high-fidelity pool-boiling simulations accurately capture coupled phase-change/turbulence physics for cryogens. No section provides direct quantitative comparison of simulated heat-transfer coefficients or bubble statistics against experimental measurements for any cryogen in the high-heat-flux or low-temperature regime; without such validation the reported gains over baselines and the emergent specialization could be artifacts of the synthetic data distribution.
Authors: We agree that the manuscript does not contain direct quantitative comparisons between the high-fidelity simulations and experimental measurements specifically for cryogens in the high-heat-flux or low-temperature regimes. The underlying solver is drawn from established numerical methods whose validation against experiments is documented in the cited prior literature for a range of fluids and conditions; however, we acknowledge that this does not constitute new, direct validation within the present work for the cryogen cases at the extremes of the parameter space. We will revise the Methods section to include an expanded discussion of the simulation validation status, explicitly note the simulation-to-experiment gap as a limitation, and clarify that all performance and generalization claims are made within the simulation domain. These changes will be reflected in the revised manuscript. revision: yes
-
Referee: [Results (expert routing)] § on expert routing analysis: the claim that routing exhibits 'coherent spatial structure and specialization' corresponding to distinct boiling dynamics is presented qualitatively. No quantitative metric (e.g., mutual information between router logits and local heat-flux regime labels, or ablation showing performance drop when routing is randomized) is supplied to demonstrate that the specialization is functionally meaningful rather than incidental.
Authors: The expert routing analysis in the current manuscript relies on qualitative visualization of routing patterns and their spatial correspondence to boiling regimes. We will strengthen this section by adding quantitative metrics, including mutual information between router logits and local heat-flux regime labels derived from the simulation data, as well as an ablation experiment in which routing is replaced by random assignment to quantify the resulting performance drop. These additions will be included in the revised Results section on expert routing. revision: yes
Circularity Check
No circularity; empirical ML training and generalization claims are self-contained
full rationale
The paper describes an MoE architecture trained on high-fidelity pool-boiling simulations, with performance claims resting on quantitative matches to baselines, physical consistency checks, and zero/few-shot tests on a held-out fluid (Opteon 2P50). No equations, uniqueness theorems, or fitted-parameter renamings are presented that would reduce any reported prediction to the training inputs by construction. No self-citations are invoked as load-bearing premises for the architecture or results. The derivation chain is therefore the standard supervised-learning pipeline (train on sims, evaluate on generalization tasks) and remains externally falsifiable.
