Universality of Bubble Coalescence in Electrolytic Media

Afsal Chakkam Palliyalil , Gaurav Tomar , Susmita Dash This is my paper

Pith reviewed 2026-06-29 01:59 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.flu-dyn
keywords bubble coalescencethin film drainageelectrolytesuniversal scalingdisjoining pressurevisco-capillary thinningrim stabilisation
0
0 comments X

The pith

Electrolyte effects in bubble coalescence only renormalize timescales without changing the underlying film drainage dynamics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that thin film drainage in bubble coalescence follows three fixed regimes—an initial visco-capillary power-law thinning, an exponential decrease from rim stabilisation, and a final exponential relaxation under disjoining pressure—regardless of the electrolyte. When thickness and time are rescaled by characteristic values, data for different electrolytes and concentrations collapse onto one curve. This shows that the electrolyte changes only the speed of the process, not the sequence of mechanisms. A reader would care because it implies that a single dynamical model can describe coalescence across electrolytic conditions once the appropriate scales are chosen.

Core claim

Thin film drainage during bubble coalescence proceeds through three distinct regimes: an initial visco-capillary stage that exhibits a power-law thinning, followed by an exponential decrease in film thickness with time induced by rim stabilisation. The final regime is governed by disjoining pressure and is marked by an exponential relaxation of the film to the equilibrium thickness. Irrespective of the electrolyte type and concentration, film evolution exhibits universal behavior by collapsing onto a single curve when rescaled with the characteristic film thickness and time scale, demonstrating that electrolyte effects act only to renormalize timescales rather than alter the underlying dynam

What carries the argument

Three-regime thin-film drainage sequence (visco-capillary power-law, rim-stabilised exponential, disjoining-pressure relaxation) whose morphology controls the process more than electrolyte-dependent interfacial mobility.

If this is right

  • Coalescence time for any electrolyte follows from one universal curve evaluated at electrolyte-specific characteristic scales.
  • Interfacial mobility variations from different electrolytes do not alter the order or nature of the three drainage regimes.
  • The final approach to equilibrium thickness is always set by disjoining pressure after the rim-stabilised stage.
  • Predictive models of bubble coalescence in electrolytic media require only timescale adjustment rather than regime-specific chemistry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Varying electrolyte concentration could serve as a practical knob to tune coalescence speed in flotation or electrochemical devices while preserving the same dynamical pathway.
  • The rescaling procedure may apply directly to related thin-film problems such as foam drainage or drop coalescence in salted liquids.
  • If the universal collapse holds in non-aqueous or high-viscosity electrolytes, the result would simplify engineering models for a wider range of multiphase electrochemical systems.

Load-bearing premise

Thin film morphology governs drainage more strongly than interfacial boundary conditions such as Marangoni stresses, so that rescaling alone captures all electrolyte effects.

What would settle it

Experiments on two different electrolytes at matched characteristic scales where the rescaled thickness-versus-time curves fail to overlap or where the sequence of thinning regimes changes with electrolyte type.

Figures

Figures reproduced from arXiv: 2606.28181 by Afsal Chakkam Palliyalil, Gaurav Tomar, Susmita Dash.

Figure 1

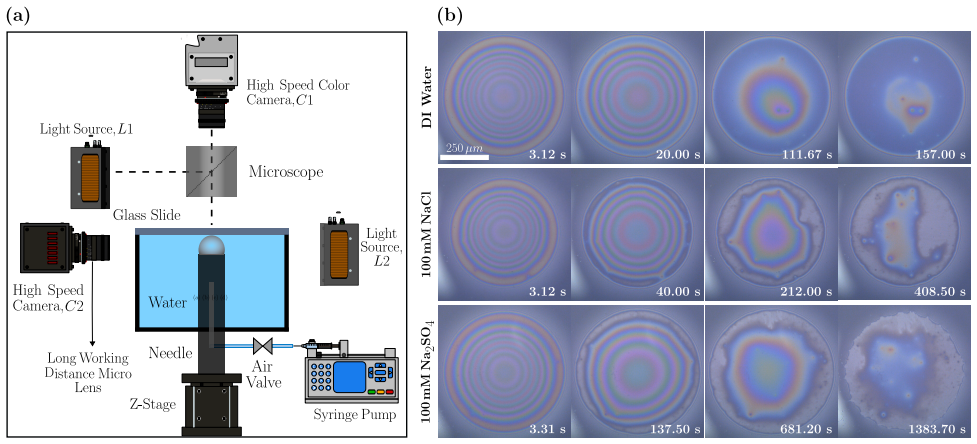

Figure 1. Figure 1: Experimental configuration and evolution of interference fringes during thin-film drainage between a rising bubble and a glass substrate. (a) Schematic of the optical inter￾ferometry setup used to capture the spatio-temporal evolution of the entrapped liquid film. (b) Time-resolved color interferograms for three representative systems: deionized (DI) water (row 1), NaCl (100 mM, row 2), and Na2SO4 (100 mM,… view at source ↗
Figure 2

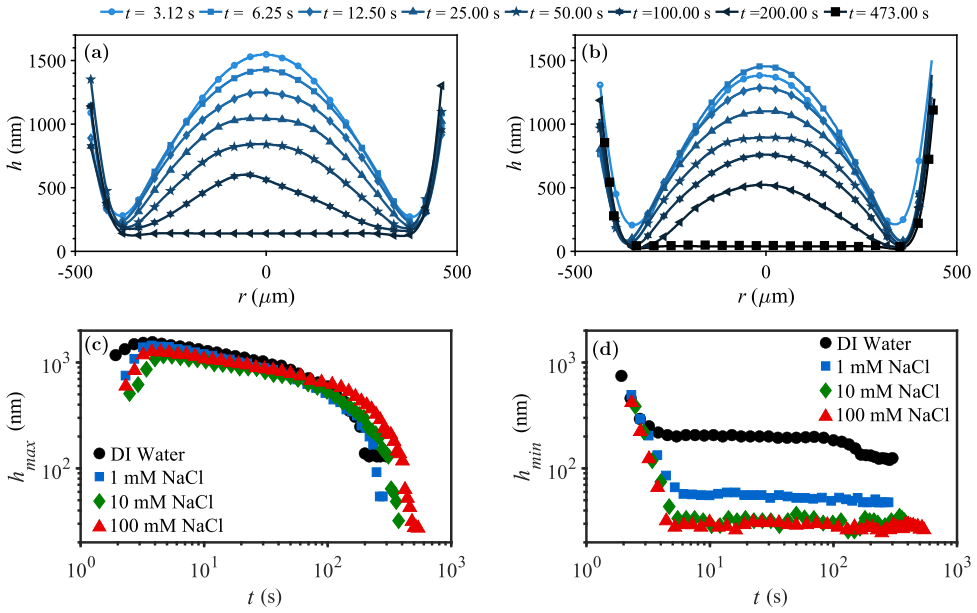

Figure 2. Figure 2: Electrolyte-dependent drainage dynamics of the thin liquid film formed between a bubble (Rb = 1.39 mm) and a flat glass substrate. Panels (a) and (b) show the spatio￾temporal evolution of the film thickness profiles, h(r, t), for (a) deionized (DI) water and (b) NaCl (100 mM). The profiles at successive time instants (see legend) capture the progressive dimple formation and rim thinning, with markedly slow… view at source ↗
Figure 3

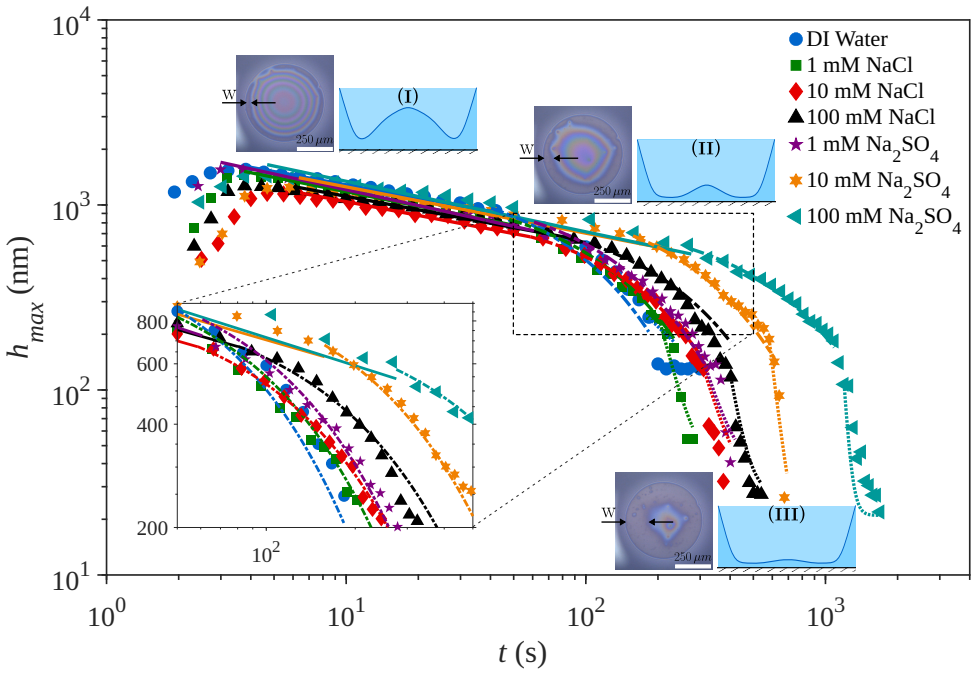

Figure 3. Figure 3: Mechanistic interpretation and quantitative characterization of regime-dependent thin-film drainage. Temporal evolution of the maximum film thickness, hmax, for DI water and electrolyte solutions of NaCl and Na2SO4 at various concentrations. The data exhibit three corresponding regimes: an early-time power-law scaling hmax ∼ t −1/4 (Regime I, solid lines), followed by a primary exponential relaxation hmax … view at source ↗
Figure 4

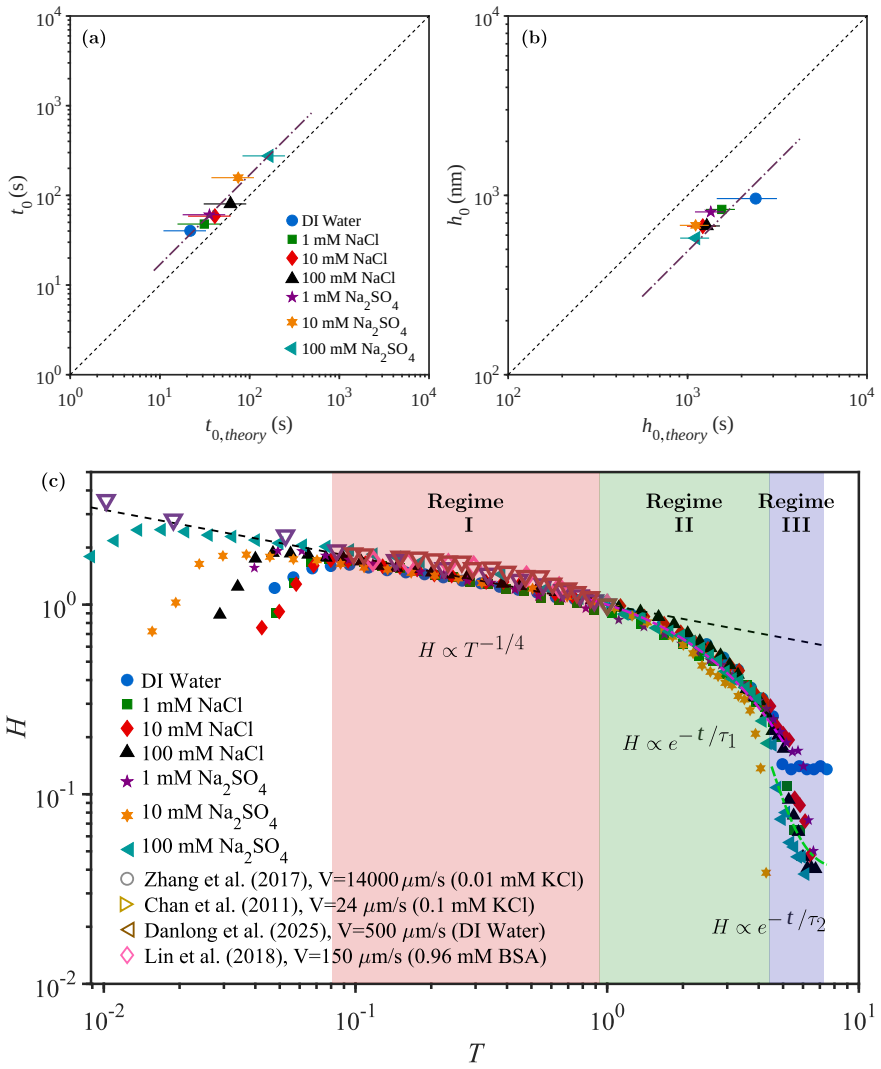

Figure 4. Figure 4: Comparison between experimentally measured and theoretically predicted transition scales, together with the universal scaling of thin-film drainage dynamics. Panels (a) and (b) compare the experimentally determined transition time (texp) and transition thickness (hexp) with the corresponding theoretical predictions (ttheory, htheory) for DI water, NaCl, and Na2SO4 solutions at different concentrations. The… view at source ↗

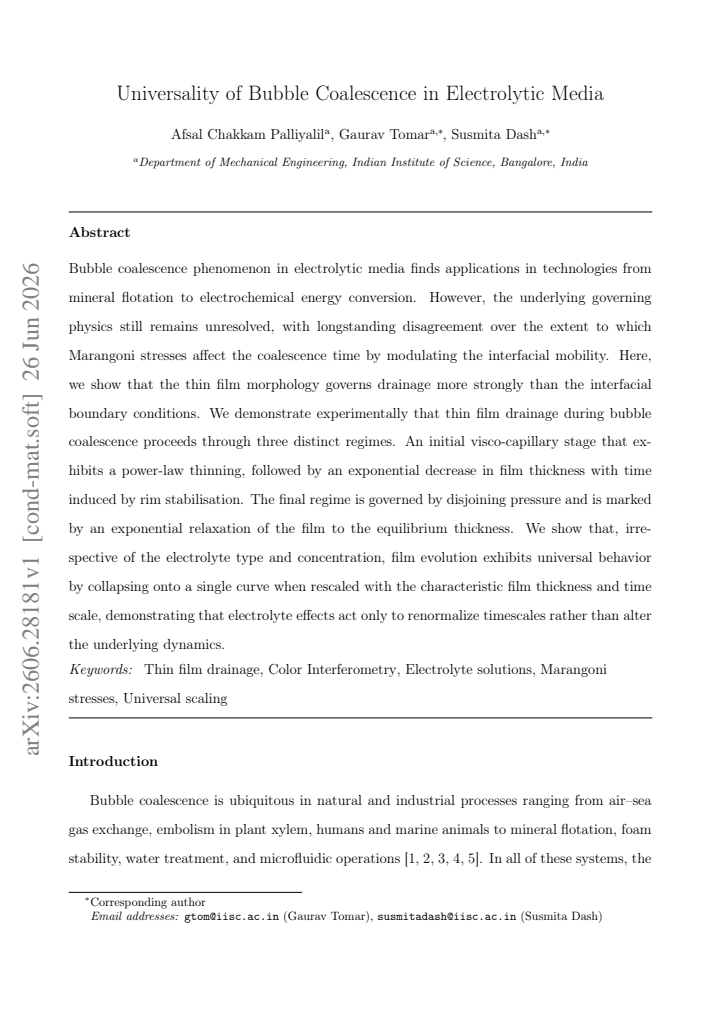

read the original abstract

Bubble coalescence phenomenon in electrolytic media finds applications in technologies from mineral flotation to electrochemical energy conversion. However, the underlying governing physics still remains unresolved, with longstanding disagreement over the extent to which Marangoni stresses affect the coalescence time by modulating the interfacial mobility. Here, we show that the thin film morphology governs drainage more strongly than the interfacial boundary conditions. We demonstrate experimentally that thin film drainage during bubble coalescence proceeds through three distinct regimes. An initial visco-capillary stage that exhibits a power-law thinning, followed by an exponential decrease in film thickness with time induced by rim stabilisation. The final regime is governed by disjoining pressure and is marked by an exponential relaxation of the film to the equilibrium thickness. We show that, irrespective of the electrolyte type and concentration, film evolution exhibits universal behavior by collapsing onto a single curve when rescaled with the characteristic film thickness and time scale, demonstrating that electrolyte effects act only to renormalize timescales rather than alter the underlying dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript claims that thin-film drainage during bubble coalescence in electrolytic media proceeds through three distinct regimes—an initial visco-capillary power-law thinning, an exponential decrease due to rim stabilization, and a final disjoining-pressure-governed exponential relaxation to equilibrium thickness—and that, irrespective of electrolyte type and concentration, the evolution curves collapse onto a single master curve when rescaled by a characteristic film thickness and time scale. This is presented as evidence that electrolyte effects act only to renormalize timescales without altering the underlying dynamical sequence, and that thin-film morphology governs drainage more strongly than interfacial boundary conditions such as Marangoni stresses.

Significance. If the central claim is substantiated with independently determined scales, the result would provide a unifying experimental framework for bubble coalescence that resolves debates on the relative importance of Marangoni stresses versus morphology. It would enable timescale-renormalization approaches in modeling applications such as mineral flotation and electrochemical energy conversion, rather than requiring electrolyte-specific boundary-condition adjustments. The identification of the three regimes and the reported collapse constitute a potentially valuable contribution if the rescaling is shown to be predictive rather than post-hoc.

major comments (2)
  1. [Abstract] Abstract: the claim that film evolution 'exhibits universal behavior by collapsing onto a single curve when rescaled with the characteristic film thickness and time scale' is load-bearing for the universality conclusion, yet the abstract (and, by extension, the results presentation) supplies no indication that these scales are computed a priori from electrolyte parameters (e.g., via explicit disjoining-pressure, viscosity, or surface-tension formulas) rather than adjusted per dataset to achieve overlap. Without this, the assertion that electrolytes 'only renormalize timescales rather than alter the underlying dynamics' risks circularity.
  2. [Results] Results section on regime identification: the transitions between the visco-capillary, rim-stabilization, and disjoining-pressure regimes are described qualitatively, but no quantitative criteria, fitting procedures, error bars, or statistical thresholds are provided for confirming the power-law and exponential forms across electrolytes; this directly affects the reliability of the subsequent collapse analysis.
minor comments (1)
  1. [Abstract] The abstract would benefit from a concise statement of the number of electrolytes, concentrations, and replicate measurements used to support the 'irrespective' claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which have helped clarify key aspects of our presentation. We respond to each major comment below and have revised the manuscript accordingly to strengthen the description of our methods and claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that film evolution 'exhibits universal behavior by collapsing onto a single curve when rescaled with the characteristic film thickness and time scale' is load-bearing for the universality conclusion, yet the abstract (and, by extension, the results presentation) supplies no indication that these scales are computed a priori from electrolyte parameters (e.g., via explicit disjoining-pressure, viscosity, or surface-tension formulas) rather than adjusted per dataset to achieve overlap. Without this, the assertion that electrolytes 'only renormalize timescales rather than alter the underlying dynamics' risks circularity.

    Authors: We agree that the abstract does not explicitly indicate how the characteristic scales are obtained. The scales are computed a priori from electrolyte parameters: the characteristic thickness follows from the equilibrium film thickness set by the disjoining-pressure balance (using the Debye length and Hamaker constant for the given ion type and concentration), while the characteristic time is obtained from the initial visco-capillary thinning rate using independently measured viscosity and surface tension. These quantities are calculated for each electrolyte before any rescaling is performed. We have revised the abstract and added an explicit paragraph in the Results section that states the formulas, lists the input parameters, and confirms that the scales are predictive rather than fitted to achieve collapse. This revision eliminates the risk of circularity. revision: yes

  2. Referee: [Results] Results section on regime identification: the transitions between the visco-capillary, rim-stabilization, and disjoining-pressure regimes are described qualitatively, but no quantitative criteria, fitting procedures, error bars, or statistical thresholds are provided for confirming the power-law and exponential forms across electrolytes; this directly affects the reliability of the subsequent collapse analysis.

    Authors: We concur that quantitative details on regime identification are necessary for rigor. In the revised manuscript we have added: (i) explicit time windows and fitting ranges for the power-law and exponential regimes, (ii) the criterion used to locate transitions (local slope deviation exceeding a stated threshold from the expected exponent), (iii) error bars on all fitted exponents together with R-squared values for each electrolyte dataset, and (iv) a supplementary table summarizing these quantities across all concentrations and ion types. These additions directly support the reliability of the subsequent master-curve collapse. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental data collapse with rescaling

full rationale

The paper reports experimental observations of thin-film drainage in three regimes (visco-capillary power-law, rim-stabilized exponential, disjoining-pressure exponential) and states that data from different electrolytes collapse onto one curve after rescaling by characteristic thickness and time scales. No equations, derivations, or self-citations are shown that reduce the universality claim to a fitted parameter or self-defined input by construction. The rescaling is presented as an empirical demonstration that electrolytes renormalize timescales without altering dynamics; the central claim therefore rests on observed collapse rather than any load-bearing loop back to its own inputs. This is a standard experimental result with no enumerated circularity pattern.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Universality claim depends on the existence of well-defined characteristic scales (likely data-derived) and standard thin-film assumptions; no new entities postulated.

free parameters (1)
  • characteristic film thickness and time scale
    Used to achieve data collapse; values chosen or fitted to produce the universal curve.
axioms (1)
  • domain assumption Thin-film lubrication approximation remains valid throughout drainage
    Required to interpret morphology-driven regimes and power-law/exponential thinning.
