arxiv: 1907.11165 · v1 · pith:I5WUPBOInew · submitted 2019-07-25 · ✦ hep-ph

Applications of the WW-type approximation to SIDIS

S. Bastami , H. Avakian , A. V. Efremov , A. Kotzinian , B. U. Musch , B. Parsamyan , A. Prokudin , M. Schlegel
show 3 more authors
G. Schnell P. Schweitzer K. Tezgin
This is my paper

Pith reviewed 2026-05-24 16:07 UTC · model grok-4.3

classification ✦ hep-ph
keywords SIDISTMDWW approximationfragmentation functionsparton distribution functionssemi-inclusive DISazimuthal asymmetries
0
0 comments X

The pith

WW-type approximation relates TMDs and FFs to simplify SIDIS cross-sections up to 1/Q².

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the complete SIDIS cross-section for unpolarized hadrons including O(1/Q²) corrections. It uses the WW-type approximation by assuming quark-gluon-quark correlators are negligible compared to quark-quark ones. This assumption generates relations that reduce the number of independent transverse-momentum-dependent parton distribution and fragmentation functions needed. The resulting simplified expression for the cross-section is then compared to available experimental data to gauge its validity.

Core claim

In the Wandzura-Wilczek-type approximation, where bar q g q-correlators are taken to be much smaller than bar q q-correlators, relations among TMD parton distribution functions and fragmentation functions arise. These relations allow the SIDIS cross-section to be expressed in terms of a smaller subset of these functions, valid through order 1/Q².

What carries the argument

The WW-type approximation, which neglects bar q g q-correlators relative to bar q q-correlators, thereby inducing relations between TMDs and FFs.

If this is right

  • The SIDIS cross-section depends on fewer independent functions.
  • Power-suppressed terms can be included without introducing new unknown correlators.
  • Data on unpolarized hadron production can test the approximation's range of validity.
  • Azimuthal modulations in the cross-section become linked through the relations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the approximation holds, global fits of TMDs could use fewer parameters and achieve better constraints from SIDIS data.
  • The same logic may apply to other processes like Drell-Yan lepton pair production where similar correlators appear.
  • High-precision measurements at future facilities could further validate or refute the size of neglected terms.

Load-bearing premise

Quark-gluon-quark correlators remain much smaller than quark-quark correlators in the relevant kinematic regime of SIDIS.

What would settle it

A clear violation of one of the derived relations between TMDs or FFs in experimental data on unpolarized SIDIS would indicate the approximation does not hold.

Figures

Figures reproduced from arXiv: 1907.11165 by A. Kotzinian, A. Prokudin, A. V. Efremov, B. Parsamyan, B. U. Musch, G. Schnell, H. Avakian, K. Tezgin, M. Schlegel, P. Schweitzer, S. Bastami.

Figure 1

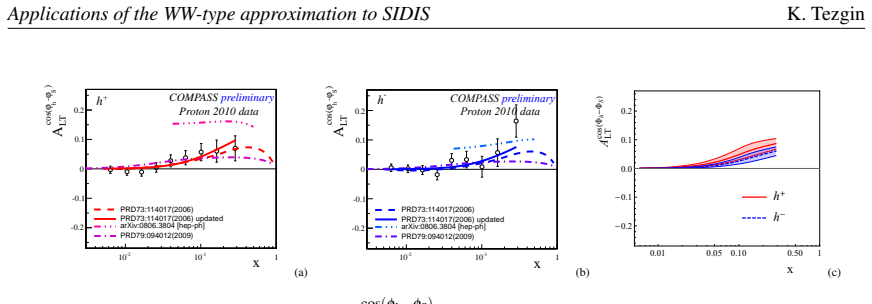

Figure 1. Figure 1: Preliminary COMPASS data on A cos(φh−φS) LT [21] compared with several model predictions [22–24] (a,b), and our calculation for COMPASS kinematics (c). those measurable in SIDIS and the Drell-Yan process. Nevertheless, these lattice studies indi￾cate that certain WW-type approximations are satisfied for the lowest Mellin moments as discussed in [11]. Besides, the lattice results also support the Gaussian A… view at source ↗
Figure 2
Figure 2. Figure 2: Preliminary COMPASS data on A cos(φS) LT [21] compared with a model prediction [23] (a,b), and our calculation for COMPASS kinematics (c). our calculations of the asymmetry in the relevant kinematics of the experiment. The results show a good compatibility within the range of uncertainties. 4. Examples of subleading-twist asymmetries in WW-type approximation The subleading-twist structure functions are mor… view at source ↗
Figure 3
Figure 3. Figure 3: A sinφh UL for proton target vs x from WW-type approximation in comparison to data. Left: π ± from HERMES [26]. Right: π 0 from HERMES [27] and JLab [28]. Eq. 2.1b. Parametrizations from [25] are used for transversity and Collins function. In [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
read the original abstract

We explore the complete cross-section for the production of unpolarized hadrons in semi-inclusive deep-inelastic scattering up to power-suppressed $\mathcal{O}(1/Q^2)$ terms in the Wandzura-Wilczek-type (WW-type) approximation, which consists in systematically assuming that $\bar{q}gq$-correlators are much smaller than $\bar{q}q$-correlators. Under the applicability of WW-type approximations, certain relations among transverse momentum dependent parton distribution functions (TMDs) and fragmentation functions (FFs) occur which are used to approximate SIDIS cross-section in terms of a smaller subset of TMDs and FFs. We discuss the applicability of the WW-type approximations on the basis of available data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript explores the complete cross-section for unpolarized hadron production in semi-inclusive deep-inelastic scattering (SIDIS) up to O(1/Q²) under the Wandzura-Wilczek-type (WW-type) approximation. This approximation is defined by systematically taking bar q g q-correlators to be much smaller than bar q q-correlators. The resulting relations among TMD parton distribution functions and fragmentation functions are used to express the SIDIS cross-section in terms of a reduced subset of these functions. Applicability of the approximation is examined against available experimental data.

Significance. If the WW-type relations hold under the stated assumption, the work supplies a concrete reduction of the independent TMDs and FFs needed for SIDIS phenomenology up to twist-3, which can simplify global fits and data comparisons. The explicit check against data is a positive feature that grounds the approximation in observables rather than leaving it purely formal.

minor comments (3)
  1. [Abstract] The abstract states that relations 'occur which are used to approximate' the cross-section, but the manuscript should add a short explicit list (perhaps in §2 or §3) of which TMDs/FFs are eliminated by the WW-type assumption and which survive, to make the reduction transparent.
  2. [Data discussion] In the data-comparison section, the criteria for selecting the datasets used to test applicability should be stated more clearly (kinematic cuts, Q² range, etc.) so that readers can reproduce the assessment.
  3. [Introduction] Notation for the various correlators and the precise definition of the WW-type suppression (e.g., relative to which scale) should be collected in one place early in the text for easy reference.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper explicitly defines the WW-type approximation as the input assumption that bar q g q-correlators are much smaller than bar q q-correlators, then explores the resulting relations among TMDs/FFs and the approximated SIDIS cross section up to O(1/Q^2). This structure is presented as an application of the stated assumption rather than a derivation from first principles or data fits; applicability is checked externally against available data. No load-bearing step reduces a prediction to a fitted parameter by construction, invokes a self-citation chain as the sole justification for a uniqueness claim, or renames an input as an output. The derivation chain remains self-contained under the declared approximation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on one domain assumption about the relative size of correlators; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption bar q g q-correlators are much smaller than bar q q-correlators
    Explicitly stated as the definition of the WW-type approximation.

pith-pipeline@v0.9.0 · 5704 in / 1168 out tokens · 28260 ms · 2026-05-24T16:07:19.490684+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

31 extracted references · 31 canonical work pages · 24 internal anchors

  1. [1]

    New Quark Distributions and Semi-Inclusive Electroproduction on Polarized Nucleons

    A. Kotzinian, Nucl. Phys. B 441, 234 (1995) [hep-ph/9412283]

    work page internal anchor Pith review Pith/arXiv arXiv 1995

  2. [2]

    P. J. Mulders and R. D. Tangerman, Nucl. Phys. B 461, 197 (1996) Erratum: [Nucl. Phys. B 484, 538 (1997)] [hep-ph/9510301]

    work page internal anchor Pith review Pith/arXiv arXiv 1996

  3. [3]

    Semi-inclusive deep inelastic scattering at small transverse momentum

    A. Bacchetta, M. Diehl, K. Goeke, A. Metz, P. J. Mulders and M. Schlegel, JHEP 0702, 093 (2007) [hep-ph/0611265]. 4 Applications of the WW-type approximation to SIDIS K. Tezgin

    work page internal anchor Pith review Pith/arXiv arXiv 2007

  4. [4]

    Wandzura and F

    S. Wandzura and F. Wilczek, Phys. Lett. 72B, 195 (1977)

    work page 1977

  5. [5]

    R. L. Jaffe and X. Ji, Nucl. Phys. B 375, 527 (1992)

    work page 1992

  6. [6]

    Nucleon matrix elements of higher-twist operators from the instanton vacuum

    J. Balla, M. V . Polyakov and C. Weiss, Nucl. Phys. B510, 327 (1998) [hep-ph/9707515]

    work page internal anchor Pith review Pith/arXiv arXiv 1998

  7. [7]

    On the twist-3 contribution to h_L in the instanton vacuum

    B. Dressler and M. V . Polyakov, Phys. Rev. D61, 097501 (2000) [hep-ph/9912376]

    work page internal anchor Pith review Pith/arXiv arXiv 2000

  8. [8]

    A lattice calculation of the nucleon's spin-dependent structure function g_2 revisited

    M. Göckeler, R. Horsley, W. Kurzinger, H. Oelrich, D. Pleiter, P. E. L. Rakow, A. Schäfer and G. Schierholz, Phys. Rev. D 63, 074506 (2001) [hep-lat/0011091]

    work page internal anchor Pith review Pith/arXiv arXiv 2001

  9. [9]

    Investigation of the Second Moment of the Nucleon's g1 and g2 Structure Functions in Two-Flavor Lattice QCD

    M. Göckeler, R. Horsley, D. Pleiter, P. E. L. Rakow, A. Schäfer, G. Schierholz, H. Stuben and J. M. Zanotti, Phys. Rev. D 72, 054507 (2005) [hep-lat/0506017]

    work page internal anchor Pith review Pith/arXiv arXiv 2005

  10. [10]

    What can break the Wandzura--Wilczek relation?

    A. Accardi, A. Bacchetta, W. Melnitchouk and M. Schlegel, JHEP 0911, 093 (2009) [arXiv:0907.2942 [hep-ph]]

    work page internal anchor Pith review Pith/arXiv arXiv 2009

  11. [11]

    Semi-Inclusive Deep Inelastic Scattering in Wandzura-Wilczek-type approximation

    S. Bastami et al., JHEP 1906, 007 (2019) [arXiv:1807.10606 [hep-ph]]

    work page internal anchor Pith review Pith/arXiv arXiv 1906

  12. [12]

    B. U. Musch, P. Hägler, J. W. Negele and A. Schäfer, Phys. Rev. D 83, 094507 (2011) [arXiv:1011.1213 [hep-lat]]

    work page internal anchor Pith review Pith/arXiv arXiv 2011

  13. [13]

    Nucleon Generalized Parton Distributions from Full Lattice QCD

    P. Hägler et al. [LHPC Collaboration], Phys. Rev. D 77, 094502 (2008) [arXiv:0705.4295 [hep-lat]]

    work page internal anchor Pith review Pith/arXiv arXiv 2008

  14. [14]

    Quark helicity flip generalized parton distributions from two-flavor lattice QCD

    M. Göckeler et al. [QCDSF and UKQCD Collaborations], Phys. Lett. B 627, 113 (2005) [hep-lat/0507001]

    work page internal anchor Pith review Pith/arXiv arXiv 2005

  15. [15]

    A. Metz, P. Schweitzer and T. Teckentrup, Phys. Lett. B 680, 141 (2009)

    work page 2009

  16. [16]

    A. D. Martin, W. J. Stirling, R. S. Thorne and G. Watt, Eur. Phys. J. C 63, 189 (2009) [arXiv:0901.0002 [hep-ph]]

    work page internal anchor Pith review Pith/arXiv arXiv 2009

  17. [17]

    Global analysis of fragmentation functions for pions and kaons and their uncertainties

    D. de Florian, R. Sassot and M. Stratmann, Phys. Rev. D 75, 114010 (2007) [hep-ph/0703242 [HEP-PH]]

    work page internal anchor Pith review Pith/arXiv arXiv 2007

  18. [18]

    The role of Cahn and Sivers effects in Deep Inelastic Scattering

    M. Anselmino, M. Boglione, U. D’Alesio, A. Kotzinian, F. Murgia and A. Prokudin, Phys. Rev. D 71, 074006 (2005) [hep-ph/0501196]

    work page internal anchor Pith review Pith/arXiv arXiv 2005

  19. [19]

    Dynamical Parton Distributions Revisited

    M. Glück, E. Reya and A. V ogt, Eur. Phys. J. C5, 461 (1998) [hep-ph/9806404]

    work page internal anchor Pith review Pith/arXiv arXiv 1998

  20. [20]

    Hägler, B

    P. Hägler, B. U. Musch, J. W. Negele and A. Schäfer, EPL 88, no. 6, 61001 (2009)

    work page 2009

  21. [21]

    Transverse spin asymmetries at COMPASS: beyond Collins and Sivers effects

    B. Parsamyan, PoS DIS 2013, 231 (2013) [arXiv:1307.0183 [hep-ex]]

    work page internal anchor Pith review Pith/arXiv arXiv 2013

  22. [22]

    Predictions for double spin asymmetry A_{LT} in Semi Inclusive DIS

    A. Kotzinian, B. Parsamyan and A. Prokudin, Phys. Rev. D 73, 114017 (2006) [hep-ph/0603194]

    work page internal anchor Pith review Pith/arXiv arXiv 2006

  23. [23]

    SIDIS Asymmetries in Quark-Diquark Model

    A. Kotzinian, arXiv:0806.3804 [hep-ph]

    work page internal anchor Pith review Pith/arXiv arXiv

  24. [24]

    S. Boffi, A. V . Efremov, B. Pasquini and P. Schweitzer, Phys. Rev. D79, 094012 (2009)

    work page 2009

  25. [25]

    Simultaneous extraction of transversity and Collins functions from new SIDIS and e+e- data

    M. Anselmino, M. Boglione, U. D’Alesio, S. Melis, F. Murgia and A. Prokudin, Phys. Rev. D 87, 094019 (2013) [arXiv:1303.3822 [hep-ph]]

    work page internal anchor Pith review Pith/arXiv arXiv 2013

  26. [26]

    Subleading-twist effects in single-spin asymmetries in semi-inclusive deep-inelastic scattering on a longitudinally polarized hydrogen target

    A. Airapetian et al. [HERMES Collaboration], Phys. Lett. B 622, 14 (2005) [hep-ex/0505042]

    work page internal anchor Pith review Pith/arXiv arXiv 2005

  27. [27]

    Single-spin Azimuthal Asymmetries in Electroproduction of Neutral Pions in Semi-inclusive Deep-inelastic Scattering

    A. Airapetian et al. [HERMES Collaboration], Phys. Rev. D 64, 097101 (2001) [hep-ex/0104005]

    work page internal anchor Pith review Pith/arXiv arXiv 2001

  28. [28]

    Semi-Inclusive $\pi_0$ target and beam-target asymmetries from 6 GeV electron scattering with CLAS

    S. Jawalkar et al. [CLAS Collaboration], Phys. Lett. B 782, 662 (2018) [arXiv:1709.10054 [nucl-ex]]

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  29. [29]

    Measurement of longitudinal-target-polarization dependent azimuthal asymmetries in SIDIS at COMPASS experiment

    B. Parsamyan, PoS DIS 2017, 259 (2018) [arXiv:1801.01488 [hep-ex]]

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  30. [30]

    Parsamyan, PoS QCDEV 2017, 042 (2018)

    B. Parsamyan, PoS QCDEV 2017, 042 (2018)

    work page 2017

  31. [31]

    Schnell, PoS DIS 2010, 247 (2010)

    G. Schnell, PoS DIS 2010, 247 (2010). 5

    work page 2010
