Reasoning Before Diagnosis: Physician-Inspired Structured Thinking for ECG Classification
Pith reviewed 2026-05-20 13:31 UTC · model grok-4.3
The pith
CardioThink improves ECG classification accuracy by explicitly modeling diagnostic reasoning through four interpretable stages: rhythm, conduction, morphology, and impression.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
CardioThink is a physician-inspired multimodal large language model that derives ECG classifications by first producing structured reasoning in four stages—rhythm, conduction, morphology, and impression—optimized through Structured Set Policy Optimization that enforces adherence to the format and accuracy of variable-size diagnostic outputs without requiring annotated reasoning traces.
What carries the argument
CardioThink framework using Structured Set Policy Optimization (SSPO) to generate and optimize through the four-stage clinical reasoning sequence.
If this is right
- Models that follow explicit clinical reasoning stages achieve higher diagnostic accuracy than direct prediction methods.
- The approach provides interpretable clinical reasoning that aligns with how physicians diagnose ECGs.
- SSPO enables effective training of structured outputs without the need for manually annotated intermediate reasoning.
- Reasoning quality improves substantially, leading to more clinically valid rationales.
Where Pith is reading between the lines
- This structured decomposition might apply to other medical AI domains requiring sequential diagnostic logic, such as imaging or lab interpretation.
- By avoiding the need for annotated reasoning traces, the method could scale more easily to new ECG classification tasks.
- Clinicians might review and intervene at specific stages like morphology assessment to correct potential errors.
Load-bearing premise
That the specific four-stage breakdown of rhythm, conduction, morphology, and impression sufficiently represents the reasoning process required for accurate and interpretable ECG classification.
What would settle it
A controlled experiment where a direct-prediction baseline model matches or exceeds CardioThink's accuracy on an ECG benchmark featuring cases that do not fit neatly into the four stages would falsify the superiority claim.

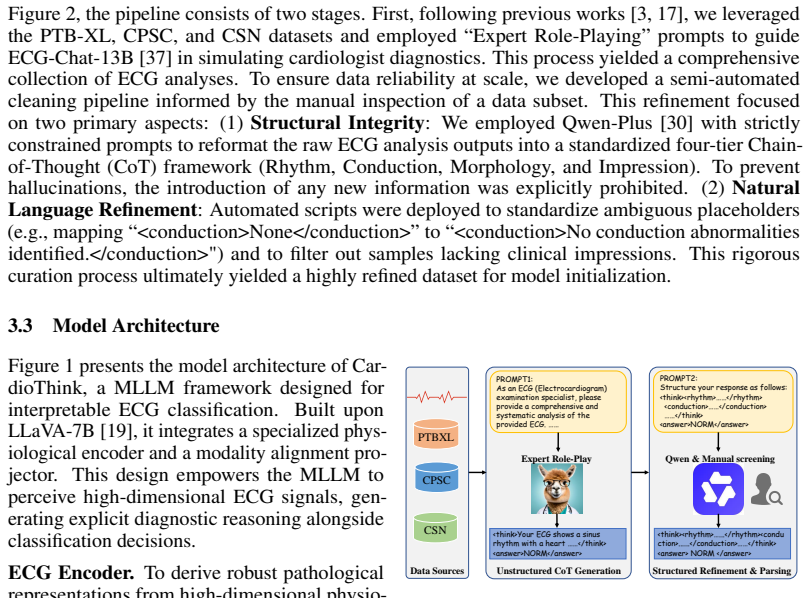

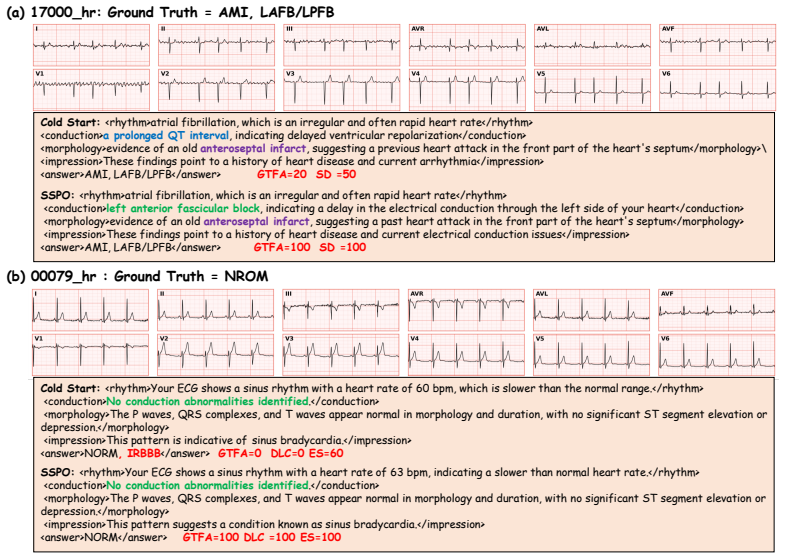

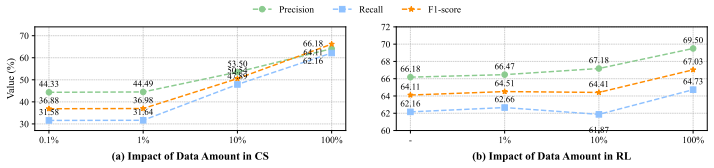

Figures

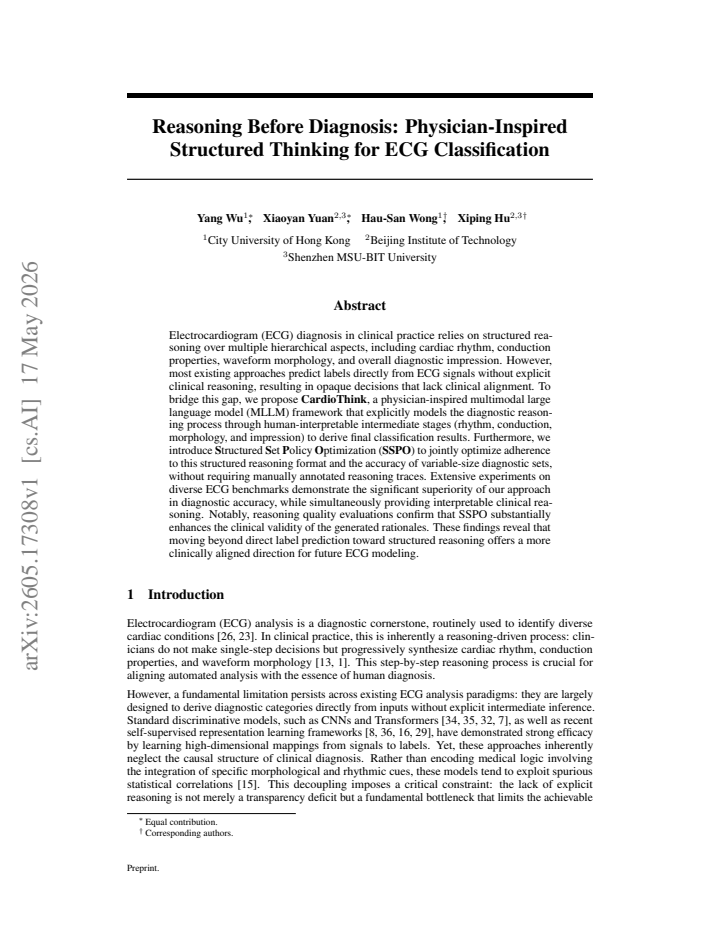

read the original abstract
Electrocardiogram (ECG) diagnosis in clinical practice relies on structured reasoning over multiple hierarchical aspects, including cardiac rhythm, conduction properties, waveform morphology, and overall diagnostic impression. However, most existing approaches predict labels directly from ECG signals without explicit clinical reasoning, resulting in opaque decisions that lack clinical alignment. To bridge this gap, we propose CardioThink, a physician-inspired multimodal large language model (MLLM) framework that explicitly models the diagnostic reasoning process through human-interpretable intermediate stages (rhythm, conduction, morphology, and impression) to derive final classification results. Furthermore, we introduce Structured Set Policy Optimization (SSPO) to jointly optimize adherence to this structured reasoning format and the accuracy of variable-size diagnostic sets, without requiring manually annotated reasoning traces. Extensive experiments on diverse ECG benchmarks demonstrate the significant superiority of our approach in diagnostic accuracy, while simultaneously providing interpretable clinical reasoning. Notably, reasoning quality evaluations confirm that SSPO substantially enhances the clinical validity of the generated rationales. These findings reveal that moving beyond direct label prediction toward structured reasoning offers a more clinically aligned direction for future ECG modeling.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces CardioThink, a multimodal large language model framework for ECG classification inspired by physician diagnostic reasoning. It structures the process into four stages—rhythm, conduction, morphology, and impression—to generate final classifications. The authors propose Structured Set Policy Optimization (SSPO) to train the model on this structured format and variable-size diagnostic sets without requiring manually annotated reasoning traces. The manuscript claims that this approach achieves significant superiority in diagnostic accuracy on diverse ECG benchmarks while providing interpretable clinical reasoning, with reasoning quality evaluations showing enhanced clinical validity.
Significance. Should the empirical results be substantiated, this work has the potential to advance the field of AI for medical signal processing by demonstrating that explicit modeling of clinical reasoning steps can improve both performance and interpretability in ECG diagnosis. The SSPO method, if effective without annotations, represents a practical advance for training structured outputs in LLMs for healthcare applications.
major comments (3)
- [Abstract] The abstract asserts 'extensive experiments' and 'significant superiority in diagnostic accuracy' along with 'reasoning quality evaluations' confirming enhancements, but the available manuscript text provides no quantitative metrics, baseline comparisons, statistical tests, or specific implementation details for SSPO, which leaves the central performance and validity claims without verifiable support.
- [Methods] The assumption that the four-stage decomposition (rhythm, conduction, morphology, impression) is sufficient to capture the reasoning needed for accurate ECG classification is not supported by any ablation studies or justification in the text; this decomposition is load-bearing for the claim of clinical alignment.
- [Experiments] The central claim requires that SSPO produces clinically aligned reasoning and superior accuracy without annotated traces, but reasoning quality appears measured by internal proxies (format adherence, label consistency, or LLM-as-judge scores) rather than expert comparison, risking that any accuracy gain arises from the underlying MLLM rather than the explicit structure.
minor comments (2)
- Clarify the exact architecture of the MLLM backbone and how the stages are integrated into the input/output pipeline.
- Provide more details on the ECG benchmarks used, including dataset sizes and class distributions.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback. We address each major comment below and describe the revisions planned for the next version of the manuscript.
read point-by-point responses
-
Referee: [Abstract] The abstract asserts 'extensive experiments' and 'significant superiority in diagnostic accuracy' along with 'reasoning quality evaluations' confirming enhancements, but the available manuscript text provides no quantitative metrics, baseline comparisons, statistical tests, or specific implementation details for SSPO, which leaves the central performance and validity claims without verifiable support.
Authors: We agree that the abstract would benefit from greater specificity. The full manuscript reports quantitative results in Section 4 (Experiments), including accuracy, F1, and AUC metrics across multiple ECG benchmarks, direct comparisons to strong MLLM baselines, and statistical significance testing via paired t-tests with p-values. SSPO implementation details, including the structured policy objective, reward formulation, and training hyperparameters, appear in Section 3.2. To improve immediate verifiability, we will revise the abstract to include the key numerical improvements (e.g., absolute accuracy gains and p-values) while retaining its concise style. revision: yes
-
Referee: [Methods] The assumption that the four-stage decomposition (rhythm, conduction, morphology, and impression) is sufficient to capture the reasoning needed for accurate ECG classification is not supported by any ablation studies or justification in the text; this decomposition is load-bearing for the claim of clinical alignment.
Authors: The four-stage structure follows standard clinical ECG interpretation protocols as described in major cardiology references (e.g., AHA/ACC guidelines). We selected these stages because they correspond to the sequential diagnostic steps physicians use when reading ECGs. We acknowledge that the current manuscript lacks explicit ablation experiments on alternative decompositions. In the revision we will add an ablation study that compares the full four-stage pipeline against (i) a two-stage variant, (ii) a direct-prediction baseline without intermediate stages, and (iii) an alternative three-stage decomposition, reporting both accuracy and clinical-alignment metrics to empirically support the chosen structure. revision: yes
-
Referee: [Experiments] The central claim requires that SSPO produces clinically aligned reasoning and superior accuracy without annotated traces, but reasoning quality appears measured by internal proxies (format adherence, label consistency, or LLM-as-judge scores) rather than expert comparison, risking that any accuracy gain arises from the underlying MLLM rather than the explicit structure.
Authors: We recognize that expert review provides the strongest test of clinical validity. The current evaluation uses format adherence, label consistency, and an LLM-as-judge protocol whose prompts were derived from clinical criteria; however, we did not include cardiologist ratings in the submitted version. We will add a human evaluation in which a random subset of generated rationales is independently scored by two board-certified cardiologists for clinical plausibility, stage-wise alignment, and overall diagnostic utility. We will also report accuracy results against identical-base-MLLM baselines that lack both the structured format and SSPO training, thereby isolating the contribution of the explicit reasoning pipeline. revision: yes
Circularity Check
Central claim rests on empirical results from new training procedure rather than self-defined quantities or self-citation chains
full rationale
The paper introduces CardioThink and SSPO as a modeling choice to decompose ECG diagnosis into four human-interpretable stages and optimize format adherence plus set accuracy without annotated traces. No equations, fitted parameters, or self-citations are presented that reduce the reported accuracy gains or reasoning validity to quantities defined by the authors' own prior work or by construction from the final labels. Superiority is instead shown via external benchmark experiments, making the derivation self-contained against independent evaluation metrics.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption ECG diagnosis can be decomposed into the four independent clinical stages of rhythm, conduction, morphology, and impression.
invented entities (1)
-
Structured Set Policy Optimization (SSPO)
no independent evidence
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
CardioThink ... explicitly models the diagnostic reasoning process through human-interpretable intermediate stages (rhythm, conduction, morphology, and impression) ... Structured Set Policy Optimization (SSPO) to jointly optimize adherence to this structured reasoning format
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Rstruct(o) = 1/Nrules (Itags + Σ Ivalid(τ,o)) ... Rdiag(o,Y) = 2|Y ∩ Ŷ(oa)| / (|Y| + |Ŷ(oa)|)
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
