Anisotropic metamagnetism and magnetotransport of heavy rare-earth orthorhombic single-crystal TbAlGe
Pith reviewed 2026-05-07 11:26 UTC · model grok-4.3
The pith
TbAlGe single crystals show two zero-field antiferromagnetic transitions at 40 K and 8 K plus a cascade of metamagnetic transitions that appear only for fields along the a-axis.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
TbAlGe in the Cmcm structure harbors complex magnetic interactions that produce two antiferromagnetic transitions at 40 K and 8 K in zero field together with a rich cascade of metamagnetic transitions that appear exclusively when the field is directed along the crystallographic a-axis; combined resistivity, magnetization, and heat-capacity measurements up to 41.5 T map the resulting multiple magnetic phases and their interplay with the underlying electronic topology.
What carries the argument
Direction-specific metamagnetic transitions arising from the interplay of localized Tb 4f moments with the orthorhombic crystal field and itinerant electrons, mapped via a high-field phase diagram.
If this is right
- The magnetic phase diagram supplies a concrete map of accessible states whose boundaries can be tuned by modest fields along one crystal axis.
- Magnetotransport signatures tied to each phase can be used to read out the magnetic configuration without separate magnetization measurements.
- The system offers a route to study how localized-moment ordering modifies the topological electronic bands of the RAlGe family.
- Comparison with isostructural compounds containing other heavy rare earths can isolate the role of moment size and anisotropy.
Where Pith is reading between the lines
- The strong a-axis preference suggests that crystal-electric-field anisotropy dominates over exchange interactions along other directions, a pattern that could be tested by substituting Tb with other R ions.
- If the metamagnetic transitions involve changes in the Fermi-surface topology, angle-resolved photoemission or quantum-oscillation studies in the different phases would directly link magnetism to band structure.
- The relatively high ordering temperatures make TbAlGe a candidate for room-temperature-adjacent devices if similar behavior can be stabilized in thin films or heterostructures.
Load-bearing premise
The observed directional selectivity and multiple transitions reflect intrinsic magnetic interactions rather than sample defects or measurement artifacts.
What would settle it
Absence of the a-axis-only metamagnetic cascade in a second batch of high-purity crystals measured in the same geometry, or appearance of similar transitions along b or c axes, would undermine the intrinsic anisotropy claim.
Figures
read the original abstract

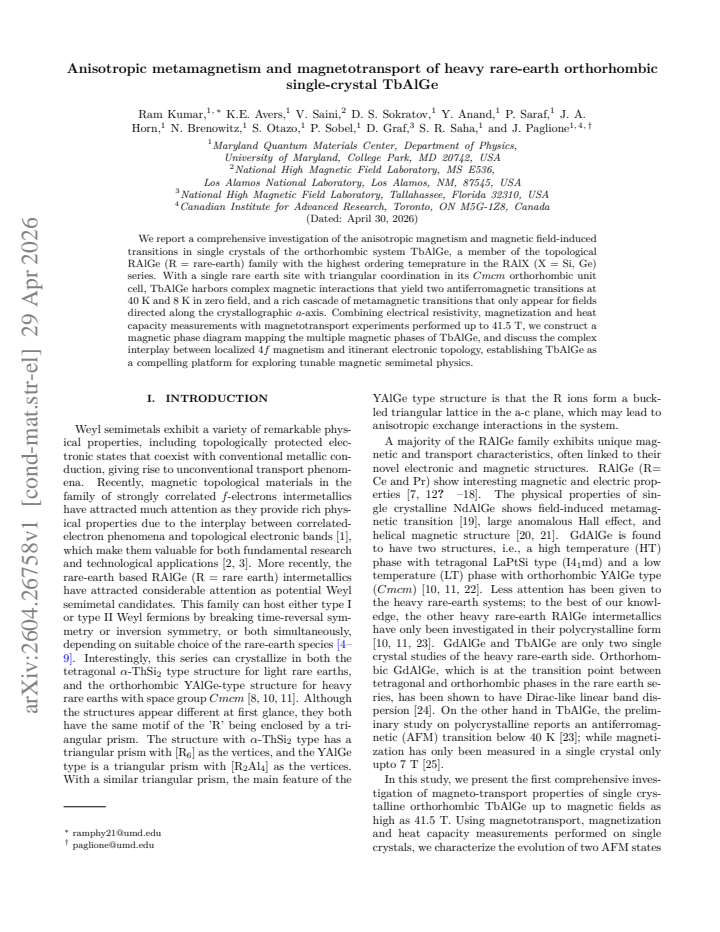

We report a comprehensive investigation of the anisotropic magnetism and magnetic field-induced transitions in single crystals of the orthorhombic system TbAlGe, a member of the topological RAlGe (R = rare-earth) family with the highest ordering temeprature in the RAlX (X = Si, Ge) series. With a single rare earth site with triangular coordination in its Cmcm orthorhombic unit cell, TbAlGe harbors complex magnetic interactions that yield two antiferromagnetic transitions at 40 K and 8 K in zero field, and a rich cascade of metamagnetic transitions that only appear for fields directed along the crystallographic a-axis. Combining electrical resistivity, magnetization and heat capacity measurements with magnetotransport experiments performed up to 41.5 T, we construct a magnetic phase diagram mapping the multiple magnetic phases of TbAlGe, and discuss the complex interplay between localized 4f magnetism and itinerant electronic topology, establishing TbAlGe as a compelling platform for exploring tunable magnetic semimetal physics.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports a comprehensive experimental investigation of the anisotropic magnetism and magnetotransport in single crystals of TbAlGe, a member of the topological RAlGe family. It identifies two antiferromagnetic transitions at 40 K and 8 K in zero field, and a rich cascade of metamagnetic transitions that appear only for magnetic fields along the a-axis. Using resistivity, magnetization, heat capacity, and high-field magnetotransport up to 41.5 T, the authors construct a magnetic phase diagram and discuss the interplay between localized 4f magnetism and itinerant electronic topology.
Significance. If the reported magnetic phase diagram and its anisotropy hold, this work contributes to the understanding of complex magnetic interactions in rare-earth compounds with potential topological electronic states. The multi-technique approach including high magnetic fields is a strength, providing a detailed mapping of the phases. However, the positioning as a platform for tunable magnetic semimetal physics depends on the topological character, which is inferred from the broader family rather than directly evidenced for TbAlGe.
major comments (1)
- [Abstract and Discussion] The claim that TbAlGe establishes a compelling platform for exploring tunable magnetic semimetal physics rests on the assumption of itinerant electronic topology, but the manuscript provides no TbAlGe-specific quantum oscillation data, Berry phase analysis, or DFT band structure calculations to support the semimetal character or its tunability. This inference from the RAlGe series should be qualified to avoid overstatement of the central claim.
minor comments (3)
- [Abstract] Typo: 'temeprature' should be corrected to 'temperature'.
- [Results and phase diagram sections] The manuscript would benefit from more explicit error bars or uncertainty estimates on the reported transition temperatures and critical fields to strengthen the data presentation.
- [Methods] Additional details on crystal growth, orientation verification, and data analysis procedures would improve reproducibility and address potential concerns about sample-specific effects.
Simulated Author's Rebuttal
We thank the referee for the positive assessment of our experimental work on the magnetic phase diagram of TbAlGe and the recommendation for minor revision. We address the single major comment below.
read point-by-point responses
-
Referee: [Abstract and Discussion] The claim that TbAlGe establishes a compelling platform for exploring tunable magnetic semimetal physics rests on the assumption of itinerant electronic topology, but the manuscript provides no TbAlGe-specific quantum oscillation data, Berry phase analysis, or DFT band structure calculations to support the semimetal character or its tunability. This inference from the RAlGe series should be qualified to avoid overstatement of the central claim.
Authors: We agree that the topological semimetal character is inferred from the established properties of the RAlGe family rather than directly demonstrated here for TbAlGe via quantum oscillations, Berry phase, or compound-specific DFT. Our study centers on the anisotropic metamagnetism, the cascade of a-axis metamagnetic transitions, and the resulting phase diagram up to 41.5 T. We will revise the abstract and discussion to qualify the central claim, stating that the rich magnetic tunability demonstrated in TbAlGe, when combined with the itinerant topology reported for isostructural members, positions the compound as a promising platform, while explicitly noting that direct confirmation of topology in TbAlGe would require additional measurements beyond the scope of this work. revision: yes
Circularity Check
No circularity: purely experimental mapping with no derivations or self-referential predictions
full rationale
The manuscript is an experimental report presenting resistivity, magnetization, and heat-capacity data on oriented TbAlGe single crystals, from which a magnetic phase diagram is constructed by direct observation of transitions (two zero-field AF transitions at 40 K and 8 K plus a-axis-only metamagnetic cascade). No equations, ansatzes, fitted parameters, or predictions are introduced that reduce to the input data by construction. The discussion of interplay with itinerant topology and the claim of a platform for tunable magnetic semimetal physics rest on the measured magnetic anisotropy plus prior literature on the RAlGe series; these statements do not constitute a derivation chain internal to the paper. Self-citations, if present, are not load-bearing for any claimed result. The work is therefore self-contained against external benchmarks (known AFM behavior in related compounds) and receives the default non-circularity score.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Standard interpretation of magnetization steps and resistivity anomalies as metamagnetic and antiferromagnetic transitions
Reference graph
Works this paper leans on
-
[1]
using FullProf software packages has been used for phase identification. Further, the chemical composition is verified using a scanning electron microscope (SEM) with an energy-dispersive X-ray spectroscopy (EDS). The magnetic measurements were carried out using a SQUID- VSM, Quantum Design, and Dynacool with VSM-mode for magnetic field ( B = µ0H) up to 1...
-
[2]
B. A. Bernevig, C. Felser, and H. Beidenkopf, Progress and prospects in magnetic topological materials, Nature 603, 41 (2022)
work page 2022
-
[3]
K. H. J. Buschow, Intermetallic compounds of rare-earth and 3d transition metals, Reports on Progress in Physics 40, 1179 (1977)
work page 1977
-
[4]
Pfleiderer, Superconducting phases of f -electron com- pounds, Rev
C. Pfleiderer, Superconducting phases of f -electron com- pounds, Rev. Mod. Phys. 81, 1551 (2009)
work page 2009
-
[5]
W. Cao, N. Zhao, C. Pei, Q. Wang, Q. Zhang, T. Ying, Y. Zhao, L. Gao, C. Li, N. Yu, L. Gu, Y. Chen, K. Liu, and Y. Qi, Pressure-induced superconductiv- ity in the noncentrosymmetric weyl semimetals LaAlx (x = Si, Ge), Phys. Rev. B 105, 174502 (2022)
work page 2022
-
[6]
H. Su, X. Shi, J. Yuan, Y. Wan, E. Cheng, C. Xi, L. Pi, X. Wang, Z. Zou, N. Yu, W. Zhao, S. Li, and Y. Guo, Multiple weyl fermions in the noncentrosymmet- ric semimetal laalsi, Phys. Rev. B 103, 165128 (2021)
work page 2021
-
[7]
S.-Y. Xu, N. Alidoust, G. Chang, H. Lu, B. Singh, I. Be- lopolski, D. S. Sanchez, X. Zhang, G. Bian, H. Zheng, M.-A. Husanu, Y. Bian, S.-M. Huang, C.-H. Hsu, T.-R. Chang, H.-T. Jeng, A. Bansil, T. Neupert, V. N. Stro- cov, H. Lin, S. Jia, and M. Z. Hasan, Discovery of lorentz- violating type ii weyl fermions in laalge, Science Advances 3, e1603266 (2017)
work page 2017
-
[8]
H. Hodovanets, C. J. Eckberg, P. Y. Zavalij, H. Kim, W.-C. Lin, M. Zic, D. J. Campbell, J. S. Higgins, and J. Paglione, Single-crystal investigation of the proposed type-ii weyl semimetal cealge, Phys. Rev. B 98, 245132 (2018)
work page 2018
- [9]
-
[10]
W. Liu, J. Zhao, F. Meng, A. Rahman, Y. Qin, J. Fan, L. Pi, Z. Tian, H. Du, L. Zhang, and Y. Zhang, Critical behavior of the magnetic weyl semimetal pralge, Phys. Rev. B 103, 214401 (2021) . 9
work page 2021
-
[11]
C. Wang, Y. Guo, and T. Wang, Magnetic and trans- port properties of orthorhombic rare-earth aluminum germanide gdalge, Journal of Magnetism and Magnetic Materials 526, 167739 (2021)
work page 2021
-
[12]
C. Wang, Y. Guo, and T. Wang, Dynamic evolution from positive to negative magnetoresistance of ralge (r = dy, ho) with disordered orthorhombic structure, Journal of Alloys and Compounds 902, 163623 (2022)
work page 2022
- [13]
-
[14]
H. Flandorfer, D. Kaczorowski, J. Gröbner, P. Rogl, R. Wouters, C. Godart, and A. Kostikas, The systems ce–al–(si, ge): Phase equilibria and physical properties, Journal of Solid State Chemistry 137, 191 (1998)
work page 1998
- [15]
-
[16]
K. Singh and K. Mukherjee, Spin–lattice relaxation phenomena in the magnetic state of a suggested weyl semimetal cealge, Philosophical Magazine 100, 1771 (2020)
work page 2020
-
[17]
D. Destraz, L. Das, S. S. Tsirkin, Y. Xu, T. Neupert, J. Chang, A. Schilling, A. G. Grushin, J. Kohlbrecher, L. Keller, P. Puphal, E. Pomjakushina, and J. S. White, Magnetism and anomalous transport in the weyl semimetal pralge: possible route to axial gauge fields, npj Quantum Materials 5, 5 (2020)
work page 2020
-
[18]
D. S. Sanchez, G. Chang, I. Belopolski, H. Lu, J.-X. Yin, N. Alidoust, X. Xu, T. A. Cochran, X. Zhang, Y. Bian, S. S. Zhang, Y.-Y. Liu, J. Ma, G. Bian, H. Lin, S.-Y. Xu, S. Jia, and M. Z. Hasan, Observation of weyl fermions in a magnetic non-centrosymmetric crystal, Nature Com- munications 11, 3356 (2020)
work page 2020
-
[19]
H.-Y. Yang, B. Singh, B. Lu, C.-Y. Huang, F. Bahrami, W.-C. Chiu, D. Graf, S.-M. Huang, B. Wang, H. Lin, D. Torchinsky, A. Bansil, and F. Tafti, Transition from intrinsic to extrinsic anomalous hall effect in the ferro- magnetic weyl semimetal pralge1−xsix, APL Materials 8, 011111 (2020)
work page 2020
-
[20]
J. Zhao, W. Liu, A. Rahman, F. Meng, L. Ling, C. Xi, W. Tong, Y. Bai, Z. Tian, Y. Zhong, Y. Hu, L. Pi, L. Zhang, and Y. Zhang, Field-induced tricritical phe- nomenon and magnetic structures in magnetic weyl semimetal candidate ndalge, New Journal of Physics 24, 013010 (2022)
work page 2022
-
[21]
C. Dhital, R. L. Dally, R. Ruvalcaba, R. Gonzalez- Hernandez, J. Guerrero-Sanchez, H. B. Cao, Q. Zhang, W. Tian, Y. Wu, M. D. Frontzek, S. K. Karna, A. Meads, B. Wilson, R. Chapai, D. Graf, J. Bacsa, R. Jin, and J. F. DiTusa, Multi-k magnetic structure and large anomalous hall effect in candidate magnetic weyl semimetal ndalge, Phys. Rev. B 107, 224414 (2023)
work page 2023
-
[22]
H.-Y. Yang, J. Gaudet, R. Verma, S. Baidya, F. Bahrami, X. Yao, C.-Y. Huang, L. DeBeer-Schmitt, A. A. Aczel, G. Xu, H. Lin, A. Bansil, B. Singh, and F. Tafti, Stripe helical magnetism and two regimes of anomalous hall ef- fect in ndalge, Phys. Rev. Mater. 7, 034202 (2023)
work page 2023
-
[23]
C. Wang, Y.-Q. Guo, T. Wang, and S.-W. Yang, Crys- tal structure and electromagnetic responses of tetragonal gdalge, Chinese Physics B 29, 127502 (2020)
work page 2020
-
[24]
C. Wang, Y. Guo, and T. Wang, Correlation be- tween slanted magnetic structure and electromagnetic re- sponses in the ralge (r = tb and er) system, The Journal of Physical Chemistry C 125, 21764 (2021)
work page 2021
-
[25]
A. Laha, J. Yao, A. K. Kundu, N. Aryal, A. Rajapita- mahuni, E. Vescovo, F. Camino, K. Kisslinger, L. Zhang, D. Nykypanchuk, J. Sears, J. M. Tranquada, W. Yin, and Q. Li, Single-crystalline orthorhombic gdalge as a rare-earth magnetic dirac nodal-line metal, Phys. Rev. B 112, 125155 (2025)
work page 2025
-
[26]
K. Gouda and T. Nishioka, Angular-field magnetic phase diagram of b-plane at 4 k of yalge-type tbalge with zigzag-chain, Journal of Physics: Conference Series 2164, 012072 (2022)
work page 2022
-
[27]
H. M. Rietveld, A profile refinement method for nuclear and magnetic structures, Journal of Applied Crystallog- raphy 2, 65 (1969)
work page 1969
-
[28]
A. M. Guloy and J. D. Corbett, Syntheses and structures of lanthanum germanide, lage2-x, and lanthanum alu- minum germanide, laalge: interrelationships among the .alpha.-thsi2, .alpha.-gdsi2, and laptsi structure types, Inorganic Chemistry 30, 4789 (1991)
work page 1991
-
[29]
R. Wawrzyńczak, B. Tomasello, P. Manuel, D. Khalyavin, M. D. Le, T. Guidi, A. Cervellino, T. Ziman, M. Boehm, G. J. Nilsen, and T. Fennell, Magnetic order and single-ion anisotropy in tb3ga5o12, Phys. Rev. B 100, 094442 (2019)
work page 2019
- [30]
-
[31]
S. Majumdar and E. Sampathkumaran, Multiple mag- netic transitions and anomalous magnetism in tb2cuge3, Solid State Communications 117, 645 (2001)
work page 2001
- [32]
- [33]
- [34]
-
[35]
B. Maji, M. K. Ray, K. G. Suresh, and S. Banerjee, Large exchange bias and magnetocaloric effect in tbmn2si2, Journal of Applied Physics 116, 213913 (2014)
work page 2014
-
[36]
W. Tian, A. Kreyssig, J. L. Zarestky, L. Tan, S. Nandi, A. I. Goldman, T. A. Lograsso, D. L. Schlagel, K. A. Gschneidner, V. K. Pecharsky, and R. J. McQueeney, Single-crystal neutron diffraction study of short-range magnetic correlations in tb 5ge4, Phys. Rev. B 80, 134422 (2009)
work page 2009
-
[37]
C. Fang, G. Li, J. Wang, W. D. Hutchison, Q. Y. Ren, Z. Deng, G. Ma, S. Dou, S. J. Campbell, and Z. Cheng, New insight into magneto-structural phase transitions in layered tbmn2ge2-based compounds, Scientific Reports 10 7, 45814 (2017)
work page 2017
- [38]
-
[39]
A. M. Tishin and Y. I. Spichkin, The magnetocaloric ef- fect and its applications (CRC Press, 2016)
work page 2016
-
[40]
V. K. Pecharsky and K. A. Gschneidner Jr, Magne- tocaloric effect and magnetic refrigeration, Journal of Magnetism and Magnetic Materials 200, 44 (1999)
work page 1999
- [41]
-
[42]
K. Kamazawa, D. Louca, R. Morinaga, T. J. Sato, Q. Huang, J. R. D. Copley, and Y. Qiu, Field-induced an- tiferromagnetism and competition in the metamagnetic state of terbium gallium garnet, Phys. Rev. B 78, 064412 (2008)
work page 2008
-
[43]
S. Saha, H. Sugawara, T. D. Matsuda, H. Sato, R. C. Mallik, and E. V. Sampathkumaran, Mag- netic anisotropy, first-order-like metamagnetic transi- tions, and large negative magnetoresistance in single- crystalgd2pdsi3, Physical Review B 60, 12162 (1999)
work page 1999
-
[44]
T. Kurumaji, T. Nakajima, M. Hirschberger, A. Kikkawa, Y. Yamasaki, H. Sagayama, H. Nakao, Y. Taguchi, T.-h. Arima, and Y. Tokura, Skyrmion lattice with a giant topological hall effect in a frustrated triangular-lattice magnet, Science 365, 914 (2019)
work page 2019
- [45]
-
[46]
A. P. Ramirez, Strongly geometrically frustrated mag- nets, Annual Review of Materials Research 24, 453 (1994)
work page 1994
-
[47]
A. A. Burkov, M. D. Hook, and L. Balents, Topological nodal semimetals, Phys. Rev. B 84, 235126 (2011)
work page 2011
-
[48]
G. Chang, B. Singh, S.-Y. Xu, G. Bian, S.-M. Huang, C.-H. Hsu, I. Belopolski, N. Alidoust, D. S. Sanchez, H. Zheng, H. Lu, X. Zhang, Y. Bian, T.-R. Chang, H.-T. Jeng, A. Bansil, H. Hsu, S. Jia, T. Neupert, H. Lin, and M. Z. Hasan, Magnetic and noncentrosymmetric weyl fermion semimetals in the RAlGe family of compounds (R = rare earth ), Phys. Rev. B 97, 0...
work page 2018
-
[49]
Z. K. Liu, B. Zhou, Y. Zhang, Z. J. Wang, H. M. Weng, D. Prabhakaran, S.-K. Mo, Z. X. Shen, Z. Fang, X. Dai, Z. Hussain, and Y. L. Chen, Discovery of a three-dimensional topological dirac semimetal, na<sub>3</sub>bi, Science 343, 864 (2014)
work page 2014
-
[50]
M. Neupane, S.-Y. Xu, R. Sankar, N. Alidoust, G. Bian, C. Liu, I. Belopolski, T.-R. Chang, H.-T. Jeng, H. Lin, A. Bansil, F. Chou, and M. Z. Hasan, Observation of a three-dimensional topological dirac semimetal phase in high-mobility cd3as2, Nature Communications 5, 3786 (2014)
work page 2014
-
[51]
K. Klepp and E. Parthé, RPtSi phases ( R = La, Ce, Pr, Nd, Sm and Gd) with an ordered ThSi 2 derivative struc- ture, Acta Crystallographica Section B 38, 1105 (1982)
work page 1982
-
[52]
D. Gignoux and H. Asmat, Magnetic properties and structures of tbalga and hoalga, physica status solidi (a) 45, K149 (1978)
work page 1978
