arxiv: 1907.03279 · v1 · pith:IJAVACJNnew · submitted 2019-07-07 · 📡 eess.SY · cs.SY· math.OC

Modeling, Analysis, and Control of Mechanical Systems under Power Constraints

Gorkem Secer This is my paper

Pith reviewed 2026-05-25 01:36 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC
keywords peak power limitmechanical systemscontrol systemstorque saturationstability analysisoptimal controlmotion controlpower constraints
0
0 comments X

The pith

Peak power limits can be incorporated into mechanical system controllers more effectively than conservative torque saturation models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that the standard modeling of peak power limits as torque saturation based on allowable torque at maximum speed is overly conservative and degrades performance at lower operating speeds. It provides a theoretical analysis of how these power limits affect stability and performance of the closed-loop system. Based on that analysis, new methods are developed to incorporate the limits directly into both classical controllers and optimal controllers. A sympathetic reader would care because this could allow motion control systems to operate closer to true physical limits without sacrificing bandwidth or amplitude.

Core claim

The central claim is that a theoretical analysis of peak power limit effects on stability and performance enables novel incorporation methods into classical and optimal controllers that avoid the conservatism of the conventional torque saturation model derived from allowable torque at maximum speed.

What carries the argument

The peak power limit model, which replaces conservative speed-based torque saturation with a direct representation of source power constraints and is embedded into controller designs.

If this is right

  • Controllers achieve higher output amplitude and bandwidth when operating below maximum speed.
  • Stability properties are preserved under the new power-limit incorporation methods.
  • The approach applies equally to classical feedback controllers and optimal control formulations.
  • Physical power-source constraints are respected while reducing unnecessary conservatism in torque commands.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same power-limit analysis could be applied to related actuator constraints such as voltage or current limits.
  • Real-time implementation would require computing the power boundary on the fly without excessive computational overhead.
  • Quantitative benchmarks against saturation-only methods in specific hardware setups like robotic arms would reveal the size of any performance gains.

Load-bearing premise

The conventional torque saturation model derived from allowable torque at maximum speed is overly conservative, and a more accurate power-limit model can be incorporated without introducing new instabilities or performance losses.

What would settle it

A closed-loop experiment or simulation on a mechanical actuator where the new controllers either violate the peak power constraint, exhibit instability, or show equal or worse performance metrics than the conventional saturation approach.

Figures

Figures reproduced from arXiv: 1907.03279 by Gorkem Secer.

Figure 1

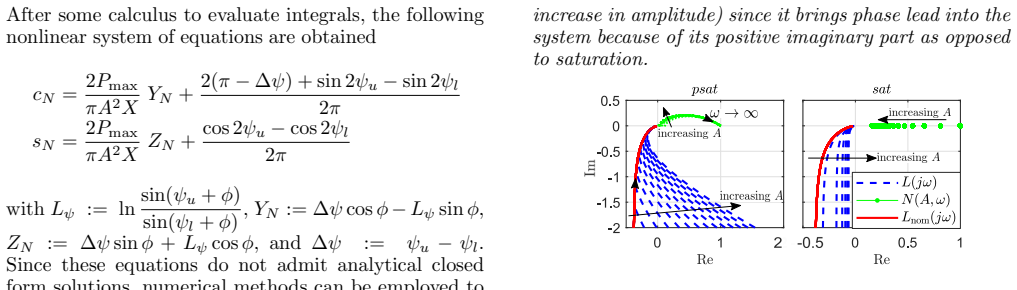

Figure 1. Figure 1: Nyquist diagram of nonlinearity describing func [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
