arxiv: 2606.18079 · v1 · pith:IOZMBONZnew · submitted 2026-06-16 · 🌌 astro-ph.IM

Sustainability as a design parameter in the early development of the Wide-field Spectroscopic Telescope

L. Fr\'eour , E. Burtin , R. Bacon , B. Ziegler , S. Randich , A. Pecontal , P. M. Weilbacher , C. Cudennec
show 8 more authors
D. Buffat S. D'Auria A. Meoli L. P. Cassar\`a P. Dierickx V. Mainieri P. Franzetti D. Lee
This is my paper

Pith reviewed 2026-06-26 22:36 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords sustainabilitylife-cycle assessmentcarbon footprinttelescope designspectrograph instrumentsdata managementenvironmental impact
0
0 comments X

The pith

The Wide-field Spectroscopic Telescope treats carbon footprint as a core design trade-off parameter from the conceptual stage onward.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how a next-generation 12-meter telescope facility planned for the 2040s is incorporating life-cycle assessment into its earliest design decisions. The assessment targets the environmental impact of roughly 250 spectrographs and their detector cooling systems across three instruments, with the resulting carbon-footprint numbers used directly in choices that also weigh scientific performance and cost. The work also evaluates data-processing and storage approaches for the expected 1-3 PB per year output to limit the associated emissions. This early integration lets sustainability function as a measurable constraint rather than an after-the-fact consideration.

Core claim

By performing a preliminary life-cycle assessment on the instruments and treating its carbon-footprint results as a design trade-off parameter, the project can weigh sustainability alongside performance and cost; parallel evaluation of data-management strategies offers a second route to lowering the facility's overall environmental impact.

What carries the argument

Life-cycle assessment (LCA) that quantifies emissions from construction through operation for the spectrographs and cooling systems, with its outputs inserted as an explicit parameter in design trade-offs; supplemented by carbon-footprint monitoring for data processing and storage.

If this is right

  • Instrument designs can be adjusted to reduce total emissions while still meeting performance goals.
  • Data-handling architectures can be chosen to limit the carbon cost of managing petabyte-scale annual output.
  • Sustainability metrics become comparable to cost and performance in early facility planning decisions.
  • The same LCA approach can be repeated at later design milestones to track and control cumulative impact.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Other large astronomy projects could adopt the same early-assessment practice to make their own environmental accounting more systematic.
  • Treating carbon footprint as a parameter might favor simpler or lower-power instrument architectures that would not have been selected on performance and cost alone.
  • The method leaves open how to resolve conflicts if the lowest-carbon option materially reduces scientific capability.

Load-bearing premise

A preliminary life-cycle assessment performed at the conceptual stage yields carbon-footprint estimates reliable enough to serve as a stable basis for design choices.

What would settle it

Later detailed engineering data that revise the preliminary carbon-footprint estimates by a large factor, such as more than 50 percent, would show the early assessment cannot reliably guide trade-offs.

Figures

Figures reproduced from arXiv: 2606.18079 by A. Meoli, A. Pecontal, B. Ziegler, C. Cudennec, D. Buffat, D. Lee, E. Burtin, L. Fr\'eour, L. P. Cassar\`a, P. Dierickx, P. Franzetti, P. M. Weilbacher, R. Bacon, S. D'Auria, S. Randich, V. Mainieri.

Figure 1

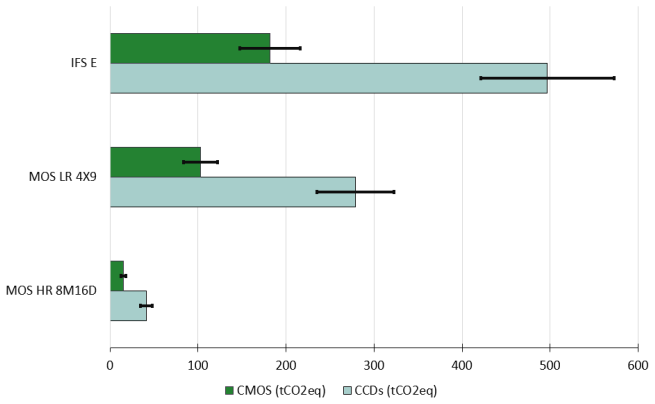

Figure 1. Figure 1: Comparison of the 1-year operation carbon footprint for options with CDDs (blue) and with CMOS (green) [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

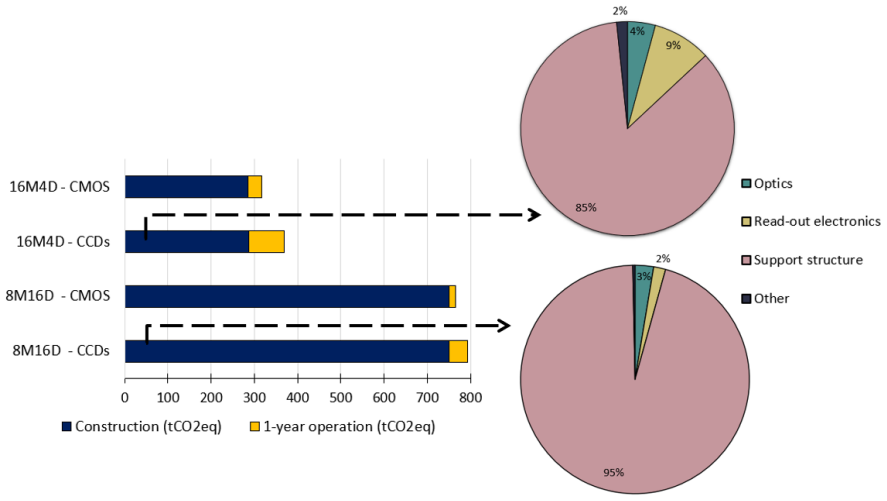

Figure 2. Figure 2: Comparison of the construction and 1-year operation carbon footprints for the MOS HR designs, with details [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

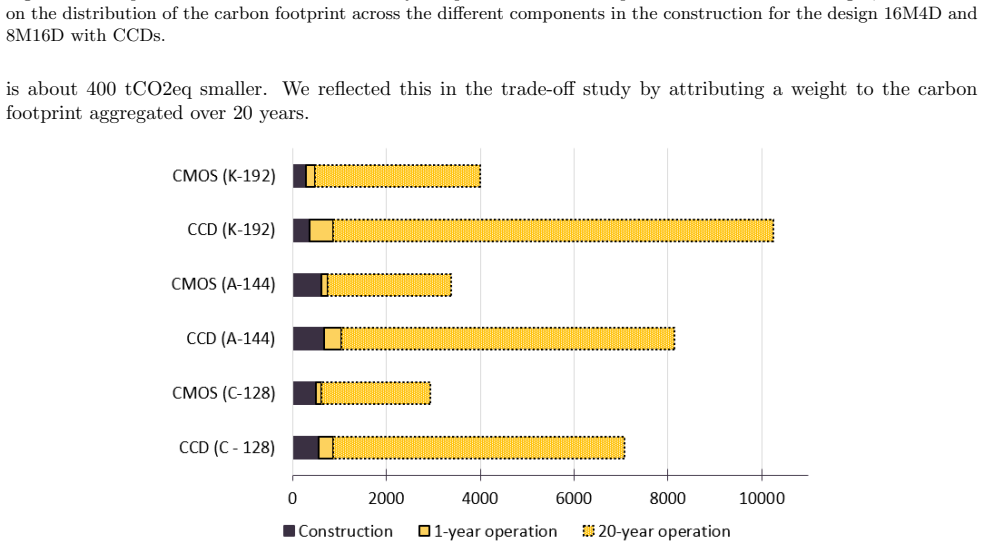

Figure 3. Figure 3: Comparison of the carbon footprint (tCO2eq) for 3 different design options for the IFS, ranging from an option [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

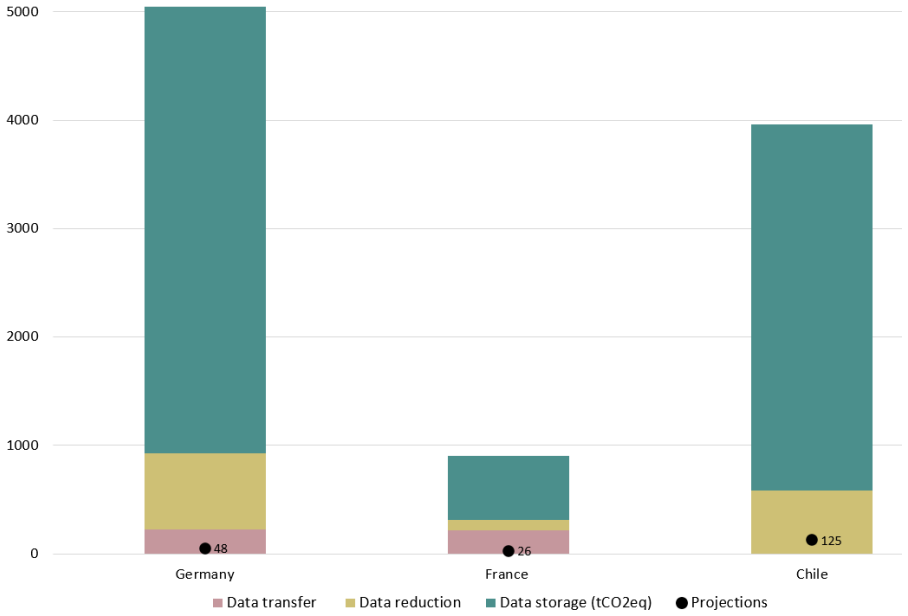

Figure 4. Figure 4: 20-year cumulative carbon footprint associated with different data processing steps for three scenarios: data [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
read the original abstract

The proposed Wide-field Spectroscopic Telescope, a next-generation telescope facility with a 12-meter primary mirror that may be operational in the 2040s, is integrating sustainable considerations from the early design stage. Our preliminary analysis identifies two primary sources of environmental impact that can be mitigated during the design process. First, we are conducting a life-cycle assessment (LCA) to quantify the environmental impact of the ~250 spectrographs and the detector cooling systems across the telescope's three instruments, from construction through operation. The carbon footprint estimated through this LCA has been included as a trade-off parameter in the design choices. Second, the WST is expected to produce 1-3 PB/year, requiring careful evaluation of data processing and storage strategies. We explore approaches to monitoring and reducing the carbon footprint associated with data management. Bringing environmental factors into the design process from the start gives us the chance to weigh sustainability alongside scientific performance and cost. By treating the carbon footprint as a core design consideration, we aim to make progress toward more responsible astronomy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript describes the early-stage integration of sustainability into the design of the proposed Wide-field Spectroscopic Telescope (WST), a 12-m facility planned for the 2040s. It reports that a life-cycle assessment (LCA) is being performed on the ~250 spectrographs and detector cooling systems across three instruments to quantify carbon footprint from construction through operation, with this footprint incorporated as a trade-off parameter alongside scientific performance and cost. The paper also discusses strategies for monitoring and reducing the carbon footprint of processing and storing the expected 1-3 PB/year data volume.

Significance. If the LCA were to deliver quantitative, validated carbon-footprint estimates that demonstrably influence specific design choices, the work could establish a precedent for treating environmental impact as a first-class parameter in conceptual design of large astronomical facilities. The emphasis on data-management emissions is timely given the scale of next-generation surveys. However, the current manuscript supplies no numerical LCA outputs, uncertainty ranges, or examples of trade-off decisions, so the claimed significance remains prospective rather than realized.

major comments (2)
  1. [Abstract] Abstract: The assertion that 'the carbon footprint estimated through this LCA has been included as a trade-off parameter in the design choices' is unsupported by any reported numerical results, system boundaries, material inventories, energy profiles, lifetime assumptions, or concrete examples of design options that were altered on sustainability grounds. Without these, the central claim that sustainability functions as a core, operational design parameter cannot be evaluated.
  2. [Abstract] Abstract: At the conceptual-design stage, the reliability of preliminary LCA estimates for ~250 spectrographs and cooling systems is not addressed. Key inputs (material quantities, manufacturing processes, operational duty cycles, and end-of-life scenarios) remain loosely constrained; the manuscript provides no sensitivity analysis or validation steps to show that the resulting carbon-footprint values are stable enough to serve as a meaningful comparator against performance and cost metrics.
minor comments (1)
  1. The 1-3 PB/year data-volume range would benefit from a short justification or comparison to existing or planned facilities to allow readers to assess the scale of the associated computational footprint.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We agree that the manuscript is at a conceptual stage and that the abstract overstates the current integration of LCA results into design decisions. We will revise accordingly to clarify the preliminary status of the work while preserving the paper's focus on early-stage sustainability considerations.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that 'the carbon footprint estimated through this LCA has been included as a trade-off parameter in the design choices' is unsupported by any reported numerical results, system boundaries, material inventories, energy profiles, lifetime assumptions, or concrete examples of design options that were altered on sustainability grounds. Without these, the central claim that sustainability functions as a core, operational design parameter cannot be evaluated.

    Authors: We accept the referee's assessment. The manuscript describes an ongoing conceptual-design effort in which an LCA is being initiated, but no completed numerical results, system boundaries, or specific design trade-off examples exist at this time. The phrasing in the abstract therefore overstates the current state. In revision we will replace the claim with a statement that the LCA outputs are planned to be used as a design parameter once quantitative estimates are available, and we will add a short methods subsection outlining the intended system boundaries and data sources. revision: yes

  2. Referee: [Abstract] Abstract: At the conceptual-design stage, the reliability of preliminary LCA estimates for ~250 spectrographs and cooling systems is not addressed. Key inputs (material quantities, manufacturing processes, operational duty cycles, and end-of-life scenarios) remain loosely constrained; the manuscript provides no sensitivity analysis or validation steps to show that the resulting carbon-footprint values are stable enough to serve as a meaningful comparator against performance and cost metrics.

    Authors: This observation is correct. Because the work remains at the conceptual stage, the manuscript contains no sensitivity analyses or validation protocols. We will add a dedicated paragraph describing the planned LCA framework, the principal sources of uncertainty in material and energy inventories, and the sequence of validation steps (expert review, supplier data collection, and iterative refinement) that will be followed before the carbon-footprint metric is used in formal trade-off studies. revision: yes

Circularity Check

0 steps flagged

No circularity: procedural description with no derivations or self-referential reductions

full rationale

The paper presents a high-level description of incorporating life-cycle assessment (LCA) and data-management considerations into early telescope design. No equations, fitted parameters, predictions, or uniqueness theorems appear. The central claim—that treating carbon footprint as a design parameter enables trade-offs alongside performance and cost—rests on procedural intent rather than any derivation that reduces to the authors' own inputs or self-citations. The text is self-contained against external benchmarks and contains no load-bearing steps of the enumerated circular kinds.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The work implicitly assumes standard LCA methodology applies without modification to telescope hardware and data systems.

pith-pipeline@v0.9.1-grok · 5792 in / 995 out tokens · 23935 ms · 2026-06-26T22:36:22.183593+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

28 extracted references · 1 linked inside Pith

  1. [1]

    Estimate of the carbon footprint of astronomical research infrastructures,

    Kn¨ odlseder, J., Brau-Nogu´ e, S., Coriat, M., and al., “Estimate of the carbon footprint of astronomical research infrastructures,”Nature Astronomy6, 503–513 (2022)

    2022

  2. [2]

    The impact of climate change on astronomical observations,

    Cantalloube, F., Milli, J., B¨ ohm, C., and al., “The impact of climate change on astronomical observations,” Nature Astronomy4, 826–829 (Sept. 2020)

    2020

  3. [3]

    Life cycle assessment of the ATHENA X-ray integral field unit,

    Barret, D., Albouys, V., Kn¨ odlseder, J., and al., “Life cycle assessment of the ATHENA X-ray integral field unit,”Experimental Astronomy57, 19 (04 2024). ††https://wstelescope.eu/

    2024

  4. [4]

    Estimate of the environment impact of the ELT instrument MOSAIC,

    Janssen, A., Hadi, K. E., Bharmal, N. A., and al., “Estimate of the environment impact of the ELT instrument MOSAIC,” in [Modeling, Systems Engineering, and Project Management for Astronomy XI], Egner, S. E. and Roberts, S., eds.,13099, 130990P, International Society for Optics and Photonics, SPIE (2024)

    2024

  5. [5]

    Life cycle analysis of the grand experiment,

    Vargas-Iba˜ nez, L. T., Kotera, K., Blanchard, O., and al., “Life cycle analysis of the grand experiment,” Astroparticle Physics155, 102903 (2024)

    2024

  6. [6]

    Assessment of the environmental impacts of the Cherenkov Telescope Array mid-sized telescope,

    dos Santos Ilha, G., Boix, M., Kn¨ odlseder, J., and al., “Assessment of the environmental impacts of the Cherenkov Telescope Array mid-sized telescope,”Nature Astronomy8, 1468–1477 (11 2024)

    2024

  7. [7]

    WST - Widefield Spectroscopic Telescope: motivation, science drivers and top level requirements for a new dedicated facility,

    Bacon, R., Maineiri, V., Randich, S., and al., “WST - Widefield Spectroscopic Telescope: motivation, science drivers and top level requirements for a new dedicated facility,” in [Ground-based and Airborne Telescopes X], Marshall, H. K., Spyromilio, J., and Usuda, T., eds.,13094, 130941O, International Society for Optics and Photonics, SPIE (2024)

    2024

  8. [8]

    WST - Widefield Spectroscopic Telescope: design of a new 12m class telescope dedicated to widefield multi-object and integral field spectroscopy,

    Dierickx, P., Travouillon, T., Gausachs, G., and al., “WST - Widefield Spectroscopic Telescope: design of a new 12m class telescope dedicated to widefield multi-object and integral field spectroscopy,” in [Ground- based and Airborne Telescopes X], Marshall, H. K., Spyromilio, J., and Usuda, T., eds.,13094, 1309431, International Society for Optics and Pho...

    2024

  9. [9]

    The Wide-field Spectroscopic Telescope (WST) Science White Paper,

    Mainieri, V., Anderson, R. I., Brinchmann, J., and al., “The Wide-field Spectroscopic Telescope (WST) Science White Paper,”arXiv e-prints, arXiv:2403.05398 (Mar. 2024)

    arXiv 2024

  10. [10]

    Iso 14040:2006 – environmental management – life cycle assessment – principles and framework,

    International Organization for Standardization, “Iso 14040:2006 – environmental management – life cycle assessment – principles and framework,” (07 2006)

    2006

  11. [11]

    Recipe2016: a harmonised life cycle impact assessment method at midpoint and endpoint level,

    Huijbregts, M. A. J., Steinmann, Z. J. N., Elshout, P. M. F., and al., “Recipe2016: a harmonised life cycle impact assessment method at midpoint and endpoint level,”The International Journal of Life Cycle Assessment22, 138–147 (02 2017)

    2017

  12. [12]

    Guiding Design Choices for Wide-Field IFS: Trade-Offs Between Replication and Complexity for WST,

    Cudennec, C., Jeanneau, A., Bacon, R., and al., “Guiding Design Choices for Wide-Field IFS: Trade-Offs Between Replication and Complexity for WST,” (2026)

    2026

  13. [13]

    WST, the Wide-field Spectroscopic Telescope: Mechanical Design and FE Analyses for the High Resolution Spectrograph,

    D’Auria, S., Tozzi, A., Brucalassi, A., and al., “WST, the Wide-field Spectroscopic Telescope: Mechanical Design and FE Analyses for the High Resolution Spectrograph,” (2026)

    2026

  14. [14]

    WST, the Wide-field Spectroscopic Telescope: design trade-offs for the low-resolution multi-object spectrograph instrument,

    Buffat, D., Dohlen, K., Saunders, W., and al., “WST, the Wide-field Spectroscopic Telescope: design trade-offs for the low-resolution multi-object spectrograph instrument,” (2026)

    2026

  15. [15]

    The DESI Experiment Part II: Instrument Design,

    DESI Collaboration, Aghamousa, A., Aguilar, J., and al., “The DESI Experiment Part II: Instrument Design,”arXiv e-prints, arXiv:1611.00037 (Oct. 2016)

    Pith/arXiv arXiv 2016

  16. [16]

    Progress in new environmental friendly low temperature detector cooling systems development for the atlas and cms experiments,

    Zwalinski, L., Barroca, P., Bortolin, C., and al., “Progress in new environmental friendly low temperature detector cooling systems development for the atlas and cms experiments,”Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment1047, 167688 (2023)

    2023

  17. [17]

    System design of the newest generation detector controller for extremely large telescope and new very large telescope instruments,

    Richerzhagen, M., Seidel, M., Mehrgan, L., and al., “System design of the newest generation detector controller for extremely large telescope and new very large telescope instruments,”Journal of Astronomical Telescopes, Instruments, and Systems10(4), 046001 (2024)

    2024

  18. [18]

    The muse instrument detector system,

    Reiss, R., Deiries, S., Lizon, J.-L., and Rupprecht, G., “The muse instrument detector system,”SPIE8449 (09 2012)

    2012

  19. [19]

    Carbon footprint of cloud, edge, and Internet of Edges,

    Loygue, P., Al Agha, K., and Pujolle, G., “Carbon footprint of cloud, edge, and Internet of Edges,”Annals of Telecommunications - annales des t´ el´ ecommunications80, 153–169 (Feb. 2025)

    2025

  20. [20]

    The large-scale geography of internet round trip times,

    Landa, R., Jo˜ ao, T., Ara´ ujo, R., and al., “The large-scale geography of internet round trip times,”2013 IFIP Networking Conference, IFIP Networking 2013(01 2013)

    2013

  21. [21]

    Rapport : ´ evaluation de l’empreinte carbone de la transmission d’un gigaoctet de donn´ ees sur le r´ eseau RENATER,

    Ficher, M., Berthoud, F., Ligozat, A.-L., and al., “Rapport : ´ evaluation de l’empreinte carbone de la transmission d’un gigaoctet de donn´ ees sur le r´ eseau RENATER,” (2022)

    2022

  22. [22]

    The Data Processing Pipeline for the MUSE Instru- ment,

    Weilbacher, P. M., Palsa, R., Streicher, O., and al., “The Data Processing Pipeline for the MUSE Instru- ment,”A&A641, A28 (Sept. 2020)

    2020

  23. [23]

    Rehearsing the complex data flow of multi- object spectrograph survey projects,

    Worley, C. C., Walton, N. A., Murphy, D. N. A., and al., “Rehearsing the complex data flow of multi- object spectrograph survey projects,” in [Modeling, Systems Engineering, and Project Management for Astronomy X], Angeli, G. Z. and Dierickx, P., eds.,Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series12187, 1218706 (Aug. 2022)

    2022

  24. [24]

    Green algorithms: Quantifying the carbon footprint of computation,

    Lannelongue, L., Grealey, J., and Inouye, M., “Green algorithms: Quantifying the carbon footprint of computation,”Advanced Science8(12), 2100707 (2021)

    2021

  25. [25]

    Applying krypton as refrigerant for cooling of future particle detector trackers at CERN,

    Contiero, L., Verlaat, B., Hafner, A., and al., “Applying krypton as refrigerant for cooling of future particle detector trackers at CERN,” in [16th IIR Gustav Lorentzen Conference on Natural Refrigerants (GL2024)], (August 2024)

    2024

  26. [26]

    Weather and climate extreme events in a changing cli- mate,

    Seneviratne, S., Zhang, X., Adnan, M., and al., “Weather and climate extreme events in a changing cli- mate,” in [Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change], 1513–1766, Cambridge University Press, Cambridge, United Kingdom and New York, N...

    2021

  27. [27]

    A renewable power system for an off-grid sustainable telescope fueled by solar power, batteries and green hydrogen,

    Viole, I., Valenzuela-Venegas, G., Zeyringer, M., and Sartori, S., “A renewable power system for an off-grid sustainable telescope fueled by solar power, batteries and green hydrogen,”Energy282, 128570 (2023)

    2023

  28. [28]

    Integrated life cycle assessment in off-grid energy system designˆ a€

    Viole, I., Valenzuela-Venegas, G., Sartori, S., and Zeyringer, M., “Integrated life cycle assessment in off-grid energy system designˆ a€”uncovering low hanging fruit for climate mitigation,”Applied Energy367, 123334 (2024)

    2024
